HBTM 45 - Headphones GoGen - Free user manual and instructions

Product Type	Bluetooth Wireless Headphones
Brand	GoGen
Model	HBTM 45
Bluetooth Version	V 5.3
Wireless Working Range	10 m
Frequency Range	2.402 GHz - 2.480 GHz
Transmit Power (E.i.r.p.)	0.33 dBm
Charging Port	USB-C
Speaker Sensitivity	100 dB ±3 dB at 1 kHz, 1 mW
Speaker Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Input Voltage	DC 5 V
Battery Type	Rechargeable Li-polymer 3.7 V / 400 mAh
Play Time	Up to 31 hours
Charging Time	Approximately 3 hours
Wired Operation	Yes (3.5 mm audio cable)
Controls	Volume +/-, Play/Pause, Track Skip, Voice Assistant, Call Answer/End/Reject, Power On/Off
LED Indicators	Red/Blue flashing (pairing), Blue flash every 5s (connected), Red solid (charging), Off (charged)
Included Accessories	USB-C charging cable, 3.5 mm audio cable, User Manual
Safety Warnings	High volume may affect hearing; do not use while driving or cycling; keep plastic bag away from children
Disposal	WEEE compliant – do not dispose as household waste
Warranty	Limited warranty; battery capacity decrease due to age/use not covered

Frequently Asked Questions - HBTM 45 GoGen

How do I pair the headphones with my phone?

Turn on the headphones by sliding the power switch to ON. The LED will flash red and blue. Open Bluetooth settings on your device, search for GOGHBTM45, and select it to pair. If asked for a password, enter 0000.

How long does the battery last?

The battery provides up to 31 hours of play time on a full charge.

How do I charge the headphones?

Connect the provided USB-C cable to the headphones and a USB charger or computer. The LED will turn red during charging and switch off when fully charged. Charging takes about 3 hours.

Can I use the headphones in wired mode?

Yes, you can use the included 3.5 mm audio cable to connect to devices without Bluetooth. When using wired mode, all wireless functions and button controls are disabled. Volume and track control must be done from the connected device.

What do the LED lights mean?

In pairing mode, the LED flashes red and blue. When connected, it flashes blue every 5 seconds. During charging, it is red; when fully charged, it turns off.

How do I adjust the volume or skip tracks?

Press the + button to increase volume or hold for 2 seconds to skip to the next track. Press the - button to decrease volume or hold for 2 seconds to go to the previous track.

What should I do if the headphones turn off suddenly?

This indicates a low battery. Charge the headphones using the USB-C cable. To maintain battery health, charge them at least once per month if not used.

Is it safe to use these headphones while driving?

No. For traffic safety, do not use the headphones while driving or cycling. High volume may also affect your hearing.

How do I clean and maintain the headphones?

Wipe the headphones with a soft, dry cloth. Do not use liquids or abrasive cleaners. Store them in a cool, dry place.

Are the headphones waterproof?

No, the headphones are not waterproof. Avoid exposure to water or excessive moisture.

USER MANUAL HBTM 45 GoGen

Black and white photo of a black outdoor headphones with visible branding (no text or symbols on the headset body)

HBTM 45

Prohibition sign with a circular border and a stylized face inside (no text or symbols)

Prohibition sign with a diagonal line crossing over a stylized animal silhouette (no text or symbols)

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

LIKVIDACE NEPOTŘEBNÉHO ELEKTRICKÉHO ELEKTRONICKÉHO ZAŘÍZENÍ (PLATNÉ EVROPSKÉ UNII A V DALŠÍCH EVROPSKÝCH STÁTECH UPLATŇUJÍCÍCH ODDĚLENÝ SYSTÉM SBĚRU)

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

Prohibition sign with a person inside a circle and crossed-out hand (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIELKACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

LIKVIDÁCIA STARÝCH ELEKTRICKÝCH A PRÍSTROJOV (VŤAHUJE SA NA EURÓPSKU ÚNIU A EURÓPSKE KRAJINY SO SYSTÉMAMI ODDELENÉHO ZBERU)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Prohibition sign with a person wearing a mask crossed out by a diagonal line (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKĘ Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TOREBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Thank you for purchasing the Bluetooth Wireless Headphones. Before using, please read over this manual on how to properly use your headphones and for other product specifications.

PACKAGE CONTENTS

Headphone, Charging cable, User Manual

WARNING

High volume may affect your hearing.

For traffic safety, do not use while driving or cycling.

TECHNICAL SPECIFICATIONS

• Bluetooth Version: V 5.3
  • Wireless Working Range: 10 m
  • Frequency range: 2,402 GHz - 2,480 GHz, E.i.r.p.: 0,33 dBm
• Charging: USB-C cable
• Speaker Sensitivity: 100 dB ± 3 dB at 1 kHz;1 mW
• Speaker Frequency: 20 Hz - 20 kHz
• Impedance: 32
• Input Voltage: DC 5 V
• Battery: Rechargeable Li-polymer 3,7 V / 400 mAh
• Play Time: Up to 31 h
• Charging Time: About 3 h

WIRED CAPABILITY

Note: the headphones can be used as wired headphones for devices without Bluetooth capability. If using as wired headphones, all functions on the headset will not work. If you are paired via Bluetooth to a device and then use the wired connection on another device at the same time, you will hear audio from both devices.

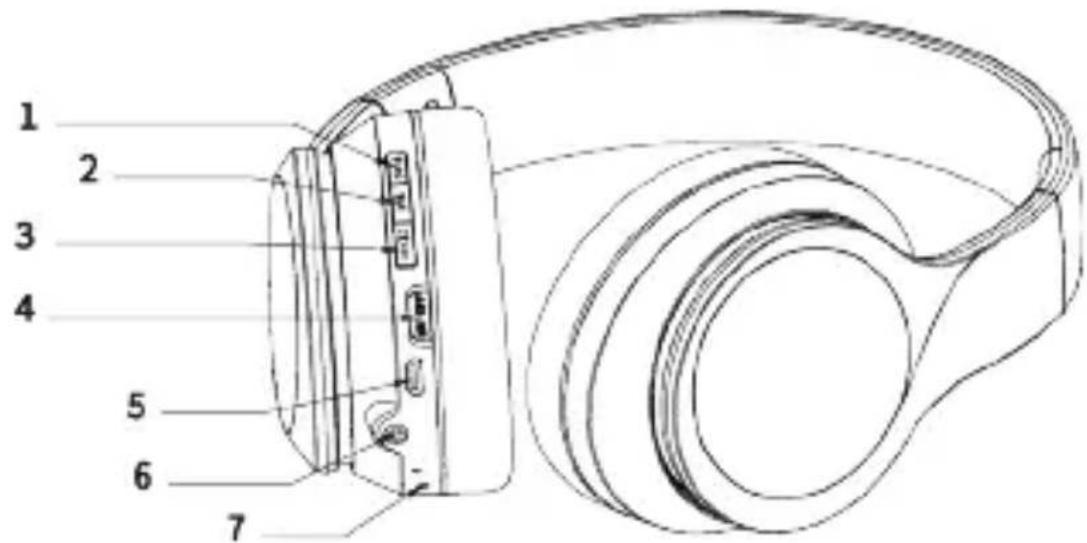

DEVICE LAYOUT

1. Button + Press once to increase the volume by one level. One signal tones will sound when the maximum volume has been reached.

During playback press and hold approx. 2 seconds to skip to the next track.

1. Button PLAY/PAUSE—press once to play / stop music playback. A long press activates the voice assistant.

Press once to answer or hang up the incoming call.

Hold for 3 seconds to reject the incoming call.

1. Button – Press once to reduce the volume by one level. One signal tone will sound when the minimum volume has been reached. During playback, press and hold approx. 2 seconds to jump to the previous track.

2. Switch ON/OFF – move to ON/OFF to switch the device on / off.

3. USB-C charging socket.

4. 3,5 mm jack plug port

5. LED indicator

LED INDICATOR

Bluetooth Mode: When in Bluetooth mode, the blue and red LED indicators will flash alternately. When connected, the LED will briefly flash blue every 5 seconds.

Charging Mode: When charging, the LED light will light red. When finished charging, the LED light switch off.

BLUETOOTH PAIRING MODE

Turn on the headphone by switching the power button to ON. The LED's start flashing red and blue.

CONNECTING TO A BLUETOOTH DEVICE

1. When the headphones are in pairing mode, open the wireless setting on your device. Make sure the device's bluetooth setting is turned on.
2. Search for GOGHBTM45.
3. Choose GOGHBTM45 pair, your device should them show "connected".
4. The LED will flash blue every 5 seconds when connected to your devices.
5. If your device asks you for a password to connect to the headphones, key in "0000". This is normally not needed.

CHARGING

Connect the provided USB-C cable to a computer or a USB charger. The LED light will turn red while charging. The LED light will switch off when charging is finished.

LOW BATTERY

When the battery power is low, the headphones will automatically turn off. To maintain proper battery levels, charge the headphones at least once per month. If the headphones is without being power on for long periods of time, they will need to be charged to maintain full battery levels.

WIRED MODE

You may use the included 3,5mm audio cable to directly plug the headphones into an audio device. When using the 3,5mm cable, all wireless functions, along with button functions will not work. To adjust volume levels or track selections, you must use the connected devices 's functions.

TO CONNECT

1. Insert the 3,5mm cable into the 3,5mm port on the headphones.
2. Insert the other end of the 3,5mm audio cable
3. Control functions of the headphones, volume, track, play/pause through the connected audio device.

WARRANTY

The warranty does not apply to a decrease in the accumulator's effective capacity caused by its use or age. Effective capacity gradually decreases depending on the method of use of the accumulator.

We reserve the right to change technical specifications.

Prohibition sign with a circular border and crossed-out hand gesture (no text or symbols)

Prohibition sign with a diagonal line crossing through it, no text or symbols present.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type HBTM45 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.gogen.cz/declaration_of_conformity

Prohibition sign with a circular outline and a pictogram of a person wearing a mask (no text or symbols)

Prohibition sign with a crossed-out dog silhouette (no text or symbols)

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÓL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSŐKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)
