XPLODE APS21 - Loudspeaker PRIME3 - Free user manual and instructions

Product Type	Portable Bluetooth Speaker with Karaoke
Dimensions	260 x 125 x 345 mm
Weight	2.1 kg
Power Source	DC 5V, 10.5W (USB charger with 1-2.1A output)
Battery Capacity	1800 mAh, 7.4V rechargeable Li-ion
Charging Time	Approximately 1.5 hours (with 5V/10.5W input)
Music Playback Time	~6 hours
Bluetooth Version	4.2, working range up to 10 meters
FM Radio	87.5-108.0 MHz, up to 99 preset stations
USB Playback	Supports MP3/WMA (FAT16/FAT32, max 32GB)
MicroSD Card Playback	Supports MP3/WAV (max 32GB)
AUX IN	3.5mm stereo input for external players
Karaoke Function	6.5mm microphone input with volume/bass/echo controls
Output Power	16W RMS
Cleaning	Wipe with a dry cloth only; do not use liquids or solvents
Safety Notes	Keep away from heat sources, do not block ventilation, do not expose to dripping or splashing
Warranty	Battery wear not covered; refer to manufacturer warranty terms
Compliance	CE marked, compliant with EU directives

Frequently Asked Questions - XPLODE APS21 PRIME3

How do I charge the speaker for the first time?

For the first charge, connect the speaker to a USB charger (5V, 1-2.1A) and charge for at least 10 hours.

How do I pair my phone via Bluetooth?

Power on the speaker, enable Bluetooth on your phone, search for devices, and select P3_XPLODE. If prompted, enter 0000 as the PIN.

Why is there no sound in Bluetooth mode?

Ensure the speaker is paired and within 10 meters. Try turning off Bluetooth and re-pairing, or move your device closer to the speaker.

How do I set up the FM radio?

Unwind the antenna wire. Press the mode button to select FM, then press Play/Pause to auto-scan and save stations. Use skip buttons to browse presets.

Can I use a USB cable that is not supplied?

It is not recommended to use an extension USB cable as it may affect audio signal input. Use only the supplied cable or a short, high-quality cable.

What file formats does the speaker support via USB or microSD?

USB supports MP3 and WMA; microSD supports MP3 and WAV. The device must be formatted as FAT16 or FAT32, up to 32GB.

How do I use the karaoke function?

Plug a wired microphone (not included) into the 6.5mm jack. Adjust the microphone volume, bass, and echo using the knobs on the rear panel. You can sing while music plays.

The speaker turns off automatically during use. What should I do?

The battery may be exhausted. Recharge the speaker using the USB cable and a suitable charger (5V, 1-2.1A). If the issue persists, contact service.

Can I listen to music while charging?

Yes, the speaker can play music during charging. There may be slight noise if the charging current is low; if that happens, unplug and let the speaker reset.

How should I clean and store the speaker?

Clean only with a dry cloth. Store in a cool, dry place away from heat and moisture. Do not expose to direct sunlight or extreme temperatures.

USER MANUAL XPLODE APS21 PRIME3

Exterior view of a black and silver PRIME³ electronic device with no visible text or symbols on the body itself.

Important notes

• Use in accordance with the instruction manual.
• Do not install the device near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that generate heat.
• Clean only with a dry cloth.
• Do not cover or obstruct ventilation holes on speakers' grill.
• Do not expose the device to dripping or splashing.
• Use only original accessories specified by manufacturer.
• This product is not a toy, can be used by children only under supervision of adults.
• Do not expose the device to excessive heat such as sunshine, fire or the like.
• Do not use during lighting storms.
• Do not expose the device to electromagnetic radiation.
• In order to prevent hearing loss, do not listen to music for prolonged periods of time.
• Remember to do not use electronic devices in distance smaller than 10cm from pacemaker.

Hereby, 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at w.Responsible Party: 2N-Everpol Sp.z o.o., Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail:[e-mail].

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EG, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Bluetooth™

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Many thanks for buying our product. This model includes below main features.

• Bluetooth function for audio streaming playback.
  • Built-in rechargeable battery.
• PLL FM radio with station memory (up to 99 stations).
• MicroSD card playback(max supported device till 32GB).
• MP3/WMA playback function.
• Aux playback function.
• USB slot.
• Karaoke function (6,5mm microphone input).

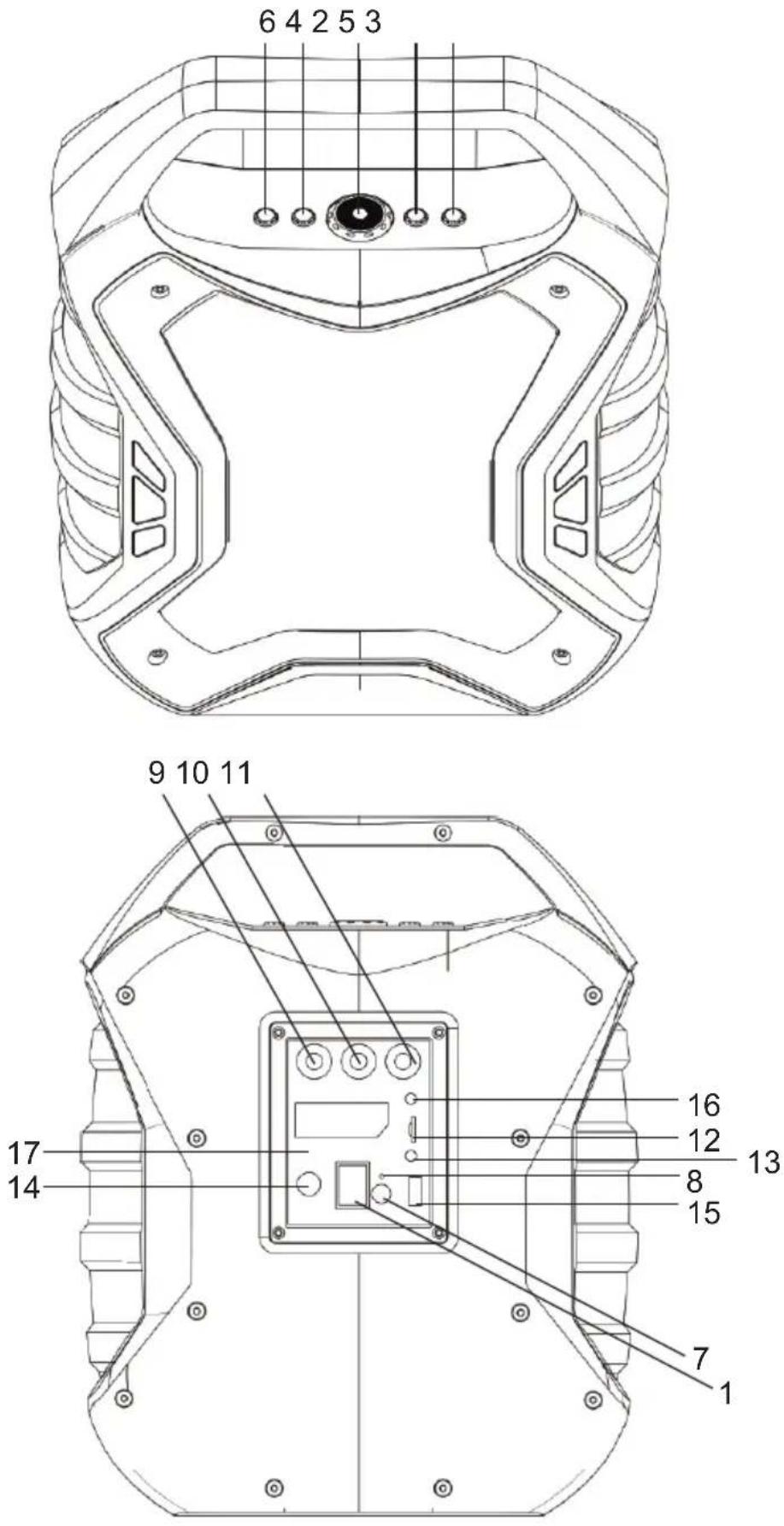

List of controls:

This unit had built-in rechargeable lithium battery inside. Before start the playing, please follow up below step for charging.

1. Using the supplied USB cable to connect the speaker with your USB charger (USB adaptor or USB output port like on PC, USB rating output: 5V, 10,5W, other USB charger with current between 1-2,1A). The connector should be connected with the DC 5V power jack on the rear panel of speaker, and another terminal connect with USB charger. Then plug your USB charger into the household AC power.
2. The charging LED will light on in red colour during charging, and the red colour LED will off when the battery is fully charged.
3. The speaker will off automatically when the battery power exhausted, please arrange recharge for playing.

Important: We recommend connect the USB charger with rating output spec at DC 5V/1A, or between 1-2,1A current USB power. The general USB output on PC (personal computer) is 5V/500mA (please reference your PC spec for checking). There may have some charging noise or abnormal function from speaker if the charging current is too low. If it happened, please remove the charging power and put the speaker in a while, then the speaker will reset the function in normal. Please kindly note this is not malfunction.

Notes:

Your battery lifetime will last longer if you follow up below simple guidelines for charging and storing. a. For charging first time, charge it at least 10 hours.

b. Recharge and store the unit within the temperature range of 5^ C\~ 35^ C ( 40^ F\~ 95^ F).
c. Do not charge longer than 24 hours. Excessive charging or discharging may shorten the battery's life.
d. Battery life naturally shortens slowly over time.
e. Please turn off the speaker if long time not to use. f. he speaker can play music during charging.
g. Due to prolong charging and discharging, the unit battery life will be affected and playback time will also be shortened. We cannot guarantee the same playback consistently throughout and this is not include in our warranty and service.

Bluetooth operation

The speaker includes Bluetooth function which allows you to wireless playback the audio with other Bluetooth device like smart phone etc. Please follow up below for the operation:

1. Power on the unit by using "Power button" on the rear panel of the device. The "Blue" writing on the display will flare quickly which means the speaker is ready to pair with other device.
2. Enable the Bluetooth function on your Bluetooth device, and search the available Bluetooth device (please reference your device manual for the operation).
3. Check the available Bluetooth device on the menu list of your device, and select "P3_XPLODE" in order to start pairing. Please key-in "0000" (4 zero) in case of a password required during pairing. The "Blue" writing becomes stable when the pairing is successful.
4. Select and play the music on your Bluetooth device. Then the sound will output from speaker.
5. During Bluetooth playback, use the external device or speaker controls to adjust volume or change files.

Notes:

a. All Bluetooth devices are not guaranteed to pair successfully due to different design and brand.
b. The Bluetooth best working distance is within 10 meters without any obstacle in between.
c. In case the speaker does not pair with other device successfully and no further operation, the speaker auto off after about

10 minutes, please power on the unit again for operation.

FM radio operation

• Before listen to the radio, please try to move the unit next to the window as you can, and unwind the antenna wire to get better reception.
• Power on the unit by pressing a switch on the rear panel of the device, and short press the Mode button to enter FM radio mode.
• Short press the Play/Pause button to auto-scan and save the available FM station; short press it again to stop scanning.
• Press Skip forward button to select next preset station.
• Press Skip backward button to select the last preset station.
• In FM mode, you can press Mode button to switch to a different source.
• Switch off the device by pressing the switch on the rear panel of the unit, once you finished using it.

AUX IN

Using the Aux cable connect the AUX jack on the speaker rear panel with the line out or headphone jack on any other external audio player like mp3 player etc. Power on the speaker and short press the Mode button to enter the AUX IN playback mode; select and play the music from your external audio player, then the sound will output from the speaker.

Notes:

- In AUX IN mode, the main control is on your external audio player side. But you still can increase or decrease the volume or change files on the speaker side.

USB

• Plug in USB mass storage to a USB slot on the rear panel of the device.
• Press to switch source to USB. Plug in USB device to play back music on rear panel.
• Press Skip/backward button to return to the previous track.
• Press Skip/forward to skip to the next track.

Please make sure your USB device is FAT16 or FAT32 file system, and your music file is MP3 format. Important notes: The max supported USB device is 32GB. An extent USB cable for playing connection is not recommend, because that will impact the audio signal input.

TF/MicroSD card playback

Please copy the MP3 format music into the TF or MicroSD card device (max supported 32GB) before start the playing, and then insert the card into the slot on the rear panel of unit. Power on the unit, and short press the Mode button to enter the MicroSD playback mode; the speaker will read out the card device automatically, and get the music output after few seconds.

In TF/MicroSD card playback mode, short press the Skip Forward or Skip Backward Button to select the last or next preset station. Short press the Play/Pause button to play or pause the music.

Karaoke

Adjust the microphone output volume level properly on the rear panel, then we can start to sing. The unit includes wired microphone input jack, plug on the wired microphone (not included) into the 6.5mm jack, and then turn on the microphone for singing.

Tips:

a. When you are using the microphone for Karaoke function, you can adjust the microphone output volume/bass/echo setting by turn the relative pin on rear panel.
b. There may have a big noise come out from speaker when you adjust volume/ /bass/echo to high level due to overloading and distortion on microphone. This is not mal-function. So please turn and increase these settings slowly, and turn it back or turn off microphone for retrying in case of such big noise faced.
c. You can use the karaoke function and listen the music at same time; in case that you need increase the Karaoke volume and decrease the background music, you can try to adjust the separate microphone volume and main volume knob.

Trouble shooting

1. The unit cannot power on.
   a. Please charge the unit and try again.
   b. Please contact the service centre if the issue remains.

2. There is no or intermittent sound output in Bluetooth mode. a. Please turn off the Bluetooth, and re-pair with the speaker.
   b. Please put your Bluetooth device closer to the speaker.

3. No available FM station or background noise in FM.

a. Please plug on the 3.5mm stereo audio cable and re-scan the available FM station.

b. Please tune to another FM station for listening.

c. Please try to move the unit next to the window in order to get better reception.

1. The speaker cannot read out the music in TF or microSD card.

a. Please check if you insert the TF or microSD card into the slot properly. b. Please check if the audio format is in MP3/WAV.

Specification:

Power source: DC5V, 10,5W; (or DC 5V, rating current between 1A-2,1A)

Bluetooth version 4.2, best working distance within 10 meters

FM Radio with 99 memory presets

MicroSD card (32GB max, support audio format MP3/WAV)

USB playback- support music formats: MP3, WMA (not guarantee all such files)

6,5mm microphone input

AUX IN

FM Frequency: 87.5\~108.00MHz

Output power: 16W RMS

Battery power: 1800mAh, 7,4V rechargeable li-ion battery

Charging time: approximately 1,5 hour based on DC5V, 10,5W input.

Music playback time: \~6 hours.

Accessory: 1 pcs x USB charging cable

Dimensions: 260x125x345mm

Weight: 2,1kg

(The above specs may update without prior notice)

WICHTIGE INFORMATIONEN

Wymiary: 260x125x345mm

Waga: 2,1kg

Black kettlebell with a handle and circular design, no visible text or symbols on the body

BOMB! ABT01

UP! ABT02

SOUL ABT03

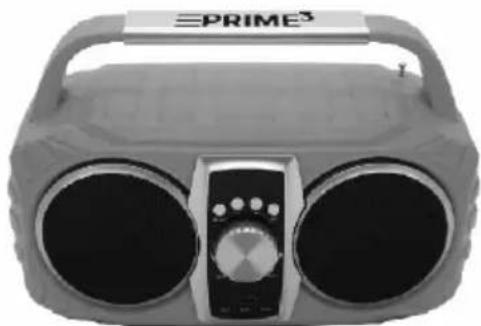

Exterior view of a gray portable electronic device with two front speakers and a control panel (no visible text or symbols)
