Product Type	Grass Trimmer (String Trimmer)
Model	RT 225
Brand	OK
Power Rating	225 W
Voltage / Frequency	230 V ~ 50 Hz
Cutting Width	200 mm
No-Load Speed	12400 min⁻¹
Cutting Line Diameter	1.3 mm
Sound Pressure Level (LPA)	86 dB(A)
Sound Power Level (LWA)	96 dB(A)
Vibration Level	≤ 2.5 m/s²
Weight	1.35 kg
Power Supply	Mains powered (corded)
Line Feed System	Automatic bump feed (tap on ground)
Guard Hood	Yes, included (bayonet mount)
Handle Type	Adjustable handle
Safety Features	ON/OFF switch, guard hood, automatic shut-off when released
Minimum Operator Age	16 years
Intended Use	Private lawns and small grassy areas
Warranty	2 years
Article Number	34.011.25

Frequently Asked Questions - RT 225 OK

How do I start the grass trimmer?

Connect the power cable to an extension cord, hook the cord on the handle, then press and hold the ON/OFF switch. Release to stop.

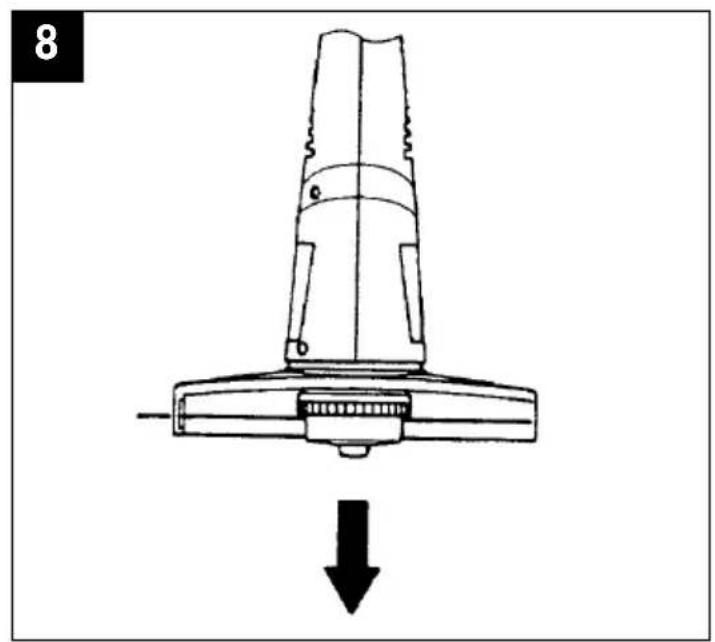

How do I adjust the nylon line length automatically?

While the cutting head is running, gently tap the trimmer on the ground. The line will be fed out and cut to the correct length by the blade on the guard.

What type of cutting line should I use?

Only use the original nylon line with a diameter of 1.3 mm. Never use metal wire.

How do I replace the line spool?

Unplug the trimmer. Hold the motor mount and twist the spool mount counter-clockwise to remove. Replace with a full spool, thread the line through the side holes, then reattach by pressing down and twisting clockwise.

What safety precautions should I take?

Always wear safety goggles, gloves, long trousers, and sturdy shoes. Keep at least 5 m away from people and animals. Never use without the guard hood.

Can I use the trimmer in wet conditions?

No. Never use the grass trimmer in rain or moist conditions. Protect it from dampness.

What is the cutting width of the RT 225?

The cutting width is 200 mm (20 cm).

How do I clean the grass trimmer?

Unplug the trimmer. Use a brush to remove debris from the guard hood. Clean plastic parts with a mild detergent and damp cloth. Never spray with water.

What should I do if the power cable is damaged?

Do not use the trimmer. Have the cable replaced by a qualified electrician. Always inspect the cable before use.

How long does the line run after switching off?

The nylon line will continue to rotate for a few seconds after the switch is released. Wait until it stops completely before handling.

USER MANUAL RT 225 OK

Illustration of stacked open documents with a mesh pattern on the left (no text or symbols)

GBPlease pull out pages 2-5

Close-up of a white, glossy cylindrical object mounted on a black vertical rod with a metallic end (no text or symbols visible)

Illustration of hands operating a mechanical device with a tool, showing a step and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with threaded base and flange (no text or symbols)

Technical line drawing of a mechanical device with a downward arrow indicating force or direction (no text or symbols)

Close-up of a black electrical plug with coiled cable and terminal connector (no text or symbols visible)

13

14

Line drawing of a hand operating a mechanical device with a tool, no text or symbols present

D

Three abstract black-and-white icons: a circular object with radiating lines, a hand crossed out with a cross, and a stylized leaf-like shape (no text or symbols)

D

1. Layout of RT 225 (Figure 1)

RT 225

1. Power cable
2. Uppe handle
3. ON/OFF switch
4. Adjustable handle 34.013.20.01
5. Guard hood 34.011.20.02
6. Line spool 34.051.34

2. Important notes

Please read the directions for use carefully and observe the information provided. It is important to consult these instructions in order to acquaint yourself with the grass trimmer, its proper use and safety precautions.

Important!

For safety reasons the grass trimmer is not to be used by children, young people under 16 years of age, or any other persons who are not acquainted with these directions for use.

Examine the grass trimmer each time before you use it. Do not use the trimmer if any safety devices are damaged or worn. Never put safety devices out of operation.

Use the grass trimmer only for the purpose specified in these instructions.

You are responsible for safety in your work area. Inspect the items you want to cut before starting to work. Remove any foreign objects you find.

Watch out for foreign objects while you work. If you still hit upon an obstacle while cutting, turn off the grass trimmer and remove the obstacle.

Work only in good visibility. Always make sure of your footing while working. Be careful when stepping backwards. Risk of stumbling!

Never leave the grass trimmer unattended at your work place. Store the trimmer in a safe place during interruptions.

If you interrupt your work to move to a different position it is imperative to switch off the grass trimmer while you are moving there.

Never use the grass trimmer in the rain or in moist or wet conditions.

Protect the grass trimmer from the damp and rain.

Before you switch on the grass trimmer, make sure that there are no stones or other objects touching the nylon line.

Always wear suitable clothing to protect your head, hands and feet from injury. Wear a helmet, goggles or visor, high boots or strong shoes, long trousers made of tough material, and work gloves. Be sure to hold the grass trimmer away from your body when it is switched on!

If the grass trimmer is turned over or if it is not in working position, do not switch it on.

Switch off the motor when you are not using the grass trimmer, when you leave the trimmer unattended, when you are checking the trimmer, if the power cable is damaged, when you want to remove and replace the spool, and when you are moving the trimmer to another location.

Keep the grass trimmer away from other persons, particularly children and pets.

There may be stones and other objects in the flying cut grass.

Keep at least 5 m away from other persons and animals when you are working with the grass trimmer.

To prevent injury to yourself and damage to the grass trimmer, never cut against hard objects.

Use the edge of the guard to keep the grass trimmer away from walls, changes of surface and fragile objects.

Never use the grass trimmer without a guard.

CAUTION! The guard is vital for your safety and for the safety of others, and it is also essential for the grass trimmer to work correctly. Failure to observe this instruction will not only create a potential hazard, it will also result in the loss of your rights under the warranty.

Never try to stop the cutter (nylon line) with your hands. Wait until it stops by itself. It is imperative to use only the original nylon line.

Never use metal wire instead of the nylon line.

Beware of injuring yourself on the line cutting device.

Keep the air vents clear of dirt. After use, unplug the machine and check it for damage.

Never attempt to cut grass that is not growing on the ground. For example, do not try to cut grass growing on walls, rocks, etc.

Within the working radius of the grass trimmer

the user is responsible for any damage caused to third persons by use of the trimmer.

Never cross roads or pebble paths with the grass trimmer switched on. When you are not using the grass trimmer, keep it in a dry place out of the reach of children.

Use the grass trimmer only as described in these directions for use and always hold it vertical to the ground. All other positions are dangerous. Check the screws regularly to see that they are properly tightened. The mains voltage must be the same as the voltage specified on the rating plate. Check the power cable regularly for signs of damage or aging. Never use the grass trimmer if the power cable is in less than perfect condition. Power cables used with the trimmer must not be of a lighter duty class than HO7RN-F rubber-insulated flexible cables according to DIN 57282 / VDE 0282 with a minimum diameter of 1.5 mm². Plug connectors must be equipped with earthing contacts and the coupling must be rain-water-protected. Keep cables and other objects out of the area you want to cut. If you have to lift the grass trimmer to move it, switch off the motor and wait for the rotating tool to stop. Before you leave the trimmer, switch off the motor and pull out the power plug. Before you connect the grass trimmer to the power supply, make sure that none of its moving parts are damaged and that the line spool is correctly inserted and fastened. Never cut against hard objects when using the grass trimmer. This is imperative to avoid causing injury to the user and damage to the trimmer. Use only original replacement parts for repair and maintenance purposes. Have repairs carried out only by a qualified electrician. Examine the grass trimmer for signs of wear or damage each time before you use it and after any collisions. Have essential repairs carried out without delay.

Always keep your hands and feet away from the cutting mechanism, particularly when you switch on the trimmer. After pulling out new line, always return the trimmer to normal working position before you switch it on again. Never use replacement parts or accessories which are not foreseen or recommended by the manufacturer. Pull out the power plug before carrying out any inspection, cleaning or other work on the trimmer and whenever it is not being used.

Caution! The nylon line will run on for a few seconds after the tool is switched off!

Three abstract black-and-white icons: a stylized tree with a wave, a hand crossed out, and a leaf-like shape (no text or symbols)

3. Explanation of the warning notice (see Figure 2) on the grass trimmer

1: Caution!
2: Wear safety goggles!
3: Protect from the damp!
4: Read the directions for use before putting into operation for the first time!
5: Pull out the power plug before checking if a connecting lead is damaged!
6: Keep third parties away from the danger zone!
7: The tool runs on after being switched off!

4. Technical data

RT 225

Voltage: 230 V \~ 50 Hz

Power rating: 225 W

Cutting width: 200 mm

Revolutions n0: 12400 min

Nylon cutting line: ∅ 1.3mm

Sound pressure level LPA: 86 dB

Sound power level LWA: 96 dB

Vibration a_w ≤ 2,5m / s^2

Weight: 1.35

Art.-no. 34.011.25

The noise level of this machine may exceed 85 dB(A). In this case, noise protection measures need to be introduced for the user. The machine's noise was measured in accordance with IEC 59 CO 11, IEC 704, DIN 45635 Part 21, NFS 31-031 (2000/14 EG). The level of vibrations emitted from the handle is ≤2.5 m/s ^2 . Measurements were taken in accordance with ISO 5349.

GB

5. Fitting the guard hood

●Plug the guard hood on the motor head as illustrated (Figure 3), twist counter-clockwise as far as the stop (bayonet lock) and fasten with the supplied screw (C) (Figure 4). IMPORTANT (figure 3): When you twist the guard hood, make sure that it sits squarely on the grass trimmer housing and that the stud (A) on the guard lies to the right of the stud (B) on the housing.

6. Fitting the handle

The handle is fitted as illustrated in Figure 5.

7. Proper use

The trimmer is designed for cutting lawns and small areas of grass in private and hobby gardens. Tools for private and hobby gardens are not suitable for use in public facilities, parks and sport centers, along roadways, on farms or in the forestry sector. For the tool to be used properly it is imperative to follow the instructions set out in the manufacturer's directions for use.

Important! It is prohibited to use the tool to chop material for composting because of the potential danger to persons and property.

8. Starting for the first time and operation

The grass trimmer is designed only for cutting grass. A short or worn nylon line will result in poor cutting performance.

IMPORTANT! Be sure to pull out the power plug before you adjust the line length!

You will need to exert a certain force to pull out the line when the trimmer is used for the first time. To do so, press on the pushbutton (Figure 6) and pull out the line as far as the edge of the guard hood. The line will be cut to the correct length the first time the cutting head is started (Figure 7). A short or worn nylon line will result in poor cutting performance. To restore the correct line length, press the trimmer against the ground while the cutting head is running. The length of the line will then be adjusted automatically (Figure 8).

Your grass trimmer will work at its best if you observe the following instructions:

●Never use the grass trimmer without its safety devices.
- Do not cut grass when it is wet. The best results are had on dry grass.
- Connect the power cable to an extension cable and hook the extension cable on the handle (Figure 9).
●To activate the grass trimmer, press the On/Off switch (Figure 1 Item 3).
●To deactivate the grass trimmer, let go of the On/Off switch (Figure 1 Item 3).
- Do not move the grass trimmer against the grass until the switch is pressed, i.e. wait until the trimmer is running.

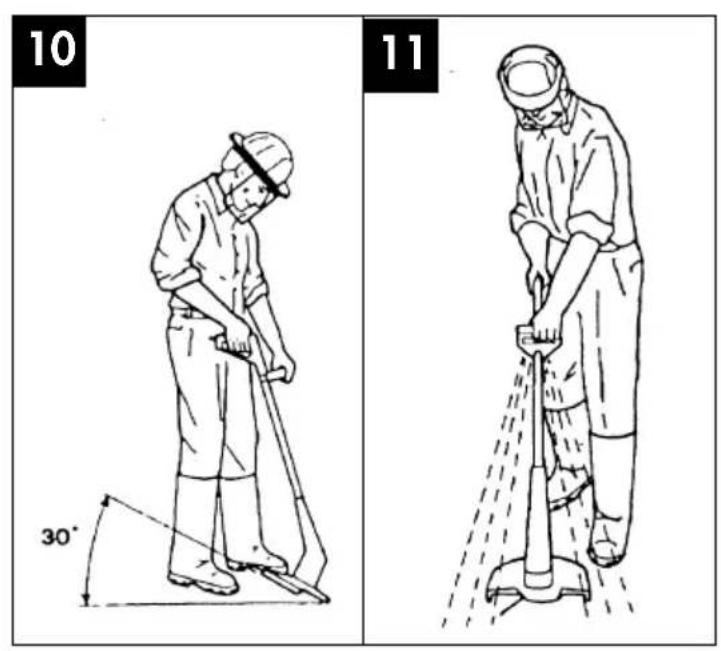

- For the correct cutting action, swing the grass trimmer to the side as you walk forward, holding it at an angle of approx. 30^ as you do so (see Figure 10 and Figure 11).
●Make several passes to cut long grass shorter step by step from the top (see Figure 12).
●Make full use of the guide hood in order to avoid unnecessary line wear.
- Keep the grass trimmer away from hard objects in order to avoid unnecessary line wear.

9. Replacing the line spool

Be sure to disconnect the power plug from the power supply before you replace the line spool!

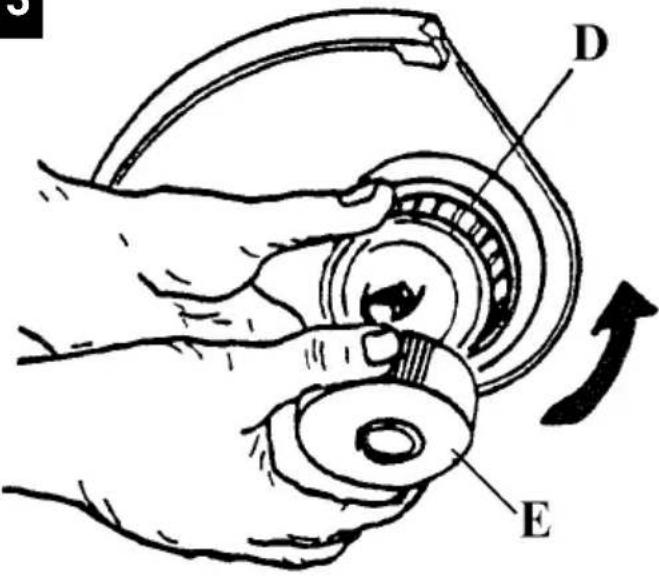

●Hold the motor mount (D) tightly and twist the spool mount (E) counter-clockwise until it can be removed (Figure 13).

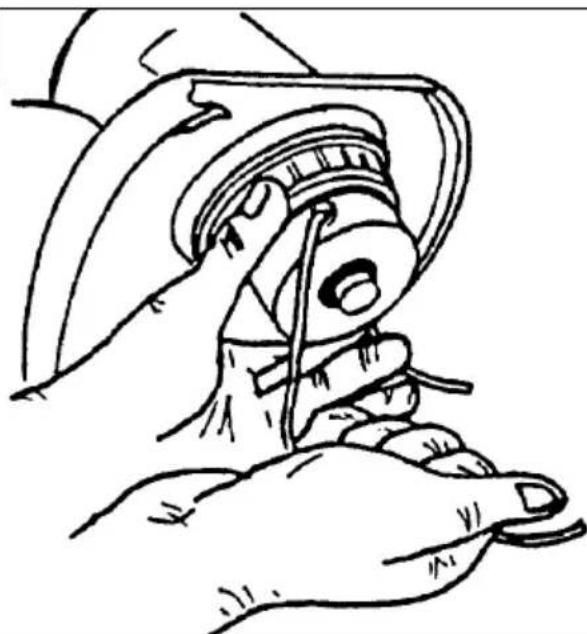

- Replace the empty line spool with a full one. Thread the end of the line through the holes in the side of the spool (figure 14).
●Place the spool mount on the motor mount, hold the motor mount tightly, press down the spool mount and twist it clockwise until it sits securely.
- Press on the pushbutton and pull out line as far as the edge of the guard hood (Figure 6).
●The line will be cut to the correct length the first time the cutting head is started (Figure 7).

Caution! Catapulted pieces of nylon line may cause injury!

10. Cleaning and maintenance

●Switch off and unplug the grass trimmer before putting it away or cleaning it.
- Remove deposits from the guard hood with a brush.
●Clean the plastic body and plastic parts with a mild household detergent and a damp cloth.
●Never use aggressive agents or solvents for cleaning purposes!
●Never spray down the grass trimmer with water.
●Prevent water getting into the trimmer at all cost.

11. Ordering replacement parts

When ordering replacement parts, please quote the following data:

●Type of product, e.g. RT 225
●Article number of the product, e.g. 34.011.25
●ID number of the product, e.g. 01012

●Number of the required replacement part, e.g. line spool ET-Nr.: 34.051.34

12. Waste disposal

Accessories and packaging should be recycled. Plastic parts are marked for recycling in pure grades.

CZ

Three abstract black-and-white icons: a circular object with radiating lines, a hand crossed out with a cross, and a stylized leaf with a flag-like element (no text or symbols)

Three abstract black-and-white icons: a tree with circular patterns, a hand holding a cross, and a leaf-like shape (no text or symbols)

3. Tumač pločice s uputama (vidi sliku 2) na uredjaju

Br. 1: Pažnja! Prije upotrebe uredjaja pažljivo pročitajte naputak za upotrebu.

Br. 2: Nosite štitnik očiju i lica

Three abstract black-and-white icons: a tree with curved lines, a hand holding a cross, and a leaf-like shape (no text or symbols)

Three black-and-white pictograms: a tree with a flag, a hand crossed out, and a leaf with a flag (no text or symbols)

Three abstract black-and-white icons: a circular light source, a stylized hand with cross, and a flame-like shape (no text or symbols)

Three abstract black-and-white icons: a stylized tree with a wave, a hand crossed out, and a leaf-like shape (no text or symbols)

3. Pojasnilo tablice z napotki (glej slika 2) na napravi

GB EC Declaration of Conformity

The undersigned declares in the name of the company that the product is in compliance with the following guidelines and standards.

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.
