| Product Type | Air Fryer (Hot Air Circulation) |
| Brand | Eta |
| Model | Vista Digi 116890000 |
| Dimensions (mm) | 260 x 330 x 272 |
| Weight (kg) | 3.5 |
| Voltage | Refer to type label (230 V ~ typical) |
| Power Input | Refer to type label (~1500 W typical) |
| Protection Class | I |
| Temperature Range | 80 – 220 °C (Fry); 40 – 80 °C (Dehydrate) |
| Timer Range | 1 – 60 min (Fry); 2 – 9 hours (Dehydrate) |
| Preset Programs | 8 (Meat, Frozen Fries, Cake, Drumsticks, Fish, Steak, Vegetables, Chicken Wings) |
| Control Panel | Digital display with ON/OFF/PAUSE, MODE, temperature/time buttons |
| Container Capacity | Half full max (exact capacity not specified) |
| Viewing Window | Yes (A4) |
| Drip Grate | Included (A1) |
| Air Outlet | Rear (A5) |
| Auto Shut-off | After 10 min inactivity during set |
| Heating Element | Overheat protection |
| Cooling Time | Approx. 30 min for safe handling |
| Dishwasher Safe Parts | Container and drip grate |
| Housing Material | Plastic (outer casing) |
| Power Cord Length | Approx. 0.8-1 m (not specified) |
| Accessories | Container, drip grate, user manual |
| Cleaning | Wipe exterior with damp cloth; wash container and grate in dishwasher or hot soapy water |
Frequently Asked Questions - Vista Digi 116890000 Eta
User questions about Vista Digi 116890000 Eta
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Deep fryer in PDF format for free! Find your manual Vista Digi 116890000 - Eta and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Vista Digi 116890000 by Eta.
USER MANUAL Vista Digi 116890000 Eta
Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including, the receipt and, if possible, the box with the internal packing.
I. SAFETY PRECAUTIONS
- Before first use, please read this manual, look at the figures and keep it for further reference.
- Please check if product label data conforms to voltage of your plug socket.
- Do not plug and unplug the electric socket plug with wet hands and do not pull the plug with the power cord!
- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
- This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord. The appliance may not be used by children 0 to 8 years of age.
- The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must play with the appliance.
- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance and after use turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
- Disconnect the appliance from power source immediately if the power cord is damaged. The power cord must be replaced by the manufacturer or by a service technician or a qualified electrician to avoid electric shock or fire hazard.
- Always unplug the appliance from power supply if you leave it unattended.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
- ATTENTION: The case of the appliance and its internal components are hot during operation and until they cool down! Use protective equipment for manipulation (such as gloves). When handling the internal parts (e.g. container), wait until they cool down.
- ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on.
- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
- Do not leave the appliance unattended while working and check it during the whole time of frying.
- Use the deed fryer only at places where the risk of tilting over is prevented and which is far enough from flammable objects (e. g. curtains, drapes, wood, etc.), heat sources (e. g. heater, electric/gas stove, etc.) and from wet surfaces (sinks, wash basins, etc.).
- The deep fryer (heating element) is equipped with heat protection against overheating.
- Never immerse the fryer and the heater into water (not even partially) and do not wash under running water!
- If the container for frying ingredients is hot, do not put it onto a wooden table, varnished surfaces or any other type of sensitive surfaces, which could get damaged by the heat.
- When frying, do not touch the area where steam/hot air comes out, there is a danger of burning and scalding. Also watch out for hot steam coming out after the container is pulled out!
- Before connecting the fryer to electricity, it must be assembled correctly. Never turn the fryer on without the container.
- Do not pour any liquids, including frying oil, into the fryer! Frying is secured by hot air circulation.
- All the ingredients being prepared must be placed in the frying container, prevent them from coming into contact with the heating coil.
- When in use, never cover the inlet and outlet vents.
- Do not place the appliance against a wall or other appliances. Leave at least 20–30 cm of space around and above the appliance.
- If you see smoke coming out of the appliance, immediately disconnect it from electricity, ventilate, and after the smoke is gone, eliminate the cause (if caused by the prepared ingredients).
- After heating up, the appliance requires approximately 30 min. to cool down for safe handling and cleaning.
- When pulling out the containers by the handles, proceed carefully and hold the body of the fryer with your other hand.
- The power cord must not be damaged by sharp or hot objects, by an open flame and it must not be submerged under water. Never place it on hot surfaces and do not leave it hanging over the edge of a table or a work bench. If the cord is tripped over or pulled by for example children the deep fryer may tip over or be pulled down and lead to serious burns!
- If use of an extension cable is needed, please make sure the cable is in perfect condition and conforming to applicable standards.
– Use the appliance only with original accessories from the manufacturer.
- If unusual symbols appear on the display, disconnect the appliance from the mains power supply and then reconnect it.
- Do not use the appliance for purposes other than those defined and described in this manual!
- The manufacturer will not be liable for defects caused by improper use of the appliance and accessories (e.g. degraded food, injury, damage, fire etc.) and the warranty provisions will become void in the case of non-compliance with safety measures.

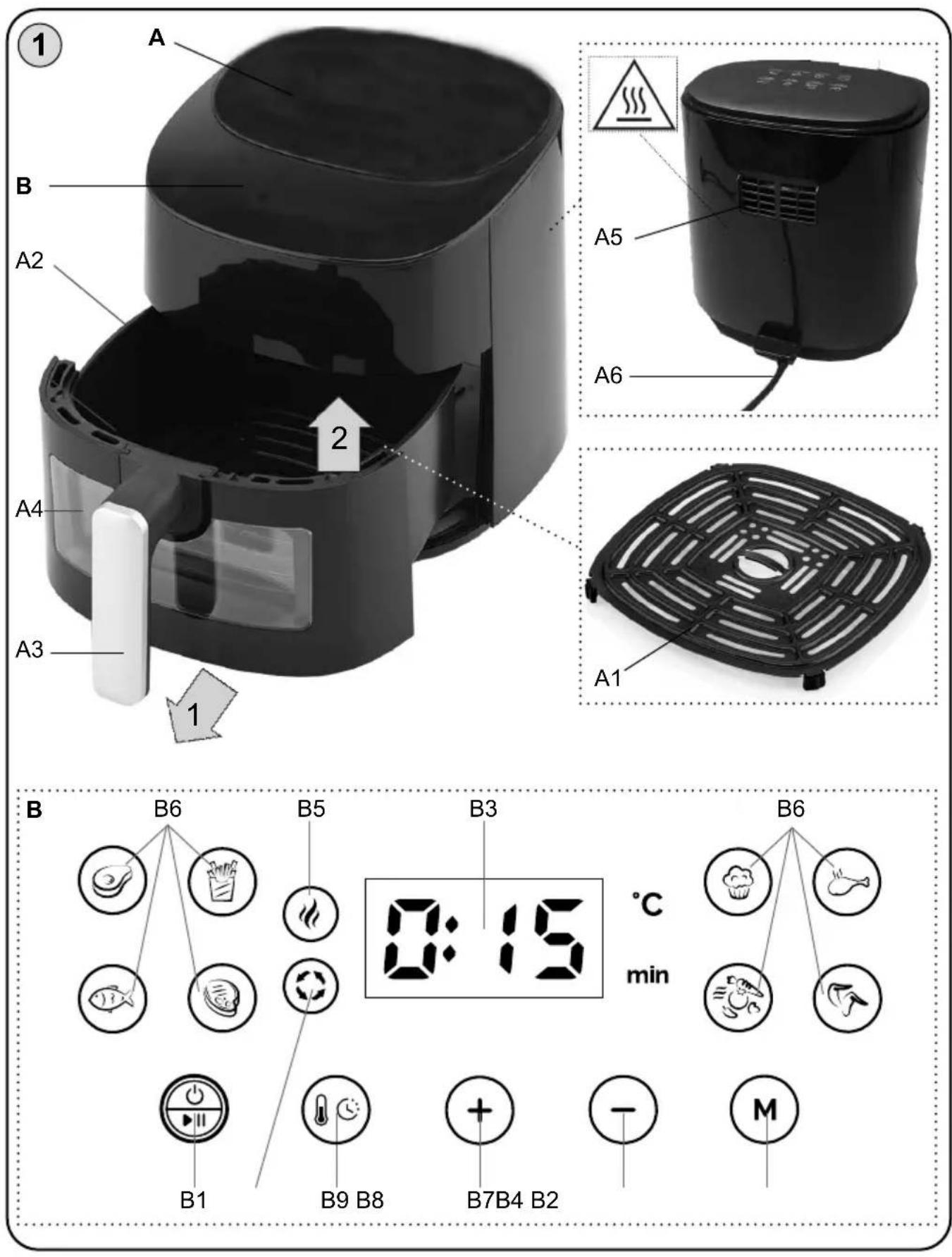

II. DEVICE DESCRIPTION (pic. 1)
A - body of the fryer
A1 – drip grate A4 – viewing window A2 – container for frying ingredients A5 – air outlet A3 – handle A6 – power cable
B - control panel
B1 – ON/OFF/PAUSE button B6 – set programme icons B2 – MODE button B7 – temperature / time increase B3 – display B8 – temperature / time decrease B4 – active ventilator function signalling B9 – temperature / time setting B5 – active heating function signalling
III. INSTRUCTIONS FOR USE
Before the first use, wash the parts that will be in contact with food in hot water with detergent, rinse thoroughly with clean water and wipe till dry, or let dry. A short mild emission of smoke may occur, this is not a defect and is no reason for complaint. Now the appliance is ready for use.
Assembly of the individual parts
Assemble the fryer according to Fig. 1. Remove the container A2, pulling it out of the body of the fryer A. Then slide the container back in the opposite into the body of the fryer
Button functions
B1 – ON/OFF/PAUSE button – after pushing the button in the stand-by regime, the deep fryer is switched on, after repeated pushing the set function is activated; after pushing during the operation, the running function is interrupted. When you press and hold the button for about 3 seconds, the programme will stop. B2 – M=MODE switch – after pushing, one of the pre-defined 8 programmes is set, B7 – temperature/time increase – after short pushing, the temperature / time is increased by 5 °C /1 min., after long pushing, the increase speeds up, B8 – temperature/time decrease – after short pushing, the temperature / time is increased by 5 °C/1 min., after long pushing, the decrease speeds up, B9 – temperature/time setting – after short pushing, setting the temperature or time.
Scope of temperature setting 80 – 220 °C / 40 – 80 °C, time 1 – 60 min. / 2 – 9 hours. Auto shut off after 10 min. selected operation is not confirmed by pressing the button.
Frying
Place the assembled fryer on a flat surface (e.g. kitchen table) at the height of at least 85 cm, out of reach of children. Fill the container with the desired ingredients (NEVER fill any frying pot more than 1/2 full) and assemble the whole fryer properly. Connect the plug of the A6 power cable to the mains. All symbols light up shortly. They subsequently fade away and only the B1 button symbol remains lighted up.
By pushing button B1, the pre-set temperature of 220 °C lights up on the display and it alternatively changes at pre-set times of 15 minutes. Confirm this setting by repeated pushing of button B1 or set different parameters and confirm them by pushing button B1 again. If the appliance is running, the interior will be lighted. During the course of the function the temperature and time may be changed. Termination of the function is accompanied by an audible signal. The heater switches off, but the fan still runs for a few moments to ventilate. After frying, use the handle to carefully pull out the A2 container with ingredients and leave to cool down for a while. Depending on the nature of the cooked ingredients, pour out any liquids from the A2 container.
Note
By taking the frying pot out, the appliance functioning is interrupted. If the pot out lasts longer than 60 minutes, the process cannot be restarted and the appliance needs to be switched on again.
Pre-set programmes (the recommendation temperature and time of various menus are as follows):
| Icon Raw material Temperature (°C) Time (min.) Notes | ||||
 | Meat 220 15 – 20 | There are some differences in the same kind of ingredients, and the taste of each user may be different.The table is for your reference only.You can adjust the frying time and temperature according to your favorite taste.To assure even cooking/browning, open the frying basket drawer halfway through the cooking time. Check, turn or vigorously shake foods in the frying basket. | ||
 | French fries (frozen) | 220 16 – 20 | ||
 | Cake 160 15 – 20 | |||
 | Chicken drumsticks | 220 20 – 25 | ||
 | Fish 180 20 – 25 | |||
 | Steak 200 10 – 15 | |||
 | Vegetables 40 - 80 2 – 9 hours | |||
 | Chicken wings 220 13 – 20 | |||
Information about the required temperature can be found on the food label or in the table of this manual.
Note
Some ingredients require stirring or shaking during cooking. At the same time, do not turn or tilt the container excessively when shaking, the tray may container hot liquid.
IV. MAINTENANCE
Before carrying out any maintenance disconnect the appliance from the power grid by pulling out the plug on the power cord from the el. socket and allow it to cool down! After each use wipe the outer surfaces with a soft damp cloth. Do not use abrasive and aggressive cleaning agents and metal tools, which could scratch the surface during cleaning. Wipe the outer casing with a damp cloth. Wash both container and drip grate in hot water with detergent, then rinse with clean water and allow to dry sufficiently (you can also wash in a dishwasher). If necessary, gentle degreasing agents can be used on these parts. Carefully wipe the inside of the fryer base using a damp cloth or a non-abrasive cleaning sponge. If necessary, remove residual dirt from the heater using a cleaning brush. Never dry plastic moulded parts above a heat source (e.g. fire stoves, electric/gas stoves, etc.). It is normal for the colour of the surface to change over time. This change in no way changes the properties of the surface and is not a reason for complaint about the appliance! Wipe the power cord A6 with a cloth. Store the appliance thoroughly cleaned in a dry, dust-free location that is out of reach of children and incapacitated persons.
V. ECOLOGY
If the size of the appliance allows, all the parts contain marking of the materials used for production packaging, components and accessories as well as for recycling. The symbols on the product or in the accompanying documentation mean that the electrical or electronic product used must not be liquidated together with communal waste.
To ensure the appropriate liquidation take the used appliance to a collection point where it will be accepted free of charge. Correct liquidation of the product helps to protect valuable natural resources and helps to prevent a potential negative impact on the environment and human health which can be the outcome of inappropriate liquidation of waste. More details can be obtained from your local authorities or the closest collection point. Inappropriate manipulation of such waste can result in a fine according to the national legislation.
Maintenance of a serious nature or maintenance which requires interference with the internal parts of the appliance must be carried out by a professional service centre! By failing to follow the instructions issued by the manufacturer, the right to the service will be invalidated!
VI. TECHNICAL DATA
Voltage (V) shown on the type label of the appliance Input (W) shown on the type label of the appliance Weight about (kg) 3.5 Protection class of the appliance I. Size of the product (mm) 260 x 330 x 272 Input in off mode is < 0.50 W
The manufacturer reserves the right to change the technical specifications and accessories for the respective models.
WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:
HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER.
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
The ⚠ symbol indicates a WARNING
- Please read the instructions manual
WARNING: HOT SURFACE
