VCH 9130 E - Vacuum Cleaner GRUNDIG - Free user manual and instructions

Product Type	2 in 1 Cordless Stick Vacuum Cleaner (Handheld and Stick)
Brand	Grundig
Model	VCH 9130 E
Power Supply Input	100-240V~ 50/60Hz
Motor Power	18V, 100W
Brush Power	14.4V, 5W
Battery Type	Rechargeable Li-ion
Battery Voltage	18V
Battery Capacity	2200mAh
Charging Time	4-6 hours
Accessories Included	2in1 Crevice and Dust Brush, Wall Hang Accessory
Brush LED Light	Yes
Speed Settings	MIN/MAX adjustable
Dust Container	Removable with release button
Handle Collapsing	Yes (button to collapse)
Wall Mountable	Yes (with included accessory)
Usage Classification	Household and similar (staff kitchens, farm houses, hotels, B&B)
Power Adapter Model	JOD-S-220050GS
Power Adapter Output	22.0V, 0.5A, 11.0W
Power Adapter Efficiency	Average 83.24%

Frequently Asked Questions - VCH 9130 E GRUNDIG

How do I charge the vacuum cleaner?

Plug the power adapter into a wall socket and connect it to the vacuum. The charging indicator light will show the status. Charging time is 4-6 hours. Unplug after charging.

How often should I clean the filter?

Clean the filter when necessary. Never operate the appliance without the filter. Use a soft brush or tap off dust. Do not wash unless specified; the manual does not indicate a washable filter.

Can I use the vacuum on wet surfaces?

No, do not use on wet surfaces or attempt to vacuum wet objects. Do not use in wet surroundings or with wet hands to avoid electric shock.

How do I mount the wall hang accessory?

Drill a hole in the wall, insert the rubber stopper, and attach the wall hang accessory following the instruction photos (steps 1-4).

What accessories are included?

The vacuum comes with a 2in1 crevice and dust brush (dust brush for fabrics/furniture, crevice tool for tight spaces) and a wall hang accessory.

How do I adjust the suction speed?

Use the speed adjustment button (C) on the stick handle. The settings are MIN and MAX.

How do I empty the dust container?

Press the dust container removal button (I) to detach it. Empty the contents, then reattach it securely.

What is the battery capacity and charging time?

The battery is a 18V 2200mAh Li-ion battery. Charging time is approximately 4-6 hours.

Is it safe for children to use?

Children aged 8 and above can use it if supervised. Children should not play with the appliance. Cleaning and maintenance should not be done by children without supervision.

What should I do if the appliance gets wet?

Stop using immediately and unplug it. Contact a service centre. Do not use if the power cord or appliance is damaged or has become wet.

USER MANUAL VCH 9130 E GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

Two abstract geometric patterns: a woven bamboo design and a square with circular cutouts (no text or symbols)

VCH 9130 E

DE - EN

DEUTSCH 07 - 14

ENGLISH 15 - 20

DE	BETRIEB WANDMONTAGE REINIGUNG UND PFLEGE
EN	OPERATION WALL HANG CLEANING AND CARE

Illustration of various household appliances and a box with a red arrow, no text or symbols present

Line drawing of a mechanical device with a red arrow indicating rotation (no text or symbols)

Diagram of a vacuum cleaner with a red arrow indicating motion direction (no text or symbols)

Line drawing of a vacuum cleaner with a red arrow indicating motion (no text or symbols)

Diagram of a shoe handle mechanism with red arrows indicating motion direction (no text or symbols)

Close-up of a cable with two connectors and screwdriver, showing a mechanical assembly (no text or symbols)

Illustration of a hand using a tool to lift a cable, showing rotational motion (no text or symbols)

Illustration of a hand holding a pen inserted into a container with bubbles, showing an arrow indicating direction (no text or symbols present)

Illustration of a vacuum cleaner with attached cable and power outlet (no text or symbols)

Diagram showing a red mechanical component being inserted into a cylindrical housing, with an arrow indicating direction (no text or symbols present)

Illustration of a faucet and three cups on a divided surface with a stopwatch showing 24 hours (no text or symbols)

Technical illustration of a cleaning or cleaning device with red arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with a red arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a red arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a red arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with a red arrow indicating rotation (no text or symbols)

Line drawing of a vacuum cleaner with a red-handled arm and a speech bubble containing an open padlock (no text or symbols on the device itself)

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

■ Always keep hair, clothing and any other utensils away from the appliance during operation in order to prevent injury and damages.

■ This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments

- It is not fit for industrial use.

■ Warranty will be voided if the appliance is used for industrial or commercial purposes.

- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.

■ Do not use on wet surfaces and do not attempt to use on wet objects.

■ Do not use the appliance in wet surroundings.

■ Do not use the appliance with wet hands.

■ This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block and damage the appliance.

■ Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.

■ This appliance is not designed for cleaning people or animals.

■ Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.

■ Never operate the appliance without the filter.

SAFETY

- Keep the brush away from your hand when is operated. Your hand can get stuck in the brush.

■ Clean the filter when necessary.

■ Only use original GRUNDIG accessories when replacing parts.

■ Check if the mains voltage on the rating label corresponds to your local mains supply.

■ Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

■ Always pull out the power cord after the charging process, before cleaning or carrying out any maintenance on the appliance or the charging unit.

- Avoid using extension cables or multipoint connectors. Plug the appliance directly in a wall socket if possible.

■ Do not attempt to dismantle the appliance.

■ Protect the appliance from rain, humidity and heat sources.

■ For additional protection, this appliance should be connected to a household residual current device with a maximum rating of 30 mA. Consult your electrician for advice.

■ Do not disconnect the plug by pulling on the cable.

■ Use the appliance only with the adapter supplied with.

■ Never use the appliance if it or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.

- Our GRUNDIG Household Appliances meet all applicable safety standards; thus if the appliance or the power cord is damaged, it must be replaced by the dealer, a service centre or a similarly qualified and authorised service person to avoid any danger arising. Faulty or unqualified repair work may cause danger and risk to the user.

- Keep the appliance away from children.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

SAFETY

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

- Do not use the appliance if the air duct and the ventilation slot are blocked. Always keep the air duct and ventilation slot free of dirt, hair and any other elements which could obstruct or block the air flow.

■ Only use the power cord provided.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG 2 in 1 Cordless Stick Vacuum Cleaner VCH 9130 E.

Please read the following user notes carefully so that you can enjoy your quality Grundig product for many years to come.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

Extra accessories:

■ 2in1, Crevice and Dust Brush

- Dust brush suitable for the cleaning of fabrics, furniture, skirting boards or picture frames.

- Crevice tool for cleaning crevices and corners difficult to reach.

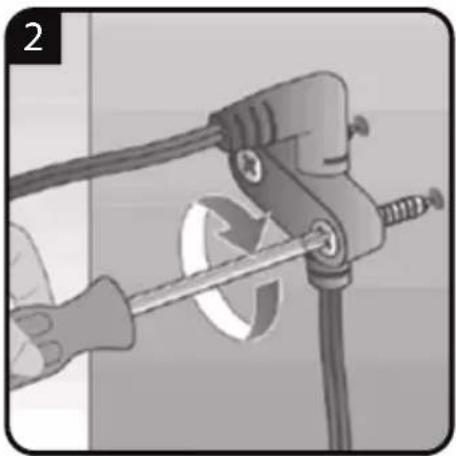

Wall hang accessory:

1 Punch a hole on the wall with the help of electric drill.
2 Hammer the rubber stopper into the hole.

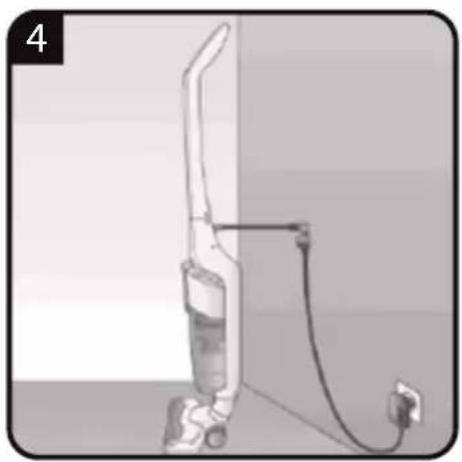

3 Assemble the wall hang accessory correctly in terms of the following instruction photos

( 1-4).

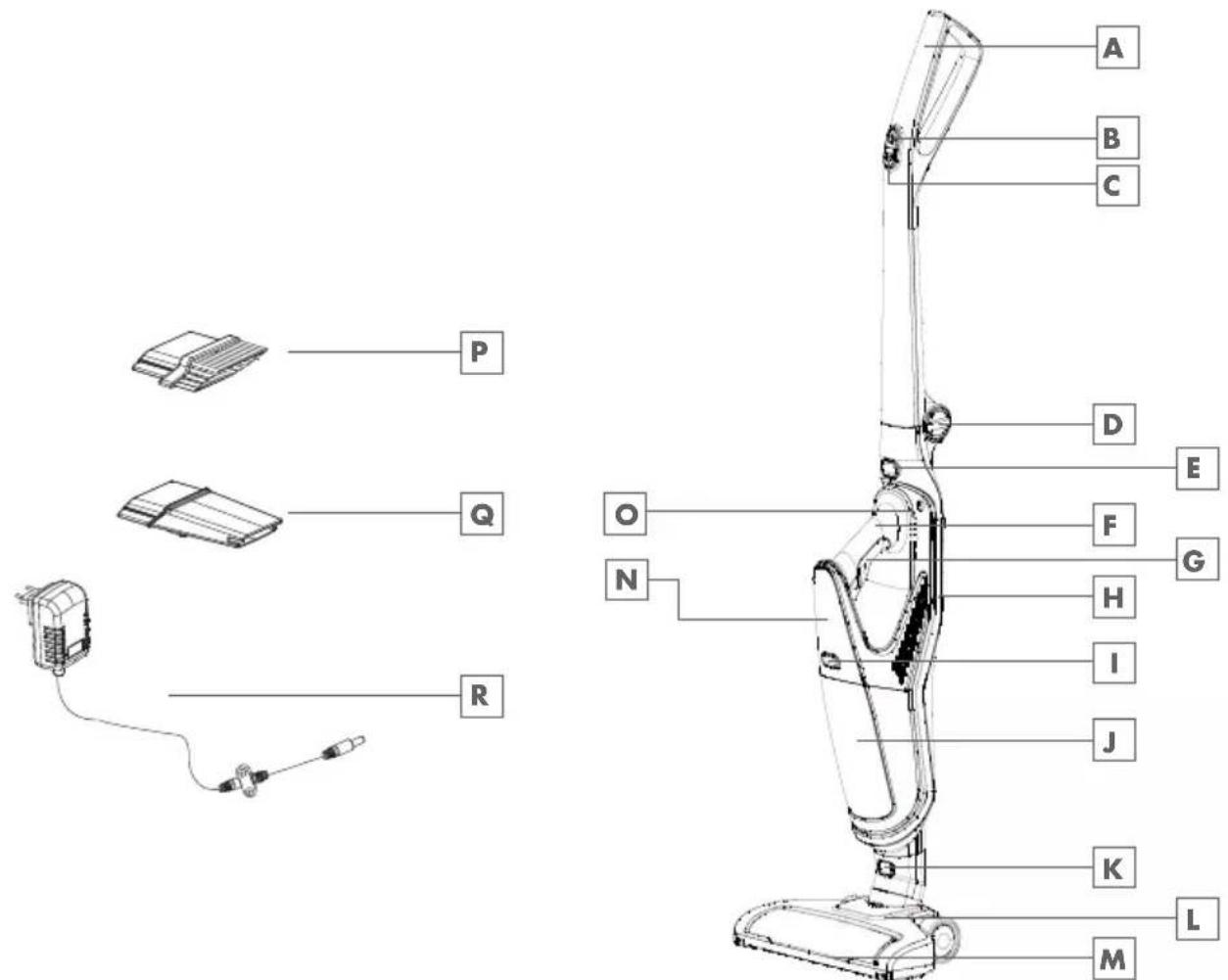

Controls parts

See image on page 3.

A Stick vacuum cleaner handle
B Stick vacuum cleaner on/off button

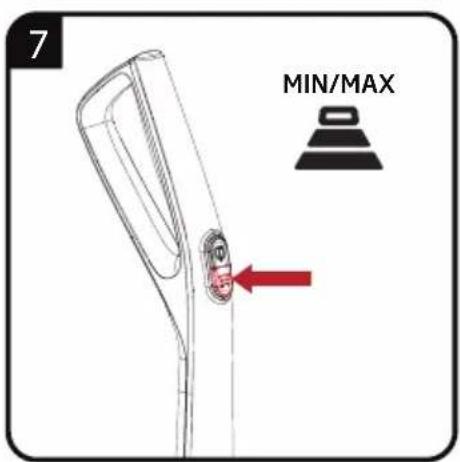

c Speed adjustment button

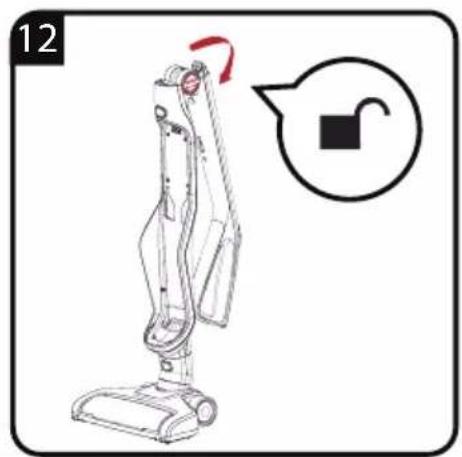

D Handle collapsing button

E Cordless vacuum cleaner removal button

F Cordless vacuum cleaner handle

G Cordless vacuum cleaner on/off button

H Body

Dust container removal button

J Dust container

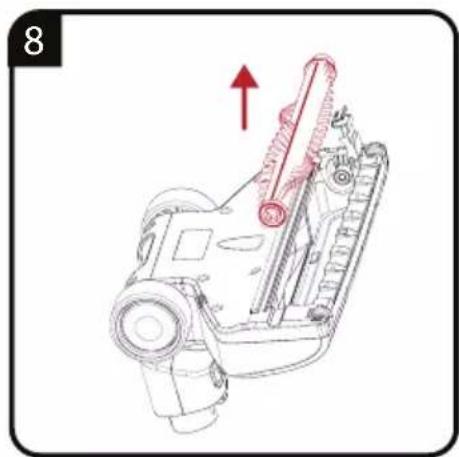

K Brush removal button

L Brush

M LED light

N Handheld vacuum cleaner

Charging and power indicator

P Dust brush

Q Crevice

Power supply plug

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

■ Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
■ Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

■ During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
- Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
■ Dropping the appliance may render it non-operational or cause permanent damage.

Information on waste batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electri-

cal and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage	100-240V~ 50-60Hz
Power	18V, 100W
Product spec	DC 18V 2200mAh Li-on
Brush spec	14.4V, 5W
Charging time	4~6H

Parameter of External Power Supply
Manufacturer	Shenzhen Jodeway Technology Co.,Ltd
Model Identifier	JOD-S-220050GS
Input Voltage	100-240V~
Input Frequency	50/60Hz
Input Current	0.3A
Output Voltage	22.0V
Output Current	0.5A
Output Power	11.0W
Average active efficiency	83.24%
Efficiency at low load(10%)	66.06%
No-load power consumption	0.073W

Technical and design modification rights are reserved.

Protection class for electric shock.

For commissioning, general use and cleaning, please observe the instructions on pages 4-5-6 of this operating manual.
