Oreya PH30 - Cooker Eldom - Free user manual and instructions

Product Type	Electric Cooker
Brand	Eldom
Model	Oreya PH30
Power	2000 W
Supply Voltage	230 V ~ 50 Hz
Heating Plate Type	Ceramic with infrared lamp
Control Type	Thermostat with smooth adjustment
Indicator Light	Yes, for operation status
Number of Heating Plates	1
Temperature Range	MIN to MAX (smooth)
Housing Material	Heat-resistant materials
Cleaning Method	Wipe with soft damp cloth and mild detergent; do not immerse
Safety Features	Overheat protection not specified; keep 5 cm clearance from sides; do not use near flammable materials
Cookware Requirements	Flat bottom, proper diameter for stability and contact
Ventilation Requirement	At least 5 cm space from sides
Indoor Use Only	Yes (under roof, protected from rain and wind for outdoor use)
Household Use Only	Yes, not for commercial purposes
Warranty Validity	Invalid for commercial or inappropriate use
Environmental Disposal	Recyclable materials; take to special collection point for electronic waste
Child Safety	Children under 8 must be supervised; cleaning not by children without supervision

Frequently Asked Questions - Oreya PH30 Eldom

What is the power consumption of the Eldom Oreya PH30?

The power consumption is 2000 W.

Can I use any cookware on this cooker?

For safety and efficiency, use only dishes with flat bottoms and a proper diameter to ensure stability and good contact with the heating plate.

Why does the cooker emit a smell when first used?

During the first activation, a specific smell from the heating elements and insulation is normal. It will disappear after a short time.

How should I clean the cooker?

Unplug and let it cool completely. Wipe all surfaces with a soft, damp cloth and mild detergent. Do not immerse in water or use abrasive agents.

Is it safe to leave the cooker unattended while operating?

No, you should keep an eye on the operating appliance, especially when children are nearby. Switch it off before leaving the room.

Can I use the cooker outdoors?

Yes, but only under a roof where it is protected against rain and wind. Do not use in open air.

What does the control light indicate?

The control light (3) signals that the appliance is in operation. It lights up when the heating plate is active.

How do I adjust the temperature?

Turn the thermostat (1) smoothly from MIN to MAX. Smooth adjustment allows you to select the desired cooking temperature.

Is the cooker suitable for commercial use?

No, the warranty is only for household use. Commercial use invalidates the warranty.

What is included in the warranty coverage?

The warranty covers household use only. It becomes void in case of inappropriate use or if used for commercial purposes.

USER MANUAL Oreya PH30 Eldom

Exterior view of a modern electric stove with a black top and red circular vent (no text or symbols visible)

CERAMICZNA KUCHENKA ELEKTRYCZNA • ELECTRIC COOKER • ELEKTRICKÝ VARIČ • ELEKTROKOCHER • ЭЛЕКТРИЧЕСКАЯ ПЛИТА • KERAMICKÝ ELEKTRICKÝ VARIČ • ELEKTROMOS KERÁMIA FÖZÖLAP • COCINA VITROCERÁMICA

Eldom Sp. z o.o.

OBSŁUGA

Please acquaint precisely with whole of this instruction before the blender for the first time,

1. Before operating the appliance, read the user manual thoroughly
2. Plug in the connecting cable to a grounded electrical outlet
3. Ensure that a limited number of receivers are connected to one current circuit
4. If an extension cord is used, it should be grounded and placed in a safe manner
5. The appliance is intended for household use only
6. Use only in rooms with good ventilation
7. Keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
8. If the appliance is not working, unplug it
9. Before unplugging, set the thermostat (1) in the position "MIN"
10. Do not use in open air. The cooker can be used under the roof where it is protected against rain and wind
11. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
12. Make sure that children do not play with the equipment,
13. Never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the

appliance

1. Do not use the appliance near curtains, blinds or other inflammable material
2. Do not place the appliance in a corner of a room or directly next to the wall. The space of at least 5 cm from the sides of the appliance should be provided.
3. To ensure free and safe access to the appliance, place it at a proper height.
4. The cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance

ENVIRONMENT PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices,

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use,

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely.

• Do not immerse the appliance in water or wash it in a dish-washer machine.
• All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents.
• Do not use abrasive agents.

This symbol warns against the high temperature of the surface of the appliance.

INSTRUCTION MANUAL

ELECTRIC COOKER PH30

EN

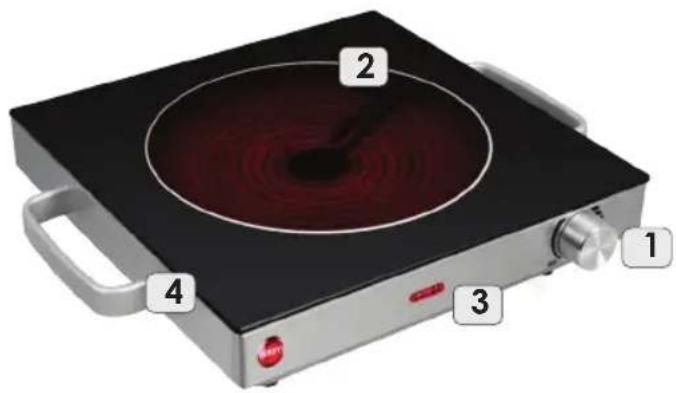

GENERAL DESCRIPTION

1. Thermostat
2. Heating plate
3. Control light
4. Housing

TECHNICAL DATA

• power: 2000 W
• supply voltage: 230V \~ 50Hz

USING THE APPLIANCE

The ceramic cooker allows to prepare food in many different ways (cooking, frying, etc.) The use of infrared lamp in appliance allows to reach rapidly required temperature, which saves time and reduces power consumption.

Before operating and plugging in the appliance, set the thermostat (1) in the position "MIN" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1) Thermostat enables smooth adjustment of the temperature.

The lower temperature proper for heating meals, high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

When the appliance is no longer used, set the thermostat (1) in the position "MIN" and unplug the appliance.

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate
