Product Type	Tower fan with air purification
Model	AMS150-PBW
Rated Power	33 W
Working Voltage	24 V --- (adapter input 100-240 V~, 50/60 Hz)
Max Airflow	27.07 m³/min
Noise Level	≤61 dB(A)
Service Value	1.22 (m³/min)/W
Standby Power	0.22 W
Maximum Air Velocity	2.66 m/s
Seasonal Electricity Consumption	7.32 kWh/a
Control Method	Touch panel on unit, remote control (AAA battery), and MSmartHome app (Wi-Fi 2.4 GHz)
Wind Modes	Normal, Sleep (3 levels), AI Smart (auto temperature adjustment), Ion (Plasmacluster)
Speed Levels	1–10 (adjustable in normal and Ion modes; Sleep has 3 levels)
Oscillation	Yes, touch button to start/stop
Timer	1–12 hours (can be set for shutdown or startup)
Auto Shutoff	After 15 hours of continuous operation with no user interaction
Additional Functions	Intelligent memory (remembers last settings except timer), screen-off after 30 seconds, filter replacement indicator
Filter Type	Replaceable filter (model FQ150CJ-2, includes 2 sets) plus washable pre-filter
Filter Care	Clean pre-filter every 2 weeks; replace main filter every 6 months (adjustable based on usage)
Cleaning	Wipe exterior with soft damp cloth and mild detergent; do not immerse or use abrasive cleaners
Safety Features	Overheating protection? Not explicitly stated; forced shutdown after 15h; child lock? Not present
Included Accessories	Remote control (AAA battery not included), adapter (100-240 V to 24 V), user manual
Dimensions (approx.)	Not specified in manual; typical tower fan height ~1 m
Weight	Not specified
Warranty / Legal	Complies with RE Directive 2014/53/EU, WEEE, RoHS

Frequently Asked Questions - AMS150-PBW MIDEA

How do I pair the fan with the MSmartHome app?

Download the MSmartHome app from Google Play or Apple App Store. Ensure your phone is connected to a 2.4 GHz Wi-Fi network and Bluetooth is enabled. Power on the fan, open the app, and follow the in-app instructions to add your device. If not discovered automatically, tap '+' and search by device category and model.

Why is the remote control not working?

First, check if the remote is within 5 meters of the fan and pointed directly at the display panel. Replace the AAA battery (1.5V, non-rechargeable). If still not working, try removing any obstacles between remote and fan.

How often should I clean or replace the filter?

Clean the pre-filter every 2 weeks using a vacuum cleaner. Replace the main filter (model FQ150CJ-2) every 6 months, or when the filter replacement indicator lights up. After replacing, press and hold the mode button for 3 seconds to reset the indicator.

The fan does not turn on. What should I do?

Ensure the power adapter is securely connected to the base and plugged into a working outlet. Check that the power button on the unit is pressed. If still off, try a different outlet. If the problem persists, contact service.

Can I use the fan without the remote or app?

Yes, you can operate all functions directly from the touch panel on the fan unit. The panel controls power, wind mode, speed, oscillation, and timer.

What does the AI Smart wind mode do?

In AI Smart mode (indicator 'AI' on), the fan automatically adjusts its fan speed based on changes in ambient temperature to maintain comfort.

How do I set the timer?

Press the timer button repeatedly to cycle through 0–12 hours. The display shows the set time. '0h' cancels the timer. The timer works for both shutdown (when fan is running) and startup (when fan is in standby).

Is it safe to leave the fan unattended?

The fan has a forced shutoff after 15 hours of continuous operation without user input. However, always place the fan on a stable surface and keep it away from water. Unplug before moving or cleaning.

The fan is making unusual noise. What should I do?

Check if the fan is on a level, stable surface. Ensure the guard and blades are properly installed. If noise persists, inspect for any foreign objects. If still noisy, contact service; the noise level should be ≤61 dB.

Can I use the fan with a smart home system?

The fan works with the MSmartHome app for remote control via Wi-Fi. It does not natively support Amazon Alexa or Google Assistant, but you may be able to integrate via third-party services. Check the app for compatible routines.

USER MANUAL AMS150-PBW MIDEA

Line drawing of a vertical cylindrical object with a rectangular opening, resembling a lamp or stand (no text or symbols)

VENTILATORE ELETTRICO

MSmartHome

Technical line drawing of a cylindrical device with internal components, no visible text or symbols

Elenco delle parti

Simple 3D diagram of a bed with an arrow pointing to the top block (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a hand inserting a component into a device with a checkered pattern (no text or symbols)

Diagram of a hand inserting a granular material into a container (no text or symbols)

Line drawing of a portable air purifier with a plug and cooling unit attached (no text or symbols)

Illustration of a plug inserted into an electrical outlet with a black arrow indicating direction (no text or symbols)

ISTRUZIONI PER L'USO

Illustration of a hand interacting with a smartphone displaying a button (no text or symbols visible)

Illustration of a wall-mounted power plug connecting a socket to a wall (no text or symbols)

Line drawing of a hand opening a device into a container with a patterned lid (no text or symbols)

Line drawing of a hand holding a tablet device with four compartments and a curved panel (no text or symbols)

Illustration of a wall-mounted power plug with a black arrow indicating direction (no text or symbols)

Simple 3D illustration of a rectangular block with textured surface (no text or symbols)

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 04

PRODUCT OVERVIEW 05

PRODUCT INSTALLATION 06

OPERATION INSTRUCTIONS 08

APP SETUP AND OPERATION 10

CLEANING AND MAINTENANCE 12

TROUBLESHOOTING 14

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 15

DISPOSAL AND RECYCLING INFO 16

DATA PROTECTION NOTICE 17

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find a damage, please contact the retailer or dealer. Please note that for alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

Caution

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance. Cleaning and usermaintenance shall not be made by children without supervision.
• Neveryirostererfijcjeet, pencils, or a through the grille when fan is running.
• Disconnect fan when moving from one location to another.
• Be sure fan is on a stable surface when operating to avoid overturning.
• Keep electrical appliances out of reach from children or infirm persons. Do not let them use the appliances without supervision.
  • Household use only.

Warning

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
- When the fan was assembled, the rotor blade guard shall not be taken off anymore.
- Ensure that the fan is switched off from the supply mains before removing the guard.

SPECIFICATIONS

	AMS150-PBWProduct Model
Working Voltage	24V ---
Rated power	33 W
Noise	≤61dB

Parts	Adapter
Input	100-240V~ 50/60Hz 1.5A
Output	24 V 1.5A

Item Symbol Value			Unit
Maximum fan flow rate	F	27,07	m^3/min
Fan power input	P	22,10	W
Service value	S_v	1,22	(m^3/min)W
Standby power consumption	P_SB	0,22	W
Fan sound power level	L_WA	57,32	dB(A)
Maximum air velocity	C	2,66	meters/sec
Seasonal electricity consumption	Q	7,32	kWh/a
Measurement standard for service value	EN IEC 60879:2019

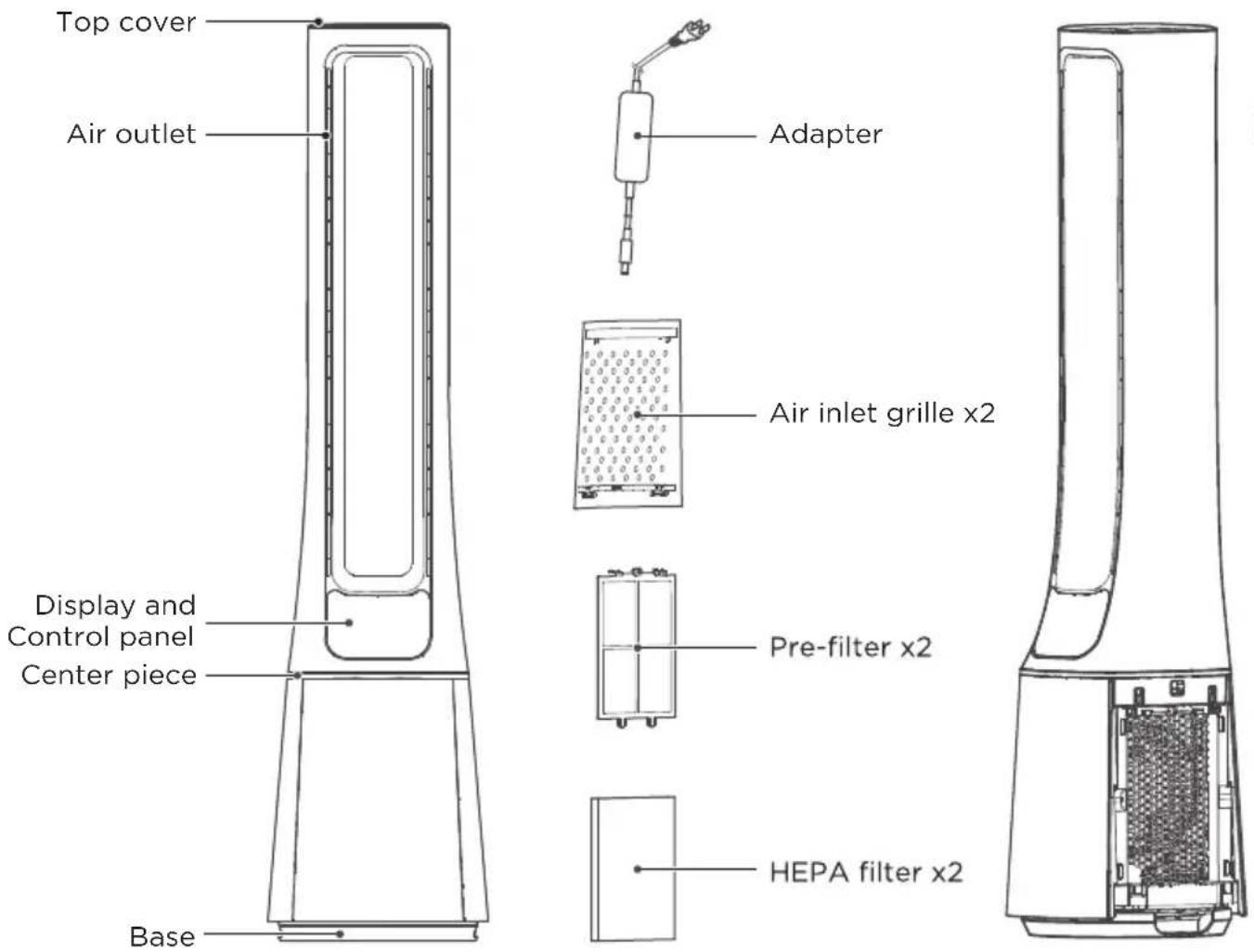

PRODUCT OVERVIEW

Component Name

Parts List

Manual x1 Remote contAolapter x1

NOTE

All the pictures in this manual are for explanation purpose only. Any discrepancy between the real object and the illustration in the drawing shall be subject to the real subject.

PRODUCT INSTALLATION

Installation Procedures

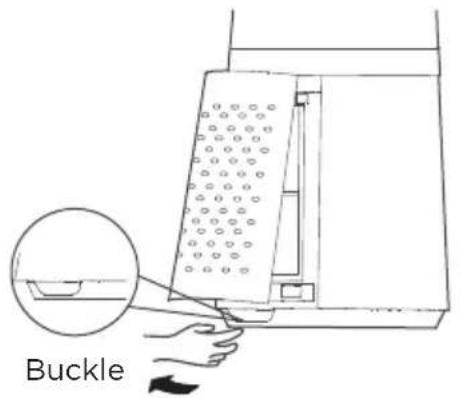

1 Remove the air inlet grille. 2

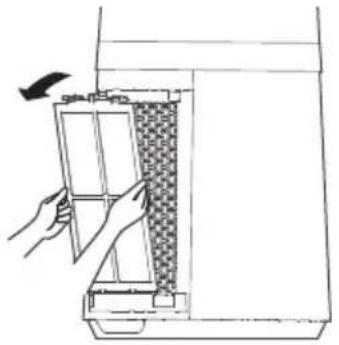

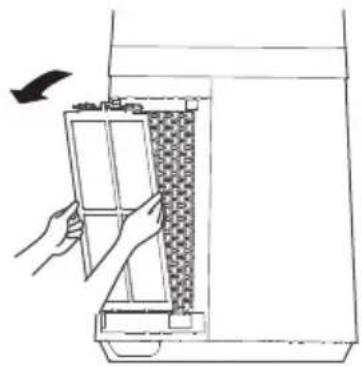

Take out the pre-filter: press the raised part on both sides to pull it outwards, and take out the pre-filter.

EN

Line drawing of a hand inserting a component into a device (no text or symbols)

3 Remove the protective film of the filter.

4 Its isolated filter. to clean the filter every two weeks and replace the filter every six months (The cleaning and replacement cycle can be adjusted according to the use environment).

Simple 3D diagram of a bed with an arrow pointing to the top block (no text or symbols)

Diagram of a hand inserting a component into a device, showing a checkered pattern inside (no text or symbols)

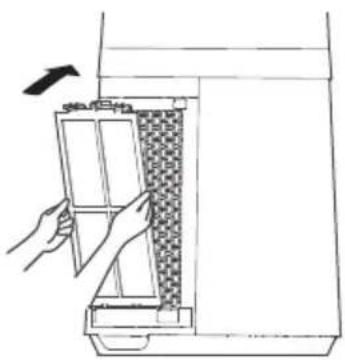

5 Install the pre-filter: align the slot position at the bottom, and buckle up the upper U-shaped buckle.

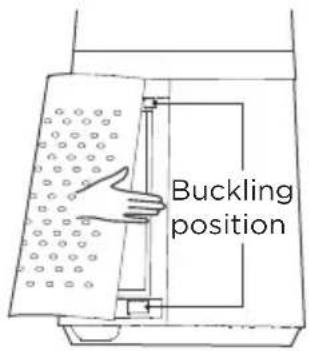

6 Install the air inlet grille: align the upper two buckles and press them tightly, then press the two sides at lower part, slowly and gently buckle the air inlet grille.

Line drawing of a hand opening a door with a textured panel inside (no text or symbols)

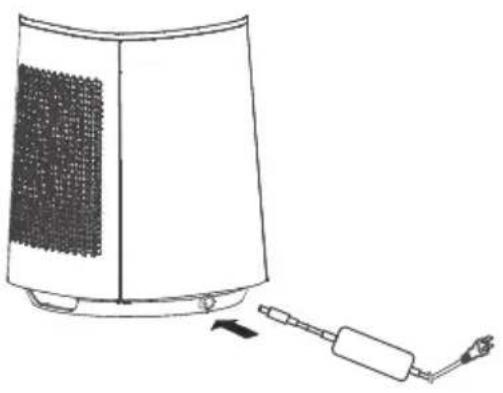

7 Install the adapter, Tighten the plug with the socket position of the base

8 Plug power supply.

Line drawing of a portable electric heater with a plug and cable, no text or symbols present

Illustration of a plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

EN

OPERATION INSTRUCTIONS

Control Panel Operations

EN

	Function description
	Startup/Standby, long press the on button, “” indicator lights up.
	Touch this button to switch the wind mode among normal, plasmcluster, sleep and AI smart.(When the filter replacement reminder light is on, press and hold this button to turn off the reminder light)
	Touch this button to start/stop the swing.
	Touch this button to switch the wind speed (cycles among level 1-2-3-···-10-1-2).
	Schedule to shut down in the power-on state, and schedule to start up in the standby state.Touch this button to set the timer (the display cycles among 0-1-2-···-12-Oh); Oh means that the timer is canceled.
	Filter replacement reminder icon; when the icon “” stays on, the filter needs to be replaced.
	In AI smart wind mode, the indicator light “AI” is on, and the wind power is automatically adjusted according to changes in ambient temperature.
	This indicator light is on in sleep wind mode.Start the sleep wind function, and the fan automatically adjusts the level according to the program; there are three levels: 1, 2 and 3; you can adjust the level of the sleep wind by pressing the wind speed button.
	Displays the wind speed level or set timer, and displays the temperature in the wind mode.
	This indicator light is on in ion wind mode.In this mode, plasmcluster is turned on, and level 1-10 wind has plasmcluster.
	This indicator light is “”.Long press the switch button for 3 seconds to start matching or disconnect “”.The lights are on, “” is connected.The lights are blinking and the “” is disconnected or being connected.

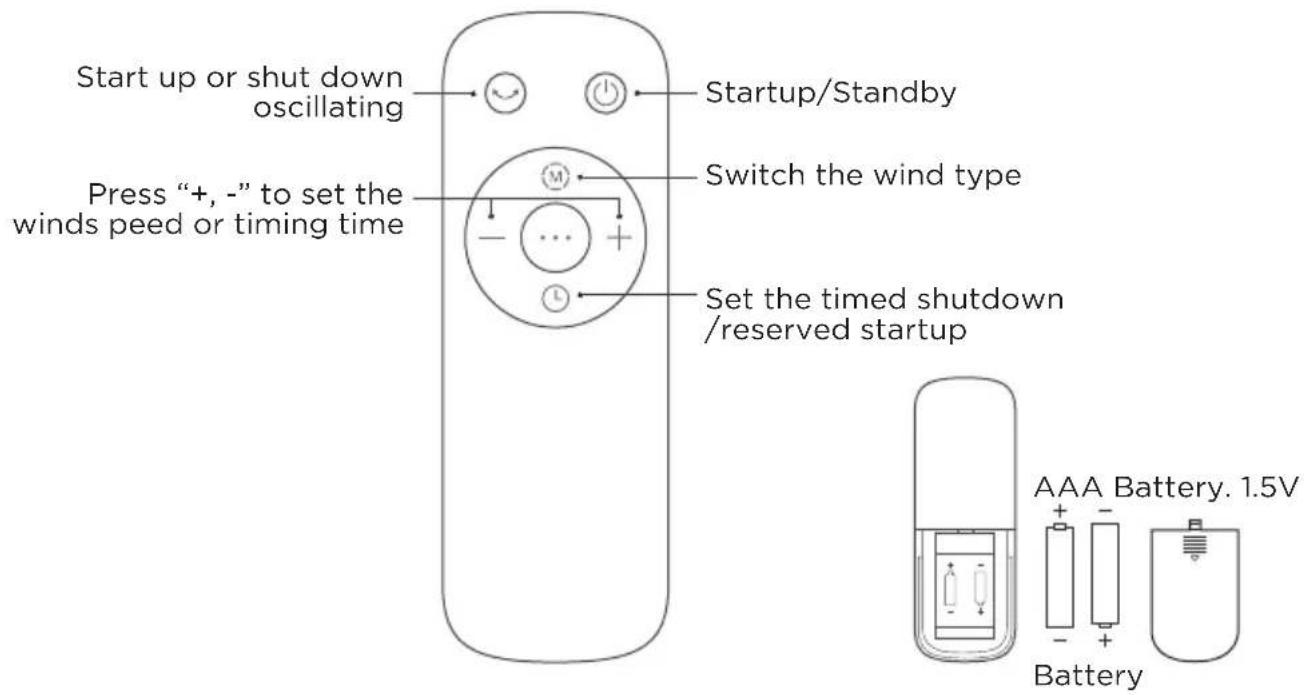

Remote Control

• The remote control should be normally used within 5 meters of the front of the product and 30 degrees of the deviation angle.
• The battery contains many heavy metals, acids and bases, etc., which may threaten human's health. Waste batteries should be recycled separately.

EN

NOTE

Use manganese or alkaline batteries of type "AAA". DO NOT use rechargeable batteries.

Additional Functions

- Forced shutdown

There is no operation during the running of the fan, after 15 hours of continuous operation, the fan will be forced to shut down auto-matically.

• Intelligent memory

When the fan is turned off or powered off, it will run in the state before turning off or power off when the power is powered on again (the timing function is not memorized).

- Screen-off function

In case of no operation for 30 seconds during normal operation, the indicator light on the body will be automatically off, but the fan will continue to operate. Press the ON/OFF button to turn off the fan when the screen is off, and press the other button to restore display.

APP SETUP AND OPERATION

EN

On an app market (Google Play Store, Apple App Store), search for "MSmartHome" and find the MSmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

Connect your devices to MSmartHome

① Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.
2 Please power on your devices.
3 Open MSmartHome app on your phone.

5 If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.

Register and log inDownload the MSmartHome app

Open the MSmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

4 If a message of "Smart devices discovered nearby" appears, click to add.

Illustration of a hand interacting with a smartphone displaying a button (no text or symbols visible)

6 Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

• Make sure your devices are powered on.
• Keep your mobile phone close enough to your device when you are connecting your device to the network.
• Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
• Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.
• The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels, restaurants, etc. Please connect to a wireless network that does not require authentication.
• Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.
• In the case that your device connected to a wireless network before but it needs to reconnect, please click "+" on the app Home page, and add your device again by the device category and model according to the instructions on app.

Operation frequency band: 2.4GHz; RF outputpower:13-20dBm;

Hereby, GD Midea Environment Appliances MFG. Co., Ltd declare that this electric fan is in compliance with the essential requirements and other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached.

CLEANING AND MAINTENANCE

The fan requires minimal maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, unplug the fan power.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
   Please wipe the exterior parts with a soft cloth soaking a mild detergent.
3. Do not use any abrasive detergent or solvents to avoid scratching the surface.
4. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid entering into the motor housing or interior parts.
6. Be sure to unplug from the electrical supply source before cleaning.
7. Plastic parts should be cleaned with a soft cloth moisten with mild soap Thoroughly remove soapsuds with dry cloth.

Pre-filter Cleaning

1 Unplug the power cord.

Illustration of a plug inserted into an electrical outlet with a black arrow indicating direction (no text or symbols)

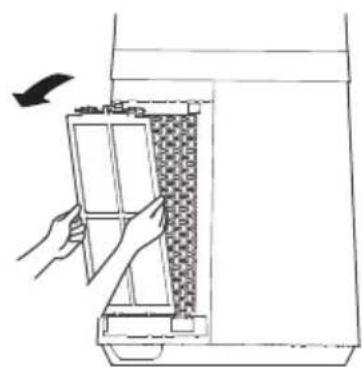

2 Take out the filter.

Line drawing of a hand opening a device into a container with a patterned lid (no text or symbols)

3 Remove the dust with vacuum cleaner.

4 Install the machine in reverse order and plug power supply.

Line drawing of a hand holding a tablet device with four compartments (no text or symbols)

Illustration of a plug inserted into a wall socket with an arrow indicating direction (no text or symbols)

Filter Replacement

1 Filter model: FQ150CJ-2 (including 2 sets).

Simple 3D illustration of a rectangular block with textured surface (no text or symbols)

3 Replace a new filter.

Technical line drawing of a mechanical component with a textured internal layer and an arrow indicating direction (no text or symbols)

2 When the indicator light for replacement of filter is on, the prompt that reminds you of filter replacement will appear. If it is not replaced in time, the prompt will appear during each startup.

4 Long press the mode button for 3 seconds to turn off the indicator light for filter replacement.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

EN

	Cause SolutionProblem
The machine does not work properly after installed	·The power cable is not plugged in or has poor contact.	Make sure the plug is properly inserted into the socket.
	·The switch on the body is not turned on.	Turn on the switch on the body.
The remote does not work	·The battery needs replacing. Replace the battery.
	·The remote is being used more than 5m away from the fan.	Use the remote closer to the fan and make sure it is pointing directly at the display panel.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important Instructions for Environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

EN

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no visible text or labels

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

make yourself at home
