WS40WH - Weather Station BLAUPUNKT - Free user manual and instructions

Product Type	Weather Station
Brand	Blaupunkt
Model	WS40WH
Dimensions (Main Unit)	175 x 31 x 122 mm
Weight (Main Unit)	0.238 kg
Dimensions (Sensor)	43 x 22 x 110 mm
Weight (Sensor)	0.05 kg
Display	Color LCD, 128 x 80 mm
Power Supply (Main Unit)	5V 1200mA AC adapter (included), battery backup: 3x AA (not included)
Power Supply (Sensor)	2x AA batteries per sensor (included)
Weather Forecast	Sunny, Partly cloudy, Cloudy, Rainy, Snowy (12-hour prediction, 70-75% accuracy)
Temperature Range (Indoor)	-10°C to +50°C (14°F to 122°F)
Temperature Range (Outdoor)	-40°C to 60°C (-40°F to 140°F)
Humidity Range	1% to 99%
Wireless Sensors	Up to 3 (3 included), frequency 433.92 MHz, range 80 m (open area)
Barometric Pressure	Absolute, range 850-1050 hPa, 23.62-32.75 inHg
Clock	12/24 hour format, calendar, weekday in 7 languages
Alarm	With snooze function (5 minutes)
Moon Phase	12 phases displayed automatically
Backlight	Auto dimmer with adjustable brightness (high/middle/low) when powered by AC, 20-second backlight on battery
Water Resistance (Sensor)	IP54
Cleaning Instructions	Wipe with a clean, dry or slightly damp cloth; do not use chemical solvents
Safety	Do not expose to dripping/splashing, direct sunlight, heat sources; keep away from water; use only as instructed
Replacement Parts	Use manufacturer-specified parts; unauthorized substitutions may cause hazards
Environmental Compliance	EU Directive 2012/19/EU (WEEE), 2006/66/EC (batteries); products recyclable

Frequently Asked Questions - WS40WH BLAUPUNKT

How do I set the time and date on the WS40WH?

Press and hold the SET button for 3 seconds. The weekday language will flash. Use + or - to choose language (ENG, GER, etc.), press SET to confirm. Then follow the sequence to set auto dim start/end time, year, month/day format, month, date, 12/24 hour format, hour, minute, air pressure unit, and weather calibration. Press and hold + or - for fast adjustment. The setting will save after 20 seconds of inactivity.

How do I connect the outdoor wireless sensors?

Insert 2 AA batteries into each sensor (included). The main unit will automatically search for sensor signals within 3 minutes. The wireless icon flashes during search and becomes stable when connected. If no signal, press and hold the CH button on the main unit for 3 seconds to rescan. Ensure sensors are set to different channels (1/2/3) using the channel button on the sensor. The main unit can connect up to 3 sensors.

What should I do if the outdoor temperature/humidity shows '--'?

This means no signal is received. Check that the sensors are within 80 m of the main unit and away from interference sources like TVs or computers. Ensure sensors are at least 2 m from metal window frames. Remove and reinsert batteries in both the sensor and main unit. If using multiple sensors, verify they are on different channels.

How accurate are the temperature and humidity readings?

Temperature accuracy is ±1.0°C between 0°C and +50°C, and ±1.5°C outside this range. Humidity accuracy is ±5% in the 40-70% range, and ±8% outside.

How do I set the alarm and use the snooze function?

Short press the ALARM button to view the alarm time. Press again to toggle alarm on/off. To set, press and hold ALARM, then use + or - to adjust hour, press ALARM to confirm, then set minutes. When alarm rings, press any button (except snooze) to stop it; it will sound again the next day. Press the SNOOZE (top backlight) button for a 5-minute snooze, which repeats indefinitely until canceled.

How does the backlight work?

When powered by batteries only, pressing the top SNOOZE/BACKLIGHT button turns on the backlight for 20 seconds. When using the AC adapter, pressing this button cycles through high, middle, and low brightness levels. Auto dim can be configured in settings: the default period is 22:00 to 08:00. Long press the snooze/backlight button for 3 seconds to toggle auto dim on/off.

How do I view the maximum and minimum temperature/humidity records?

Press the MEMORY button to cycle through max and min records. To clear the history, press and hold MEMORY until the values reset. Note: Records are automatically cleared at 00:00 each day.

How accurate is the weather forecast?

The forecast is based on barometric pressure trends and predicts conditions for the next 12 hours with 70-75% accuracy. It may differ from official forecasts as it uses limited parameters. The default icon is partly cloudy; the station calibrates during the first 1-2 weeks.

What batteries does the main unit use?

For backup power, the main unit uses 3 AA batteries (alkaline recommended, not included). The AC adapter (included) provides primary power. Outdoor sensors each use 2 AA batteries (included). Use high-quality alkaline or lithium batteries for best performance; do not use rechargeable or heavy-duty batteries.

How do I clean and maintain the weather station?

Clean the device with a clean, dry or slightly damp cloth. Do not use chemical solvents, as they may damage the finish. Avoid exposure to direct sunlight, heat sources, moisture, and dust. Do not place near candles or naked flames.

USER MANUAL WS40WH BLAUPUNKT

Multi-functional Weather station

Important Notes

• safety and operating instruction should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
  • On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
  • Humid or moist places.
  • Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.

3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow instructions - All operating and users' instructions should be followed.

5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

11. The highest environmental temperature suitable for this product is 35°C.

12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

6. Do not place this unit close to a strong magnetic field.

7. Do not place the unit on a amplifier or receiver.

8. Do not place this unit in a damp area as the moisture will affect the life of electric components.

9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Many thanks purchase our model, this weather station product includes below features. Please read and reference this manual carefully before operate the unit. Please keep the manual for future operation reference.

Features

• Weather forecast: Sunny, Partly cloudy, Cloudy, Rainy, Snowy.
- Indoor/outdoor temperature.
• Indoor & outdoor humidity.
• In/outdoor maximum & minimum temp. & humidity history memory.
• 12/24 hours clock time, calendar.
• Alarm with snooze function.
• Maximum support and work with 3 outdoor wireless transmitters in different channel (3 transmitter included).
- Barometer
- Moon phase
• Colorful display with auto dimmer

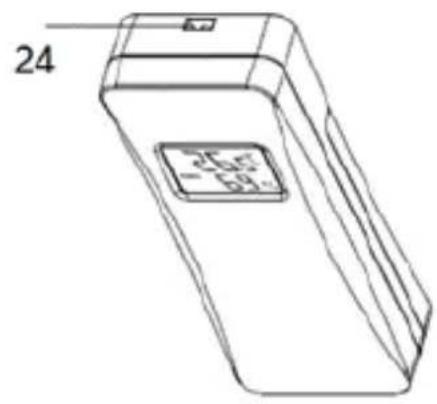

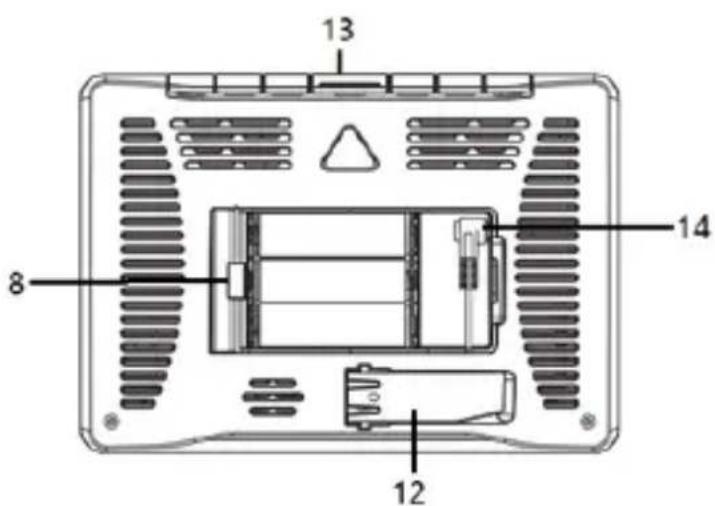

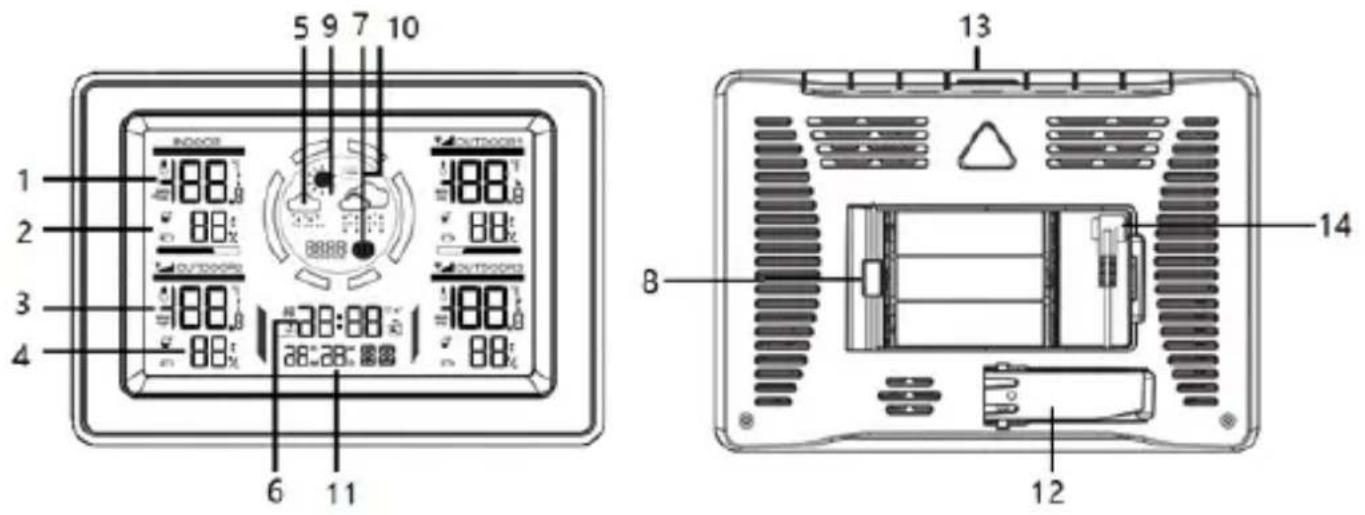

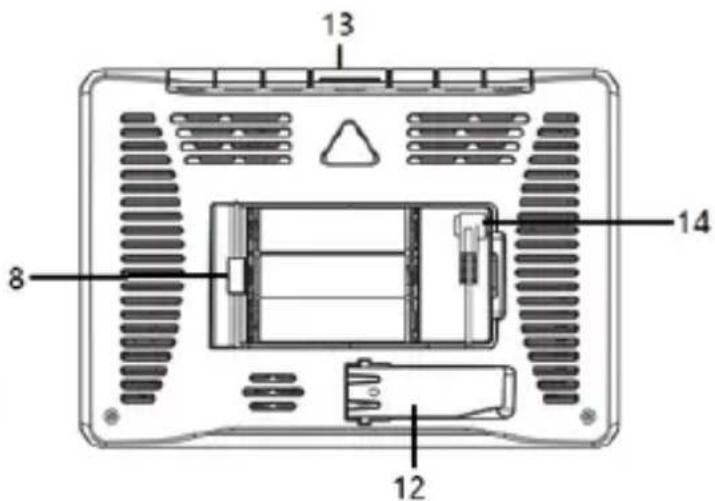

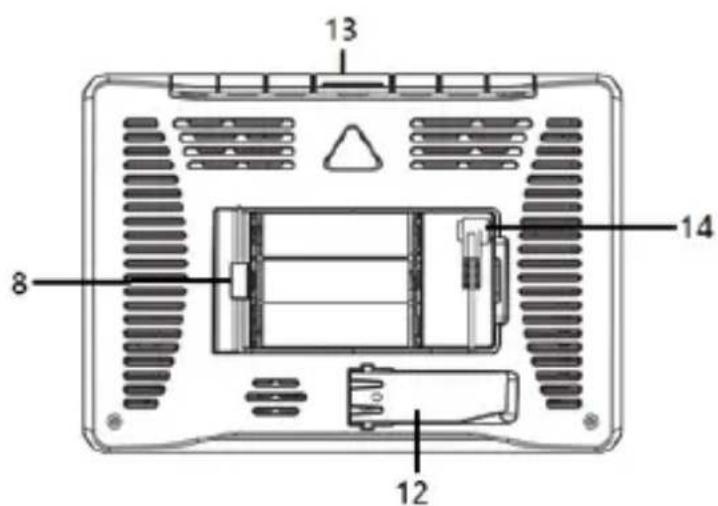

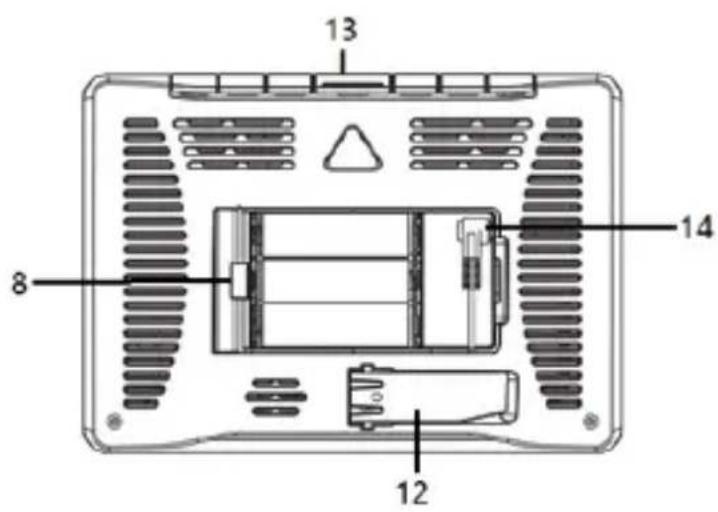

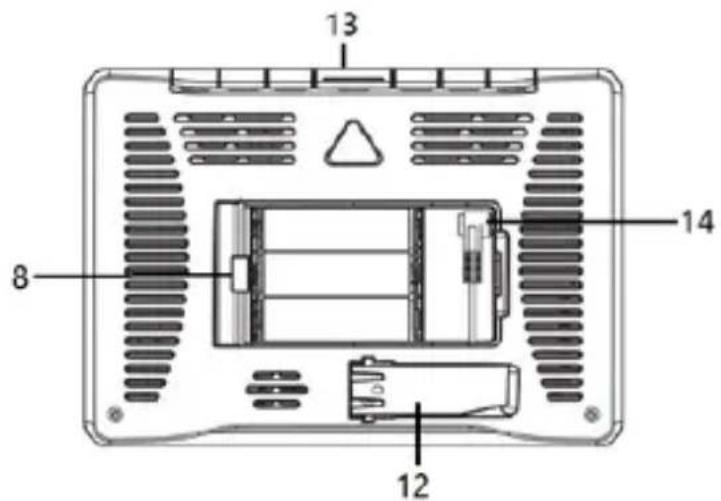

Display & controls

1. Indoor temperature/trend
   2.2. Indoor humidity/trend
2. Outdoor temperature/trend
3. Outdoor humidity/trend
4. Animated weather forecast
5. Clock time
6. Moon phase
7. Battery compartment cover
8. Barometric pressure
9. Barometric trend
10. Calendar
11. Foldable stand (unfold for table placement)
12. Control buttons: alarm-memory-channel-snooze/backlight-up-down-set
13. DC power jack

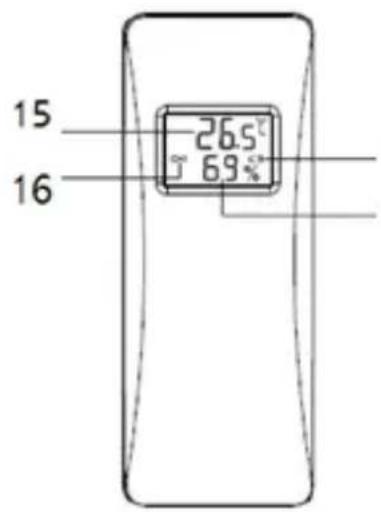

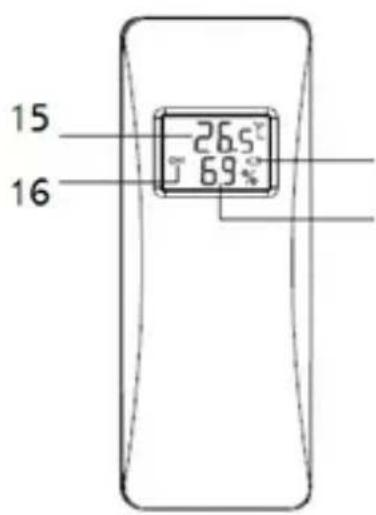

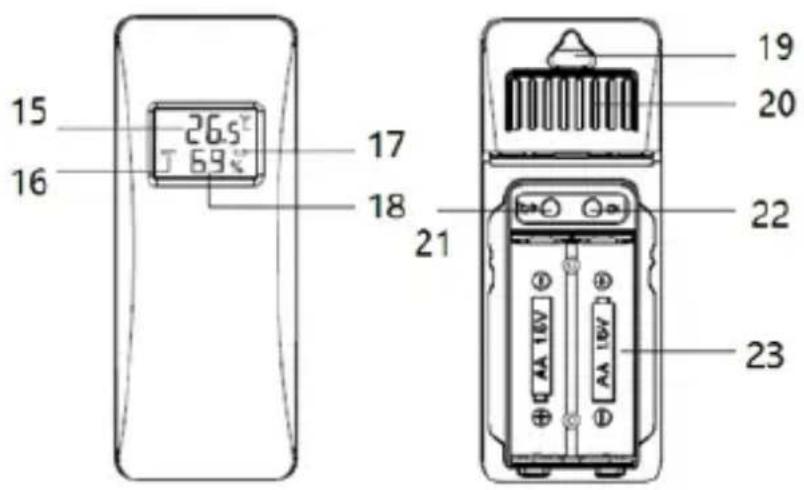

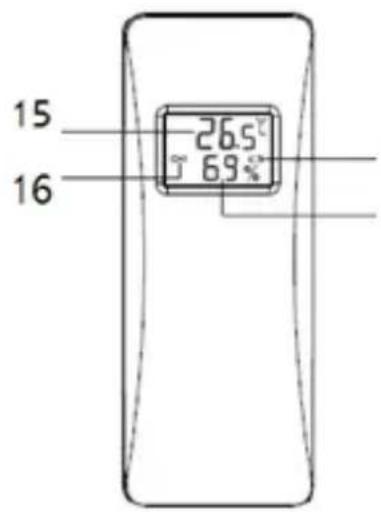

14. Temperature
15. Channel Number

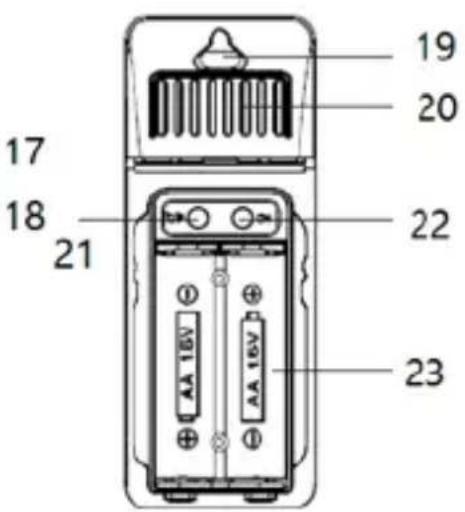

16. Low battery indicator
17. Humidity

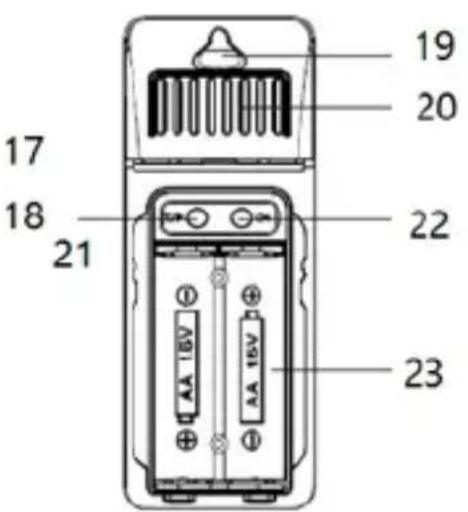

18. Wall hanging
19. Ventilation Hole
    21.°C/°F switch button
20. Sensor channel number 1/2/3 setting
21. Battery compartment (2*1.5V AA alkaline batteries)
22. Rope hanging Hole

Power setting

Plug in the supplied AC/DC power adaptor to an AC household outlet in order to get power, open up the backup battery door on rear panel of main unit and plug in the DC connector of power adaptor to DC power jack on the right side panel of battery compartment, manage and order the power cord through out of the hole at the right bottom corner of battery door, and close the battery door. The display will light up, then the unit is ready work for you.

Open the battery compartment cover of outdoor wireless transmitter, insert 2 x AA batteries to the compartment according to the correct polarity showed in the compartment. (Batteries are included) We recommend use high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

The display of transmitter will show temperature and humidity data once get the power ready. Short press the channel button(above battery compartment) to switch the channel between channel 1\~3. Short press C/F button to switch the temperature unit.

The main unit can work with dry battery power only as well. Open up the battery door on the rear panel, insert 3 x AA battery (not include) according to engraved negative and positive polarity. Then the unit will ready work for you. The battery power also can backup the settings.

Receive signal from outdoor wireless transmitter

The main unit can detect and receive the outdoor temperature and humidity wireless signal from transmitter automatically after power setting ready. There will take 3 minutes maximum for signal searching. The wireless symbol(nearby channel on display) will flash on display during searching, and becomes stable after get the signal. If there is no available signal be received, the wireless symbol will be disappeared after 3 minutes, and outdoor temperature and humidity data will show “ - - ” on display. In case you need reconnect the wireless signal, please press and hold the channel button 3 seconds on top of main unit. The unit will scan and reconnect the wireless signal one after one.

Placement and important notes:

1. 1. Important: The main unit are able to work and connect with 3 outdoor wireless transmitters maximum. Open up the battery door of outdoor wireless transmitter can see and adjust the channel(include 3 channels). It requires to set up supplied 3 wireless transmitter at different channel between each other for working at same time. You can check and know the channel 1/2/3 information on the display of wireless transmitter.

can adjust the channel number and check the outdoor data between CH1-3 on display. You can take the same mothed to connect other wireless transmitter, but please set it in different channels. Only one wireless transmitter include in the package.

1. please use and put main unit or transmitter device 1.5\~2 meters away from interference source like computer monitors or TV sets. Please also place the main unit stand up far away with metal window frames.

2. Please do not use other electronic products such as headphones or speakers operating at the same signal frequency (433.92MHz), which may cause interference. Your neighbors use electronic devices operating on the same signal frequency (433.92MHz) can also cause interference.

3. To ensure accurate temperature measurement, place the device in a dry area, free of dirt and dust. Place out of direct sunlight and away from heat sources or vents.

4. You can install the wireless transmitter outdoor. For better accuracy of using, please place the sensor lengthwise/ standing up 1.5\~2 meters at least away from the ground with enough air flowing and protection without rainy. Please do not expose the sensor to direct sunlight for a long time.

5. The maximum working distance of wireless transmitter is 80 meters away from main unit.

6. The wireless signal from transmitter will refresh in every 114(channel 1)/134(channel2)/158(channel3) seconds in recycle.

Settings

Press and hold set button 3 seconds and get the weekday language text flash on display, press + or - button to choose the weekday language(GER (German), ENG (English), FRE (French), ITA (Italian), SPA (Spanish), DUT (Dutch), DAN (Danish), press set button to confirm and skip to keep tone on/off setting, repeat and finish rest setting for display auto dim start time/auto dim end time/year/month&day format/month/date/ 12&24 hours format/hour/minute/air pressure unit selection/weather select/ exit ( Press and hold up or down button can accelerate the adjustment; there will auto save and exit current setting if there is no further operation last for over 20 seconds)

Alarm and snooze

Short press alarm button on top panel can check the alarm time, press it again to turn on/off the alarm function. Press and hold alarm button subsequently can activate alarm setting mode, press + or - button to adjust the hour digits, press alarm button to confirm and skip to minute setting which is same operation as hour's setup. Short press alarm button to finish the alarm setting. In case you set up alarm successful, the relevant alarm icon will show on display. Press top backlight and snooze can save and exist the current setting.

When the alarm is ring up due to the setting time is being, press any button (except top backlight/snooze button) to cancel the alarming voice, and it will wake up again at same time in coming of next day. Short press top backlight/snooze button to activate snooze function, which will wake up again after 5 minutes. The snooze can repeat in each 5 minutes. Press any other button (except snooze) can cancel the snooze.

The buzz alarm voice will last for 2 minute if there is no further operation.

Temperature and humidity

1. Indoor temperature range: -10 \~ +50 °C / 14 \~ 122 °F.

2. Outdoor temperature range: -40°C\~60°C(-40°F\~140°F).
   Remarks: LL.L°C or HH.H°C will show on display when out of the above range

3. Indoor and outdoor humidity range: 1%-99%
   LL% or HH% will display when out of range

4. Temperature accuracy: ±1,0°C between 0°C \~ +50°C/32°F \~ 104°F.
   ±1,5°C outside this measuring range
5. Humidity accuracy: (40-70%) ± 5%, others ±8%
6. Press memory to check maximum and minimum history data, press and hold memory button to manually clear the record. (Remarks: Historical record will be cleared automatically at 00:00 every day).
7. Press set button to switch temperature units: °C(Celsius degree) or °F(Fahrenheit degree).

Temperature trend

The temperature trend arrow (nearby temperature data) in different directions depending on whether the latest temperature reading is higher or lower than previous readings.

Arrow angled upwards=Temperature rose up 1°C in the past 1 hour.

Arrow in straight = Temperature changed less than 1°C in the past 1 hour.

Arrow angled downwards=Temperature fell off 1°C in the past 1 hour.

Humidity trend

The humidity trend arrow in different directions depending on whether the latest humidity reading is higher or lower than previous readings.

Arrow angled upwards=Temperature rose up 5% in the past 1 hour.

Arrow in straight = Temperature changed less than 5% in the past 1 hour.

Arrow angled downwards=Temperature fell off 5% in the past 1 hour.

Weather forecast

The weather forecast is based on collected hourly barometric pressure value data from the main unit. The forecast station predicts weather conditions for the next 12 hours with 70-75% accuracy. The default weather icon is partly cloudy, the base station will calibrate the weather report in the first 1-2 week after power on ,based on the barometric pressure data.

Weather forecast will appear in one of the following combinations (reference only):

SUNNY

PARTLY CLOUD

CLOUDY

RAINY

SNOWY

Please note that the device forecasts the weather based on limited parameters and may differ from official weather forecasts which are calculated on the basis of advanced algorithms.

Backlight and auto dim

When powered by batteries only, press top backlight/snooze button to turn on the backlight. The backlight will last 20 seconds and auto off.

When the unit powered by AC/DC adaptor, press top backlight/snooze button to adjust brightness level between high/middle/low.

In case of you set up the auto dim time, and the setup time is being. The unit will enter to auto dim mode, and the auto dim icon will show next to the clock time on display. The default auto dim time period is 22:00\~8:00. Long press top backlight/snooze button 3 seconds to turn on or off the auto dim function.

Barometric pressure

Once the main unit set up power ready, press the + or – button immediately can adjust the barometric pressure values if you want to calibrate it. Short press backlight/snooze button to exist setting.

Barometer range: 23.62-32.75inHg (600-832mmHg,850-1050hPa/mb).

Please note that this weather station reads absolute air pressure, which may differ from that in the official weather forecasts. The reason for this difference is that the relative pressure reported in the official weather forecasts is reduced to sea level. The absolute pressure indicated in this model is the pressure at a given location at the appropriate altitude.

Low battery power indicator

- About outdoor sensor: When battery indicator shows next to the outdoor temperature, replace batteries in your outdoor sensor.

Moon phase

Moon Phase is changed according to Calendar automatically. There are 12 moon phases in loop

Trouble shooting

Doesn't display anything. ✦ Check if the AC/DC power adaptor connect with unit properly.
Temperature/humidity from outdoor sensor not displayed.	◇ Check that the distance between the thermometer and sensor doesn’t exceed 30m(recommended).◇ Make sure that the devices are located at least 2m from monitors and TV sets.◇ Avoid placing the devices on or close to window frames made of metal.◇ Avoid using electronic devices such as loudspeakers which operat e at the same frequency (433.92MHz), close to the devices.◇ Please double check if the supplied 3 wireless transmitter was set up in different channels each..◇ Remove the batteries, wait a while and then reinsert them.
Displayed temperature is incorrect.	◇ Remove the batteries, wait a while and then re-insert them.◇ Make sure that the devices are not affected by heat sources or air-conditioning units and such.

Specifications

Display of data from 3 outdoor sensors on one screen

Indoor / outdoor temperature display

Indoor / outdoor humidity display

Temperature / humidity trend indication

Absolute air pressure display

Moon phase display

Max/min record of indoor/outdoor temperature & humidity

Weather forecast for next 12-24 hours with barometer

Weather forecast can be calibrated manually

Color LCD display with dimmer

LCD display dimensions: 128 x 80 mm

Clock (12/24 hour format) and calendar

Weekday display in 7 languages: (EN/GE/DA/SP/DU/IT/FR)

Alarm with snooze function

Auto Dim for night time

3 outdoor sensors with LCD display included

Sensor display dimensions: 25 x 17 mm

Low battery indicator for device and 3 outdoor sensors

Wall hanger/Table stand

Power supply: 5 V 1200 mA (power adapter included)

Outdoor wireless transmitter power source: 6 x 1.5 V (AA size, included)

Battery power: 3 x 1.5 V (AA size, not included)

IP54 (water proof, for wireless transmitter)

Wireless transmitter working frequency: 433.92 MHz

Power consumption: 0.32 W (main unit), 24 mW (wireless transmitter)

Device dimensions: 175 x 31 x 122 mm

Net weight: 0.238 kg

Sensor dimensions: 43 x 22 x 110 mm

Sensor net weight: 0.05 kg

Sensor Net weight: 0.032 kg

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	DONGGUAN SHIJIE HUAXU ELECTRONICS FACTORYCommercial Registration Number: 440429543Address: No.200,Technology East Road,ShijieTownDongguan City,Guangdong,P.R.China
Model identifier	HX075-0501200-AG-001
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.2	A
Output power	6.0	W
Average active efficiency	≥75	%
Efficiency at low load (10 %)	71.17	%
No-load power consumption	≤0.1	W

Ważne informacje

Simple line drawing of a sun above two clouds (no text or symbols)

SŁONECZNIE

Symbol of a trash bin with crossed lines indicating no waste or plastic (no text or labels)

Display of data from 3 outdoor sensors on one screen

Indoor / outdoor temperature display

Indoor / outdoor humidity display

Temperature / humidity trend indication

Absolute air pressure display

Moon phase display

Max/min record of indoor/outdoor temperature & humidity

Weather forecast for next 12-24 hours with barometer

Weather forecast can be calibrated manually

Color LCD display with dimmer

LCD display dimensions: 128 x 80 mm

Clock (12/24 hour format) and calendar

Weekday display in 7 languages: (EN/GE/DA/SP/DU/IT/FR)

Alarm with snooze function

Auto Dim for night time

3 outdoor sensors with LCD display included

Sensor display dimensions: 25 x 17 mm

Low battery indicator for device and 3 outdoor sensors

Wall hanger/Table stand

Power supply: 5 V 1200 mA (power adapter included)

Outdoor wireless transmitter power source: 6 x 1.5 V (AA size, included)

Battery power: 3 x 1.5 V (AA size, not included)

IP54 (water proof, for wireless transmitter)

Wireless transmitter working frequency: 433.92 MHz

Power consumption: 0.32 W (main unit), 24 mW (wireless transmitter)

Device dimensions: 175 x 31 x 122 mm

Net weight: 0.238 kg

Sensor dimensions: 43 x 22 x 110 mm

Sensor net weight: 0.05 kg

1. Unutarnja temperatura / trend
2. Unutarnja vlažnost/trend
3. Vanjska temperatura / trend
4. Vanjska vlažnost/ trend
5. Animirana vremenska prognoza
6. Sat 7. Mjesečeve mijene
7. Poklopac odjeljka za baterije
8. Indikator apsolutnog atmosferskog tlaka
9. Indikator trenda atmosferskog tlaka

10. Kalendar

11. Sklopivi stalak (rasklopi se za postavljanje na stol)

12. Funkcijski gumbi: ALARM - memorija (MEM) - kanal (CH) - odgoda / pozadinsko osvjetljenje odgode / pozadinsko osvjetljenje - gore (+) - dolje (-) - postavke (SET)

13. DC utičnica

14. Temperatura

15. Broj kanala

16. Ikona niske baterije

17. Vlažnost

18. Zidna vješalica

19. Otvori za ventilaciju

20. Prekidač jedinice temperature °C /°F

21. Prekidač kanala senzora 1/2/3

22. Odjeljak za baterije (2 * 1,5 V AA alkalne baterije)

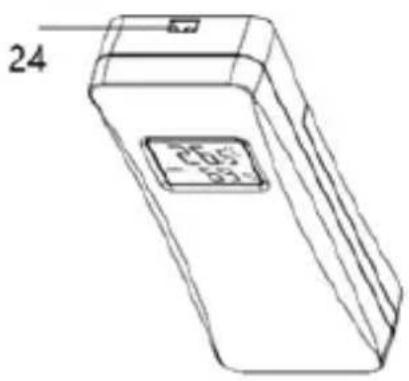

23. Otvor za vješanje na uže

Spajanje struje

Priključite isporučeni AC/DC adapter u kućnu AC utičnicu za napajanje. Otvorite poklopac baterije na stražnjoj ploči meteorološke stanice i spojite DC konektor strujnog adaptera u DC utičnicu na desnoj strani odjeljka za baterije, provucite kabel za napajanje kroz rupu u donjem desnom kutu baterije poklopac pretinca, a zatim zatvorite pretinac za baterije. Nakon pravilnog spajanja napajanja uređaj je spreman za rad.

Otvorite poklopac pretinca za baterije vanjskog bežičnog senzora, umetnite 2 AA baterije u pretinac prema polaritetu prikazanom u pretincu (baterije su uključene). Preporučujemo da koristite visokokvalitetne alkalne ili litijeve baterije za najbolje performanse proizvoda. Ne preporučuju se baterije za teške uvjete rada ili punjive baterije.

Zaslon bežičnog senzora prikazat će podatke o temperaturi i vlažnosti trenutak nakon umetanja baterija. Kratko pritisnite tipku kanala (CH) koja se nalazi iznad pretinca za baterije za prebacivanje između kanala 1 \~ 3. Kratko pritisnite tipku C / F za promjenu jedinice temperature. Meteorološka stanica se može napajati i baterijama. Za ugradnju baterija, otvorite pretinac za baterije na stražnjoj ploči, umetnite 3 AA baterije (nisu uključene) prema ugraviranom negativnom i pozitivnom polaritetu. Nakon postavljanja baterije, uređaj će biti spreman za korištenje. Baterijsko napajanje također se može koristiti kao rezervna kopija memorije postavki u slučaju nestanka struje.

Primanje signala s vanjskog bežičnog senzora

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel.[phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
