Product Type	Weather Station
Brand	Blaupunkt
Model	WS30BK
Dimensions (approx.)	150 x 100 x 50 mm (main unit)
Weight (approx.)	200 g (main unit without batteries)
Power Supply	2 x AAA batteries (not included) for main unit
Indoor Temperature Range	0°C to 50°C (32°F to 122°F)
Outdoor Temperature Range (via sensor)	-20°C to 60°C (-4°F to 140°F)
Indoor Humidity Range	20% to 95% RH
Barometric Pressure Range	700 to 1100 hPa (displayed in hPa or inHg)
Weather Forecast	Sunny, partly cloudy, cloudy, rainy, stormy (icon-based)
Wireless Outdoor Sensor	433 MHz, range up to 30 m (open area)
Display Type	LCD with backlight
Time and Date Display	Digital clock with calendar and alarm
Maintenance	Clean with a soft, dry cloth. Avoid liquids and abrasive cleaners.
Safety	Keep away from water and heat sources. Not a toy. Do not disassemble.
Spare Parts	Batteries (AAA), optional additional outdoor sensors
Repairability	No user-serviceable parts. Contact support for repair.
General Information	Indoor/outdoor weather monitoring with forecast, suitable for home use.

Frequently Asked Questions - WS30BK BLAUPUNKT

How do I set up the outdoor sensor?

Insert 2 AAA batteries into the sensor, then place it outdoors within 30 m of the main unit. The main unit will automatically sync within a few minutes.

Why is the outdoor temperature not showing?

Check that the sensor batteries are installed correctly and the sensor is within range. Press and hold the CHANNEL/SEARCH button on the main unit to re-sync.

How do I change the temperature unit?

Press the °C/°F button (or navigate through settings) to toggle between Celsius and Fahrenheit.

The display is dim or not working. What should I do?

Replace the batteries in the main unit. Ensure they are inserted with correct polarity. If the backlight is off, press the LIGHT/SNOOZE button.

How do I set the time and alarm?

Press and hold the SET/MODE button until the hour flashes. Use the ▲/▼ buttons to adjust. Press SET to confirm and move to minutes, date, etc. For alarm, press ALARM and follow similar steps.

What does the weather forecast icon mean?

The station predicts weather based on barometric pressure trends. Icons include Sunny, Partly Cloudy, Cloudy, Rainy, and Stormy. It indicates the expected weather for the next 12-24 hours.

Can I use multiple outdoor sensors?

Yes, this model supports up to 3 sensors (sold separately). Press the CHANNEL button to cycle through sensors 1, 2, 3, or auto-scan.

How often does the outdoor sensor transmit data?

The sensor transmits temperature and humidity readings every 48 seconds to conserve battery life.

What is the battery life for the outdoor sensor?

With good quality alkaline batteries, the sensor can last up to 12 months, depending on usage and environmental conditions.

How do I clean and maintain the weather station?

Clean the main unit and sensor with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Avoid exposing the sensor to direct sunlight or heavy rain for prolonged periods.

USER MANUAL WS30BK BLAUPUNKT

Multi-functional Weather Station

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiates too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. Humid or moist places. Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Many thanks for purchasing our model. This weather station product includes the following features. Please read and reference this manual carefully before operating the unit. Please keep the manual for future operation reference.

Features

• Weather forecast: Sunny, Partly cloudy, Cloudy, Rainy, Snowy. - Indoor/outdoor temperature. • Indoor & outdoor humidity. • In/outdoor maximum & minimum temp. & humidity history memory. • 12/24 hours clock time, calendar. • Alarm with snooze function. • Maximum support and work with 3 outdoor wireless transmitters in different channels (only one transmitter included). • In/outdoor low and high temperature alert. - Barometer • Freezing point indicator. • Circumstance comfortable level indicator.

Display & controls

1. Indoor temperature/trend
2. Outdoor temperature/trend
3. Animated weather forecast
4. Wireless transmitter channel
5. Frost icon
6. Low battery power icon
7. Rope and hook hole
8. Alarm icon 16-17-18-19-20-21: set/up & channel/down/alarm/alert/memory button
9. Backlight/snooze button
10. Foldable stand (unfold for table placement)
11. Calendar 2.2. Indoor humidity/trend
12. Outdoor humidity/trend
13. Clock time
14. Barometric pressure data
15. High-low temperature warning
16. Channel selector
17. Sensor

Power setting

Plug in the supplied AC/DC power adaptor to an AC household outlet in order to get power source, and plug the DC connector of power adaptor to the attached DC in power jack on the back panel of main unit. Then the unit is ready to work for you.

Open the battery compartment cover of outdoor wireless transmitter, insert 2 x AA batteries to the compartment according to the correct polarity showed in the compartment. (Batteries are included) We recommend use high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

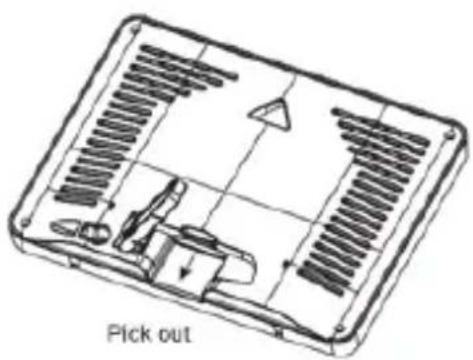

Extend the foldable stand, take off the insulation sheet from the cell battery (CR2032, included) compartment. The backup battery can keep all settings (including time clock) in the event of power interruption. Push out the bracket and reinstall with fresh battery base on below in case of power exhausted.

Receive signal from outdoor wireless transmitter

The main unit can detect and receive the outdoor temperature and humidity wireless signal from the transmitter automatically after power setting is ready. It will take a maximum of 3 minutes for signal searching. The wireless symbol (nearby channel on display) will flash on the display during searching, and becomes stable after getting the signal. If no signal is received, the wireless symbol will disappear after 3 minutes, and outdoor temperature and humidity data will show "- -" on the display. In case you need to reconnect the wireless signal, press and hold the up button for 3 seconds.

Placement and important notes:

1. The main unit can work and connect with up to 3 outdoor wireless transmitters. Open the battery door of the outdoor wireless transmitter to see and adjust the channel (including 3 channels). It requires setting the same channel as the main unit for signal receiving. For example, if you select channel 1 on the wireless transmitter, then the channel display of the main unit should show CH1 for connection. Press the up button on the side panel of the main unit

to adjust the channel number and check the outdoor data between CH1-3 on the display. You can use the same method to connect other wireless transmitters, but please set them to different channels. Only one wireless transmitter is included in the package.

1. Please use and place the main unit or transmitter device 1.5~2 meters away from interference sources like computer monitors or TV sets. Also, place the main unit standing up and away from metal window frames.
2. Please do not use other electronic products such as headphones or speakers operating at the same signal frequency (433.92MHz), which may cause interference. Your neighbors' use of electronic devices operating on the same signal frequency (433.92MHz) can also cause interference.
3. To ensure accurate temperature measurement, place the device in a dry area, free of dirt and dust. Place it out of direct sunlight and away from heat sources or vents.
4. You can install the wireless transmitter outdoors. For better accuracy, please place the sensor lengthwise/standing up at least 1.5~2 meters away from the ground with enough air flow and protection from rain. Do not expose the sensor to direct sunlight for a long time.
5. The maximum working distance of the wireless transmitter is 80 meters away from the main unit.
6. The wireless signal from the transmitter will refresh every 114 (channel 1) / 134 (channel 2) / 158 (channel 3) seconds in a cycle.

Settings

Press and hold the SET button for 3 seconds until the weekday language text flashes on the display. Press the UP or DOWN button to choose the weekday language (GER (German), ENG (English), FRE (French), ITA (Italian), SPA (Spanish), DUT (Dutch), DAN (Danish). Press the SET button to confirm and skip to the chime on/off setting, which is operated the same way as the language setting. Repeat this process to finish the remaining settings for barometric unit, temperature unit, year, month/day format, month, date, 12/24-hour format, hour, minute, and weather. (Press and hold the UP or DOWN button to accelerate adjustment. The device will automatically save and exit the current setting if there is no operation for more than 20 seconds.)

Alarm and Snooze

Short press the ALARM button repeatedly to switch between alarm modes: Alarm 1 wake up on workdays, Alarm 1 wake up on weekends, Alarm 2 wake up on workdays, and Alarm 2 wake up on weekends. After selecting the alarm mode, press and hold the ALARM button to enter alarm setting mode. Press the UP or DOWN button to adjust the hour digits, then press the ALARM button to confirm and move to the minute and alarm on/off settings, which are operated the same way as the hour setting. Short press the ALARM button to finish the alarm setting. Use the same method to set up the other alarm. If the alarm is set successfully, the corresponding alarm icon will appear on the display. Press the top BACKLIGHT/SNOOZE button to save and exit the current setting.

When the alarm rings at the set time, press any button (except the top BACKLIGHT/SNOOZE button) to cancel the alarm sound. It will ring again at the same time the next day. Short press the top BACKLIGHT/SNOOZE button to activate the snooze function, which will ring again after 5 minutes. The snooze can be repeated every 5 minutes. Press any other button (except SNOOZE) to cancel the snooze.

The buzzer alarm will sound for 2 minutes if no further operation is performed.

Temperature and Humidity

1. Indoor temperature range: -10 to +50 °C / 14 to 122 °F.
2. Outdoor temperature range: -40°C to 60°C (-40°F to 140°F).

Remarks: LL.L°C or HH.H°C will be displayed when the temperature is out of the above range.

1. Indoor and outdoor humidity range: 1% to 99%. LL% or HH% will be displayed when out of range.
2. Temperature accuracy: ±1.0°C between 0°C and +50°C (32°F to 104°F). ±1.5°C outside this measuring range.
3. Humidity accuracy: (40-70%) ±5%, others ±8%.
4. Press MEMORY to check the maximum and minimum historical data. Press and hold the MEMORY button to manually clear the record. (Remarks: Historical records will be cleared automatically at 00:00 every day.)

Temperature trend

The temperature trend arrow (nearby temperature data) points in different directions depending on whether the latest temperature reading is higher or lower than previous readings.

Arrow angled upwards = Temperature rose by 1°C in the past 1 hour.

Arrow straight = Temperature changed less than 1°C in the past 1 hour.

Arrow angled downwards = Temperature fell by 1°C in the past 1 hour.

Humidity trend

The humidity trend arrow points in different directions depending on whether the latest humidity reading is higher or lower than previous readings.

Arrow angled upwards = Humidity rose by 5% in the past 1 hour.

Arrow straight = Humidity changed less than 5% in the past 1 hour.

Arrow angled downwards = Humidity fell by 5% in the past 1 hour.

Weather forecast

The weather forecast is based on collected hourly barometric pressure data from the main unit. The forecast station predicts weather conditions for the next 12 hours with 70-75% accuracy. The default weather icon is partly cloudy. The base station will calibrate the weather report in the first 1-2 weeks after power on, based on the barometric pressure data.

Weather forecast will appear in one of the following combinations (reference only):

SUNNY

PARTLY CLOUDY

CLOUDY

RAINY

SNOWY

Please note that the device forecasts the weather based on limited parameters and may differ from official weather forecasts which are calculated on the basis of advanced algorithms.

Backlight and auto dim

Press top backlight/snooze button to turn on the backlight. The backlight will last 20 seconds and auto off.

Frost indicator

After the outside temperature has fallen below 3°C / 34°F, the symbol is displayed

as an indication and warning signal.

Barometric pressure

Barometer display in mmHg, inHg or hPa mb with max/min record.

Barometer range: 850-1050hPa/mb (637-787mmHg, 25.1-31 inHg).

Please note that this weather station reads absolute air pressure, which may differ from that in the official weather forecasts. The reason for this difference is that the relative pressure reported in the official weather forecasts is reduced to sea level. The absolute pressure indicated in this model is the pressure at a given location at the appropriate altitude.

Comfort level indicator

Display
Humidity	Too wet84-99%	Wet76-83%	Comfort40%-75%	Dry26-39%	Too dry1-25%

Temperature alert

The model includes an alert function that provides voice warnings when the temperature exceeds the set limit. Short press the alerts button repeatedly to cycle through the alert temperature modes: outdoor high temperature, outdoor low temperature, indoor high temperature, and indoor low temperature. When you select a temperature alert, short press the up or down button to turn the alert function on or off. Long press the alerts button, then press the up or down button to adjust the alert temperature. Short press the top backlight/snooze button to save and exit the current setting. The temperature alert symbol will appear on the display when you enable the relevant alert. When the measured temperature exceeds the set alert limit, the unit will emit a warning voice every 60 seconds. Short press the alerts button to stop and cancel the voice, but the alert icon will continue to flash on the display until the measured data falls outside the alert range.

Notes:

When the main unit is searching for signals from the outdoor wireless transmitter, pressing the alert button to check or set alerts will stop the signal search.

Calibration

Weather stations are calibrated precisely at our manufacturing facility, but if you want this product's data to match the readings of equipment you trust more or are more accustomed to, you can manually calibrate the indoor temperature, humidity, and barometer values.

1. When the display is in normal mode, press and hold the "ALERTS" and "MEM" buttons simultaneously to enter calibration mode.
2. Press and release the "SET" button to confirm and move to the next setting:
3. Indoor Temperature ---- Indoor Humidity ---- Barometer ---- Exit.
4. Press the "▲ / CH" or "▼" button to adjust the value.
5. Calibration range: +/- 5 degrees for temperature; +/-10% for humidity; +/-9 for barometric pressure. If you set calibration values, the final data on the display will be adjusted by adding or subtracting these values.

Notes:

Calibrated value's reset method: unplug the main unit power supply at first, remove the

cell battery, press and hold the "

" button, then power on to reset.

Low battery power indicator

• About outdoor sensor: When battery indicator shows next to the outdoor temperature, replace batteries in your outdoor sensor.
• About cell battery in Main Unit: the CR2032 cell battery is only for memorizing the setting during sudden power outage.

When battery indicator shows next to your Indoor Temperature, replace battery.

Troubleshooting

Doesn't display anything. ✦ Check if the AC/DC power adaptor connect with unit properly.
Temperature from outdoor sensor not displayed.	◇ Check that the distance between the thermometer and sensor doesn't exceed 30m(recommended).◇ Make sure that the devices are located at least 2m from monitors and TV sets.◇ Avoid placing the devices on or close to window frames made of metal.◇ Avoid using electronic devices such as loudspeakers which operate at the same frequency (433 .92MHz), close to the devices.◇ Please double check if the main unit and outdoor wireless transmitter was set up at same channel.◇ Remove the batteries, wait a while and then reinsert them.
Displayed temperature is incorrect.	◇ Remove the batteries, wait a while and then re-insert them.◇ Make sure that the devices are not affected by heat sources or air-conditioning units and such.

Specifications

• Indoor / outdoor temperature display • Indoor / outdoor humidity display • Temperature / humidity trend indication • Absolute air pressure display
• Comfort indicator • Frost-point warning indication • Humidity and temperature alert (adjustable) • Max/min record of indoor/outdoor temperature & humidity • Weather forecast for next 12-24 hours with barometer
• Barometer value & weather forecast can be calibrated manually • Color LCD display with dimmer • LCD display size: 126 x 82 mm • Clock (12/24 hour format) and calendar • Weekdays in 7 languages: GER/ENG/FRE/ITA/SPA/DUT/DAN • Alarm with snooze function • Outdoor sensor included (1 pc) • Support for up to 3 sensors • Rolling display 3 channels
• Low battery indicator for both indoor and outdoor sensor • Wall hanger / Table stand • Power supply: 5 V 1200 mA (power adapter included) • Outdoor wireless transmitter power source: 2 x 1.5 V (AA size, included) • Backup battery power: CR2032 (3 V, not included) • IP54 (water proof, for wireless transmitter) • Wireless transmitter working frequency: 433.92 MHz • Power consumption: 0.35 W (main unit), 24 mW (wireless transmitter) • Device dimensions: 160 x 19 x 115 mm • Net weight: 0.206 kg • Sensor dimensions: 38 x 19 x 100 mm • Sensor Net weight: 0.032 kg

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	DONGGUAN SHIJIE HUAXU ELECTRONICS FACTORYCommercial Registration Number: 440429543Address: No.200,Technology East Road,ShijieTownDongguan City,Guangdong,P.R.China
Model identifier	HX075-0501200-AG-001
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.2	A
Output power	6.0	W
Average active efficiency	≥75	%
Efficiency at low load (10 %)	71.17	%
No-load power consumption	≤0.1	W

Important information

SUNNY

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel.[phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
