Product Type	Multi-functional Weather Station with TUYA APP support
Model	WS50WH APP
Brand	Blaupunkt
Dimensions (Main Unit)	200 x 29 x 130 mm
Weight (Main Unit)	0.334 kg
Sensor Dimensions	38 x 19 x 100 mm
Sensor Weight	0.032 kg
Power Supply (Main Unit)	5V DC 1200 mA (adapter included) or 3 x 1.5V AA batteries (not included)
Power Supply (Outdoor Sensor)	2 x 1.5V AA batteries (included)
Wi-Fi Support	Yes, with Tuya Smart app (2.4 GHz only)
Main Functions	5-day weather forecast, UV index, indoor/outdoor temperature and humidity, clock (12/24h), calendar, alarm with snooze, comfort indicator, supports up to 3 outdoor sensors
Display	Color LCD, 168 x 91 mm, adjustable backlight (high/mid/low)
Temperature Range (Indoor)	-10 to +50 °C (14 to 122 °F)
Temperature Range (Outdoor)	-40 to +60 °C (-40 to 140 °F)
Humidity Range	1% to 99%
Sensor Transmission Frequency	433.92 MHz, range up to 80 m
Weather Forecast Icons	Clear, partly cloudy, cloudy, overcast, rain types, snow, fog, haze, storm, etc.
Alarm	3 programmable alarms via app, snooze (5 minutes), auto-off after 2 minutes
Water Proof (Sensor)	IP54
Maintenance and Cleaning	Wipe with a clean, dry or slightly damp cloth; do not use chemical solvents
Safety	Operate only as per manual; do not expose to dripping/splashing; keep away from heat sources; not for use by children without supervision; max ambient temperature 35°C
Spare Parts and Repairability	No user-serviceable parts; refer servicing to qualified personnel; replacement parts must be manufacturer-specified
General Information	CE compliant (Directive 2014/53/EU); responsible party: 2N-Everpol Sp. z o.o., Poland

Frequently Asked Questions - WS50WH APP BLAUPUNKT

How do I pair the weather station with the Tuya Smart app?

First, ensure your phone is connected to a 2.4 GHz Wi-Fi network and Bluetooth is on. Power on the station, then long-press the top snooze/backlight/network button for 3 seconds until the network symbol flashes. Open the Tuya app, tap 'Add Device', wait for discovery, select your Wi-Fi network, enter the password, and follow the prompts. The station will then synchronize weather data.

Why is the weather forecast not showing on the display?

The weather forecast requires a stable internet connection via the Tuya app. Make sure the station is connected to Wi-Fi and the app is running. If the forecast disappears, try refreshing the device connection in the Tuya app or re-pair the station. Also ensure your Wi-Fi network is 2.4 GHz.

Can I add more than one outdoor sensor?

Yes, the main unit supports up to 3 outdoor wireless transmitters. Each sensor must be set to a different channel (1, 2, or 3) via the channel selector inside the battery compartment. The sensors are automatically recognized after power-up. Use the CH button on the main unit to cycle through sensor readings.

What does the comfort level indicator mean?

The comfort level is based on indoor temperature and humidity. A smiley face indicates comfortable conditions (temperature 20-27°C, humidity 40-70%). A sad face appears when humidity is below 40% or temperature is outside the comfortable range. This helps you adjust your indoor environment.

How do I change the temperature unit from Celsius to Fahrenheit?

You can switch between °C and °F using the Tuya Smart app. Open the app, go to the device control page, and tap the 'Unit Conversion' button at the bottom. The change will update on the weather station display.

What should I do if the outdoor sensor reading shows '--'?

This means the main unit is not receiving the sensor signal. First, check that the sensor has fresh batteries and is within 80 meters of the main unit. Ensure no interference from other devices (e.g., monitors at 433.92 MHz). Press and hold the CH button for 3 seconds to rescan. Also avoid placing the sensor near metal window frames.

Can I use the weather station on battery power only?

Yes, the main unit can operate on 3 x 1.5V AA batteries (not included). However, when using battery power, the backlight will only stay on for 10 seconds after pressing the button. For full functionality and constant backlight, it is recommended to use the included AC adapter.

How do I reset or factory reset the weather station?

There is no dedicated reset button. To perform a reset, remove all power sources (AC adapter and batteries) from the main unit, wait a few minutes, then reconnect. This will clear all settings and data. You will need to re-pair with the Tuya app and set up alarms again.

Why is the indoor temperature reading inaccurate?

Ensure the indoor unit is placed in a dry area, away from direct sunlight, heat sources (e.g., radiators), and vents. The sensor accuracy is ±1°C between 0-50°C. If the reading seems off, remove the batteries for a few minutes and reinsert them to reset the sensor.

What is the range of the outdoor sensor and how often does it transmit?

The maximum wireless range is 80 meters in open space. The sensor transmits every 114 seconds (channel 1), 134 seconds (channel 2), or 158 seconds (channel 3). The signal can be obstructed by walls, metal, or other electronics.

USER MANUAL WS50WH APP BLAUPUNKT

Multi-functional weather station with TUYA APP support

Important Notes

• safety and operating instruction should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
  • Humid or moist places.
  • Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

6. Do not place this unit close to a strong magnetic field.

7. Do not place the unit on a amplifier or receiver.

8. Do not place this unit in a damp area as the moisture will affect the life of electric components.

9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Many thanks purchase our model, this weather station product includes below features. Please read and reference this manual carefully before operate the unit. Please keep the manual for future operation reference.

Features

• TUYA APP support
• 5 days weather forecast, UV(ultraviolet index), high-low temperature
- Indoor/outdoor temperature.
- Indoor/outdoor humidity.
• 12/24 hours clock time, calendar.
• Alarm with snooze function.
• Maximum support and work with 3 outdoor wireless transmitters in different channel (1 transmitters included).
• Indoor comfortable indicator

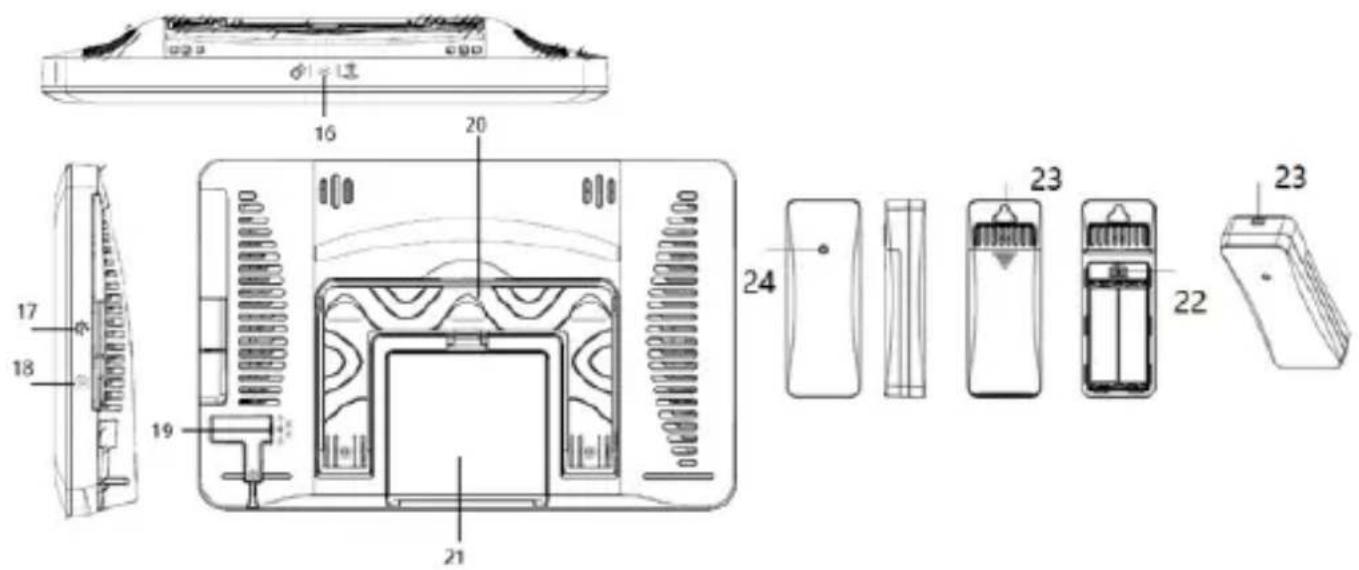

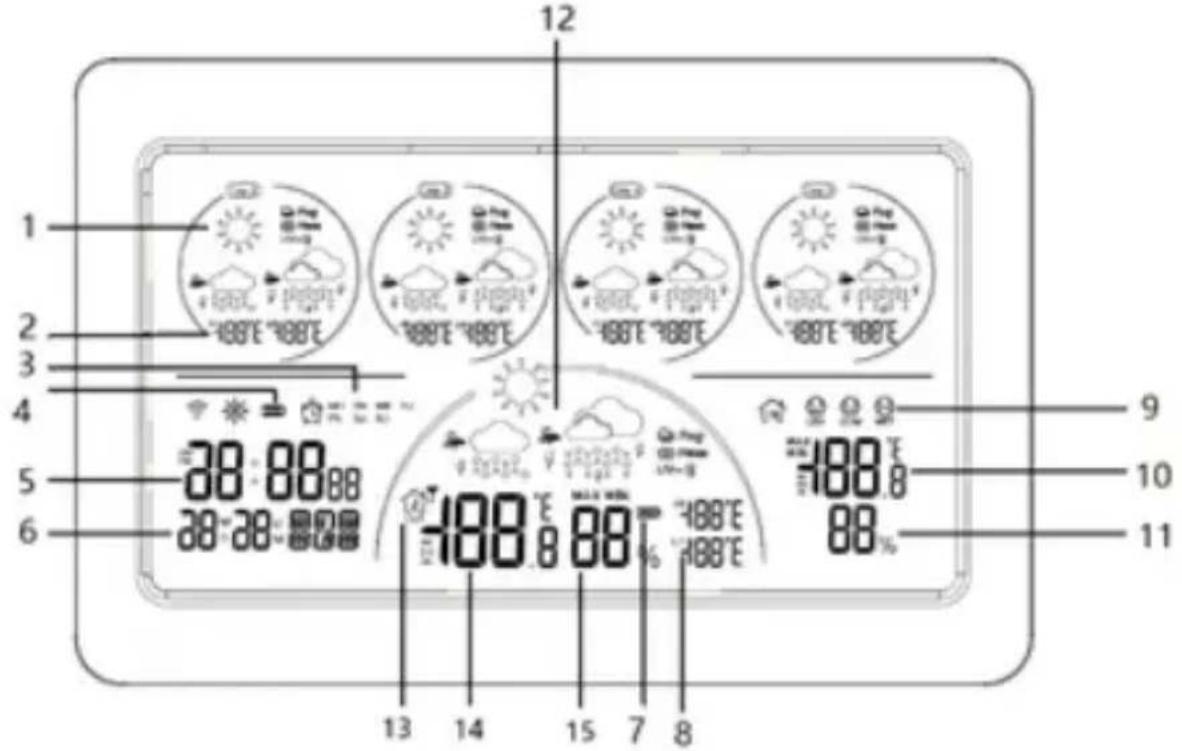

Display & controls

1. weather forecast 2. temperature forecast 3. alarm daily wake up
2. battery power indicator for main unit 5. clock time 6. calendar
3. battery power indicator for outdoor transmitter.
4. current day high-low temperature 9. comfort level 10. indoor temperature
5. indoor humidity 12. current day weather 13. outdoor wireless transmitter number
6. temperature from outdoor wireless transmitter
7. humidity from outdoor wireless transmitter 16. backlight/snooze/network button
8. setup button 18. channel button 19. DC power jack 20. foldab le stand
9. battery door 22. Channel selector 23. Rope and hook hole 24. Sensor

Power setting

Plug in the supplied AC/DC power adaptor to an AC household outlet in order to get power source, plug in the DC connector of power adaptor to DC power input jack on the side of rear panel, manage and order the power cord throughout from opened cave. The display will light up, then the unit is ready work for you.

Open the battery compartment cover of outdoor wireless transmitter, insert 2 x AA batteries to the compartment according to the correct polarity showed in the compartment. (Batteries are included) We recommend use high quality alkaline for the best product performance. Heavy duty or rechargeable batteries are not recommended.

The main unit can work with dry battery power only as well. Open up the battery door on the rear panel, insert 3 x AA battery (not include) according to engraved negative and positive polarity. Then the unit will light up and ready work for you. The battery power also can back up the settings.

Receive signal from outdoor wireless transmitter

The main unit can detect and receive the outdoor temperature and humidity wireless signal from transmitter automatically after power setting ready. There will take 3 minutes maximum for signal searching. The signal symbol(nearby outdoor icon) will flash on display during searching, and becomes stable after get the signal. The wireless symbol will be disappeared after 3 minutes if there is no available signal be received. And outdoor temperature and humidity data will show " - - " on display. In case you need reconnect the wireless signal, please press and hold the channel button 3 seconds on side of main unit. The unit will scan and reconnect the wireless signal one after one.

Placement and important notes:

1. Important: The main unit are able to work and connect with 3 outdoor wireless transmitters maximum(only one wireless transmitter included). Open up the battery door of wireless transmitter can see and adjust the channel(include 3 channels). In case you have 2 or 3 wireless transmitters, it requires to set up at different channel between each wireless transmitter for working at same time. Short press the channel button on side panel can check and switch the data from different outdoor wireless transmitter.

2. please use and put main unit or transmitter device 1.5\~2 meters away from interference source like computer monitors or TV sets. Please also place the main unit stand up far away with metal window frames.

3. Please do not use other electronic products such as headphones or speakers operating at the same signal frequency (433.92MHz), which may cause interference. Your neighbors use electronic devices operating on the same signal frequency (433.92MHz) can also cause interference.

4. To ensure accurate temperature measurement, place the device in a dry area, free of dirt and dust. Place out of direct sunlight and away from heat sources or vents.

5. You can install the wireless transmitter outdoor. For better accuracy of using, please place

the sensor lengthwise/ standing up 1.5\~2 meters at least away from the ground with enough air flowing and protection without rainy. Please do not expose the sensor to direct sunlight for a long time.

1. The maximum working distance of wireless transmitter is 80 meters away from main unit.

2. The wireless signal from transmitter will refresh in every 114(channel 1)/134(channel2)/158(channel3) seconds in recycle.

Download TUYA APP and configuration

Important: Before start to download app and pairing the device, Please make sure and set your smart phone connected with 2.4G, or 2.4/5G hybrid Wi-Fi network, and turn on the Bluetooth function on your phone as well. It cannot work and support under 5GHz network.

TUYA smart APP: Using your smart phone to scan below QR cord and download the "Tuya smart" APP (depends IOS or Android system) in your device, you also can search the Tuya smart from Apple store or Google play to download the app. Tap and run the app in your device, check and click the agreement of app, register or log-in your account as request.

For Andorid

For iOS

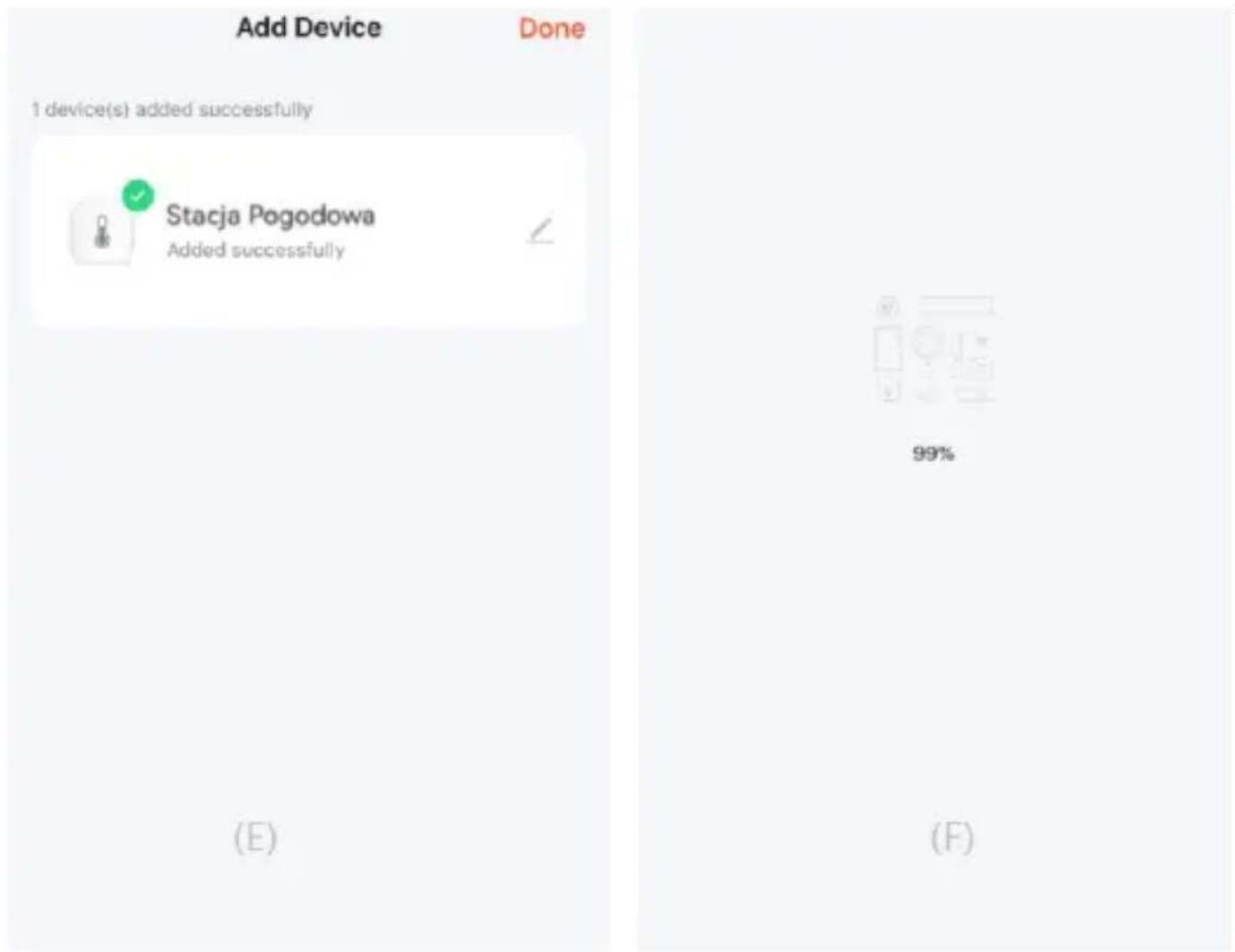

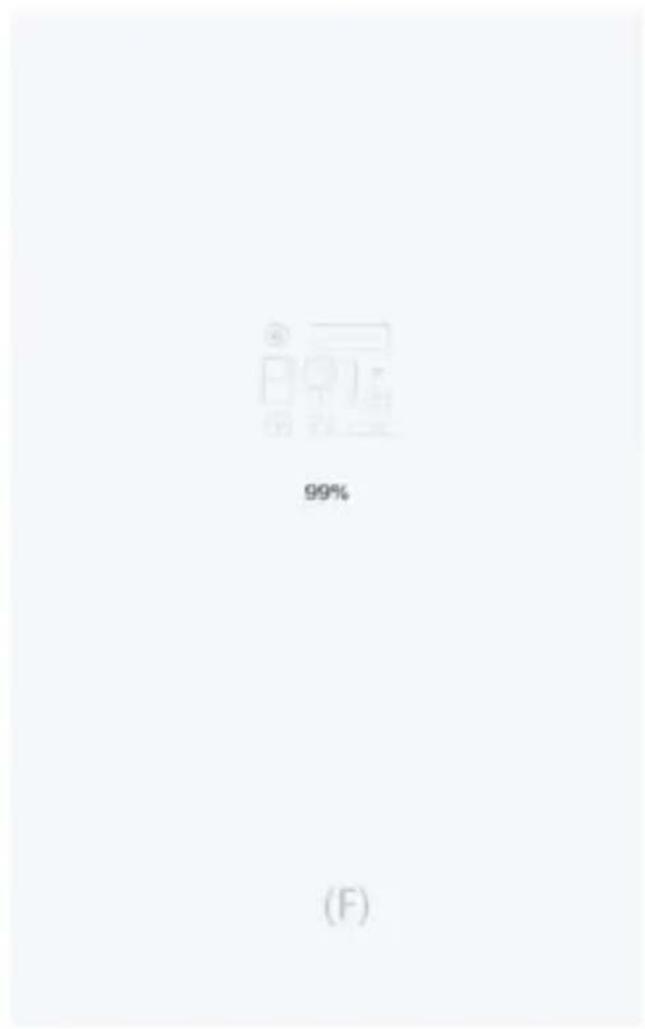

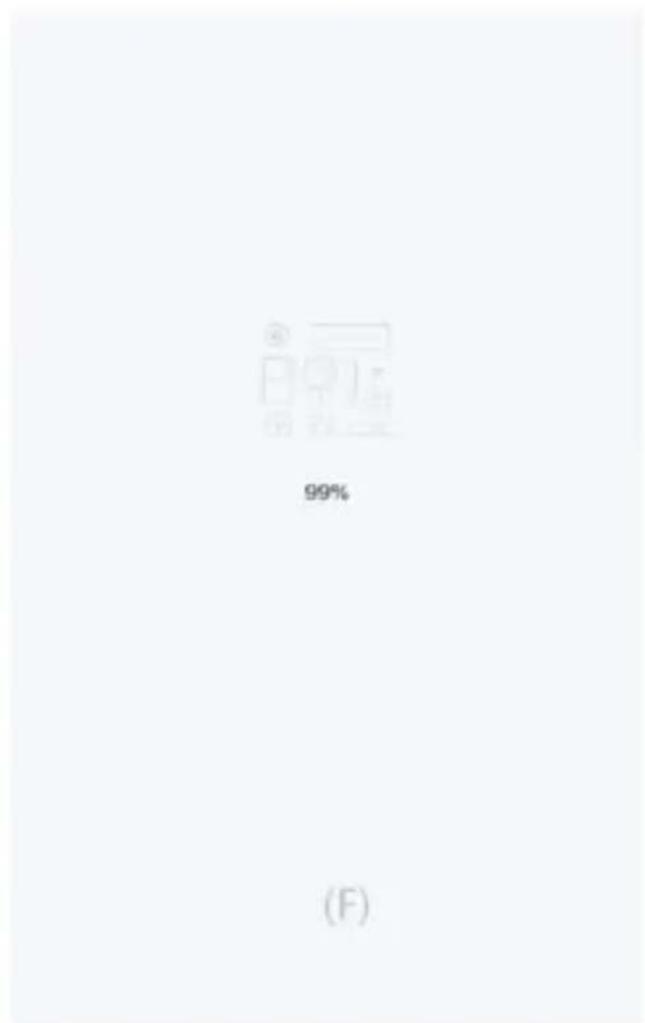

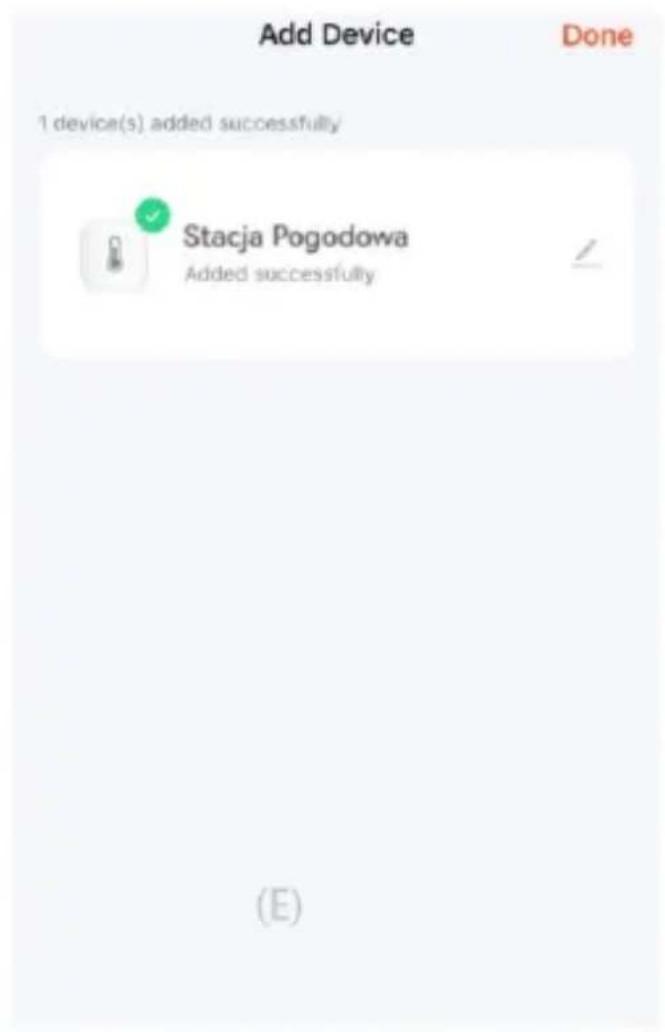

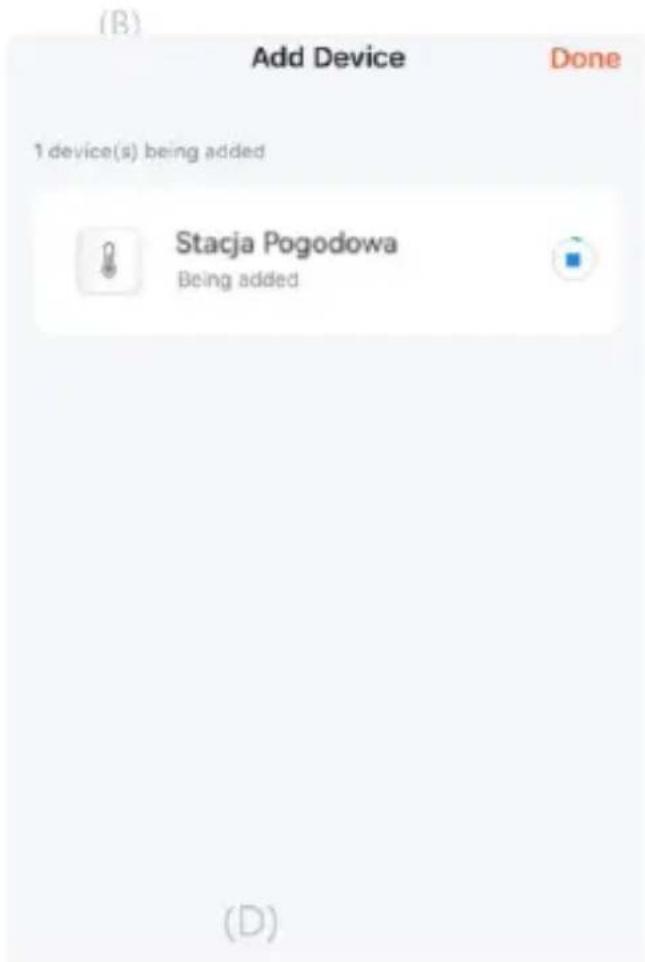

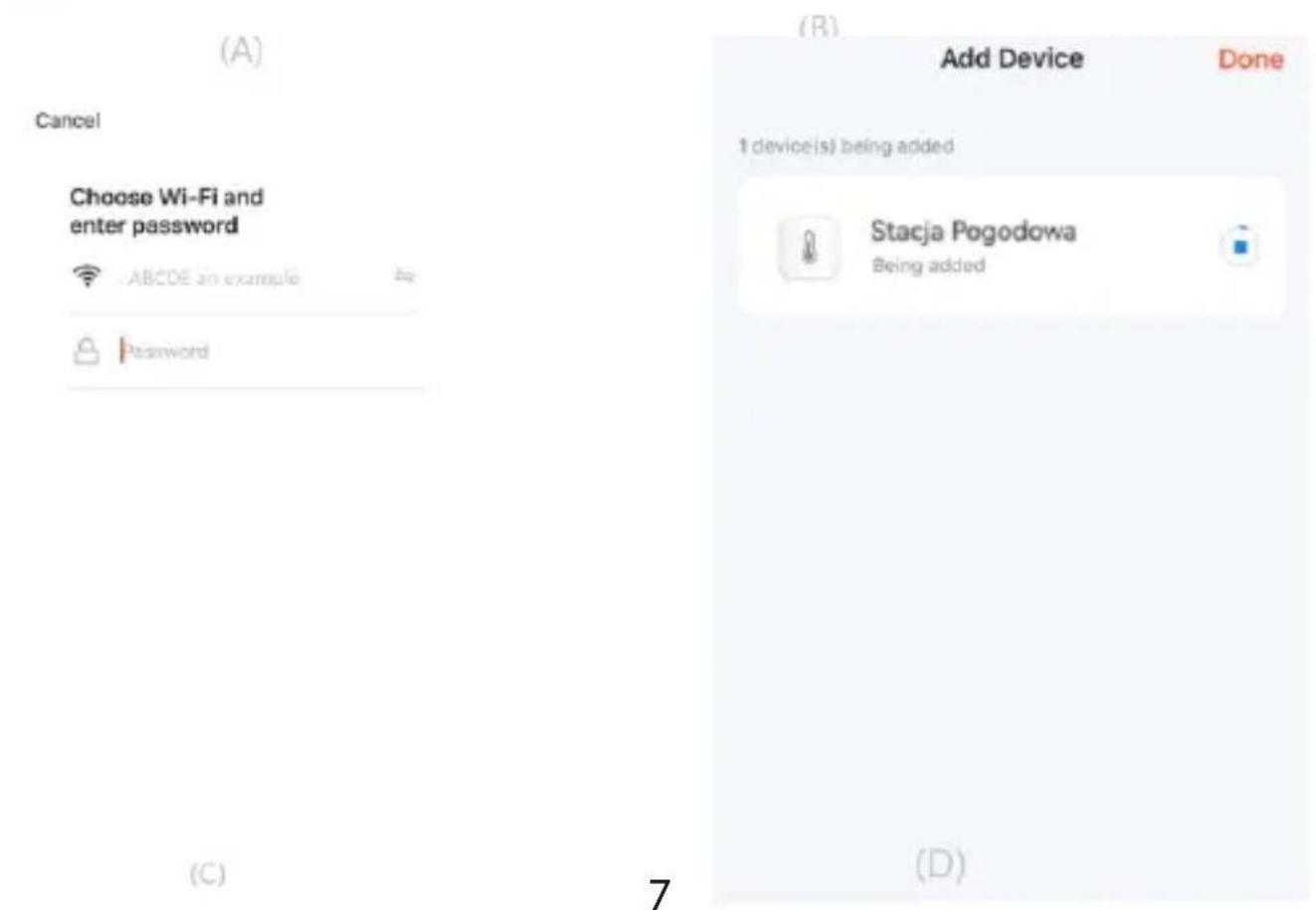

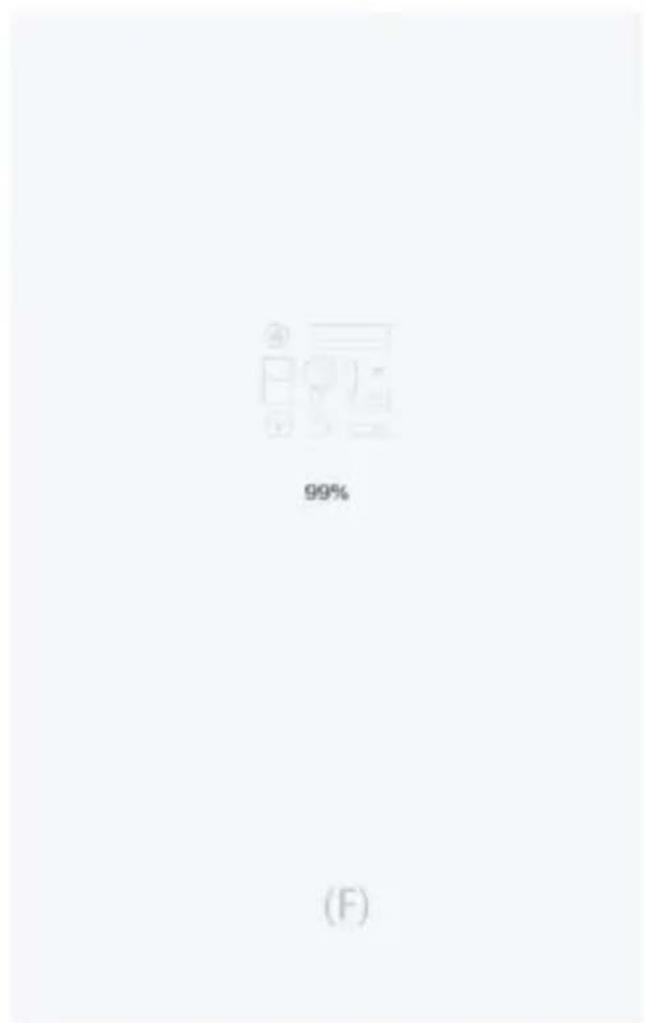

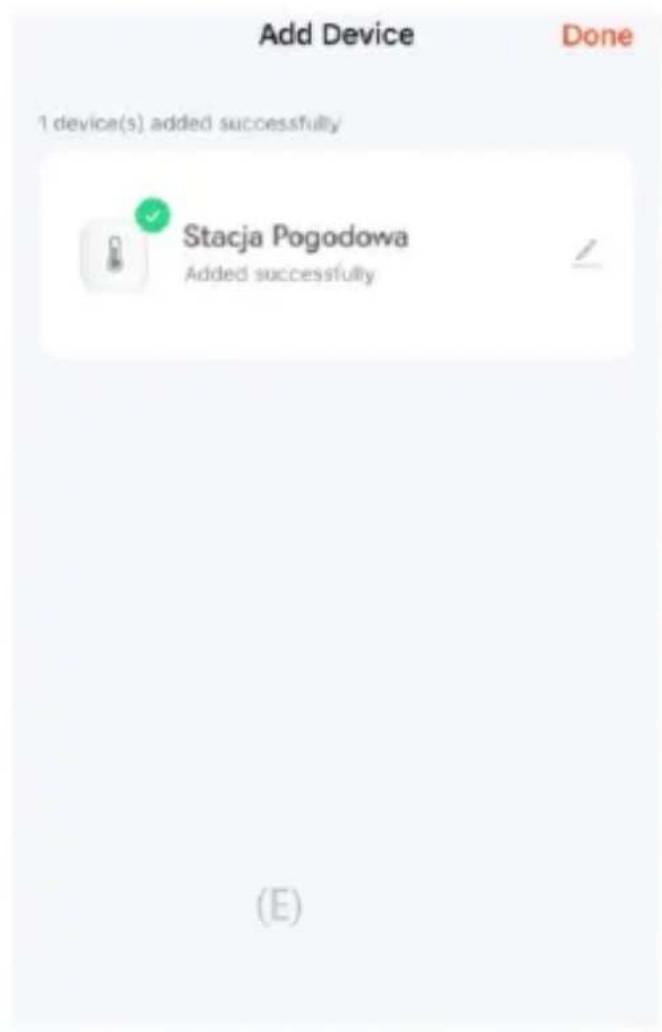

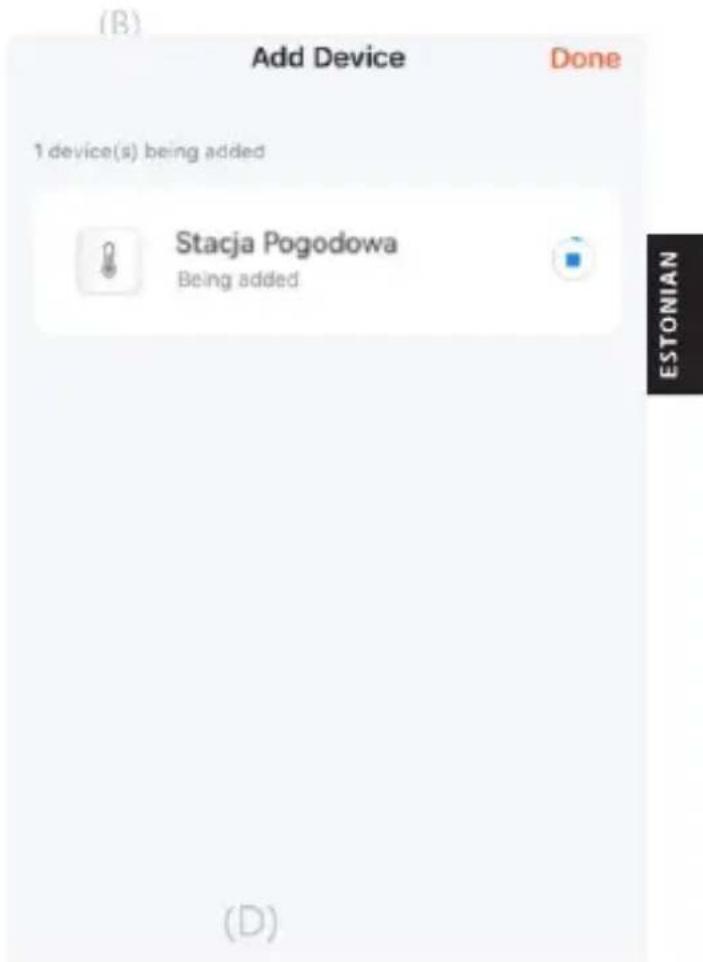

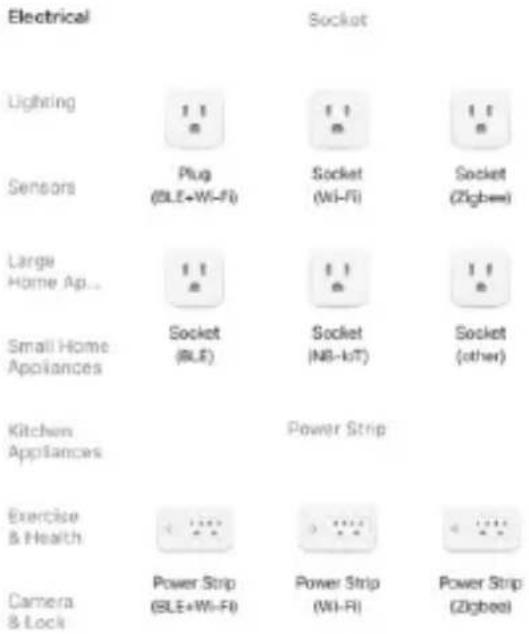

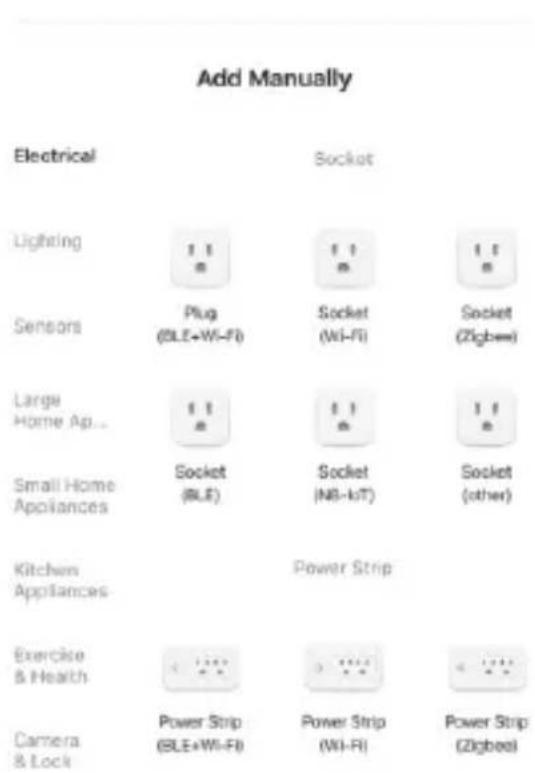

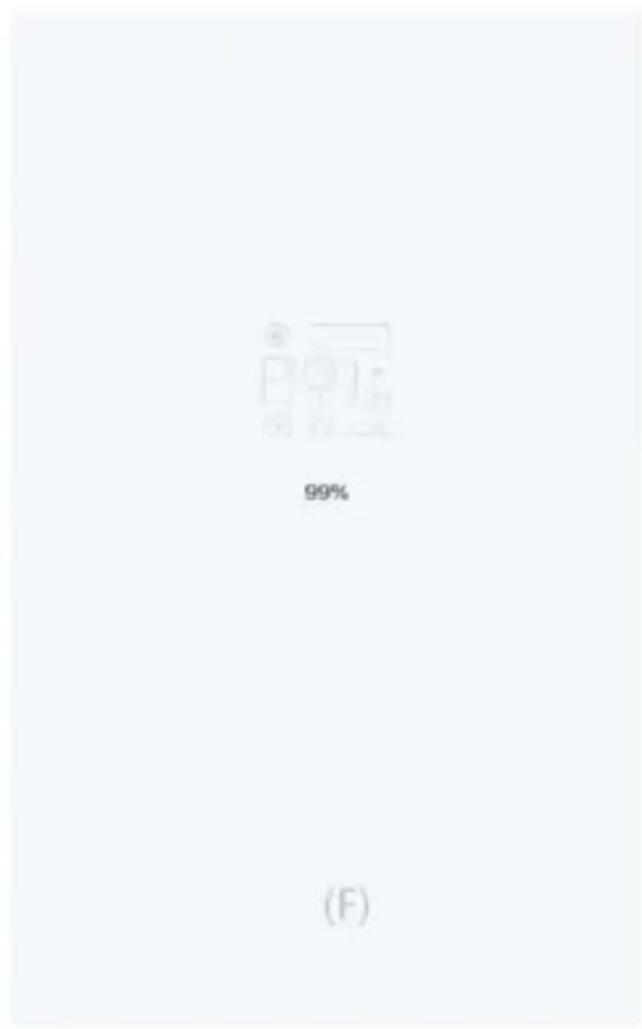

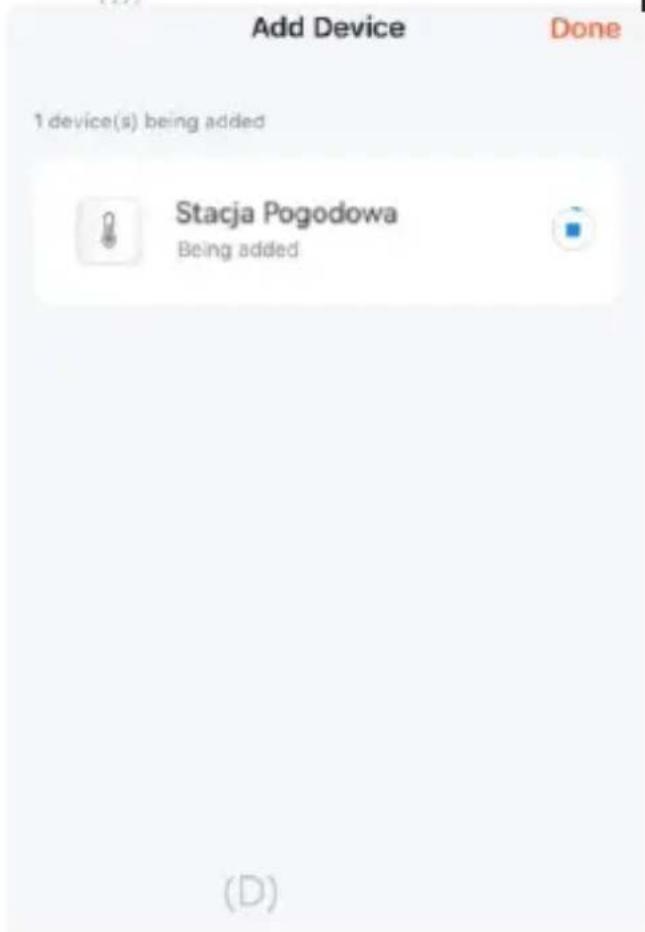

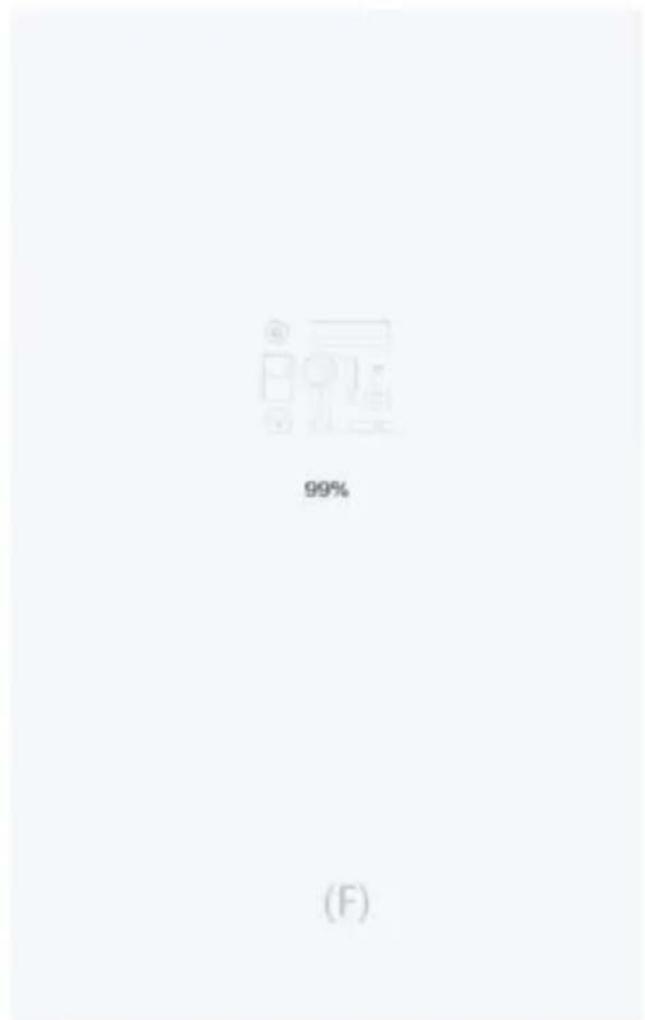

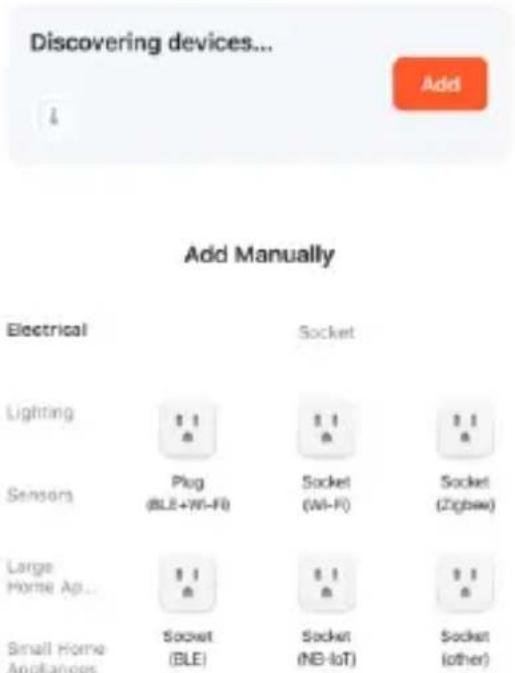

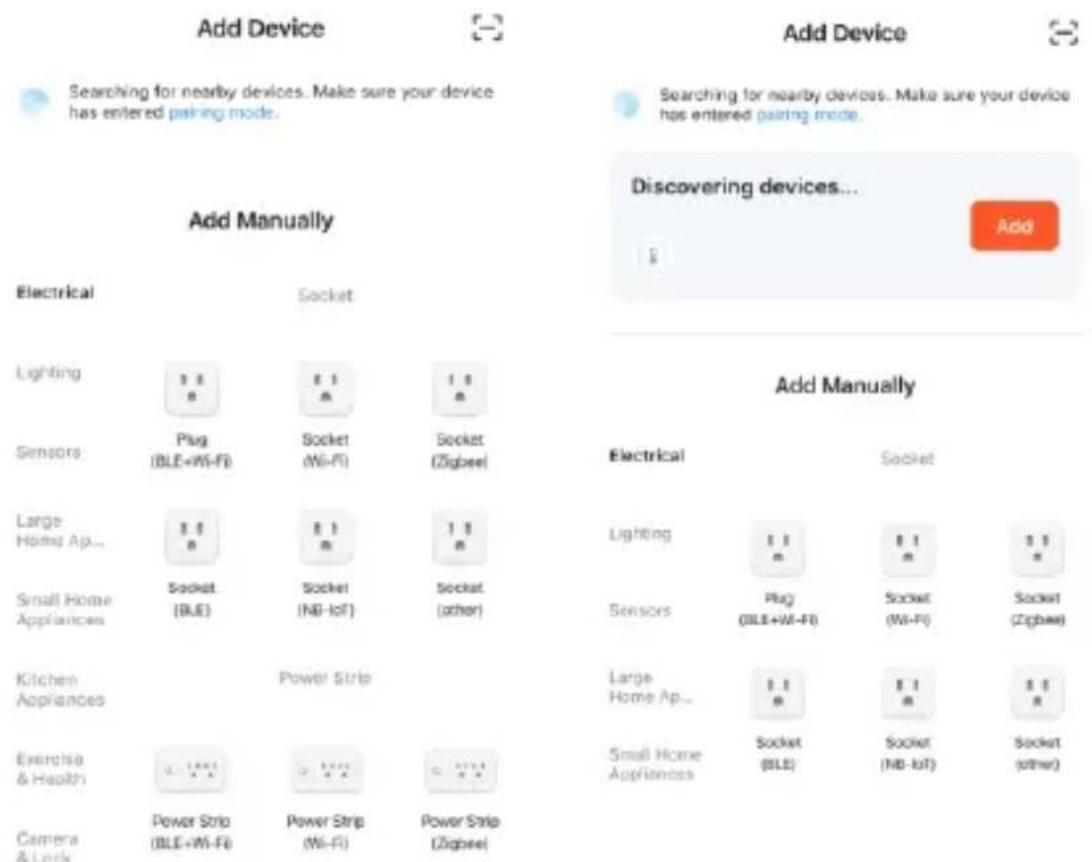

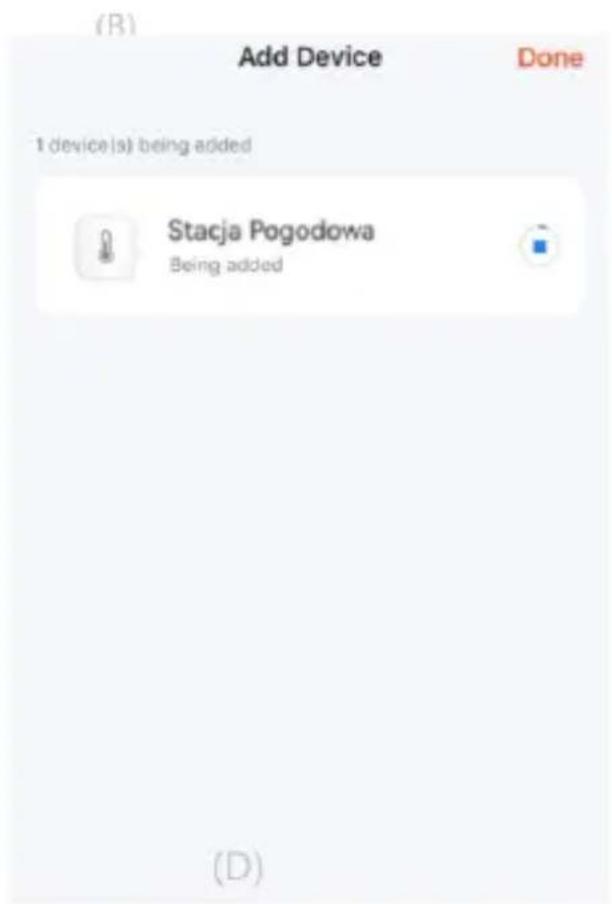

Pair and configuration: Power on the main unit, long press 3 seconds the top snooze/backlight/network button(touching button) enter to pair mode and the network symbol will flash on display. Open up and log-in the Tuya smart app on your device, tap "Add device"(Ref. photo A) and searching device on the app(there may ask location accessible, please agree it), check the discover device list and tap "Add "button(Ref. photo B), select your home Wi-Fi network name and key-in the password as asked. The weather station will pair with app and press "Done" button (Ref. photo D and E), then the app will start configuration, and transfer local city 5-days weather forecast/UV index/temperature data etc. to the display of weather station.

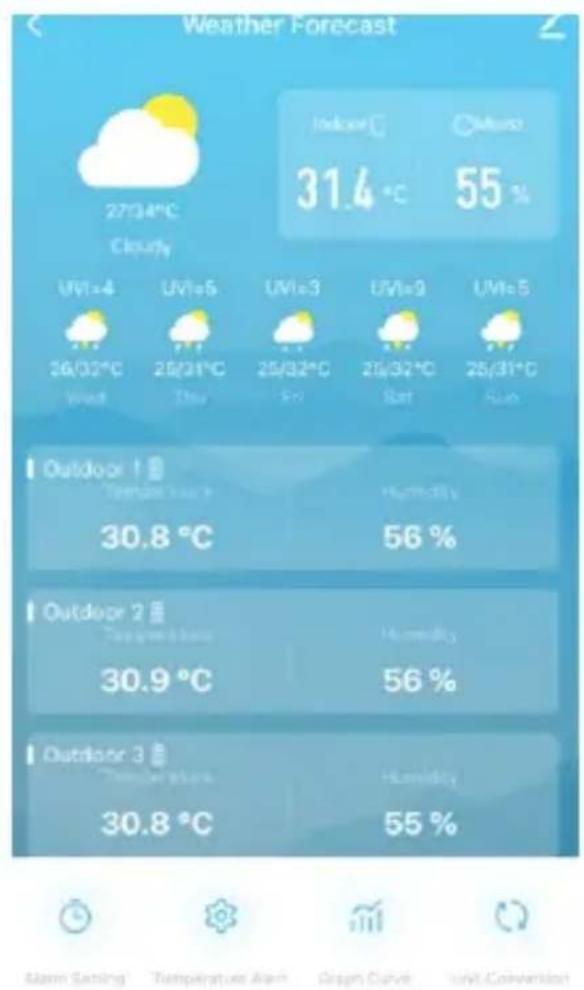

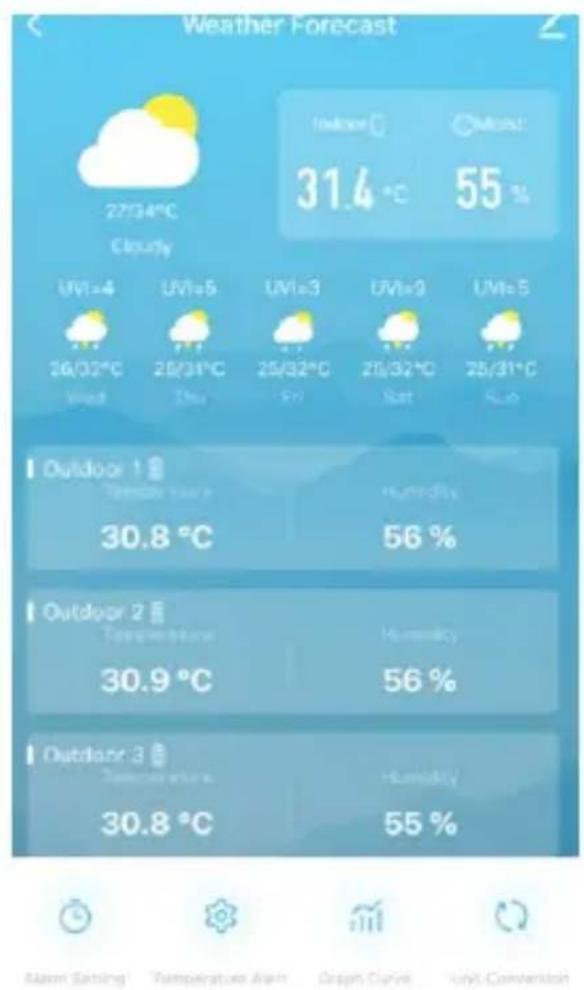

Use Tuya app control weather station

Alarm/snooze: you can set up 3 alarms from app as below, the buzz voice will wake up from weather station unit when the alarm time is being. Short press any one button can cancel the alarm voice, but wake up again at same time next day. Short press top snooze/backlight/network button enter to snooze mode, and it will wake up again after 5 minutes. The alarming voice will last for 2 minutes and off automatically in case of no further operation.

Others: You also can set and get the indoor&outdoor temperature alert/indoor&outdoor temperate&humidity graph curve/temperature °C(Celsius degree) or °F(Fahrenheit degree)

unit conversation function from app by pressing the relevant button at bottom of home interface. In case of you set and turn on temperature alert function on app, the unit will alert by buzz voice, short press the top snooze/backlight/network button to cancel the voice, but the temperature data will keep flash on display till out of setup alert range.

Important notes:

a. Both weather station and your smart phone should connect and work under same Wi-Fi network.

b. In case you take smart phone outside, the weather station can connect and work with your Wi-Fi network alone.

c. In case changed Wi-Fi network or wi-fi password, you have to repair the weather station with your smart phone. You can delete the device from Tuya app first, then repair and add it from app base on above paragraph introducing of this manual.

d. In case weather forecast information lost or incomplete on display, please try to open Tuya smart app, fresh and reconnect device.

e.You can rename the device name by tap below pencil icon on the app.

Other settings

Week language: short and repeat press the setup button on side panel to switch the week language(7 types)

Backlight brightness: in AC/DC power adaptor mode, short press the top snooze/backlight/network button to adjust the backlight brightness between high/middle/low level. In battery power mode, Short press top snooze/backlight/network button can make the display light on and off after 10 seconds.

Low battery indicator: when the battery symbol shows next the outdoor temperature which means low battery power in outdoor wireless transmitter; when the battery symbol shows next to indoor temperature which means low battery power for main unit if you use battery power. Please replace it with fresh batteries.( This product work with APP, it will check and download data from internet frequently, highly recommend to use the product connect with AC/DC power adaptor.)

Temperature and humidity

1. Indoor temperature range: -10 \~ +50 °C / 14 \~ 122 °F.

2. Outdoor temperature range: -40°C\~60°C(-40°F\~140°F).

Remarks: LL.L°C or HH.H°C will show on display when out of the above range

1. Indoor and outdoor humidity range: 1%-99%

LL% or HH% will display when out of range

1. Temperature accuracy: ±1,0°C between 0°C\~+50°C/32°F\~104°F.

±1,5°C outside this measuring range

1. Humidity accuracy: (40-70%) ± 5%, others ±8%

Indoor comfort level

	Humidity lower than 40%, and Temperature between 20°C and 27°C;
	Humidity data between 40%-70%, and temperature higher than 20°C
	Humidity lower than 70%, Temperature lower than 20°C or higher than 27°C

Weather forecast table

Clear	Partly -Cloudy	Cloudy	Over Cast	lightening rain	thunder rain
Light Rain	Middle Rain Heavy Rain		Rain storm Icon flashing	Rain Shower	Heavy Rain Shower
Light Snow	Middle Snow Heavy Snow Icon flashing		Blizzard (Icon Flashing)	Rain and Snow	Rain Shower and shower
Snow shower	Mist fog	Icon flashing	Haze	Heavy Haze (Icon Flashing)	Light Win
Windy	Storm icon flashing	Tropical storm icon flashing	Dust	Sandstorm (Icon Flashing)

Trouble shooting

Doesn't display anything. ✦ Check if the AC/DC power adaptor connect with unit properly.
Temperature/humidity from outdoor sensor not displayed.	◇ Check that the distance between the thermometer and sensor doesn’t exceed 30m.◇ Make sure that the devices are located at least 2m from monitors and TV sets.◇ Avoid placing the devices on or close to window frames made of metal.◇ Avoid using electronic devices such as loudspeakers which operate at the same frequency (433.92MHz), close to the devices.◇ Please double check if the wireless transmitter was set up in different channels each other◇ Remove the batteries, wait a while and then reinsert them.
Displayed temperature is incorrect.	◇ Remove the batteries, wait a while and then re-insert them.◇ Make sure that the devices are not affected by heat sources or air-conditioning units and such.
No weather forecast information on display	◇ Please try to select and fresh weather station device connection from Tuya app.◇ Please try to repair device with Tuya app.

Specifications

TUYA APP support (Wi-Fi connection)

Indoor / outdoor temperature display

Indoor / outdoor humidity display

Comfort indicator for indoor

5 days of HI&LO temperature, weather forecast and UV index

Temperature alerts (adjustable in APP)

Temperature and humidity curves available in the app

Color LCD display with dimmer

LCD display dimensions: 168 x 91 mm

Clock (12/24 hour format) and calendar

Weekdays in 7 languages: GER/ENG/FRE/ITA/SPA/DUT/DAN

Alarm with snooze function

Outdoor sensor included (1 pc)

Support for up to 3 sensors

Low battery indicator for device and outdoor sensors

Wall hanger / Table stand

Power supply: 5V 1200 mA (power adapter included)

Outdoor wireless transmitter power source: 2 x 1.5 V (AA size, included)

Battery power: 3 x 1.5 V (AA size, not included)

IP54 (water proof, for wireless transmitter)

Wireless transmitter working frequency: 433.92MHz

Power consumption: 2.1 W (main unit), 24mW (wireless transmitter)

Device dimensions: 200 x 29 x 130 mm

Net weight: 0.334 kg

Sensor dimensions: 38 x 19 x 100 mm

Sensor Net weight: 0.032 kg

Power adaptor information
Information published	Value and precision	Unit
Manufacturer's name or trade markCommercial registration number Address	DONGGUAN SHIJIE HUAXU ELECTRONICS FACTORYCommercial Registration Number: 440429543Address: No.200,Technology East Road,ShijieTownDongguan City,Guangdong,P.R.China
Model identifier	HX075-0501200-AG-001
Input voltage	100-240	V
Input AC frequency	50/60	Hz
Output voltage	DC5	V
Output current	1.2	A
Output power	6.0	W
Average active efficiency	≥75	%
Efficiency at low load (10 %)	71.17	%
No-load power consumption	≤0.1	W

Ważne informacje

For Andorid

For iOS

Uwaga:

Symbol of a trash bin crossed with no text or labels

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

Add Device

Searching for nearby devices. Make sure your device has entered gaining mode.

Add Manually

Electrical

Socket

Lighting

Sensors

Large Home Ap...

Small Home Appliances

Add Device

Searching for nearby devices. Make sure your device has entered pairing mode.

Discovering devices...

Add Manually

Electrical

Socket

Lighting

Sensors

Large Home Ap..

Small Home Appliances

(B)

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

For Andorid

For iOS

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

1. Vremenska prognoza 2. Prognoza temperature 3. Ikona alarma
2. Indikator napunjenosti baterije ugrađen u meteorološku stanicu 5. Sat
3. Kalendar 7. Indikator napunjenosti baterije bežičnog senzora.
4. Najviša / minimalna dnevna temperatura 9. Indeks toplinske udobnosti
5. Unutarnja temperatura 11. Unutarnja vlažnost 12. Trenutna vremenska prognoza
6. Broj kanala vanjskog bežičnog senzora 14. Temperatura iz vanjskog bežičnog senzora
7. Vlažnost iz vanjskog bežičnog senzora; 16. Gumb za svjetlo / odgodu / bežičnu vezu
8. Gumb za postavke 18. Tipka za odabir kanala vanjskog senzora (CH) 19. DC utičnica
9. Sklopivi stalak 21. Odjeljak za baterije 22. Prekidač kanala senzora
10. Montažne rupe za vješanje 24. Svjetlo indikatora senzora

Spajanje struje

For Andorid

For iOS

Uparivanje i postavljanje: Uključite meteorološku stanicu, pritisnite i držite gornji gumb za odgodu/svjetlo/mrežu (gumb na dodir) 3 sekunde i uđite u način uparivanja. Simbol mreže treperi na zaslonu. Otvorite pametnu aplikaciju Tuya na svom uređaju, dodirnite "Dodaj uređaj" (fotografija A) i potražite uređaj u aplikaciji (može zatražiti pristup lokaciji, dajte dopuštenje), provjerite popis za otkrivanje uređaja i dodirnite "Dodaj" (pogledajte fotografiju B), odaberite naziv svoje kućne Wi-Fi mreže i unesite traženu lozinku. Meteorološka stanica će se upariti s aplikacijom, zatim pritisnite gumb "Gotovo" (pogledajte slike D i E). Aplikacija će započeti s postavljanjem i učitati lokalnu petodnevnu vremensku prognozu / podatke o UV indeksu / temperaturi itd. na zaslon meteorološke stanice.

Cancel

Choose Wi-Fi and enter password

ABCDE an example

A

Passwords

Upravljanje meteorološkom stanicom putem aplikacije TUYA

For Andorid

For iOS

Add Manually

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

Add Manually

(B)

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

(B)

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

(D)

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

(B)

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

(D)

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

Add Device

Searching for nearby devices. Make sure your device has entered gaining mode.

Add Manually

Electrical

Socket

Lighting

Sensors

Large Home Ap...

Small Home Appliances

Power Strip

Add Device

Searching for nearby devices. Make sure your device has entered pairing mode.

Discovering devices...

Add Manually

Electrical

Socket

Lighting

Sensors

Large Home Ap..

Small Home Appliances

(B)

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

For Andorid

For iOS

Cancel

Choose Wi-Fi and enter password

ABCDE an example

A

Passwords

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

For Andorid

For iOS

(A)

Cancel

Choose Wi-Fi and enter password

ABCDE an example

品

Password

(C)

(B)

Add Device

Done

1 device(s) being added

Stacja Pogodowa

Being added

(D)

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel.[phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
