Product Type	Steam Iron
Brand	Hyundai
Model	SI 331
Dimensions (approx.)	30 x 15 x 15 cm
Weight (approx.)	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000-2400 W
Water Tank Capacity	300 ml
Cord Length	2 m
Soleplate Material	Stainless Steel
Steam Output (continuous)	30 g/min
Steam Burst	Yes
Spray Function	Yes
Self-Clean Function	Yes
Anti-Drip System	Yes
Auto Shut-Off	Yes (after 8 min idle)
Temperature Control	Adjustable thermostat
Water Fill Opening	Yes (wide opening)
Maintenance	Descaling recommended every 2 months
Safety	Auto shut-off, heat-resistant base, insulated cord

Frequently Asked Questions - SI 331 HYUNDAI

How do I descale my Hyundai SI 331 iron?

Mix equal parts of white vinegar and water, fill the tank, set the iron to steam mode, and press the self-clean button. Rinse with clean water afterward.

Why is my iron not producing steam?

Check if the water tank is empty. Ensure the iron is heated to a steam-enabled temperature. If still no steam, clean the steam vents using the self-clean function.

How do I use the steam burst feature?

Press the steam burst button (usually located on the handle) to release a powerful jet of steam for removing tough wrinkles.

What type of water should I use?

Use regular tap water. If you have hard water, mix with distilled water to reduce mineral buildup. Do not use water with additives.

Is the iron safe to leave unattended?

No, always unplug the iron when not in use. It features an auto shut-off that turns it off after 8 minutes of inactivity, but never leave it unattended.

How do I clean the soleplate?

Wait for the iron to cool. Wipe the stainless steel soleplate with a damp cloth. For residue, use a mild non-abrasive cleaner.

Why does water leak from the iron?

The anti-drip system may need a moment to activate. Ensure the iron is at the correct temperature. If leaking persists, descale the iron.

What is the warranty period?

Hyundai typically offers a 2-year warranty. Check your purchase receipt for exact terms and conditions.

How do I store the iron?

Empty the water tank, let the iron cool completely, wrap the cord around the heel, and store upright in a dry place.

Can I use the iron vertically?

Yes, the steam burst function works vertically for steaming hanging garments. Keep the iron at least 10 cm away from the fabric.

USER MANUAL SI 331 HYUNDAI

Illustration of a steam iron with labeled buttons (no text or symbols on the device itself)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

POKYNY K POUŽITÍ

Line drawing of an iron iron being heated, with a downward arrow indicating cooling effect (no text or symbols)

Line drawing of a steam iron with handle and socket (no text or symbols)

Upozornění

Line drawing of a mechanical device with lever and base (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

TEPLOTY ŽEHLENIA A RADY PRE EFEKTIVNÉ ŽEHLENIE

Line drawing of an iron (£) with steam iron and towel rack (no text or symbols)

Line drawing of an iron iron being heated, with a downward arrow indicating cooling effect (no text or symbols)

Odporučanie

Line drawing of a steam iron with handle and socket (no text or symbols)

ČISTENIE A ÚDRŽBA

Line drawing of a mechanical device with gears and a base, no text or symbols present

INSTRUKCJE DOTYCZĄCE UŻYCIA

Line drawing of an iron (£) with a brush and towel, no text or symbols present

Line drawing of an iron iron being stayed down, with a downward arrow indicating the motion (no text or symbols present)

Zauważyć

Line drawing of a steam iron with handle and socket (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

CZYSZCZENIE I KONSERWACJA

PRAWODAWSTWO I EKOLOGIA

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

The iron enables both dry ironing and steam ironing. It is equipped with elements increasing comfort of use – horizontal/vertical steaming, sprinkling device, and system SELF CLEAN. The handle of the iron is closed and it is adapted for ironing with the right and the left hand. At the back side the handle forms a support that enables putting it in the rest position. Handling while ironing is easier thanks to a swing-out power cable terminal. The electronics automatically switch the heating element on and off during ironing that maintains the set temperature. Regulation of the ironing plate temperature takes place in pre-set steps.

GENERAL SAFETY INSTRUCTIONS

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Do not leave the iron plugged in power supply without supervision!
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged and is leaking. In this case take the appliance to a special service to check its safety and proper function.
• This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• Iron and its supply keep out of reach of children under 8 years (when is plugged in to power or cools down).
• Use and place the iron on a stable surface.
• When putting the iron on a stand, make sure that the surface that the stand is placed on is stable.
• After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.
• ATTENTION: Do not use this heater in series with an external timer, remote controller or any other device that switches on the appliance automatically, since a fire risk exists when the heater is accidentally covered or displaced at the moment it switches on.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected only to electric installation socket complying applicable standards. Use of separate electric circuit with 16 A fuse is recommended.
• The electric socket must be easily accessible to easy disconnect the iron in dangerous and/or emergency situations.
• Do not insert to or take out the plug from a socket with wet hands and do not pull the power cord!
• Whenever you fill the container with water during ironing and empty the container after ironing, unplug the iron from the electric power.

• The thermostat can never be used as a switch!

• The appliance is intended for use in households only and for similar use (in shops, offices and similar areas, in hotels, motels and other residential areas, in bed and breakfast facilities)! It is not designed for commercial use!

• Do not use the iron outdoor!
• Do not use the iron as room heating device!
• Do not put any objects to the iron.
• Do not use the appliance with program, time switch or any other item, which switches ON the appliance automatically, as there is a risk of fire, when the appliance is covered or improperly located.
• Never iron or steam iron the clothes on persons (directly on body) and do not direct the steam to any persons or animals.
• Never immerse the appliance into water (even its parts)! Do not wash it under running water!
  • Make sure the supply cord does not get in touch with the hot surface of the iron!
• Let the appliance cool off before storing!
• Any modification of the appliance surface (e.g. by means of self-adhesive wall-paper, foil etc.) is prohibited!
• Do not place the iron in such a way that could represent harm (e.g. fire, burn and scalding).
• Iron is not intended for use in places with explosive danger
• Due to production tests, the internal iron container can be misted up. Do not consider it to be a defect when purchasing the iron.
• Never pour water to the container that was produced by defrosting of a freezer, water condensed in a dryer, air-conditioning or dehumidifying units, certain types of mineral waters, rain-water, water enriched with alcohol, perfume and preparations for treatment and for stiffening fabrics (e.g. starch, fabric conditioners) or vinegar, decalcifying agents, softeners or other chemical substances. Do not use pure distilled water.
• When ironing, be very careful, tilting of the iron may result in the hot water pouring out of the filling hole.
  • Make sure that the power cord is always dry and it is not damaged.
• Regularly check condition of the appliance power cord.
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges. Never put it to hot surfaces, prevent its free hanging over edge of table or work board. Touching, stumbling or pulling the power cord e.g. by children may cause tipping over or falling of the appliance with subsequent severe injury!
• If you need to use the extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Never use the appliance for any other purpose than for that described in these instructions for use!
• The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire, clothes damage, scratching and contamination of the ironing plate) and its guarantee for the appliance does not apply to situations when the safety warnings above have not been complied with.

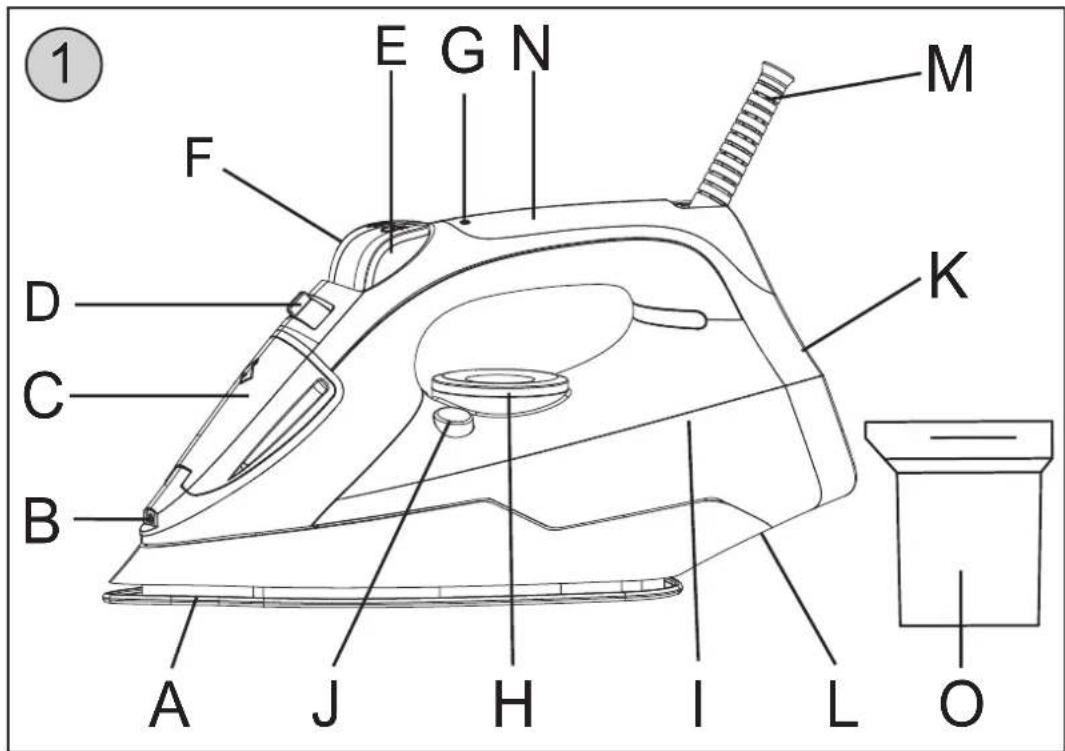

DESCRIPTION OF THE CONTROLS (Fig. 1)

A – ironing plate H – thermostat regulation wheel

B – additional spray jet I – water container

C – filling hole lid J – SELF CLEAN button

D – steaming regulator K – rest board

E – additional spray button L – space for power cord wind-up

F – steam shock button M – power cord

G – control light N – handle

O - filling cup

INSTRUCTIONS FOR USE

Remove all the packing material and take out the iron with the accessories. Remove any labels, protective foils or covers from the ironing plate before the first use. At first switch the iron ON to maximum temperature and let the iron at least 10 minutes running without water. The iron may produce slight smoke, which is cased by burning of used lubricants and seals in steam chamber. This is normal situation and does not form the reason for warranty claim. During first filling of the tank with operating water it is recommended to release the steam from whole tank outside the ironed fabric.

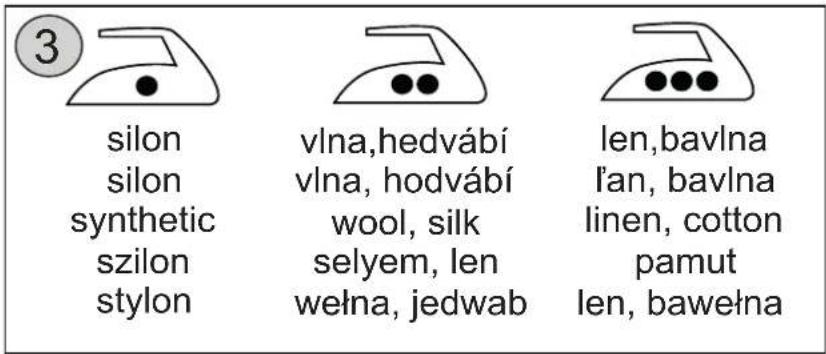

IRONING TEMPERATURES AND ADVICE FOR GOOD IRONING

- Sort laundry and iron according to the instructions for treatment (e.g. manufacturer's recommendation - the label on clothes). If the instruction is missing and you know the material of the clothes, follow the table on picture 3. The table applies to basic materials only, not to possible decorations, material treatment, etc.

- Start to iron from the lowest temperatures to higher temperatures. If clothes consist of e.g. two and more materials or if they contain stringing, purls, embossing, stretch material, etc., always iron according to the material requiring the lower temperature only. If you do not know the material, find the suitable place that is not visible when wearing and try suitable temperature for ironing at the place.

- When ironing woollen fabrics, we recommend ironing on the back side of the fabric and you can iron virgin wool through additional cloth. Velvet and similar fabrics can be ironed in one direction (you will prevent creation of glossy areas).

- Steam ironing is not suitable for fabrics from synthetic and silk fibers (e.g. acrylon, nylon, polyamide or polyester).

• We recommend using soft textile permeable base materials for steam ironing.

- Make sure that the ironed fabric is tensed up properly so that steam does not leak to the sides.

- For the ironing plate to remain smooth, protect it from direct contact with hard objects (e.g. zip fasteners, buttons, snap buttons, decorative objects).

- Never iron areas with traces of perspiration or other marks: the heat of the plate fixes the stains on the fabric, making them irremovable.

• To avoid marking velvet garments shiny, iron in one direction (following the fibre) and do not press down on the iron.
• The heavier the washing machine is loaded, the more garments come out creased. This also happens when the spin drying revolutions are very high.
  • Many fabrics are easier to iron if they are not completely dry.
  • For example, silk should always be ironed damp.

Ironing without steaming (dry ironing)

Connect the fork of the supply cord M to an el. outlet, the operation light indicator G will light up. Put the iron to the rest position (Fig. 7). Turn the steaming regulator D to the position, steaming off (Fig. 5) or pour out water from the container I. Set the program on the display using regulation wheel H according to the selected fabric material (Fig. 2). Reaching the required temperature is shown by turning the indicator lamp G OFF.

Line drawing of a steam iron with a brush, emitting powder from its base (no text or symbols)

Line drawing of a steam iron with a downward arrow indicating compression or cooling process (no text or symbols)

Note

• During ironing the thermostat will cycle, which is accompanied by characteristic sound (clicking). This is normal situation and does not form the reason for warranty claim related to the appliance.
• When the temperature is increased from the cold state or if the temperature is set from higher to lower, we recommend waiting for a while due to stabilization of the ironing plate A temperature.
• Ensure that there is sufficient water in the water tank if you wish to use the spray facility occasionally while dry-ironing. If dry-ironing for longer than 20 minutes, the water tank should be emptied to prevent over heating of any water present.

Recommendation

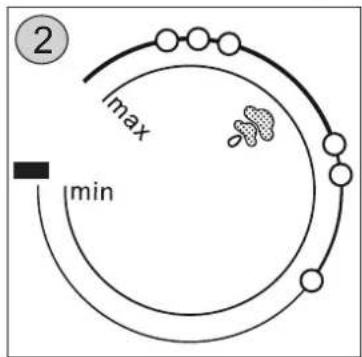

Control H (Fig. 2) is marked with international symbols that recommend the optimum ironing temperature and they are the same as marking on some types of laundry and textiles (Fig. 3).

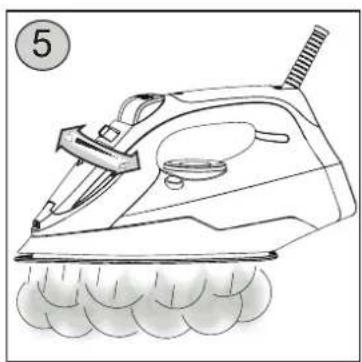

Steam ironing

Hold the iron in your hand, turn the steaming regulator D to the position OFF (Fig. 5) and slide the cover C to open the filling container lid. Pour in water to the container I (Fig. 4) with the enclosed cup O and close the filling hole lid in the opposite direction. Keep the position of the iron for pouring in water. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the marked area for steaming (Fig. 2 - ). Plug the power cord M to a socket. When the control light G goes off, move the steaming regulator D away from handle. The more you move the regulator towards MAX, the bigger amount of outgoing steam there will be (Fig. 5). Place the iron to the rest position, automatic creation of steam will stop (more steam may be going out for a short time).

Warning

• For all normal ironing the middle adjustment of the steam amount is recommended. Only on ironing the linen fabric, thick cotton and similar fabrics the adjustment of the steam amount to maximum value is recommended. Setting to high-pressure steam ironing os recommended only if the regulation wheel H is set to temperature setting ...
• Be extra careful to avoid accidental pushing of the SELF CLEAN button.
• When water container I is filled with water over the permitted limit (MAX. 250 ml), steam can be created even in the rest position.
• At places with hard water we recommend diluting it with distilled water. You will get the information about water hardness at the water-management authorities, or at the local sanitary station.

For water hardness > 15 °N we recommend filling the iron in the following ratio:

Water hardness Ratio of tap water : distilled water (pH = 7)

medium 2:1

hard 1:1

very hard 1:2

Please note

• Use tap water only. Distilled and/demineralised water makes the anti-calc system ineffective.
• Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

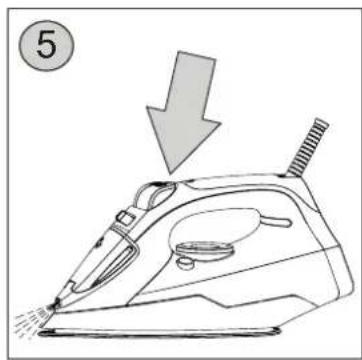

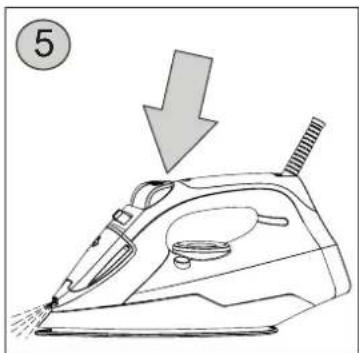

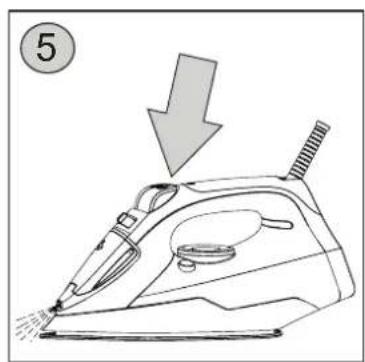

Sprinkling appliance (additional spray)

It is used for moistening fabrics and it is effective in ironing extremely creased fabrics. It is activated by repeated pressing of additional spray button E. We do not recommend applying additional spray for fine fabrics (e.g. silk and synthetic) as the used water may stain the fabric.

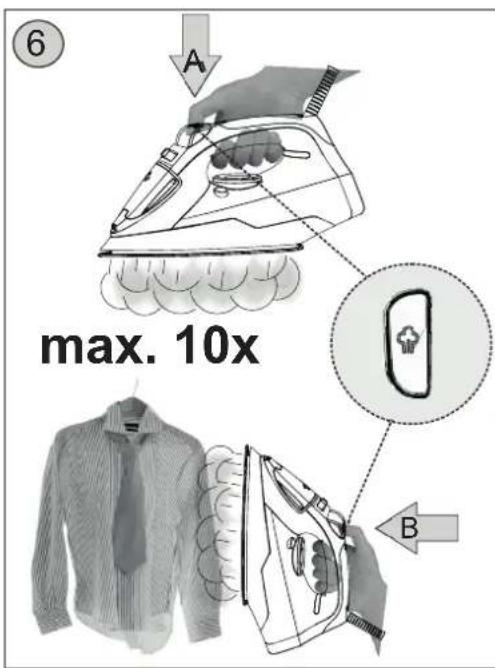

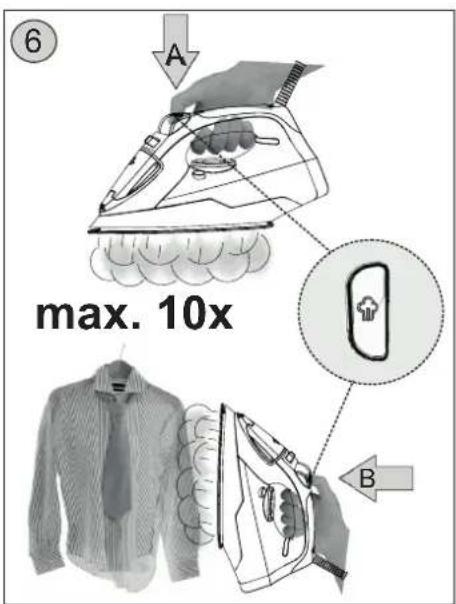

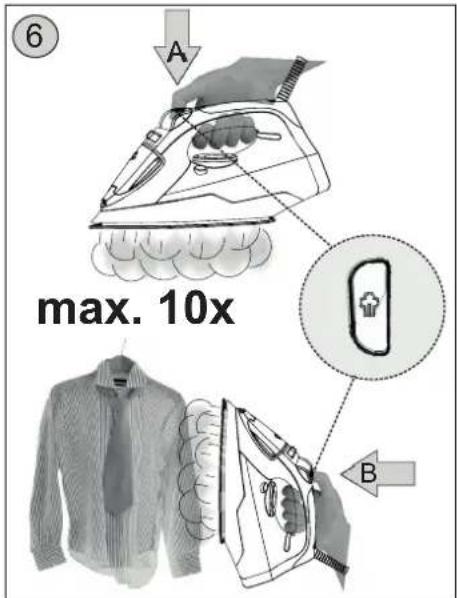

Intensive steaming (steam shock)

Use only if the steam ironing is insufficient. In this case press intensive steaming button F several times (Fig. 6A - Thus you will get additional steam except for the steam created by standard steaming. If you wish to use the steam shock button, set the thermostat regulation ring H to max. For even more intensive steam shock, set the steam regulator D to position OFF (turn it back to your desired position afterward).

Warning

- An intense „burst“ of steam penetrates deep into the fabric. For optimum steam quality, leave an interval of at least four seconds between pressing the Surge of Steam button.

• When you press intensive steaming button F several times, water may drip from the ironing plate due to excess water in the steam chamber. Do not consider this as faulty operation.
• Prevent burning of sensitive fabrics, do not close them to the iron to distance of 10 to 20 cm.
• Use the VERTICAL function only if the regulation wheel H to the ·s or maximum position.
• Do not iron clothes that you or other people are wearing!
  • Never direct steam flow to persons or animals!

Self-cleaning system (SELF CLEAN)

Your iron will give the best ironing results and last longer if you apply „self-cleaning“ regularly (once or twice a month) to remove any scale or fluff. Hold the iron disconnected from power supply in your hand, turn steaming regulator D to 0 position (Fig. 5) and lift off cover C to open the filling container lid. Pour water into container I using the enclosed cup O to fill half of it and close the filling hole lid (Fig. 4) by snapping it. Keep the position of the iron for pouring water in it. Put the iron to the rest position (Fig. 7) and set the regulation wheel H to the maximum

position. Plug power cord M into a socket. When the control light G switch off, disconnect the iron from the electric power. Hold the iron in the horizontal position over a sink. Press the SELF CLEAN button repeatedly (two to three times), each time for about 5 seconds. Then wait till water stops going out from the ironing plate. If the iron still contains a lot of impurities, repeat the procedure while pushing the intensive steaming button between individual pushing of the SELF-CLEAN button. After completing the cleaning, plug the iron into the electric power, set the selected program and then iron a clean piece of cotton cloth so that the ironing plate is cleaned.

Line drawing of a steam iron with handle and socket (no text or symbols)

Warning

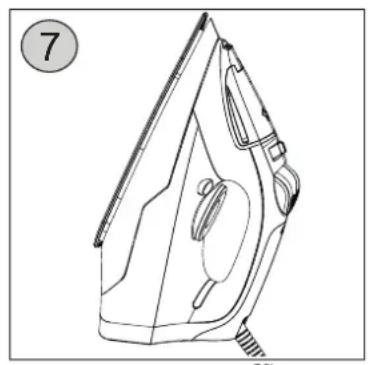

• Always store the iron (with water emptied from water tank) on its heel rest, not on the soleplate. Even the smallest amount of moisture will cause corrosion and staining of the soleplate if the iron is stored with the soleplate facing downwards.
• Clean the ironing plate using the SELF CLEAN function continuously.

Storage

After finishing ironing, pour out the unused water from the container (be careful, it can be hot), or let the rest of the water evaporate and let the iron cool down. Then turn regulator D to 0 position (steam switched off). Wind power cord M over the back side of cover L and put the iron to the rest position (Fig. 8) out of reach of children and incapacitated persons.

Line drawing of a mechanical device with no visible text or symbols

CLEANING AND MAINTENANCE

Before every maintenance, unplug the iron from power supply by taking the fork of the power cord out of the socket! Do not use rough and aggressive detergents (e.g. sharp objects, peelers, pot scourers, caustic agents for cleaning or other solvents). Wipe the entire iron with a wet cloth in the cooled state and dry up. If brown film is created on the ironing plate (e.g. when ironing starched laundry), you can remove the film by a detergent containing fine sand. The iron is equipped with a permanent decalcification system ANTI CALC that does not require maintenance. But the system cannot fully prevent creation of calcareous sediments. Wipe the outside housing with a damp cloth and polish with a dry one. Do not use abrasives or harsh cleaners as they may damage the surface of the iron.

TROUBLESHOOTING

Problem Possible cause Solution
The iron is plugged in but the soleplate is cold.	There is connection problem.	Check the main cord, the plug and the wall socket.
The iron does not produce any stream.	There is not enough water in the water tank.	Fill the water tank.
	The stream kontrol has been set to positron „OFF“	Set the stream control to higher position.
	The iron is not hot enough.	Selectan ironing temperature that is suitable for stream ironing. Put the iron on its heel and wait until the amber pilot has gone out before you start ironing.
Water droplets drip onto the fabric.	The cap of the filling opening has not been closed properly.	Close the cap properly. You will hear a click
Flakes and impurities come out of the soleplate during ironing.	You have been using hard water, which has caused scale flakes to develop inside soleplate.	Use the self- clean function a few times.
Red light blinks and warning sound beep.	The safety shut-off function has switched the iron off.	Move the iron to deactivate the safety shut-off function.

TECHNICAL SPECIFICATIONS

• Steam iron
• Stainless steel soleplate
• Self cleaning
• Dry/steam/spray, variable steam, vertical steam
• Large 250 ml water tank, water fillbeaker
• Funnel for easy water filling

Input in off mode is 0.00 W.

• Color: green/white
• Power supply 230 V \~ 50 Hz
• Power drain 2200 W
• Size 28,2 x 13,5 x 12 cm
• Weight: 1 kg
• Protection class of the appliance I.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

LEGISLATIVE & ECOLOGY

The product has received ES declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

• Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.
• Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision.

There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY

NOTICE

HASZNÁLATI ÚTMUTATÓ

Line drawing of an iron iron with a brush and roller, no text or symbols present

Line drawing of an iron (£) with a downward arrow indicating cooling effect (no text or symbols)

Megjegyzés

Line drawing of a steam iron with handle and socket (no text or symbols)

Figyelmeztetés

Technical line drawing of a mechanical device with no visible text or symbols

Licensed by Hyundai Corporation, Korea.
