PL 1062 D Chiva - Washing machine Philco - Free user manual and instructions

Product Type	Washing machine
Brand	Philco
Model	PL 1062 D Chiva
Dimensions (H x W x D)	85 cm x 60 cm x 50 cm
Rated Capacity	6 kg
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	D
Energy Consumption (per cycle)	0.648 kWh
Water Consumption (per cycle)	43 L
Noise Level (spinning)	76 dB(A)
Programs	Cotton, Synthetics, Quick 60', Quick 15', Mix, Hand Wash, Rinse, Spin
Additional Functions	Delayed Start, Prewash, Quick Wash, Extra Rinse, No Spin, Child Lock
Water Supply	Cold water (max 70 °C)
Drain Hose Length	95–150 cm
Power Consumption (standby)	1 W
Spare Parts Availability	10 years
Warranty	24 months

Frequently Asked Questions - PL 1062 D Chiva Philco

How do I remove the transportation screws?

Unscrew the four transport bolts at the rear of the machine using a wrench, then remove the plastic spacers and cover the holes with the supplied caps. Never start the machine with transport screws installed.

How to level the washing machine?

Place the machine on a solid, level surface. Adjust the four feet by turning them until the machine stands steady and does not rock. Check with a spirit level. Proper levelling prevents excessive vibration and noise.

How do I clean the pump filter?

Open the pump cover, place a container underneath, unscrew the filter cap slowly to drain water, then remove and clean the filter. Caution: water may be hot – let it cool first.

What does error code E02 mean?

E02 indicates a drainage problem. The water level inside is too low or the pump filter is clogged. Clean the pump filter; if the error persists, contact an authorized service centre.

How to activate the child safety lock?

Press and hold the two additional function buttons simultaneously until the padlock indicator lights up. This prevents children from changing settings during a cycle.

How do I clean the detergent drawer?

Remove the drawer by pressing the release catch. Clean with warm water and a soft brush, especially the siphon plug. Reinsert firmly after cleaning.

What is the maximum spin speed?

The maximum spin speed is 1000 rpm. You can adjust it via the spin button on the control panel.

How can I cancel a running program?

Turn the program selection dial to the 0 position. The machine will drain and stop. Wait 2 minutes before opening the door.

Can I use liquid detergent?

Yes, for the main wash without prewash. Insert the liquid detergent adapter into compartment II and pour liquid detergent up to the max mark. Remove the adapter when using powder detergent.

How to remove scale deposits from the machine?

Use a commercially available scale remover suitable for washing machines. Follow the instructions on the packaging. Do not use acidic descaling agents with laundry inside.

USER MANUAL PL 1062 D Chiva Philco

Famous for Quality the World Over

PL 1062 D CHIVA

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: BEFORE PUTTING INTO OPERATION....2

Important safety instructions....2

General safety instructions....3

Recommendation 7

PART 2: INSTALLATION....8

Removal of the transportation screws 8

Levelling the washing machine 8

Electrical connection 9

Water supply connection 9

Water drain connection....10

PART 3: DESCRIPTION OF THE APPLIANCE AND THE CONTROL PANEL....11

Description of the appliance....11

Control panel 12

Washing detergent drawer....12

Program selection dial....14

Display....15

PART 4: WASHING LAUNDRY....16

First wash cycle 16

Operating the washing machine....17

Additional functions 18

Child Safety Lock....20

PART 5: PROGRAM TABLE....21

PART 6: MAINTENANCE AND CLEANING....24

Water inlet filters 24

Pump filter 25

Drawer for washing detergents 25

Siphon plug....26

Washing machine cabinet....26

Drum....26

Removing scale deposits from the washing machine....26

PART 7: PRACTICAL INFORMATION....27

PART 8: PREVENTION OF MINOR MALFUNCTIONS ....28

PART 9: AUTOMATIC MALFUNCTION DETECTION SYSTEM ....30

PART 10: PRODUCT INFORMATION SHEET....31

PART 1: BEFORE PUTTING INTO OPERATION

Important safety instructions

industry norms and meets legal appliance safety requirements.

However, as manufacturers, we consider it our duty to provide you with the following safety instructions.

an safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the

the new owner can learn about the operation of the appliance and the relevant warnings.

first time, check that it has not been damaged during transport.

are damaged, contact the supplier.

months, when the temperature falls under 0^ C, store the appliance at room temperature for 24 hours before first use.

General safety instructions

other modifications to the appliance is dangerous.

the door heats up to a high temperature. Do not touch the door!

the drum. It is there fore better to always check the inside of the drum before use.

stones and other heavy or sharp items can cause considerable damage and do not belong in the appliance.

softener and washing detergents. If you use a higher amount than is recommended, the fabric could be damaged.

by the manufacturer.

washing bands, etc. should be washed in a special purpose washing bag or in a pillow case, because the individual items could become jammed between the tube and the rotating drum.

from metal skeletons, fabrics which are not hemmed or that snag.

disconnect the washing machine from the power supply and turn off the water inlet.

Repairs carried out by inexperienced persons may lead to injuries or serious damage to the appliance. Contact your local service centre for repairs. Always request original spare parts.

manufacturer or an authorised service technician to prevent hazardous situations.

by pulling on the cord. Hold the power cord by holding the power plug directly.

hands.

feet.

while washing.

yourself.

Contact the nearest authorised service.

washing machine may present a danger to children.

machine.

washing machine.

manual.

vents on the underside.

or sink.

Recommendation

and fabric softener immediately before washing.

impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the appliance, or unless they have been properly supervised by a person who will be responsible for their safety. Children should be supervised so as not to play with the appliance.

socket, shut off the water inlet and leave the door open so that the inside of the washing machine can dry out and so unpleasant odours are not created.

damage the washing machine in any way.

cup of washing agent into the second draw for the washing agent.

PART 2: INSTALLATION

safe place for future reference.

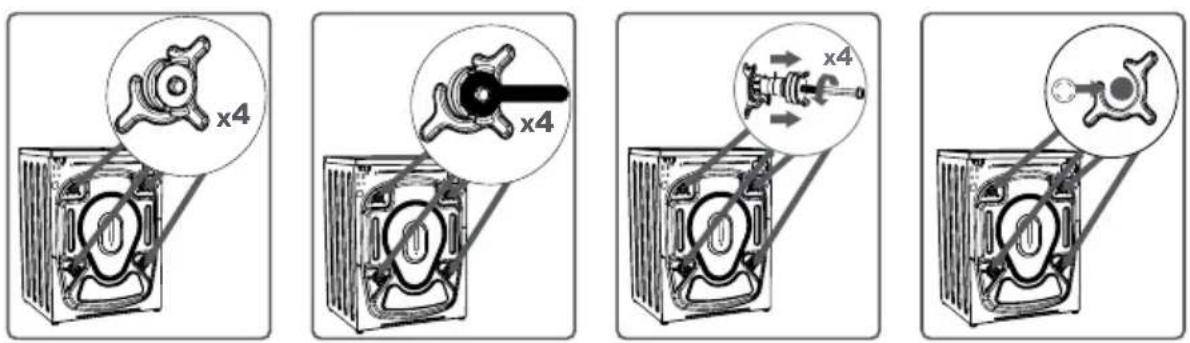

Removal of the transportation screws

it into operation.

NOTE:

Defects caused by starting the washing machine with the transportation screws installed are not covered by the warranty.

Levelling the washing machine

slip and rigid surface.

the feet.

Electrical connection

fuse or circuit breaker to which the washing machine is connected should be 10 A. If you do not have such sockets and fuses/circuit breakers at home, have them installed by a qualified electrician.

washing machine without grounding.

Two electrical plugs with a power plug, one being open and the other closed (no text or symbols)

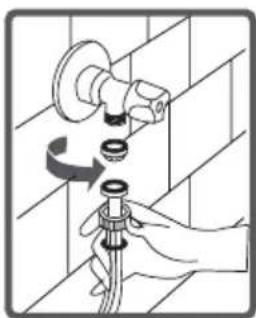

Water supply connection

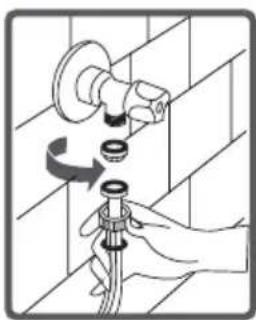

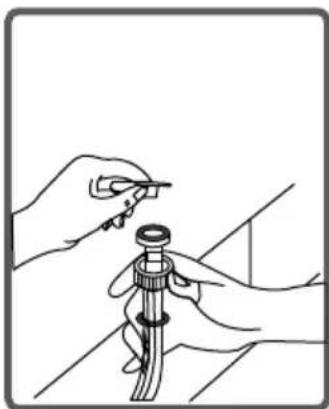

these seals on the end of the water inlet hose connected to the tap.

plumber will provide a safer connection.

should not exceed 70 °C.

Line drawing of a coiled hose with two connectors (no text or symbols)

Diagram of a car fuel injection system with valve and hose components (no text or labels)

Illustration of a hand using a tool to lift a wall-mounted pipe, with no text or symbols present.

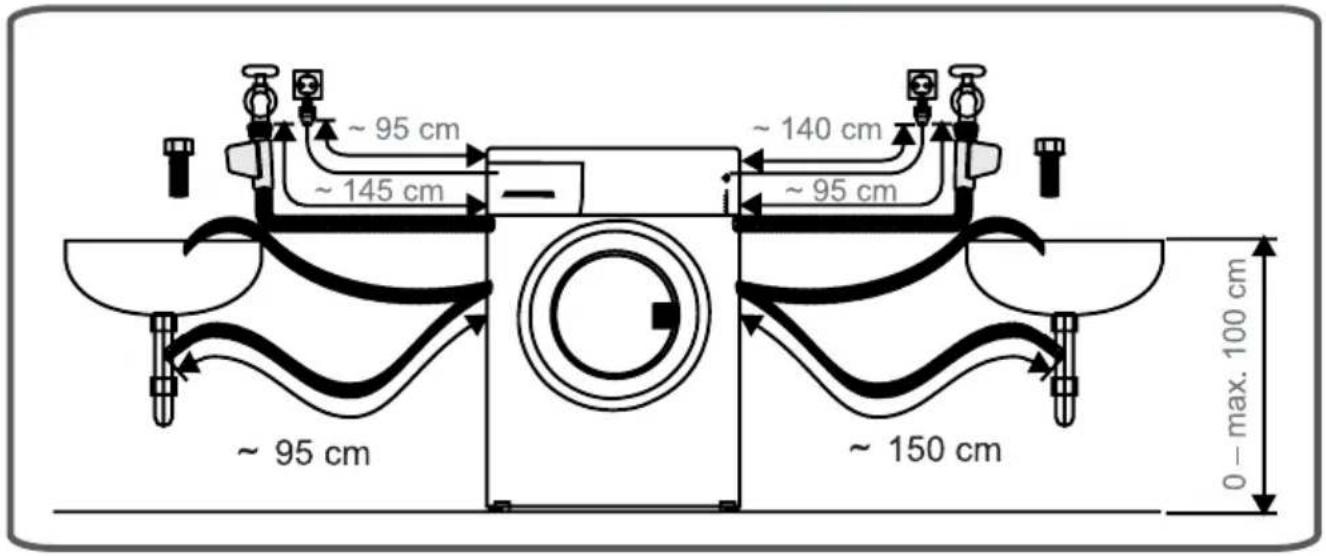

Water drain connection

to the drain of the wash basin.

Diagram showing a pipe installation with a cable and a close-up of the arch structure (no text or symbols)

PART 3: DESCRIPTION OF THE APPLIANCE AND THE CONTROL PANEL

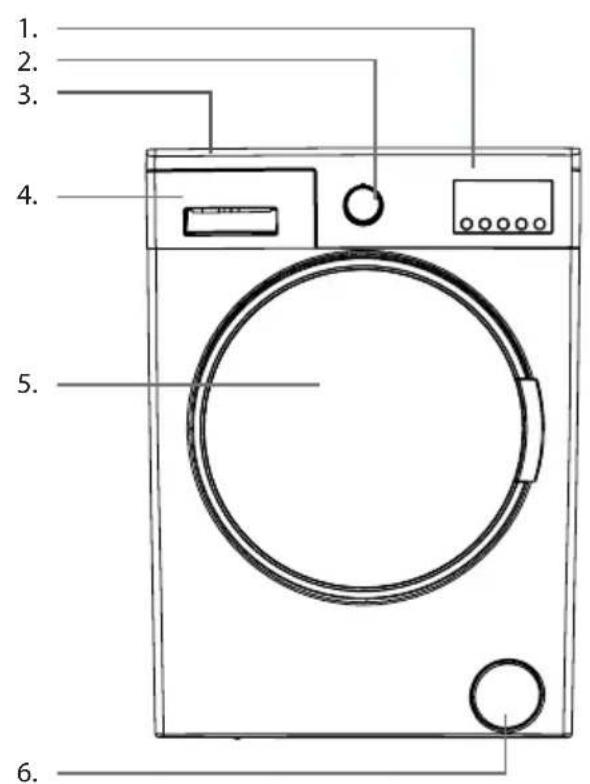

Description of the appliance

1. Display
2. Program selection dial
3. Drawer for washing detergents
4. Drum
5. Pump cover
6. Water inlet valve
7. Drain hose
8. Power cord

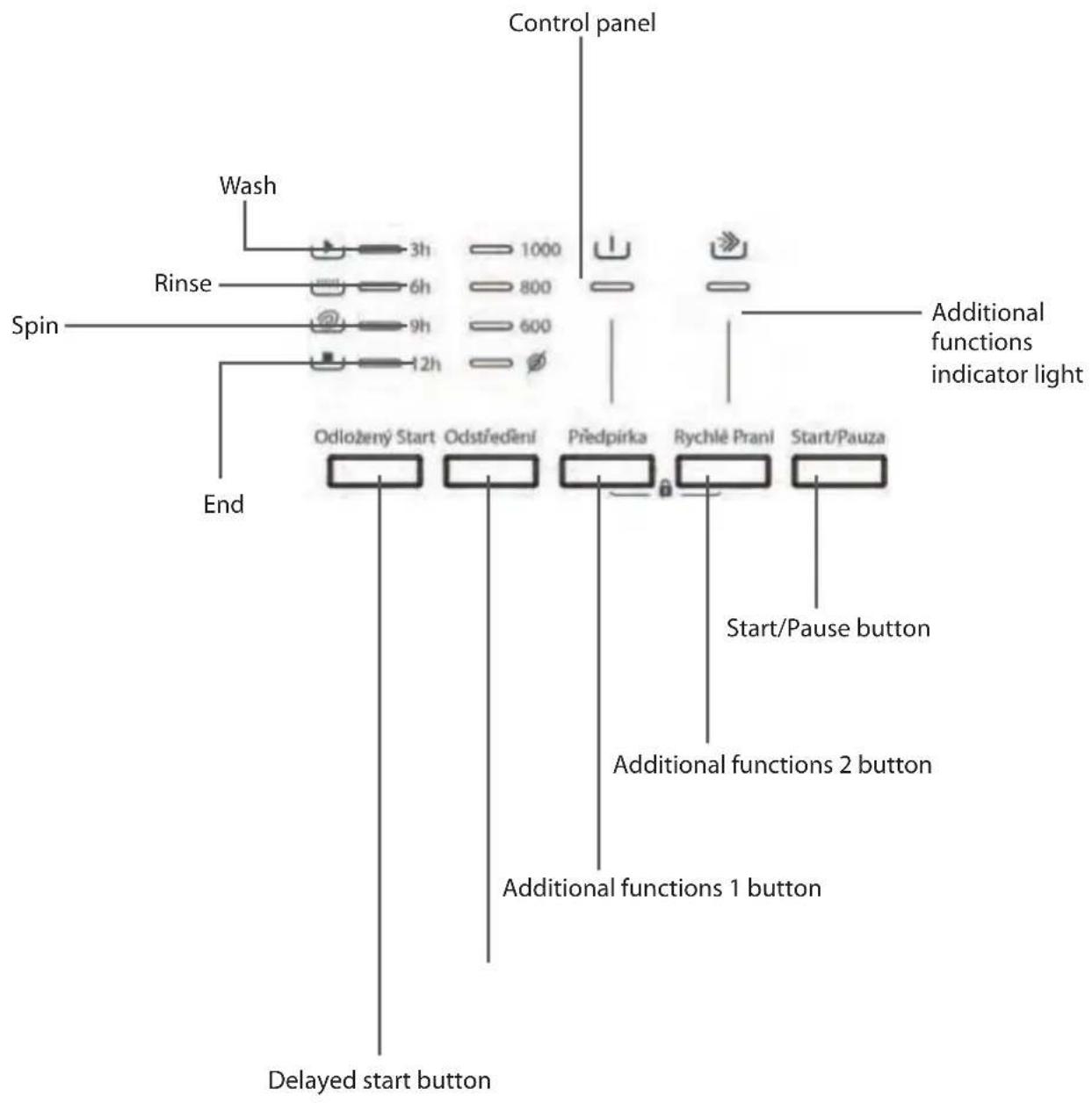

Control panel

1. Drawer for washing detergents
2. Program selection dial
3. Display

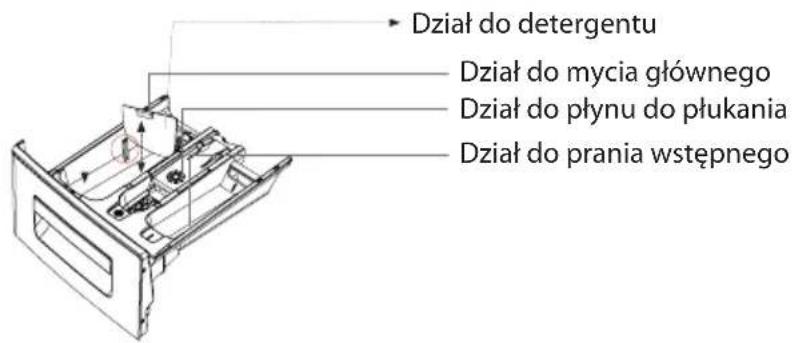

Washing detergent drawer

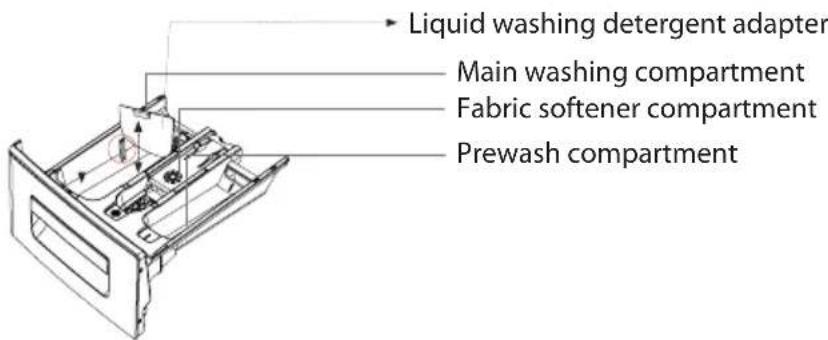

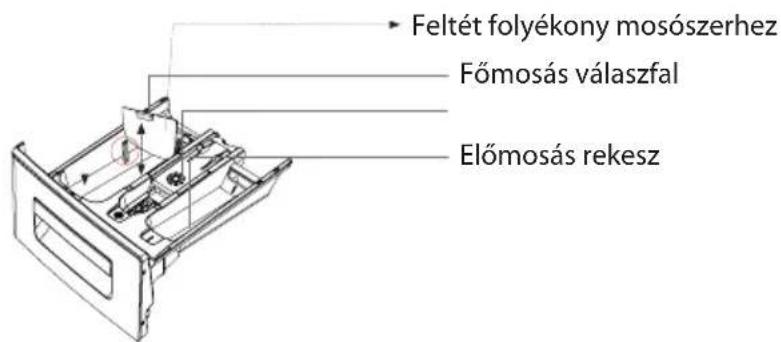

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

If you are going to use a liquid washing detergent, it is necessary to use a special liquid detergent adapter.

without a prewash. Place the adapter into the main wash compartment – see illustration above; and pour in the liquid washing detergent as necessary. Do not go over the maximum mark. Always remove the adapter when using a powder washing detergent.

NOTE: Accessories may vary depending on the model.

Main washing compartment

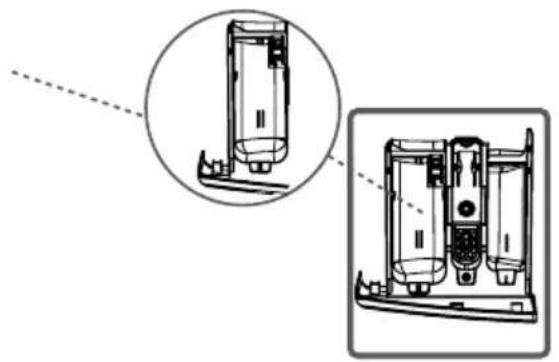

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows assembly (no text or symbols)

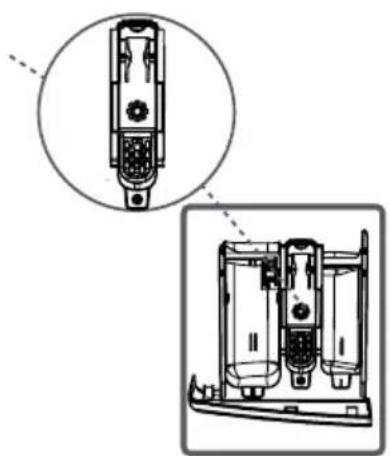

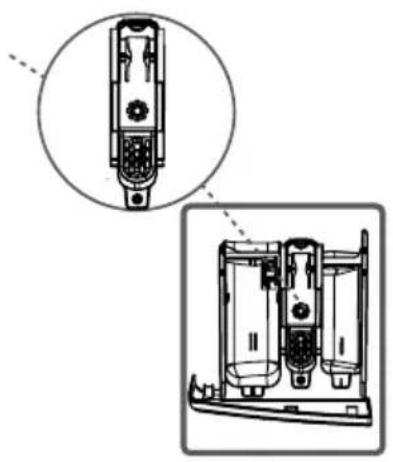

Fabric softener compartment

can dilute it using water.

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows assembly (no text or symbols)

Prewash compartment

Fill this compartment only if the prewash function is selected. We recommend that you use this function only

Technical line drawing of a mechanical device with internal components and an inset view showing a cylindrical component (no text or symbols)

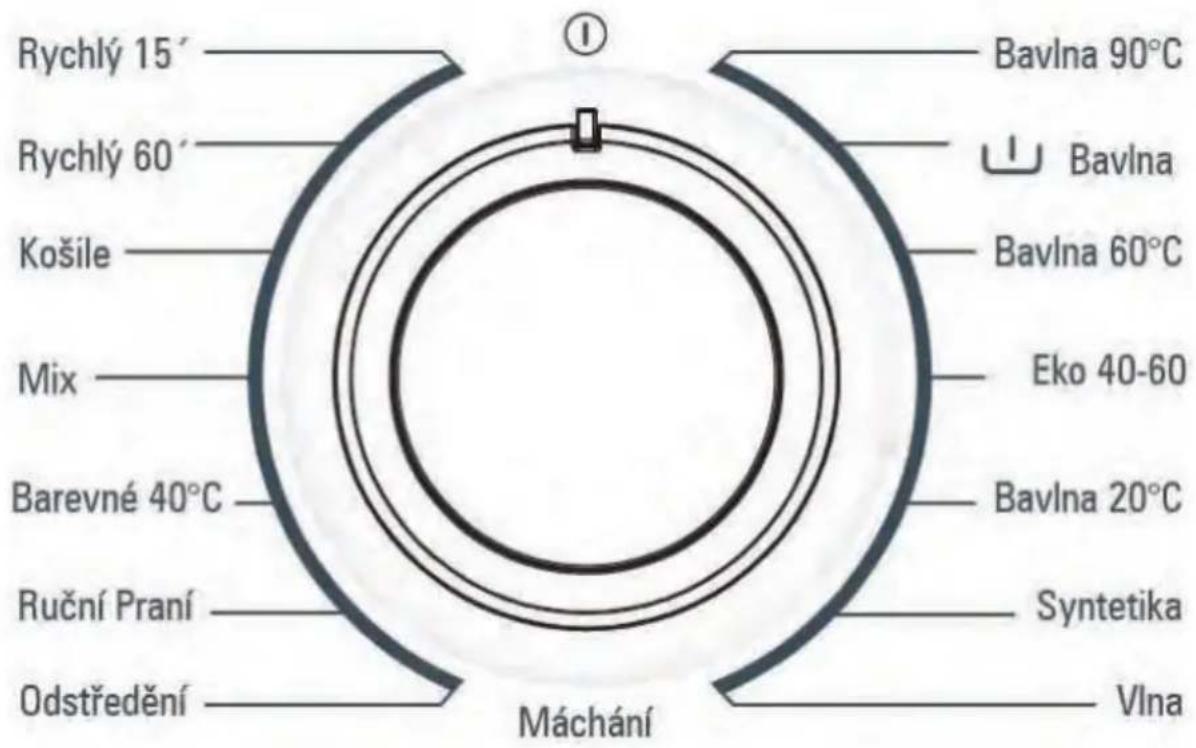

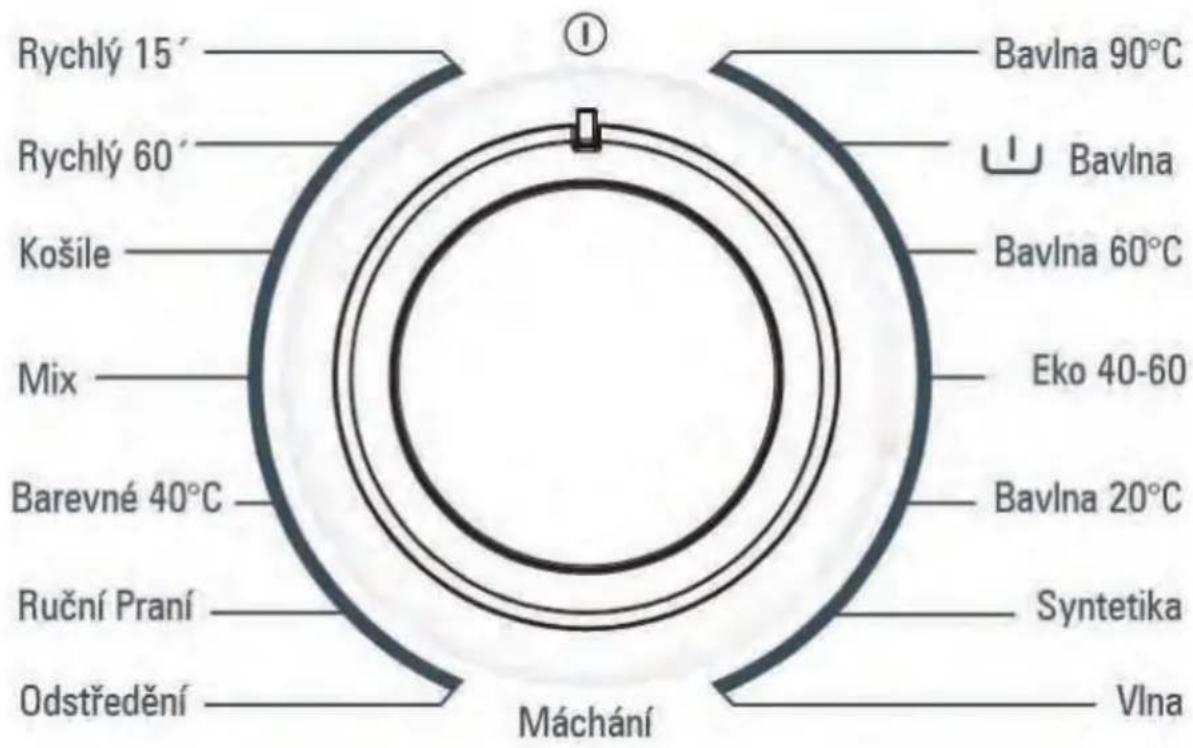

Program selection dial

selection may be done by turning the program selection dial in both directions. When making settings, ensure that the symbol on the program selection dial exactly matches your selected washing program. If you switch

Display

prewash / washing cycle / rinsing /

At the same time, LED lights indicate the current status of the washing program; also combinations of LED lights communicate warning messages.

PART 4: WASHING LAUNDRY

First wash cycle

to perform the first wash without laundry so as to drain this water; put half a measure of standard detergent into compartment 2, which is used for washing detergents and select the program for cotton at 90^ .

Sorting laundry

the level of dirtiness.

will prevent damaging your clothes and the washing machine.

Washing symbols

	Suitable for bleaching Do not bleac
	Standard washing		Maximum ironing temperature is 150 °C
	Maximum ironing temperature is 200 °C		Must not be ironed.
	Dry cleaning possible Must not be
	Hang to dry. Do not spin dry.
	Cleaning only with perchloroethylene, gas, alcohol or R113		Cleaning only with perchloroethylene, gas, alcohol or R113
	Dry cleaning with all types of agents

Operating the washing machine Placing laundry into the washing machine

from the previous wash. Remove the laundry from the washing machine.

the manner shown in the illustration below.

NOTE:

Maximum loading capacity may wary based on the laundry type you will wash, degree of contamination and the programme you have chosen etc. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.

Laundry type Weight (g)
Linen 500
Quilt cover 700
Pillow slip 200
Underwear 100

Detergent dosage

the drawer for washing detergents.

compartment 1 for washing detergents and put the remainder of the measuring cup into compartment 2. shown on the packaging.

washing. If the fabric softener is very thick then dilute it with water before placing it in the compartment. washing machine.

compartment intended for the main wash and pour in the liquid washing detergent as necessary.

Selecting programs and functions

Select a program and additional functions appropriate for your laundry using the program selection dial.

Additional functions

available.

NOTE:

Additional functions are not compatible with all the programs. There is only a limited time period for the selection of an additional function. The combination of individual additional functions is not available for all programs.

Half load detection system

laundry load or even less into the drum, the washing machine will automatically identify this fact and shorten the washing cycle, thus lowering water and power consumption.

Delayed start function

1. Repeatedly press the delayed start button and select the delayed start duration. Each time it is pressed, the respective indicator light will be lit.

If you accidentally skip the desired delayed start duration, repeatedly press the delayed start button until you select the correct duration.

If you need to cancel the delayed start function, repeatedly press the delayed start button until the indicator lights turn off.

Spinning settings

symbol,

repeatedly press the spin button until you set the desired value.

Extra rinse

Simultaneously press the additional function buttons 1 and 2, and the symbol 🎨 will appear on the display.

Prewash

When using this function, it is necessary to put washing powder into the prewash compartment.

Simultaneously press the additional function buttons 1 and 2 repeatedly until the indicator light of the symbol is lit.

NOTE:

The prewash function will extend the selected program by a certain amount of time. This time depends on the type of selected program. Do not use liquid washing detergents in the prewash compartment.

Quick wash

Selecting this function makes it possible to shorten the washing program time, thus reducing water and energy consumption. We recommend that you use this function if the amount of laundry is less than half a load.

Simultaneously press the additional function buttons 1 and 2 repeatedly until the indicator light of the symbol is lit.

NOTE:

If you place half the maximum laundry load or even less into the drum, the washing machine will automatically identify this fact and shorten the washing cycle, thus lowering water and power consumption. As soon as the washing machine detects a half load, the indicator light of the 📋 symbol will start flashing on the display.

No spin

If you do not wish to spin the laundry, select this function.

Simultaneously press the additional function buttons 1 and 2 repeatedly until the indicator light of the symbol is lit.

NOTE:

The extra rinse, prewash, anti-allergenic, quick wash, cold wash, easy iron, no spin functions are only available on selected models.

Starting a program

Start the selected program by pressing the Start/Pause button.

If you press this button while a program is running then this program will be paused.

Cancelling a program

Cancelling a program that is currently running

End of a program

Move the program selection dial to the 0 position.

Pull the power cord out of the power socket.

Shut off the water inlet.

Open the drum door and take the laundry out.

After completing the wash, leave the door of the washing machine open so that the water remaining in the drum can dry out.

Important

You will only be able to open the door after 2 minutes because they will be blocked. This time is not included in the total washing cycle time.

Child Safety Lock

indicator light of the child safety lock will be lit.

If you press any button while the child safety lock is activated, a padlock symbol will appear on the display for a moment.

An activated child safety lock enables the restart of a program if it was interrupted by the program selection dial being turned to the 0 position.

PART 5: PROGRAM TABLE

Program Temperature		Max. amount of dry laundry	Compartment	Duration Laundry description
	90 °C 6.0 kg	2 179 min
s prédpírkou	60 °C 6.0 kg	1 + 2 164 min
	60 °C 6.0 kg	2 230 min
	40 °C 6.0 kg	2 193 min
	20 °C 3.0 kg	2 96 min
Syntetika	40 °C 3.0 kg	2 110 min
Máchání
Odstredení
Ruční praní	30 °C 2.0 kg	2 90 min
	40 °C 3,0 kg	2 190 min
Mix	30 °C 3.0 kg	2 81 min
Rychlý 60'	60 °C 3.0 kg	2 60 min
Rychlý 15' *	30 °C 2.0 kg	2 15 min

NOTE:

The resulting washing cycle time may vary depending on the amount of laundry, type of water, ambient temperature, selection of additional functions, etc.

Dose the amount of washing powder based on the amount of laundry placed into the drum of the washing machine.

of 40 °C or 60 °C together within a single cycle; this programme is used to assess compliance with EU legislation on ecodesign.

Programme name	Rated capacity in kg	Energy consumption in kWh/cycle			Programme duration			Water consumption In litres/cycle			Max temperature in °C			Residual water content in % 1000 RPM
		Rated capacity	1/2 Load	1/4 Load	Rated capacity	1/2 Load	1/4 Load	Rated capacity	1/2 Load	1/4 Load	Rated capacity	1/2 Load	1/4 Load	Rated capacity	1/2 Load	1/4 Load
Cotton 90°C	6 2,22							72 81	62%
Cotton 60°C	6 0,81							49 46	62%
Eco	6 0,92	0,53	0,29					49 40	35 44	36 26	62%	62%
Synthetics	3 0,49							39 42	71%
Quick 60'	3 0,94							31 58	62%
Cotton 20°C	3 0,19							42 20	62%

longer time at lower temperatures.

help to save energy and water.

load type, selected additional functions, water type and ambient temperature.

recommendations of the detergent manufacturer regarding the amount to be used.

spinning phase, the louder the noise and the lower the residual water content.

the QR code at the energy data label.

Important information

foam and the automatic foam absorption system has been activated because too much detergent was used.

programme for regular cleaning. If your washing machine is not equipped with the Drum Clean programme, use the Cotton 90 programme. If required, use only suitable rescaling agents developed specifically for washing machines.

minutes after the washing cycle has ended. *

washing cycle has ended.*

during processes performed by unauthorized persons.

PART 6: MAINTENANCE AND CLEANING

CAUTION!

The washing machine and its components could be damaged if you use agents containing solvents. Do not use washing detergents or fabric softeners containing solvents.

Water inlet filters

and foreign materials contained in water entering the washing machine. If the washing machine is not filling

seals and clean them.

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

WARNING:

The water inlet filters may become clogged as a result of a connection to poor quality water or insufficient maintenance, etc. Dirty filters result in water leaks that may cause damage to the washing machine and property. Damages caused by incorrect maintenance of the filters are not covered by the warranty conditions.

Pump filter

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

washing machine.

Illustration of hands performing a manual tool manipulation (no text or symbols visible)

Technical illustration of a mechanical component with two views: top shows internal gear assembly, bottom shows cross-section with mounting holes (no text or symbols)

Diagram showing two mechanical components with red arrows indicating motion or assembly (no text or symbols)

Simple line drawing of a mechanical setup with a pulley, weights, and a triangular base (no text or symbols)

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

WARNING:

Danger of scalding!

Because the water in the pump may be very hot, wait until it has cooled down.

Drawer for washing detergents

Over time washing detergent deposits may accumulate in the drawer and in the washing machine opening.

washing machine.

Illustration of a hand inserting a card into a notebook with a black arrow indicating the direction (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to a circular feature, no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal compartments (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Siphon plug

residue. Reinsert the cleaned siphon plug in its place. Check that it is properly inserted. Siphon plug.

Washing machine cabinet

Clean the washing machine from the outside using lukewarm water and a gentle cleaning agent, which will not damage the surface coat of the washing machine cabinet. After rinsing with clean water, wipe the washing machine with a soft and dry wiping cloth.

Drum

cause rusty stains on the drum. If you wish to remove these stains, use a cleaning agent not containing chloride other similar abrasive items to clean rusty stains.

Removing scale deposits from the washing machine

We recommend the use of a commonly available scale remover and to follow the instructions printed on the packaging.

WARNING:

Scale removal mixtures contain acids and may cause discolouration of your laundry and may have a negative effect on your washing machine.

PART 7: PRACTICAL INFORMATION

Alcoholic beverages: First prewash the stain in cold water, then apply glycerine and water and rinse in a solution of water and vinegar.

Shoe polish: First lightly scrub the stain without damaging the fabric using washing detergent and rinse. If

subsequently wash in lukewarm water.

Tea and coffee: Stretch the part of the laundry with the stain over the top of a pot and rinse with water that is as hot as the fabric will handle. If it is appropriate for your laundry, wash the stain in bleaching lye.

Chocolate and cocoa: Leave your laundry in cold water and scrub with soap or washing detergent, then wash in water that is as hot as the fabric will handle. If an oily stain remains on your laundry, wash in hydrogen

Ketchup: After scratching away dried residues without damaging the laundry, leave to soak for about 30 minutes in cold water and wash with a washing detergent.

Bouillon, eggs: Remove dried residues and wipe with a sponge or a soft wiping cloth dipped in cold water. Apply washing detergent and wash in diluted lye.

Greasy and oily stains: First wipe away residues. Apply washing powder to the stain and then wash in lukewarm water soapy water.

Mustard: First apply glycerine to the stain. Apply washing powder and then wash. If the stain does not

Blood: Leave your laundry to soak in cold water for 30 minutes. If the stain does not disappear, dip into a

Cream, ice cream and milk: Leave your laundry in cold water and apply washing detergent to the stain. If the

Soil: Remove soil stains as soon as possible. Wash in washing detergent and if it does not disappear, apply

a washing detergent to the stain, wait about 5 minutes and then wash.

Fruit: Stretch the part of the laundry with the stain over the top of a pot and pour cold water on it. Pour hot rinse.

Grass stains: Apply washing detergent to the stain. If it is appropriate for this type laundry, wash the stain in

wash.

Scorch stains: If your laundry will allow it, you can put lye into the washing water. For woollen laundry you should cover the stain with a wiping cloth dipped in oxygenated water, place a dry wiping cloth over this and iron over the stain. After rinsing you should thoroughly was the laundry.

PART 8: PREVENTION OF MINOR MALFUNCTIONS

All necessary repairs of the washing machine should be performed by an authorised service centre. If it is necessary to repair your washing machine or you are unable to remedy the malfunction using the information

MALFUNCTION POSSIBLE CAUSE REMEDY
not working.	It is not connected to a power socket.	Connect the power plug to the power socket.
	A power outage occurred. Check wh	whether the electricity is working.
	button.	Press the Start/pause button.
		desired position.
	properly shut.	click in.
not filling up with water.
	properly shut.	click in.
not draining water.
vibrating.	levelled.
	transporting screws.
	the drum.	in any way.
	overloaded or the laundry is arranged unevenly.	Do not insert more laundry than the recommended load and check that the laundry is evenly arranged inside the washing machine.
	against a hard surface.	Avoid installing the washing machine leaning on a hard surface.When installing the washing machine, leave a free space of 2 cm between it and the wall or hard place.
amount of foam in the drawer for washing detergent.	washing detergent.	prevent foam from forming by pouring a mixture of half a spoon of fabric softener and half a litre of water into the washing detergent drawer.Press the Start/Pause button again after the correct amount of washing detergent.
	Unsuitable washing detergent. Only	use washing detergents specially made for automatic washing machines.
Unsatisfactory wash result.	is soiled does not correspond to the program you selected.	Select a program appropriate for the given degree to which your laundry is soiled.
	detergent.	Use an amount of washing detergent that corresponds to the level of soiling.
	recommended laundry load in the drum.	should not exceed the maximum capacity of the washing machine.
of the washing machine immediately after it has been filled.	relative to the washing machine.	Locate the drain hose at an appropriate
in the drum during the wash.	Water is in a part of the drum that is not visible.
detergent residues on the laundry.	Residues of the washing detergent in the form of white stains may appear on the laundry.	Set your washing machine to start the addition rinse program or remove the stains using a brush after the laundry has dried.
detergent residues on the laundry.	a cream or a lotion.	During the next wash use the maximum amount of washing detergent set by its manufacturer.
Spinning does not take place or it occurs with a delay.	system was activated.	trying to evenly arrange the laundry in the as soon as the laundry is arranged evenly.evenly inside the drum.

PART 9: AUTOMATIC MALFUNCTION DETECTION SYSTEM

correct progress and in the case of any malfunction takes the necessary remedy measures and will at the same time inform you about the malfunction.

Error code Possible cause Solution
E	Open washing machine door. Close	the washing machine door. If the problem continues, turn off the washing machine, disconnect it from the power socket and immediately contact the nearest authorised service centre.
E02	level inside the machine is low.	your machine will stop after a while automatically. Unplug the machine, turn off your faucet and contact the nearest authorised service.
E02	is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised
E01	water in the washing machine.	Close the door.If the problem persists, contact your nearest authorised service centre.

PART 10: PRODUCT INFORMATION SHEET

Product Information Sheet
Supplier's name or trademark: PHILCO
Model identifier: PL 1062 D Chiva
General product parameters: Washmachine
Rated capacity	6 Dimensions in cm			Height 85
				Width 60
				Depth 50
EEI_w	80		class	D
Washing	1.04		Rinsing effectiveness	5
Energy consumption in kWh per cycle, based on programme. Actual energy consumption will depend on how the appliance is used.	0.648		Water consumption in litre per cycle, based on programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.	43
Maximum temperature inside the treated	Rated capacity 44		Remaining moisture content	Rated capacity 62
	Half 36 Half 62
	Quarter 26 Quarter	62
	Rated capacity	1000		C
	Half	1000
	Quarter	1000
Programme
Airborne acoustical noise emissions in the spinning phase	76		Airborne acoustical noise emission class
			Standby mode	1
	4
Minimum duration of the guarantee offered by the supplier: 24 months
This product has been designed to release silver ions during the washing cycle
Additional information:
Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found: www.philco.cz

TECHNICAL INFORMATION

TESTING INFORMATION

dimensions of the device are part of this manual. If you have any further questions, please contact the manufacturer.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

Model name and serial number can be found on the rating plate. Position of rating plate can be changed without notice.

the type of component, from the placing on the market of the last unit of the model.

When contacting our authorized service, have the model designation, serial number and defect description available.

Subject to change without notice.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when

natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your

this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

Always use original spare parts.

When contacting our authorized service, have the model designation, serial number and defect description available.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

Original spare parts for and components are available minimally 10 years.

www.philco.cz

AUTOMATICKÁ PRAČKA

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

PL 1062 D CHIVA

Vážený zákazníku,

Diagram of a washing machine with a close-up view showing internal components (no text or labels)

Two electrical plugs with wires, one being inserted and the other holding a socket (no text or symbols visible)

Připojení vody

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows external housing (no text or symbols)

Oddělení na aviváž

Technical line drawing of a mechanical device with internal components and a magnified inset (no text or symbols)

Technical line drawing of a mechanical device with cross-sectional view (no text or symbols)

Volič programů

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

VAROVÁNÍ:

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

Illustration of hands using a tool to draw or draw material from a small object (no text or symbols present)

Technical line drawing of a mechanical component with two views: top shows internal gear assembly, bottom shows circular base with mounting holes (no text or symbols)

Diagram showing mechanical components with arrows indicating motion, no text or symbols present

Simple line drawing of a mechanical component with a triangular base and circular features (no text or symbols)

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

VAROVÁNÍ:

Nebezpečí opaření!

Illustration of a hand inserting a card into a stack of documents with an arrow indicating the direction (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols visible)

Technical line drawing of a mechanical device with an open lid and internal compartments (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

Famous for Quality the World Over

PL 1062 D CHIVA

Vážený zákazník,

Diagram showing two electrical plugs connected to a wall socket, with an arrow indicating direction (no text or symbols)

Pripojenie vody

Diagram showing a pipe installation with a cable and a close-up of the arch structure (no text or symbols)

ČASŤ 3: POPIS PRÍSTROJA A OVLÁDACIEHO PANELA

Popis prístroja

1. Displej
2. Volič programov
3. Zásuvka na prací prostriedok
4. Bubon
5. Kryt čerpadla
6. Prepravné skrutky
7. Ventil prívodu vody
8. Odvodná hadica
9. Sietový kábel

Ovládací panel

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows assembly (no text or symbols)

Oddelenie na aviváž

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Oddelenie na predpranie

Technical line drawing of a mechanical device with cross-sectional view (no text or symbols)

Volič programov

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

VAROVANIE:

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

ručičiek.

Illustration of hands holding a tool or device with a pipette inserted (no text or symbols visible)

Technical line drawing of a mechanical component with two views: top shows a gear-like assembly, bottom shows a circular housing with internal components (no text or symbols)

Diagram showing mechanical components with arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical setup with a hammer, gear, and warning triangle (no text or symbols)

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

VAROVANIE:

Nebezpečenstvo oparenia!

Simple line drawing of a hand pressing down on a mechanical device with an arrow indicating downward motion (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to a detail (no text or symbols present)

Technical line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and an arrow indicating assembly (no text or symbols)

Famous for Quality the World Over

PL 1062 D CHIVA

Drogi kliencie,

Podłączenie wody

Line drawing of a coiled hose with two connectors (no text or symbols)

Diagram of a car fuel injection system showing valve, plug, and valve (no text or labels)

Illustration of a hand adjusting a showerhead with a valve, showing mechanical components and a circular motion arrow (no text or symbols)

Podłączenie odpadów

Diagram showing a pipe installation with a cable and a close-up of the arch structure (no text or symbols)

CZEŚĆ 3: OPIS URZĄDZENIA I PANELU STEROWANIA

Opis urządzenia

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a device with two views: top shows internal components, bottom shows exterior view (no text or symbols)

Dział do detergentu

Technical line drawing of a mechanical device with internal components and a magnified inset (no text or symbols)

Technical diagram of a mechanical device with cross-sectional view and internal components (no text or symbols)

Selektor programów

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust a mechanical component (no text or symbols present)

OSTRZEŻENIE:

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

zegara.

Illustration of hands using a tool to interact with a small object (no text or symbols visible)

Technical illustration of a mechanical component with two views: top shows a flanged circular housing, bottom shows a cross-sectional view with internal components (no text or symbols)

Diagram showing mechanical components with red arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a mechanical setup with a gear and a triangular base (no text or symbols)

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

OSTRZEŻENIE:

Illustration of a hand inserting a card into a notebook with a black arrow indicating the direction (no text or symbols present)

Illustration of hands installing or adjusting a device with a black arrow pointing to the component (no text or symbols present)

Diagram showing a mechanical component with an arrow pointing to a circular feature, no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal components (no text or symbols)

Technical line drawing of a mechanical component with internal parts and directional arrows (no text or symbols)

Zamknięcie syfonu

Famous for Quality the World Over

PL 1062 D CHIVA

Tisztelt vásárlónk,

Diagram of a refrigerator with an inset showing a close-up of the front panel (no text or symbols present)

MEGJEGYZÉS:

Elektromos bekötés

Two electrical plugs with wires, one being inserted and the other holding a socket (no text or symbols visible)

Vízbekötés

Diagram showing a pipe installation with a cable and a close-up of the arch structure (no text or symbols)

3. RÉSZ: A KÉSZÜLÉK ÉS VEZÉRLÓPANEL ISMERTETÉSE

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows assembly (no text or symbols)

Öblítőrekesz

Technical line drawing of a mechanical device with internal components and a magnified inset (no text or symbols)

Előmosás rekesz

Technical line drawing of a mechanical device with internal components and a magnified inset showing a detail (no text or symbols)

Programtárcsa

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

VIGYÁZAT:

Illustration of a hand holding a pen with a circular arrow symbol (no text or labels)

forgatva.

Illustration of hands performing a manual tool manipulation (no text or symbols visible)

Technical illustration of a mechanical component with two views: top shows a flanged circular housing, bottom shows a cross-sectional view with internal components (no text or symbols)

Diagram showing mechanical components with red arrows indicating motion or movement (no text or symbols)

Simple line drawing of a mechanical setup with a gear and a triangular base (no text or symbols)

Mechanical assembly diagram showing a disassembled component with arrows indicating motion (no text or symbols)

VIGYÁZAT:

Forrázás veszélye!

Illustration of a hand inserting a file into a folder with an arrow indicating direction (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with a downward arrow (no text or symbols)

Diagram showing a mechanical component with an arrow pointing to a circular feature, no visible text or symbols

Technical line drawing of a mechanical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Abstract curved lines forming a fan-like pattern (no text or symbols)
