Product Type	2.1 Channel Soundbar with Wireless Subwoofer
Model	TH-E631B
Soundbar Dimensions (W x H x D)	872 x 66 x 92 mm
Soundbar Weight	1.6 kg
Subwoofer Dimensions (W x H x D)	150 x 322 x 220 mm
Subwoofer Weight	3 kg
Power Supply	100-240 V~, 50/60 Hz
Power Consumption (Soundbar)	20 W (Standby < 0.5 W)
Power Consumption (Subwoofer)	20 W (Standby < 0.5 W)
Total Output Power	220 W (2 x 60 W + 100 W subwoofer)
Frequency Response	40 Hz - 20 KHz
Bluetooth Version	V 5.1 (A2DP, AVRCP)
Bluetooth Range	8 meters
Inputs	HDMI ARC, Optical, Coaxial, AUX (3.5 mm), USB
USB Playback	MP3 files, up to 32 GB, FAT16/FAT32
Remote Control Range	6 meters / 30°
Wall Mountable	Yes (brackets included)
Auto Power Off	After 15 minutes of inactivity
Safety Certifications	Class II, CE
Included Accessories	Remote control, 2x AAA batteries, Audio cable (3.5 mm), 2x AC power cords, Wall mounting brackets, Screws and dowels, Instruction manual

Frequently Asked Questions - TH-E631B JVC

How do I pair the subwoofer with the soundbar?

The subwoofer and soundbar pair automatically when both are plugged in and turned on. If pairing fails, press and hold the PAIR button on the subwoofer for a few seconds, then turn on the soundbar. The Pair Indicator will stop blinking when connected.

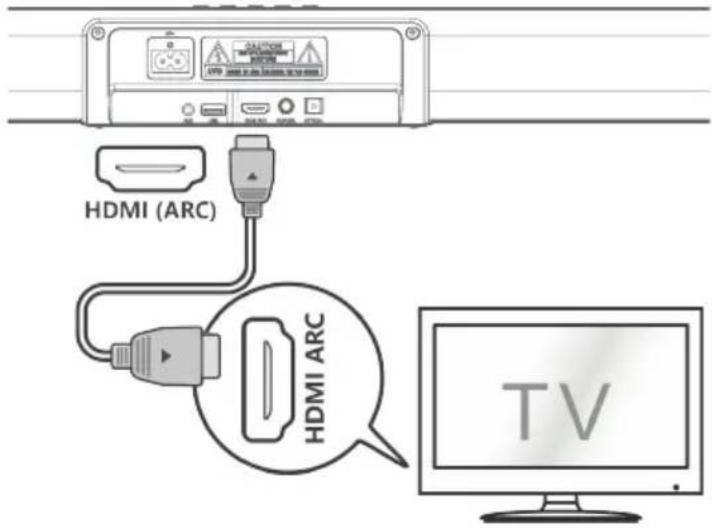

How do I connect my TV using HDMI ARC?

Connect an HDMI cable (not included) from the soundbar's HDMI ARC socket to your TV's HDMI ARC port. Ensure your TV supports HDMI-CEC and ARC, and enable them in the TV settings. Then press the HDMI ARC button on the remote to select the mode.

Why is there no sound from the soundbar?

Check that the soundbar is not muted (press MUTE or VOLUME +/-). Ensure the correct input source is selected. If using HDMI/Optical/Coaxial, set the TV's audio output to PCM. Also verify the volume on the connected device is turned up.

How do I connect my phone via Bluetooth?

Press the SOURCE button repeatedly until Bluetooth mode is selected (blue LED flashes). Activate Bluetooth on your phone and select 'TH-E631B' from the list. If prompted, enter '0000'. Once connected, the LED will be solid blue.

Can I play music from a USB drive?

Yes, insert a USB drive (up to 32 GB, FAT16/FAT32) with MP3 files into the USB port. Press the SOURCE button to select USB mode. Use the remote to play/pause and skip tracks.

What should I do if the remote control doesn't work?

Reduce distance and remove obstacles. Aim directly at the sensor on the soundbar. Check battery polarity and replace if needed. Replace with two new AAA batteries.

How do I reset the soundbar to default settings?

During playback, press the DEFAULT button on the remote control. This restores the sound effect to BASS=0, EQ=Movie, TREBLE=0.

Can I mount the soundbar on the wall?

Yes, use the included wall mounting brackets. Drill holes 793 mm apart, insert dowels, and attach brackets. Loosen the screws on the back of the soundbar, then hang it on the brackets. Ensure the wall can support the weight (1.6 kg).

What is the power consumption in standby mode?

Both the soundbar and subwoofer consume less than 0.5 W in standby mode. The soundbar will automatically enter standby after 15 minutes of inactivity.

How do I clean the soundbar?

Unplug the soundbar before cleaning. Use a soft, dry cloth. Do not use chemical solvents or liquids. Avoid getting moisture into any openings.

USER MANUAL TH-E631B JVC

Black JVC electronic device with a vertical screen and rectangular base (no visible text or symbols)

2.1 Channel Soundbar with Wireless Subwoofer

TH-E631B

INTRODUCTION

• Thank you for buying our product.
- Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and usage instructions should be followed.
• Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
  • Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug the apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.

• This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
• The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus.
• Minimum distance around the apparatus for sufficient ventilation is 5cm.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc...
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Batteries should be recycled or disposed of as per state and local guidelines.
• The use of apparatus in moderate climates.

Caution

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on apparatus.
• The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning

• The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
• Do not place this unit close to strong magnetic fields.
• Do not place this unit on the amplifier or receiver.
• If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.
• The rating label is pasted on the bottom or back of the equipment.

Battery usage CAUTION

- To prevent battery leakage which may result in bodily injury, property damage, or damage to the apparatus:

• Install all batteries correctly, ⊕ and ⊙ as marked on the apparatus.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Remove batteries when the unit is not used for a long time.

WHAT'S IN THE BOX

Soundbar Remote Control

2 x AAA Batteries

Wireless Subwoofer

Coiled cable with two connectors, no text or symbols visible

3,5 to 3,5 mm Audio Cable

Two types of electrical plugs tied together, no text or symbols visible

2 x AC Power Cord

Technical illustration of two mechanical components with bolts and screws, no text or symbols present

2 x Wall Mounting Bracket 4 x Screw / 4 x Dowel
(For installing the wall mounting brackets)

Instruction Manual

NOTE: Images, illustrations and drawings shown on this User Manual are for reference only, actual product may vary in appearance. Power cord quantity and plug type vary by regions.

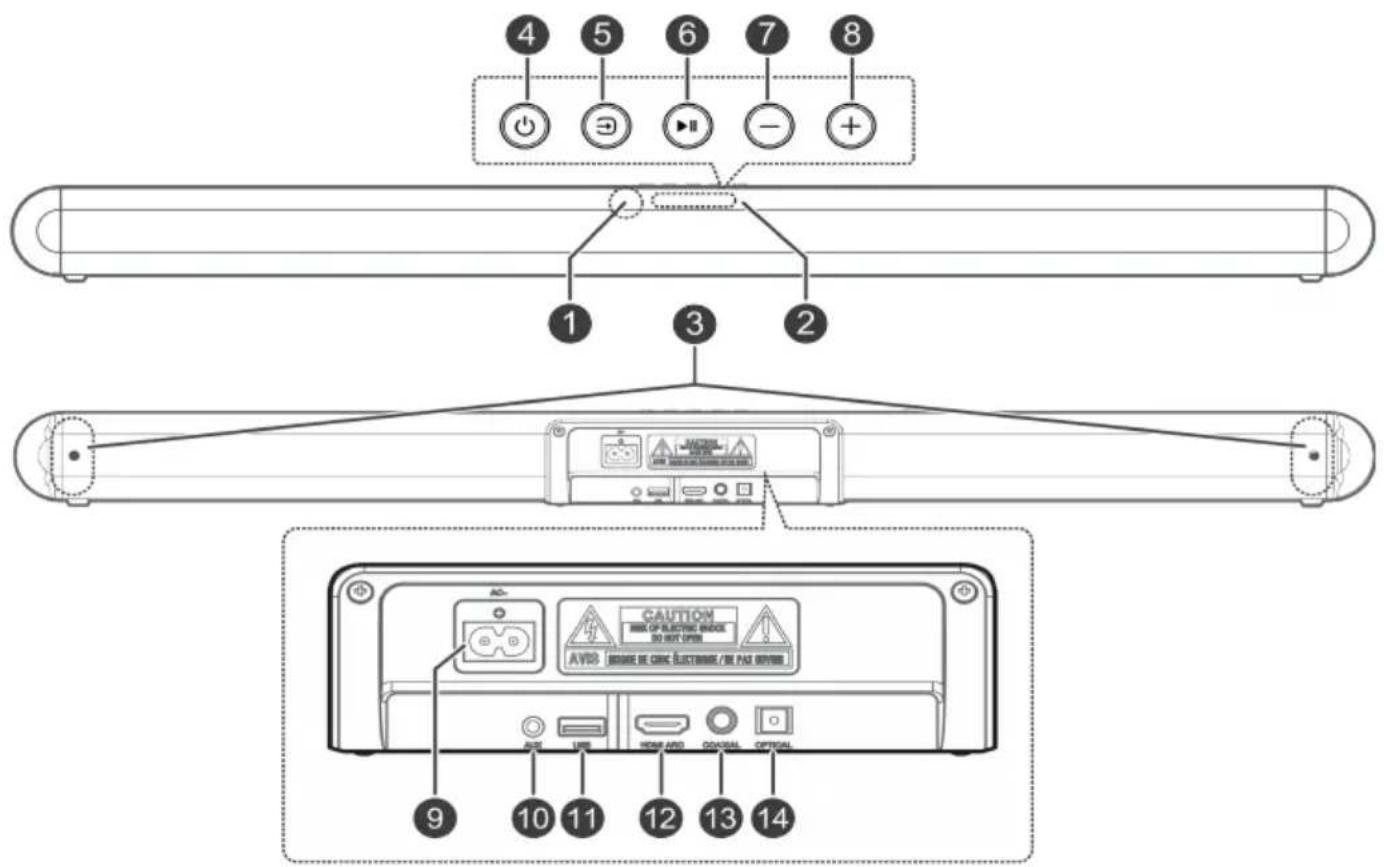

SOUNDBAR

1. Remote Control Sensor

Sensor Receive signal from the remote control.

2. LED Indicators

• Red > Standby mode
• Green > AUX mode
• Green flash > USB mode
• Blue > BLUETOOTH mode • White > HDMI ARC mode
• Orange > OPTICAL mode
• Orange flash > COAXIAL mode

3. Wall bracket screws

4. (ON/OFF) button

Switch the Soundbar between ON and Standby mode.

5. (SOURCE) button

Select the play function.

6. ▶ltton

Play/pause/resume playback.

7. - (VOLUME) button

Decrease the volume level.

8. + (VOLUME) button

Increase the volume level.

9. AC\~Socket

Use to connect to power cable.

10. AUX Socket

Connect to an external audio device.

11. USB Socket

Insert the USB device to play music.

1. HDMI ARC Socket

Connect to a TV via HDMI cable.

1. COAXIAL Socket

Use to connect to the COAXIAL OUT socket on an external device.

1. OPTICAL Socket

Use to connect to the OPTICAL OUT socket on an external device.

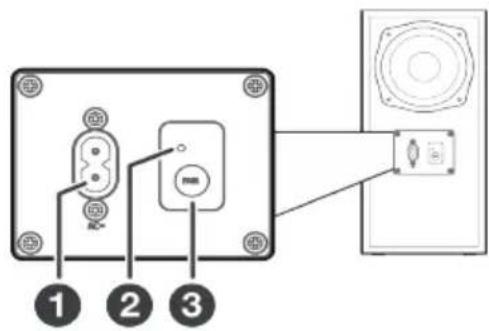

WIRELESS SUBWOOFER

1. AC\~Socket

Connect to power supply.

1. PAIR Indicator

Light stops blinking once the subwoofer is paired with the soundbar.

1. PAIR button

Press activate the pairing function between the Soundbar and the subwoofer.

REMOTE CONTROL

1. button

Switch the Soundbar between ON and STANDBY mode.

1. SOURCE buttons

Press to select the source.

Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.

1. <buttons

Skip to previous/next track in Bluetooth/USB mode

1. Button

Play/pause/resume playback in Bluetooth/USB mode.

1. BASS +/- buttons

Adjust bass level.

1. TREBLE +/- buttons

Adjust treble level.

1. +/- (VOLUME) buttons

Increase/decrease the volume level.

1. (MUTE) button

Mute or resume the sound.

1. DEFAULT

Restore the initial default sound effect.

1. EQ buttons

Prepare the Remote Control

The provided remote control allows the Soundbar to be operated from a distance.

• Even if the remote control is operated within the effective range 6m (19,7 feet), remote control operation may be impossible if there are any obstacles between the Soundbar and the remote control.
• If the remote control is operated near other products which generate infrared rays, or if other remote control devices using infrared rays are used near the Soundbar, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Replace the Remote Control Battery

• Press and slide the back cover to open the battery compartment of the remote control.
• Insert two AAA size batteries (included). Make sure the ⭕ and ends of the batteries match the and ends indicated in the battery compartment.
• Close the battery compartment cover.

Precautions Concerning Batteries

• Be sure to insert the batteries with correct positive and negative polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.
• Be aware of your fingernails when removing the battery cover and the battery.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.
• Do not use any batteries other than those specified.
• Do not mix new batteries with old ones.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

PLACEMENT AND MOUNTING

Placement

Option A

If your TV is placed on a table, you can place the Soundbar on the table directly in front of the TV stand, centered with the TV screen.

Option B

If your TV is attached to a wall, you can mount the Soundbar on the wall directly below the TV screen.

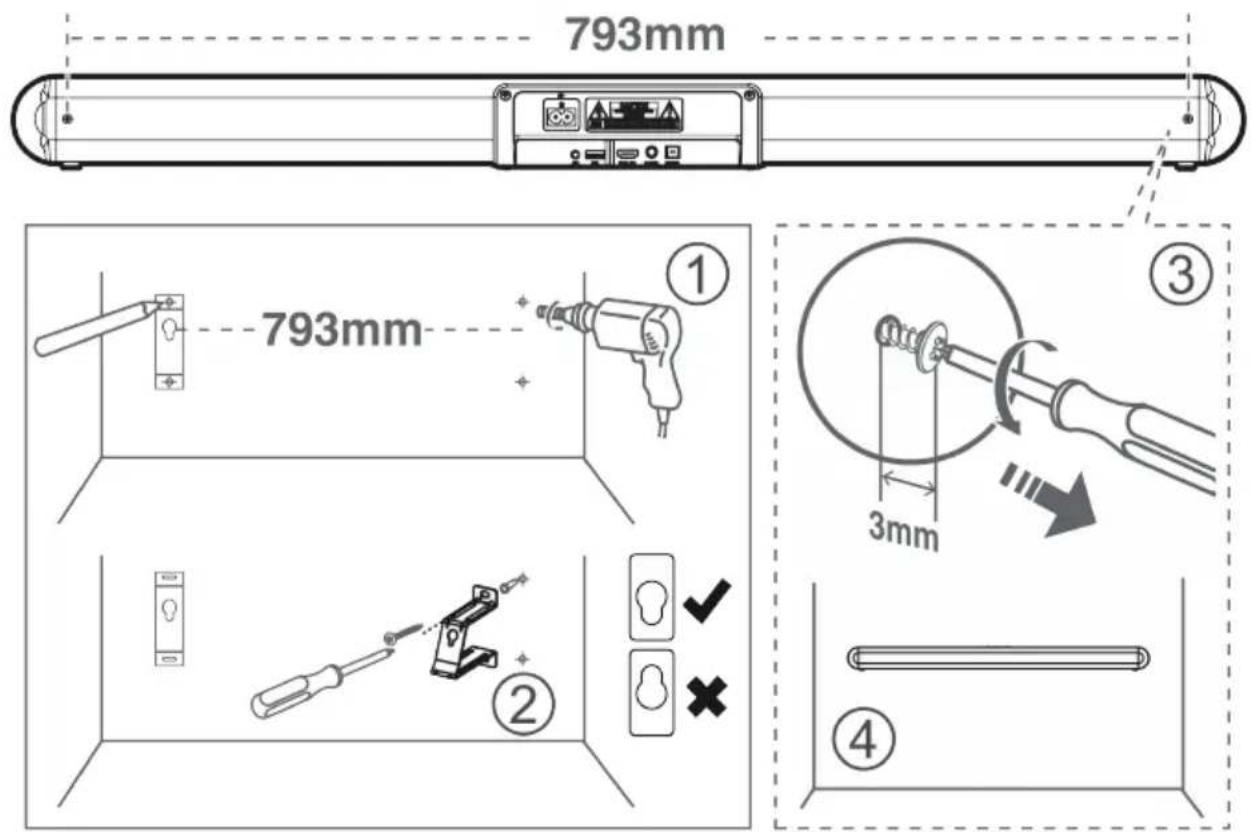

Wall Mounting (if using Option B)

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall brackets.
  • Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud finder to check the wall type before drilling and mounting.

WARNING

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
  • Suggested wall mounting height: ≤ 1,5 meters.

• Drill 4 parallel holes ( 5,5-6 mm each according to wall type) in the wall. The distance between the holes should be 793 mm.

• Firmly fix 1 dowel into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and screwdriver (not included). Make sure that they are securely installed.
• Loosen the screws at the back of the Soundbar. Leave approximately 3 mm between the screw head and the surface of the Soundbar.
• Lift the Soundbar onto the wall mount brackets and slot into place.

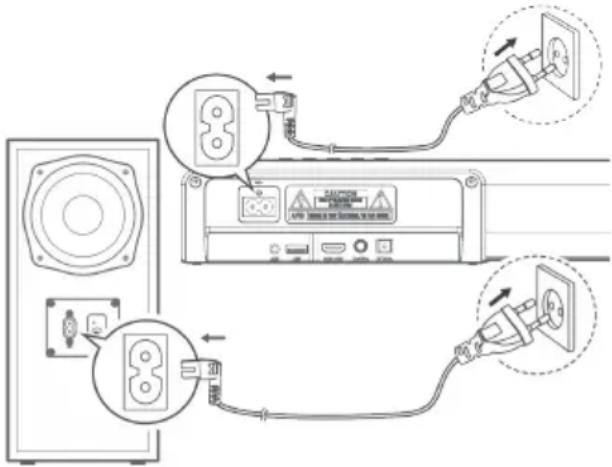

CONNECT POWER

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the Soundbar.

Before connecting the AC power cord, ensure you have completed all other connections.

Soundbar

Connect the mains cable to the AC\~ socket of the Soundbar and then into a mains socket.

Subwoofer

Connect the mains cable to the AC\~ socket of the Subwoofer and then into a mains socket.

Note: If there is no power, ensure the power cord and plug are fully inserted and the power is turned on.

PAIR UP WITH THE SUBWOOFER

Automatic pairing

The subwoofer and soundbar will automatically pair when both units are plugged into the mains sockets and turned on. No cable is needed for connecting the two units.

Determine the status based on the wireless Subwoofer indicator:

• Fast blink > Subwoofer in pairing mode
• Constant on > Connected / Pairing successful
• Slow blink > Connection / Pairing Failed

NOTE: Do not press the PAIR button on the rear of the subwoofer, except for manual pairing. If the automatic pairing fails, pair the subwoofer with the Soundbar manually.

Manual pairing

1. Ensure that all the cables are well connected and the Soundbar is in Standby mode.
2. Press and hold the PAIR button on the rear of the subwoofer for a few seconds. The subwoofer will enter the pairing mode and the Pair Indicator will blink quickly.
3. Press the ⏻ button on the Soundbar or on the remote control to switch the Soundbar on.
4. After the wireless connection succeeded, the Pair Indicator will light up.
5. If the Pair indicator blinks, the wireless connection has failed. Unplug the cable of the subwoofer and then reconnect the main cable after 4 minutes. Repeat step 1 \~ 4.

NOTE:

If the wireless connection fails again, check if there is conflict or strong interference (for example, interference from an electronic device) around your location. Remove these conflicts or strong interferences and repeat the above procedures.

The subwoofer should be within 6 m (19,7 feet) of the soundbar in an open area. If the Soundbar is not connected with the subwoofer and it is in On mode, the POWER Indicator will flash. Follow step 1 \~ 4 above to pair the subwoofer to the Soundbar.

STANDBY/ON

When you first connect the Soundbar to the mains socket, the Soundbar will be in Standby mode.

• Press the ⏻ button on the Soundbar or on the remote control to switch the Soundbar ON.
• Press the button again to switch the Soundbar back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the Soundbar OFF completely.

Automatic Power Off Function

The Soundbar automatically turns to Standby mode after about 15 minutes if the TV or the external unit is disconnected, switched off or the volume is too close to mute.

- To switch the Soundbar off completely, remove the mains plug from the mains socket.

- Please turn the Soundbar off completely to save energy when not in use.

SELECT MODES

Press the ⭕ (SOURCE) button on the Soundbar or the AUX, USB, OPTICAL, COAXIAL, HDMI ARC, ✝ (Bluetooth) buttons on the remote control to select the desired mode.

Green > AUX mode

Green flash > USB mode

Blue > BLUETOOTH mode

White > HDMI ARC mode

Orange > OPTICAL mode

Orange flash > COAXIAL mode

ADJUST THE VOLUME

Press the +/- (VOLUME) buttons on the Soundbar or on the remote control to adjust the volume. If you wish to turn the sound off, press the ⏻MUTE) button on the remote control. Press the ⏻×(MUTE) button again or press the +/- (VOLUME) buttons on the Soundbar or on the remote control to resume normal listening.

Note: While adjusting the volume, the status LED indicator will quickly flash. When the volume has hit maximum/minimum value level, the status LED indicator will slowly flash 3 times.

Press the BASS +/- buttons on the remote control to adjust bass level.

Press the TREBLE +/- buttons on the remote control to adjust treble level.

Note: While adjusting the BASS/TREBLE, the status LED indicator will quickly flash. When the BASS/TREBLE has hit maximum/minimum value level, the status LED indicator will slowly flash 3 times.

Press the MOVIE / MUSIC / NEWS buttons on the remote control to select your desired preset equalizer effects.

RESTORE THE DEFAULT SOUND EFFECT

During playback, press the DEFAULT button on the remote control to restore the default sound effect (BASS > 0; EQ > Movie; TREBLE > 0).

CONNECTIONS

HDMI CONNECTION

ARC (Audio Return Channel)

The ARC (Audio Return Channel) function allows you to send audio from your ARC-compliant TV to your soundbar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOLUME +/- and MUTE) of the soundbar.

Connect the HDMI cable (included) from unit's HDMI ARC socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.

NOTE:

Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On. The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to the owner's manual. ARC only works with devices that are HDMI ARC capable as well as with an HDMI 1.4 cable (and higher).

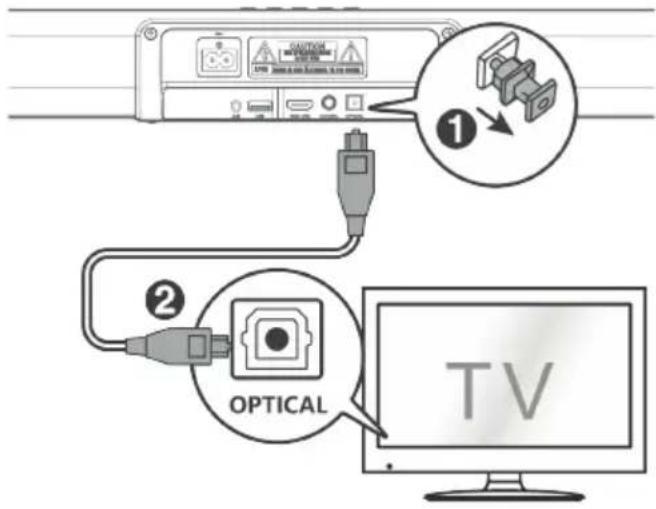

USE THE OPTICAL SOCKET

Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (not included) to the TV's OPTICAL OUT socket and the OPTICAL socket on the Soundbar.

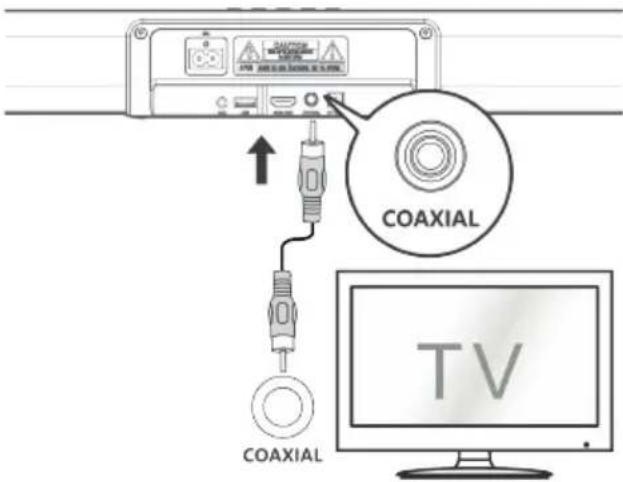

USE THE COAXIAL SOCKET

You also can use the COAXIAL cable (not included) to connect the TV's COAXIAL OUT socket and COAXIAL socket on the Soundbar.

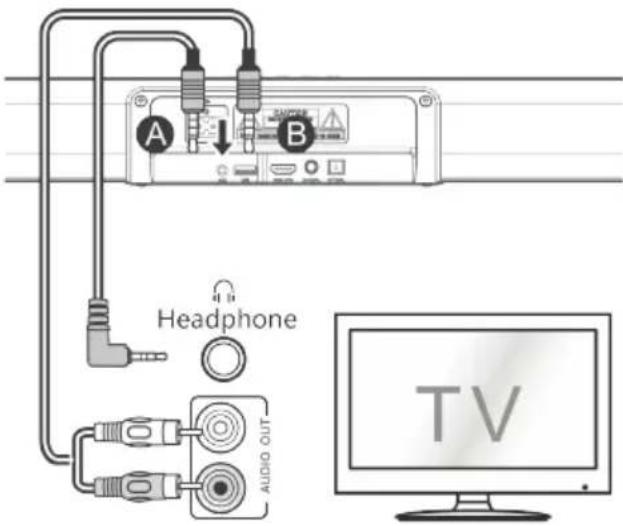

USE THE AUX SOCKET

Use a 3,5mm to 3,5mm audio cable (included) to connect the TV's or external audio device headphone socket to the AUX socket on the Soundbar.

Use a RCA to 3,5mm audio cable (not included) to connect the TV's audio output sockets to the AUX socket on the Soundbar.

1. Ensure that the Soundbar is connected to the TV or audio device.
2. Press the ⭕ (SOURCE) button repeatedly on the Soundbar or press the AUX, OPTICAL, COAXIAL, HDMI ARC buttons on the remote control to select the desired mode.
3. Press the +/- (VOLUME) button to adjust the volume to your desired level.

NOTE:

The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM (Refer to the user manual of the input source device for its audio setting details) with HDMI / OPTICAL / COAXIAL input.

Pairing the Soundbar with a Bluetooth® device to listen to music.

First time pairing

1. Press the ☉ (SOURCE) button repeatedly on the Soundbar or press the button on the remote control to select Bluetooth® mode. The Blue indicator will flash slowly.
2. Activate your Bluetooth ^® device and select the search mode. "TH-E631B" will appear on your Bluetooth ^® device list.
3. Select "TH-E631B" enter "0000" for the password if necessary. The Soundbar will voice "Paired" and the Blue indicator will light up solidly.

Pairing a new device

1. In Bluetooth® mode, press and hold the ▶df button to clear all pairing. The Soundbar will enter pairing mode. The Soundbar will voice "Pairing" Blue indicator will flash rapidly.
2. Follow step 2-3 in "First time pairing" above to pair a new Bluetooth® device.

Listen to Music from Bluetooth® device

If your Bluetooth ^® device supports A2DP, play music via your device.

If your Bluetooth ^® device supports AVRCP, use the supplied remote control to control play.

• To increase/decrease the volume, press +/- (VOLUME) button.
• To pause/resume playback, press ▶ button.
• To skip to a track, press ◀◀ button.

To disconnect the Bluetooth® function, you can:

• Switch to another source on the Soundbar;
• Disable the function from your Bluetooth® device.

NOTE:

The operational range between the Soundbar and the device is approximately 8 metres. Before connecting a Bluetooth® device to the Soundbar, ensure you know the device's capabilities.

Compatibility with all Bluetooth ^® devices is not guaranteed.

Any obstacle between the device and the Soundbar can reduce operational range.

Keep this player away from other electronic devices that may cause interference.

The player will also be disconnected when your device is moved beyond the operational range.

USB OPERATION

By connecting a USB mass storage device (e.g. USB flash drive) to this unit, you can enjoy the device's stored music through the Soundbar.

1. Press the ☑ (SOURCE) button on the Soundbar or press the USB button on the remote control to select USB mode.
2. Press button ▶to pause/resume playback.
3. To skip to a track, press ◀◀ / ▶button.

NOTE:

The player supports the USB music file format of MP3 only.

The Soundbar can support USB devices with up to 32 GB of memory.

The Soundbar may not be compatible with all USB devices, this is not an indication of a problem with the unit.

LICENCE NOTIFICATION

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zhong Shan City Richsound Electronic Industrial Ltd. is under license. Other trademarks and trade names are those of their respective owners.

HDMI®

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

TROUBLESHOOTING

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service.

Problem Solution

No power	·Ensure that the AC cord of the apparatus is properly connected.·Ensure that there is power at the AC outlet.·Press ⏻ (standby) button to turn the Soundbar on.
Remote control does not work	·Before you press any playback control button, first select the correct source.·Reduce the distance between the remote control and the Soundbar.·Insert the battery with its polarities ⊕ / ∅igned as indicated.·Replace the battery.·Aim the remote control directly at the sensor on the front of the Soundbar.
No sound	·Make sure that the Soundbar is not muted. Press MUTE or +/- (VOLUME) button to resume normal listening.·Press ⏻ button on the Soundbar or on the remote control to switch the soundbar to standby mode. Then press the button again to switch the soundbar on.·Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM mode while using digital (e.g. HDMI, OPTICAL, COAXIAL) connection.·The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect.·If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing	·Ensure the Bluetooth function is activated on your Bluetooth® device.·Re-pair the Soundbar with your Bluetooth® device.·The Soundbar has a Bluetooth® function that can receive a signal within 8 metres. Keep a distance within 8 metres between the Soundbar and your Bluetooth® device.
The Soundbar turns off	·When the Soundbar's external input signal level is too low, the Soundbar will be automatically turn off after 15 minutes. Please increase the volume level of your external device.

SPECIFICATIONS

Soundbar

Power Supply 100-240 V~ 50/60 Hz
Power Consumption	20 W< 0,5 W (StandBy)
USB	5 V / 500 mAHi-Speed USB (2.0) / FAT32 / FAT1632G (max)Supported files MP3
Dimension (WxHxD) 872 x 66 x 92 mm
Net weight 1,6 kg
Audio input sensitivity 700 mV
Frequency Response 120 Hz - 20 KHz

Wireless Specification

Bluetooth version / profiles	V 5.1 (A2DP, AVRCP)
Bluetooth frequency range	2402 MHz ~ 2480 MHz
Bluetooth Max. transmitting power	≤ 10 dBm
2,4G Wireless frequency range	2406 MHz ~ 2474 MHz
2,4G Max. transmitting power	≤ 10 dBm
Modulation Type GFSK, π/4 DQPSK

Subwoofer

Power Supply 100-240 V~ 50/60 Hz
Power Consumption	20 W< 0,5 W (StandBy)
Dimension (WxHxD) 150 x 322 x 220 mm
Net weight 3 kg
Frequency Response 40 Hz - 120 Hz

Amplifier (RMS Output power)

L/R Speaker 2 x 60 W

Subwoofer 100 W

Remote Control

Distance/Angle 6 m (19,7 feet) / 30°

Battery type AAA (2 x 1,5 V)

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment

(Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type TH-E631B is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.JVCAUDIO.cz/doc

ÚVOD

Coiled black cable with two connectors, no text or symbols visible

Two types of electrical plugs tied with coiled wires, no text or symbols visible

Technical illustration of two mechanical components with bolts and screws, no text or symbols present

Soundbar

ARC (Audio Return Channel)

Coiled cable with two connectors, no text or symbols visible

Kabel audio 3,5 mm do 3,5 mm

Two types of electrical plugs tied with coiled wires, no text or symbols visible

Technical illustration of two mechanical components with spring-loaded fasteners (no text or symbols)

Instrukcja obsługi

Soundbar

ARC (Audio Return Channel)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

POZOR

NEBEZPEČIE ÚRAZU ELEKTRICKÝM PRŮDOM. NEOTVÁRAJTE.

POZOR: Z DÓVODU ZNÍŽENIA RIZIKA ÚRAZU ELEKTRICKÝM

PRÚDOM, NEODSTRAŇUJTE KRYT (ANI ZADNÝ KRYT).

VO VNÚTRI NIE SÚ ŽIADNE SÚČASTI URČENÉ K SERVISU UŽÍVATELOM.

PRENECHEJTE SERVIS KVALIFIKOVANÝM SERVISNÝM TECHNIKOM.

Coiled black cable with two connectors, no text or symbols visible

Two types of electrical plugs tied with coiled wires, no text or symbols visible

Technical illustration of two mechanical components with bolts and screws (no text or symbols)

Soundbar

Pripojte siet'ový kábel do konektora pre elektrické napájanie na soundbare a potom do siet'ovej zásuvky.

Subwoofer

ARC (Audio Return Channel)

Coiled cable with two connectors, no text or symbols visible

Two types of electrical plugs tied together, no text or symbols visible

2 x AC Töltőkábel

Technical illustration of two mechanical components with bolts and screws, no text or symbols present

Soundbar

Coiled black cable with two connectors, no text or symbols visible

Cablu audio 3,5 mm la 3,5 mm

Two types of electrical plugs tied with coiled wires, no text or symbols visible

Illustration of two metal bracket components with screws and bolts, no text or symbols present

Bară de sunet

ARC (Audio Return Channel)

Coiled cable with two connectors, no text or symbols visible

Two types of electrical plugs tied with coiled wires, no text or symbols visible

Technical illustration of two mechanical components with screws and bolts, no text or symbols present

Саундбар

This product is manufactured and distributed exclusively by ETA a.s., serviced and warranted by its designated partner.

“JVC” is the trademark of JVCKENWOOD Corporation, used by such company under license.
