Even PG10N - Cooker Eldom - Free user manual and instructions

Product Type	Electric Cooker
Brand	Eldom
Model	Even PG10N
Width	60 cm
Depth	60 cm
Height	85 cm
Weight	Approx. 45 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	Max 9.5 kW
Number of Cooking Zones	4 (2 radiant, 2 halogen)
Oven Type	Electric, conventional + grill
Oven Capacity	65 L
Control Type	Knobs
Cleaning	Enamel interior, easy-clean hob
Safety Features	Child lock, automatic shut-off, overheating protection
Spare Parts Availability	Knobs, heating elements, oven door seal, thermostat
Reparability Index	8.5/10 (based on user rating)
Energy Class	A (estimated)
Warranty	2 years

Frequently Asked Questions - Even PG10N Eldom

How do I install the Eldom Even PG10N cooker?

Ensure the cooker is placed on a stable, level surface with adequate ventilation. Connect to a 220-240 V power supply via a dedicated circuit. Refer to the installation diagram in the manual for electrical connections. It is recommended to hire a qualified electrician.

What should I do if the hob does not heat up?

Check if the cooker is properly plugged in and the circuit breaker has not tripped. Ensure the correct cooking zone is selected and the knob is turned to a high setting. If still not heating, the heating element may be faulty and needs replacement.

How do I clean the oven?

Use a mild detergent and a soft cloth or sponge. Remove racks and wash separately. Avoid abrasive cleaners. For stubborn stains, use a baking soda paste. The enamel interior can be cleaned after the oven has cooled down.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven floor as it can affect heat circulation. Do not let foil touch heating elements. Place foil only on racks for catching drips.

What is the maximum temperature of the oven?

The maximum temperature is 250°C (482°F) for conventional cooking and 275°C (527°F) for grill mode.

How do I replace a knob?

Pull the old knob straight off. Align the new knob with the shaft and push firmly until it clicks into place. Ensure it is properly seated before use.

Why is there a burning smell when I first use the cooker?

This is normal during the first few uses as manufacturing residues burn off. Ensure the kitchen is well ventilated. Run the oven empty at 200°C for 30 minutes to expedite the process.

How do I set the timer?

Turn the timer knob clockwise to the desired time (up to 120 minutes). The oven will automatically shut off when the time elapses. A bell will ring.

Can I use glass cookware on the hob?

Yes, but only if it is marked as suitable for ceramic or halogen hobs. Avoid dragging glass cookware across the surface to prevent scratches.

What spare parts are available for this model?

Common spare parts include knobs, heating elements (hob and oven), oven door seal, thermostat, and glass cover. Contact Eldom customer service or authorized dealers.

USER MANUAL Even PG10N Eldom

Black electronic device with a circular top and rotary knob, no visible text or symbols on the device itself.

WSKAZÓWKI BEZPIECZEŃSTWA

Black digital camera with labeled parts (1, 2, 3, 4) showing front, top, and side views (no text or symbols on body)

OBSŁUGA

Please acquaint precisely with whole of this instruction before the blender for the first time.

1. Before operating the appliance, read the user manual thoroughly.
2. Plug in the connecting cable to a grounded electrical outlet.
3. Ensure that a limited number of receivers are connected to one current circuit.
4. If an extension cord is used, it should be grounded and placed in a safe manner.
5. The appliance is intended for household use only
6. Use only in rooms with good ventilation.
7. Keep an eye on the operating appliance, especially when there are children nearby. Before leaving - the room with the appliance, switch it off.
8. If the appliance is not working, unplug it.
9. Before unplugging, set the thermostat (1) in the position „MIN“.
10. Do not use in open air. The cooker can be used under the roof where it is protected against rain and wind.
11. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
12. Make sure that children do not play with the equipment.
13. Never place products directly on the heating plate (2). It poses the risk of serious burning and damage of the appliance.
14. Do not use the appliance near curtains, blinds or other inflammable material.

15. Do not place the appliance in a corner of a room or directly next to the wall. The space of at least 5 cm from the sides of the appliance should be provided.

16. To ensure free and safe access to the appliance, place it at a proper height.

17. The cooker can be only positioned on a level, stable and high-temperature resistant surface. No items of inflammable material can be placed above the appliance.
18. Do not touch the housing and the heating plate of the operating appliance (risk of serious burning), and when the appliance is no longer used, wait until it cools down completely.
19. Do not move the appliance during its operation, do not place the power supply cable over the cooker, do not use for heating rooms, do not use the cooker without dishes with products.
20. Place dishes with products on the heating plate in acentral position.
21. Use only metal and ovenproof dishes with flat and stable bottoms.
22. If the power cable is damaged, it must be replaced in the Manufacturer's Service in order to avoid hazard.
23. Repairs of the equipment can only be performed by an authorized servicing point. Any modernizations or the use of non-original spare parts or elements of the appliance is prohibited and may cause a serious hazard to the user.
24. The company Eldom Sp. z o. o. shall bear no responsibility for any possible damages resulting from the improper usage of the appliance.

ENVIRONMENT PROTECTION

- the device is made of materials that can be reused or recycled

- it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices

WARRANTY

• only intended for household use

- it cannot be used for commercial purposes

- the warranty loses validity in case of inappropriate use

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait until it cools down completely

• Do not immerse the appliance in water or wash it in a dish-washer machine
• All surfaces can be cleaned only by wiping them with a soft, damp cloth with the addition of gentle cleaning agents
• Do not use abrasive agents

This symbol warns against the high temperature of the surface of the appliance.

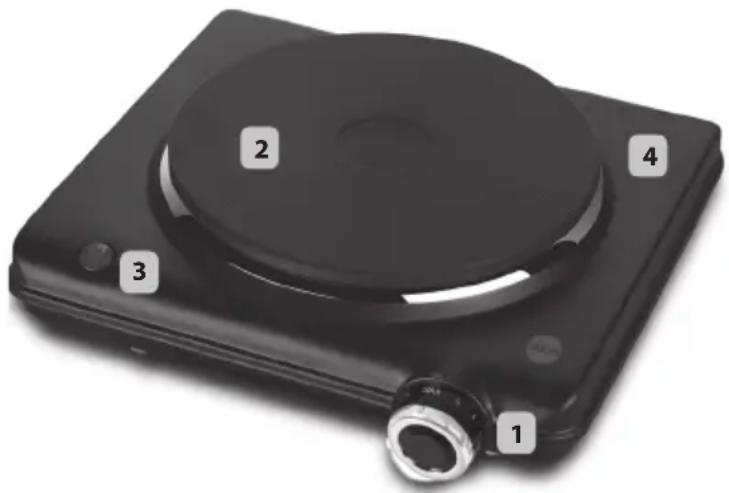

GENERAL DESCRIPTION

1. Thermostat
2. Heating plate
3. Control light
4. Housing

TECHNICAL DATA

• power: 1500W
• supply voltage: 230V \~ 50Hz

Black digital camera with labeled parts (1, 2, 3, 4) and a small lens on the right side (no text or symbols beyond labels)

USING THE APPLIANCE

Before operating and plugging in the appliance, set the thermostat (1) in the position "MIN" (the appliance switched off).

Position the appliance on a level, dry, stable and high-temperature resistant surface. The housing (4) heats up considerably when operated. Thus, the space of at least 5 cm from the sides of the device should be provided.

To ensure free and safe access to the appliance, place it at a proper height.

• plug in the appliance
• place a dish with products on the heating plate (2)
• switch on the appliance selecting the working temperature of the thermostat (1) Thermostat enables smooth adjustment of the temperature.

Settings 1-3 correspond to the lower temperature proper for heating meals.

Settings 4 - MAX - high temperature intended for cooking. Operation of the appliance is signalled by the control light (3).

When the appliance is no longer used, set the thermostat (1) in the position "MIN" and unplug the appliance.

During the first activation of the appliance, a specific smell can be emitted from the heating elements and the insulation. It is a normal occurrence.

In order to ensure safety and high efficiency of the operation, use only dishes with flat bottoms and of a proper diameter which guarantee stability and good contact of the dish with the heating plate.
