Product Type	Electric Kettle
Brand	Zelmer
Model	17Z014
Capacity	1.7 L
Power Supply	220–240 V ~ 50/60 Hz
Power Consumption	2200 W (max)
Dimensions (approx.)	25 cm (H) x 22 cm (W) x 18 cm (D)
Weight (approx.)	1.0 kg
Material	Plastic body with blue interior
Heating Element	Concealed, rapid boil
Safety Features	Auto shut-off, boil-dry protection, thermal cut-out, cool-touch handle
Filter	Removable anti-deposit filter
Controls	On/Off switch with indicator light
Base	360° swivel power base with cord storage
Insulation Class	I (grounded)
Cleaning	Descaling with vinegar; wash with mild detergent
Spare Parts	Filter (11) available; contact service center
Certifications	CE, LVD 2006/95/EC, EMC 2004/108/EC
Intended Use	Domestic use only; for boiling water
Warranty	Standard manufacturer warranty (conditions apply)

Frequently Asked Questions - 17Z014 Zelmer

What is the capacity of the Zelmer 17Z014 kettle?

The kettle has a capacity of 1.7 liters, indicated by the water level indicator on the side.

Can I use the kettle without the filter?

No, the manual states do not use the kettle without a filter. The anti-deposit filter prevents scale particles from entering your drink.

How do I descale the kettle?

Use 6% or 10% vinegar: fill with 0.5 L of vinegar, boil, let sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

What safety features does this kettle have?

It includes auto shut-off when water boils, boil-dry protection (thermal cut-out), and a cool-touch handle for safe handling.

Can I open the lid immediately after boiling?

It is advised not to open the lid immediately after water boils, as steam may condense and appear on the exterior. Wait a moment.

What type of power supply does the kettle need?

It requires a 220–240 V AC outlet with an earth pin. The kettle draws up to 10 A, so ensure your circuit can handle it.

How do I clean the exterior of the kettle?

Unplug and let cool. Wipe the outside with a soft cloth moistened with washing-up liquid. For hard water films, use a cloth with vinegar.

Is the kettle suitable for commercial use?

No, it is intended for domestic use only. Commercial use may affect warranty conditions.

What should I do if the kettle doesn't turn on?

Check the power connection and ensure the switch is in position I. If it still doesn't work, the thermal cut-out may have activated; let it cool for 15 minutes and try again.

Can I immerse the kettle or base in water?

No, do not immerse the kettle or power base in water. If water gets inside, dry carefully before use.

USER MANUAL 17Z014 Zelmer

White water heater with blue interior, accompanied by a white cup of tea and bread slices (no visible text or symbols)

PL	NISTROKIA JPYTRATANA CZAJNIK ELEKTRYCZNY Typ 172314	4-5
CZ	MÁVOD K PUDJI ELEKTRICKÁ KONVICE Typ 172314	7-9
EA	MÁVOD NA OBSOLU ELEKTRICKÁ KANICA Typ 172314	10-12
FA	HASZVALATIUS TÁS ELEKTROMOS VÍZFORRALÓ 172014 Typus	12-10

m = 311

2.3

单位：元

(1)

2、工作负责人

[Unreadable]

请确认。

[Unreadable]

m = 311

2014年

2016

(1)

zelmer

www.cfmet.pl

www.zelmer.com

A

B

C

PL

Szanowni Kliend!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Safety precautions and instructions on the proper use of the electric kettle

Always abide by the following basic safety measures during the operation of the electric appliance:

Danger! / Warning! Health hazard

Special attention is necessary when the kettle is used in the presence of children.

Do not operate the appliance if the power cord is damaged or the kettle body is visibly damaged.

the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

Only qualified staff may make repairs of the appliance. A wrongly done repair my cause a serious threat to the user. It may also result in a cancellation of the warranty. In case any defects occur, we recommend that you take the appliance to a specialist service point.

Do not touch the main body of the kettle when water is boiling – use only the handle to move it.

Do not fill the kettle beyond the maximum fill indicator „max“ – water might spatter out of the kettle.

Be careful not to wet the plug of the connecting cord.

Mind the steam coming out of the kettle while water is boiling.

Allow the kettle to cool completely before cleaning it.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Caution! Not observance can result in damage to possessions

Plug the kettle into a 220÷240 V alternating current socket equipped with an earth pin only.

Place the kettle on a stable, even and flat surface; the

connecting cord may not hang over the edge of the surface on which the kettle is placed.

Do not remove the plug from the outlet by pulling by the cord.

The kettle can only be operated with the original power base, each base is type-specific.

Use the kettle for boiling water only.

- Do not open the lid immediately after water has boiled – steam might condense and appear on the exterior of the kettle.

Do not place the kettle on or near hot objects.

Do not immerse the kettle or the power base in water when filling or washing the electric kettle.

the event that water gets into the inside electric elements of the kettle, or onto the power base, carefully dry these elements before plugging the kettle into the mains.

Do not operate the kettle when empty.

Do not use the kettle with the lid open – the automatic shut off will not work then.

Do not use any abrasive cleaning agents such as emulsions, creams, pastes, etc for cleaning the kettle body. They might remove graphic information symbols such as: scales, marks, warning signs, etc.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

stion Information on the product and suggestions for its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

Do not use the kettle without a filter.

The kettle type covered by this user's manual brings water to boil very quickly and draws up to 10 A of current from the mains.

Check that the mains fuses used can cope with this level of power consumption. While boiling water, unplug all other appliances from this circuit.

Technical data

The technical parameters are given on the data plate of the product.

1.7 liter capacity.

Zelmer electric kettles are built in I class insulation and they are equipped with supplying cord with grounding wire and grounding plug.

The ZELMER kettle meets the requirements of the standards in force.

The appliance is compliant with the requirements of the following directives:

The Low Voltage Directive (LVD) - 2006/95/EC. -

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with a CE Mark on the data plate.

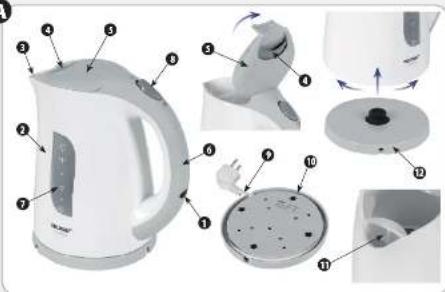

Structure of the kettle (Fig. A)

1 Control light
2 Kettle body
3 Spout
4 Lid release button
5 Lid
6 Handle
7 Water level indicator
8 On/Off (I-0) switch
9 Supplying cord
11 Anti-deposit filter
12 Base

10 Storage space for the connecting cord

Preparation of the electric kettle for operation

before the first use, wash the kettle (for washing instructions see “Cleaning maintenance”), fill it with water up to the “max” level, and let it boil four times (use fresh water each time) and wash again.

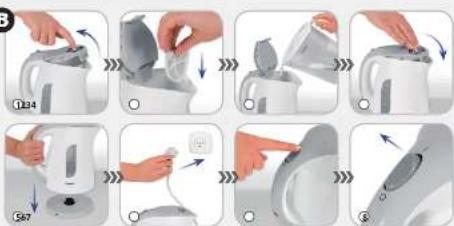

Operating instructions of the electric kettle (Fig. B)

① Press the lid button (4) – the kettle lid will open.
② Place the filter (11) in the kettle – if it was taken out before.
③ Fill the kettle up with the desired amount of water (the level is visible on the indicator (7)).

not boil the water if it is below the minimum level or beyond the maximum level indicator (7).

④ Close the lid.
⑤ Place the kettle on the power base (12).
⑥ Put the plug of the connecting cord into a mains socket with an earth pin – the upper part of the kettle body will light up.
⑦ Turn on the kettle by pressing the switch button into position I – the indicator light will come on.
⑧ The kettle switches off automatically when the water has reached the boiling point, the lever switch returns to its starting position – the light comes off.

If further use of the kettle is anticipated, it is not necessary to remove the plug of the connecting cord from the power socket.

careful not to fill up with water beyond the nominal capacity when pouring water into the kettle.

The rising of the water level in the kettle is delayed in relation to the speed of pouring the water. It is caused by the filter slowing down the speed of the flow. This can be prevented by pouring the last portions of water extremely carefully before the water reaches the maximum level on the indicator.

In the event that an empty kettle is switched on, it will be switched off by a thermal device automatically.

In order to switch the kettle on again after it has cooled down (approx. 15 minutes), take it off the base, replace it and switch the kettle on by pressing the lever (8). The cooling down of the kettle can be accelerated by puring cold water into the kettle.

Cleaning and maintenance (Fig. C)

ways clean a cold kettle!

① Remove the plug of the connecting cord from the power socket.
inside Take out the filter (11).
③and clean the outside surfaces with a soft cloth moistened with washing-up liquid.

In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a cloth moistened with vinegar.

④ Rinse the kettle with fresh water.

Filter replacement – descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. 6% or 10% vinegar is used for this purpose.

• Open the lid (4).
  Take out the filter (12).
• Wash the filter under running water.
  on the in 0.5 l of vinegar and switch on the kettle (8).
• Boil the vinegar and leave in the kettle for about 30 minutes.
• Pour the vinegar out and rinse the kettle with fresh water.
• Fill the kettle up with fresh water, boil the water and pour it out after is has boiled.
• Repeat the above procedure if there still is scale on the bottom.
• When the procedure is finished, replace the filter (11) in the kettle, following the procedure of taking the filter out in reverse order.

gligence in descaling the kettle may results in its damage.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives or due to construction, trade, aesthetic or other reasons, without notifying in advance.
