Product Type	Microwave Oven
Brand	Teka
Model	MWL 20 BIT
Capacity	20 liters
Microwave Power	800 W
Power Consumption	1300 W
Voltage / Frequency	230 V / 50 Hz
Dimensions (W x H x D)	452 x 262 x 350 mm
Weight	11.5 kg
Control Type	Mechanical (rotary knobs)
Number of Power Levels	5
Defrost Function	Yes, by weight or time
Turntable Diameter	245 mm
Interior Light	Yes
Safety Child Lock	Yes
Door Opening	Push-button
Interior Coating	Easy-clean enamel
Spare Parts Available	Turntable, waveguide cover, lamp
Repairability Index	6.5 / 10 (estimated)
Accessories Included	User manual, recipe book

Frequently Asked Questions - MWL 20 BIT TEKA

How do I set the cooking time on the MWL 20 BIT?

Turn the timer knob clockwise to the desired time. The microwave will start automatically. Ensure the door is closed.

Can I use metal containers in this microwave?

No, do not use metal containers or aluminum foil as they can cause sparks and damage the appliance. Use microwave-safe glass or plastic.

How do I clean the interior of the microwave?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. For stubborn stains, heat a cup of water with lemon juice for a few minutes.

What is the maximum weight for defrosting?

Defrosting by weight can handle up to 2 kg. For larger items, use the defrost by time function.

Why does my microwave turn off during cooking?

The safety interlock may be triggered if the door is not properly closed. Check for obstructions and ensure the door latches correctly.

Can I use the microwave without the turntable?

No, the turntable is essential for even heating. If it is broken, replace it before using.

How do I activate the child lock?

Press and hold the 'Stop' button for 3 seconds until a beep sounds. The control panel will be locked. Repeat to unlock.

What does the 'MWL 20 BIT' model name mean?

MWL stands for Microwave, 20 indicates 20 liters capacity, and BIT likely refers to the design series or features.

Is the microwave suitable for installation above a built-in oven?

This model is designed for countertop use only. Do not install it in a built-in configuration unless specified in the manual.

Where can I find the user manual?

The user manual is available as a free download on the manufacturer's website or through the notice-facile.com platform for this model.

USER MANUAL MWL 20 BIT TEKA

Front view of a black kitchen microwave oven with digital display and control panel (no visible text or symbols)

Verehrter Kunde,

Simple line drawing of a container with handles and arrows indicating flow or movement (no text or symbols)

Simple line drawing of a circular container with internal lines and arrows indicating flow or movement (no text or symbols)

Illustration of a mouse inside a container with directional arrows indicating flow or movement (no text or symbols)

Bedienungsanleitung

First of all, we would like to thank you for preferring our product. We are sure that this modern, functional and practical microwave oven, manufactured with the highest quality materials, will live up to your expectations.

Please read the instructions in this book carefully, as they will help you to get better results in using your microwave oven.

PLEASE KEEP THE DOCUMENTATION ON THIS PRODUCT FOR FUTURE REFERENCE.

In order to avail of our guarantee, you must return the “Guarantee Certificate” and when requesting Technical Support, provide the invoice of when you purchased the microwave oven, with the date and the shop stamp.

The guarantee will not be valid unless this requirement is met.

Keep your instructions manual close at hand. If you give the appliance to another person, remember to give them the corresponding manual as well!

Tips on environmental protection

Eliminating the packaging

The packaging carries the Green Dot. Use the right bins when discarding all of the packaging materials, such as the cardboard, styrene and plastic films. This will ensure that the packaging materials are recycled.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Before you dispose of your appliance, remove the power cable, cut it and dispose of it.

Table of contents

Safety tips....27

Installation instructions ....29

Description of the appliance....30

Setting the clock....30

Advantages of the microwave oven....31

Microwave oven operating mode....31

Why the food is heated....31

Instructions for use ....32

Function: Microwave 32

Function: Grill 32

Function: Microwave + Grill....33

Function: Defrosting by weight (automatic)....33

Function: Defrosting by time (manual) 33

Special functions....34

Special function: LIQUIDS/POTATOES 34

Special function: AU GRATIN....34

Special function: DEFROST & HEAT 34

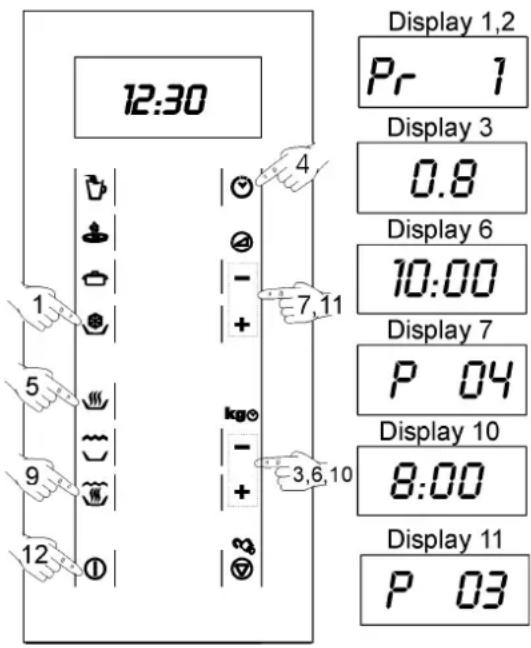

Programming the microwave....35

During operation....36

Function interruption....36

End of programme 36

Energy Saving 36

Defrosting....37

General tips for defrosting 38

Cooking with microwaves....39

Important tips!......40

Tables and suggestions – Cooking vegetables 41

Tables and suggestions – Cooking fish 41

Cooking with Grill 42

Tables and suggestions – Grill without microwave 42

Tables and tips – Microwave and grill....43

What type of containers may be used? 44

Microwave function....44

Test the dishes 44

Grill function....44

Combined function....44

Aluminium containers and foils 44

Lids 44

Table – dishware 45

Cleaning and care....46

Troubleshooting 47

Technical Features ....48

Description of functions of buttons....48

Specifications 48

• Warning! In order to avoid any type of flame, only use the microwave when you are there to supervise. Very high power levels or very long cooking times may heat the food to excess and cause fires.
• If you see smoke or fire, keep the door closed, to put out the flames. Switch off the appliance and remove the plug from the socket.
• Warning! Children may only use the appliance under supervision, or if they have been given instructions, so that they may use the appliance safely and identify the dangers in case of incorrect use.
• Warning! Considerable care is required when the grill is functioning. Keep children away from the appliance!
• Our appliances meet the necessary regulations and rules for technical equipment. However, these do not cover all the possible accident risks.
• When using inflammable materials, such as plastics or paper containers, to heat or cook foods, the cooking process must be monitored on a continuous basis, because of the risk of fire.
• Before using dishes or containers in the microwave, check if they are microwave-save- Only use microwave-safe dishes.

• The power cable should not touch damp, sharp-edged objects or the appliance when it is hot.

• When connecting electrical appliances in the vicinity of the microwave, ensure that the power cables do not touch the microwave when it is hot and that they do not get caught in the oven door, in order to avoid damage and danger.

• Pay attention to operating faults. The appliance may not be used in the following cases:
• If the door does not close properly;
• If the door-hinges are damaged;
• If the contact surfaces between the door and the front are damaged;
• If the glass in the window is damaged;
• If there is often an electrical arch inside the oven, without the presence of any metallic object.
• The ventilation holes may not be covered.

Cleaning / maintenance:

• Before carrying out any maintenance or cleaning, remove the plug from the socket.
• Please remember the cleaning tips contained in the section "Cleaning and care".
• The contact surfaces (the front of the cavity and the inside of the door) must be kept quite clean in order to guarantee correct functioning. Clean the contact surfaces with a neutral detergent and a cloth that does not scratch or cause any type of friction.
• Warning: Never use the appliance if the contact surfaces are damaged. Only use the appliance again if it has been repaired by a technician from the Technical Support Service.

Safety tips

The following tips avoid damage to the appliance:

• Do not switch on the appliance without the rotating base and respective plate.
• Do not switch on the appliance when it is empty. This may result in overload, if there is no food inside.
• Only use microwave-safe dishes.
• Do not keep any inflammable object inside the oven, because it may go on fire when the oven is switched on.
• Eggs with shells and whole boiled eggs should not be heated in microwave ovens because they may explode.
• Do not heat pure alcohol or alcoholic drinks in the microwave.

THIS IS A FIRE HAZARD.

- Warning: do not heat liquids or other foods in closed containers, because they could easily explode.

Two glass bowls: one with a spoon inside, the other with a black X symbol (no text or symbols present)

Be careful when heating liquids!

• When heating liquids (water, coffee, tea, milk, etc.), they may almost reach boiling point inside the appliance and if they are removed suddenly, may fly out of the container. This may cause injuries and burns!
• In order to avoid this type of situations, put a plastic spoon or glass rod in the container when heating liquids.

Be careful!

• When heating small amounts of food, it is very important not to select long periods of time or very high power levels, because the food may overheat or burn. For example, bread may burn after 3 minutes if a very high power level is selected.
• To toast, only use the grill function and supervise the oven at all times. If you are using the combined function (microwave and grill) to toast, the bread will go on fire in a very short period of time.
• Always heat baby food in jars or bottles without lids or teats. After heating the food, shake or stir it well to ensure that the heat is uniformly distributed. Check the temperature of the food before giving it to the child, Burning hazard!

In case of repair:

• Warning – Microwaves! The outer protection should not be removed. Any repair or maintenance carried out by persons that have not been authorised by the manufacturer is dangerous.
• Warning: The light bulb may only be replaced by the Technical Support Service.
• If the power cable is damaged, only the Technical Support Service may replace it with one of the same characteristics, in order to avoid damage.
• Repairs and maintenance, especially of charged parts, may only be carried out by technicians that have been authorised by the manufacturer.

EN

Installation instructions

Use the “open” button to open the door and remove all packaging materials. Then clean the inside and the accessories with a damp cloth and dry them. Do not use abrasive or strong-smelling products.

Ensure that the following parts are in good condition:

• Door and hinges
• Front of the microwave
  • Inner and outer surfaces of the appliance

DO NOT USE THE APPLIANCE if you notice any kind of defect in the aforementioned parts. If this occurs, contact the Technical Support Service.

Place the appliance on a stable, flat surface.

Fit the rotating base in the centre of the microwave cavity and place the rotating plate on top until it clicks into position. Whenever the microwave is used, both the rotating plate and the respective base must be inside the oven and correctly positioned. The rotating plate turns clockwise and anti-clockwise.

Warning! The microwave oven may be wrapped in a protective film. Before switching it on for the first time, carefully remove this film, starting at the underside.

In order to ensure proper ventilation for the appliance, install the microwave in a kitchen unit with an opening on the top (see attached sheets).

Warning: after installing the microwave, it is necessary to guarantee access to the electrical socket.

During installation, ensure that the power cable does not come into contact with the back of the appliance, because the high temperatures may damage the cable.

If you are installing a microwave and a conventional oven in the same column, the microwave must not be placed under the oven, because of the formation of condensation.

The appliance must not be placed in the vicinity of heating elements, radios or television sets.

The appliance is equipped with a power cable and a plug for single phase current.

WARNING: The microwave MUST ONLY BE CONNECTED TO GROUNDED ELECTRICAL SOCKETS.

In case of fault, the manufacturer and the seller will not accept any responsibility if the installation instructions have not been properly followed.

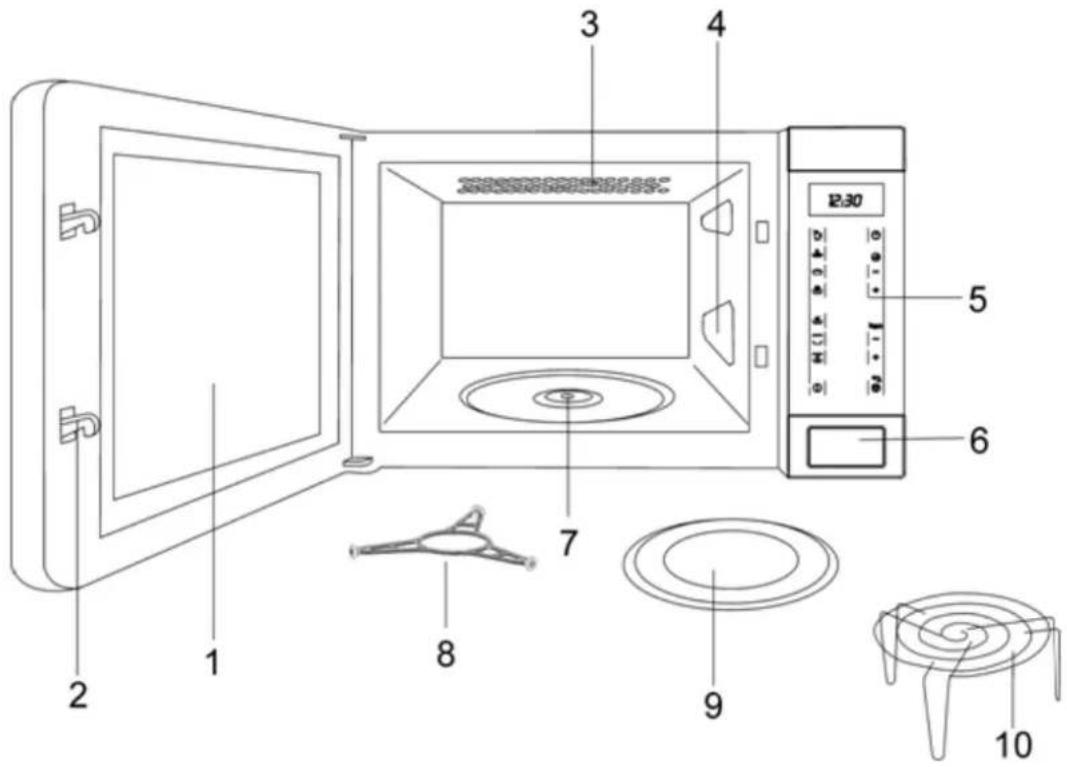

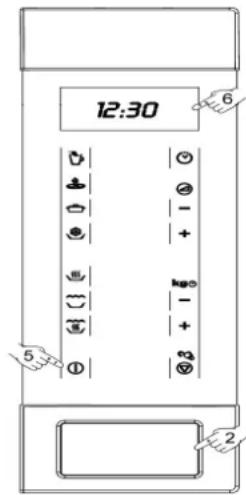

Description of the appliance

1. Glass window on the door 6. Open button
2. Catch 7. Slot for rotating base
3. Quartz grill 8. Rotating base
4. Mica covers 9. Rotating plate
5. Control panel 10. Grille

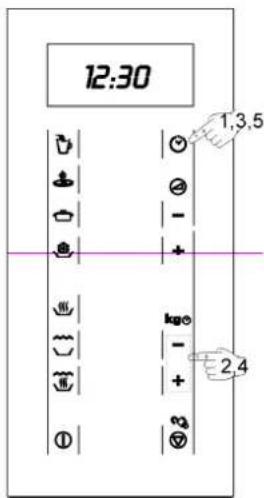

Setting the clock

1. Press the CLOCK button until the numbers start to flash.
2. Use the “−” and “+” buttons to set the hour.
3. Press the CLOCK button again to set the minutes.
4. Use the “−” and “+” buttons to adjust the minutes.
5. To finish, press the CLOCK button again.

IMPORTANT NOTE: To hide the clock, briefly press the CLOCK button. To show the clock again, repeat this procedure.

EN

Advantages of the microwave oven

In a conventional cooker, the heat that is radiated through the resistances or gas burners slowly penetrates the foods from the outside in. Therefore, there is a great loss of energy in heating the air, the oven components and the containers holding the food.

In the microwave, the heat is generated by the foods themselves, i.e. the heat goes from the inside out. There is no loss of heat to the air, the walls of the cavity or the containers (as long as they are microwave-safe containers). This means that only the food is heated.

To sum up, microwave ovens have the following advantages:

1. Savings in cooking time; in general, there is a 34 reduction in time compared to conventional cooking.
2. Ultra fast defrosting of foods, thus reducing the danger of bacteria developing.
3. Energy-saving.
4. Conservation of the nutritional value of foods due to the reduction in cooking time.
5. Easy cleaning.

Microwave oven operating mode

The microwave oven contains a high voltage valve called a Magnetron, which converts the electrical energy into microwave energy. These electromagnetic waves are channelled towards the inside of the oven by a wave guide and distributed using a metallic disperser or a rotating plate.

Inside the oven, the microwaves are propagated in all directions and reflected by the metallic walls, thus uniformly penetrating the foods.

Why the food is heated

Most foods contain water and the water molecules vibrate with the microwaves.

The friction between the molecules generates heat, which raises the temperature of the foods, defrosting or cooking them or keeping them hot.

Because heat is formed inside the foods:

• The foods may be cooked without any liquids or oils, or with very little of these;
• Defrosting, heating or cooking in the microwave oven is faster than in a conventional oven;
• The vitamins, minerals and nutritious substances are conserved;
• Neither the natural colour nor the aroma are altered.

The microwaves go through porcelain, glass, cardboard or plastic, but not trough metal. For this reason, metallic containers or containers with metallic parts should not be used in the microwave oven.

Microwaves are reflected by metal...

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

... they go through glass and porcelain...

Simple line drawing of a bowl with liquid and arrows indicating flow or direction (no text or symbols)

... and are absorbed by the foods.

Illustration of a mouse on a tray with directional arrows indicating motion or movement (no text or symbols)

Instructions for use

Warning! Never use the microwave when it is empty, i.e. when it does not contain any food.

To operate the microwave, proceed as follows:

1. Plug the appliance into an appropriate electrical socket (see tips on the last page).
2. To open the door, press the OPEN BUTTON. The inside lighting of the microwave comes on.
3. Place the container with the food on the plate or on the grille.
4. Select the function and the cooking time, according to the description contained in the following sections.
5. Close the door and press the start button.
6. The microwave starts to function. The screen shows the operating time that is left.

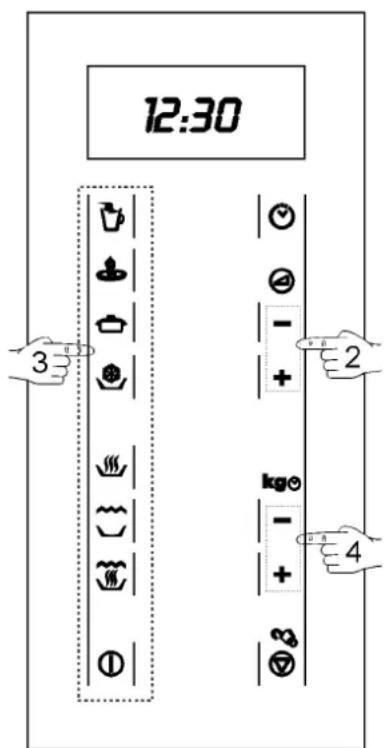

IMPORTANT NOTE

The buttons on the panel light up to assist you in setting the microwave. At any point in the setting process, only the buttons that may be enabled will be lit up in red. When a function is selected, the corresponding button lights up in green.

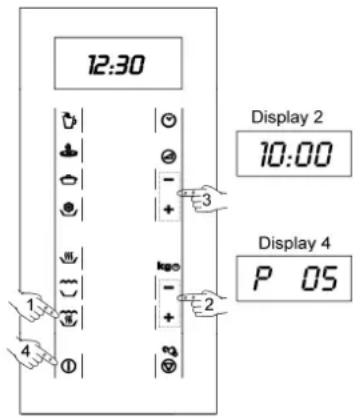

Function: Microwave

1. Press the MICROWAVE button. The function button goes green. It stays on for the duration of the cooking time.
2. Enter the operating time (e.g., 10 minutes) using the “-” and “+” buttons.
3. To change the power of the microwave, press the “-” and “+” buttons. If the buttons are not pressed, the appliance functions at the maximum power. The screen shows the power level selected (P 01 - P 05). See the section on “Technical Characteristics”.
4. Press the start button. The microwave starts to function.

Function: Grill

1. Press the GRILL button. The function button goes green.
2. Enter the operating time (e.g., 10 minutes) using the “-” and “+” buttons.
3. Press the start button. The microwave starts to function.

EN

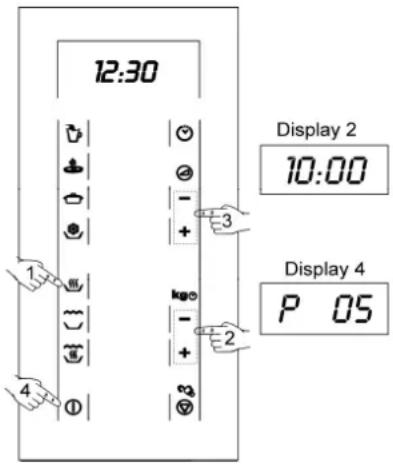

Function: Microwave + Grill

1. Press the button MICROWAVE + GRILL. The function button goes green.
2. Enter the operating time (e.g., 10 minutes) using the “-” and “+” buttons.
3. To change the power of the microwave, press the “-” and “+” buttons. If the buttons are not pressed, the appliance functions at the maximum power. The screen shows the power level selected (P 01 - P 05). See the section on “Technical Characteristics”.
4. Press the start button. The microwave starts to function.

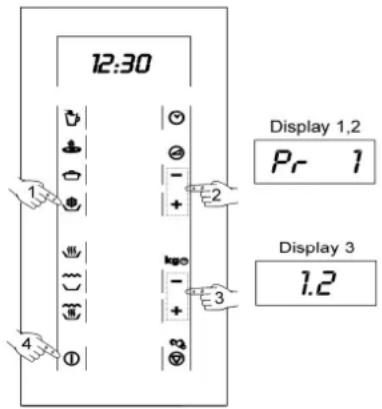

Function: Defrosting by weight (automatic)

1. Press the button DEFROSTING. The function button goes green.
2. Use the “-” and “+” buttons to indicate the type of food (see the following list). If you do not indicate any type of food, the appliance will function on default programme 1 (meat).
3. Use the “-” and “+” buttons to indicate the weight of the food (for example, 1.2 kg).
4. Press the start button. The microwave starts to function.
5. When the oven stops and starts to beep, move or turn the foods. To continue, close the door of the microwave and press the start button, to continue the defrosting process.

The following table shows the programmes for the defrosting by weight function, indicating the weight ranges, defrosting and resting times (to ensure that the food reaches a uniform temperature).

Programme	Food	Weight	Time	Resting time
Pr 1 Meat	0.1 – 1.5 kg	4 – 45 min	20 – 30 min
Pr 2 Poultry	0.1 – 1.5 kg	4 – 50 min	20 – 30 min
Pr 3	Fish	0.1 – 1.5 kg	4 – 45 min	20 – 30 min
Pr 4	Fruit	0.2 – 0.5 kg	2 – 13 min	5 – 10 min
Pr 5	Bread	0.1 – 0.8 kg	2 – 19 min	5 – 10 min

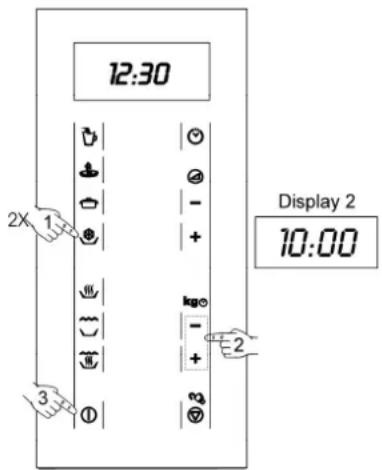

Function: Defrosting by time (manual)

1. Press the DEFROST button twice. The function button goes green.
2. Use the “-” and “+” buttons to indicate the defrosting time (for example, 10 min.).
3. Press the start button. The microwave starts to function.
4. When the oven stops and starts to beep, move or turn the foods. To continue, close the door of the microwave and press the start button, to continue the defrosting process.

Special functions

Special function: LIQUIDS/POTATOES

1. Press the special function 1 button until the desired option appears, according to the following table. The screen displays the special function (A1.1 – A1.6) selected according to the table.

Option	Button	Press	Screen	Preparation
1 cup		1x	A 1.1	Pour the liquid into a container and place it on the tray in the microwave.
2 cups		2x	A 1.2
3 cups		3x	A 1.3
250g potatoes		4x	A 1.4	Put the potatoes in a container, add 1 or 2 soup-spoonfuls of water, cover and place on the tray in the microwave.
500g potatoes		5x	A 1.5
1000g potatoes 6x A 1.6

1. Press the start button. The microwave starts to function.

Special function: AU GRATIN

1. Press the special function 2 button, until the desired option appears, according to the following table. The screen will show the special function (A2.1 - A2.2) that has been selected according to the table.

Option	Button	Press	Screen	Preparation
Potatoes au gratin		1x	A 2.1	1000g raw potatoes au gratin.Put the food in a container (approx. diameter 25-26 cm) and place it on the tray in the microwave.
Pasta au gratin 2x	A 2.2			250g pasta au gratin.Put the food in a container (approx. diameter 25-26 cm, approx. height 10 cm), cover it and place it on the tray in the microwave..

1. Press the start button. The microwave starts to function.

Special function: DEFROST & HEAT

1. Press the special function 3 button, until the desired option appears, according to the following table. The screen will show the special function (A3.1 - A3.2) that has been selected according to the table.

Option	Button	Press	Screen	Preparation
Precooked foods(1 serving 350-400g)		1x	A 3.1	Remove the lid of the packaging and put the contents (e-g- cannelloni, macaroni, gnocchi) on a plate or place the packaging directly on the tray in the microwave and cover.
Vegetables(approx. 900-1000 g)		2x	A 3.2	Put the vegetables in a container, cover and place on the rotating plate.

1. Press the start button. The microwave starts to function.

EN

Programming the microwave

The normal functions (microwave, grill, microwave + grill, defrosting by weight and defrosting by time) may be programmed one after each other, up to a maximum of 3 functions.

For example, to defrost 800 g. of meat, cook it for 10 minutes at power 4 of the microwave function and then for 8 minutes at power 3 of the microwave+ grill, proceed as follows:

1. Press the DEFROST button. The function button goes green.
2. The type of food Meat (Type 1) is already enabled.
3. Use the “-” and “+” buttons to indicate the weight of the food (0.8 kg).
4. Press the CLOCK/PROGRAMME button and select the next function.
5. Press the MICROWAVE button. The function button goes green.
6. Use the “-” and “+” buttons to indicate the desired cooking time (10 min).
7. Press the “-” button to select the microwave at power 4.
8. Press the CLOCK/PROGRAMME button and select the following programme.

9. Press the MICROWAVE + GRILL button. The function key goes green.

10. Use the “-” and “+” buttons to indicate the desired cooking time (8 min).

11. Press the “-” button twice, to set the microwave to power 3.
12. Press the start button. The microwave starts to function.
13. The appliance beeps when it goes from one function (defrosting) to another (microwave or grill).
14. When the microwave beeps, open the door and turn the food around. Close the door again and press the start button.

During operation...

During the cooking process, you may open the door at any moment, as:

• THE PRODUCTION OF MICROWAVES IS IMMEDIATELY INTERRUPTED.
• The grill is deactivated and remains at a high temperature.
• The timer stops and the screen shows the operating time that is left.

If you wish, you may:

1. Turn around or move the foods to ensure uniform cooking.
2. Change the power of the microwave, using the “-” and “+” buttons.
3. Select another function, using the function buttons.
4. Adjust the operating time that is left, by pressing the “-” and “+” buttons.

Close the door again and press the start button. The appliance will start to function again.

Function interruption

To interrupt the programme, press the STOP button or open the door of the appliance.

If you wish to cancel the cooking process, close the door again and press the STOP button. The oven will beep and the screen will display the time.

End of programme

When the programme is finished, the microwave beeps 3 times and the screen displays "End". The beeps are repeated every 30 seconds, until the door is opened or the "STOP" button is pressed.

Energy Saving

This microwave is equipped with a special energy-saving system, which is enabled automatically after 10 minutes of inactivity.

In the energy-saving mode, all the buttons are off and the screen only displays the clock.

The energy-saving mode is automatically disabled when a function button is pressed.

EN Defrosting

The following table is a general guideline for the various defrosting and resting times required (to guarantee that the food reaches a uniform

temperature) according to the type and weight of the foods. It also contains the respective recommendations for defrosting different foods.

Food	Weight	Defrosting Time	Resting time	Comment
Pieces of meat, veal, beef, pork	100 g	3-4 min	5-10 min	Turn around 1 x
	200 g	6-7 min	5-10 min	Turn around 1 x
	500 g	14-15 min	10-15 min	Turn around 2 x
	700 g	20-21 min	20-25 min	Turn around 2 x
	1000 g	29-30 min	25-30 min	Turn around 3 x
	1500 g	42-45 min	30-35 min	Turn around 3 x
Stewed meat	500 g	12-14 min	10-15 min	Turn around 2 x
	1000 g	24-25 min	25-30 min	Turn around 3 x
Minced meat	100 g	4-5 min	5-6 min	Turn around 1 x
	300 g	8-9 min	8-10 min	Turn around 2 x
	500 g	12-14 min	15-20 min	Turn around 2 x
Sausage	125 g	3-4 min	5-10 min	Turn around 1 x
	250 g	8-9 min	5-10 min	Turn around 1 x
	500 g	15-16 min	10-15 min	Turn around 1 x
Poultry, poultry parts	200 g	7-8 min	5-10 min	Turn around 1 x
	500 g	17-18 min	10-15 min	Turn around 2 x
Chicken	1000 g	34-35 min	15-20 min	Turn around 2 x
	1200 g	39-40 min	15-20 min	Turn around 2 x
	1500 g	48-50 min	15-20 min	Turn around 2 x
Fish	100 g	3-4 min	5-10 min	Turn around 1 x
	200 g	6-7 min	5-10 min	Turn around 1 x
Trout	200 g	6-7 min	5-10 min	Turn around 1 x
Shrimps	100 g	3-4 min	5-10 min	Turn around 1 x
	500 g	12-15 min	10-15 min	Turn around 2 x
Fruit	200 g	4-5 min	5-8 min	Turn around 1 x
	300 g	8-9 min	10-15 min	Turn around 2 x
	500 g	12-14 min	15-20 min	Turn around 3 x
Bread	100 g	2-3 min	2-3 min	Turn around 1 x
	200 g	4-5 min	5-6 min	Turn around 1 x
	500 g	10-12 min	8-10 min	Turn around 2 x
	800 g	15-18 min	15-20 min	Turn around 2 x
Butter	250 g	8-10 min	10-15 min	Turn around 1 x, keep covered
Cottage cheese	250 g	6-8 min	5-10 min	Turn around 1 x, keep covered
Cream 250 g 7-8 min 10-15 min		Remove the lid

Defrosting

General tips for defrosting

1. Only use microwave-safe dishes for defrosting (porcelain, glass, suitable plastic).
2. The defrosting by weight function and the tables refer to defrosting of raw foods.
3. The defrosting time depends on the quantity and the height of the food. When freezing foods, prepare for the defrosting process. Distribute the food in parts that match the size of the container.
4. Distribute the food as well as possible inside the microwave. The thickest parts of the fish or the chicken legs should be placed on top. The most delicate parts may be protected using aluminium foil. Important: the aluminium foil should not come in contact with the walls of the cavity, as this could cause an electrical arch.
5. The most dense parts should be turned around several times.
6. Distribute the frozen food in the most uniform manner possible, because the thin, narrow parts defrost fast than the thickest parts at the top.

7. Foods that are rich in fats, such as butter, cottage cheese and cream, should not be entirely defrosted. If they are at room temperature, they will be ready to serve within a few minutes. In the case of deep-frozen cream, if there are little bits of ice, the cream should be whipped before eating.

8. Place poultry on a turn over plate so that the juices may drain more easily.

9. Bread should be wrapped in a napkin so that it does not get too dry.
10. Turn the foods around the moment the microwave beeps and starts to flash on the screen: turn
11. Remove frozen foods from its packaging and do not forget to remove any metal clips. If the containers that are used to keep the foods in the freezer may also be used for heating and cooking, just remove the lid. Otherwise, place the foods in containers that are suitable for microwave ovens.
12. The liquid that results in the defrosting process, particularly in the case of poultry, should be discarded and under no circumstances should it come in contact with other foods.
13. Bear in mind that a resting period is required in automatic defrosting function, so that the food is totally defrosted. This normally takes between 15 to 20 minutes.

EN

Cooking with microwaves

Before using a container, check if it is suitable for using in a microwave oven (see: "What kind of containers may be used?").

Cut the food before starting to prepare it.

When heating liquids, use containers with a large neck, so that the steam may evaporate easily.

Prepare foods according to the tips and pay attention to the cooking times and power levels indicated in the tables.

Remember that the values given are merely a guideline and that they may vary depending on the initial state, temperature, humidity and type of food. We recommend that the times and power levels be adjusted to each situation. Depending on the food, the cooking time should be extended or shortened and the power level should be raised or reduced.

Cooking with microwaves...

1. The greater the quantity of food, the longer the cooking time. Remember the following rules:

2. Double the quantity - double the time

3. Half the quantity – half the time

4. The lower the temperature, the longer the cooking time.

5. Liquid foods heat faster.

6. Proper distribution of the food on the rotating plate facilitates uniform cooking. If the solid foods are placed on the outer part of the plate and the least solid in the middle of the plate, it will be possible to heat different kinds of food at the same time.

7. The door of the appliance may be opened at any time. The appliance is automatically switched off. The microwave only continues to function if the door is closed.

8. Foods that are covered require less cooking time and their characteristics are better preserved. The lid must allow the microwaves to pass through and should have little openings to allow the steam to come out.

Cooking with microwaves

Important tips!

• Eggs with shells and whole eggs should not be heated in microwave ovens as they may explode.
• Before heating or cooking foods with shells or skin (e.g., apples, tomatoes, potatoes, sausages) prick them with a fork so that they do not open up.
• When foods are prepared with very little humidity (e.g. defrosting bread, making popcorn, etc.), the humidity evaporates very fast. The appliance then functions with a vacuum and the food may be carbonised. This situation may cause damage to the appliance and to the container being used. Therefore, the oven should be set only for the necessary time and the cooking process should be supervised.
• It is not possible to heat large quantities of oil (fry) in the microwave.
• Do not heat liquids in airtight containers. Explosion hazard!
• Alcoholic drinks may not be heated to high temperatures. Therefore, the oven should be set only for the necessary time and the cooking process should be supervised.
• Do not heat any kind of explosive material or liquid in the microwave.

• Remove precooked foods from the packaging, because the latter is not always heat-resistant. Follow the manufacturer's instructions.

• If there are various different containers, such as cups for example, place them uniformly on the rotating plate.

• Always heat baby bottles or jars of baby food without lids or teats. After heating, shake or stir it well to ensure that the heat is uniformly distributed. The temperature of the containers is considerably lower than that of the heated food. Check the temperature of the food before giving it to the child, to avoid burns.
• Plastic bags should not be closed with metal clips, but with plastic ones. The bag should be perforated several times so that the steam may come out easily.
• When heating or cooking foods, ensure that they reach a minimum temperature of 70^ C.
• During the cooking process, water vapour may form on the glass window of the door and may drip down after a time. This is a normal situation and may even be significant if the room temperature is low. This does not represent a hazard for the safety of the appliance. After cooking, clean the water resulting from the condensation.

Cooking with microwaves

Tables and suggestions – Cooking vegetables

Food	Quantity (g)	Added liquid	Power (Watt)	Programme	Time (min.)	Resting time (min.)	Tips
Cauliflower	500	1/8 l	800	5	9-11	2-3	Spread some butter on top.
Broccoli	300	1/8 l	800	5	6-8	2-3
Mushrooms	250	-	800	5	6-8	2-3	Cut in slices.
	300	12 cup	800	5	7-9	2-3
Peas & carrots, frozen carrots		2-3 soup-spoonfuls					Cut in cubes or slices.
	250		800	5	8-10	2-3
Potatoes	250	2-3 soup-spoonfuls	800	5	5-7	2-3	Peel, cut in equal-sized parts.
Peppers	250	-	800	5	5-7	2-3	Cut in pieces or slices.
Leeks	250	12 cup	800	5	5-7	2-3
Frozen Brussels sprouts	300	12 cup	800	5	6-8	2-3
Cabbage	250	12		cup	800		5 8-10

Tables and suggestions – Cooking fish

Food	Quantity (g)	Power (Watt)	Programme	Time (min.)	Resting time (min.)	Tips
Fillets of fish	500	640	4	10-12	3	Cook with the lid on. Turn them around when half the time has elapsed.
Whole fish	800	800	5	3-5	2-3	Cook with the lid on. Turn them around when half the time has elapsed. It may be necessary to cover the ends of the fish.
		440	3	10-12

Cooking with Grill

In order to get the best results from the grill, use the grille that is supplied along with the appliance.

Place the grille in such a position so that it does not come into contact with the metallic surfaces of the cavity, as there is the danger of an electrical arch being formed, which could damage the appliance.

IMPORTANT TIPS:

1. When the microwave is being used for the first time, it produces some smoke and a smell, which occur because of the use of oils during the manufacture process.
2. After the grill has been used for the first time, it is normal that the area with the holes that protects the grill resistances should start to deform slightly and turn a golden colour, due to the high temperatures.

3. The glass in the door reaches very high temperatures while the grill is being used. In order that the appliance be out of reach of children, it should be situated at a minimum height of 80 cm.

4. While the grill is operating, the walls of the cavity and the grille reach very high temperatures. The use of oven gloves is recommended.

5. During a longer use of the grill, it is normal for the resistances to switch off on a temporary basis, due to the safety thermostat.
6. Important: when the food is grilled or cooked in containers, it is important to check if the container is suitable or not. See the table on the types of dishes!
7. When using the grill, the splashes of grease may reach the resistance and be burned. This is a normal situation and does not represent any operating fault.
8. After each cooking process, clean the inside and the accessories, to prevent the dirt from sticking.

Tables and suggestions – Grill without microwave

Food	Quantity (g)	Time (min.)	Tips
Fish
Dorada	800-	18-24	Spread a light layer of butter on the fish.
Sardine/red scorpion fish	6-8 Units	15-20	When half the time has elapsed, turn them around and sprinkle condiments.
Meat
Sausage	6-8 Units	22-26	Prick with a fork half way through the cooking process and turn them around.
Frozen hamburger	3 Units	18-20
Entrecote (approx. 3 cm thick)	400	25-30	Half way through the process, spread a little oil or butter on it and turn it around.
Others
Toast	4 Units	112-3	Supervise the browning process.
Grilled sandwiches	2 Units	5-10	Supervise the browning process.

Heat the grill for 2 minutes before use. If there is no reason not to do so, use the grille. The times that are indicated are merely indicative and they may vary depending on the composition and the quantity of food, as well as on the desired results. Fish and meat will taste best if they are coated in a little vegetable oil, herbs and spices and left to marinade for a few hours before being grilled. The salt should only be added after cooking on the grill.

Sausages will not open if they are picked with a fork before being grilled.

Half way through the grill process, supervise the cooking and if necessary, turn the food around or add a little more oil.

The grill is particularly suitable for preparing thin pieces of meat and fish. Thin pieces of meat need only be turned once, while larger pieces will need to be turned several times. In the case of fish, we recommend that the two ends of the fish be joined together, the mouth and the tail before placing on the grill.

EN Cooking with Grill

Tables and tips – Microwave and grill

The microwave with grill function is ideal for cooking fast and browning meat at the same time. It may also be used to prepare foods “au gratin”.

The microwave and the grill function on an alternate basis. The microwaves cook and the grill browns the food.

Dish	Quantity (g)	Type of container	Power (Watts)	Programme	Time (min.)
Pasta “au gratin”	500g	Low dish	240	2	12-17
Potatoes “au gratin”	800g	Low dish	800	5	20-22
Lasagne	approx. 800 g	Low dish	800	5	15-20
Cottage cheese “au gratin”	approx. 500 g	Low dish	640	4	18-20
2 fresh chicken drumsticks (on the grille)	200 g each	Low dish	440	3	8-10
Meat round	approx. 500 g	Tall, wide container	640	4	17-19
Onion soup “au gratin”	2x200g cups	Soup bowls	440	3	2-4

Before using dishes and containers in the microwave, check that they are microwave-safe. Only use dishes that are microwave-safe.

The dishes used in the combined function must be suitable for both microwave and grill. See the table on the types of dishes to be used.

Remember that the values provided are merely indicative in nature and that they may vary depending on the initial state, the temperature, humidity and the type of food.

If the time is not sufficient to brown the food properly, set the grill function for 5 or 10 minutes more.

"Au gratin" dishes and poultry require between 3 and 5 minutes more cooking time, so that the temperature is distributed uniformly in the food.

If there are no instructions to the contrary, the rotating plate should be used in the cooking process.

The values indicated in the tables are valid for when the cavity is cold (no preheating required in advance).

What type of containers may be used?

Microwave function

In the microwave function, it is important to remember that the microwaves are reflected by metallic surfaces. Glass, porcelain, ceramic, plastic and paper will allow the microwaves to pass through.

Therefore, metallic pans and dishes for cooking or containers with metallic components or decorations may not be used in the microwave. Glassware and ceramic with metallic decorations or parts (e.g. lead glass) may not be used.

The ideal materials to be used for cooking in a microwave oven are refractory, heat-resistant glass, porcelain or ceramic. Very fine crystal and porcelain should only be used for a short time, to defrost or reheat foods that have already been cooked.

Test the dishes

Place the dish inside the oven at the maximum power level for 20 seconds. If it is cold or not very hot, it is suitable. However, if it gets very hot or causes an electrical arch, it is not suitable.

Hot foods transmit heat to the dish, which may become very hot. Therefore, always use a glove!

Grill function

In the case of the grill function, the dish must be resistant to temperatures of at least 250^ C.

Plastic dishes are not suitable.

Combined function

In the combined function, the dishes that are used must be suitable for both microwave and grill cooking.

Aluminium containers and foils

Precooked foods in aluminium containers or wrapped in aluminium foil may be placed in the microwave oven if the following instructions are followed:

- Pay attention to the manufacturer's instructions that are printed on the packaging,

- Aluminium containers should not be higher than 3 cm and they should not come into contact with the walls of the cavity (minimum distance 3 cm). The aluminium lid should be removed.

- Place the aluminium container directly on the rotating plate. If the grille is used, the container should be placed on a porcelain plate. Never put the container directly on the grille!

- The cooking time will be longer because the microwaves only enter the food from above. In case of doubt, only use microwave-safe dishes.

- Aluminium foil may be used to reflect the microwaves during the defrosting process. Delicate foods, such as poultry or minced meat, may be protected from excessive heat by covering the respective ends.

- Important: the aluminium foil must not come into contact with the walls of the cavity, as this could cause an electrical arch.

Lids

The use of glass or plastic lids or adherent film is recommended, for the following reasons:

1. They prevent excessive evaporation (especially in very long cooking periods);
2. The cooking process is faster;
3. The food does not go dry;
4. The aroma is preserved.

The lid should have holes to avoid any type of pressure from building up. Plastic bags should also have openings. Baby bottles and baby food jars and other similar containers must only be heated without the lid, as they might explode if it is left on.

The following table gives general guidelines on the type of dishes that are suitable for each situation.

EN What type of containers may be used?

Table – dishware

Operating modeType of dish	Microwave		Grill	Microwave + Grill
	Defrost / heat	Cook
Glass and porcelain 1)Domestic, non fire-resistant, may be washed in dishwasher	yes	yes	no
Glazed ceramicFire-resistant glass and porcelain	yes	yes	yes	yes
Ceramic, earthenware dishesunglazedglazed without metallic decorations	yes	yes	no
Earthenware dishes
glazed	yes	yes	no	no
unglazed	no	no	no	no
Plastic dishes 2)heat-resistant up to 100°C	yes	no	no	no
heat-resistant up to 250°C	yes	yes	no	no
Plastic films 3)
Cling film	no	no	no	no
Cellophane	yes	yes	no	no
Paper, cardboard, parchment 4)	yes	no	no
Metal
Aluminium foil	yes	no	yes	no
Aluminium containers 5)	no	yes	yes	yes
Accessories (grille)	no	no	yes	yes

1. No golden or silver edges and no lead glass.
2. Remember the manufacturer's tips!

3. Do not use metal clips to close the bags. Perforate the bags. Use films only to cover foods.

4. Do not use paper plates.

5. Only shallow aluminium containers without lids. The aluminium must not come into contact with the walls of the cavity.

Cleaning and care

BEFORE CLEANING the microwave, ENSURE THAT THE PLUG IS NOT IN THE SOCKET.

After using the appliance, let it cool off. Do not clean the appliance with abrasive cleaning products, scourers that will scratch the surface or sharp objects.

Outer surface:

1. Clean the outer surface with a neutral detergent, lukewarm water and a damp cloth.
2. Do not allow water to pass through the outer structure.

Inside:

1. After each use, clean the inside walls with a damp cloth.
2. Do not allow water to enter the ventilation holes of the microwave oven.
3. If it has been some time since the last cleaning and the cavity of the microwave oven is dirty, put a glass of water on the tray and connect the microwave at maximum power for 4 minutes. The steam that is released will soften the dirt, which will be easy to clean with a soft cloth.

Important! The appliance should not be cleaned with steam cleaning machines. The steam may reach the charged parts and cause a short circuit.

The most soiled stainless steel surfaces may be cleaned using a non-abrasive cleaning product.

Then they should be rinsed with hot water and dried well.

1. Clean accessories after each use. If they are very dirty, steep them first and then use a brush and a sponge. The accessories may be washed in the dishwasher. Ensure that the rotating plate and respective base are always clean.

Door, door-hinges and front of the appliance:

1. These parts must always be clean, especially the contact surfaces between the door and the front of the appliance, so that there are no leaks.
2. To clean, use a neutral detergent and lukewarm water. Dry with a soft cloth.

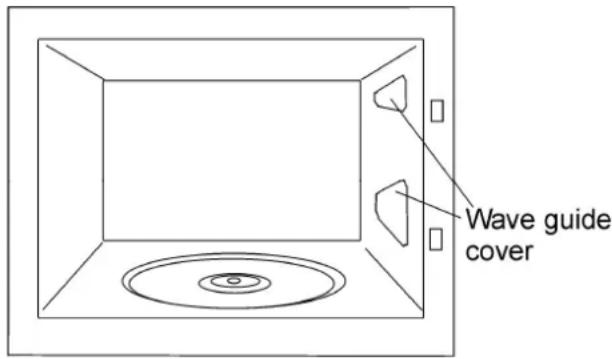

Mica covers:

Always keep the mica covers clean. Food remaining in the covers may deform it or produce sparks if they go on fire. Therefore, they should be cleaned on a regular basis, but abrasive cleaning products or sharp objects should not be used. Do not remove the covers, to avoid any risk.

EN

Troubleshooting

The appliance does not function properly:

• Is the power plug correctly inserted in the socket?
• Is the door properly closed? The door should make an audible click when it closes.
• Are there any foreign bodies between the door and the ring?

The foods do not heat up or they heat very slowly:

• Did you use a metallic dish by mistake?
- Did you select the right operating time and power level?
- Did you place a larger or colder amount of food than usual in the microwave?

The food is too hot, dry or burned:

- Did you select the right operating time and power level?

There are noises while the appliance is in operation:

• Is there an electrical arch inside the microwave?
• Is the dish coming into contact with the walls of the cavity?
• Are there loose skewers or spoons inside the microwave?

The inside lighting does not come on:

• If all of the functions are operating correctly, the bulb is probably blown. You may continue to use the appliance.
• The light bulb may only be replaced by the Technical Support Service.

The power cable is damaged:

- The power cable must be replaced by the manufacturer, authorised agents or technicians that are qualified to perform this task, in order to avoid dangerous situations and because special tools are needed.

If any other type of fault is noticed, contact the Customer Support Service.

All repairs must be performed by specialised technicians.

Technical Features

Description of functions of buttons

Symbol	Description	Power	Foods
	Microwave	P 01 ---- 130W	Slow defrosting for delicate foods, keeping food hot
		P 02 ---- 240W	Cooking at low heat, boiling riceFast defrosting
		P 03 ---- 440W	Melting butterHeating baby food
		P 04 ---- 640W	Cooking vegetables and other foodsCooking and heating carefully,Heating and cooking small quantitiesHeating delicate foods
		P 05 ---- 800W	Cooking and heating liquids and other foods fast
	Microwave + Grill	P 01 ---- 130W	Browning toast
		P 02 ---- 240W	Grilling poultry and meat
		P 03 ---- 440W	Cooking meatloaves and “au gratin” dishes
		P 04 ---- 640W	Preparing meat round
		P 05 ---- 800W	Potatoes “au gratin”
	Grill	1000W	Grill all sorts of foods

Specifications

• AC voltage.... 230 V / 50 Hz
• Fuse. 12 A / 250 V
  • Power required 1200 W
• Grill power.... 1000 W
• Microwave output power.... 800 W
• Microwave frequency.... 2450 MHz
• Outer dimensions (W×A×D).... 595 × 390 × 320 mm
  • Cavity dimensions (W×A×D).... 305 × 210 × 280 mm
• Oven capacity.... 18 l
  • Weight 18,6 kg

Sayın Müşterimiz,

Two glass bowls: one with a spoon inside, the other with a black X symbol (no text or symbols present)

1. Kapak camı
2. Kapak kilidi
3. Kuvarz gril
4. Mika kapak

5. Kontrol paneli

6. Kapak açma düğmesi

7. Döner taban montaj yeri
8. Döner taban
9. Döner tepsi
10. Tel Izgara

Saatin ayarlanmasi

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

Simple line drawing of a bowl with a shaded interior and directional arrows indicating flow or movement (no text or symbols)

Illustration of a mouse inside a container with directional arrows indicating flow or movement (no text or symbols)

Kullanim talimatlari

Two glass bowls: one with a spoon inside, the other with a black X symbol (no text or symbols present)

Simple line drawing of a cooking pot with handles and a lid, no text or symbols present

Simple line drawing of a bowl with internal shading and directional arrows (no text or symbols)

Illustration of a mouse inside a container with directional arrows indicating flow or movement (no text or symbols)

Οδηγίες χρήσης

EL

Country Subsidiary Address City Phone

AustriaKüppersbusch Austria	Eitnergasse, 13	1231 Wien	[phone]
BelgiumKüppersbusch Belgium S.P.R.L.	Doomveld Industrie, Asse 3, No. 11 - Boite 7	1731 Zellik	[phone]
BulgariaTeka Bulgaria EOOD	Blvd. "Tsarigradsko Shosse" 135	1784 Sofia	[phone]
ChileTeka Chile S.A.	Avd El Retiro Parque los Maitenes, 1237. Parque Enea	Pudahuel, Santiago de Chile	+ 56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.	6/F. Datong Business Center, No. 369 Fuxing Middle Rd.	200025 Shanghai	[phone]
Czech RepublicTeka CZ S.R.O.	V Holesovickách, 593	182 00 Praha 8 - Liben	[phone]
DenmarkJuvél A/S	Københavnsvej 222	DK-4600 Køge	[phone]
EcuadorTeka Ecuador S.A.	Parque Ind. California 2, Via a Daule Km 12	Guayaquil	[phone]
GermanyTeka Küchentechnik GmbH	Sechsheldener Str. 122	35708 Haiger	[phone]
Great BritainTeka Products Ltd.	177 Milton Park	0X14 4SE Milton, Abingdon	[phone]
GreeceTeka Hellas A.E.	Thesi Roupaki - Aspropyrgos	193 00 Athens	[phone]
HungaryTeka Hungary Kft.	Bajcsy Zsilinszky u. 53	1065 Budapest	[phone]
IndonesiaPT Teka Buana	Jalan Menteng Raya, Kantor Taman A9 Unit A3	12950 Jakarta	[phone]
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd	10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie	40150 Shah Alam, Selangor Darul Ehsan	[phone]
MexicoTeka Mexicana S.A. de C.V.	Ferrocarril 200, Esquina Norte 29, Col. Moctezuma	15500 Mexico D.F.	[phone]
MoroccoTeka Maroc S.A.	73, Bd. Slimane, Depôt 33, Route de Ain Sebaa	Casablanca	[phone]
NetherlandsTeka B.V.	Wijkermeerstraat, 34	2131 HA Hoofddorp	+ 31 235 656 480
NorwayIntra, A.S	Storsand	7563 Malvik	[phone]
PolandTeka Polska Sp. ZO.O.	ul. 3-go Maja 8 / A2	05-800 Pruszków	[phone]
PortugalTeka Portugal S.A.	Estrada da Mota - Apdo 533	3834-909 Ilhavo, Aveiro	[phone]
RomaniaS.C. Teka Küchentechnik Romania S.R.L.	Sevastopol str., no 24, 5th floor, of. 15	010992 Bucharest Sector 1	[phone]
RussiaTeka Rus LLC	Barklaya str. 6, bld. 3, Barklay plaza center, office 402	121087 Moscow âTM Russia	[phone]
SingaporeTeka Singapore PTE Ltd	Clemenceau Avenue, 83, 01-33/34 UE Square	239920 Singapore	[phone]
SpainTeka Industrial, S.A.	C/ Cajo,17	39011 Santander	[phone]
SwedenIntra Mölntorp AB	Säbyvägen, 8	734 93 Kolbäck	[phone]
ThailandTeka (Thailand) Co. Ltd.	364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee	10400 Bangkok	[phone]
TurkeyTeka Teknik Mutfak Aletleri Sanayi Ve	Büyükdere Cad. 24/13	80290 Mecidiyeköy, Istanbul	[phone]
UkraineTeka Ukranie LLC	86-e, Bozhenko Str .2nd floor,4th entrance	03150 Kyiv	[phone]
United Arab EmiratesTeka Middle East Fze	Building LOB 16, Office 417	P.O. Box 18251 Dubai	[phone]
United Arab EmiratesTeka Küchentechnik U.A.E LLC	Bin Khedia Centre	P.O. Box 35142 Dubai	[phone]
VenezuelaTeka Andina S.A.	Ctra. Petare-Santa Lucia, km 3 (El Limoncito)	1070 Caracas	[phone]
VietnamTEKA Vietnam Co., Ltd.	803 Dai Minh Convention Tower, 8th Floor	77 Hoang Van Thai, District 7, Ho Chi Minh	[phone]
