TEKA MWE 225 FI - Microwave
📄 72 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice TEKA MWE 225 FI - page 45
View the manual : English EN Español ES Português PT
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Freestanding Microwave Oven
Brand Teka
Model MWE 225 FI
Capacity 22.5 Liters
Microwave Power 800 W
Power Levels 5 Levels
Control Type Digital with Push Buttons
Display LED Digital Display
Timer Up to 95 Minutes
Defrost Function Auto Defrost by Weight
Auto Cook Programs 8 Auto Cook Menus
Interior Light Yes
Turntable Glass Turntable with Drive
Child Lock Yes
Door Type Side Opening with Handle
Dimensions (W x H x D) 48.5 cm x 28.5 cm x 35.5 cm
Cavity Dimensions (W x H x D) 31.5 cm x 22.5 cm x 31.0 cm
Weight 12.5 kg
Power Supply 230 V / 50 Hz / 10 A
Energy Consumption 1200 W (Input), 800 W (Output)
Color Stainless Steel
Cleaning Wipe with damp cloth; avoid abrasives
Spare Parts Available from Teka Service Centers
Repairability Index 7.2 / 10 (Estimated)

Frequently Asked Questions - MWE 225 FI TEKA

How do I set the microwave for quick 1-minute cooking?
Press the Quick Start button repeatedly; each press adds 1 minute up to 10 minutes. Alternatively, set time manually using the time dial.
Can I use metal containers in this microwave?
No, metal or aluminum foil should not be used as they can cause arcing and damage the oven. Use only microwave-safe glass, ceramic, or plastic containers.
How do I defrost frozen food automatically?
Press the Auto Defrost button, then enter the weight of the food. The oven will calculate the necessary time and power level for even defrosting.
The turntable does not rotate. What should I do?
Check that the glass turntable is correctly placed on the drive hub. Ensure nothing is obstructing rotation. If still not working, contact service.
How do I activate the child lock?
Press and hold the Stop/Clear button for 3 seconds. The display will show a lock icon. Repeat to deactivate.
What is the maximum power level and how to change it?
The maximum power is 800 W. To change, press the Power Level button repeatedly to cycle through levels (100, 80, 60, 40, 20%).
The oven beeps during and after cooking. Can I turn off the sound?
No, the sound cannot be disabled as it indicates cycle completion. However, you can press Stop/Clear to mute momentarily.
How do I clean the microwave interior?
Wipe interior with a damp cloth and mild detergent. For odors, place a bowl of water with lemon juice and heat for 5 minutes, then wipe.
What does the 'E-01' error code mean?
Error code E-01 indicates a malfunction in the sensor or control board. Unplug the oven for 1 minute, then plug back in. If persists, call service.
Can I install this microwave recessed into a cabinet?
No, this model is designed for freestanding use only. It requires at least 10 cm clearance around for ventilation. Do not install in a closed cabinet.

User questions about MWE 225 FI TEKA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Microwave in PDF format for free! Find your manual MWE 225 FI - TEKA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MWE 225 FI by TEKA.

USER MANUAL MWE 225 FI TEKA

User Manual

MWE 225 FI

ES PT EN

Microwave Oven

10 --- 30 min: 1 minute

30 --- 95 min: 5 minutes

"Micro./Grill/Combi." Instructions

Número de pulsacionesPantallaPotencia microondasPotencia Grill
1P100100%
2P 8080%
3P 5050%
4P 3030%
5P 1010%
6G0%100%
7C-155%45%
8C-236%64%

3. Grill or Combi. Cooking

Press the "MODE" button, the display will show "P100", and press

INSTRUCTION MANUAL

MODEL: MWE 225 FI

10 --- 30 min: 1 minute

30 --- 95 min: 5 minutes

"Micro/Grill/Combi

Microwave Oven

INSTRUCTION MANUAL

MODEL: MWE 225 FI

Read these instructions carefully before using your microwave oven, and keep them carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:MWE 225 FI
Rated Voltage:230V~50Hz
Rated Input Power(Microwave):1250W
Rated Output Power(Microwave):800W
Rated Input Power(Grill):1000W
Oven Capacity:20L
Turntable Diameter: 245mm
External Dimensions:595x343.5x382 mm
Net Weight:Approx. 14.96kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

  1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
  3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
  4. Keep the appliance and its cord out of reach of children less than 8 years.
  5. Only use utensils suitable for use in microwave ovens.
  6. The oven should be cleaned regularly and any food deposits should be removed.
  7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
  9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  10. Do not overcook food.
  11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
  12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
  13. Install or locate this oven only in accordance with the installation instructions provided.
  14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  15. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments;

-farm houses;

-bed and breakfast type environments.

  1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  2. Do not store or use this appliance outdoors.
  3. Do not use this oven near water, in a wet basement or near a swimming pool.
  4. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
  5. Do not let cord hang over edge of table or counter.
  6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  7. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
  9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  10. Children should be supervised to ensure that they do not play with the appliance.
  11. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
  12. Accessible parts may become hot during use. Young children should be kept away.
  13. Steam cleaner is not to be used.
  14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
  15. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

31. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. 32. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.) 33. Surface of a storage cabinet can get hot.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire

  1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cordset or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

  1. Clean the cavity of the oven after using with a slightly damp cloth.
  2. Clean the accessories in the usual way in soapy water.
  3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
  4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  2. Cook on maximum power for 1 minute.
  3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

UtensilsRemarks
Browning dishFollow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
DinnerwareMicrowave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jarsAlways remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
GlasswareHeat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bagsFollow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cupsUse for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towelsUse to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paperUse as a cover to prevent splattering or a wrap for steaming.
PlasticMicrowave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrapMicrowave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only (meat and candy thermometers).
Wax paperUse as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

UtensilsRemarks
Aluminum trayMay cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handleMay cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensilsMetal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist tiesMay cause arcing and could cause a fire in the oven.
Paper bagsMay cause a fire in the oven.
Plastic foamPlastic foam may melt or contaminate the liquid inside when exposed to high temperature.
WoodWood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray1
Turntable ring assembly1
Instruction Manual1

Assembly manual diagram: parts labeled A) Control panel, B) Turntable shaft, C) Turntable ring assembly, D) Glass tray, E) Observation window, F) Door assembly, G) (not labeled).

Grill Rack (only used in grill function and placed on the glass tray)

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Turntable Installation

Hub (underside)

Glass tray and turntable shaft

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

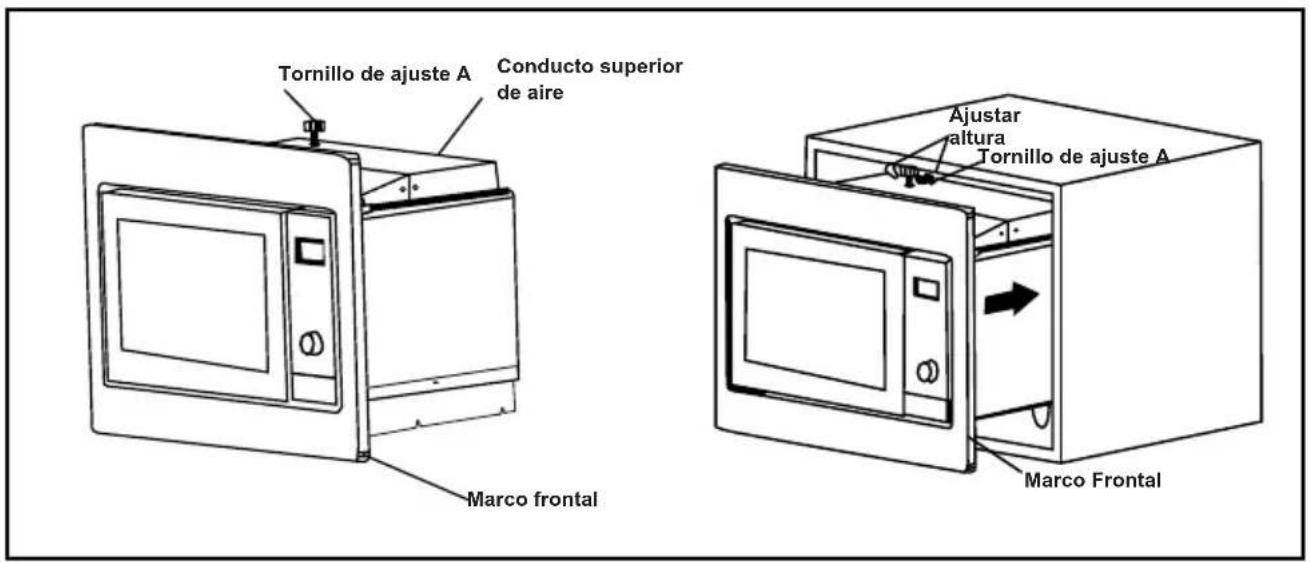

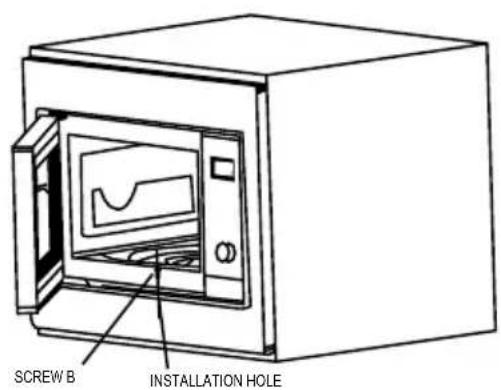

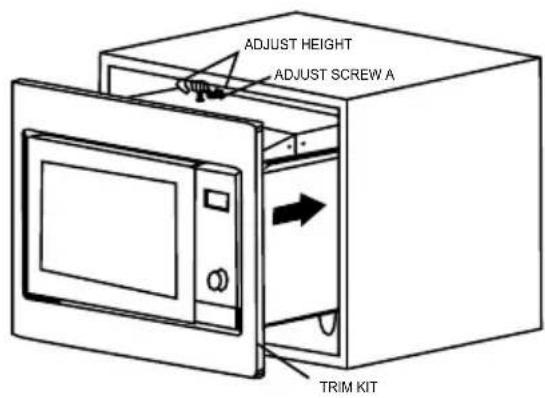

Installation and connection

  1. This appliance is only intended for domestic use.
  2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
  3. Please observe the special installation instructions.
  4. The appliance can be installed in a 60 cm wide wall-mounted cupboard (at least 55 cm deep and 85 cm off the floor).
  5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
  6. The mains voltage must correspond to the voltage specified on the rating plate.
  7. The socket must be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible after installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3 mm.
  8. Adapters, multi-way strips, and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Warning symbol of a triangle with steam and horizontal line (no text or numbers)

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", and the buzzer will ring once.

1) Press "

TEKA MWE 225 FI - Clock Setting - 1

" twice to select the clock function; the hour figures will flash.

2) Turn "🔍" to adjust the hour figures; the input time should be within 0--23. 3) Press "" and the figures will flash. 4) Turn "🔍" to adjust the minute figures; the input time should be within 0--59. 5) Press "" to lock the setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it will not function when powered.

2) During the clock setting process, if you press "", it will go back to the previous status automatically.

2. Microwave Cooking

Press "MODE" and the LED will display "P100". Press "MODE" multiple times or turn the dial to choose the desired power level; each press will display "P100", "P80", "P50", "P30", or "P10". Then press "+30Sec" to confirm, and turn the dial to set the cooking time from 0:05 to 95:00. Press "+30Sec" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as follows.

1) Press "MODE" once; the screen displays "P100".

2) Press "MODE" again or turn the dial to choose 80% microwave power.

3) Press "+30Sec" to confirm; the screen displays "P80".

4) Turn the dial to adjust the cooking time until the oven displays "20:00".

5) Press "+30Sec" to start cooking.

Note: The step quantities for adjusting the time with the coding switch are as follows:

"Micro./Grill/Combi." Pad instructions
OrderDisplayMicrowave PowerGrill Power
1P100100%
2P8080%
3P5050%
4P3030%
5P1010%
6G0%100%
7C-155%45%
8C-236%64%

3. Grill or Combi Cooking

Press "MODE" and the LED will display "P100". Press "MODE" multiple times or turn the dial to choose the desired mode; each press will display "G", "C-1", or "C-2". Then press the dial to confirm, and turn the dial to set the cooking time from 0:05 to 95:00. Press the dial again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power (C-1) to cook for 10 minutes, you can operate the oven as follows.

1) Press "MODE" once; the screen displays "P100". 2) Press "MODE" multiple times or turn the dial to choose Combi. 1 mode. 3) Press "+30Sec" to confirm; the screen displays "C-1". 4) Turn the dial to adjust the cooking time until the oven displays "10:00". 5) Press "+30Sec" to start cooking.

Note: If half the grill time passes, the oven sounds twice; this is normal. For better grilling results, turn the food over, close the door, and then press the dial to continue cooking. If no operation is performed, the oven will continue working.

4. Quick Start

1) In waiting state, press "+30Sec" to start cooking with 100% power. Each additional press increases the cooking time by 30 seconds, up to a maximum of 95 minutes.

2) In microwave cooking or time defrost state, each press of "+30Sec" increases the cooking time by 30 seconds.

3) In waiting state, turn the dial left to set the cooking time with 100% microwave power, then press "+30Sec" to start cooking.

5. Defrost By Weight

1) Press "✪" once, and the oven will display "dEF1".

2) Turn the dial to select the weight of food from 100 to 2000 g.

3) Press "+30Sec" to start defrosting.

6. Defrost By Time

1) Press "✪" twice, and the oven will display "dEF2".

2) Turn the dial to select the defrost time. The maximum time is 95 minutes.

3) Press "+30Sec" to start defrosting. The defrost power is P30, and it cannot be changed.

7. Kitchen Timer

(1) Press "🔍" once, and the LED will display 00:00.

(2) Turn the dial to enter the correct time. (The maximum cooking time is 95 minutes.)

(3) Press the dial to confirm the setting.

(4) When the kitchen time is reached, the timer indicator will go out. The buzzer will ring 5 times. If the clock is set (24-hour system), the LED will display the current time.

Note: The kitchen timer is different from the 24-hour system; the kitchen timer is a timer.

8. Auto Menu

1) Turn the dial right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage, and popcorn.

2) Press "+30Sec" to confirm.

3) Turn the dial to choose the default weight as per the menu chart.

4) Press "+30Sec" to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn the dial clockwise until "A-6" displays.

2) Press "+30Sec" to confirm.

3) Turn the dial to select the weight of fish until "350" displays.

4) Press "+30Sec" to start cooking.

The menu chart:

MenuWeightDisplay
A-1 Pizza200 g200
400 g400
A-2 Meat250 g250
350 g350
450 g450
A-3 Vegetable200 g200
300 g300
400 g400
A-4 Pasta50g(with 450 ml cold water)50
100g(with 800 ml cold water)100
A-5 Potato200 g200
400 g400
600 g600
A-6 Fish250 g250
350 g350
450 g450
A-7 Beverage1 cup(120 ml)1
2 cups(240 ml)2
3 cups(360ml)3
A-8 Popcorn50 g50
100 g100

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " twice, and the oven will display "dEF2".

2) Turn " 🔍 " to select the defrost time till "5:00" display.

3) Press " MODE once, the screen display "P100".

4) Press "MODE" once again or turn "to choose 80% microwave power.

5) Press " +30Sec " to confirm, and the screen displays "P 80".

6) Turn " 🔥 " to adjust the cooking time till the oven displays "7:00".

7) Press " +30Sec " to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

10. Inquiring Function

(1) In states of microwave, grill and combination cooking, press " ", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

(2) In cooking state, press " " to print time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press " " for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display " [::]". And lock indicator lights.

Lock quitting: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV receptionRadio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven lightIn low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of ventsIn cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.It is forbidden to run the unit without any food inside. It is very dangerous.
TroublePossible CauseRemedy
Oven can not be started.(1) Power cord not plugged in tightly.Unplug. Then plug again after 10 seconds.
(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
(3) Trouble with outlet.Test outlet with other electrical appliances.
Oven does not heat.(4) Door not closed well.Close door well.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

IMPORTANT NOTE

Electrical Connection

  1. TEKA MWE 225 FI - Electrical Connection - 1

B. Installing the Microwave

Adjustment screw A, upper air duct, front frame, adjust height, adjustment screw A, front frame

IMPORTANT NOTE:

Electrical Connection

  1. TEKA MWE 225 FI - Electrical Connection - 1

(45)

B. Installing the Microwave

TEKA MWE 225 FI - Installing the Microwave - 1

Installation Instructions

Please Read the Manual Carefully Before Installation

ADJUST SCREW A SCREW B TRIM-KIT PLASTIC COVER

Please Note

Electrical Connection

The oven is fitted with a plug and must only be connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

A. Built-in Furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

  1. TEKA MWE 225 FI - Built-in Furniture - 1

Line drawing of a microwave oven with lid and control panel (no text or symbols)

  1. TEKA MWE 225 FI - Built-in Furniture - 3

B. Install the Oven

ADJUST SCREW A UPPER AIR TUNNEL TRIM-KIT

ADJUST HEIGHT ADJUST SCREW A TRIM KIT

  1. Fix ADJUST SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.
  2. Adjust the height of ADJUST SCREW A to keep 1mm gap between the ADJUST SCREW A and the top plane of cabinet.
  3. Do not trap or kink the power cord. Make sure that the oven is installed in the center of the cabinet.

SCREW B INSTALLATION HOLE

TRIM-KIT PLASTIC COVER INSTALLATION HOLE

  1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.
AustrlaKüppersbusch AustriaEitnergasse, 131231 Wien+43 18 668 022
BelgiumKüppersbusch Belgium S.P.R.L.Doomveld Industrie, Asse 3, No. 11 - Boite 71731 Zellik+32 24 668 740
BulgarlaTeka Bulgaria EOODBlvd. “Tsarigradsko Shosse” 1351784 Sofia+359 29 768 330
ChileTeka Chile S.A.Avd El Retiro Parque los Maitenes, 1237. Parque EncaPudahuel, Santiago de Chile+ 56 24 386 000
ChinaTeka International Trading (Shanghai) Co. Ltd.No.1506, Shengyuan Henghua Bldg. No.200 Wending Rd.Xuhui, Dist. 200030 Shanghai+86 2 153 076 996
Czech RepublicTeka CZ S.R.O.V Holesovickách, 593182 00 Praha 8 - Liben+420 284 691 940
EcuadorTeka Ecuador S.A.Parque Ind. California 2, Via a Daule Km 12Guayaquil+593 42 100 311
GreeceTeka Hellas A.E.Thesi Roupaki - Aspropyrgos193 00 Athens+30 2 109 760 283
HungaryTeka Magyarország Zrt.Terv u. 929200 Mosonmagyaróvár+36 96 574 500
IndonesiaPT Teka BuanaJalan Menteng Raya, Kantor Taman A9 Unit A312950 Jakarta+62 215 762 272
MalaysiaTeka Küchentechnik (Malaysia) Sdn Bhd10 Jalan Kartunis U1/47, Temasya Park, Off Glenmarie40150 Shah Alam, Selangor Darul Ehsan+60 376 201 600
MexicoTeka Mexicana S.A. de C.V.Blvd Manuel A. Camacho 126, Piso 3 Col. Chapultepec11000 Mexico D.F.+52 5 551 330 493
MoroccoTeka Maroc S.A.73, Bd. Slimane, Depôt 33, Route de Ain SebaaCasablanca+212 22 674 462
PeruTeka Küchentechnik Perú S.A.Av. El Polo 670 local A 201, CC El polo, SurcoLima+51 14 363 078
PolandTeka Polska Sp. ZO.O.ul. 3-go Maja 8 / A205-800 Pruszkow+48 227 383 270
PortugalTeka Portugal S.A.Estrada da Mota - Apdo 5333834-909 Ilhavo, Aveiro+35 1 234 329 500
RomaniaS.C. Teka Küchentechnik Romania S.R.L.Sevastopol str., no 24, 5th floor, of. 15010992 Bucharest Sector 1+40 212 334 450
Russia/PоссияTeka Rus LLC/000 "Teka Рус"Neverovskogo 9, Office 417, 121170, Moscow, Russia121087 Россия, Москва+7 4 956 450 064
SingaporeTeka Singapore PTE LtdClemenceau Avenue, 83, 01-33/34 UE Square239920 Singapore+65 67 342 415
SpainTeka Industrial, S.A.C/ Cajo,1739011 Santander+34 942 355 050
ThailandTeka (Thailand) Co. Ltd.364/8 Sri-Ayuttaya Road, Phayathai, Ratchatavee10400 Bangkok+66 -26 424 888
TurkeyTeka Teknik Mutfak Aletleri Sanayi VeBüyükdere Cad. 24/1380290 Mecidiyeköy, Istanbul+90 2 122 883 134
UkraineTeka Ukranie LLC86-e, Bozhenko Str .2nd floor,4th entrance03150 Kyiv+380 444 960 680
United Arab EmiratesTeka Middle East FzeBuilding LOB 16, Office 417P.O. Box 18251 Dubai+971 48 872 912
United Arab EmiratesTeka Küchentechnik U.A.E LLCBin Khedia CentreP.O. Box 35142 Dubai+971 42 833 047
VenezuelaTeka Andina S.A.Ctra. Petare-Santa Lucia, km 3 (El Limoncito)1070 Caracas+58 2 122 912 821
VietnamTEKA Vietnam Co., Ltd.803, FI 8th, Daiminh Convention Center, 77, Hoang VanThai, Tan Phu Ward, District 7, Ho Chi Minh+84 854 160 646
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : TEKA

Model : MWE 225 FI

Category : Microwave
