Product Type	Microwave
Brand	Teka
Model	MW 21 IVS
Capacity	21 L
Microwave Power	700 W
Grill Power	800 W
Dimensions (H x W x D)	260 mm x 455 mm x 330 mm
Net Weight	11 kg
Power Consumption (Microwave)	1150 W
Power Consumption (Grill)	1250 W
Voltage / Frequency	230 V / 50 Hz
Display Type	Digital LED
Control Type	Touch control
Auto Cook Menus	8 preset menus
Defrost Function	Auto defrost by weight and time
Child Lock	Yes
Interior Light	Yes
Turntable Diameter	270 mm
Material	Stainless steel (cavity), plastic (door frame)
Cleaning	Wipe with damp cloth; mild detergent; avoid abrasives
Safety Features	Door interlock, overheat protection, child lock
Spare Parts Availability	Turntable, glass tray, fuse, door seal available
Repairability	Repairs by authorized Teka service centers

Frequently Asked Questions - MW 21 IVS TEKA

How do I set the microwave power level?

Press the Power button repeatedly to cycle through levels (e.g., High, Medium, Low). Then set the time using the dial or numeric buttons.

Can I use metal containers in the microwave?

No, metal reflects microwaves and can cause arcing. Use only microwave-safe glass, ceramic, or plastic containers.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. For stubborn stains, heat a cup of water with lemon juice for 2 minutes, then wipe.

What does the child lock do and how to activate it?

The child lock disables the control panel. Activate by pressing and holding the Stop button for 3 seconds. Repeat to deactivate.

Why is my microwave not heating?

Check if the door is fully closed, the child lock is off, and the power cord is plugged in. If still not heating, contact Teka service.

How do I use the auto defrost function?

Press Defrost, select the food type (meat, poultry, fish), and enter the weight. The microwave will automatically set the time and power.

Can I use the grill and microwave together?

Yes, the MW 21 IVS has a Combi mode that combines microwave and grill for faster cooking and browning.

What is the maximum cooking time?

The timer can be set up to 95 minutes (1 hour 35 minutes) for most functions.

Is the turntable removable for cleaning?

Yes, the glass turntable and roller ring can be removed. Wash with warm soapy water and dry before placing back.

How do I reset the microwave after a power outage?

Unplug the microwave, wait 30 seconds, then plug it back in. The display should reset to the clock or standby mode.

USER MANUAL MW 21 IVS TEKA

Microwave Oven INSTRUCTION MANUAL

Microwave Oven INSTRUCTION MANUAL

Microwave Oven

Utensils

PRECAUTION

INSTRUCTION MANUAL

MODEL: MW 21 IVS

Utensils CARE

This appliance is marked according to the European directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MW 21 IVS
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800W
Rated Input Power(Grill):	1000W
Oven Capacity:	20L
Turntable Diameter:	φ 245mm
External Dimensions(LxWxH):	461x373x280mm
Net Weight:	Approx. 12.6 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed for heating. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement, or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. Keep the cord away from heated surfaces, and do not cover any vents on the oven.
20. Do not let the cord hang over the edge of a table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil T is:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

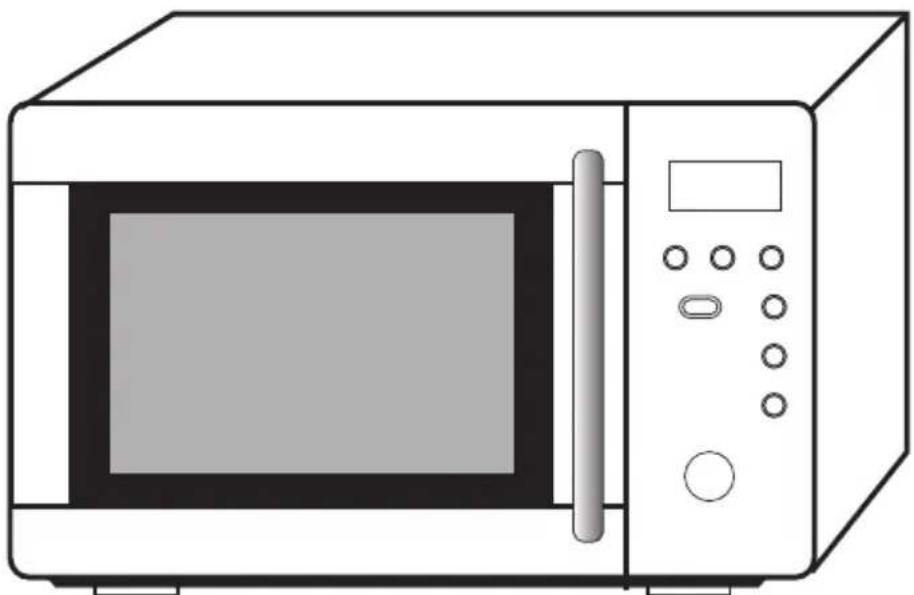

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

G

Grill Rack (Only for Grill series)

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Shut off oven power if the door is opened during operation.

Turntable Installation

Hub (underside)

a. Never place the glass tray upside down. The glass tray should never be restricted.

b. Both glass tray and turntable ring assembly must always be used during cooking.

c. All food and containers of food are always placed on the glass tray for cooking.

d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

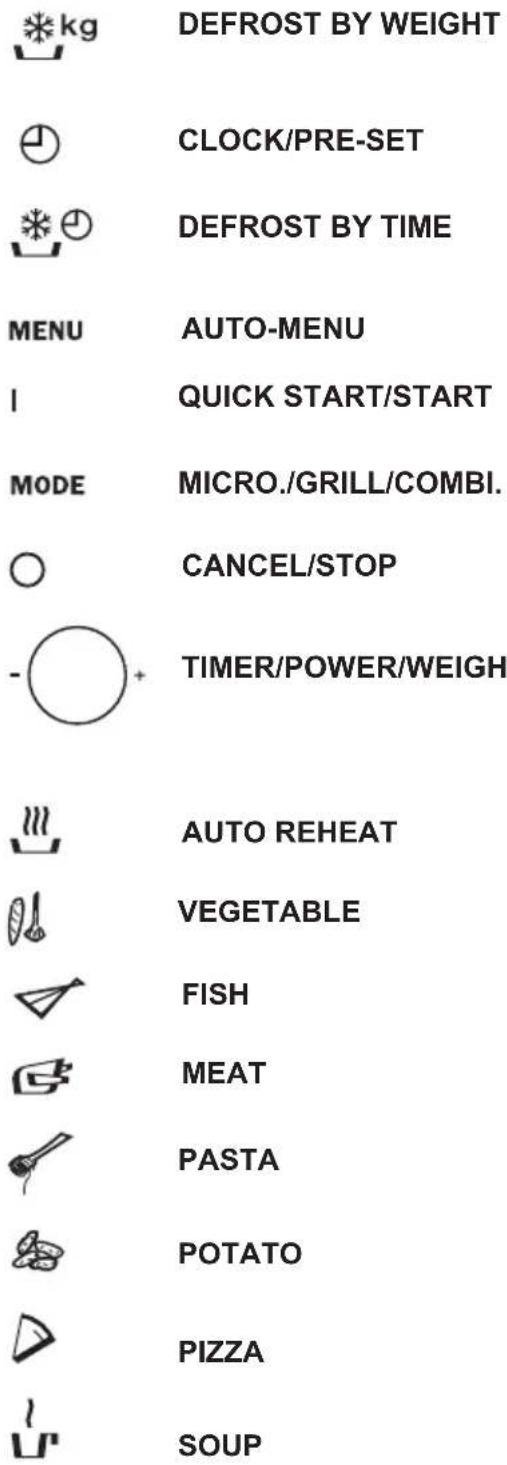

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press " ☑ the hour figures will flash, and the indicator for clock " ☐ " will light.

2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.

3) Press " ", the minute figures will flash.

4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.

5) Press " 🔍 " to finish clock setting. The indicator for clock " 🔍 " will go out, ":" will flash, and the time will light.

2. Cooking food

Press "MODE" and turn "[icon]" to select the function you want. Press "MODE" and turn "[icon]" to select the cooking time. Press "I" to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "MODE", the screen displays "P100".

2) Turn "🔥" to adjust 80% microwave power until the oven displays "P 80".

3) Press "MODE" to confirm, the screen displays "P 80".

4) Turn "🔍" to adjust the cooking time until the oven displays "20:00".

5) Press "I" to start cooking or press "O" to cancel the settings.

Note: the step quantities for the adjustment time of the coding switch are as follows:

Order	LED Display	Microwave Power	Grill Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%
6	G	0%	100%
7	C-1	55%	45%
8	C-2	36%	64%

Note: If half the grill time passes, the oven should pause and sound twice, and this is normal. You can just press "I" to continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press "I" to continue cooking. If there is no operation in 1 minute, the oven will work automatically and sound once.

3. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Three stage power levels can be set at most. Defrost should always be set as the first stage, if it is included in the multi-level program.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

a. Press "MODE", the screen displays "P100". b. Turn "🔥" to adjust 80% microwave power until the oven displays "P 80". c. Press "MODE" to confirm, the screen displays "P 80". d. Turn "[icon]" to adjust the cooking time until the oven displays "20:00". Be careful not to press "I" to start cooking.

3) Press " ", the hour figures will flash, and the indicator " " will light. 4) Turn "🔥" to adjust the hour figures, the input time should be within 0--23. 5) Press "💡", the minute figures will flash.

6) Turn "🔍" to adjust the minute figures, the input time should be within 0--59.

7) Press "|" to finish setting.

4. Start/Quick Start "|"

When the oven is in the waiting state, press "|" to start cooking with full microwave power for 1 minute. Each press will increase one minute. The maximum cooking time is 95 minutes.

1. Defrost By W.T. *kg

1) Press "kg" button. LED will display "dEF1".

2) Turn "🔥" to select the weight.

3) Press "|" to start defrosting.

1. Defrost By Time

1) Press "*⊕" button. LED will display "dEF2".

2) Turn "🔍" to select the cooking time.

3) Press "|" to start defrosting food.

7. Inquiring Function

(1) In cooking state, press "MODE", the current power will be displayed for 4 seconds. After 4 seconds, the oven will turn back to the former state;

(2) In cooking state, press "💡" to inquire the time and the time will flash in the LED for 4 seconds.

8. Multi-section cooking

At most 3 sections can be input for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Note: Auto cooking cannot work in the multi-section cooking.

Example: If you want to use "20 minutes of 100% microwave power + 5 minutes of 80% microwave power" to cook.

1) Press "MODE" pad, the screen display "P100".

2) Press "MODE" to select 100% microwave power.

3) Turn " " to select cooking time.

4) Press "MODE" pad, the screen display "P100".

5) Turn " " to select 80% microwave power.

6) Press "MODE" pad, then turn " " to select cooking time of 80% microwave power.

7) Press " | " to start cooking or press "O" to cancel the setting. The unit will turn back to the clock state.

9. Auto Menu MENU

Example: If you want to use "Auto Menu" to cook fish of 250g.

1) Press "MENU" the oven display "A-1".

2) Turn " " to select the function you want.

3) Press "MENU" button to confirm.

4) Turn " " to select weight of fish. "g" will light.

5) Press " | " to start. "g" will go out.

10. Lock-out Function for Children

Lock: In waiting state, press " ○" for 3 seconds, there will be a long beep denoting entering into the children-lock state and LED will display "

Lock quitting: In locked state, press "○" for 3 seconds, there will be a long "beep" denoting that the lock is released.

The automatic menu procedure:

Menu		Weight	Display
A-1		200 g	200
		400 g	400
Auto Reheat		600 g	600
A-2		200 g	200
		300 g	300
Vegetable		400 g	400
A-3		250 g	250
		350 g	350
Fish		450 g	450
A-4		250 g	250
		350 g	350
Meat		450 g	450
A-5		50 g(with water 450g)	50
		100 g(with water 800g)	100
A-6		200 g	200
		400 g	400
Potato		600 g	600
A-7		200 g	200
		400 g	400
A-8		200 ml	200
		400 ml	400

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

COUNTRY CITY COMPANY CC TELEPHONE FAX

Australia Victoria TEKA AUSTRALIA Pty. Ltd. 61 3 9550 6100 3 9550 6150

Austria Wien KÜPPERSBUSCH GesmbH 43 1 866 800 1 866 8082

Belgium Zellik B.V.B.A. KÜPPERSBUSCH S.P.R.L. 32 2 466 8740 2 466 7687

Bulgaria Sofia TEKA BULGARIA EOOD.

359 2 9768 330 2 9768 332

Chile	Santiago de Chile	TEKA CHILE, S.A.	56	2 4386 000	2 4386 097
China (Pop. Rep.)	Shanghai	TEKA INTERNATIONAL TRADING (Shanghai)	86	21 511 688 41	21 511 688 44
Czech Republic	Libeň	TEKA CZ S.R.O.	420	2 84 691940	2 84 691923
Ecuador	Guayaquil	TEKA ECUADOR, S.A.	593	4 2251174	342 250 693
France	Cergy Pontoise	TEKA FRANCE S.A.S.	33	1 343 01597	1 343 01598
Germany	Haiger	TEKA KÜCHENTECHNIK GmbH	49	27718141-0	771 814 110
Greece	Athens	TEKA HELLAS A.E.	30	210 9760283	210 9712725
Hungary	Budapest	TEKA HUNGARY KFT	36	1 3542110	1 3542115
Indonesia	Jakarta	PT TEKA BUANA	62	21 390 5274	21 390 5279
Italy	Frosinone	TEKA ITALIA S.P.A.	39	0775 898271	0775 294681
Korea (Rep. South)	Seoul	TEKA KOREA CO. LTD.	82	2 599 4444	222 345 668
Malaysia	Selangor Darul Ehsan	TEKA KÜCHENTECHNIK (MALAYSIA) SDN.	60	3 7620 1600	3 7620 1626
Mexico	Mexico D.F.	TEKA MEXICANA S.A. de C.V.	52	555 133 0493	55 5762 0517
Pakistan	Lahore	KÜPPERSBUSCH-TEKA PAKISTAN Pvt. Ltd.	92	42 631 2182	42 631 2183
Poland	Pruszków	TEKA POLSKA SP. ZO.O.	48	22 7383270	22 7383278
Portugal	Ílhavo	TEKA PORTUGAL, S.A.	351	234 329 500	234 325 457
Russia	Moscow	TEKA RUS LLC	7	095 737 4690	095 737 4689
Singapore	Singapore	TEKA SINGAPORE PTE. LTD.	65	67342415	67346881
Spain	Santander	TEKA INDUSTRIAL, S.A.	34	942 355050	942 324499
Thailand	Bangkok	TEKA (THAILAND) CO. LTD.	66	2 6933237	2 6933242
Turkey	Istanbul	TEKA TEKNIK MUTFAK	90	212 288 3134	212 274 56 86
Ukraine	Kiev	TEKA UA	380	44 272 33 90	44 279 58 54
United Arab Emirates	Dubai	TEKA KÜCHENTECHNIK MIDDLE EAST FZE	971	4 887 2912	4 887 2913
United Kingdom	Milton Abingdon	TEKA PRODUCTS LTD.	44	1235 861916	1235 835107
USA	Tampa	TEKA USA, INC.	1	813 2888820	813 2888604
Venezuela	Caracas	TEKA ANDINA, S.A.	58	2 1229 12821	2 1229 12825

Teka Industrial S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: 34 - 942 355050

Fax: 34 - 942 347694

http://www.teka.es

35708 Haiger (Germany)

Tel.: 49 - 2771 8141 0

Fax: 49 - 2771 8141 10

http://www.teka.com
