Product Type	Electric Kettle
Brand	Zelmer
Model	ZCK0273S
Capacity	1.7 liters
Power Consumption	Approx. 2300 W (230 V × 10 A)
Voltage	220–240 V AC
Frequency	50/60 Hz
Material	Plastic body, stainless steel heating element
Filter	Removable anti-deposit filter
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, thermal device automatically switches off
Safety Features	Automatic shut-off, boil-dry protection, grounded plug
Dimensions (approx.)	22 cm height, 15 cm diameter (estimated)
Weight (approx.)	0.9 kg (estimated)
Cord Length	Adjustable via cord storage under base
Base Type	360° swivel base with cord storage
Water Level Indicator	Yes, transparent window with min/max marks
Lid Type	Push-button opening
Control Light	Yes, illuminates during operation
Cleaning	Wipe with damp cloth; descale with vinegar
Intended Use	Domestic use only; not for commercial

Frequently Asked Questions - ZCK0273S Zelmer

How do I clean the kettle?

Unplug the kettle and let it cool. Remove the filter and wash it under running water. Wipe the exterior with a soft cloth moistened with mild detergent. Rinse the interior with fresh water. For descaling, use 6% or 10% vinegar: boil 0.5 L of vinegar in the kettle, leave for 30 minutes, rinse thoroughly, then boil fresh water and discard.

Why does the kettle turn off before boiling?

This may be due to scale buildup on the heating element. Perform a descaling procedure as described in the manual. Also ensure the kettle is not overfilled or underfilled, and that the lid is properly closed. If the problem persists, the thermal safety device may have activated due to dry boiling.

Can I open the lid while the kettle is boiling?

No, do not open the lid during boiling. The automatic shut-off will not work if the lid is open, and hot steam may escape causing burns. Wait until the kettle has finished boiling and the heating element has cooled.

What is the maximum water level?

The maximum water level is indicated by the 'max' mark on the water level indicator. Do not fill beyond this mark, as water may splash out during boiling. Also avoid filling below the minimum level to prevent dry boiling.

How do I replace the anti-deposit filter?

Open the lid, then remove the filter by pulling it out. To install a new one, insert it into the slot until it clicks into place. The filter should be cleaned regularly and replaced if damaged. Refer to the manual for specific instructions.

Can I use the kettle for heating other liquids?

No, this kettle is designed for boiling water only. Using it for milk, oil, or other liquids may damage the appliance and void the warranty.

What should I do if the kettle does not turn on?

Check that the power cord is firmly plugged into the base and the wall socket. Ensure the kettle is properly seated on the base. Press the on/off switch firmly. If still not working, check the circuit breaker or try a different socket. If the problem persists, contact qualified service.

Is the kettle safe for children?

Children should be supervised and not allowed to operate the kettle. The kettle becomes hot during use, and steam can cause burns. Keep the kettle and cord out of reach of children.

How do I descale the kettle?

Use a solution of 6% or 10% vinegar. Fill the kettle with 0.5 L of vinegar, boil it, and let it sit for 30 minutes. Pour out the vinegar, rinse thoroughly with fresh water, then boil clean water and discard. Repeat if necessary. Regular descaling prolongs the kettle's life.

Can I use an extension cord?

It is recommended to plug the kettle directly into a wall socket. If an extension cord is necessary, ensure it has a grounding pin and can handle the kettle's power draw (10 A). Avoid using a damaged cord.

USER MANUAL ZCK0273S Zelmer

White water heater with blue interior, accompanied by a white cup of tea and bread slices (no visible text or symbols)

PL	NISTROKIA JPYTRATANA CZAJNIK ELEKTRYCZNY Typ 172314	4-5
CZ	MÁVOD K PUDJI ELEKTRICKÁ KONVICE Typ 172314	7-9
EA	MÁVOD NA OBSOLU ELEKTRICKÁ KANICA Typ 172314	10-12
FA	HASZVALATIUS TÁS ELEKTROMOS VÍZFORRALÓ 172314 Typs	12-10

m = 311

2.3

单位：元

(1)

2、工作负责人

[Unreadable]

请确认。

[Unreadable]

m = 311

2014年

m = 311

2016

The image is too blurry to recognize any text content.

(1)

zelmer

www.cfmet.pl

www.zelmer.com

A

B

C

PL

Szanowni Kliend!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Safety precautions and instructions on the proper use of the electric kettle

Always abide by the following basic safety measures during the operation of the electric appliance:

Danger! / Warning! Health hazard

Special attention is necessary when the kettle is used in the presence of children.

Do not operate the appliance if the power cord is damaged or the kettle body is visibly damaged.

the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

Only qualified staff may make repairs of the appliance. A wrongly done repair my cause a serious threat to the user. It may also result in a cancellation of the warranty. In case any defects occur, we recommend that you take the appliance to a specialist service point.

Do not touch the main body of the kettle when water is boiling – use only the handle to move it.

Do not fill the kettle beyond the maximum fill indicator „max“ – water might spatter out of the kettle.

Be careful not to wet the plug of the connecting cord.

Mind the steam coming out of the kettle while water is boiling.

Allow the kettle to cool completely before cleaning it.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Caution! Not observance can result in damage to possessions

Plug the kettle into a 220÷240 V alternating current socket equipped with an earth pin only.

Place the kettle on a stable, even and flat surface; the

connecting cord may not hang over the edge of the surface on which the kettle is placed.

Do not remove the plug from the outlet by pulling by the cord.

The kettle can only be operated with the original power base, each base is type-specific.

Use the kettle for boiling water only.

Do not open the lid immediately after water has boiled – steam might condense and appear on the exterior of the kettle.

Do not place the kettle on or near hot objects.

Do not immerse the kettle or the power base in water when filling or washing the electric kettle.

the event that water gets into the inside electric elements of the kettle, or onto the power base, carefully dry these elements before plugging the kettle into the mains.

Do not operate the kettle when empty.

Do not use the kettle with the lid open – the automatic shut off will not work then.

Do not use any abrasive cleaning agents such as emulsions, creams, pastes, etc for cleaning the kettle body. They might remove graphic information symbols such as: scales, marks, warning signs, etc.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

stion Information on the product and suggestions for its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

Do not use the kettle without a filter.

The kettle type covered by this user's manual brings water to boil very quickly and draws up to 10 A of current from the mains.

Check that the mains fuses used can cope with this level of power consumption. While boiling water, unplug all other appliances from this circuit.

Technical data

The technical parameters are given on the data plate of the product.

1.7 liter capacity.

Zelmer electric kettles are built in I class insulation and they are equipped with supplying cord with grounding wire and grounding plug.

The ZELMER kettle meets the requirements of the standards in force.

The appliance is compliant with the requirements of the following directives:

The Low Voltage Directive (LVD) - 2006/95/EC. -

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with a CE Mark on the data plate.

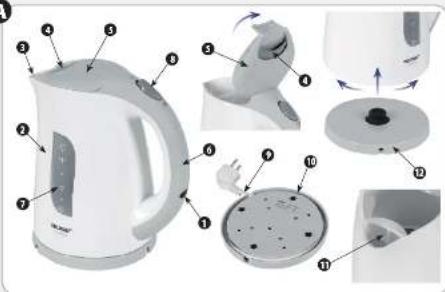

Structure of the kettle (Fig. A)

1 Control light
2 Kettle body
3 Spout
4 Lid release button
5 Lid
6 Handle
7 Water level indicator
8 On/Off (I-0) switch
9 Supplying cord
11 Anti-deposit filter
12 Base

10 Storage space for the connecting cord

Preparation of the electric kettle for operation

before the first use, wash the kettle (for washing instructions see "Cleaning maintenance"), fill it with water up to the "max" level, and let it boil four times (use fresh water each time) and wash again.

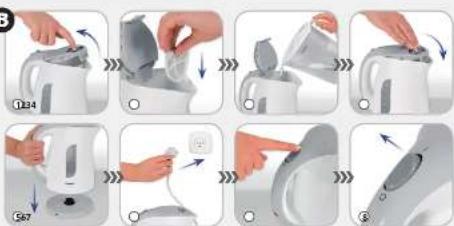

Operating instructions of the electric kettle (Fig. B)

① Press the lid button (4) – the kettle lid will open.
② Place the filter (11) in the kettle – if it was taken out before.
③ Fill the kettle up with the desired amount of water (the level is visible on the indicator (7)).

not boil the water if it is below the minimum level or beyond the maximum level indicator (7).

④ Close the lid.
⑤ Place the kettle on the power base (12).
⑥ Put the plug of the connecting cord into a mains socket with an earth pin – the upper part of the kettle body will light up.
⑦ Turn on the kettle by pressing the switch button into position I – the indicator light will come on.
⑧ The kettle switches off automatically when the water has reached the boiling point, the lever switch returns to its starting position – the light comes off.

If further use of the kettle is anticipated, it is not necessary to remove the plug of the connecting cord from the power socket.

careful not to fill up with water beyond the nominal capacity when pouring water into the kettle.

The rising of the water level in the kettle is delayed in relation to the speed of pouring the water. It is caused by the filter slowing down the speed of the flow. This can be prevented by pouring the last portions of water extremely carefully before the water reaches the maximum level on the indicator.

In the event that an empty kettle is switched on, it will be switched off by a thermal device automatically.

In order to switch the kettle on again after it has cooled down (approx. 15 minutes), take it off the base, replace it and switch the kettle on by pressing the lever (8). The cooling down of the kettle can be accelerated by puring cold water into the kettle.

Cleaning and maintenance (Fig. C)

ways clean a cold kettle!

① Remove the plug of the connecting cord from the power socket.
inside Take out the filter (11).
③and clean the outside surfaces with a soft cloth moistened with washing-up liquid.

In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a cloth moistened with vinegar.

④ Rinse the kettle with fresh water.

Filter replacement – descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. 6% or 10% vinegar is used for this purpose.

• Open the lid (4).
  Take out the filter (12).
• Wash the filter under running water.
  on Pthe in 0.5 l of vinegar and switch on the kettle (8).
• Boil the vinegar and leave in the kettle for about 30 minutes.
• Pour the vinegar out and rinse the kettle with fresh water.
• Fill the kettle up with fresh water, boil the water and pour it out after is has boiled.
• Repeat the above procedure if there still is scale on the bottom.
• When the procedure is finished, replace the filter (11) in the kettle, following the procedure of taking the filter out in reverse order.

gligence in descaling the kettle may results in its damage.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives or due to construction, trade, aesthetic or other reasons, without notifying in advance.
