Product Type	Portable Radio with Alarm Clock
Brand	Blaupunkt
Model	PP20PK
Power Supply	Built-in 3.7V/1000mAh rechargeable lithium battery; also via USB DC 5V power adaptor
Battery Playback Time	Approximately 4 hours
Charging Time	4-6 hours
Connectivity	FM radio, Bluetooth, AUX-in, USB, SD card, micro SD card
Output Power	RMS 3.5W
Signal-to-Noise Ratio	≥70 dBA
Distortion	≤0.5%
Frequency Response	120 Hz - 20 kHz
Speaker	3-inch full range, 2 ohms
FM Frequency Range	87.5 - 108 MHz
Preset Stations (FM)	Up to 40
Supported Audio Formats	MP3 (up to 320 kbps), WMA (up to 192 kbps)
USB/SD Card Max Capacity	32 GB
Alarm Function	4 programmable alarms with snooze; can wake to FM radio or buzzer
Sleep Timer	Off/15/30/60/90/120 minutes
Display	LCD screen showing clock, calendar, FM frequency, etc.
Remote Control	Included
Operating Temperature	-10°C to 50°C (storage: -20°C to 70°C)
Standby Power Consumption	< 0.5 W
Dimensions (approximate)	Not specified; typical portable radio size
Weight	Not specified

Frequently Asked Questions - PP20PK BLAUPUNKT

How do I turn on the Blaupunkt PP20PK?

Press and hold the power button (⏻) on the front panel for about 1 second. The display will light up.

How do I charge the battery?

Use the supplied USB cable to connect the DC 5V socket on the rear panel to a USB power adaptor. The red LED indicator on the rear will turn on during charging and off when fully charged (4-6 hours). You can also play music while charging.

How do I set the clock and calendar?

With the unit on, press and hold the CLOCK button for about 2 seconds. The year will flash; turn the time adjustment knob to set the year, then press CLOCK again to set month, day, hour, and minute. After 10 seconds of inactivity, the settings are saved automatically.

How do I use the FM radio?

Press MODE to switch to FM mode. Extend the FM antenna. Press and hold the ▶ button for auto scan and save stations. Or manually tune by turning the time adjustment knob. Up to 40 stations can be preset.

How do I pair Bluetooth?

Switch to Bluetooth mode by pressing MODE. The display shows 'BLUE' and a pairing sound. On your phone/tablet, search for available Bluetooth devices and select 'BLAUPUNKT PP20'. If prompted for a PIN, enter '0000'. A confirmation sound indicates successful pairing.

How do I set an alarm?

Press and hold MODE for about 2 seconds to enter alarm setting. Turn the time adjustment knob to select alarm 1-4, then press ▶ to set hour and minute. After setting, the alarm icon will light up. You can set the alarm to wake you with FM radio or buzzer.

Can I play music from a USB drive or SD card?

Yes. Insert a USB drive or SD card (max 32GB) into the respective slot on the rear panel. Then press MODE to switch to USB or SD mode. The unit will automatically play MP3/WMA files from the inserted media.

How do I use the AUX input?

Connect an external audio device to the AUX IN jack on the rear panel using a 3.5mm audio cable. The unit will automatically switch to AUX mode and play audio from the connected device.

What should I do if the battery runs low?

When the battery is too low, the unit will beep three times and turn off automatically. Connect the USB power cable to recharge. It is recommended to charge for at least 10 hours for the first time.

How do I reset the unit?

If the unit freezes due to electrostatic discharge, switch it off and on again, or move it to another location. Removing the battery for more than 60 seconds will reset all settings to factory defaults.

USER MANUAL PP20PK BLAUPUNKT

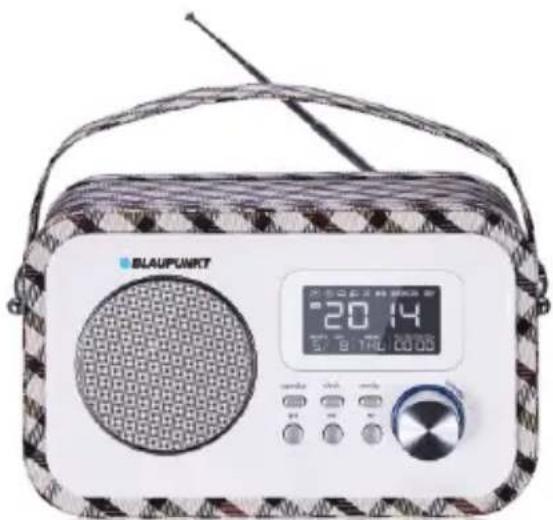

Blue and white portable radio with a digital display, antenna, and speaker grille (no visible text or symbols on device body)

Digital radio with worn case and patterned cover, no visible text or symbols on device body

PP20 PP25

Enjoy it.

IMPORTANT SAFETY INSTRUCTIONS

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.
- The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
- Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
• Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
- Before turning on the power for the first time, make sure the power adaptor is properly connected.
- Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel. Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.

8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.

9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.

10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.

11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.

15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

17. Moving the product - A product and cart combination should be moved with care.

Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

1. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.

2. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

3. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.

4. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

5. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating.

6. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.

7. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.

8. Try to install the product near a wall socket or extension cord and shall be easily accessible.

9. The highest environmental temperature suitable for this product is 35^ C.

10. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

28. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and – as marked on the apparatus.

- Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.

6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.

7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.

9. Do not place this unit close to a strong magnetic field.

10. Do not place the unit on a amplifier or receiver.

11. Do not place this unit in a damp area as the moisture will affect the life of electric components.

12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.

15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen.

16. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.

17. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

18. To prevent possible hearing damage, do not listen at high volume levels for long periods.

NOTICE

This product complies with the radio interference requirements of the European community.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and polyethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Thank you to purchase our mini audio system. Please read the operation manual carefully before you enjoy the music. This unit has built in 3.7V/1000 mAh lithium battery for playback, and has 6 keys standby, clock, mode, ▶||, ◀◀, ▶▶, and volume and time. Detail please reference below.

PRODUCT PICTURES

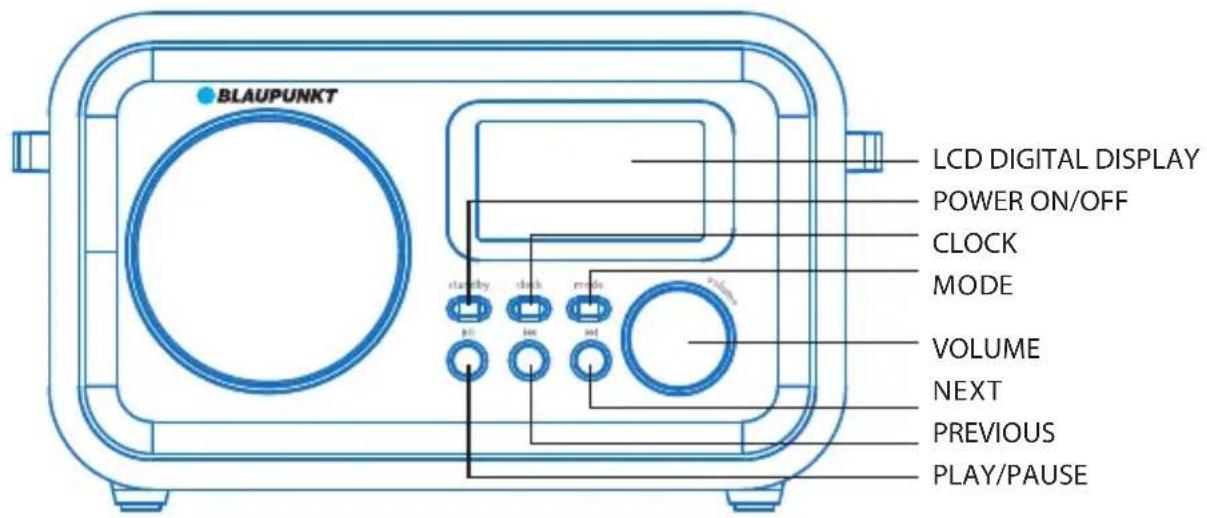

Pp20 — FRONT VIEW

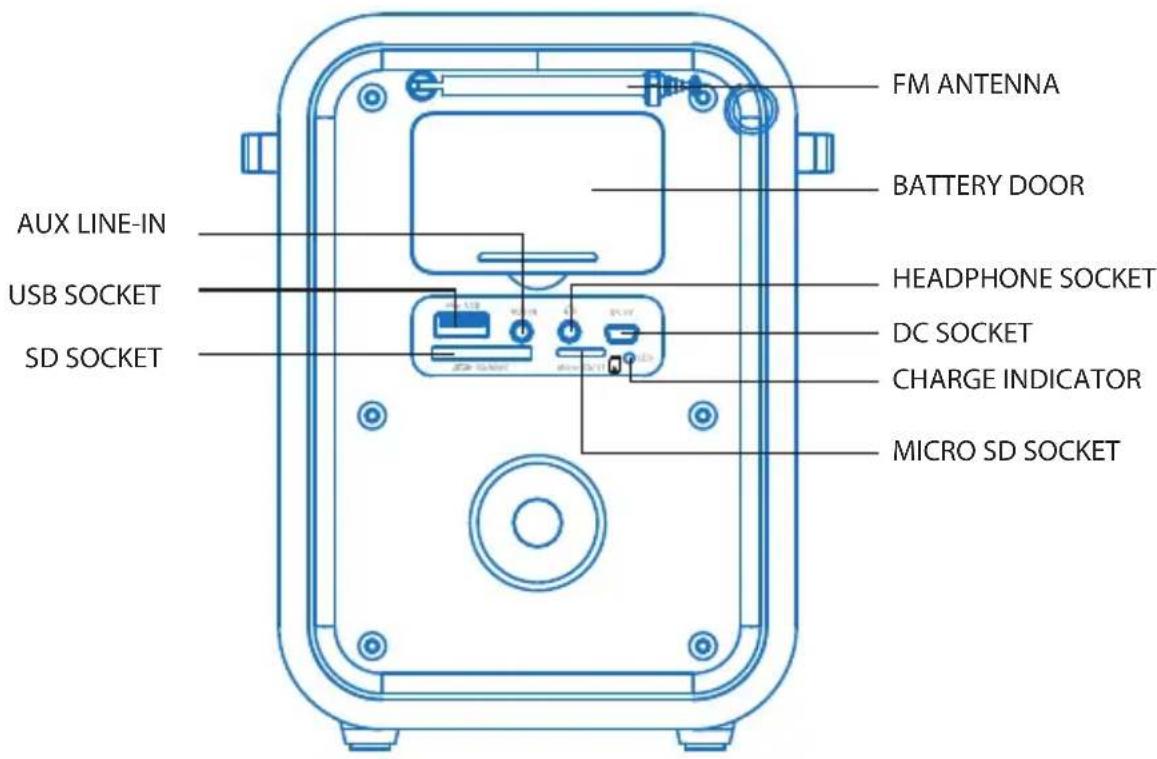

PP20 BLACK VIEW

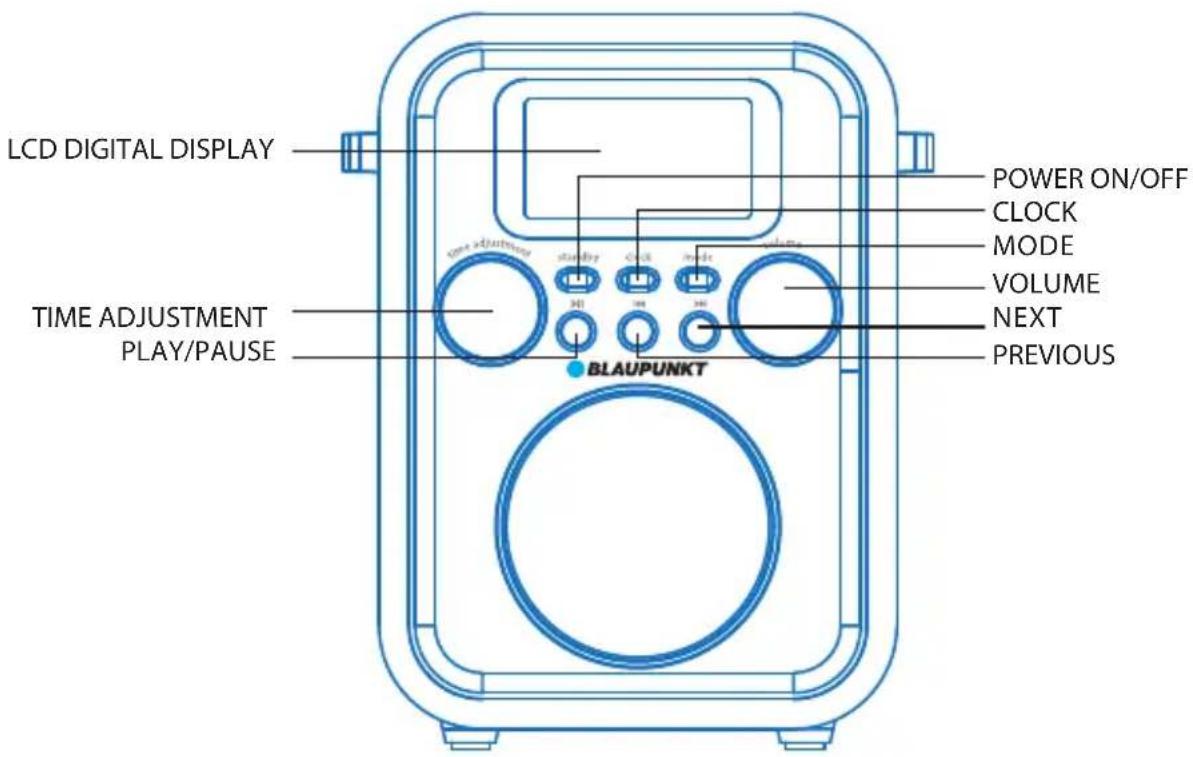

PP25- FRONT VIEW

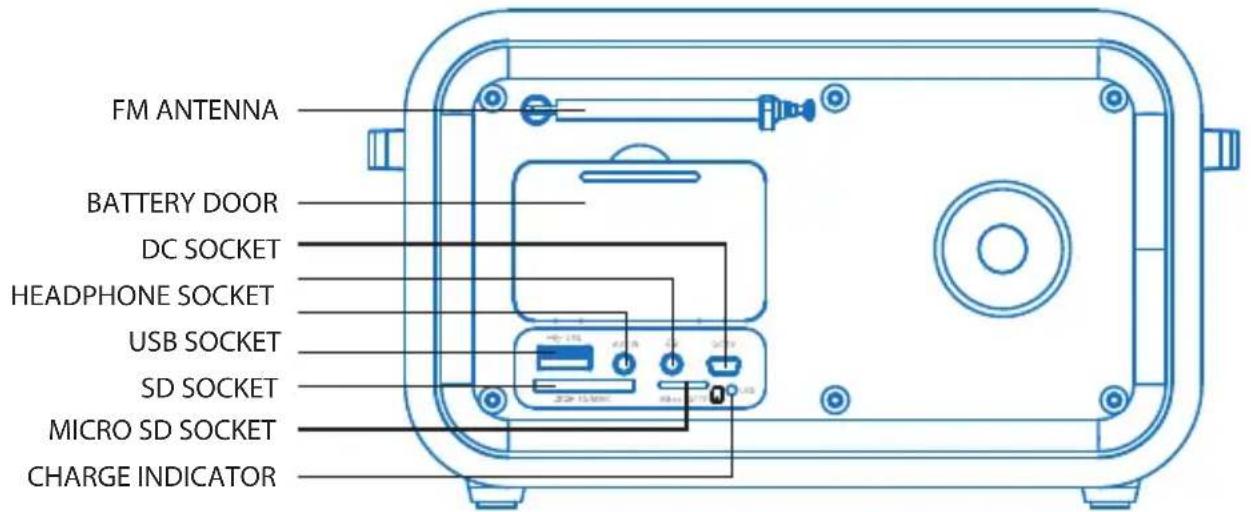

PP25- BACK VIEW

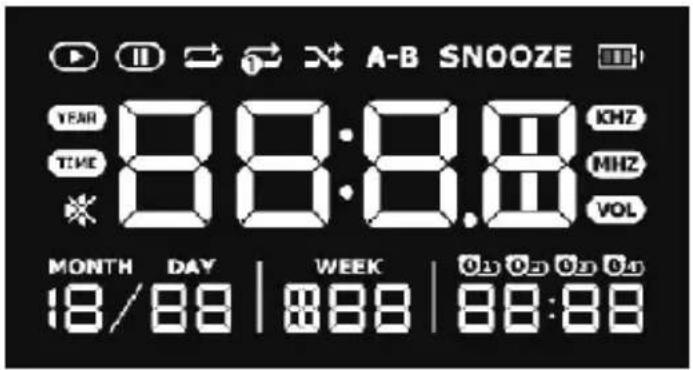

Display

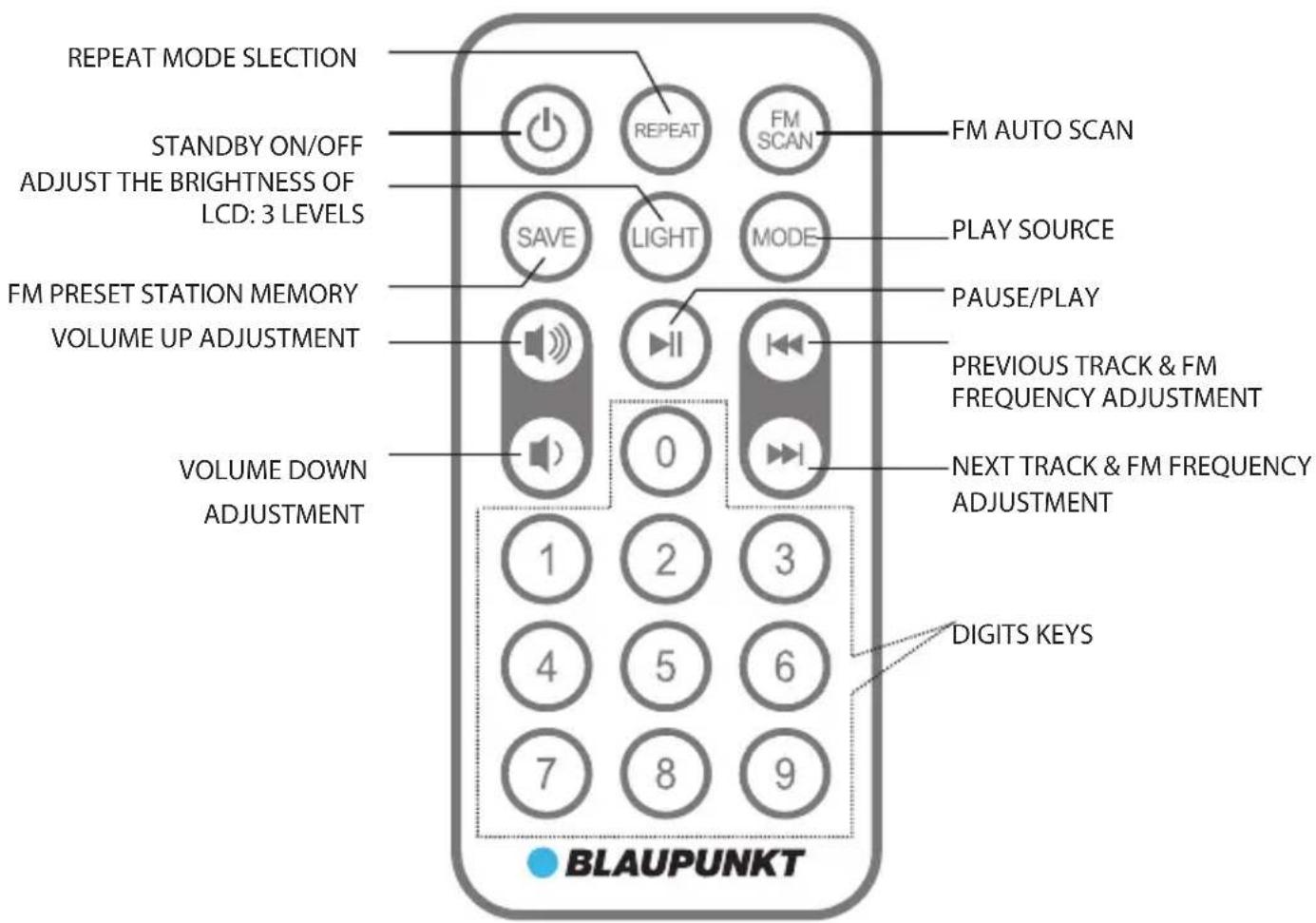

Remot control

Power setting and battery charging

Before play the speaker, please follow up below step to mount the battery and charge in order to give power. The unit has built-in re-chargeable battery inside.

1. Open the battery cover on the rear side of unit and mount the supplied 3.7V, 1000mAh lithium-ion rechargeable battery direct with voltage minus and plus polarity correctly, then close the battery cover.
2. Using the supplied USB cable to connect the DC 5V socket on the rear panel, and another terminal connect with supplied USB DC power adaptor. Then plus on the DC power adaptor with AC power source.
3. During the charging, the rear panel red LED indicator will turn on, and will off after be fully charged (4\~6 hours charging time).
4. During the battery power playback mode, the unit will stop and display off if the power is too low. And a buzz sound will ring up 3 times and power off. Please connect power for re-charging and playing.

Notes:

a. Your battery will last longer if you following these simple guidelines for charging and storing.
b. For charging first time, charge it at least 10 hours.
c. Recharge and store the unit within the temperature range of 5°C\~35°C (40°F\~95°F).
d. Do not charge (longer than 24 hours). Excessive charging or discharging may shorten the battery's life.
e. Battery life naturally shortens slowly over time.
f. During charging, you can play the music at the same time.
g. Please don't use it under the high humidity and temperature environment for long time.
h. Please turn off the speaker if long time not to use.

Important:

We do not recommend take out the battery and play music base on USB power connection directly. Because there may produce some unexpected audio noise.

Power on and play

After charging, press and hold the button 1 second to turn on the unit. Then the display will light on as below picture. Press ▶ button to start the sound output. Press mode button to switch play mode (FM,Bluetooth, USB, SD card, aux in).

Notes:

The ⏻ button will cut off the unit power totally; the power button in remote control is for unit standby function. That you cannot power on the unit from remote control in case of you switch off the unit by press the power button on front panel.

Calendar and clock setting

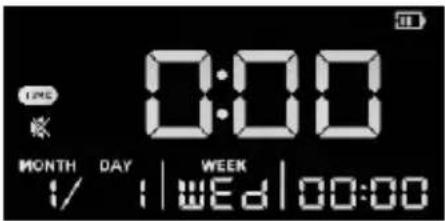

After the unit power on, the display will show as below picture.

1. Default information

The default time setting is 00:00; and the calendar is Wednesday January 1st 2014; volume level: 18; none alarm setting is available.

Warning: If you remove the battery over 60 seconds, the product will return to default setting. To avoid all setting will be lost, please connect with USB power sourcing when you replace the battery.

Attention: On the following operation description, "press longer time" means press and hold for 2-3 seconds, "short pressing" means pressing fast and only 0.5 seconds.

2. Calendar/clock and sleep time setting

In power on mode, press and hold clock button about 2 seconds to set up year first; the symbol of "year" will flare on display; turn the knob time adjustment clockwise or counterclockwise to increase or decrease years. After setting, press to set month same as for years, then set up day and week, hour, and minute in the last (the weekday will update accordingly while you adjust the date). After setting, press to confirm the set time. If no operation last 10 seconds, then time setting will exist and save automatically.

After the minute setting, then press ▶to set sleep time. Total 6 options: OFF/15 /30/60/90/120. And turn the knob time adjustment clockwise or counterclockwise for selection. Press ▶llbutton to confirm the setting.

For example, if you set up sleep time 15 minutes, then the unit will off after 15 minutes. You need press ⏻ button about one second to power on again, and sleep mode will quit.

3. Alarm/snooze operation

Alarm time setting: Press mode button and hold about 2 seconds to wake up the alarm time setting ; turn the knob time adjustment clockwise or counterclockwise to select alarm from ① to ④or from ④to ①when turn to the alarm ①the icon ②will flare; Press ➤ button to start set up the alarm time for alarm ① ; turn the knob time adjustment clockwise or counterclockwise to increase or decrease hour digits on display , then press ➤button skip to minutes setting, and turn the time adjustment knob for selection; press ➤ button to confirm the set time for alarm ①, and the unit will return to the time mode, the icon ⑥1) will light up on display steadily which means alarm ① has been set up successfully. Please follow up the same step to set up other 3 alarms.

Alarm cancel: If you want to cancel some set alarm, press modebutton and turn time adjustment knob to select the desired alarm, press ▶ button one time, then the selected alarm will be cancelled. Press and hold will cancel all set up alarms. It will exist from setting alarm if no further operation over 10 seconds.

Radio wake up: at FM radio mode, press "0" and hold 2 seconds on the remote control, "ON" will show on display, then the current FM station will be set up as the alarm source; repress "0" and hold 2 seconds on the remote control, then "OFF" will display, then the FM station alarm source will be cancelled, and switch "buzz" alarm source.

Snooze: When the alarm is activated, the alarming icon will flare and buzz up 1 minute if

there is no further operation; then the unit will enter to snooze mode automatically, and ring up again after 5 minutes; the snooze time will repeat 2 times. The alarm icon will stop flare after that. You can press any more key except ☐ cancel the alarm and snooze. Please kindly note when the alarm is activated, the playback output will stop and resume till alarm completed.

Important: for our model PP25, you can turn the volume knob instead of time adjustment knob to achieve the setting operation. The other is same as Pp20.

FM RADIO

Before to do the FM reception, please extent the telescope FM antenna as long as it can be. Please place the unit next to window for better reception. If the FM reception is not good, please try to move other place for reception.

1. If there did not plug on USB, SD or TF card into product, press button shortly to enter FM radio mode, or press mode button switch to FM mode. In FM mode, you can press clock key to switch display interface between FM radio and clock.
2. Press ▶ button longer time will start to auto scan and save the station automatically. Repress ▶ button shortly, auto-scan will stop. The first scanned station will be displayed and saved as P01, the unit can save and preset 40 stations maximum.

Important: For PP25, you can press down the volume knob shortly to achieve the FM auto scan and save function, and short press to stop the function.

1. Press button shortly to get previous preset station, press button longer time to start backward auto scan; Short press button to get the next preset station, press button longer time to forward auto scan; press shortly to be mute the sound output; turn volume knob to adjust the volume output.

2. In FM mode, turn the time adjustment knob to clockwise or counterclockwise will increase or decrease the FM frequency in 0.1MHz.

Important: for PP25, you can press and hold the volume knob 2 seconds, then turn the knob to clockwise or count -clockwise in order to increase or decrease the FM frequency in 0.1 MHz; press and hold the volume knob 2 seconds again will resume to volume adjustment function.

1. FM operation via remote control.

Press FM SCAN button shortly to start auto scan and station preset function automatically, repress it shortly to stop auto scan and play first preset station; press button shortly to decrease FM frequency by 0.1MHz each step, press button longer time to auto scan backward and stop till get the available station; press button shortly to increase FM frequency by 0.1MHz each step, press button longer time to start auto scan forward, and stop till get the available station; press the key SAVE to save the auto scanned stations, the scanned station will be saved as P01, the 2nd P02,… … till the last P40. Max 40 stations to be saved. Each new saved station will cover the previous saved stations.

Inputting 1 or 2 digits from the remote control's digits button part can get and play the preset stations. For example, there have 20 preset station ready in unit, if press 1 and 5 number from remote control, 0015 will display, then the unit will switch to "P15" preset

station and play. If you also input 3 digits or 4 digits from remote control, the unit will play and get the correspondence FM frequency stations between 87.5-108MHz. For example, if you input 1043 from remote control, then 1043 will show on display and play FM station frequency at 104.3MHz.

Press 📋 to increase the volume, press 📋 to decrease the volume.

Bluetooth operation.

1. Power on the unit, short press the ▶ button for sound output; then short press mode button switch to "Bluetooth" mode, the "BLUE" will show on LCD screen and come along with one notice sound, then the unit is ready to pair with other Bluetooth device.

2. Activate the Bluetooth function on your device in order to start Bluetooth scanning and pairing. Check the available Bluetooth device list and select "BLAUPUNKT PP20", input "0000" in case of POP screen request. When there have a short sound notice sound come out from speaker, that is mean the unit has paired with your Bluetooth device already. If you switch off the Bluetooth function on your Bluetooth device, there will have two short notice sounds come out from speaker which means the Bluetooth is disconnect with speaker.

3. Select the music and play on your Bluetooth device, then the speaker will wireless play the music via Bluetooth. In Bluetooth mode, you can get play/pause, press/next operation by ▶// ▶◀/ ▶▶ key from remote control or front panel.

Important: The Bluetooth operation for PP25 is same, just the pairing name is "BLAUPUNKT Pp25".

USB/SD/micro SD card playback operation

Before start the USB/SD/micro SD card playback operation, please insert the USB/SD/micro SD card into the relative slot on the rear panel first, the unit only can detect and playback the USB/SD card when there have available device in the slot. Please do not insert the SD and micro SD card at the same time. Only available play either SD card or micro SD in one time.

Power on the unit, short press ▶ button and press mode button switch to USB or SD mode; the unit will read out MP3 music from USB/SD device and play start from first song automatically. While the USB or SD model is playing, short press button for play/pause control; short press ◀ or ▶ button for previous or next track selection; press and hold ◀ or ▶ button for fast backward or forward selection and resume play after release the ◀ or ▶ button.

Notes:

a. Please do not use any extent USB cable for connection and playing, because that will impact signal transfer from device, an intermittent sound will happen.
b. The unit support MP3 320 kbps and WMA 192kbps, Support USB card, SD card, and TF

card, max capacity 32GB.

c. Short press the REPEAT button from remote control to choose repeat mode: repeat one track repeat all and random play ✗.

d. Long press REPEAT button from remote control to start selected music repeat playing operation, the "P-A" will show on display; at this time the unit will start to memory the playing music; long press the 【REPEAT】 button again, the "P---b" will show on display; at this time the music memory function will stop. And the unit will repeat play the saved music from start.

For example, when play music at 00:10, long press the REPEAT; while the music is playing to time 00:50, long press REPEAT button again; then the unit will repeat play the music from time 00:10 to

0:50 (40 minutes); if want to cancel the repeat function, long press the REPEAT button again; The "P---E" will show on display, then the repeat operation is cancelled.

e. Fast selection: press digits 0-9 key from remote control to choose song, input 2 digits if there have saved over 10 tracks in the device; input 3 digits if there have saved over 100 tracks in the device. For example, if you want enjoy the number 105 song, please press 1, 0, and 5 from remote control, then 0105 will display and play.

AUX IN and headphone

Using the supplied 3.5mm audio cable plug into the AUX IN jack on rear panel, and the other terminal connect to other relative audio palyer. Power on the unit, and press

▶ button; the unit will switch to AUX mode automatically. Select the music from your player device and play. The sound will output from the speaker. You can turn the volume knob to adjust the volume.

In any play mode, if you insert headphone into the headphone jack on rear panel, there will no sound output from the speaker, but via headphone. In headphone output mode, the volume will adjust to the 18 max automatically; If you want to increase higher volume, there will have buzz sound warn up to you in order remind you protect your ear. If you really want to adjust higher volume, you have to wait the end of buzz sound, then press

▶ button immediately; you can increase the volume now. Otherwise the buzz sound will ring up about 3 seconds again. The max volume is 28 levels once insert headphone.

SPECIFICATION

Input: FM radio, Bluetooth, AUX in, USB, SD card or TF card

Output power: RMS 3.5W

Signal to noise ratio: ≥70dBA

Distortion: ≤0.5%

Frequency response: 120HZ-20KHZ

Speaker: 2 ohm, 3 inches full range.

Battery: 3.7V/1000mAh BL-5C lithium battery

Battery playback time: 4 hours.

Input sensitivity: 550mV

Working environment: -10°C-50°C

Stored environment: -20^ +70^

Power consumption power: 5W

Standby power consumption: < 0.5 W

WAŻNE INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA

Uwagi:

1. Domyślne dane

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Upozornenie:

Megjegyzések:

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

Enjoy it.

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
