Evolution X2 8 - Tablet Lark - Free user manual and instructions

Product Type	Tablet
Brand	Lark
Model	Evolution X2 8
Display	7.85" touch screen, 1024x768 pixels
Processor	Allwinner A23 Dual core 1.5GHz
Graphics Processor	Dual core Mali-400 MP
Operating System	Android 4.2 Jelly Bean
RAM	1GB DDR3
Storage	4GB Flash
Wireless	Wi-Fi 802.11b/g/n
Front Camera	0.3 Mpix
Rear Camera	2.0 Mpix
Audio Formats	MP3, WMA
Video Formats	MP4, ASF, WMV, AVI, DIVX
Image Formats	BMP, JPG, GIF, PNG
Ebook Formats	HTML, PDF, RTF
Memory Card Slot	MicroSD up to 32 GB
Sensors	Motion sensor
Ports	micro USB, 3.5mm mini-jack
Battery	Li-Polymer, approx. 5 hours usage
Charging Time	Approx. 4 hours
Dimensions (W x H x D)	135.2 x 200.7 x 6.7 mm
Weight	~300 g
Operating Temperature	5°C to 35°C
Cleaning	Wipe with a soft, dry cloth

Frequently Asked Questions - Evolution X2 8 Lark

How do I charge the tablet for the first time?

Connect the tablet to the AC charger and plug it into a power outlet. The red light indicates charging; green means fully charged. Full charge takes about 4 hours.

How do I turn on the tablet?

Press and hold the Power ON/OFF button for 2 seconds until the start screen appears.

How do I use the multitouch screen?

Tap gently to select or launch apps. Swipe to scroll, drag items, and use pinch-to-zoom. Rotate with two fingers.

How do I connect to a Wi-Fi network?

Go to Settings > Wi-Fi, enable it, select your network, and enter the password. Ensure you are within range and the signal is strong.

What should I do if the tablet won't turn on?

Charge the battery for at least 30 minutes. Try resetting by pressing the RESET button with a pin. If still off, contact support.

Can I expand the storage?

Yes, use a MicroSD card up to 32 GB. Insert it into the MicroSD card slot.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for a few seconds until the screen flashes.

The tablet is getting warm. Is this normal?

Yes, it is normal during operation, especially when the display is on or during charging. If excessively hot, stop use and contact support.

How do I clean the tablet?

Use a soft, dry cloth. Do not use liquids or abrasive cleaners. Avoid getting moisture in ports.

Where can I find the user manual?

The manual is available for download at www.lark.com.pl or from the notice-facile.com website.

USER MANUAL Evolution X2 8 Lark

Blank tablet device outline with no text or symbols

EN 1User manual

Thankyouforchoosing LarkEvolutionX2 tablet.Wewishyou manysatisfaction from its use.8

Tablet PC is a multi-functional device, which can be used for work and education and for entertainment as well. Thanks to the tablet you have the Internet always in your reach, without need of bulky personal computers of previous generation. Android 4.2 Jelly Bean and Google Play enable access to plenty of useful applications, for both business and entertainment purposes. Clear and intuitive interface gives youthe pleasureofdailyuse of thetablet.

Pleaseread theuser guideand keepit for further reference. The user guidecontainsimportantinformation regardingsafeand effectiveuseofthe tablet.

The producer may introduce changes in the device and the user guide. Please refer to the www.lark.com.pl website incaseofquestionsordoubtsconcerninguseofthedevice.

Before you begin

Safetyandhandling

• Prevent your tablet and accessories from getting wet. Getting electrical equipment wet not only causes serious damage, but it is also so threat to the user (risk of electric shock).
• Protectyourdeviceagainstshocks, fallsandvibrations.
• Protectthedevicefrom high and lowtemperatures.
• Donotdrop,bend,puncture,insert foreignobjects,or placeheavyobjectsonyourtablet.
• Donotuseunauthorizedaccessories, asthe maydamagethetabletandvoidmanufacturer'swarranty.

Important safetyinstructions

Besuretofollowinstructions bellow.Makesurethattheyare known toall users of your tablet,includingchildren..

• Neveruseyourtabletwhiledriving.
• Hospitals and other medical facilities may be prohibited from using electronic devices, including tablets. Always follow these restrictions.
• Turn off the tablet in the plane for the whole flight or during take-off and landing, according to the instructions given by the aircraft personnel.
• Switch off the device near important electronic devices, which could be disrupted by possible interference.
• Do not attempt to disassemble, modify or repair the tablet. Always entrust these tasks to authorized specialist.
• Protectyourtabletfromstrongmagneticfields.Thesefieldscan damage magneticstoragemedia.
• Do not use the tablet in very high temperatures or in areas at high risk of fire or explosion, such as petrol stations.

Before you begin

• Supervisetheuseofthedevicebychildren,do not let them playwiththetabletunattended.
• Preventthetabletfromgettingwet,forinstancedo not use or store it in the bathroom.

The symbol to the left means that according to European Union laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this productreachesits end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects humanhealthandtheenvironment.

Product overview

Parts and buttons of the device

1. Front camera
2. Touch screen

Product overview

1. Microphone
2. Power ON/OFF button
3. Earphone jack
4. Micro USB port
5. RESET button
6. Back button
7. Rear camera
8. MicroSD card slot
9. Speaker

Getting started

Battery charging

Please charge the battery before first use.

1. Connect Table to the AC charger, and the charger to AC power outlet.
2. Check charging lights. Red light means that device is charging, green that the charge has been completed.

ATTENTION!

•The battery will fully charge in around 4 hours.
- Using the device during charging will make charging process longer. Disconnect the ac charger from your tablet when the battery power is full or when you wish to stop the charging. You can only use identical battery as a replacement.
• Physical damages to the battery may cause a fire or electric shock.

Using your tablet

Buttons functions

Power button - press and hold for a few seconds to turn on the device Volume UP - press and hold Volume Up button to increase the volume Volume Down - press and hold Volume Down button to decrease the volume

Powering on/off the device

Turning on

After pressing and holding the ON/OFF button for 2 seconds the start screen will appear.

Turning off

To turn off the device press and hold the ON/OFF button for 2 seconds.

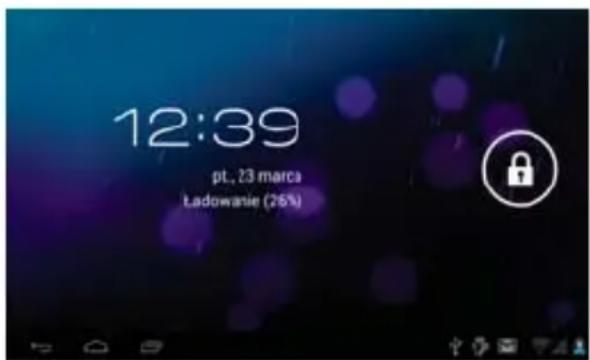

Locking the screen

To unlock the screen swipe the lock icon upwards

Never before have the use of an electronic device was so easy and natural.

The screen responds to even gentle brush, understand a few fingers touch applied simultaneously, eg.

'pinching' shrink the image, and spreading the fingers apart-expand it. You can rotate the image with two fingers, like a piece of paper on the table. The capacitive touch screen is also indispensable for gaming use.

Using the multitouch screen

Tap gently on the screen with your fingertip to launch an application, select an item, open a menu, or type text using the onscreen keyboard.

Touch

The device is operated by touching appropriate place on the screen.

Swipe or slide

Move your finger in a vertical or horizontal direction on the screen to scroll through the content.

Drag

Touch, hold and drag an item to the desired position.

Rotate the screen

The tablet has a built-in motion sensor that supports the screen auto-rotation feature. By default, this feature is enabled. When you rotate the tablet, the screen automatically rotates to landscape or portrait view which is very convenient during internet browsing, watching the movies, pictures, etc.

Navigating through the screens

Home screen surface is greater than the display surface, so it is possible to affix the more shortcuts, applications and widgets. Switching between home screen pages is possible by dragging the screen to the left or to the right.

Customization of the home screen (appearance)

Designing home screen interface

1. Press the button - selection bar will appear.MENU
2. Select "Add" button to enter the graphic settings menu.

Changing wallpaper

1. In the graphic settings menu select the "Wallpapers" option.
2. Select the desired wallpaper and tap "Set wallpaper".

Notification panel

Notification Panel shows information about the new e-mail messages, set the alarm clock, calendar, microSD card etc. Detailed information is shown when you expand the panel.

Expanding the notification panel

When a new icon shows on the notification panel, hold down the notification bar with icons and then slide your finger or the stylus down to expand the notifications panel.

Application access

How to access the applications

1. Press the application menu.
2. Select the application you want to use.
3. To return to the home screen press the back button.

Troubleshooting

Beforetaking the equipment for service be sure to checkthatyou cannot solve the problem onyour own.Ifyouare unable tofindthesolutionpleasevisit www.lark.com.pl

Youwill find a list offrequentlyaskedquestions as well as answers,service advices,system updates and technicalsupport contact.Pleasecontactyourserviceproviderbeforemaking decision thatequipmentis to be repaired.

Current FAQ and important information can be found on www.lark.com.pl

If you have not found a solution to the problem in the FAQ section, send e-mail: [e-mail]

Troubleshooting

» Unable to connect to the wireless network

Make sure, that You are within the network's service range and the signal strength is good.

Check if the name of the network and password are correct.

» The device is getting slightly warm

This is normal during operation, while the display is turned on and during battery charging.

» The operating system works unstable

Installing too many applications and applications from unknown sources can cause system instability.

Reset the device and uninstall some applications.

» Blank screen, Unable to turn the tablet on

Charge the battery.

Connect your tablet to an AC power outlet.

Restart the device.

» No sound in headphones

Increase the volume.

Check the headphones cable connection.

Check if headphone jack is not dirty.

Check if the mp3 files are not corrupted (try different files).

Try using other headphones (maybe the headphones are damaged).

» Media file cannot be played

Format the memory, download uncorrupted files.

Technical specification

» 7.85" touch screen, resolution: 1024 x 768 pixels
» Processor: Allwinner A23, Dual core 1.5GHz
» Graphic processor - Dual core Mali-400 MP
» Operating system: Android 4.2 Jelly Bean
» Memory: 1GB DDR3 RAM
» Storage: 4GB Flash
» Wireless LAN: Wi-Fi 802.11b/g/n
» Front camera: 0.3 Mpix / Rear camera 2.0 Mpix
» Audio player (MP3/WMA files support)
» Video player (MP4/ASF/WMV/AVI/DIVX files support)
» Pictures browser (BMP/JPG/GIF/PNG files support)
» Ebook reader (multiple formats: html, pdf, rtf)
» MicroSD card slot, up to 32 GB compatible
» Motion sensor
» Ports: micro USB, 3.5mm mini-jack
» Operating environment: Temperature: 5° to 35° Celsius
» Relative humidity: 10% -75%
» Weight: \~300g

» Battery: Li-Polymer battery, around 5 hours of work without external power supply

» Dimensions: Width: 135,2 mm, Height: 200,7mm, Depth: 6.7 mm

NOTICE!

Lark Europe Sp. z o.o. reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.

Information in this document is subject to change without prior notice.

Nabíjení baterie

© Lark Europe Sp. z o.o.

No part of this manual can be reproduced, copied, transmitted without the written consent of Lark Europe Sp. z o.o.

Declaration of conformity with the standards contained in the directives specific tothedevicetogetherwiththedescription,canbefoundat www.lark.com.pl
