FreeMe X2 7 - Tablet Lark - Free user manual and instructions

Product Type	Tablet
Brand	Lark
Model	FreeMe X2 7
Display Size	7 inches
Dimensions	Approx. 190 x 110 x 10 mm
Weight	Approx. 300 g
Power Supply	5V/2A via Micro USB
Battery	Rechargeable Li-ion, capacity varies
Processor	Quad-core, speed varies
RAM	1-2 GB
Storage	16-32 GB, expandable via microSD
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Cameras	Rear and front, resolution varies
Operating System	Android (likely version)
Main Functions	Web browsing, video playback, e-reading, apps
Care and Cleaning	Wipe with soft, dry cloth; avoid liquids
Safety	Keep away from water and heat; use appropriate charger
Spare Parts	Contact Lark support for replacements
General Information	Designed for everyday use

Frequently Asked Questions - FreeMe X2 7 Lark

How do I turn on the FreeMe X2 7?

Press and hold the power button located on the side of the device until the screen lights up.

How do I charge the tablet?

Connect the included Micro USB cable to the tablet and a USB power adapter (output 5V/2A recommended).

Can I expand storage?

Yes, the tablet supports a microSD card up to 32 GB. Insert it into the designated slot.

How do I reset the tablet?

Go to Settings > Backup & reset > Factory data reset. Or press and hold Volume Up + Power button during boot to access recovery mode.

The screen is unresponsive. What should I do?

Try a forced restart by pressing and holding the power button for 10 seconds. If the issue persists, contact support.

How do I connect to Wi-Fi?

Go to Settings > Wi-Fi, enable it, and select your network. Enter the password if required.

Why is the battery draining fast?

Reduce screen brightness, close unused apps, and disable Wi-Fi/Bluetooth when not needed. Check for battery-draining apps in settings.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously until the screen flashes.

Can I use the tablet for video calls?

Yes, the front camera is suitable for video calling via apps like Skype or Zoom.

Where can I find the user manual?

You can download the PDF manual from notice-facile.com by selecting your language and providing your email.

USER MANUAL FreeMe X2 7 Lark

Front view of a tablet device with blank screen (no text or symbols visible)

EN 1User manual

Thankyouforchoosing LarkFreeMeX2 7.1stablet.Wewishyou manysatisfaction from its use.

Tablet PC is a multi-functional device, which can be used for work and education and for entertainment as well. Thanks to the tablet you have the Internet always in your reach, without need of bulky personal computers of previous generation. Android 4.1 JellyBean and Google Play enable access to plenty of useful applications, for both business and entertainment purposes. Clear and intuitive interface gives youthe pleasureofdailyuse of thetablet.

Pleaseread theuser guide and keepit for further reference. The user guide contains important information regarding safe and effective use of the tablet.

The producer may introduce changes in the device and the user guide. Please refer to the www.lark.com.pl website incaseofquestionsordoubtsconcerninguseofthedevice.

Before you begin

Safetyandhandling

• Prevent your tablet and accessories from getting wet. Getting electrical equipment wet not only causes serious damage, but it is also so threat to the user (risk of electric shock).
• Protectyourdeviceagainstshocks, fallsandvibrations.
• Protectthedevicefrom high and lowtemperatures.
• Donotdrop,bend,puncture,insert foreignobjects,or placeheavyobjectsonyourtablet.
• Donotuseunauthorizedaccessories, asthe maydamagethetabletandvoidmanufacturer'swarranty.

Important safetyinstructions

Besuretofollowinstructions bellow.Makesurethattheyare known toall users of your tablet,includingchildren..

• Neveruseyourtabletwhiledriving.
• Hospitals and other medical facilities may be prohibited from using electronic devices, including tablets. Always follow these restrictions.
• Turn off the tablet in the plane for the whole flight or during take-off and landing, according to the instructions given by the aircraft personnel.
• Switch off the device near important electronic devices, which could be disrupted by possible interference.
• Do not attempt to disassemble, modify or repair the tablet. Always entrust these tasks to authorized specialist.
• Protectyourtabletfromstrongmagneticfields.Thesefieldscan damage magneticstoragemedia.
• Do not use the tablet in very high temperatures or in areas at high risk of fire or explosion, such as petrol stations.

Before you begin

• Supervisetheuseofthedevicebychildren,do not let them playwiththetabletunattended.
• Preventthetabletfromgettingwet,forinstancedo not use or store it in the bathroom.

The symbol to the left means that according to European Union laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this productreachesits end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects humanhealthandtheenvironment.

Product overview

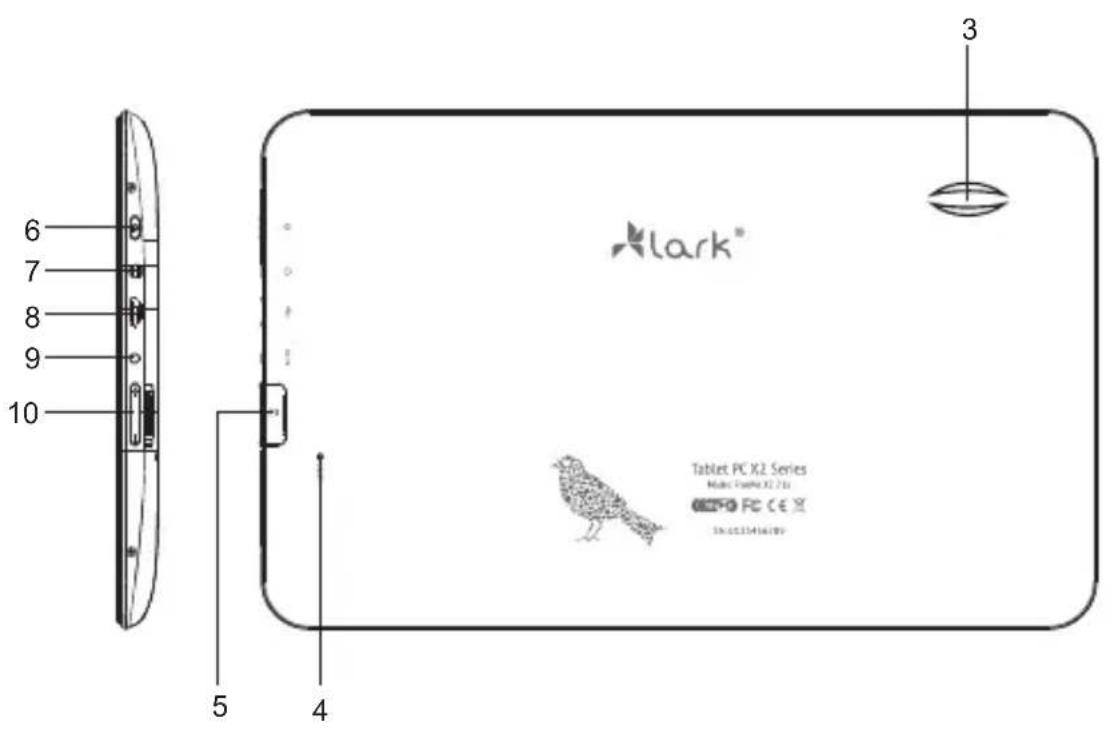

Parts and buttons of the device

1. Front camera
2. Touch screen

Product overview

1. Speaker
2. RESET button
3. MicroSD card slot

4. Power ON/OFF button

5. Earphone jack

6. Micro USB port
7. Power adapter port
8. Volume up / Volume down

Getting started

Battery charging

Please charge the battery before first use.

1. Connect Table to the AC charger, and the charger to AC power outlet.
2. Check charging lights. Red light means that device is charging, green that the charge has been completed.

ATTENTION!

•The battery will fully charge in around 4 hours.
- Using the device during charging will make charging process longer. Disconnect the ac charger from your tablet when the battery power is full or when you wish to stop the charging. You can only use identical battery as a replacement.
• Physical damages to the battery may cause a fire or electric shock.

Using your tablet

Buttons functions

Power button - press and hold for a few seconds to turn on the device Volume UP - press and hold Volume Up button to increase the volume Volume Down - press and hold Volume Down button to decrease the volume

Powering on/off the device

Turning on

After pressing and holding the ON/OFF button for 2 seconds the start screen will appear.

Turning off

To turn off the device press and hold the ON/OFF button for 2 seconds.

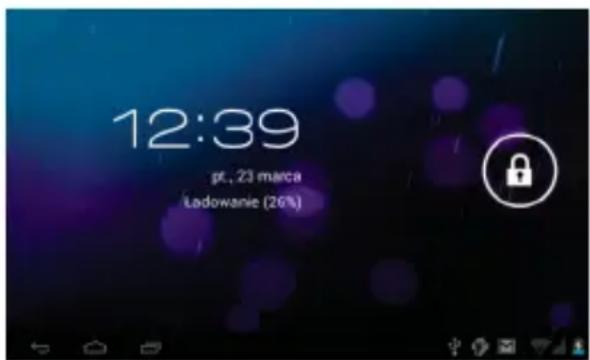

Locking the screen

To unlock the screen swipe the lock icon upwards

Never before have the use of an electronic device was so easy and natural.

The screen responds to even gentle brush, understand a few fingers touch applied simultaneously, eg.

'pinching' shrink the image, and spreading the fingers apart-expand it. You can rotate the image with two fingers, like a piece of paper on the table. The capacitive touch screen is also indispensable for gaming use.

Using the multitouch screen

Tap gently on the screen with your fingertip to launch an application, select an item, open a menu, or type text using the onscreen keyboard.

Touch

The device is operated by touching appropriate place on the screen.

Swipe or slide

Move your finger in a vertical or horizontal direction on the screen to scroll through the content.

Drag

Touch, hold and drag an item to the desired position.

Rotate the screen

The tablet has a built-in motion sensor that supports the screen auto-rotation feature. By default, this feature is enabled. When you rotate the tablet, the screen automatically rotates to landscape or portrait view which is very convenient during internet browsing, watching the movies, pictures, etc.

Navigating through the screens

Home screen surface is greater than the display surface, so it is possible to affix the more shortcuts, applications and widgets. Switching between home screen pages is possible by dragging the screen to the left or to the right.

Customization of the home screen (appearance)

Designing home screen interface

1. Press the button - selection bar will appear.MENU
2. Select "Add" button to enter the graphic settings menu.

Changing wallpaper

1. In the graphic settings menu select the "Wallpapers" option.
2. Select the desired wallpaper and tap "Set wallpaper".

Notification panel

Notification Panel shows information about the new e-mail messages, set the alarm clock, calendar, microSD card etc. Detailed information is shown when you expand the panel.

Expanding the notification panel

When a new icon shows on the notification panel, hold down the notification bar with icons and then slide your finger or the stylus down to expand the notifications panel.

Application access

How to access the applications

1. Press the application menu.
2. Select the application you want to use.
3. To return to the home screen press the back button.

Troubleshooting

Beforetaking the equipment for service be sure to checkthatyou cannot solve the problem onyour own.Ifyouare unable tofindthesolutionpleasevisit www.lark.com.pl

Youwill find a list offrequentlyaskedquestions as well as answers,service advices,system updates and technicalsupport contact.Pleasecontactyourserviceproviderbeforemaking decision thatequipmentis to be repaired.

Current FAQ and important information can be found on www.lark.com.pl

If you have not found a solution to the problem in the FAQ section, send e-mail: [e-mail]

Troubleshooting

» Unable to connect to the wireless network

Make sure, that You are within the network's service range and the signal strength is good.

Check if the name of the network and password are correct.

» The device is getting slightly warm

This is normal during operation, while the display is turned on and during battery charging.

» The operating system works unstable

Installing too many applications and applications from unknown sources can cause system instability.

Reset the device and uninstall some applications.

» Blank screen, Unable to turn the tablet on

Charge the battery.

Connect your tablet to an AC power outlet.

Restart the device.

» No sound in headphones

Increase the volume.

Check the headphones cable connection.

Check if headphone jack is not dirty.

Check if the mp3 files are not corrupted (try different files).

Try using other headphones (maybe the headphones are damaged).

» Media file cannot be played

Format the memory, download uncorrupted files.

Technical specification

» 7" touch screen, resolution: 800x480 pixels
» Processor: Amlogic AML8726-MXL, Dual core 1.5GHz
» Graphic processor - Dual Mali-400 MP, 2D/3D support
» Operating system: Android 4.1 JellyBean
» Memory: 512MB DDR3 RAM
» Storage: 4GB Flash
» Wireless LAN: Wi-Fi 802.11b/g/n
» Front camera: 0.3 Mpx
» Audio player (MP3/WMA files support)
» Video player (MP4/ASF/WMV/AVI/DIVX files support)
» Pictures browser (BMP/JPG/GIF/PNG files support)
» Ebook reader (multiple formats: html, pdf, rtf)
» MicroSD card slot, up to 32 GB compatible
» Motion sensor
» Ports: micro USB, 3.5mm mini-jack, power adapter port
» Battery: Li-Polymer battery, around 5 hours of work without external power supply
» Operating environment: Temperature: 5° to 35° Celsius
» Relative humidity: 10% -75%
» Dimensions: Width: 192.5 mm, Height: 117.1mm, Depth: 11.4 mm
» Weight: \~280g

NOTICE!

Lark Europe Sp. z o.o. reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.

Information in this document is subject to change without prior notice.

Pure technical line drawing of a rectangular frame with labeled points 1 and 2, no text or symbols beyond labels

© Lark Europe Sp. z o.o.

No part of this manual can be reproduced, copied, transmitted without the written consent of Lark Europe Sp. z o.o.
