RM 993 SET - Hand blender ECG - Free user manual and instructions

Product Type	Hand blender set (immersion blender, chopper, beater)
Model	RM 993 SET
Brand	ECG
Power Supply	230 V ~ 50 Hz
Power Consumption	600 W
Noise Level	80 dB
Speed Control	Continuous with low speed, TURBO, and variable adjustment
Attachments	Stainless steel blender shaft, chopping bowl 500 ml, whisk, mixing bowl 600 ml
Blade Material	Stainless steel
Housing Material	Plastic with soft-touch coating
Safety Features	Overheat protection (max 1 min continuous use), release button for attachments
Cleaning	Wipe motor unit with damp cloth; wash attachments in warm soapy water (not dishwasher safe)
Weight	Approx. 1.2 kg (set)
Dimensions (Blender Body)	Approx. 40 x 6 x 6 cm (L x W x H)
Maximum Food Temperature	80 °C
Included Accessories	Chopping bowl with lid, whisk holder, mixing bowl, spatula
Warranty	Standard 2 years (check local regulations)

Frequently Asked Questions - RM 993 SET ECG

What is the maximum continuous operating time for the blender?

The maximum non-stop operation is 1 minute. After that, let the appliance rest for at least 3 minutes to avoid overheating.

Can I blend hot liquids?

Yes, but the temperature must not exceed 80 °C. Do not blend boiling liquids.

How do I clean the hand blender?

Unplug the device. Wipe the motor unit with a damp cloth. Wash the attachments (blender shaft, chopping bowl, whisk, mixing bowl) in warm soapy water. Do not immerse the motor unit or use a dishwasher.

Can I crush ice or grind coffee beans?

No, the blender and chopper are not designed for very hard foods like ice cubes, nutmeg, coffee beans, or grains.

What attachments are included?

The set includes: stainless steel blender shaft, chopping bowl with lid and blade, whisk with holder, and a 600 ml mixing bowl.

How do I attach the whisk or chopper?

Insert the attachment into the motor unit until it clicks. For the chopper, first place the blade in the bowl, add food, close the lid, then attach the motor unit.

Is the blender suitable for making mayonnaise?

Yes, the immersion blender is ideal for mayonnaise, soups, sauces, and milkshakes.

What should I do if the blender stops suddenly?

The blender may have overheated due to continuous use beyond 1 minute. Unplug it, let it cool down for at least 3 minutes before using again.

Can I use the blender in a non-stick pot?

Yes, but be careful not to scratch the coating. Use gentle circular motions and avoid hitting the sides.

How do I replace the blade?

The chopping blade is removable for cleaning. Hold it by the top plastic part, remove carefully. The blender shaft is not user-serviceable; contact a professional for replacement.

USER MANUAL RM 993 SET ECG

ECG blender with fruit salad in a glass bowl, accompanied by a whisk and a hand mixer (no text or symbols visible)

RM 993 set

RUČNÍ MIXÉR

NÁVOD K OBSLUZE

RUČNÝ MIXÉR

NÁVOD NA OBSLUHU

BLENDER

INSTRUKCJA OBSŁUGI

BOTMIXER

HASZNÁLATI ÚTMUTATÓ

STABMIXER

BEDIENUNGSANLEITUNG

HAND BLENDER

OPERATING MANUAL

CZ

SK

PL

HU

DE

EN

BEZPEČNOSTNÍ POKYNY

POKYNY K POUŽITÍ – Mlxér

SK

POKYNY PRE POUŽÍVANIE – MIXÉR

INSTRUKCJA UŻYTKOWANIA – BLENDER

haSZNálaTI ÚTMUTaTó - MIxEr

HU

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
2. Do not operate blender with a damaged cord. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock.
4. Do not operate the immersion blender outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.
5. Close supervision is necessary for operating the immersion blender near children!
6. Do not leave the immersion blender running unattended.
7. Hair, fingers or parts of clothing shall be kept far enough from the moving parts of the appliance. Do not place any tools or hands into the bowl while blending, Risk of injury or damaging the appliance. You may use the spatula only if the blender is switched off.
8. Before starting the device, set the bowl in its proper position, attach the blade to the motor and then plug the cord into the outlet. This reduces the risk of injury.
9. Pay close attention when handling attachments, blades are very sharp and can cause injury.
10. Use the immersion blender for processing food only. The highest possible temperature of processed food is 80 °C. Do not use boiling food.
11. Leaving the blender cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to performing maintenance. Do not pull the cord from the outlet by yanking the cord. Unplug the cord from the outlet by grasping the plug.
12. Do not use the immersion blender near a source of heat, for example, an oven. Protect it against direct sunlight.
13. Do not allow the cord to touch hot surfaces or lead the cord over sharp edges.
14. Always unplug from outlet immediately after use.
15. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.
16. Use the immersion blender only in accordance with the instructions given in this manual. This immersion blender is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
17. This appliance shall not be used by persons (including children), whose physical, sense or mental inability or insufficient experience and skills prevent him from safely using the appliance, if they are not supervised or if they have not been instructed regarding the use of the appliance by a person responsible for their safety. Child supervision is essential to prevent them from playing with the appliance.

EN

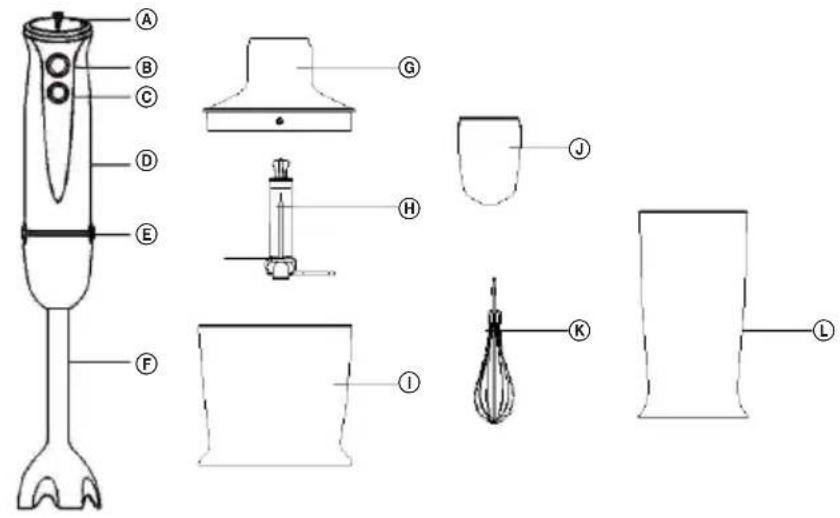

DESCrIPTION

A. Speed control
B. Low speed button
C. TURBO speed button
D. Motor unit
E. Release button
F. Removable attachment
G. Chopping bowl lid
H. Stainless steel chopping blade "S"
I. Chopping bowl
J. Whisk holder
K. Whisk
L. Mixing bowl

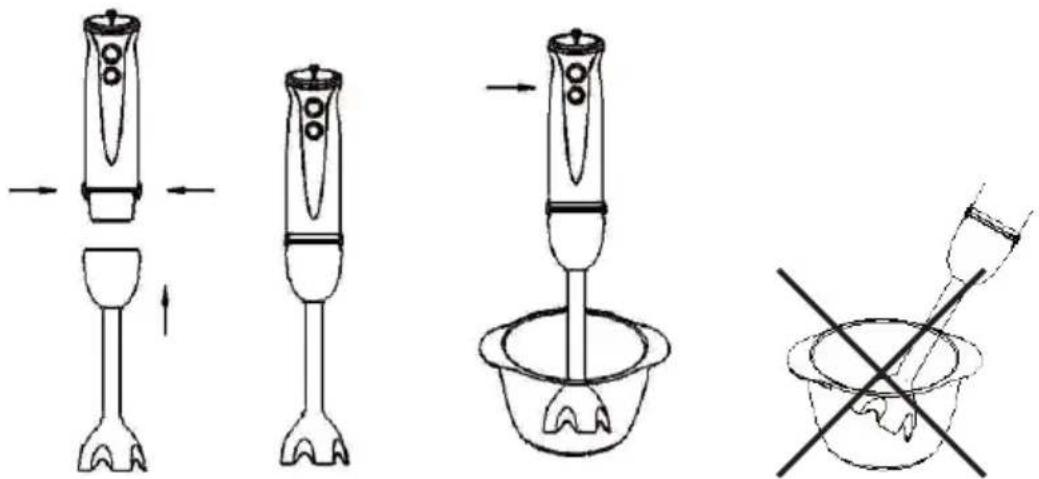

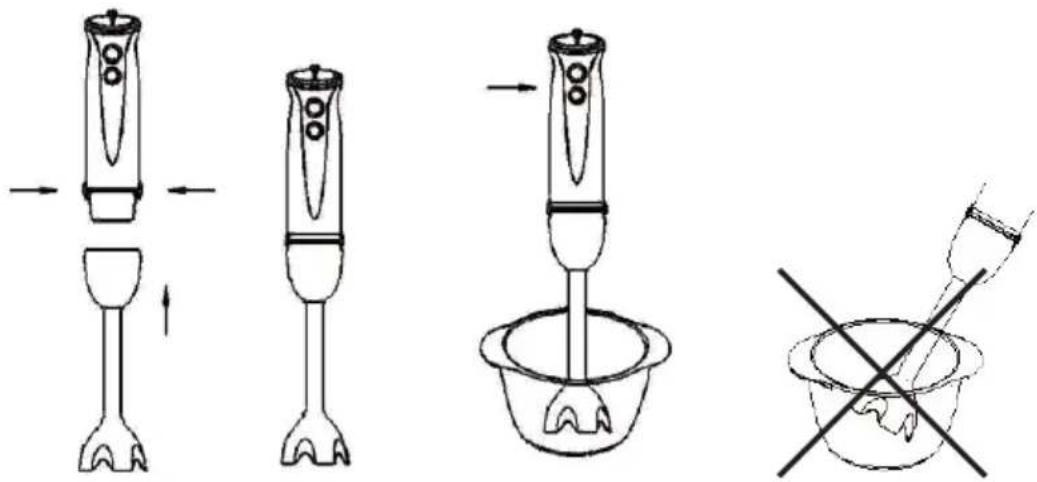

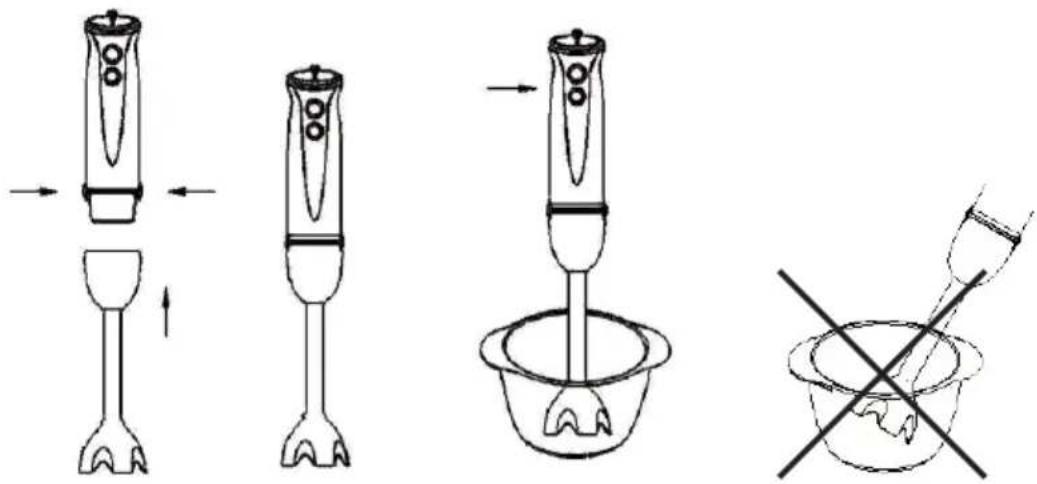

INSTrUCTIONS FOR USE - BIENDEr

The immersion blender is intended for preparing gravies, icings, soups, mayonnaises, children's dishes, cocktails and milkshakes.

Before using the blender for the first time, fill the bowl half way with water, immerse the blade of the blender to the bottom of the bowl and blend for several seconds. Rinse the entire attachment and bowl well afterwards.

1. Insert the ingredients into the mixing bowl or another higher kitchen container. Do not use the blender to crush ice, cut nuts or other hard food.
2. Place the removable attachment on the motor until it "falls" into place.
3. Uncoil the entire cord and plug into the outlet.
4. Insert the appliance into the mixing bowl containing food and press the desired speed button on the upper part of the appliance body. Blend in circular motions from the bottom.
5. Release the button to stop the blender. Unplug the power cord from the outlet after you are finished blending.

Note: The maximum duration of non-stop appliance operation is 1 minute. Allow the machine to rest at least 3 minutes before using again. Otherwise the appliance will overheat and become damaged.

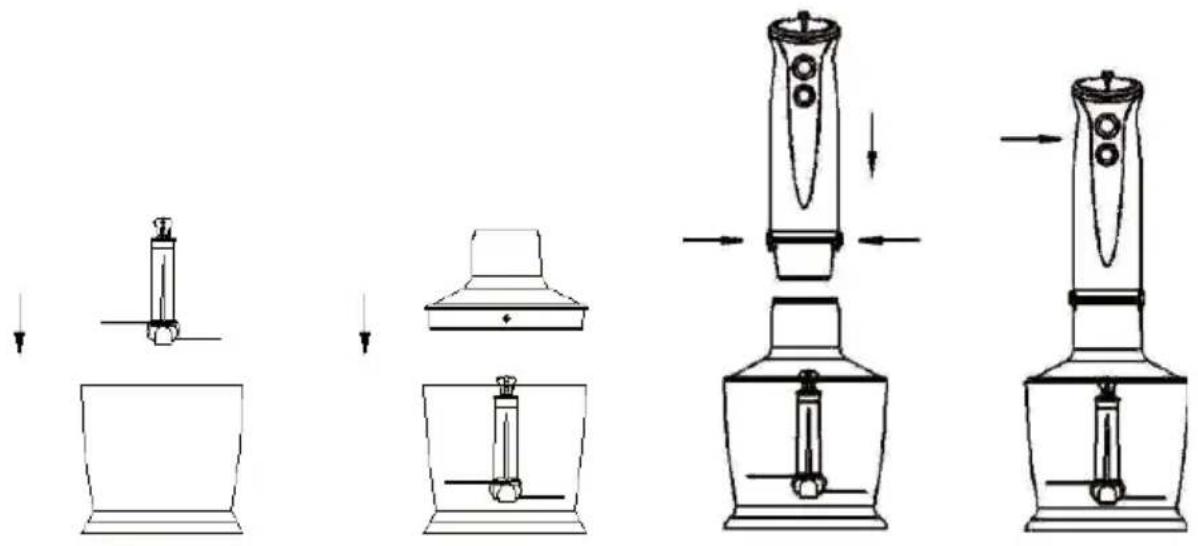

INSTRUCTIONS FOR USE - CHOPPER

The chopper is intended for shopping hard food, such as meat, cheese, onions, herbs, garlic, carrots, nuts, almonds, plums etc.

Do not chop very hard food, such as ice cubes, nutmeg, coffee beans or grains.

Carefully remove the plastic cover from the blade before using the appliance for the first time. Attention:

The chopping blade is very sharp! Always hold hit by the top plastic part.

1. Place the chopping blade on the centre mandrel inside the chopping bowl. Push the blade down and lock the bowl. Always place the chopping bowl safely on an anti-skid surface.
2. Insert the food into the bowl and apply the lid.
3. Place the appliance body on to the lid of the chopping bowl, until it clicks.
4. During the chopping process, hold the appliance body with one hand and the chopping bowl with the other.
5. After you are finished, unplug the appliance from the outlet and press the button for replacing the attachments to disconnect the appliance body from the bowl.
6. Then remove the lid of the bowl.
7. Remove the chopping blade carefully and take out the chopped food.

Recommended processing (500ml)

Food Maximum amount Operating duration (seconds)
meat 250 g 15
herbs 50 g 10
nuts, almonds 150 g 15
cheese 100 g 10
bread	80 g 10
onions	200 g 10
biscuits	150 g 10
soft fruits	200 g 10

Food Maximum amount Operating duration (seconds)
Rising dough	flour 250 g		10
	water 165 g
	cream 2.5 g
	yeast 1.0 g
	sugar 1.5 g

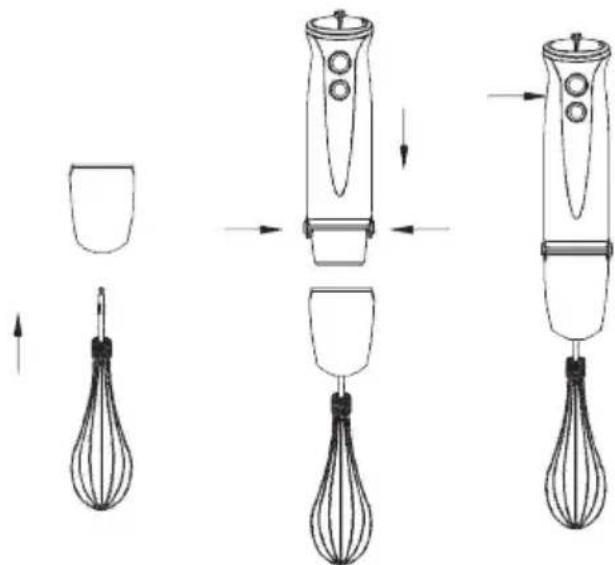

INSTRUCTIONS FOR USE - BEATER

Use the beater only for making whipped creams, egg whites, baked goods and mixed desserts.

1. Insert the spatula into the spatula holder and insert this holder into the appliance body, until it clicks.
2. Insert the spatula into the bowl before pressing the button to switch the appliance on.
3. After you are finished, unplug the appliance from the outlet and press the button for replacing the attachments to disconnect the spatula holder. Then remove the spatula from the holder.

SPEED CONTROL

We recommend the following setup for individual attachments:

• Mixer – low speed button + speed control set to 1-5 or TURBO button
• Chopper - TURBO button
• Beater – low speed button + speed control set to 2-4 or TURBO button

CLEANING

Disconnect the appliance from the electrical output prior to performing any maintenance. Cleaning shall always be performed on a cooled appliance! Do not use steel wool, abrasive agents or solvents.

1. Wipe the top of the blending attachment, chopping bowl lid and spatula holder with a damp towel. Do not place into water because the lubricant could be washed away from the bearings.

2. Wipe the appliance body with a damp cloth. Never clean it under running water, do not rinse or immerse the iron into water! Attach the attachment back on to the appliance body.

3. Wash the mixing bowl, chopping bowl, bottom part of the blending attachment, spatula and blade in warm soap water. We do not recommend washing the dishes in a dishwasher.

Always make sure the immersion blender is completely cooled, clean and dry before putting it away.

Quick rinsing

Between individual blending tasks, hold the immersion blender in a glass, half filled with water and leave the blender running for a few seconds.

Attention

The plastic parts of the appliance may become coloured after processing colourful foods.

TECHNICAL INFORMATION

Continuous speed control

Ergonomically shaped handle

2 Soft-Touch speed buttons

Anti slip surface finish

Stainless steel attachment

Stainless steel chopping blade

Very low weight and silent operation

Transparent mixing bowl 600 ml

Bowl for chipping 500 ml

Stainless steel mixer

Blue backlit speed control

Noise level: 80 dB

Nominal voltage: 230 V \~ 50 Hz

Nominal input power: 600 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

08/05

www.ecg.cz
