RSM 01 - Hand blender ECG - Free user manual and instructions

Product Type	Hand blender with stand and rotating bowl
Brand	ECG
Model	RSM 01
Power Supply	230 V ~ 50 Hz
Rated Power Input	250 W
Speed Settings	5 speeds + pulse (M) and Turbo
Rotational Speed	950–1200 rpm
Bowl Capacity	3 liters
Bowl Material	Plastic (dishwasher safe)
Accessories Included	2 whisks, 2 kneading hooks
Continuous Operation Time	5 minutes max, then 3 minutes rest
Maximum Food Temperature	80 °C
Noise Level	86 dB
Safety Features	Overheat protection, safety fuse, auto shut-off
Handle	Ergonomically shaped
Stand Functions	Release button, rotating bowl, mixer holder
Cleaning	Whisks/hooks: hand wash; bowl: dishwasher safe; body: wipe with damp cloth
Weight	Approx. 1.5 kg (estimated)
Dimensions	Approx. 30 x 20 x 35 cm (estimated)
Intended Use	Household only

Frequently Asked Questions - RSM 01 ECG

What is the maximum continuous operating time of the RSM 01 hand blender?

The maximum continuous operating time is 5 minutes. After that, let the appliance rest for at least 3 minutes to prevent overheating.

Can I use the mixer to process boiling liquids?

No, the maximum permissible temperature of the processed food is 80°C. Do not use for boiling foods.

How do I clean the hand blender?

Remove the whisks/hooks and wash them under running water. The bowl is dishwasher safe. Wipe the motor body with a damp cloth. Never immerse the motor body in water.

What accessories are included?

The set includes 2 whisks and 2 kneading hooks, plus a 3-liter bowl and a stand.

How many speed settings does the mixer have?

It has 5 speed levels (turning, mixing, kneading, mixing 2, whipping) plus pulse (M) and TURBO for maximum speed.

Can I wash the bowl in the dishwasher?

Yes, the bowl is dishwasher safe. Do not use abrasive cleaners or scouring pads.

What should I do if the power cord is damaged?

Do not use the mixer. Have the cord replaced by an authorized service center to avoid electric shock.

How do I release the whisks/hooks?

Press the accessory release button on the body of the mixer after disconnecting from power.

What does the safety fuse protect?

The safety fuse protects against overheating or electrical faults. If it blows, contact an authorized service center.

Is the hand blender suitable for heavy dough?

Yes, the kneading hooks and powerful motor (250 W) can handle heavy dough, but do not exceed 5 minutes of continuous use.

USER MANUAL RSM 01 ECG

White ECG electric mixer with a bowl of liquid, no visible text or symbols on the device itself.

RSM 01

RUČNÍ ŠLEHAČ S MÍSOU

NÁVOD K OBSLUZE.

RUČNÝ ŠLAHAČ S MISOU

NÁVOD NA OBSLUHU

MIKSER RĘCZNY Z MISKA

INSTRUKCJA OBSŁUGI

KÉZI HABVERŐ TÁLLAL

HASZNÁLATI ÚTMUTATÓ

Read carefully and store for future use!

Warning: The safety steps and instructions in this user's manual do not include all the possible conditions and situations which may arise. The user must understand that a factor that cannot be built into any product is common sense, caution and care. These factors must therefore come from the user/s using and operating this product. We do not take responsibility for damages caused during transport, by incorrect use, by voltage fluctuations or a change or modification of any part of the product.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure that the voltage in your power socket corresponds to the voltage on the product's label and that the power socket is properly earthed. The power socket must be installed according to valid safety regulations.
2. Do not use the mixer if the power cord is damaged. Have all repairs including power cord replacement done in an authorised service! Do not remove protective covers from the product as there exists a danger of injury by electric shock!
3. To avoid potential injury by electric shock, protect the product from direct contact with water and other liquids.
4. Do not use the mixer outdoors or in a wet environment. Do not touch the power cord or the product with wet hands. There is a danger of injury by electric shock.
5. Pay extra attention if using the mixer near children.
6. The mixer should not be left in operation unsupervised.
7. Use only for processing of foods. The maximum permissible temperature of the processed food is 80^ C. Do not use for foods that are boiling!
8. Before turning the product on prepare the container in place, place the beating arms on the mixer and only after that insert the plug into the power socket.
9. Do not touch any moving parts of the product while it is in operation.
10. We recommend that you do not leave the mixer with the power cord inserted in the power socket without supervision. Before carrying out maintenance pull the power cord out of the power socket. Do not pull the plug out of the power socket by pulling on the cord. Pull the cord out of the power socket by holding the power plug.
11. Do not use the mixer near a heat source, e.g. oven. Protect it from direct sun rays.
12. The power cord must not touch any hot parts or go over sharp edges.
13. Do not use accessories that are not recommended by the manufacturer, otherwise you risk voiding your warranty.
14. Use the mixer only in accordance with the instructions included in this user's manual. This mixer with bowl is designed for home use only. The manufacturer takes no responsibility for damages caused by the incorrect use of this product.
15. This product is not designed to be used by persons (including children), who are due to their physical, sense or mental inability or insufficient experience or knowledge prevented from safely using the product, if they are not under supervision or if they were not instructed about the use of this product by a person responsible for their safety. Children must be supervised to ensure that they do not play with the product.

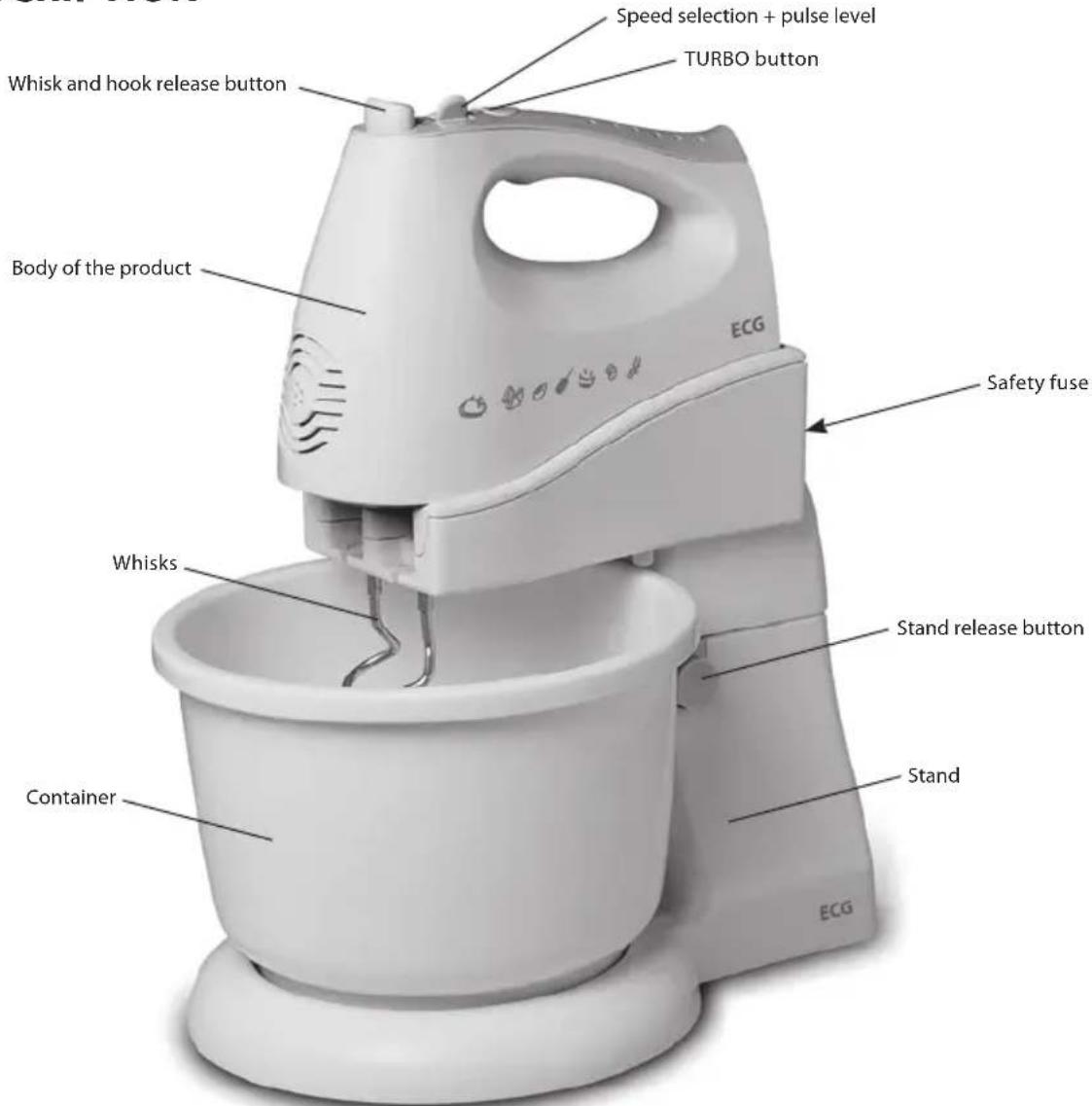

DESCRIPTION

OPERATING INSTRUCTIONS

The mixer with bowl is appropriate for mixing / beating / whipping of dough, sauces, butter, potatoes, etc.

Before first use, thoroughly wash the container, the mixer and the beating arms.

1. Place the bowl in its place and press on the shoulder to secure it in position.
2. Into the mixer openings insert the whisks or kneading hooks.
   NOTE: Place them in such a way that the hook with the wheel is on the right side.
3. Place the mixer into the holder.
4. If you want to take the mixer out of the holder, press the shoulder button.
5. After using the product, first disconnect it from the power source. By pressing the accessory release button, release the whisks or kneading hooks.
6. If you wish to lift the shoulder, you must press the stand button.
7. If you need a higher speed, press turbo or turn on pulse operation.

1 TURNING	The speed is appropriate for initial mixing / mixing of larger food portions, such as butter, fl our or potatoes.
2 MIXING	The speed is appropriate for initial mixing of liquid foods. For example salad sauces or other sauces.
3 KNEADING For mixing of dough for cakes and batter.
4 MIXING Speed appropriate for whipping of butter, dessert sauces and sauces.
5 WHIPPING	Speed appropriate for whipping of egg whites or eggs, mashing potatoes and whipped cream.
M IMPULSE OPERATION Max. turbo speed.

Note: Maximum time of continuous operation of the product (KB) is 5 minutes, before further use allow product to rest for 3 minutes. If this is not done it will overheat and become damaged.

CLEANING AND MAINTENANCE

Before any maintenance disconnect the product from the electric grid! Clean the product always on a product that has fully cooled down!

Clean the removable hooks and whisks under running water. Wipe the body of the product with a wet cloth. Never clean it under running water, do not rinse or submerge in water!

Clean the container in warm soapy water or in a dishwasher. Do not use a wire pot scourer, abrasive agents or solvents. Before putting the mixer away, always check that it has cooled down, it is clean an dry.

TECHNICAL INFORMATION

Ergonomically shaped handle

5 step speed control

Revolutions: 950–1200 rev./min.

Pulse level for max. speed

TURBO button

Whisk and hook release button

2 pcs whisks

2 pcs kneading hooks

Stand with a powered turning bowl

Volume of the bowl 3 l - washable in dishwasher

Securing of the mixer in opened position

Nominal voltage: 230 V\~50 Hz

Nominal input power: 250 W

Noise level: 86 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

Changes in text and technical parameters reserved.
