RA 410B - Radio HYUNDAI - Free user manual and instructions

Product Type	Car Radio
Brand	Hyundai
Model	RA 410B
Dimensions (H x W x D)	50 x 180 x 150 mm (1 DIN)
Weight	Approx. 0.5 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 20W (RMS)
Tuner Bands	FM, AM
Preset Stations	30 (FM 18 + AM 12)
Audio Playback	CD, MP3 compatible (if equipped with CD player)
Additional Functions	Clock, Equalizer, Loudness, Fader/Balance
Display	LCD with illumination
Remote Control	Optional wired remote
Antenna Input	Motorized or passive antenna (ISO connector)
Speaker Impedance	4 ohms
Fuse Rating	10A (blade type)
Cleaning Instructions	Wipe with dry soft cloth; avoid liquids
Operating Temperature	-10°C to +60°C
Spare Parts Availability	Standard car audio parts; contact authorized service
Certifications	CE, RoHS

Frequently Asked Questions - RA 410B HYUNDAI

How do I install the Hyundai RA 410B radio in my car?

First, disconnect the car battery. Use the mounting sleeve and trim ring provided. Connect the wiring harness matching colors: red to switched 12V, yellow to constant 12V, black to ground. Connect speakers (4 ohms) and antenna. Slide the radio into the sleeve until it clicks. Reconnect battery.

What is the fuse rating for this radio?

The Hyundai RA 410B uses a 10A blade fuse located on the rear panel. Always replace with the same rating to avoid damage.

Why does the radio not turn on?

Check the fuse first. Ensure the ignition wire (red) is connected to a 12V source that turns on with the key. Also verify the ground connection (black) is secure and clean.

How can I reset the clock?

With the radio on, press the CLK button until the hour flashes. Use the tuning knob or preset buttons to set hour, then press CLK again to set minutes. Press CLK once more to confirm.

Can I play MP3 CDs?

Yes, the RA 410B supports MP3 playback on CD-R/RW discs. Burn MP3 files at a maximum bitrate of 320 kbps. Avoid multi-session discs.

How do I save radio stations?

Tune to the desired station, then press and hold one of the preset buttons (1-6) for about 2 seconds until a beep confirms. Repeat for other stations. Band (FM1/FM2/AM) must be selected first.

What is the correct speaker impedance?

Use speakers with 4 ohms impedance. Connecting lower impedance may damage the amplifier. The maximum output is 20W per channel RMS.

How to clean the radio faceplate?

Use a soft, dry microfiber cloth. Do not use any liquids, sprays, or abrasive cleaners as they may damage the display or buttons.

Why is there no sound?

Check speaker connections and ensure the mute function is off. Verify the fade/balance settings are centered. Also check that the source (radio/CD) is selected and volume is not at minimum.

Can I connect a USB drive?

The RA 410B does not have a USB port. It only supports CD playback and radio. For auxiliary input, a separate adapter may be required (not included).

USER MANUAL RA 410B HYUNDAI

Exterior view of a silver radio console with visible knobs and dials (no readable text or symbols)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI UTASÍTÁS

RÁDIO AM/FM / RÁDIO AM/FM RADIO AM/FM / AM/FM RADIO AM/FM RÁDIÓ

DŮLEŽITÉ

1) Výrezy reproduktoru
2) Gombík vol'by pásma
3) Ladiaci gombík
4) Gombík hlasitosti/zapnutia/vypnutia
5) Anténa FM
6) Siet'ový kábel

POUŽÍVANIE RÁDIA

When using electrical products, basic precautions should always be followed including:

1) Read Instructions - All the safety and operating instructions should be read before the product is operated.
2) Heed Instructions - All warming on the product and in the operating instructions should be adhered to.
3) Follow Instructions - All operating and use instructions should be followed.
4) Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
5) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
6) Water and Moisture - Do not use this product near water-for example: near a bath, tub, wash bowl, kitchen sink or laundry tub in a wet basement or near a swimming pool and the like.
7) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall causing serious injury to a child or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturers instructions and should use a mounting accessory recommended by the manufacturer.
8) A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
9) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or similar surface. This product should not be placed in a built-in installation such as a bookcase of rack unless proper ventilation is provided or the manufacturers instructions have been adhered to.
10) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources refer to the operating instructions.
11) Power-cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them paying particular attention to cords at plugs convenience receptacles and the point where they exit from the product.
12) Lightning - For added protection for this product during a lightning storm or when it is left unattended and unused for long periods of time unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
13) Overloading - Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or electric shock.
14) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
15) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

17) Safety Check - Upon completion of any service or repairs to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition.
18) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN!!!

To reduce the risk of electric shock:do not remove cover (or back).

No user serviceable parts inside.Refer servicing to qualified service personnel.

Before Use

• Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avlod locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the set contact your dealer.
• When removing power plug from the wall outlet always pull directly on the plug never yank the cord.
• Do not attempt to clean the unit with chemical sol vents as this might damage the finish. Use a clean dry cloth.
• Keep this manual in a safe place for future reference.

LOCATION OF PARTS

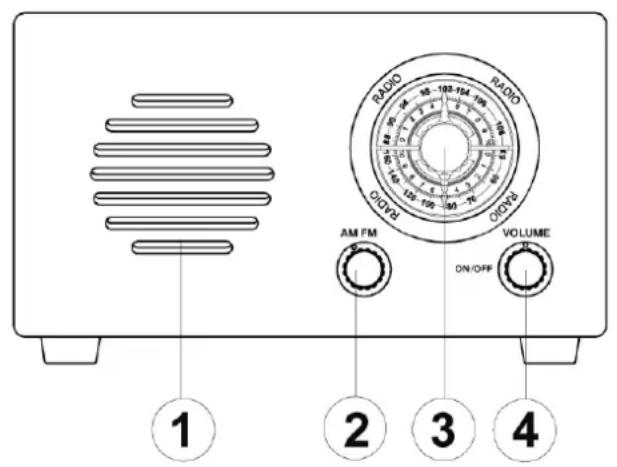

1) Speaker Window
2) Band Knob
3) Tuning Knob
4) Volume/On/Off Knob

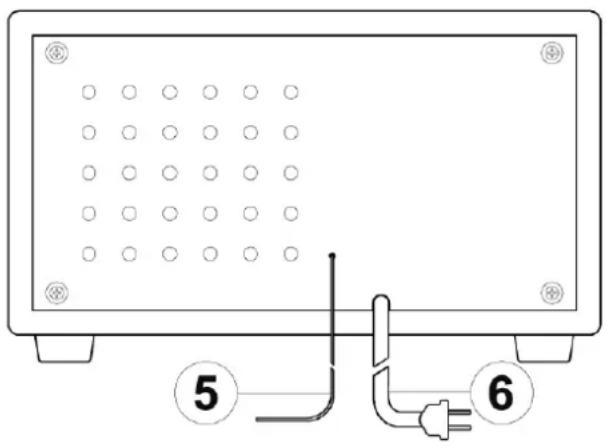

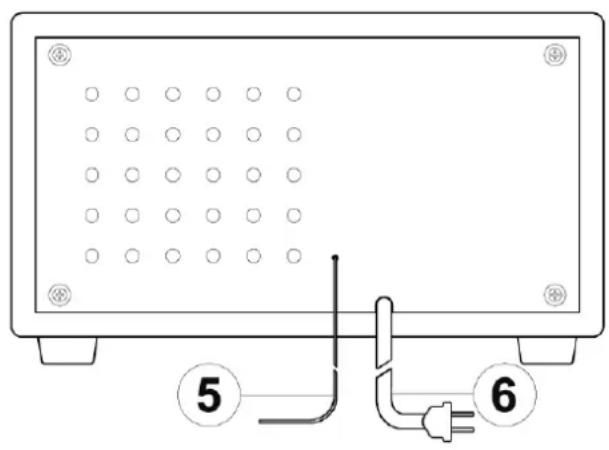

5) FM Antenna
6) Power Cord

RADIO OPERATION

1) Plug the Power Cord (6) into a standard 230 V \~ 50 HZ outlet.
2) Fully extend the FM Antenna (5) for best reception of FM broadcasting.
3) Rotate the On/Off/Volume Knob (4) clockwise until it clicks turning the unit on.
4) Select either AM or FM on the AM/FM/ Knob by turning it to the right for FM or to the left for AM.
5) Rotate the Frequency Tuning Knob (3) while watching the frequency display to tune to your favourite station.
6) When listening to the AM bandwidth rotate the unit horizontally for best reception.

TO turn the radio off

Set the VOLUME (4) to Off.

TROUBLE SHOOTING GUIDE

The unit does not operate

• The Power Cord (6) is not properly connected to a power outlet.
- The unit is not turned on: Rotate the On/Off/VOLUME Knob (4) from the OFF position past the click to turn on the unit.

Cannot listen to any station.

The FM station you selected will not come in clearly

• Move the antenna until reception improves.
  • Make a minor adjustment to the Frequency Tuning Knob (3)

SPECIFICATIONS

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A

QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will

help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Hereby, ETA a.s. declares that the radio equipment type RA410B is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.hyundai-electronics.cz/declaration_of_conformity

FONTOS

Licensed by Hyundai Corporation, Korea
