GL 2000 - Rotisserie IMETEC - Free user manual and instructions

Product Type	Electric Contact Grill
Brand	Imetec
Model	GL 2000
Cooking Surface	Two non-stick plates
Cooking Positions	3 positions: touching (closed), open 180°, parallel (5 cm gap)
Temperature Control	Adjustable thermostat
Indicator Lights	Power (red) and ready (green) LEDs
Removable Plates	Yes, dishwasher safe up to 55°C
Drip Trays	Removable front and rear trays
Safety Features	Overheat protection (implied by thermostat); safe design
Warranty	Manufacturer warranty (see attached sheet)
Cleaning	Hand wash or dishwasher (max 55°C) for removable parts; damp cloth for body
Power Supply	Not specified in manual (typical 220-240 V ~ 50/60 Hz)
Power Consumption	Not specified (approx. 2000 W estimated)
Dimensions	Not specified (approx. 40 x 30 x 15 cm estimated)
Weight	Not specified (approx. 4 kg estimated)

Frequently Asked Questions - GL 2000 IMETEC

What are the three cooking positions of the Imetec GL 2000 grill?

The grill can be used in three positions: touching plates for searing and quick cooking, open plates at 180° for a larger surface, and parallel plates with a 5 cm gap for delicate foods like pizza or open sandwiches.

How do I clean the removable plates and drip trays?

The plates and drip trays can be washed by hand or in the dishwasher at a maximum temperature of 55°C. For stubborn residue, soak them in hot water with detergent before cleaning.

Can I use the grill without the plates?

No, never use the grill without the plates. The appliance is designed to operate only with the plates properly installed.

What does the green LED indicate?

The green ready-for-use LED lights up when the plates have reached the set temperature. It may cycle on and off during cooking to maintain the temperature.

How do I assemble the plates?

Slide the plates into the rear securing hooks, then lower them onto the front hooks until you hear a click. Ensure they are securely locked in place.

What foods can I cook with the parallel plate position?

The parallel position is ideal for delicate foods that should not be pressed, such as pizza, open toast, lasagne, and gratin dishes. The upper plate does not touch the food, allowing gentle heating.

Is the grill safe to use near water?

No, do not use the grill near a washbasin full of water or in damp conditions. Never submerge the appliance in water or place it under running water.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by an authorized technical service center to prevent any risk. Do not attempt to repair it yourself.

Can children use this appliance?

Children aged 8 and above can use the grill only if supervised or instructed on safe use. Children under 8 must be kept away from the appliance when in use or cooling down. Cleaning should be done by adults.

How do I store the excess power cord?

The manual does not specify cord storage, but ensure the cord is fully unwound during use and stored loosely when not in use to avoid damage.

USER MANUAL GL 2000 IMETEC

Operating instructions

Line drawing of a computer monitor with a hand operating the screen (no text or symbols)

Illustration of a printer with a stack of paper sheets and a cylindrical component (no text or symbols)

Diagram of a layered mechanical or electronic component with a 5 cm scale indicator (no text or symbols present)

Line drawing of a grating tray with two meat cuts (no text or symbols)

Line drawing of a mechanical device with a handle and side panel, no text or symbols present

Line drawing of a closed notebook with visible pages and cover (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text, numbers, or symbols

Line drawing of a mechanical component or bracket with no visible text or symbols

DATI TECNICI TECHNICAL DATA DATOS TÉCNICOS DADOS TÉCNICOS MŰSZAKI ADATOK TEHNIČKI PODACI TEHNIČNI PODATKI TECHNICKÉ ÚDAJE

MANUALE DI ISTRUZIONI PER L'USO DELLA BISTECCHIERA

Tel. +39.035.688.111 Fax +39.035.320.149

1211(MMYN)

MI000811

GRILL INSTRUCTIONS FOR USE

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. These instructions for use have been drawn up in accordance with European standard EN 62079.

ATTENTION! Instructions and warnings for a safe use.

Please read the use and safety instructions before using the appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation. Should certain parts of this user manual be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

CONTENTS

SAFETY WARNINGS Page 7

SYMBOLS Page 9

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES Page 9

CLEANING BEFORE FIRST USE Page 9

ASSEMBLY Page 9

OPERATION Page 10

USEFUL ADVICE Page 11

USE Page 11

CLEANING AND MAINTENANCE

DISPOSAL

ASSISTANCE AND WARRANTY

Illustrative guide I-II-III

Technical data

Page 12

Page 12

Page 12

III

SAFETY WARNINGS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and check for any damage caused during transport. If in doubt, do not use the appliance and contact the authorised service centre.
- Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
- Before connecting the appliance, check to make sure that the mains voltage carried on the identification specifications (13) corresponds to that of the available electrical mains. The identification specifications (13) are found on the bottom of the appliance.

GB

• This appliance must be used solely for the purpose for which it was designed, namely, as a GRILL for home use. Any other use is improper and potentially dangerous.
• The appliance may be used by children who are at least 8 years old, by persons with reduced physical, sensorial or mental abilities or persons lacking experience only if they have received prior instructions concerning its safe use and if they are informed about the dangers associated with this product or if supervised by a person responsible for their safety. Children may not play with the appliance. The appliance cannot be cleaned or serviced by children without adult supervision.
• Keep the appliance and power cord away from children under 8 when the appliance is on or cooling down.
  • DO NOT use the appliance with damp or wet hands or feet.
• DO NOT pull the power cord or appliance to unplug the latter from the socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun).
• NEVER submerge the appliance in water and never place it under running water.
• The appliance is NOT intended to be operated by an external timer or through a separate remote control or similar systems.
• NOT use the appliance near a washbasin full of water. During use, the appliance must be placed in such a way that it cannot fall in the washbasin.
• DO NOT use near a hob. Pay attention that the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other utensils.
  • NEVER use without the plates.

ATTENTION! Hot surface.

- The electrical safety of this appliance is only guaranteed when it is connected correctly to an effective earthing system as required by applicable electrical safety standards. This important safety requirement must be verified and if in doubt, request a thorough check of the system by a skilled technician.

- Always disconnect the appliance from the mains before cleaning or performing maintenance and when the appliance is not in use.

- In case of a fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the appliance needs to be repaired, contact an authorised technical service centre.

- If the power cord is damaged, it must be replaced by an authorised technical service centre, so as to prevent all risks.

SYMBOLS

	Warning ON position	|
	Prohibited actions OFF position

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

Look at Figure [Z] in the illustration section to check the content of the packaging. All figures are found in the inside pages.

1. O / I switch
2. Metal body
3. Handle
4. Thermostat
5. Mains connection LED
6. Ready-for-use LED
7. Rear feet
8. Upper plate
9. Lower plate
10. Drain spout
11. Front plate securing hooks
12. Rear plate securing hooks
13. Technical data
14. Power supply cord
15. Front liquid drain tray
16. Rear liquid drain tray

CLEANING BEFORE FIRST USE

• Unpack the appliance.
• Remove any inserts or adhesive labels from the product.
• Wash the removable components: the plates (8) (9) and the liquid drain containers (15) (16) by hand or in the dishwasher.
• In the dishwasher, the maximum temperature of the water must not exceed 55^ .
• Clean the metal body (2) with a damp, well-wrung sponge.
• Dry with a dry cloth.

ASSEMBLY

ATTENTION!

• NOT touch the plates and the outer surfaces during operation. Pay particular attention when positioning the plates.
• NEVER place the grill on paper/cardboard or plastic surfaces. Place the grill on a flat and regular surface.
• Unwind the power cord completely before use.

• When used the first time, the grill could emit some smoke or smell, due to possible manufacturing residue. Wait a few minutes before inserting the food.

• Slide the plates (8) (9) into the rear securing hooks (12) [A].

• Lower the plates (8) (9) on to the front securing hooks (11) until a click is heard [B].

OPERATION

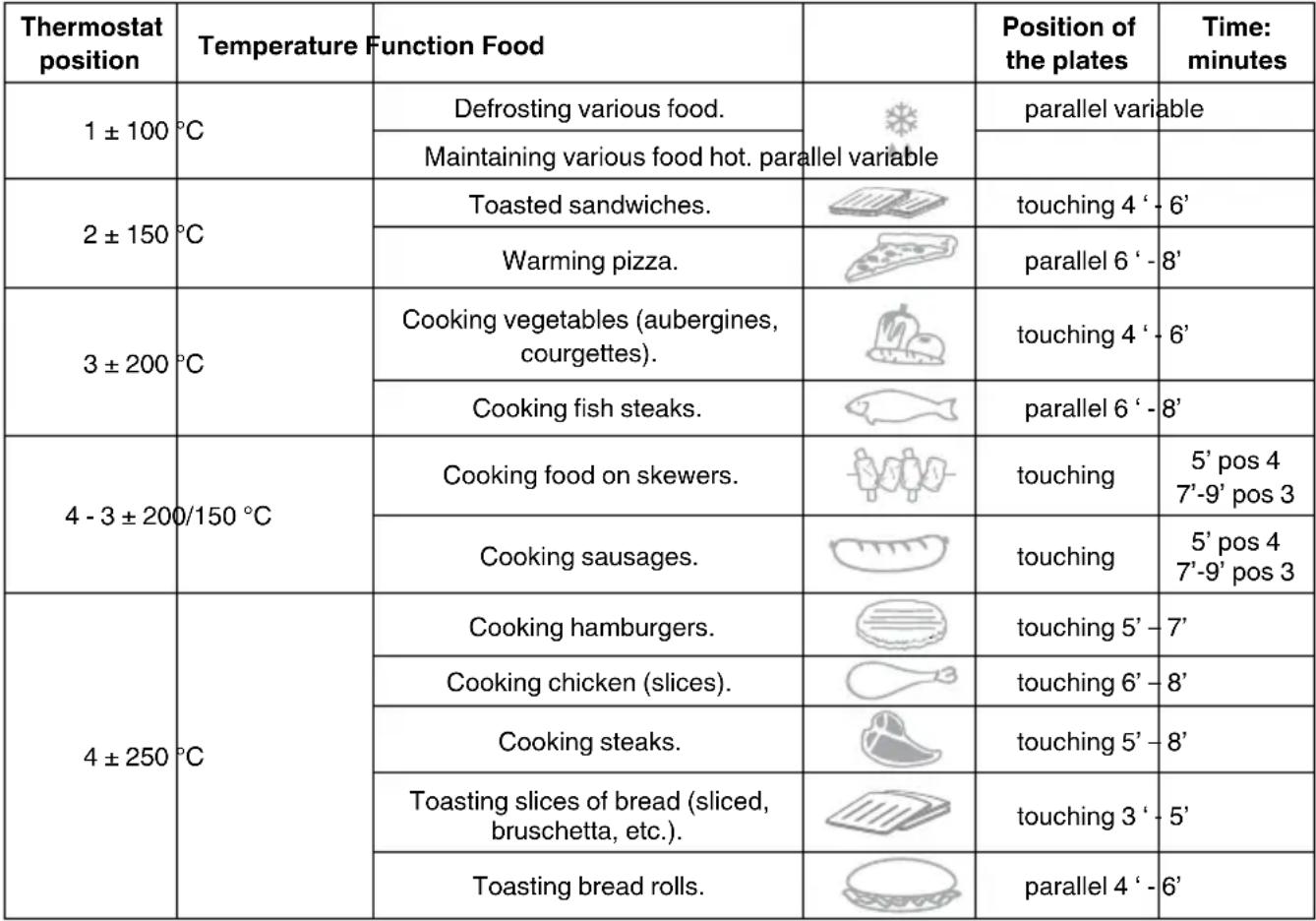

The grill can be used in 3 different positions. The position depends on the type of food or context in which it is used.

Touching plates [C]

In this position, the food is cooked from the top and bottom simultaneously, in half the time. This method enhances the flavour of the meat (steaks, hamburgers, etc.), which remains tender and succulent. The initial high temperature (250°) forms a crust on the entire surface of the food that seals in the juices.

This position is also suitable for bread rolls and toasted sandwiches.

Open plates at 180° [D]

In this position, the cooking surface is doubled and therefore more food can be cooked, which will be ready simultaneously. Also ideal for cooking meat and vegetables together, however, this will require more time.

Parallel plates [E]

Particularly delicate food can be toasted/heated with the plates in this position, which cannot be touched or pressed by the upper plate (pizza, open toast, etc.). Also ideal to warm cooked food or food still in the pan (lasagne, etc): the upper part, which must not touch the plates, will be cooked au gratin.

The distance between the two plates is 5 cm.

Cooking times can vary according to the thickness, food temperature and personal taste: this table provides a few indicative cooking times.

USEFUL ADVICE

• Always warm the plates before placing the food.
- Particularly thick meat must first be cooked at maximum temperature, then at a lower temperature, so as to allow the heat to also reach inside.
- Sausages tend to crackle while cooking. Prick them with a fork before cooking.
- A better result is achieved with fresh meat rather than defrosted or frozen meat.
- Vegetables can be brushed with oil before being grilled.
- Wrap food that is to be defrosted in aluminium foil and warm them slowly at the lowest temperature.
- All food (as long as they are not too fatty or full of liquid) can be cooked wrapped in greaseproof paper, so as not to dirty the plates.

USE

Proceed as follows after having assembled the appliance:

• Insert the electric plug (14) in the socket.
• Close the grill and insert the liquid drain tray (15).
• Select the desired cooking temperature by turning the thermostat (4) [F].
• Set the switch O / I (1) to position I: the mains connection red LED (5) lights up.
• Wait for the ready-for-use green LED (6) to light up and proceed with the cooking according to the desired plate position:

Cooking with touching plates

• Open the upper plate (8) completely [G].
• Insert the food only on the lower plate (9).
• Close the upper plate (8), placing it well on to the food, and make sure it remains parallel to the lower plate (9) [C].

Cooking with open plates at 180°

• Open the upper plate (8) to 90^ (slightly before being opened completely) and lift it for the two upper pins to come out from the rear feet (7) [H].
• Turn the upper plate (8) 180^ and insert the liquid drain tray (16) into the handle [I].
• Insert the food on both plates and turn it over halfway through cooking, if necessary [D].

Cooking with parallel plates

• Open the upper plate (8) completely [G].
• Insert the food only on the lower plate (9).
• Move the upper plate slightly forward (8) to 90^ (slightly before reaching the stroke end) and lift it for the two upper pins to come out from the rear feet (7) [H].
• Pull and turn the upper plate forward (8) for the two pins to rest in the relative housing [L].

- The ready-for-use green LED (6) goes off every now and again during cooking to indicate that the plates are warming up, thereby guaranteeing the pre-set temperature.

- Pay attention not to scratch the non-stick coating when removing the food.

CLEANING AND MAINTENANCE

• Turn the grill off by setting the switch O / I (1) to O.
• Remove the electric plug (14) from the socket.
• Let the grill cool down completely.
• Remove the plates (8) (9) by opening the front securing hooks (11) and lifting them upwards.
• Wash the removable components: the plates (8) (9) and the liquid drain containers (15) (16) by hand or in the dishwasher.
• In the dishwasher, the maximum temperature of the water must not exceed 55^ .
• In case of crusty residue on the plates (8) and (9), place them in hot water with detergent for a few minutes.
• Clean the metal body (2) with a damp, well-wrung sponge.
• Dry with a dry cloth.

DO NOT use abrasive sponges or sharp tools, which could ruin the non-stick rating.

DISPOSAL

The packaging is made up of recyclable material. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The recyclable materials contained in the appliance must be recovered so as to prevent environmental pollution. For further information, contact the local disposal body or the appliance dealer.

ASSISTANCE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's authorised customer service centre on the Toll-Free Number below or via the website. The appliance is covered by the manufacturer's warranty.

For details, read the attached warranty sheet. Failure to comply with the instructions for use and maintenance provided in this manual will render the manufacturer's warranty null and void.

Tel. +39.035.688.111 Fax +39.035.320.149

1211 (MMY/Y)

MI000811

MANUAL DE INSTRUÇÕES PARA O USO DO GRELHADOR

ASSISTÊNCIA E GARANTIA

Guia ilustrado

Dados técnicos

Pág. 24

Pág. 24

I-II-III

III

ADVERTÊNCIAS SOBRE A SEGURANÇA

ASSISTÊNCIA E GARANTIA

Tel. +39.035.688.111 Fax +39.035.320.149

1211(MMYN)

MI000811

HASZNÁLATI UTASÍTÁS GRILLSÜTŐHÖZ

Tel. +39.035.688.111 Fax +39.035.320.149

1211 (MMY/Y)

MI000811

PRIRUČNIK S UPUTAMA ZA UPORABU GRILLA PLOČE

Tel. +39.035.688.111 Fax +39.035.320.149

1211(MMYN)

MI000811

PRIROČNIK Z NAVODILI ZA UPORABO ŽARA

Tel. +39.035.688.111 Fax +39.035.320.149

1211 (MMY/Y)

MI000811

PŘÍRUČKA POKYNŮ

Tel. +39.035.688.111 Fax +39.035.320.149

1211(MMYN)

MI000811
