| Product Type | Hand blender |
| Brand | Zelmer |
| Model | 481.67 |
| Power Consumption | 700 W |
| Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Speed Settings | 2 speeds + turbo |
| Blade Material | Stainless steel |
| Shaft Material | Stainless steel |
| Handle Material | Plastic with soft grip |
| Cord Length | 1.2 m |
| Weight | 0.85 kg |
| Dimensions (H x W x D) | 40 x 7 x 7 cm |
| Beaker Capacity | 600 ml |
| Functions | Blending, pureeing, emulsifying, whisking |
| Accessories Included | Measuring beaker, whisk attachment |
| Safety Features | Safety lock button, overload protection |
| Cleaning | Removable shaft and attachments are dishwasher safe |
| Color | White and black |
| Warranty | 2 years |
Frequently Asked Questions - 481.67 Zelmer
User questions about 481.67 Zelmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand blender in PDF format for free! Find your manual 481.67 - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 481.67 by Zelmer.
USER MANUAL 481.67 Zelmer
PL Stagnesi Klaspii
Treasury Volatility Index
Hiebeopieczenhinal / Ostradienal
The following table is in English:
the article, a question for the past year, is not to be a result of the fact that the subject is
[Unreadable]
- 10:00 AM
the space we move together with
[Unreadable]
The following table is provided in the image.
请详细阅读需要填写您的内容。
A. 1984. 1985. 2006. 2007. 2008.
Kosar Iwara K. Subanza 1960
The following section is robust:
The following table is provided in the image.
Incl. Verrej, 2019, 11: 31:45 en de la
[Illegible Text]
[Unreadable]
The following table is in English:
2017年年报摘要及2018年度报告
( \text{K}_{\text{1}} \text{ (2013) } \text{K}_{\text{2}} \text{ (2014) } \text{K}_{\text{3}} \text{ (2015) } \text{K}_{\text{4}} \text{ (2016) } \text{K}_{\text{5}} \text{ (2017) } \text{K}_{\text{6}} \text{ (2018) } \text{K}_{\text{7}} \text{ (2019) } \text{K}_{\text{8}} \text{ (2020) } \text{K}_{\text{9}} \text{ (2021) } \text{K}_{\text{10}} \text{ (2022) } \text{K}_{\text{11}} \text{ (2023) } \text{K}_{\text{12}} \text{ (2024) } \text{K}_{\text{13}} \text{ (2025) } \text{K}_{\text{14}} \text{ (2026) } \text{K}_{\text{15}} \text{ (2027) } \text{K}_{\text{16}} \text{ (2028) } \text{K}_{\text{17}} \text{ (2029) } \text{K}_{\text{18}} \text{ (2030) } \text{K}_{\text{19}} \text{ (2031) } \text{K}_{\text{20}} \text{ (2032) } \text{K}_{\text{21}} \text{ (2033) } \text{K}_{\text{22}} \text{ (2034) } \text{K}_{\text{23}} \text{ (2035) } \text{K}_{\text{24}} \text{ (2036) } \text{K}_{\text{25}} \text{ (2037) } \text{K}_{\text{26}} \text{ (2038) } \text{K}_{\text{27}} \text{ (2039) } \text{K}_{\text{28}} \text{ (2040) } \text{K}_{\text{29}} \text{ (2041) } \text{K}_{\text{30}} \text{ (2042) } \text{K}_{\text{31}} \text{ (2043) } \text{K}_{\text{32}} \text{ (2044) } \text{K}_{\text{33}} \text{ (2045) } \text{K}_{\text{34}} \text{ (2046) } \text{K}_{\text{35}} \text{ (2047) } \text{K}_{\text{36}} \text{ (2048) } \text{K}_{\text{37}} \text{ (2049) } \text{K}_{\text{38}} \text{ (2050) } \text{K}_{\text{39}} \text{ (2051) } \text{K}_{\text{40}} \text{ (2052) } \text{K}_{\text{41}} \text{ (2053) } \text{K}_{\text{42}} \text{ (2054) } \text{K}_{\text{43}} \text{ (2055) } \text{K}_{\text{44}} \text{ (2056) } \text{K}_{\text{45}} \text{ (2057) } \text{K}_{\text{46}} \text{ (2058) } \text{K}_{\text{47}} \text{ (2059) } \text{K}_{\text{48}} \text{ (2060) } \text{K}_{\text{49}} \text{ (2061) } \text{K}_{\text{50}} \text{ (2062) } \text{K}_{\text{51}} \text{ (2063) } \text{K}_{\text{52}} \text{ (2064) } \text{K}_{\text{53}} \text{ (2065) } \text{K}_{\text{54}} \text{ (2066) } \text{K}_{\text{55}} \text{ (2067) } \text{K}_{\text{56}} \text{ (2068) } \text{K}_{\text{57}} \text{ (2069) } \text{K}_{\text{58}} \text{ (2070) } \text{K}_{\text{59}} \text{ (2071) } \text{K}_{\text{60}} \text{ (2072) } \text{K}_{\text{61}} \text{ (2073) } \text{K}_{\text{62}} \text{ (2074) } \text{K}_{\text{63}} \text{ (2075) } \text{K}_{\text{64}} \text{ (2076) } \text{K}_{\text{65}} \text{ (2077) } \text{K}_{\text{66}} \text{ (2078) } \text{K}_{\text{67}} \text{ (2079) } \text{K}_{\text{68}} \text{ (2080) } \left( 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - 1 - , \end{array}\right)]
2017年1月1日
A. 100% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 200% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 150% of the total of the 1
Notes to non-cash bonds, including other notes.
In the case of the case, we have been a result of the number of cases that were not in the case. The case is a result of the case that was not in the case.
The image is too blurry to recognize any text content.
- Skraklaszak pod zadskarstek
The following table is a simple diagram and cannot be extracted.
[Unreadable]
17
The following section is described as
[Unreadable]
10.28.3.2014.1.15, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2031, 2032, 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041, 2042, 2043, 2044, 2045, 2046, 2047, 2048, 2049, 2050, 2051, 2052, 2053, 2054, 2055, 2056, 2057, 2058, 2059, 2060, 2061, 2062, 2063, 2064, 2065, 2066, 2067, 2068, 2069, 2070, 2071, 2072, 2073, 2074, 2075, 2076, 2077, 2078, 2079, 2080, 2081, 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089, 2090,
[Unreadable]
[Unreadable due to severe distortion and noise]
[Unreadable Text]
-
2018年1月1日
-
2017年1月1日
[Unreadable due to extreme blurriness]
- 2017年1月1日
leuva, nesrjazvallenpuyt.
The following table is provided in the image.
10.14.23(8)75(9)65-100
The following table is in Chinese.
The following table is provided in the image.
2011.03.29: A TRUSTORAL
Mukrzewska
1
The following table is in Chinese:
m. 27.04.3. 19.00.0000 a 30 do colon 12/06
1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100
- 2014年1月1日
[Unreadable]
-
- 10:30
[Unreadable]
Plebe de la impede a nicii vokai tvo do
1.2013 12:24:57, jr 11:59
2018年1月1日
zerni brivetbajegjokg
MON
53
| DIN | EQUIPMENT | THE AMOUNT OF PROCESSED PRODUCT | RECOMMENDED GREEN | ORANGE WITH THE |
| Boschalk | VOCADO | 1 Kg | 1 inch (100 gm) | 4.62 |
| RICH COOKING | 25 in | (100 gm) (100 gm) per cent | -7.9m | |
| Asperian | BALANCE | 1 Kg | 1 inch (100 gm) per cent | 23.4m |
| RICH COOKING | 1 Kg | 1 inch (100 gm) | 2m | |
| Ceramic | VEGETABLE | (1 Kg) | (100 gm) | 53.86 |
| BALANCE | 1.5 kg (100 gm) (100 gm) | (100 gm) per cent | -5.6m | |
| Ceramic | VEGETABLE | 1 Kg | 1 inch (100 gm) | 51 |
| VEGETABLE | 1 Kg | 1 inch (100 gm) per cent | -7.9m | |
| Ferred | VOCADO | 1 Kg | 1 inch (100 gm) | 1m |
| BALANCE | 25 in 25 Kg | 1 inch | 5.2m | |
| Germacre | RICH COOKING | 1 Kg | 1 inch (100 gm) | 7.8m |
| RICH COOKING | 1 Kg | 1 inch (100 gm) | 4.5m | |
| Hausen | VOCADO | 1.5 kg (100 gm) per cent | 1 inch (100 gm) per cent | |
| RICH COOKING | 1 Kg | 1 inch (100 gm) per cent | 4.6m | |
| Hausen | VEGETABLE | 1 Kg | 1 inch (100 gm) per cent | |
| Hausen | BALANCE | 1 Kg | 1 inch (100 gm) per cent | 81.67 |
| Hausen | BALANCE | 1 Kg | 1 inch (100 gm) per cent | |
| Hausen | BALANCE | 1 Kg | 1 inch (100 gm) per cent | 4.5m |
| Hausen | BALANCE | 1 Kg | 1 inch (100 gm) per cent | -7.9m |
2014.17.16
Dane techniczne
PRACA Z TARCZA PRZECIERAJĄCĄ (Rys. E)
LUCRU CU MINIMALAXOR
Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.
In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.
We kindly ask you to read carefully the operation manual.
We call your special attention to safety precautions. Keep this operation manual for future reference.
Important safety precautions
Danger! / Warning! Health hazard
Do not start up the device, with a visibly damaged cord or casing.
“the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.
The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.
Do not take out working elements from the bowl, when mixer is on.
Do not touch moving elements with your hands, the blades of mixing attachment, mixing jug, mini food processor as well as the ice crusher disc are especially dangerous. They are very sharp!
Always unplug the appliance before cleaning, assembling or dismantling.
Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.
Keep special caution during operation in presence of children.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Due to safety reasons, the products can only be blended in the mixing cup when the lid is properly attached to the cup. It is forbidden to insert any items to the inside of the cup such as: spoons, spatulas, etc. It may lead to damage to the mixer or breaking of the elements inside the cup which may directly enter the product being blended and this in turn poses a threat to the health or even life.
Caution!
Not observance can result in damage to possessions
Plug the mixer to AC mains supply 230 V only.
Do not unplug by pulling the cord.
Do not expose the mixer and its equipment to the temperature above 60°C. You can damage your mixer.
Do not immerse the mixer motor in water, nor clean it under running water.
Do not clean the equipment when assembled on the motor.
Do not clean the casing with aggressive detergents, such as emulsion, milk, paste, etc. They can remove the graphic symbols such as: scales, labels, caution signs, etc.
Do not use mixing adapter without immersing it in products, in case of liquids, their level should not be higher then the half of adapter height.
Be careful not to flood the inner of mixing adapter casing with water – after assembling on the motor part, the motor can get flooded.
Do not use the mixer with empty mixing cup.
Be careful not to flood the bottom space of mixing cup, containing clutch - after assembling on the motor part, the motor can get flooded.
Do not put simultaneously the mixer and whisk with toothed bar into the motor socket. In the moment of start-up the mixer shall get damaged.
Do not use the mixing attachment or the mixing jug longer than 3 min., mini food processor and ice crusher longer than 2 min., and whisks longer than 10 minutes.
stion
Information on the product and suggestions for its use
The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.
After operation unplug the Power cord and wind on the mixer motor part.
Do not wash metal parts in a dishwasher. Aggressive cleaning agents used in such machines cause that a/m parts get darker. Clean them manually with traditional washing up liquids.
- Put the mixer and whisk with toothed bar into the motor socket marked with a star.
The manufacturer cannot accept any liability for damage to the oven or personal injury resulting from improper usage.
Technical data
Technical parameters are quoted at product nameplate.
Permitted motor operation time:
with mixers, whisks 10 min. -
with mixing adapter or mixing cup 3 min. -
with the mini food processor 2 min. -
with the ice crusher 2 min. -
Interval time before next operation (min.) 20 min.
Noise caused by the device (LWA):
with mixers, whisks, mixing adapter, -
on the stand 80 dB/A
with mixing cup 84 dB/A –
with the mini food processor 87 dB/A –
with the ice crusher 84 dB/A –
The mixers are produced in II insulation class, they don't need grounding.
ZELMER mixers meet current norms requirements.
The devices meet the requirements of the directives:
-Low Voltage Device (LVD) - 2006/95/EC.
– Electromagnetic compatibility (EMC) – 2004/108/EC.
The product is marked with CE on the name plate.
Appliance elements
(Fig. A)
1 Mixer motor
2 Pusher button
3 Switch lever
4 Turbo button
5 Whisks or mixers sockets
6 Mixing adapter hole
7 Handle insert
8 Mixers: left / right with toothed bar
9 Whisks: left / right with toothed bar
10 Liquidising dics
11 Mixing attachment
12 Cup
13 Mixing cup
14 Doser
15 Lid
16 Knife cup
17 Stand (with scales type 481.67 or without scales – other models)
18 Head
19 Grip knob
20 Fastening button
21 Blockade control (type 481.67)
22 Rotating bowl
23 Steel rotating bowl
24 Toothed wheel rim for steel rotating bowl
25 Scraper blade
26 Blade
27 Display and scales keypad
28 Display
29 ON/OFF – the button to switch the scales off and on
30 Tarring knob TARE
31 Unit change button UNIT
32 Food processor lid with gearbox
33 Ice crusher container
34 Limiting ring
35 Double-sided disc of ice crusher for first level granulation "I" (smaller size A) and second level granulation "II" (bigger sizey B)
36 Mini food processor blade
37 Cover
38 Spindle
39 Mini food processor container
40 Mini food processor base
ZELMER mixers types
(Fig. B)
√ basic mixer equipment
○ additional equipment, which you can buy in shops
Device description
The mixer has 5 speed positions. The lever is used to set up the particular rotation speed according to the numbers: 0, 1, 2, 3, 4, and 5 on pusher button, which helps to remove (push out) the mixers or whisks from the mixer motor part.
- Additionally, the drive has „turbo” button which helps to get the maximum rotation speed immediately, regardless the speed set with the lever. Such buttons are placed both on the right and left sides of the casing intended for the convenience of both left and right-handed users. The „turbo” button is automatically blocked in „0” position.
- There are 2 sockets (holes), for whisks or mixers assembling, placed on the bottom of the motor part.
- The insert handle, placed on the top of the motor part, is made of the material increasing the comfort of holding the mixer motor part - SOFTTOUCH.
There is a hole for mixing adapter or mixing cup assembling at the back of motor casing. The hole is covered with a mobile cover.

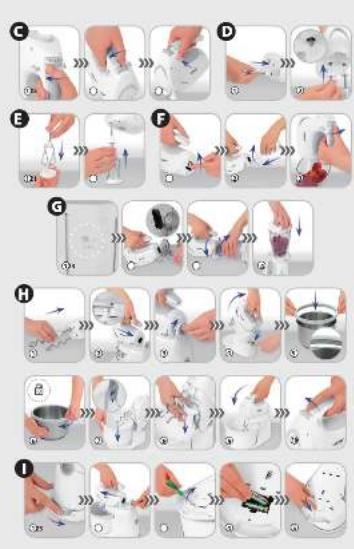

Mixer start-up and position setting
(rotation speed)
(Fig. C)
① Place the ON/OFF switch in the "0" position - the leftmost position. Install the selected tool.
- Plug in the appliance.
- Switch on the appliance by sliding the switch to the right.
② If you want to increase the rotation shift the lever in position „5” direction, choose the desired rotation speed.
③ In order to increase the rotation immediately, regardless set speed, press and hold one of „turbo” buttons (on the right or left side of the casing).
When you want to return to the previously selected speed release „turbo” button.
Preparing for operations
Wash the parts in contact with processed product before first usage.
Operate the mixer so, that the closed/open markings located on the appliance are well visible.
Operation with whisks or mixers (Fig. D)
The whisks are intended to whipping eggs white foam, cream, rubbing yolks with sugar, cream and pancakes or omelettes dough preparation.
The mixers are intended to work the rubbed dough, yeast dough, cheeses cakes, imbirbread cakes, etc.
The whisks and mixers shall be assembled in sockets on the bottom of the robot.
① Press until you feel the refusal – when the clamps get fastened.
assembled improperly, the parts fall apart during operation.
② Insert the mixer or whisk with toothed bar into the socket marked with a star.
reverse assembling of the mixers can cause lifting up the dough (taking the dough out of bowl).
level of products inside the bowl should not exceed the hight of mixers or whisks working part (L).
Operation with liquidising disc (Fig. E)
Liquidizing disc is used for liquidizing boiled fruit and vegetables such as: carrots, potatoes, tomatoes, apples through the sieve. It partly replaces the function of the mixing adapter.
① Insert the liquidizing disc on the whisk with toothed bar from the bottom side.
② Insert the whisk into the socket marked with a star.
Cup (12)
Made of transparent material is used as a container when mixing adapter is used.
Operation with mixing adapter (Fig. F)
You can use the mixing adapter for:
Mixing liquids,
●rumbling boiled vegetables and raw, soft fruit,
preparing different mayonnaise and pastes,
• preparing soups for infants.
You can assemble the adapter after moving the cover.
① Gently press the bolt and slide towards the direction shown in the figure.
② Insert the threaded part into the motor casing hole and screw it turning right until you feel the refusal.
quate screwing of the mixing adapter can result in clutch damage or the adapter damage.
③ Put the adapter into the processed product and switch the mixer on.
Operation with mixing cup (Fig. G)
the mixer in your hand all the time during operation.
Mixing cup is intended for infant soups preparation, milk shakes or pancake dough.
① It has the label „500 ml max“ on both sides, which indicates the maximum level of product to fill the cup and graphic scale to determine the volume 200 ml to 500 ml (according to the symbols in the drawing beside).
② After moving the cover (like during assembling the adapter) assemble the cup the following way: Insert the mixing cup on the motor part so that the 3 buckles visible at the bottom of the cup got into the nuts of the motor casing.
③ Holding the motor casing handle turn the cup clockwise direction until you feel the refusal.
You shall obtain the proper connection, when the 3 buckles get under the motor casing, and the fastener on the cup rib move on the other side of the spherical buckle on the motor casing.
④ Fill the cup with products and put the cover with the doser on – you can add next products to the cup during operation.
Operation with stand including turnable bowl (Fig. H)
The stand with assembled motor part makes the operation with whisks or mixers easy, as the user does not have to hold the device.
The housing with the bowl is equipped with a self-gathering spatula, which is an innovative solution. It helps to effectively blend the products, prevents the dough from gathering on the edges of the bowl and shortens the preparation time.
The stand head driver automatically makes the head move pendulum-like and simultaneously turns the bowl with the mixed product.
You can use the stand with specially prepared whisks and mixers only. The device equipped with stand includes also one mixer and one whisk with toothed bar.
① Insert the mixers or whisks into the motor casing (as described above).
② Assemble the drive in the stand head after moving the cover (like during assembling the adapter) the following way: Insert the drive fasteners (which are located near the holes for whisks assembling) under the stand head fastener.
③ Turn the control clamp to the limit in such a way that the hand is positioned vertically.
④ Press the fastener button and simultaneously deflect the stand head with the motor part back.
⑤ Before putting the ingredients into the steel bowl (type 481.64MM only), attach the toothed wheel plastic rim to the bowl until it sits in the recess.
⑥ Then twist it in the direction marked on the rim until it stops.
⑦ Place the bowl on the 3 lips of the stand and put it on the stand base.
⑧ Attach the bowl scraper attachment and put ingredients into the bowl.
⑨ Place the stand head with the motor part in horizontal position (you will hear the clicking sound of fastener blocking clamps).
⑩ Start-up the mixer with the switch lever and it will make the bowl turn and the head with drive move pendulum-like.
r block or stop the oscillatory movement during operation. It may cause damage to the housing.
re emptying the metal bowl, take away toothed wheel. Removing toothed wheel facilitates emptying and cleaning of the product.
Working with a stand with scales
Food mixer type 481.67 has the base, which is equipped with rotating bowl and inbuilt electronic scales, which is an innovative solution. The base with installed motor makes the work with whiskers or stirrers easier, so that the user has "free" hands, whereas the assembled scales enable for weighting of processed products directly in the base bowl. The base with the scales is equipped with the scraper blade and the blade.
mpment of the blender type 481.67 is identical to type 481.7 – see table (B); the additional equipment is a stand with scales, which should be operated according to this instruction manual.
The base with scales is equipped with safety blocking, which prevents the damages of the scales sensor, it is started by blocking knob.
The positions of blocking knob:
OFF – the scales sensor blocked and the scales switched off – it is possible to start the motor on the base.
ON – the scales sensor unblocked and the scales switched on – it is possible to weight but it is not allowed to start the motor on the base.
Operating the stand with scales in terms of cooperation with the drive, mixers, beaters, rotating bowl and self-gathering spatula is identical to these actions concerning a stand without scales, as described in the above subsections.
lling the motor on the base with scales, exchange of accessories and starting te driver is allowed only when the blocking knob is set in OFF.
Scales operation
Specification of the scales:
The scope of weighting 3 kg
The measurement accuracy of the scales
Power
+/- 1 g
3V – two batteries 1,5 V, alkaline, type AA (LR6)
Inserting (replacing) of batteries (Fig. I)
- To provide the power supply of the scales it is necessary to use alkaline batteries 1,5 V, type AA (LR6).
To insert or replace the batteries:
① Turn the blocking knob to OFF position.
② Remove the motor from the base.
③ Turn the base with scales upside down and remove the cover of the batteries bending its fastening with screwdriver or a coin (according to the arrow on the cover),
④ Insert new batteries paying attention to the polarity (+/-).
⑤ Replace the cover of the batteries.
The display and the scales keypad
The symbols show on the scales display and the functions of the buttons are presented in the figure 27.
Display 28 :
- - negative value
g - grams
kg - kilograms
lb - pounds
TARE – tare
ON/OFF – the button to switch the scales off and on 29
Tarring knob TARE30
Unit change button UNIT 31
Weighting (Fig. L)
① Place the base with the scales and rotating bowl on firm and flat surface.
② Switch off the motor. Place the supplying cord of the motor so, that it does not influence the result of weighting. The head of the base with the motor should be put into lower position during weighting (in order to limit the influence of vibrations on the result of weighting).
③ Turn the blocking knob to ON position, to unblock the scales and switch it on. In case the blocking knob is in ON position and the scales is off, it is enough to press the ON/OFF button (next to the display).
④ Wait until symbol „” appears on the display.
⑤ Select a desired weighting unit with UNIT knob, when pressing consequently the units „g“, „kg“, „lb“ are displayed. The button of unit change UNIT makes possible to weight in metric system (g, kg) and in English system (lb) and it
enables recalculation of weighted product between these units displaying it in „g”, „kg” or „lb” after next pressing of the button.
⑥ Put the weighted product into the rotating bowl and read its weight in selected units. When the scope of weighting (3 kg) is exceeded it is indicated by displaying of „o-Id symbol
⑦ The tarring knob TARE enables weighting next added products without necessity to empty the bowl within the scope of weighting (total sum of all ingredients max. 3 kg). After pressing TARE knob the display shall indicate "or," (depending on selected units) and "TARE" inscription shall be displayed.
oving the motor and/or bowl and/or other weighted product out of the base with scales, when the scales is switched on with a motor and/or bowl and/or other weighted product, shall result in displaying their weight and “-” symbol. In such case it is impossible to tare the scales with TARE button, in order to reset the display it is necessary to press ON/OFF switch.
When you finish weighting switch off the scales:
with ON/OFF button (next to the display), when you scheduled further weighting after a short break
● with the blocking knob, turning it to OFF, when you do not plan further weighting, you want to start the motor on the base or you finish work with the base.
se you want to switch off the scales with ON/OFF switch when the display shows other value than „ or „ ” it is necessary to press the ON/OFF switch twice.
The scales does not react for double pressing the ON/OFF switch, it is necessary to switch it off (restart it) with blocking knob turning it to OFF position (for approximately 2 sec.), then switch it on with the blocking knob again (ON position) and continue weighting.
Battery saving
The low battery is indicated by displaying "for approximately 1 sec, than the scales shall switch off. Pressing ON/OFF switch makes the "Lo" figures to be displayed again for approximately 1 sec. The scales is equipped with battery saving mode:
Blue highlight of the display is switched off automatically after 40 seconds, when the display indicates all the time the same weight or no switch was pressed. To restart the highlight press any switch or add (remove) minimum 8 g of weighted product in one go.,
The scales is switched off automatically after 100 seconds, when the display indicates all the time the same weight or no switch was pressed, restarting – after pressing ON/OFF switch.
After operation with the base, always switch off the scales with the blocking knob turning it into OFF position.
Remove the worn batteries from the appliance immediately. It prevents leakage of discharged batteries.
OPERATING THE MINI FOOD PROCESSOR
The appliance characteristics
ZELMER hand blender equipped with mini food processor is intended for chopping meat, cheese, nuts, onion, garlic, carrot, roll, etc.
Mini food processor preparation and operation (fig. J)
Before assembling and disassembling of the mini food processor cover, make sure that the power supply cord is unplugged from the mains supply outlet.
Wash the parts in contact with processed product before first usage.
Operate the mixer so, that the closed/open markings located on the appliance are well visible.
① Place the base 40 on a flat, hard and dry surface.
② Press the mini food processor container 39 into the base 40.
Before each usage of the mini food processor knife, remove the cover out of the blades.
③ Place the mini food processor blade 39 inside the container 36 so, that the spindle protruding from the container got into the inlet of the blade.
④ Place the processed products inside the container 39 without exceeding MAX level.
⑤ If necessary, insert the limiting ring 36 on the blade 34*.
⑥ Screw the lid 32 of mini food processor with the blender motor until you can feel it is blocked (clockwise).
Further excessive turning the lid of mini food processor can lead to damage.
⑦ Insert the mini food processor cover 39 including the motor, on the container 32 placing the protrusions in the container grooves and turn the cover (clockwise), until you can feel it is blocked.
⑧ Insert the plug of the power supplying cord into the mains supply outlet.
⑨ Switch on the appliance and set the required speed
⑩ After operation switch off the appliance and unplug it from the mains supply outlet.
Disassembling of the mini food processor shall be executed reverse to its assembling.
* The limiting ring is useful for chopping parsley or roll pieces (dry or fresh) intended for breadcrumbs to prevent spreading the product all over the container.
mini food processor blades are very sharp. Be very careful during assembling, disassembling or during cleaning. Store the knife inside the cover for safety reasons.
ot mill too hard products, such as: coffee grains, nutmeg, ice cubes etc.
Before chopping a bigger pieces of product, cut it into smaller pieces – approximately 1 cm.
chopping process can not last longer than 45 s. Wait until the motor cools down before you start up the blender again.
In case the products stick to the blades or the internal walls of the container:
switch off the appliance, –
remove the motor with the cover, -
– remove the products out of the blade and walls,
- re-assemble the appliance – as defined above and continue the operation.
Approximate time for processing of selected products for the recommended gear
| Product | Recommended gear | Processing time | |
 |  | 5 | 20-30 s |
 | [1 cm] | 5 | 25-30 s |
 | 1/4 | 3-5 | 15 s |
 |  | 5 | 40 s |
 |  | 5 | 10 s |
 |  | 5 | 15 s |
 | (500 ml) | 5 | 30 s |
 |  | 5 | 20 s |
The processing time can be shortened depending how thick the final product particles should be.
The appliance characteristics
Zelmer food processor is equipped with the ice crusher which is used for crushing ice and e.g. frozen fruit.
You can use the crusher only with the container and lid of mini food processor!
Application of the accessories
Double-sided disc – is used for crushing, grinding ice and frozen products. The disc is round, the blades are double-sided. One side, which we recognize by the applied plastic fifteen-pointed star, fig. 35 A is used for first level grinding „I" (smaller particles of grinded product), the other side is used for second level grinding „II" (bigger particles of grinded product) and it is marked with seven pointed star fig 35 B.
Spindle 38 – is used for fixing the disc.
Preparation of the ice crusher
The assembling and disassembling the food processor motor drive of the ice crusher, make sure that the supply cord plug is disconnected from the mains supply outlet.
Wash the parts in contact with processed product before first usage.
Operate the mixer so, that the closed/open markings located on the appliance are well visible.
Operation with ice crusher (fig. K)
① Place the base 40 on firm, flat and dry surface.
② Insert the mini food processor container 39 in the base 40.
③ Place the disc for ice 35 on the spindle 38 (double-sided disc), so that the blades provided for operation are on the top.
④ Place the disc with the spindle inside the mini food processor container ③9 so that the pivot protruding from the container is inserted into the spindle orifice.
⑤ Insert the ice crusher container 33 on the fasteners of the mini food processor container, and then lock the ice crusher container, turning it until you can feel it is blocked.
⑥ Place the processed products inside the container ^33 not exceeding MAX level.
When you fill up the crusher container 33 with appropriate amount of processed product (do not exceed MAX level) center the spindle 38 (put in the middle) to enable its proper coupling with the mini food processor lid 32.
⑦ Screw the lid of mini food processor 32 to food processor drive (in clockwise direction), until you feel it is blocked.
Further excessive turning the lid of mini food processor can lead to damage.
⑧ Place the mini food processor lid 32 on the container 33
together with drive inserting the projections in orifices placed in the container, and turn the lid (in clockwise direction) until it is definitely blocked.
⑨ Connect the plug into the mains supply outlet.
⑩ Start-up the appliance and engage the appropriate gear.
After operation, switch off the appliance and unplug it from the socket.
- disassembling the ice crusher, proceeds reverse to its assembling.
ice crusher blades are very sharp. Be very careful during assembling, disassembling or during cleaning.
Never exceed the maximum level of the ice crusher input.
r disassemble the lid from the container before the disc stops rotating.
Operational tips
Maximum level of input of the ice crusher container corresponds with the capacity of 450 ml.
●Chake the appliance in case the products are clogged over the disc.
case the products get stuck to the inner wall of the mini food processor container hindering or blocking ejection of grinded product out of the upper container of the ice crusher:
Switch off the appliance. -
Remove the drive with the lid and container of ice – or – other products crusher.
Remove the products out of the mini food processor — walls.
Re-assemble the appliance - as defined above and - continue the operation.
Possible usage of the appliance
You can use products (i.e. fruit) grinded with the ice crusher to prepare iceLcream, yoghurts, desserts.
Recommended granulation level for given product
| Product* | Recommended gear** | Granulation level |
| 5 | I-II | |
| 5 | I |
* The maximum level of input to the ice crusher container corresponds with the capacity of 450 ml.
** Do not use the ice crusher longer than 2 min.
After operation
(Fig. M)
- switch the mixer off and unplug it.
Depending on assembled equipment:
① Push the whisks or mixers out with a pushing button.
② Disassemble the liquidizing disc from the whisk.
Disassemble the mixing adapter or mixing cup in reverse way to assembling it.
③ Deflect the stand head with the motor part back. Turn the clamp knob in counter clockwise direction as much as possible and put the motor out of the head fasteners.
Wind the cord onto the motor.
Cleaning and maintenance
Remember to unplug before clearing and maintenance.
Clean the whisks and mixers with warm water with cleaning agents.
- clean the mixing adapter and mixing cup by mixing clean, warm water (after plugging the mixer to mains supply).
Clean the cogged rim of rotational bowl with dishes cleaning brush.
Do not wash the mixing adapter or the mixing cup in dishwasher.
Burn the bowl upside down after cleaning and pour out the water, which could remain under the cogged rim.
Before cleaning the steel bowl (type 481.64MM only) disassemble the toothed wheel rim proceeding in reverse to the assembly instruction (Fig. H).
Dry the mixer equipment after cleaning and store in dry place.
Clean the motor or stand casing with dump cloth and then dry it.
Ecology – environment protection
Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it: Put the cardboard packing into recycling paper container, Put the polyethylene (PE) bags into container for plastic.
It is not allowed to dispose worn out batteries to domestic waste disposal. You should bring them to waste batteries collection point or to the outlet.
When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
Please do not dispose into domestic waste disposal!!!
The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.
The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.
- PL Stagnesi Klaspii
- Dane techniczne
- PRACA Z TARCZA PRZECIERAJĄCĄ (Rys. E)
- LUCRU CU MINIMALAXOR
- Important safety precautions
- Danger! / Warning! Health hazard
- Caution!
- Not observance can result in damage to possessions
- stion
- Information on the product and suggestions for its use
- Technical data
- Appliance elements
- (Fig. A)
- ZELMER mixers types
- (Fig. B)
- Device description
- Mixer start-up and position setting
- (rotation speed)
- (Fig. C)
- Preparing for operations
- Operation with whisks or mixers (Fig. D)
- Operation with liquidising disc (Fig. E)
- Cup (12)
- Operation with mixing adapter (Fig. F)
- Operation with mixing cup (Fig. G)
- Operation with stand including turnable bowl (Fig. H)
- Working with a stand with scales
- Scales operation
- Inserting (replacing) of batteries (Fig. I)
- The display and the scales keypad
- Weighting (Fig. L)
- Battery saving
- OPERATING THE MINI FOOD PROCESSOR
- The appliance characteristics
- Mini food processor preparation and operation (fig. J)
- Application of the accessories
- Preparation of the ice crusher
- Operation with ice crusher (fig. K)
- Operational tips
- Possible usage of the appliance
- After operation
- (Fig. M)
- Cleaning and maintenance
- Ecology – environment protection
- Please do not dispose into domestic waste disposal!!!
Brand : Zelmer
Model : 481.67
Category : Hand blender
