WSP-1B - Coffee maker WILFA - Free user manual and instructions

Product Type	Coffee maker
Brand	Wilfa
Model	WSP-1B (SVART Presisjon)
Power Supply	220-240 V ~ 50 Hz, 1780 W
Brewing Temperature	92°C – 96°C
Water Tank Capacity	1.25 L (max)
Water Tank Type	Removable
Pump System	Unique pump for fresh water each brew
Flow Control & Drip Stop	Yes, adjustable
Keep Warm Function	Up to 40 minutes
Measuring Spoon	Included (5, 10, 15 g marks)
Recommended Coffee Ratio	60 g per liter of water
Filter Type	Paper filter 1x4
Certification	European Coffee Brewing Centre approved
Cleaning	Filter holder, jug, lid: top rack dishwasher safe; exterior: damp cloth
Descaling	Regularly with commercial descaler
Safety	Automatic shut-off, stable base, keep away from children
Spare Parts	Use only original Wilfa parts
Warranty	Valid only if descaling is performed regularly
Included in Box	Coffee maker, jug, filter holder, measuring spoon, manual

Frequently Asked Questions - WSP-1B WILFA

How do I use the Wilfa WSP-1B for the first time?

Before first use, run the coffee maker with fresh water (no coffee) to flush the system. Fill the removable water tank with cold water, place a paper filter, and start a brew cycle. Discard the water.

What is the recommended coffee-to-water ratio?

Use about 60 g of ground coffee per liter of water. For a full 1.25 L pot, use 75 g. Adjust to taste. Use the included measuring spoon (5, 10, 15 g) for accuracy.

How long does the keep-warm function last?

After brewing, the coffee maker automatically keeps the coffee warm for up to 40 minutes. The 'keep warm' indicator will be active during this time.

How do I adjust the flow control or use the drip stop?

The flow control lever on the filter holder can be turned to the right to act as a drip stop. This allows you to pause brewing momentarily to pour a cup without drips.

Why does the coffee maker make a pumping sound?

The built-in pump pushes water through the system from start to finish. It is normal to hear some sound at the beginning and end of the brew cycle.

How should I clean the Wilfa WSP-1B?

Clean the filter holder, coffee jug, and lid in hot soapy water or on the top rack of the dishwasher. Wipe the exterior with a damp cloth. Do not immerse the main unit in water.

How often should I descale the coffee maker?

Descaling should be done regularly, especially in hard water areas. Use a commercial descaling detergent. Failure to descale may void the warranty.

Can I use the glass jug on a stove or microwave?

No. The coffee jug is designed for use only with the coffee maker. Do not place it on a hob or in a microwave, as it may break.

What safety precautions should I follow?

Always unplug the appliance before cleaning. Keep it out of reach of children under 8 years. Only fill with cold water. Do not operate if damaged.

Can I use other coffee grinds or filters?

Use standard 1x4 paper coffee filters. The machine works best with ground coffee. For optimum extraction, consider using a Wilfa coffee grinder for freshly ground beans.

USER MANUAL WSP-1B WILFA

Modern kitchen coffee maker with clear glass and black handle, no visible text or symbols

Automatic Coffee Brewer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

WSP-1A, WSP-1B

Congratulations on your new Wilfa SVART Presisjon coffee maker.

With the optimal brewing temperature of 92^ C – 96^ C will give you the best coffee experience. For many, coffee is an important part of everyday life and is often used in social contexts, and what could be better then, than to serve a perfect cup of coffee.

Approved by the European Coffee Brewing Centre

General safety instructions

• Read the instructions carefully before using the appliance, and keep the instructions including the warranty, receipt, and if possible the box with inner packaging.
  ■ This appliance is designed for private use, and for the intended application. It is not suitable for commercial use.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
  ■ Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.
  ■ Do not use outdoors.
  ■ When the unit is cleaned or put away, it must be turned off and the plug must be pulled out of the socket (pull the plug, not the cable).
• Check device and cable regularly for damage. Do not use if it is damaged.
  ■ Try not to repair the appliance yourself. Always contact an authorized technician.
  ■ Use only original spare parts.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

■ Be especially aware of "special security instructions" below.

Special safety instructions for this device

• The device must only be filled with cold water.
• Decalcification should be done regularly, as needed. If this is not observed, the guarantee on the product will lapse.
• Unplug when not in use.
• Never use a coffee jug on the hob or in microwave.
  • Always unplug the appliance before cleaning.

First use of the machine

Read this instruction carefully and keep them for future references.

Please start the coffee maker with fresh water and without coffee before it is used for the first time.

Wilfa SVART Presisjon is equipped with a unique pump that always ensures you fresh water every time you brew coffee.

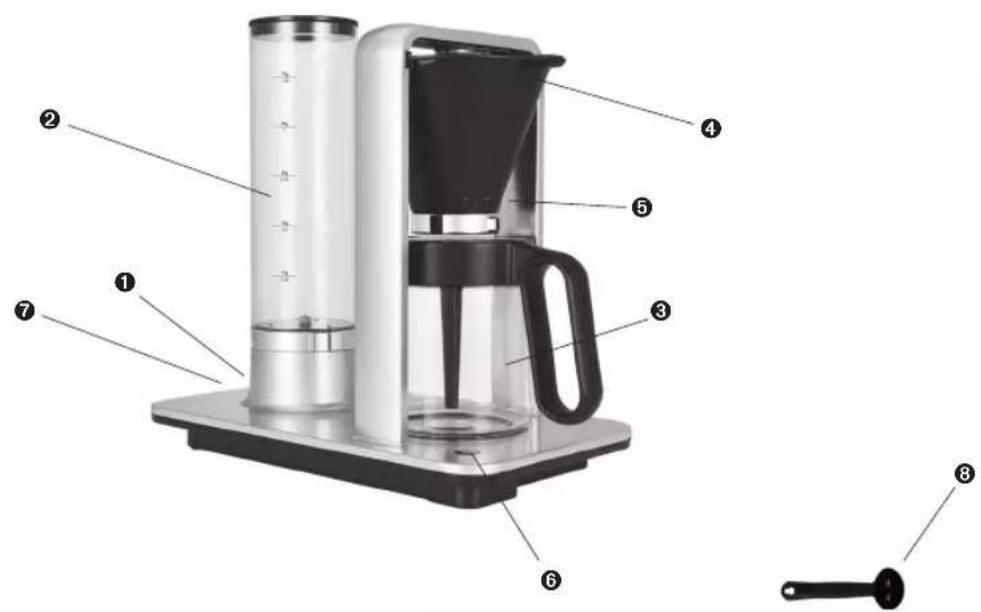

Design

① On/off switch
② Removable water tank
③ Coffee jug
④ Filter holder
⑤ Flow control and drip stop
⑥ Start button/keep warm
⑦ Power cord with plug
⑧ Measuring spoon; 5, 10, and 15gr.

• Set Wilfa SVART Presisjon on a flat surface.
• Fill the removable water tank with fresh cold water; use the water scale on the side.
• Place the coffee filter (1x4) in the filter holder. Use desired quantity of coffee in the filter.
• We recommend that you use ground coffee, about 60 g per liter of water. Try out the first times until you find out how much coffee you think is best. We also recommend that you use our Wilfa Gram Stål scale that gives 1g intervals for best results.

• We recommend the following ratios of water and coffee:

$$ \begin{array}{l} 1, 2 5 \mathrm{l} - 7 5 \mathrm{g} \ 1 \vert - 6 0 g \ 0, 7 5 \mathrm{l} - 4 5 \mathrm{g} \ 0, 5 \mid - 3 0 g \ 0, 2 5 \mathrm{l} - 1 5 \mathrm{g} \ \end{array} $$

Please note that different grinds and coffee types will influence these ratios somewhat.

• Set the flow control in relation to water/coffee.
• Turn the power switch on. "Start" button will blink twice.
• Press the start button to start to brewing process.
• Wilfa SVART Presisjon has a unique pump that pulls water through the system from the first to the last drop. The pump can emit some sound at the start and at the end.
• When the brewing process is complete, the unit will go to a "keep warm" position for up to 40 minutes.
• By setting the flow control to the right, it will act as a drip stop.
• The coffee should be served fresh.
• Turn of the power switch, when you are finished using the maker.

Tips

• You can also use our Wilfa NYMALT coffee grinder to change the degree of grind of the coffee. This will also change extraction time.
  • Always use fresh coffee. For best results, the coffee you use is freshly ground.
• To wish for even hotter coffee, the coffee jug can be rinsed in hot water before brewing.

Cleaning

• Use a cleaning product for coffee. Remember to brew through with clean water after the cleaning process.
• If necessary, the device may be cleaned with a damp cloth without any additives.
• Filter holder, coffee jug and lid can be washed in hot soapy water or placed at the top in the dishwasher.
• Never wash other parts of the device in the dishwasher. Never use strong detergents, scouring powders, steel wool or other release agents on any part of the maker.

Descaling

• Use a commercially available descaling detergent.
• Descaling should be done, as needed. In areas with hard water, descaling must be done regularly.

Electrical connection

Check the voltage where you use the device is the same as specified on the appliance. For details on the label on the base plate.

Technical specifications:

220-240V\~50Hz 1880W WSP-1A

220-240V\~50Hz 1780W WSP-1B

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse. Instead, bring the product to your closest WEEE collection centre.

WILFA AS

Industriveien 25

1481 Hagan, Norway wilfa.com
