WSP-1A - Coffee maker WILFA - Free user manual and instructions

Product Type	Coffee maker
Brand	Wilfa
Model	WSP-1A
Power Consumption	1880 W
Voltage	220-240 V ~ 50 Hz
Water Tank Capacity	1.25 L (max), removable
Brewing Temperature	Optimal 92°C – 96°C
Pump Type	Unique pump ensuring fresh water each brew
Keep Warm Duration	Up to 40 minutes
Drip Stop	Yes, via flow control
Filter Type	1x4 coffee filter
Coffee Ratio Recommendation	60 g coffee per liter of water (adjustable)
Measuring Spoon	Included (5, 10, 15 g markings)
Certification	Approved by European Coffee Brewing Centre
Descaling	Regular descaling required, use commercial detergent
Cleaning	Filter holder, jug, lid dishwasher safe top rack; body wipe with damp cloth
Safety Features	Auto shut-off via on/off switch; unplug when not in use; keep out of reach of children under 8
Repairability	Contact authorized technician; use only original spare parts
WEEE Compliance	Separate collection for electronic waste

Frequently Asked Questions - WSP-1A WILFA

How do I use the Wilfa WSP-1A coffee maker for the first time?

Before first use, run the coffee maker with fresh water and no coffee. Then fill the removable water tank with cold water, place a 1x4 filter in the holder, add ground coffee (about 60 g per liter), set the flow control, turn on the power switch, and press the start button.

What type of coffee grind should I use?

We recommend using ground coffee. For best results, use freshly ground coffee and adjust the grind size with a grinder like the Wilfa NYMALT to change extraction time.

How do I descale the coffee maker?

Use a commercially available descaling detergent and follow the instructions. Descaling should be done regularly, especially in areas with hard water, to maintain warranty.

Why does the pump make noise at the start and end of brewing?

The Wilfa SVART Presisjon has a unique pump that pulls water through the system. It may emit some sound at the beginning and end of the brewing process, which is normal.

How do I clean the coffee maker?

Unplug the appliance before cleaning. The filter holder, coffee jug, and lid can be washed in hot soapy water or placed on the top rack of the dishwasher. Wipe the body with a damp cloth without additives. Never use abrasive cleaners.

Can I use the coffee jug on a hob or in a microwave?

No, never use the coffee jug on a hob or in a microwave. It is designed only for use with the coffee maker.

What water should I use in the coffee maker?

Always use cold, fresh water. Do not use hot or warm water. Fill the removable water tank to the desired level using the water scale on the side.

How can I make the coffee hotter?

To achieve even hotter coffee, rinse the coffee jug with hot water before brewing. This preheats the jug and helps maintain temperature.

What should I do if the coffee maker is not working?

Check that the appliance is plugged in and the power switch is on. Ensure the water tank is filled. If problems persist, contact an authorized technician. Do not attempt to repair yourself.

How long does the keep-warm function last?

After brewing, the coffee maker automatically switches to keep-warm mode for up to 40 minutes. After that, it turns off.

USER MANUAL WSP-1A WILFA

Modern kitchen coffee maker with clear glass and black filter, no visible text or symbols

Automatic Coffee Brewer

Bruksanvisning

Bruksanvisning

Brugsanvisning

Käyttöohje

Instruction manual

WSP-1A, WSP-1B

Congratulations on your new Wilfa SVART Presisjon coffee maker.

With the optimal brewing temperature of 92^ C – 96^ C will give you the best coffee experience. For many, coffee is an important part of everyday life and is often used in social contexts, and what could be better then, than to serve a perfect cup of coffee.

Approved by the European Coffee Brewing Centre

General safety instructions

• Read the instructions carefully before using the appliance, and keep the instructions including the warranty, receipt, and if possible the box with inner packaging.
  ■ This appliance is designed for private use, and for the intended application. It is not suitable for commercial use.
• Keep the appliance away from heat sources, direct sunlight, moisture and sharp edges.
  ■ Do not use with wet hands. Unplug immediately if the unit is damp or wet. Do not immerse in water.
  ■ Do not use outdoors.
  ■ When the unit is cleaned or put away, it must be turned off and the plug must be pulled out of the socket (pull the plug, not the cable).
• Check device and cable regularly for damage. Do not use if it is damaged.
  ■ Try not to repair the appliance yourself. Always contact an authorized technician.
  ■ Use only original spare parts.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children aged less than 8 years.

■ Be especially aware of "special security instructions" below.

Special safety instructions for this device

• The device must only be filled with cold water.
• Decalcification should be done regularly, as needed. If this is not observed, the guarantee on the product will lapse.
• Unplug when not in use.
• Never use a coffee jug on the hob or in microwave.
  • Always unplug the appliance before cleaning.

First use of the machine

Read this instruction carefully and keep them for future references.

Please start the coffee maker with fresh water and without coffee before it is used for the first time.

Wilfa SVART Presisjon is equipped with a unique pump that always ensures you fresh water every time you brew coffee.

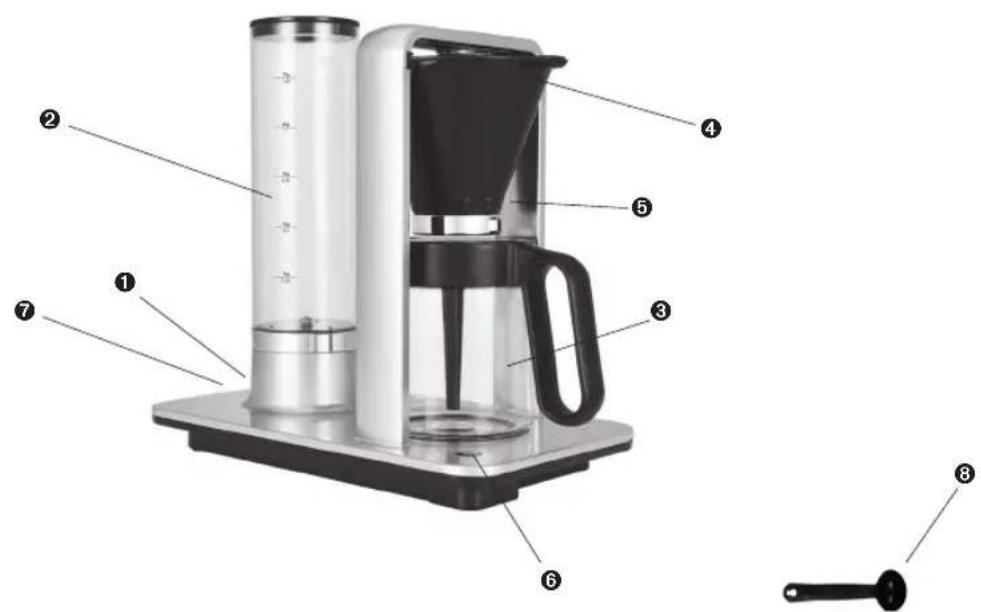

Design

① On/off switch
② Removable water tank
③ Coffee jug
④ Filter holder
⑤ Flow control and drip stop
⑥ Start button/keep warm
⑦ Power cord with plug
⑧ Measuring spoon; 5, 10, and 15gr.

• Set Wilfa SVART Presisjon on a flat surface.
• Fill the removable water tank with fresh cold water; use the water scale on the side.
• Place the coffee filter (1x4) in the filter holder. Use desired quantity of coffee in the filter.
• We recommend that you use ground coffee, about 60 g per liter of water. Try out the first times until you find out how much coffee you think is best. We also recommend that you use our Wilfa Gram Stål scale that gives 1g intervals for best results.
  • We recommend the following ratios of water and coffee:

$$ 1, 2 5 \mathrm{l} - 7 5 \mathrm{g} $$

$$ 1 \mid - 6 0 g $$

$$ 0, 7 5 \mathrm{l} - 4 5 \mathrm{g} $$

$$ 0, 5 \mid - 3 0 g $$

$$ 0, 2 5 \mathrm{l} - 1 5 \mathrm{g} $$

Please note that different grinds and coffee types will influence these ratios somewhat.

• Set the flow control in relation to water/coffee.
• Turn the power switch on. "Start" button will blink twice.
• Press the start button to start to brewing process.
• Wilfa SVART Presisjon has a unique pump that pulls water through the system from the first to the last drop. The pump can emit some sound at the start and at the end.
• When the brewing process is complete, the unit will go to a "keep warm" position for up to 40 minutes.
• By setting the flow control to the right, it will act as a drip stop.
• The coffee should be served fresh.
• Turn of the power switch, when you are finished using the maker.

Tips

• You can also use our Wilfa NYMALT coffee grinder to change the degree of grind of the coffee. This will also change extraction time.
  • Always use fresh coffee. For best results, the coffee you use is freshly ground.
• To wish for even hotter coffee, the coffee jug can be rinsed in hot water before brewing.

Cleaning

• Use a cleaning product for coffee. Remember to brew through with clean water after the cleaning process.
• If necessary, the device may be cleaned with a damp cloth without any additives.
• Filter holder, coffee jug and lid can be washed in hot soapy water or placed at the top in the dishwasher.
• Never wash other parts of the device in the dishwasher. Never use strong detergents, scouring powders, steel wool or other release agents on any part of the maker.

Descaling

• Use a commercially available descaling detergent.
• Descaling should be done, as needed. In areas with hard water, descaling must be done regularly.

Electrical connection

Check the voltage where you use the device is the same as specified on the appliance. For details on the label on the base plate.

Technical specifications:

220-240V\~50Hz 1880W WSP-1A

220-240V\~50Hz 1780W WSP-1B

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, this type of waste must be collected and treated separately. If it becomes necessary to dispose of this product at some point, kindly make sure that it is not discarded with your everyday household refuse. Instead, bring the product to your closest WEEE collection centre.

WILFA AS

Industriveien 25

1481 Hagan, Norway wilfa.com
