Balance 5000 9837 - Kitchen scale OBH NORDICA - Free user manual and instructions

Product Type	Kitchen Scale
Brand	OBH Nordica
Model	Balance 5000 9837
Dimensions	20 x 15 x 2 cm (7.9 x 5.9 x 0.8 in)
Weight	300 g (10.6 oz)
Power Supply	2 x AAA batteries (not included)
Maximum Capacity	5 kg (11 lb)
Accuracy	1 g (0.1 oz)
Display	LCD with backlight
Units	g, kg, lb, oz
Functions	Tare, Zero, Auto-off
Auto-off Time	Approx. 2 minutes
Material	Stainless steel platform, plastic body
Care and Cleaning	Wipe with a damp cloth. Do not immerse in water.
Safety Warnings	Use on a flat, stable surface. Do not overload or drop.
Spare Parts	Batteries are user-replaceable (AAA type).
General Information	Digital kitchen scale with high precision for accurate weighing.

Frequently Asked Questions - Balance 5000 9837 OBH NORDICA

How do I change the batteries in my OBH Nordica Balance 5000 9837 kitchen scale?

To change the batteries, locate the battery compartment on the bottom of the scale. Slide the cover open, remove the old AAA batteries, and insert two new AAA batteries matching the polarity markings. Close the cover securely.

How should I clean the kitchen scale?

Clean the scale with a damp cloth. Do not use abrasive cleaners or immerse the scale in water. For the stainless steel platform, a mild detergent can be used. Wipe dry after cleaning.

What does the 'EEEE' error message mean?

The 'EEEE' error indicates overload. You have placed more than the maximum capacity (5 kg) on the scale. Remove the excess weight immediately to prevent damage.

What is the maximum weight this scale can measure?

The maximum capacity is 5 kg (11 lb). Exceeding this may damage the sensors and display an error message.

How do I switch between weight units?

Press the UNIT button on the scale to cycle through grams (g), kilograms (kg), pounds (lb), and ounces (oz). The selected unit will appear on the display.

Why does the scale turn off automatically after a short time?

The scale has an auto-off feature to save battery. It will turn off after approximately 2 minutes of inactivity. To wake it, press the ON/OFF button.

Is the kitchen scale waterproof?

No, the scale is not waterproof. It is designed for dry indoor use only. Do not expose it to water or moisture to avoid electrical damage.

How do I use the tare function?

Place a container on the scale, then press the TARE button to zero out the weight. Add ingredients; the display will show only the net weight. You can tare multiple times during one session.

What is the accuracy of the scale?

The scale has an accuracy of 1 g (0.1 oz), ensuring precise measurements for cooking and baking.

Are spare parts or replacement batteries available?

The only user-replaceable part is the batteries (AAA). The scale itself does not have other serviceable parts. For repairs, contact OBH Nordica customer support.

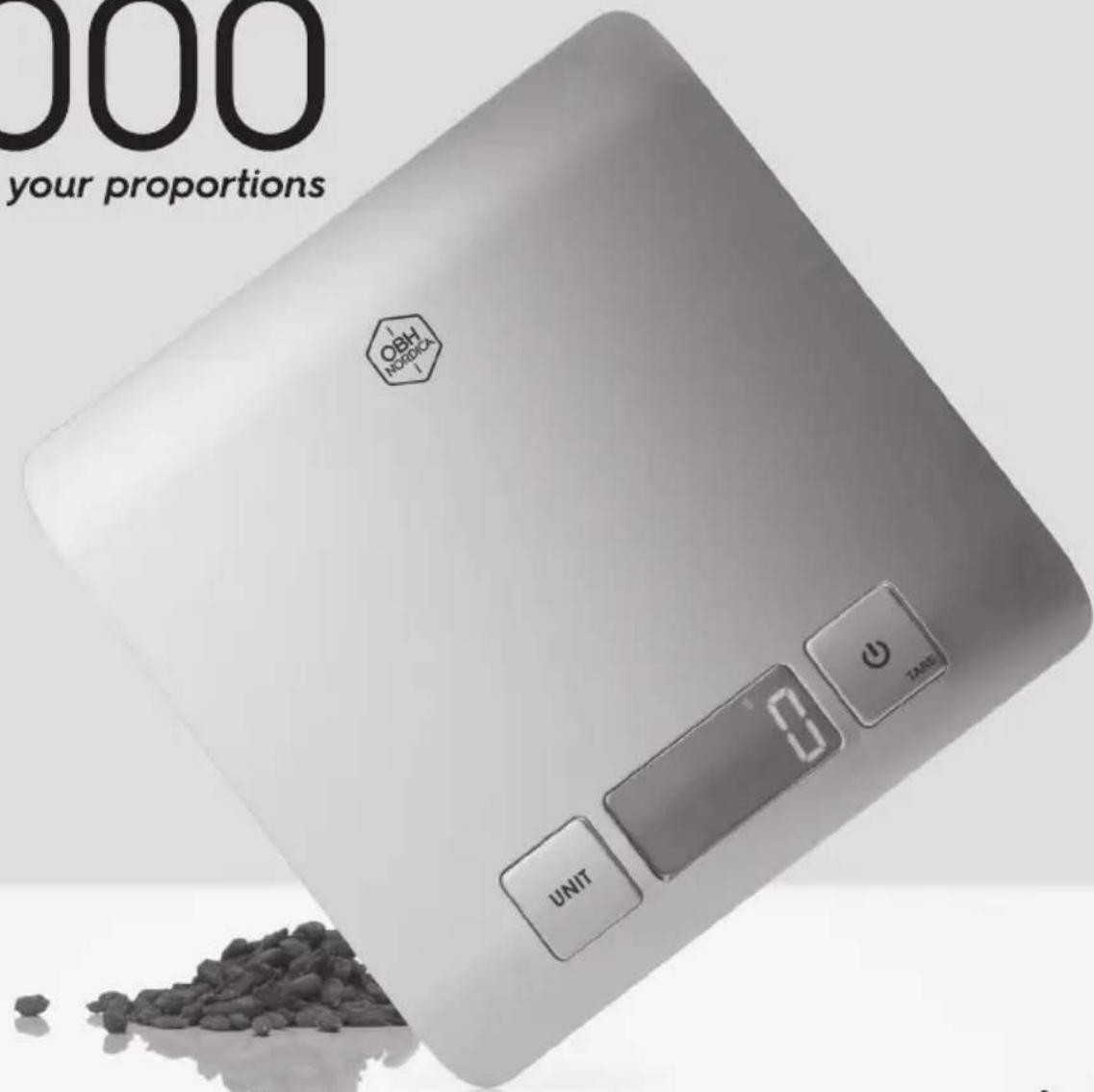

USER MANUAL Balance 5000 9837 OBH NORDICA

DESIGNING GOOD LIFE

Kitchen Scale

BALANCE

5000

Manage your proportions

Making good!

BEGRENSET GARANTI for OBH Nordica

Garantien

1. Read the instruction manual carefully before use, and save it for future use.
2. The appliance must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately, as liquids contain minerals which may result in rust in the electronic parts or which may totally destroy the electronic parts.
3. If the appliance gets dirty, the dirt can be wiped off with a slightly humid cloth, and then wiped with a dry cloth.
4. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical/electronic appliances.
6. Cleaning and user maintenance shall not be made by children, unless they are over the age of 8 and supervised.
7. Keep the appliance out of reach of children aged less than 8 years.
8. Do not place the appliance on or near hotplates, open fire or the like.

9. The appliance should only be used under supervision.

10. The appliance is not for outdoor use.

11. The appliance must not be used if it has been dropped on the floor, or if it is clear that the appliance is damaged.

12. Use only new batteries of the correct size. Used batteries should always be removed, as they may leak chemicals which may damage the circuits of the appliance

13. In the event of battery leakage, prevent skin contact and dispose batteries according to local law

14. The appliance is for domestic use only.

15. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

There are several different types of scales

1. The traditional mechanical scale that estimates the weight on the basis of spring action – subsequently the weight can be read from a dial.
2. The digital scale which is in fact also a mechanical scale with the exception that weight measurements are read from a display.
3. The modern electronic scale, which performs weighing by means of an electronic sensor and converts the weight electronically for display reading. The advantage of the electronic scale over the mechanical or digital scales is first and foremost that it performs far more accurate measurements – and will continue to do so. The mechanical and digital scales become increasingly inaccurate over time, partly due to worn spring in these types of scales.

Please note that electronic scales are sensitive to major temperature swings. Inaccuracies may occur if the scale is cold. The scale consequently works best at normal room temperature.

Replacement and insertion of batteries

The scale requires 2 type CR2032 lithium batteries that must be inserted before the scale can be taken into use. Allow the scale to adapt to normal room temperature.

To insert batteries remove the battery door on the back of the scale. The batteries can now be inserted or replaced by placing them in the battery compartment so that the batteries are firmly fixed – make sure that the batteries are placed correctly.

Re-attach battery door. When the battery needs to be replaced “Lo” will appear in the display.

Weighing

When the batteries have been inserted, switch on the weight by pressing the TARE/ON/OFF button in the right lower corner. After a few seconds “0” appears in the display together with the unit selected the last time the scale was used. The scale is now ready for use. The scale is capable of weighing up to a maximum of 5 kg.

Toogle between g, fl.oz., lb oz, and ml readings by pressing the UNIT button to the right of the display.

Reset

This kitchen scale is equipped with a convenient reset function which enables all ingredients to be weighed directly in the same bowl, one at a time. When you have finished weighing the first ingredient, the scale is reset by a quick tap on the TARE/ON/OFF button.

After resetting the scale is ready for weighing the next ingredient. Remember to reset after weighing each ingredient. If the most recently weighed ingredient is removed again after resetting, its weight will be displayed with a negative sign. Press reset and the scale is ready for use again. If the scale has not been reset after weighing the last ingredient, and this ingredient is removed, the scale will read "0" again.

If the scale is overloaded (a load of more than 5 kg), the display will read "EEEE". Remove surplus ingredients from the scale and it is ready for weighing again.

Switch off

In order to save battery life the scale automatically switches off after approximately 60 seconds of non-use. The scale can also be switched off manually by pressing and holding the TARE/ON/OFF button for a few seconds.

Cleaning and maintenance

The surface can be wiped clean using a soft cloth moistened with water and a mild detergent. Wipe dry using a dry cloth or paper towel. Never use strong, abrasive cleaners as these may scratch the surface. The scale may not be immersed in water or other liquids. Do not place the scale near strong heat sources such as cookers or radiators.

Environmental considerations and disposal of batteries

When disposing of batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Used batteries marked with the icon indicating separate waste collection must be returned to one of the authorized collection points. Batteries must be removed from the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the validity date printed on the batteries.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification

• ingress of water, dust or insects into the product

• scaling (any de-scaling must be carried out according to the instructions for use)

• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.

These instructions are also available on our website www.obhnordica.com.

TEFAL - OBH Nordica Group AB

Löfströms Allé 5

Phone: [phone]

www.obhnordica.com

Tekniske data

OBH Nordica 9837

Maximum weight: 5 kg with 1 g interval

The appliance must be disposed of as electronic waste

Reset function

LCD digital display

Automatic switch-off after approx. 60 seconds of non-use

2 type CR2032 lithium battery

Accuracy: +/- 1.0 %

CE

These instructions are subject to alterations or improvements.
