LEGEND 700 - SSD ADATA - Free user manual and instructions

Product Type	SSD (Solid State Drive)
Brand	ADATA
Model	LEGEND 700
Form Factor	M.2 2280
Interface	PCIe Gen3 x4, NVMe 1.3
Capacity	Up to 2TB
Sequential Read Speed	Up to 3,500 MB/s
Sequential Write Speed	Up to 2,800 MB/s
Dimensions (L x W x H)	80 mm x 22 mm x 3.5 mm
Weight	8 g
Power Consumption (Idle)	0.33 W
Power Consumption (Active)	3.5 W (typical)
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Shock Resistance	1,500 G / 0.5 ms
MTBF	2,000,000 hours
Warranty	5 years limited
Main Features	NVMe performance, low latency, SLC caching, LDPC ECC
Maintenance	No user maintenance required; update firmware via ADATA SSD Toolbox
Safety	Compliant with CE, FCC, RoHS
Spare Parts / Repairability	Not user-serviceable; warranty replacement for defects

Frequently Asked Questions - LEGEND 700 ADATA

What is the ADATA LEGEND 700 SSD?

The ADATA LEGEND 700 is an NVMe M.2 SSD using PCIe Gen3 x4 interface, designed for high-speed data storage in desktop and laptop computers.

What capacities are available for the LEGEND 700?

The LEGEND 700 is available in capacities up to 2TB, including 256GB, 512GB, 1TB, and 2TB variants.

Is the LEGEND 700 compatible with my motherboard?

It requires an M.2 slot supporting PCIe Gen3 x4 or higher with NVMe protocol. Check your motherboard manual to confirm compatibility.

How do I install the ADATA LEGEND 700 SSD?

Insert the SSD into the M.2 slot at a 30-degree angle, then secure it with the screw. Refer to your motherboard manual for the exact slot location.

What is the typical read/write speed?

Sequential read speeds reach up to 3,500 MB/s and sequential write speeds up to 2,800 MB/s, ensuring fast boot and file transfers.

Does the LEGEND 700 support thermal management?

Yes, it features dynamic thermal throttling to prevent overheating under heavy loads, and an optional heatsink may be used.

What software is available for the LEGEND 700?

ADATA provides the SSD Toolbox for monitoring drive health, firmware updates, and performance optimization. Download it from the official website.

What is the lifespan of the LEGEND 700 SSD?

The SSD has an MTBF of 2,000,000 hours and comes with a 5-year limited warranty. Actual lifespan depends on usage.

Can I use the LEGEND 700 as a boot drive?

Absolutely. It is ideal for operating system installation and offers fast boot times and application loading.

Does the LEGEND 700 support TRIM and S.M.A.R.T.?

Yes, it supports TRIM for garbage collection and S.M.A.R.T. for drive health monitoring via the SSD Toolbox.

USER MANUAL LEGEND 700 ADATA

ADATA®

INDEX

INSTALLING AN M.2 SSD ON A DESKTOP PC

Chinese traditional 03	Portuguese	27
Chinese simple 07	Russian	31
English 11	Romanian	35
German 15	Spanish	39
Japanese 19	Turkish	43
Korean	23

INSTALLING AN M.2 SSD ON A LAPTOP PC

Chinese traditional 47		Portuguese	71
Chinese simple 51		Russian	75
English	55	Romanian	79
German 59		Spanish	83
Japanese 63		Turkish	87
Korean	67

HOW TO INSTALL AN M.2 SSD ON PLAYSTATION 5

Chinese traditional 91		Portuguese	127
Chinese simple 97		Russian	133
English	103	Romanian	139
German	109	Spanish	145
Japanese	115	Turkish	151
Korean	121

如何在桌機安裝

M.2固態硬碟

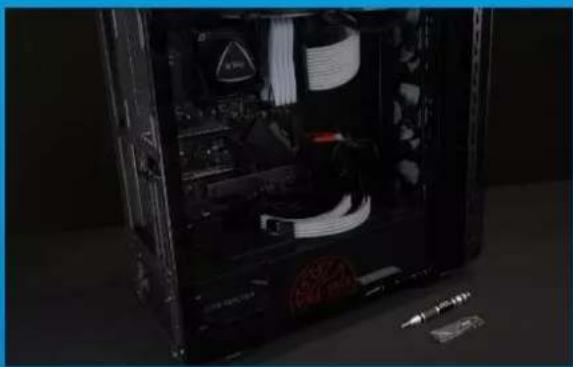

更換前準備步驟

1. 準備工具

2.備份資料

1. 將主機機殼卸下

3. 對準M.2插槽、插上固態硬碟

4.拴上螺絲固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新裝上機殼

更换前准备步骤

1. 准备工具

2. 备份数据

1. 将机箱侧板卸下

3. 对准M.2插槽、插上固态硬盘

4.拧上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新装上机箱侧板

BEFORE INSTALLATION

1.GATHERTHETHINGSYOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm

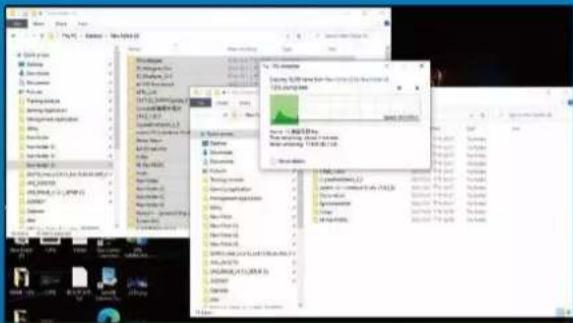

2.BACKUPYOURDATA

Make sureto backup the important data on your PC to an external device, such as an external HDD, before starting installation.

3. POWEROFF YOURPC

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

4.SWITCHOFFTHEPOWERSWITCH ANDUNPLUGPOWERCORD

This action is necessary to discharge residual power that can damage your PC and its components.

*The location of the power switch may vary by PC, please check your user manual.

INSTALLATION

1.REMOVETHEPCCASE

Use the standard Philips screwdriver to remove the screws and then remove the PC case

2. LOCATETHEM.2PCIESLOTAND CONFIRM THEREARESCREWS

Locate the M.2 PCIe slot, ensure the SSD will fit, and confirm there a rescrews present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the PC is shipped from the factory.

3.ALIGNTHEM.2SLOTANDINSERT THESOLIDSTATEDRIVE

Use your small Phillips screwdriverto remove the screwson the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it afinal push to ensure it is securely in place.

* The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

4.FASTENTHESCREWSTOSECURE THESSD

Use your small Phillips screwdriver to secure the SSD into place.

5. RESEMBLE THE CASE

*Do not overtighten the screws as it may damage the screws ad back plate

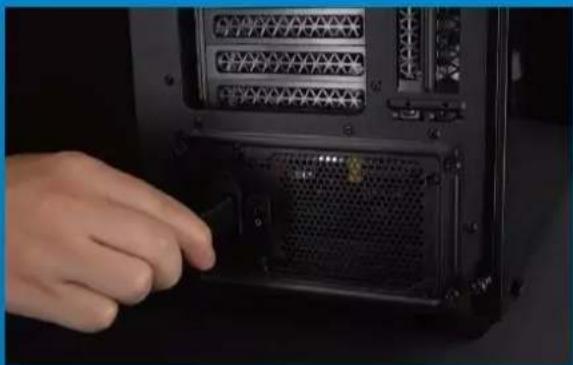

6. PLUG IN THE POWER CORD AND POWER ON THE PC TO COMPLETE INSTALLATION

EINEM.2-SSDANEINEM DESKTOP-PCINSTALLIEREN

VOR DER INSTALLATION

1.ALLESNÖTIGE ZUSAMMENTRAGEN

2.IHREDATENSICHERN

1.PC-GEHÄUSE ENTFERNEN

2.M.2-PCIE-STECKPLATZAUSFINDIG MACHENUNDSICHERSTELLEN, DASSSCHRAUBENVORHANDENSIND

3.M.2-STECKPLATZAUSRICHTEN UNDDASSOLID-STATE-DRIVE EINSETZEN

4.SCHRAUBENZURFIXIERUNGDER SSDFESTZIEHEN

5.GEHÄUSEWIEDERZUSAMMENBAUEN

交換前の準備

1. 準備するもの

2. データのバックアップ

1. パソコン本体のケースを取り外す

3. M.2スロットにSSDを差し込む

4. SSDをねじで 固 定する

5. ケースを元の位置に取り付ける

설치하기 전에

1.필요한 도구 준비

PC, Phillips스크루드라이버, ADATA M.2 SSD

2.데이터 백업

1.PC케이스 제거

4.나사를 조여서SSD고정

5.케이스 재조립

ANTES DA INSTALAÇÃO

1. REÚNA AS COISAS QUE VOCÊ PRECISA

2.FAÇA BACKUPDESEUSDADOS

1.REMOVAOGABINETEDOPC

2.LOCALIZEOSLOTM.2PCIEE CONFIRMESEHÁ PARAFUSOS

3.ALINHEOSLOTM.2EINSIRAA UNIDADEDEESTADOSÓLIDO

4.APERTEOSPARAFUSOSPARA PRENDEROSSD

6.CONECTEOCABODE ALIMENTAÇÃOELIGUEOPCPARA COMPLETARAINSTALAÇÃO

УСТАНОВКА

ТВЕРДОТЕЛЬНОГО

НАКОПИТЕЛЯ М.2НА

НОУТБУК

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

ÎNAINTE DE INSTALARE

1.ADUNATILUCRURILEDECARE VETIAVEANEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

3. OPRITIPC-UL

4. DECONECTATIALIMENTAREACU ENERGIEŞICABLULDE ALIMENTARE

1.SCOATETICARCASAPC-ULUI

3. ALINIATI FANTA M.2 ŞI INTRODUCETI UNITATEASOLIDSTATE

4. STRÂNGETI ŞURUBURILE PENTRU AFIXASSD

5.REASAMBLATICARCASA

6.CONECTATICABLULDE ALIMENTAREŞIPORNITIPC-UL PENTRUAFINALIZAINSTALAREA

INSTALARUNAUNIDADDE ESTADOSÓLIDO M.2EN

UNEQUIPODE

SOBREMESA

1.REUNIRLOSELEMENTOSQUE NECESITARÁ

1. QUITARLACARCASADELEQUIPO

3.ALINEARLARANURAM.2EINSERTAR LAUNIDADDEESTADOSÓLIDO

5.VOLVERAMONTARLACARCASA

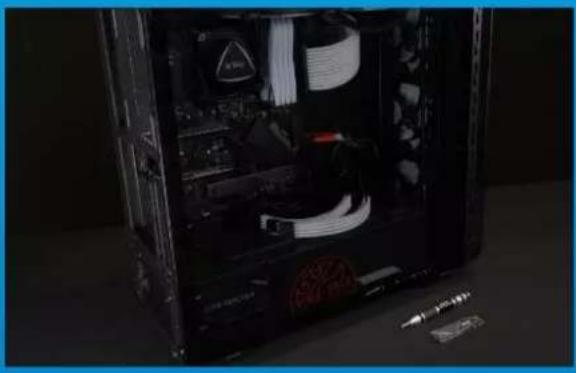

KURULUMDAN Ö NCE

1. İHTIYACINIZ OLACAK ŞEYLERI TOPLAYIN

PC, Phillips tornavidalar ve ADATA M.2 SSD

2. VERILERINIZI YEDEKLEYIN

4. GÜ Ç ANAHTARINI KAPATIN VE GÜ Ç KABLOSUNU Ç IKARIN

1. PC KASASINI Ç IKARIN

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. DAVAYA BENZEYEN

6. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在筆電安裝 M.2固態硬碟

更換前準備步驟

1. 準備工具

2.備份資料

4.將電源線及電池拔除

1. 將主機背板卸下

3. 對準M.2插槽、插上固態硬碟

4.拴上螺絲以固定固態硬碟

再以螺絲起子固定M.2固態硬碟。

5.重新盖上背板

更换前准备步骤

1. 准备工具

2.备份数据

4. 将电源线及电池拔除

1. 将电脑背板卸下

3. 对准M.2插槽、插上固态硬盘

4.拴上螺丝以固定固态硬盘

再以螺丝起子固定M.2固态硬盘。

5.重新盖上背板

BEFORE INSTALLATION

1. GATHERTHETHINGS YOU'LL NEED

PC, Phillips screwdrivers, and ADATA M.2 SSD

*Please use a standard Phillips screwdriver (3.5mm) for disassembling the case; and a smaller Phillips screwdriver for installing the M.2 solid state drive as it uses screws with a diameter of 1.85-1.98mm.

2.BACKUPYOURDATA

Make sure to backup the important data on your PC to an external device, such as an external HDD, before starting installation.

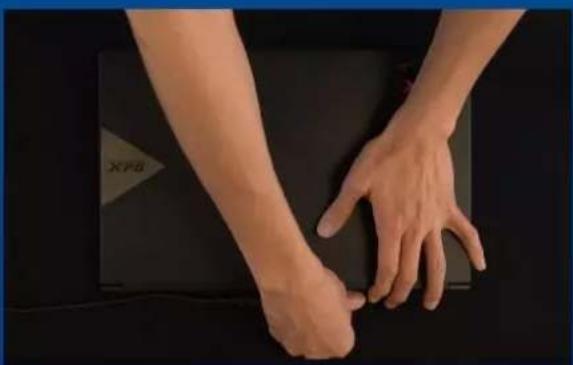

3.POWEROFFYOURPC

After backing up your data, power off your PC to avoid data loss or damage to other components during installation.

4.UNPLUGPOWERCORDAND BATTERY

This action is necessary to discharge residual power that can damage your PC and its components.

*The battery removal step applies only to laptops when it's possible to remove the battery. Tosee how to remove the battery, refer to your user manual.

INSTALLATION

1.REMOVEYOURPC'SBACKPLATE

Use your standard Phillips screwdriver to remove the screws from the back plate.

*If you are unsure how to do this, refer to your user manual

2. LOCATETHEM.2PCIESLOTAND CONFIRM THEREARESCREWS

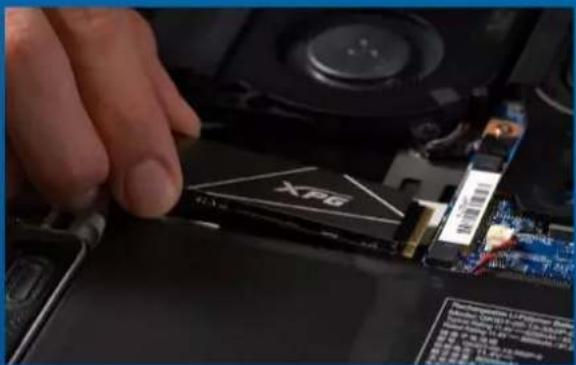

Locate the M.2 PCIe slot, ensure the SSD will fit and confirm there arescrews present.

*The location of slots may vary by PC. Please check your PC's user manual for more information.

**Generally speaking, the screws that secure the SSD in place will be installed on the motherboard when the laptop is shipped from the factory.

3.ALIGNTHEM.2SLOTANDINSERT THESOLIDSTATEDRIVE

Use your small Phillips screwdriver to remove the screws on the motherboard. Align the notches in the SSD with the ridges in the PCIe slot, then insert at a an angle. Give it a final push to ensure it is securely in place.

*The slot has a foolproof design. Please insert the SSD in the direction corresponding to the pins on the solid state drive and the slot. Do not insert it forcibly to avoid damage to the product.

4.FASTENTHESCREWSTOSECURE THESSD

Use your small Phillips screwdriver to secure the SSD into place.

*Do not overtighten the screws

5.SECURETHEBACKPLATEINTO PLACE

*Do not overtighten the screws as it may cause damage

6. PLUGINTHEPOWERCORDAND POWERONTHEPCTOCOMPLETE INSTALLATION

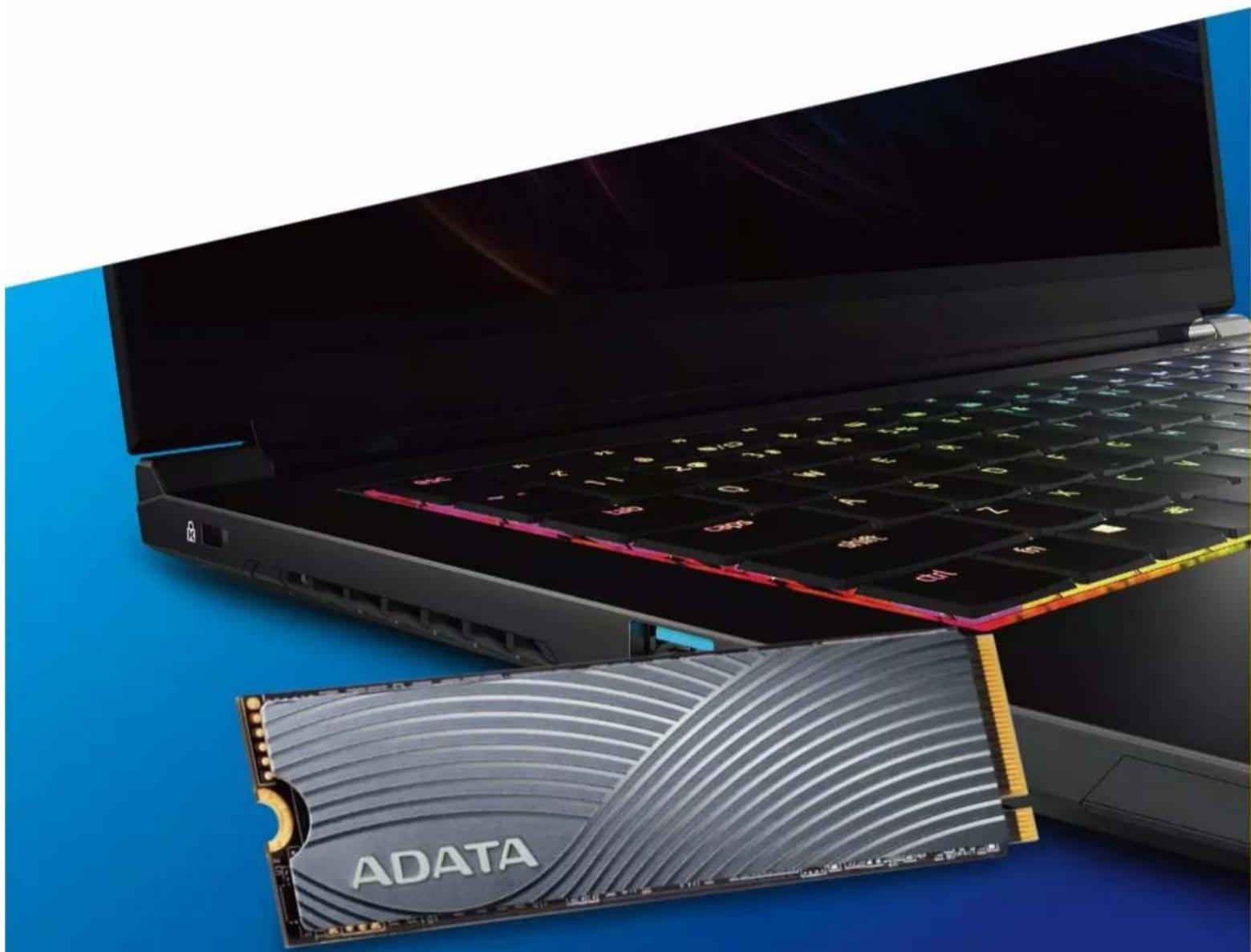

EINEM.2-SSDANEINEM LAPTOP-PCINSTALLIEREN

VOR DER INSTALLATION

1.ALLESNÖTIGE ZUSAMMENTRAGEN

2.IHREDATENSICHERN

4.NETZKABELUNDAKKUTRENNEN

1.RÜCKPLATTE IHRESPCS ENTFERNEN

2.M.2-PCIE-STECKPLATZAUSFINDIG MACHENUNDSICHERSTELLEN,DASS SCHRAUBENVORHANDENSIND

3.M.2-STECKPLATZAUSRICHTEN UNDDASSOLID-STATE-DRIVE EINSETZEN

4.SCHRAUBENZURFIXIERUNG DERSSDFESTZIEHEN

5.RÜCKPLATTEWIEDEREINSETZEN

交換前の準備

1. 準備するもの

2. データのバックアップ

4. 電源ーブルとバッテリーを取り外す

1. パソコンのバックパネルを取り外す

3. M.2スロットにSSDを差し込む

4. SSDをねじで固定する

설치하기 전에

1.필요한 도구 준비

PC, Phillips스크루드라이버, ADATA M.2 SSD

2.데이터 백업

4.전원 코드와 배터리분리

1.PC뒤판 제거

4.나사를 조여서SSD고정

5.뒤판 제자리에 고정

ANTES DA INSTALAÇÃO

1. REÚNA AS COISAS QUE VOCÊ PRECISA

1.REMOVAAPLACATRASEIRADO SEUPC

2.LOCALIZEOSLOTM.2PCIEE CONFIRMESEHÁ PARAFUSOS

3.ALINHEOSLOTM.2EINSIRAA UNIDADEDEESTADOSÓLIDO

4.APERTEOSPARAFUSOSPARA PRENDEROSSD

5.PRENDAAPLACATRASEIRANO LUGAR

2.ЗАРЕЗЕРВИРУЙТЕ ДАННЫЕ

4.ОТКЛЮЧИТЕ ШНУР ПИТАНИЯ И БАТАРЕЮ

1. СНИМИТЕ ЗАДНЮЮ ПЛАСТИНУ ПК

5.ЗАКРЕПИТЕ ЗАДНЮЮ ПЛАСТИН НА МЕСТЕ

ÎNAINTE DE INSTALARE

1.ADUNATILUCRURILEDECARE VETIAVEANEVOIE

2. FACETI O COPIE DE REZERVĂ A DATELOR

3. OPRITIPC-UL

4. DECONECTATICABLULDE ALIMENTAREŞIBATERIA

1.SCOATEȚIPLACADINSPATEA PC-ULUI

3. ALINIATI FANTA M.2 ŞI INTRODUCEȚI UNITATEASOLIDSTATE

4. STRÂNGETI ŞURUBURILE PENTRUAFIXASSD

5. FIXAREA PLĂCII DIN SPATE ÎN POZITIE

6.CONECTATICABLULDE ALIMENTAREŞIPORNITIPC-UL PENTRUAFINALIZAINSTALAREA

INSTALARUNAUNIDAD DEESTADOSÓLIDO M.2 ENUNEQUIPOPORTÁTIL

1. RETIRARLAPLACAPOSTERIOR DESUPC

3.ALINEARLARANURAM.2E INSERTARLAUNIDADDEESTADO SÓLIDO

5.ASEGURARLAPLACAPOSTERIOR ENSULUGAR

KURULUMDAN Ö NCE

1. İHTIYACINIZ OLACAK ŞEYLER TOPLAYIN

PC, Phillips tornavidalar ve ADATA M.2 SSD

2. VERILERINIZI YEDEKLEYIN

4. GÜ Ç KABLOSUNU VE PILI Ç IKARIN

2. M.2 PCIE YUVASINI BULUN VE VIDALARIN BULUNDUĞUNU DOĞRULAYIN

3. M.2 YUVASINI HIZALAYIN VE KATI HAL SÜ RÜ CÜ SÜ NÜ TAKIN

4. SSD'YI SABITLEMEK IÇ IN VIDALARI SIKIN

5. ARKA PLAKAYI YERINE SABITLEYIN

4. KURULUMU TAMAMLAMAK IÇ IN GÜ Ç KABLOSUNU TAKIN VE BILGISAYARI AÇ IN

如何在PS5主機安裝

M.2固態硬碟

安裝前準備步驟

需要的工具有：

1. 將PS5主機關機。

3.移除所有主機上的線材跟裝置。

安裝固態硬碟步驟

2.用左手緊握PS5主機的左上角。

1. 接著會看到綠色底的固態硬碟擴充插槽。

1. 再將螺絲旋緊，固定固態硬碟。

1. 重新蓋上擴充插上蓋。

1. 重新連接電線並啟動您的PS5主機。

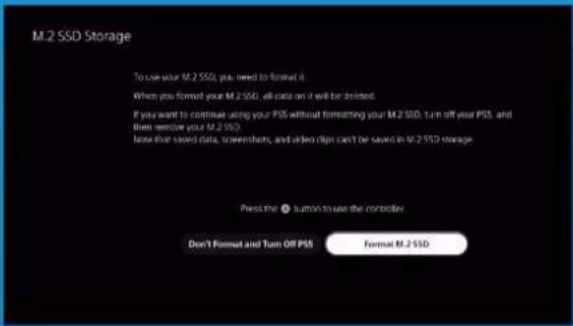

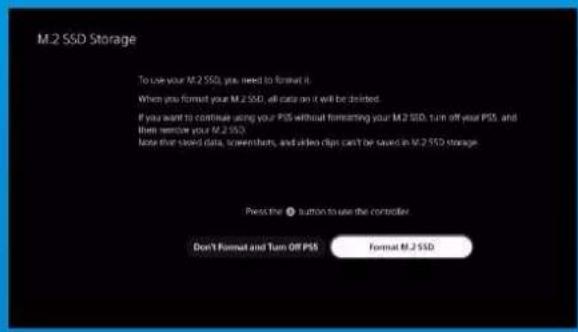

13. 按照重新格式化說明操作。

14. 您已完成！

安装前准备步骤

需要的工具有：

-ADATA M.2固态硬盘

-十字型螺丝刀

-PS5主机

1. 将PS5主机关机。

1. 移除所有主机上的线材跟装置。

安装固态硬盘步骤

1. 用左手紧握PS5主机的左上角。

1. 用右手拉动，然后向左滑动背板以拆除机壳上盖。

1. 松开螺丝以拆除固态硬盘扩充槽的盖子。

1. 接着会看到绿色底的固态硬盘扩充插槽。

1. 再将螺丝旋紧，固定固态硬盘。

1. 重新盖上扩充插上盖。

1. 重新连接电线并启动您的PS5主机。

13. 按照重新格式化说明操作。

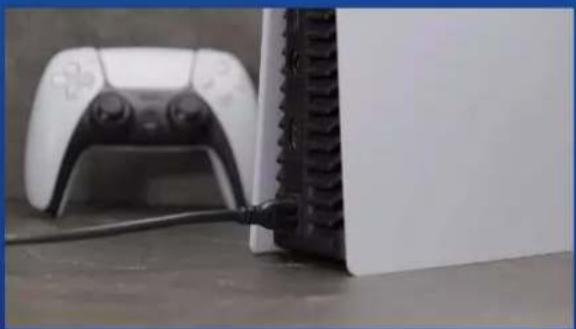

WHATYOU'LL NEED:

• ADATA M.2 SSD
• Phillips head screwdriver
• PS5

1. ENSURE YOU HAVE THE LATESTPS5 SOFTWARE UPDATES.

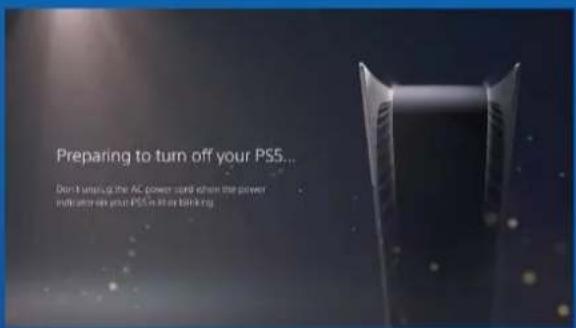

1. TURN OFF YOUR PS5.

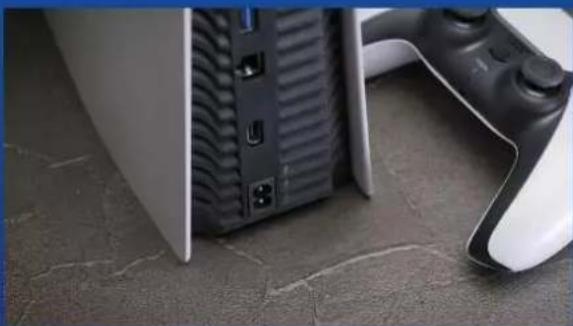

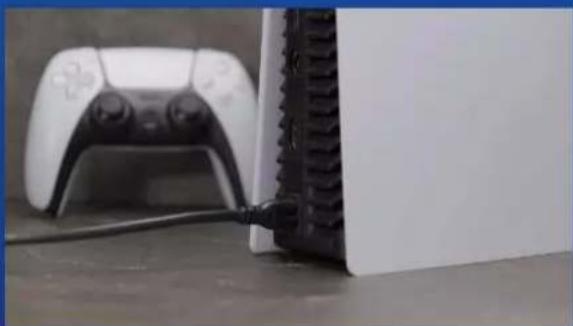

1. DISCONNECT ALL CABLES AND DEVICES.

INSTALLATION

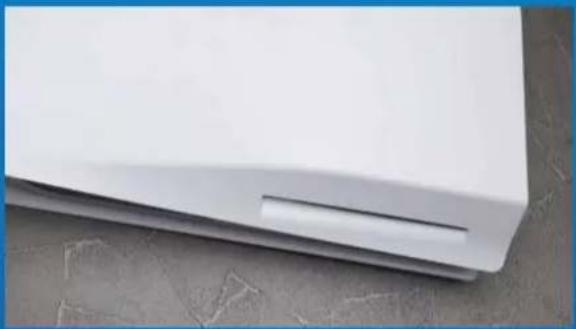

1. LAY THE PS5 FLAT WITH THE LOGO SIDE FACING DOWNWARDS.

1. FIRMLY GRAB THE UPPER LEFT HAND CORNER OF THE PS5 WITH YOUR LEFT HAND.

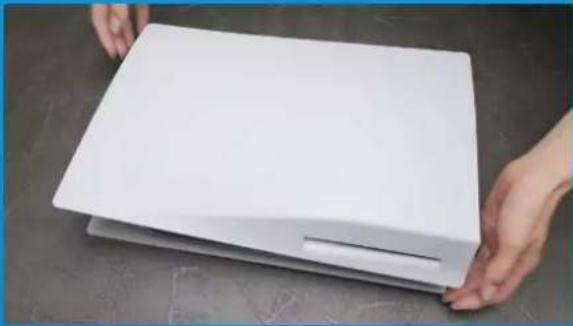

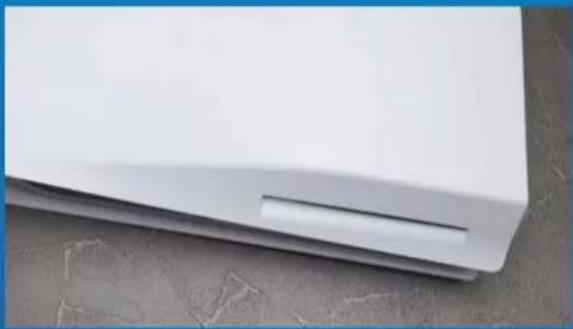

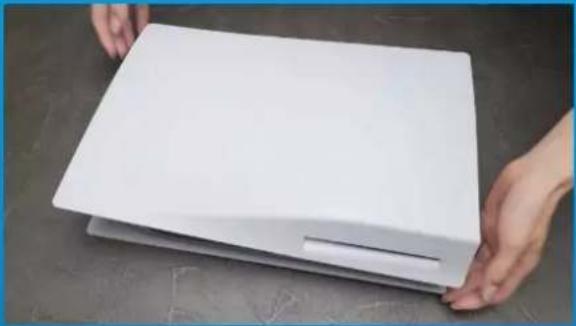

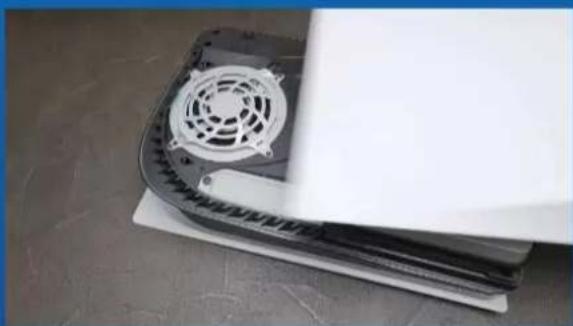

1. WITH YOUR RIGHT HAND, PULL AND THEN SLIDE THE BACKING PLATE TO THE LEFT TO REMOVE.

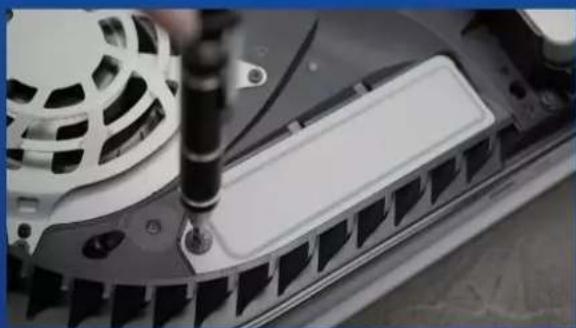

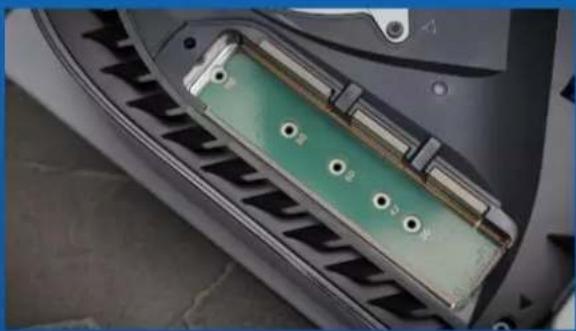

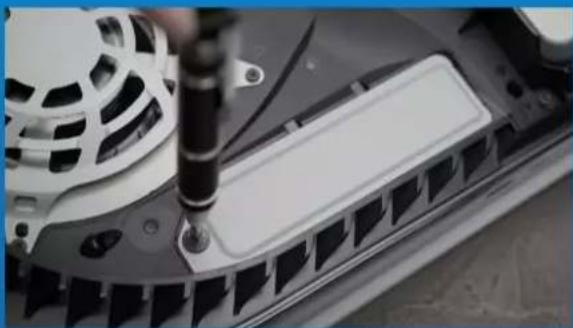

1. LOOSEN THE SCREW TO REMOVE THE EXPANSION SLOT COVER.

1. REMOVE THE SINGLE SCREW AND THE WASHER-LIKE STANDOFF UNDERNEATH.

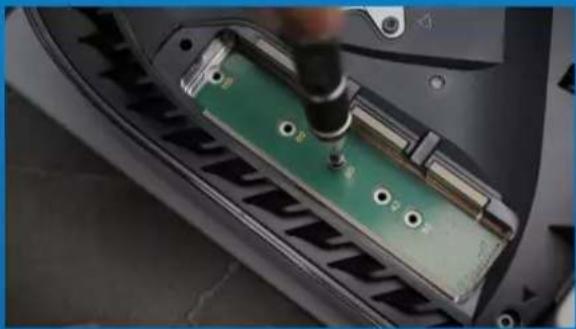

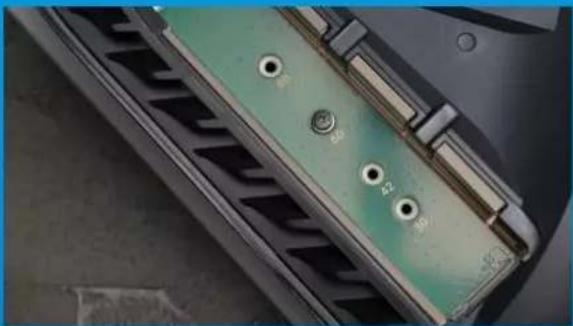

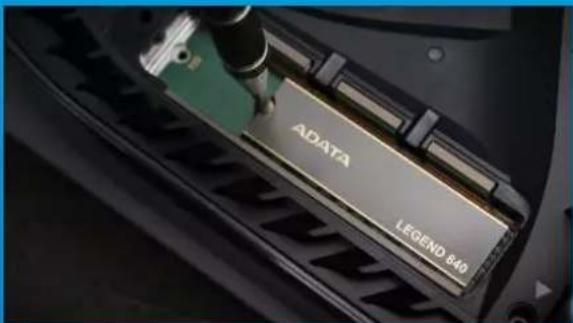

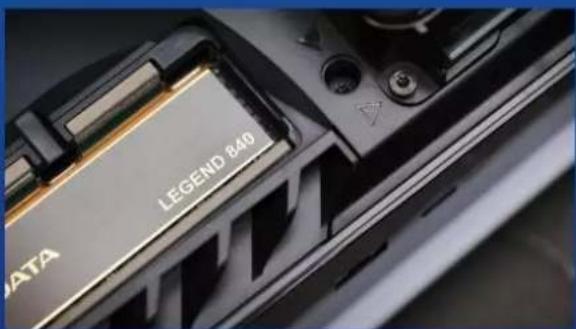

1. PLACE THE STANDOFF IN THE HOLE THAT CORRESPONDS TO THE M.2 FORM FACTOR.

1. CLICK THE GOLD CONNECTOR OF THE SSD INTO THE MATCHING INPUT NOTCH.

1. FASTEN THE SSD WITH THE SCREW.

10.REINSTALL THE EXPANSION SLOT COVER.

1. REINSTALL THE BACKING PLATE BY SLIDING IT BACK AND PUSHING DOWNWARDS.

1. RE-ATTACH CABLES AND TURN ON YOUR PS5.

13. FOLLOW THE REFORMATTING INSTRUCTIONS.

14. YOU'RE DONE! YOU CAN NOW STORE GAMES AND APPS ONTO THE ADATA LEGEND 840.

INSTALLATION EINER M.2 SSD AUF PLAYSTATION®5

VOR DER INSTALLATION

WAS SIE BENÖ TIGEN:

1. STELLEN SIE SICHER, DASS SIE DIE NEUESTEN PS5-SOFTWARE-UPDATES INSTALLLIERT HABEN.

1. SCHALTEN SIE IHRE PS5 AUS.

1. TRENNEN SIE ALLE KABEL UND GERÄ TE AB.

INSTALLATION

1. LEGEN SIE DIE PS5 FLACH HIN, SO DASS DAS LOGO NACH UNTEN ZEIGT.

1. GREIFEN SIE MIT IHRER LINKEN HAND FEST IN DIE LINKE OBERE ECKE DER PS5.

1. ZIEHEN SIE MIT DER RECHTEN HAND AN DER TRÄ GERPLATTE UND SCHIEBEN SIE DIESE NACH LINKS, UM SIE ZU ENTFERNEN.

1. SETZEN SIE DEN ABSTANDHALTER IN DAS LOCH IM M.2-FORMFAKTOR.

1. SETZEN SIE DEN GOLDENEN STECKER DER SSD IN DIE ENTSPRECHENDE AUSSPARUNG AM EINGANG EIN

1. BEFESTIGEN SIE DIE SSD MITHILFE DER SCHRAUBE.

設置前の準備

必要なもの：

1. PS5の電源を切ります。

1. 拡張スロットカバーを元に戻します。

1. 再フォーマットの指示に従ってください。

설치하기 전에

준비물:

1. PS5를 꿈니다.

5.이제 녹색 확장 슬롯이 보입니다

1. 나사를 조여서 SSD를 고정합니다

1. CERTIFIQUE-SE DE TER AS ATUALIZAÇÃO ES DE SOFTWARE DO PS5 MAIS RECENTES.

1. DESLIGUE SEU PS5.

1. DESCONECTE TODOS OS CABOS E DISPOSITIVOS.

1. COLOQUE O PS5 NA HORIZONTAL COM O LADO DO LOGOTIPO VOLTADO PARA BAIXO.

1. SEGURE FIRMEMENTE O CANTO SUPERIOR ESQUERDO DO PS5 COM A MÃ O ESQUERDA.

1. COM A MÃ O DIREITA, PUXE E DESLIZE A PLACA TRASEIRA PARA A ESQUERDA PARA RETIRA-LA.

1. AFROUXE O PARAFUSO PARA RETIRAR A TAMPA DO SLOT DE EXPANSÃ O.

1. VOCÊ DEVERÁ VER AGORA O SLOT DE EXPANSÃ O VERDE.

1. REMOVA O Ú NICO PARAFUSO E O ESPAÇ ADOR EM FORMA DE ARRUELA EMBAIXO.

1. COLOQUE O ESPAÇ ADOR NO ORIFÍ CIO QUE CORRESPONDE AO FATOR DE FORMA M.2.

1. CLIQUE NO CONECTOR DOURADO DO SSD NO ENTALHE DE ENTRADA CORRESPONDENTE.

1. FIXE O SSD COM O PARAFUSO.

1. RECOLOQUE A TAMPA DO SLOT DE EXPANSÃ O.

1. RECOLOQUE A PLACA TRASEIRA DESLIZANDO-A PARA TRÁ S E EMPURRANDO PARA BAIXO.

1. RECONECTE OS CABOS E LIGUE SEU PS5.

1. SIGA AS INSTRUÇ Ô ES DE REFORMATAÇ Â O.

1. PRONTO! AGORA VOCÊ PODE ARMAZENAR JOGOS E APLICATIVOS NO SSD.

1. ВЫКЛЮЧИТЕ PS5.

1. ОТСОЕДИНИТЕ ВСЕ КАБЕЛИ И УСТРОЙСТВА.

УСТАНОВКА

1. ВОЗЬМИТЕСЬ ЗА ВЕРХНИЙ ЛЕВЫЙ УГОЛ PS5 ЛЕВОЙ РУКОЙ.

1. ПОДКЛЮЧИТЕ КАБЕЛИ И ВКЛЮЧИТЕ PS5.

Î NAINTE DE INSTALARE

DE CE AVETI NEVOIE:

1. ASIGURAȚI-VĂ CĂ AVEȚI CELE MAI RECENTE ACTUALIZĂRI DE SOFTWARE PS5.

1. OPRITI PS5.

1. DECONECTAȚI TOATE CABLURILE ȘI DISPOZITIVELE.

INSTALARE

1. AŞEZATI PS5 LA ORIZONTALĂ, CU PARTEA CU SIGLA ORIENTATĂ ÎN JOS.

1. PRINDEȚI FERM COLȚUL DIN STĂ NGA SUS AL PS5 CĂ MĂ NA STĂNGĂ.

1. CU MÂNA DREAPTĂ, TRAGEȚI ȘI APOI GLISAȚI PLACA DE SUPPORT SPRE STĂ NGA PENTRU A O SCOATE.

1. SLĂBIȚI ȘURUBUL PENTRU A SCOATE CAPACUL FANTEI DE EXPANSIUNE.

1. ACUM AR TREBUI SĂ VEDEȚI SLOTUL DE EXPANSIUNE VERDE.

1. AŞEZATI DISTANTIERUL ÎN ORIFICIUL CARE CORESPUNDE FORMEI M.2.

1. FACETI CLIC PE CONECTORUL AURIU AL SSD- ULUI ÎN CRESTĂTURA DE INTRARE CORESPUNZĂTOARE.

1. FIXAȚI SSD-UL CU AJUTORUL ȘURUBULUI.

1. REINSTALATI CAPACUL FANTEI DE EXPANSIUNE.

1. RECONECTAȚI CABLURILE ȘI PÓRNITI PS5.

1. URMAȚI INSTRUCTIUNILE DE REFORMATARE.

1. AȚI TERMINAT! ACUM PUTETI STOCA JOCURI ȘI APLICATII PE SSD.

LO QUE VAS A NECESITAR:

• SSD M.2 DE ADATA
• Destornillador Phillips
• PS5

1. APAGA TU PS5.

1. DESCONECTE TODOS LOS CABLES Y DISPOSITIVOS.

1. AGARRE FIRMEMENTE LA ESQUINA SUPERIOR IZQUIERDA DEL PS5 CON LA MANO IZQUIERDA.

1. TIRE DE LA PLACA DE APOYO CON LA MANO DERECHA Y DESLÍ CELA HACIA LA IZQUIERDA PARA EXTRAERLA.

1. AFLOJE EL TORNILLO PARA RETIRAR LA TAPA DE LA RANURA DE EXPANSIÓ N.

1. AHORA VERÁ S LA RANURA DE EXPANSIÓ N DE COLOR VERDE.

1. SUJETE EL SSD CON EL TORNILLO.

1. REINSTALE LA TAPA DE LA RANURA DE EXPANSIÓ N.

1. REINSTALE LA PLACA DE APOYO DESLIZÁ NDOLA HACIA ATRÁ S Y EMPUJÁ NDOLA HACIA ABAJO.

1. VUELVE A CONECTAR LOS CABLES Y ENCIENDE TU PS5.

1. SIGA LAS INSTRUCCIONES DE REFORMATEO.

KURULUMDAN Ö NCE

GEREKENLER:

1. EN SON PS5 YAZILIM GÜ NCELLEMELERINE SAHIP OLDUĞUNUZDAN EMIN OLUN.

1. PS5'INIZI KAPATIN.

1. TÜ M KABLOLARI VE CIHAZLARI Ç IKARIN.

KURULUM

1. PS5'I LOGOLU TARAFI AŞAĞI BAKACAK ŞEKILDE DÜZ BIR ŞEKİLDE YATIRIN.

1. SOL ELINIZLE PS5'IN SOL ÜST KÖŞESINI SIKICA TUTUN.

1. SAĞ ELINIZLE DESTEK PLAKASINI Ç EKIP Ç IKARMAK İÇ IN SOLA KAYDIRIN.

1. GENİŞLETME YUVASI KAPAĞINI ÇIKARMAK IÇIN VIDAYI GEVŞETIN.

1. ARTIK YEŞIL GENİŞLETME YUVASINI GÖ RMELISINIZ.

1. TEK VIDAYI VE ALTINDAKI RONDELA BENZERI AYIRICIYI Ç IKARIN.

1. AYIRICIYI M.2 FORM FAKTÖRÜNE KARŞILIK GELEN DELIĞE YERLEŞTIRIN.

1. SSD'NIN ALTIN KONEKTÖRÜNÜ EŞLEŞEN GIRİŞ ÇENTIĞINE TIKLAYIN.

1. SSD'YI VIDAYLA SABITLEYIN.

1. GENİŞLETME YUVASI KAPAĞINI YENIDEN TAKIN.

1. DESTEK PLAKASINI GERIYE DOĞRU KAYDIRIP AŞAĞI DOĞRU ITEREK YENIDEN TAKIN.

1. KABLOLARI YENIDEN TAKIN VE PS5'INIZI AÇ IN.

1. YENIDEN BIÇ IMLENDIRME TALIMATLARINI IZLEYIN.

1. TAMAMLADINIZ! ARTIK OYUNLARI VE UYGULAMALARI SSD'DE DEPOLAYABILIRSINIZ.
