Product Type	2x1 Audio/Video Switcher and HDBaseT Transmitter
Inputs	1x HDMI, 1x USB-C (DisplayPort Alt Mode)
Outputs	1x HDBaseT (RJ45), 1x USB Host (Type-B), 1x USB Device (Type-A)
Video Resolution	Up to 4K/UHD @ 60Hz 4:2:0 (HDMI input supports 4:4:4 8-bit at 4K/60)
HDCP Support	HDCP 1.4/2.2
USB Extension	USB 2.0 up to 330 feet (100 meters), 120 Mbps
Power Supply	PoE via compatible HDBaseT receiver, 12.5 W
Dimensions (H x W x D)	4.06 x 1.78 x 2.64 in (103 x 45 x 67 mm)
Weight	0.74 lb (0.34 kg)
Housing	US one-gang wallplate with interchangeable black/white faceplate and wallplate
Maximum Distance (HDBaseT)	330 ft (100 m) at 1080p, 295 ft (90 m) at 4K over CAT5e
Audio Formats	PCM 2.0/5.1/7.1, Dolby Digital/Plus/TrueHD/Atmos, DTS Digital Surround/HD Master/X
EDID Management	Downstream EDID or preset EDID, two user memory locations
Control	Built-in web server, Telnet, RS-232 over HDBaseT
Certifications	CE, FCC Class A
Operating Temperature	32 to 104 °F (0 to 40 °C)
Storage Temperature	-4 to 140 °F (-20 to 60 °C)
Humidity	20% to 90% (non-condensing)
Included Accessories	White faceplate, white wallplate, black faceplate, black wallplate, mounting screws, USB-C to USB-C cable (2 m), installation guide

Frequently Asked Questions - AT-OME-SW21-TX-WPC Atlona

What is the AT-OME-SW21-TX-WPC?

It is a 2x1 HDBaseT switcher/transmitter with HDMI and USB-C inputs, designed for seamless AV integration in wallplate form.

How do I connect the device?

Connect sources via HDMI or USB-C, then run a CAT5e/6 cable from the HDBaseT OUT port to a compatible receiver (e.g., AT-OME-EX-RX). The unit is powered via PoE from the receiver.

What video resolutions are supported?

Supports up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling over HDBaseT (HDMI input supports 4:4:4 8-bit at 4K/60). USB-C limited to 4K/30 4:4:4 8-bit.

Can I use this with a projector?

Yes, it supports automatic display control via CEC, RS-232, or IP for power on/off, and includes lamp cool-down and warm-up timers.

How do I update the firmware?

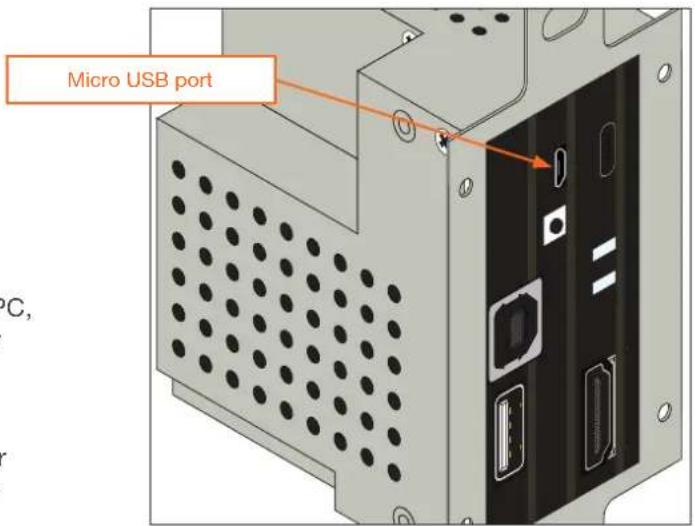

Use the built-in web server (System page) or connect a USB-A to micro-USB cable to a PC and drag the firmware file to the USB UPDATE drive.

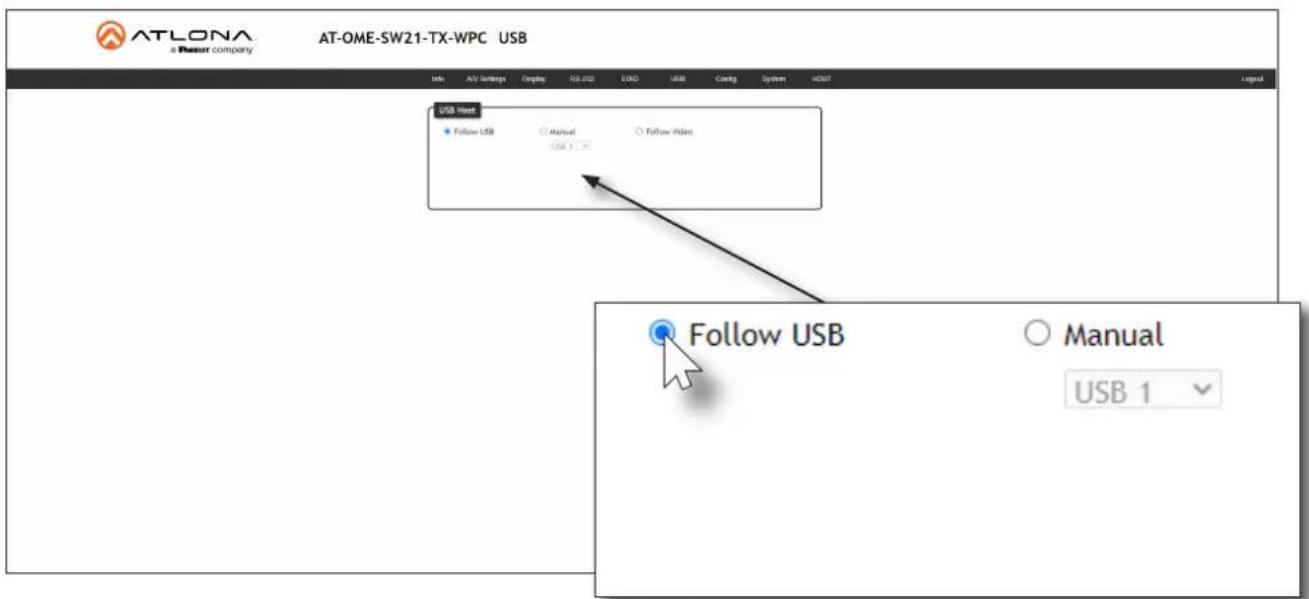

How do I configure USB switching?

Access the USB page in the web server. Choose from Follow USB (auto-select last connected), Manual, or Follow Video (assign USB host per video input).

What is the maximum cable distance?

Up to 330 ft (100 m) for 1080p and 295 ft (90 m) for 4K using CAT5e, or 330 ft for both using CAT6/6a/7.

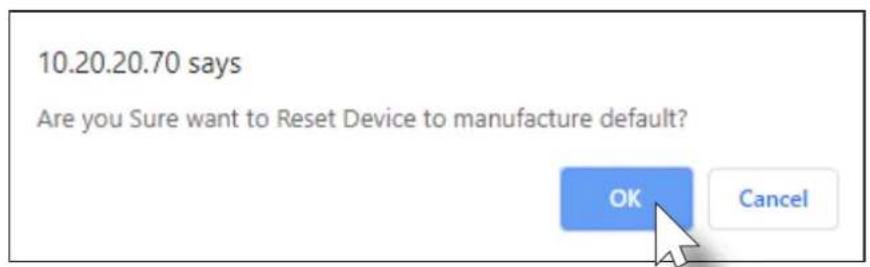

How to reset to factory defaults?

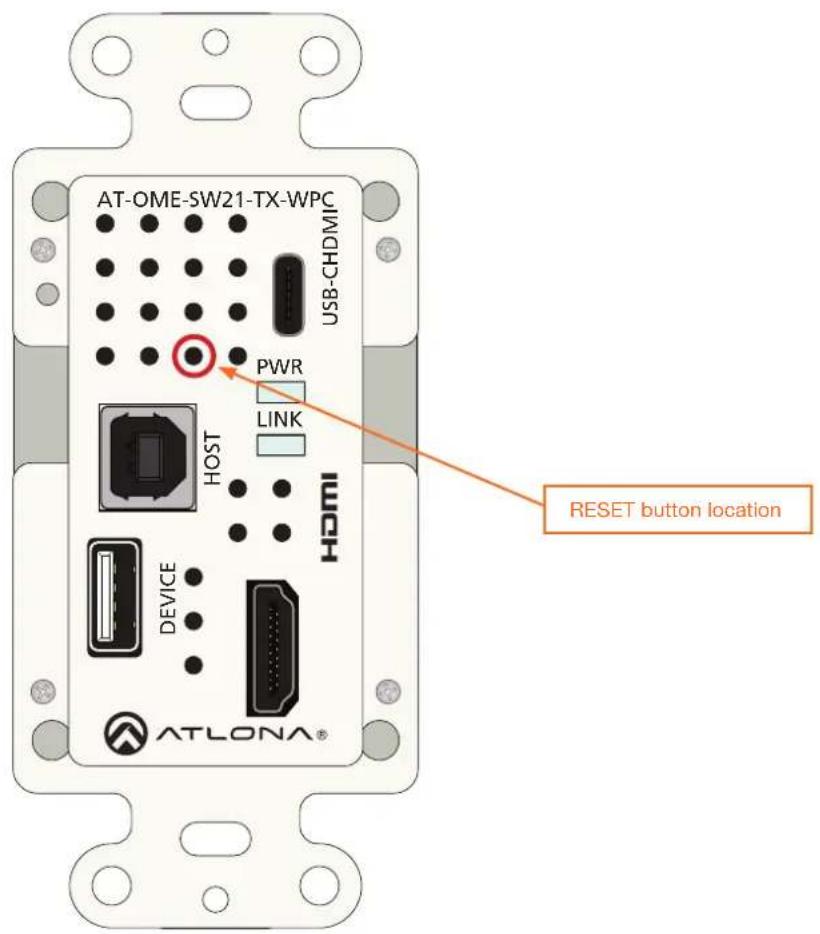

Press and hold the RESET button (behind a vent hole on the front) for 10 seconds, or use the Factory Default button in the web server System page.

Does it support HDCP 2.2?

Yes, it is HDCP 2.2 compliant. You can also toggle HDCP off per input to allow non-HDCP content to non-compliant displays.

Can I use custom EDID?

Yes, you can capture the downstream EDID from a display and store it in one of two memory locations, then assign it to any input via the EDID page.

USER MANUAL AT-OME-SW21-TX-WPC Atlona

for HDMI and USB-C with USB Hub

Version Information

Version Release Date Notes

5 Jan 2024 Updated warranty information

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.408.962.0515

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

https://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-OME-SW21-TX-WPC for the latest firmware updates and User Manual.

Warranty

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2024 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks and/or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 6

Features 6

Package Contents 6

Panel Description 7

Installation 8

Connection Instructions 8

Connection Diagram 9

Faceplate Removal and Assembly 10

Device Operation 11

LED Indicators 11

Logging in to the Web Server 12

Login Registration 12

Logging in after registration 13

Selecting the Input 14

Auto-Switching 15

HDCP Content 16

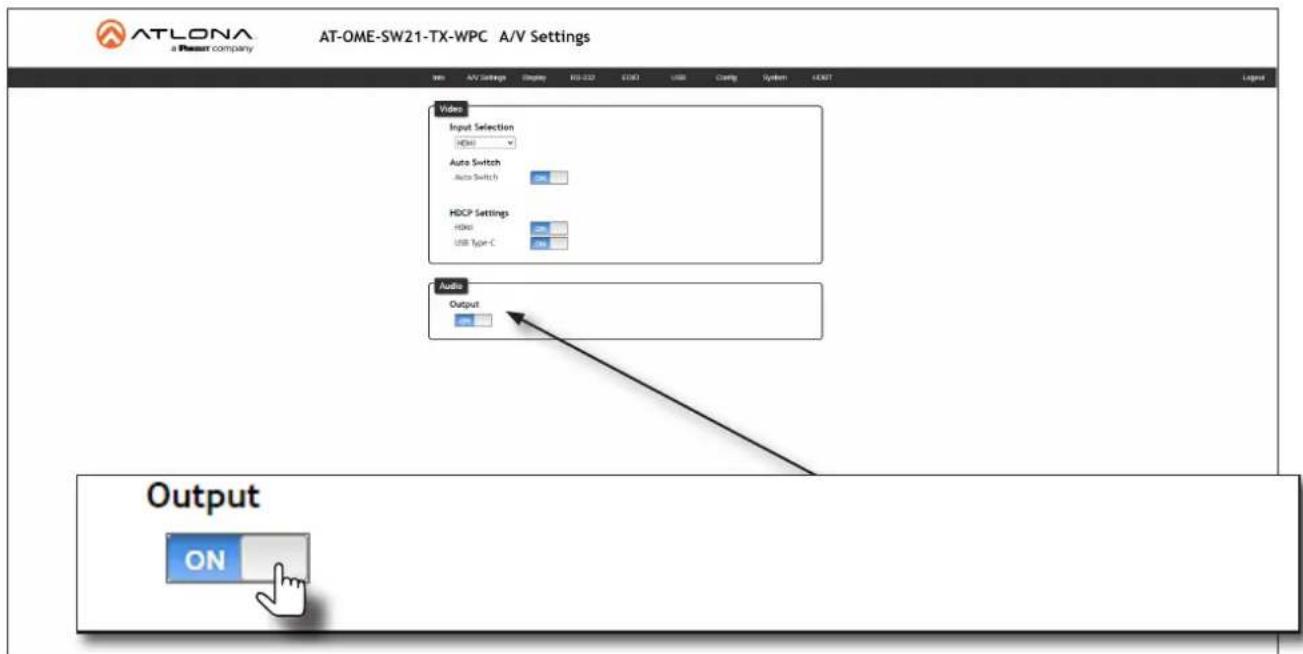

Audio Muting 17

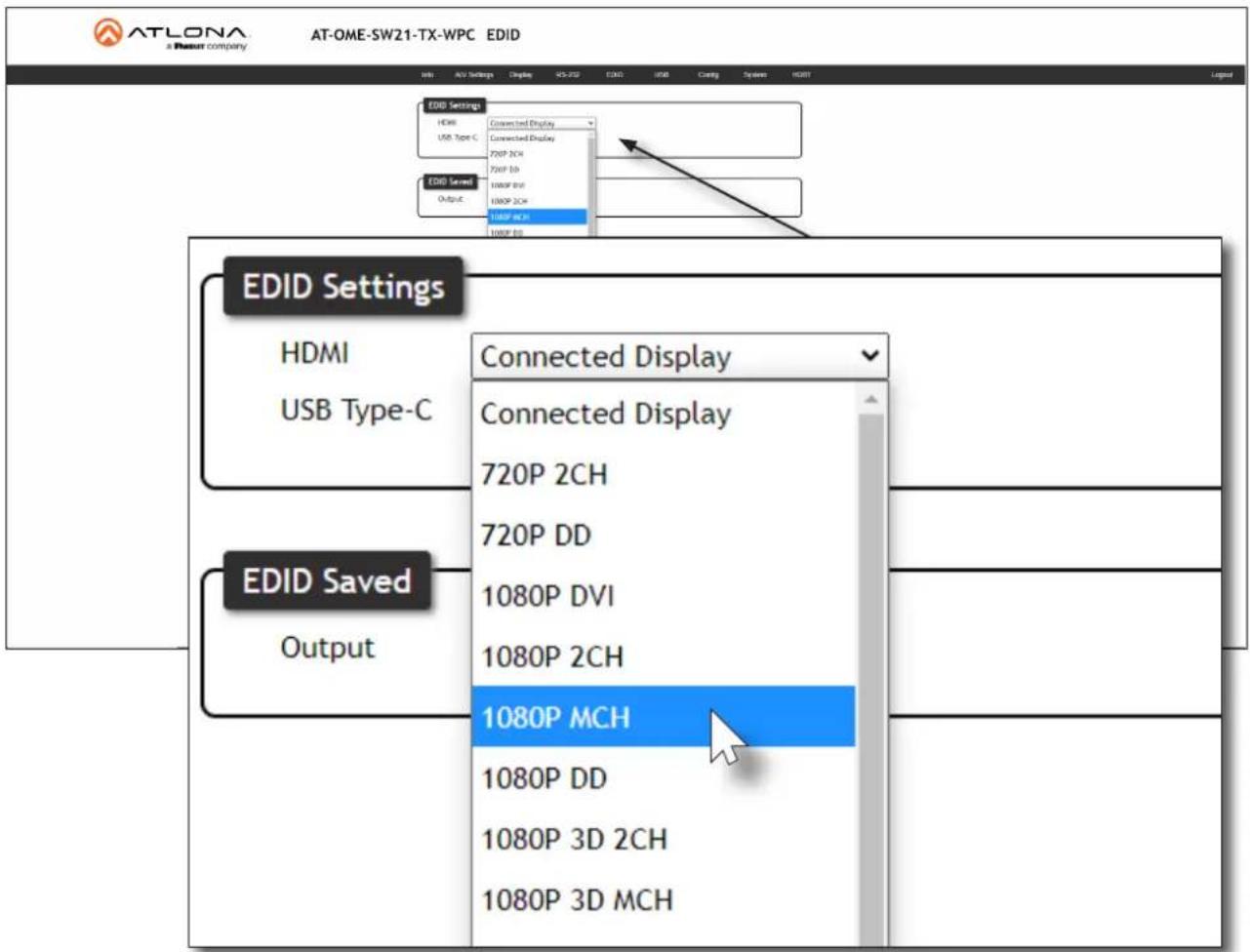

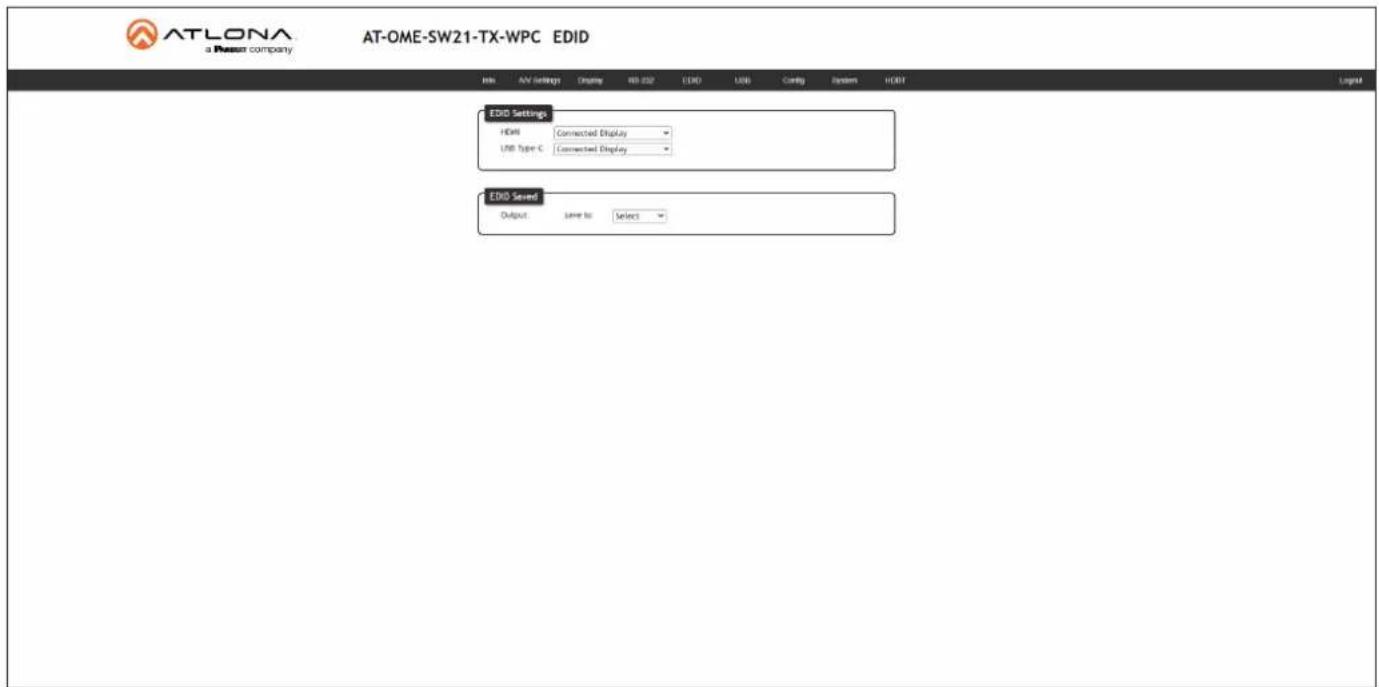

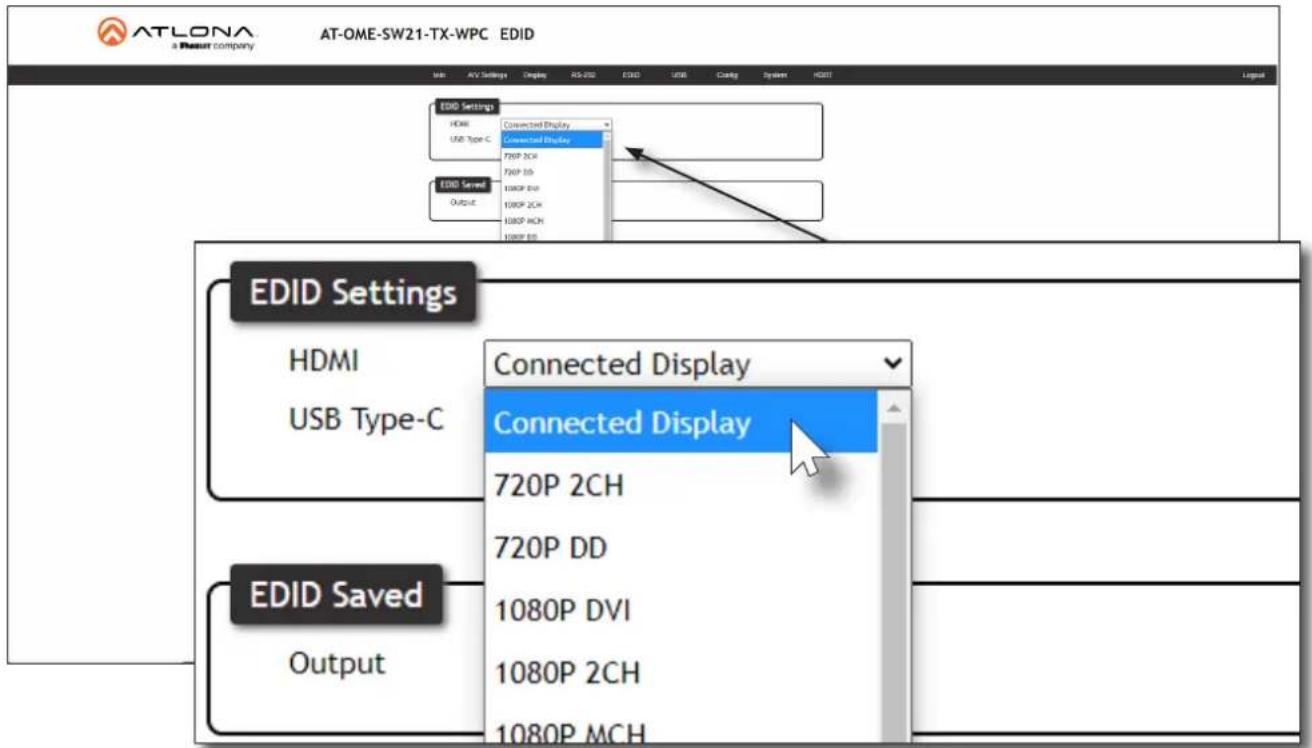

EDID Management 18

Using the Downstream EDID 18

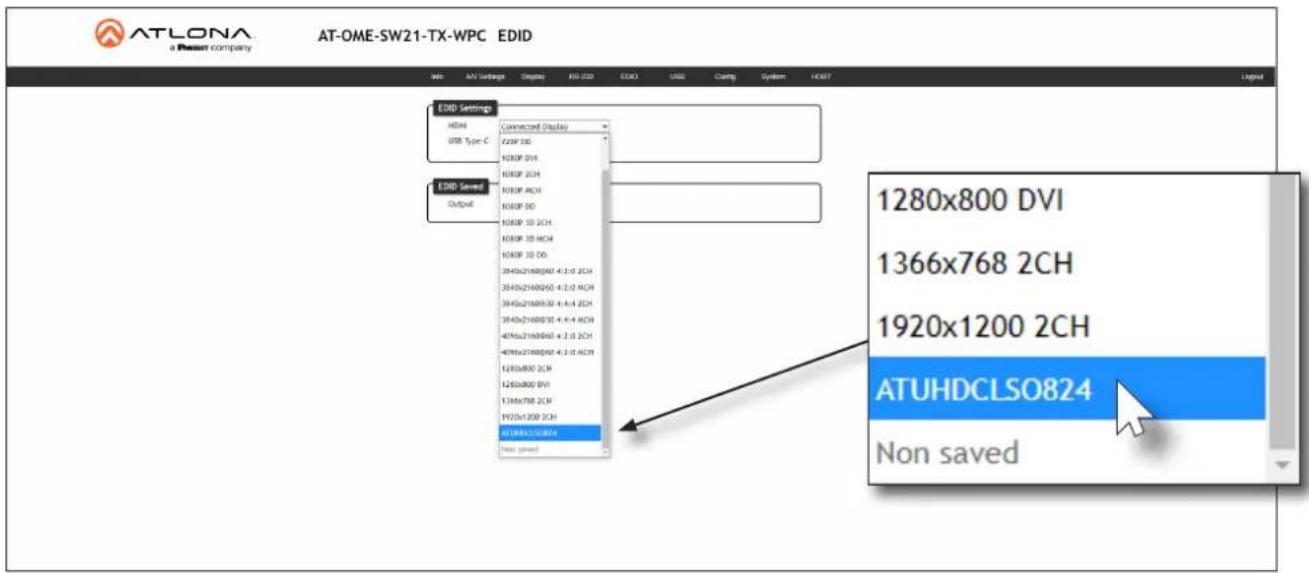

EDID Presets 19

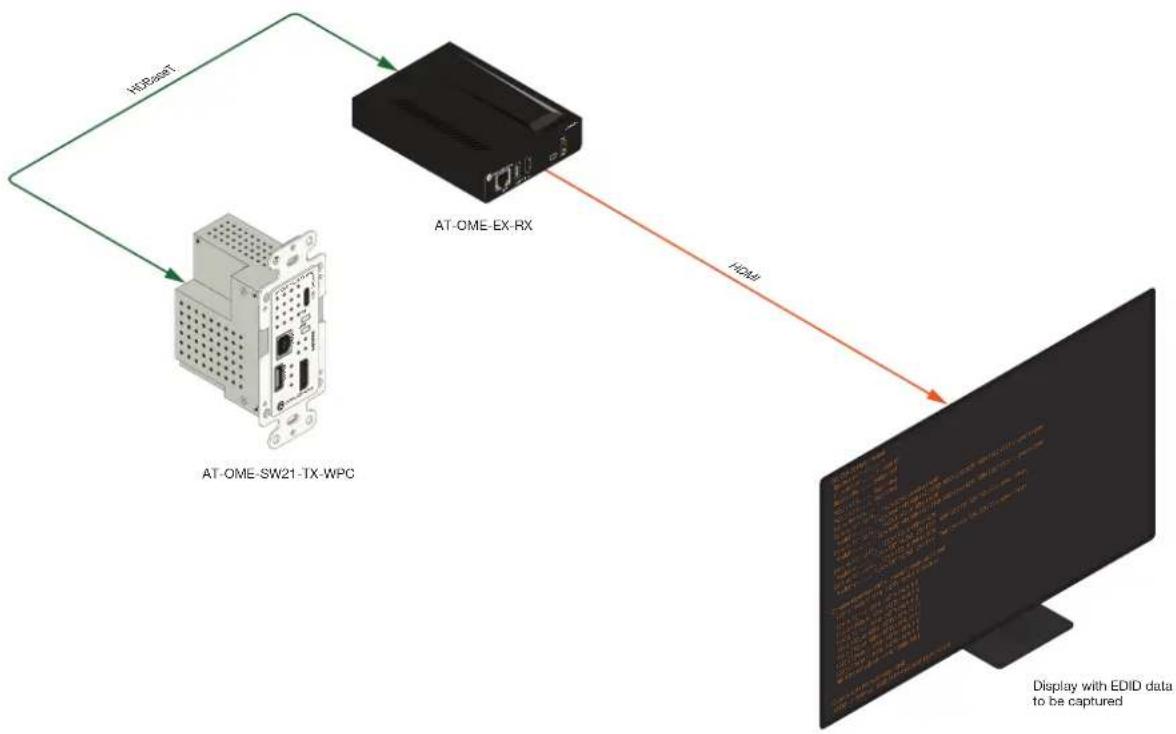

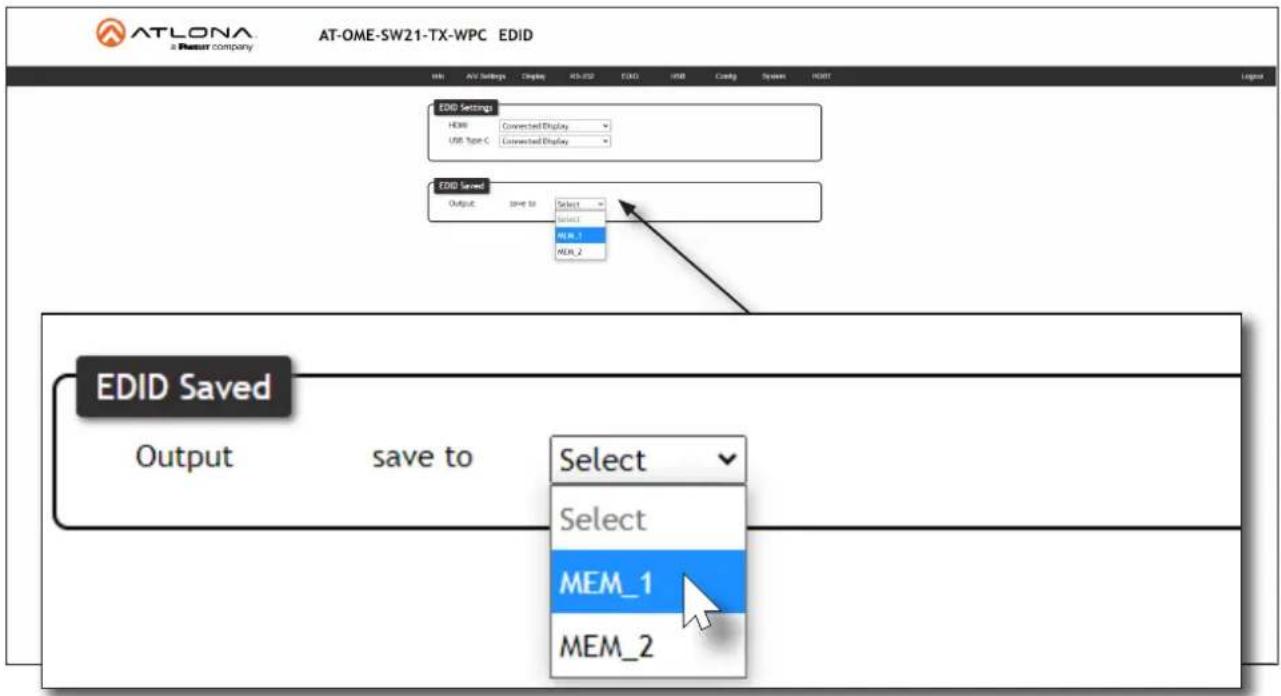

Storing EDID Data 20

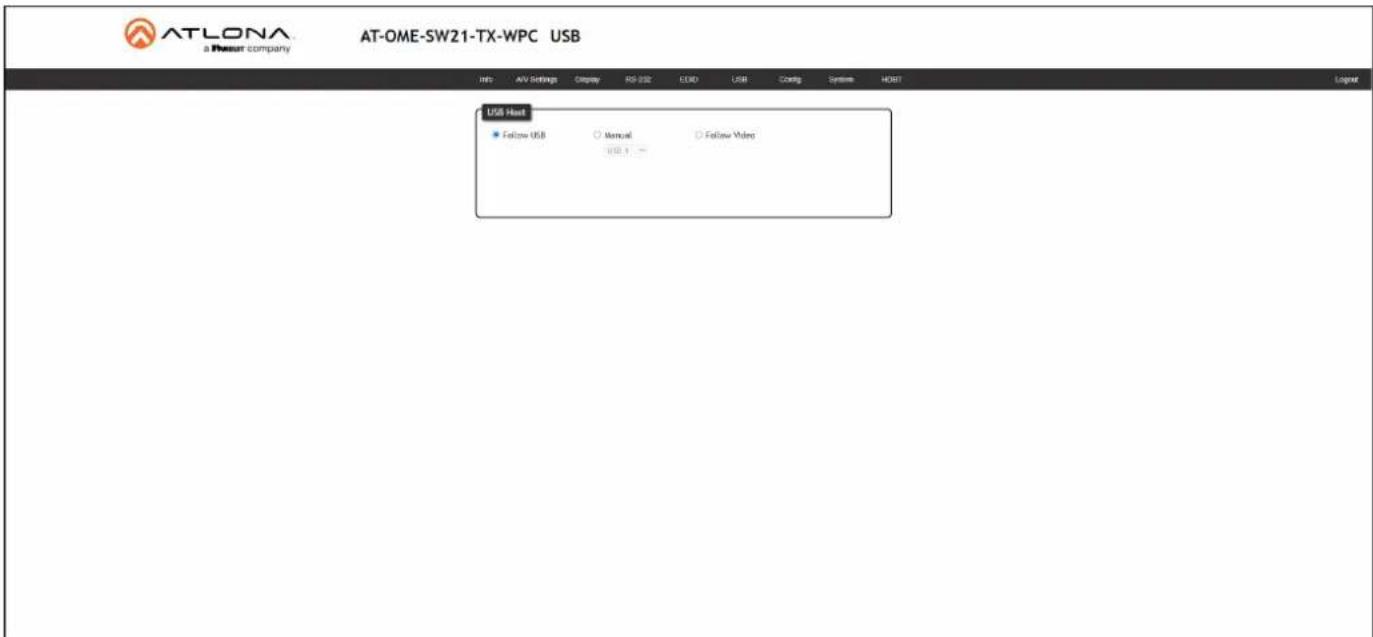

USB Modes 22

Follow USB 22

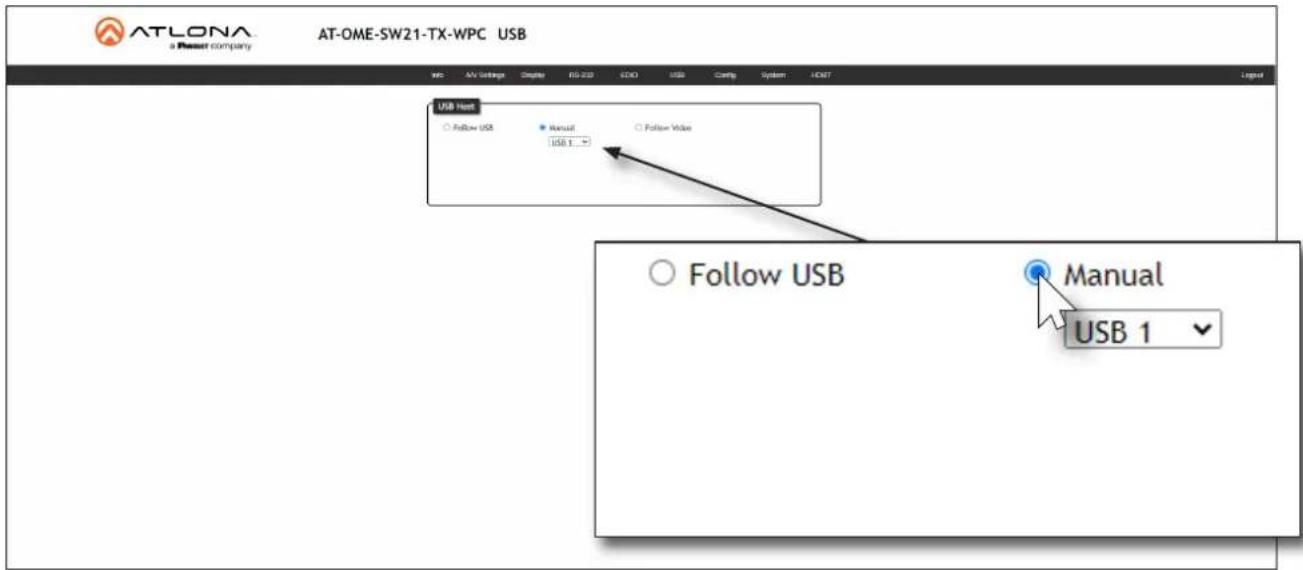

Manual 23

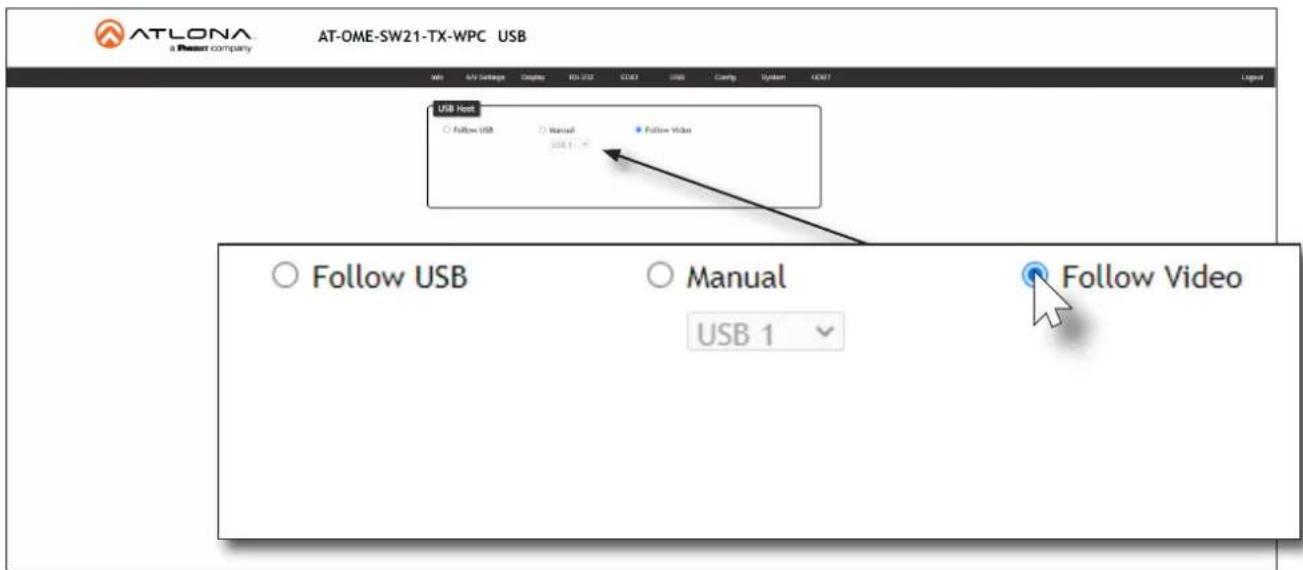

Follow Video 24

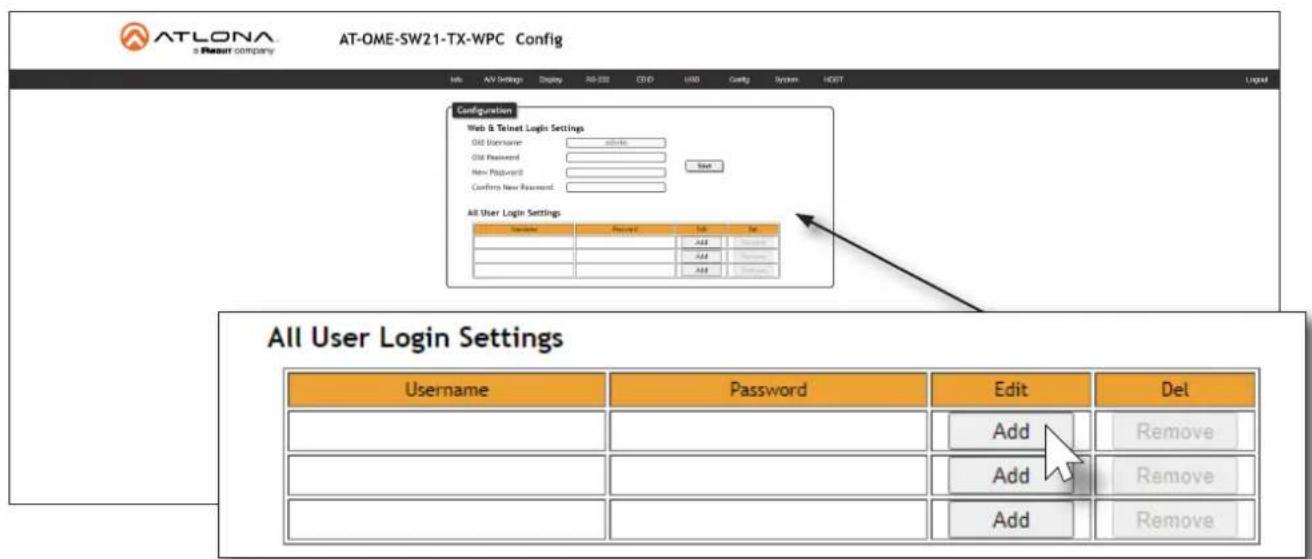

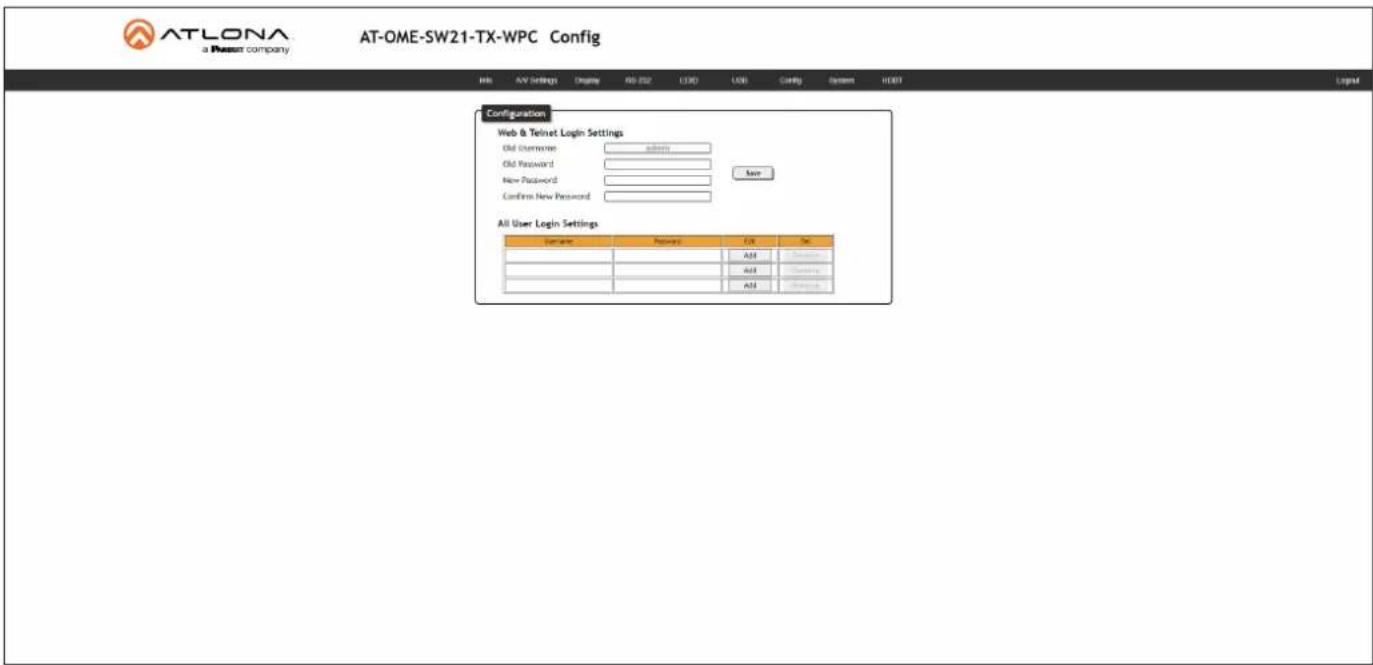

User Management 25

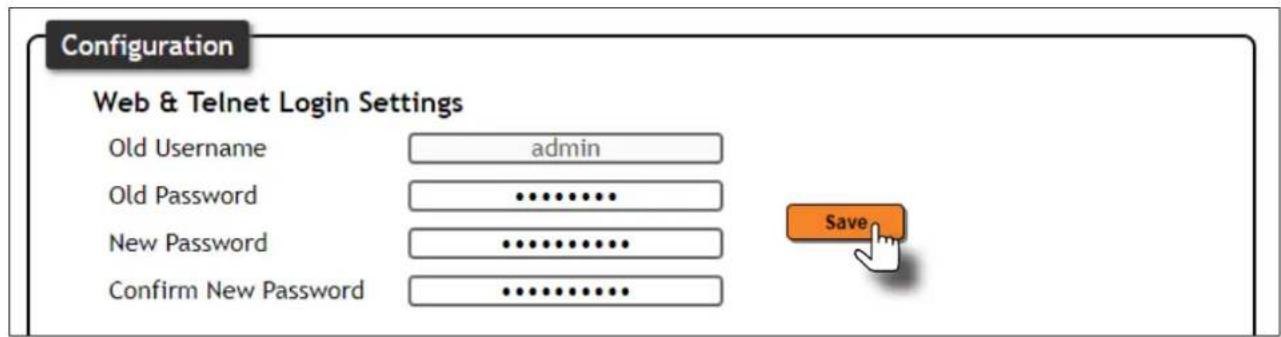

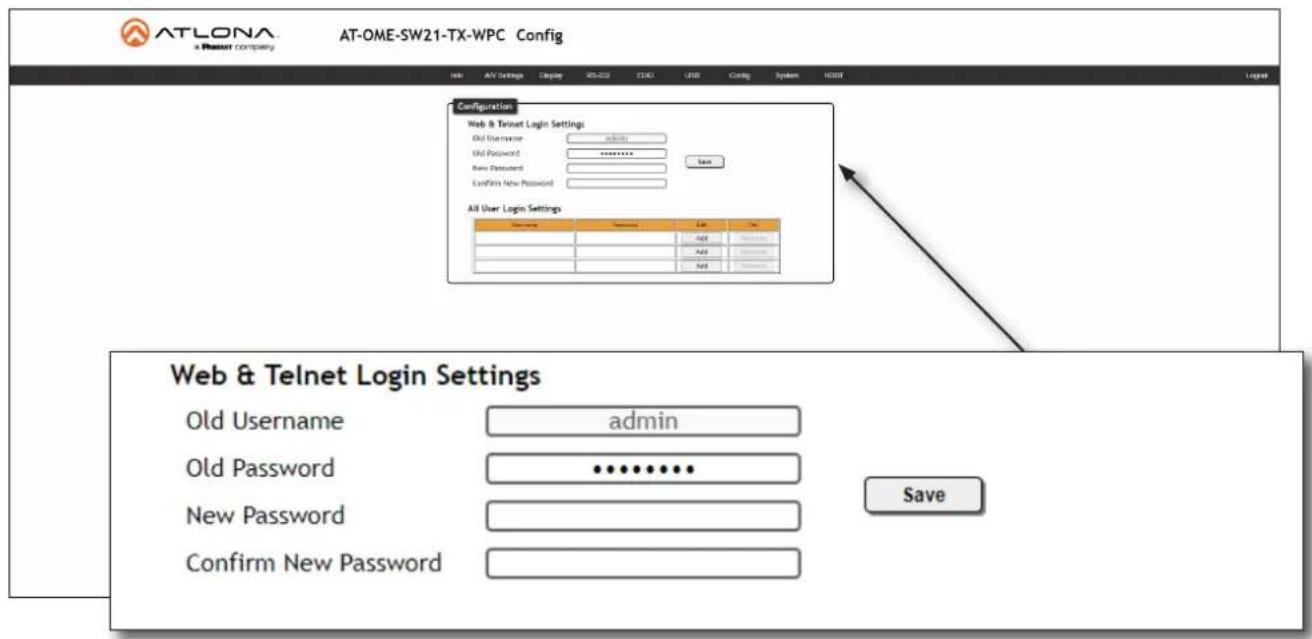

Changing the Administrator Password 25

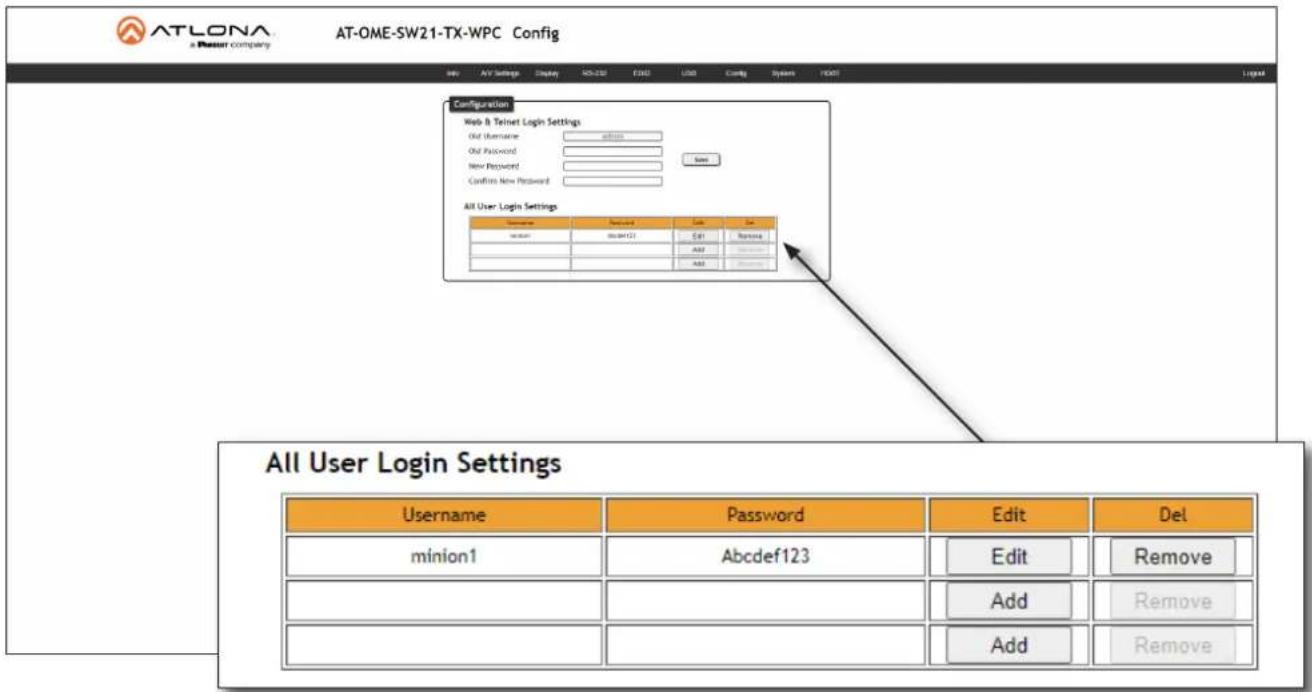

Adding Users 26

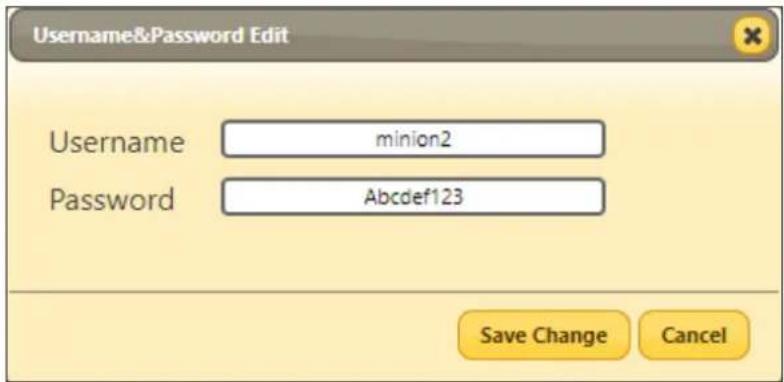

Editing / Deleting Users 27

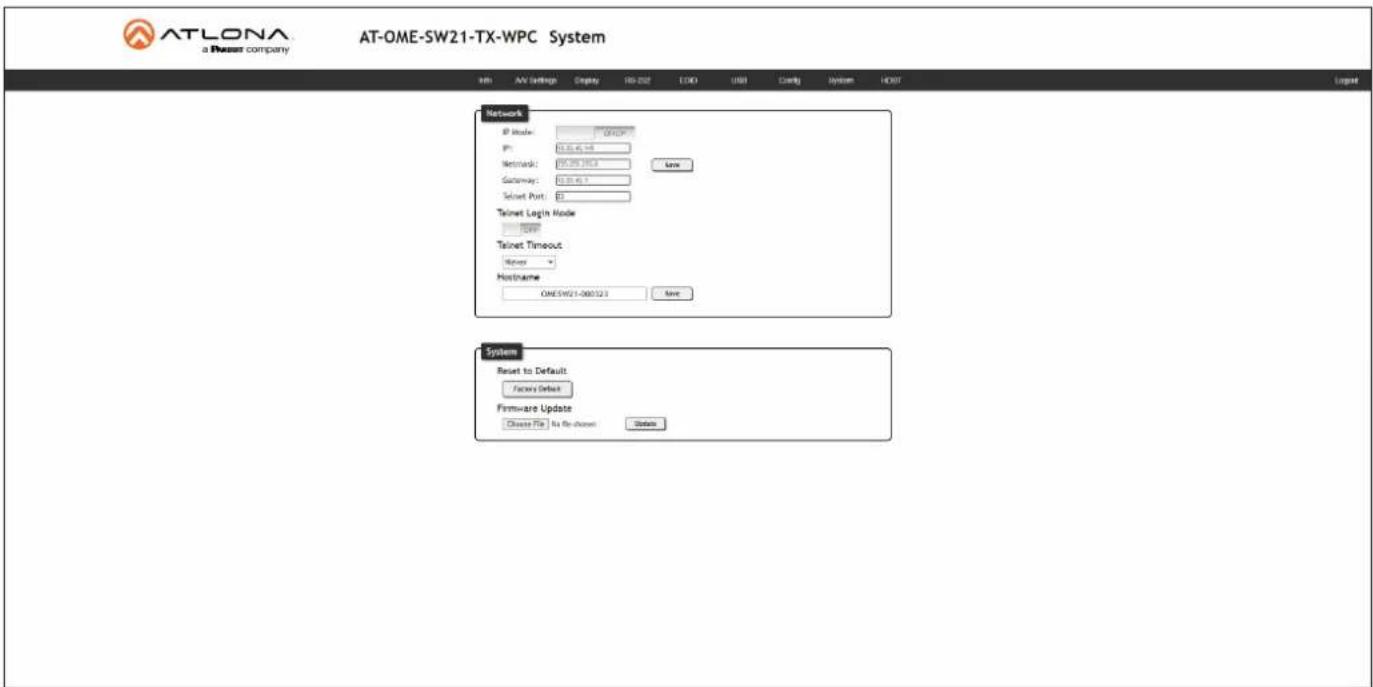

System Configuration 28

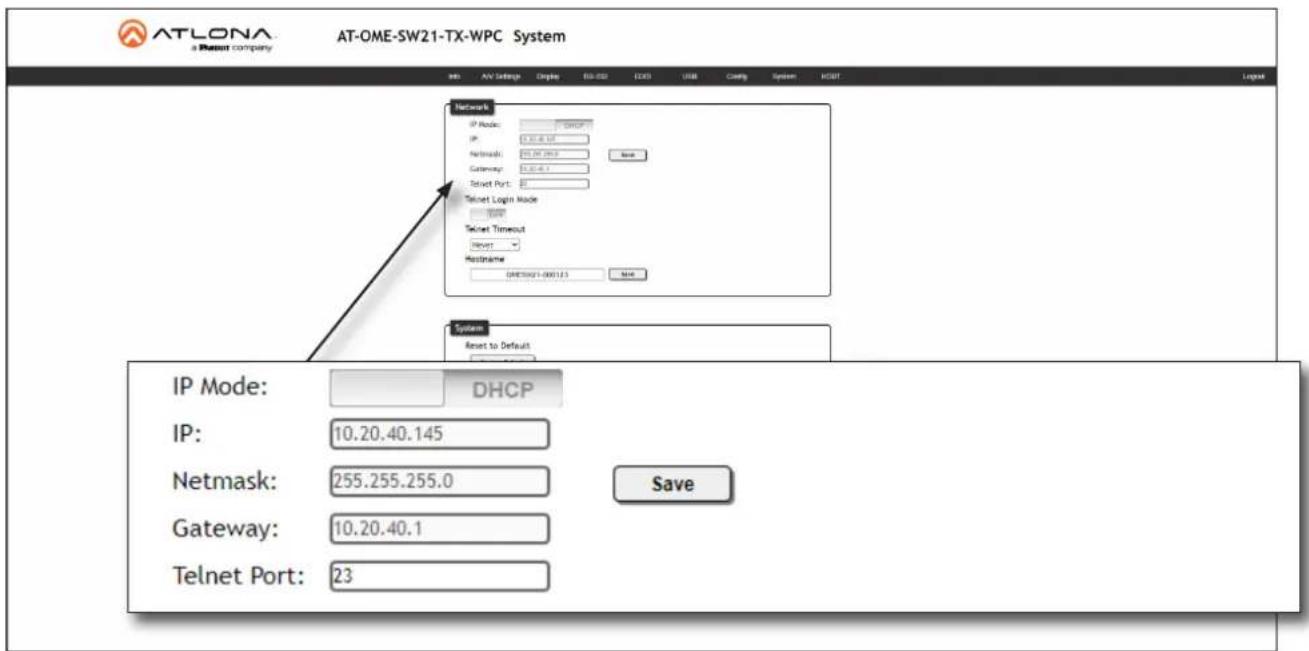

Setting the IP Mode 28

Changing the Telnet Port 29

Telnet Login Mode 29

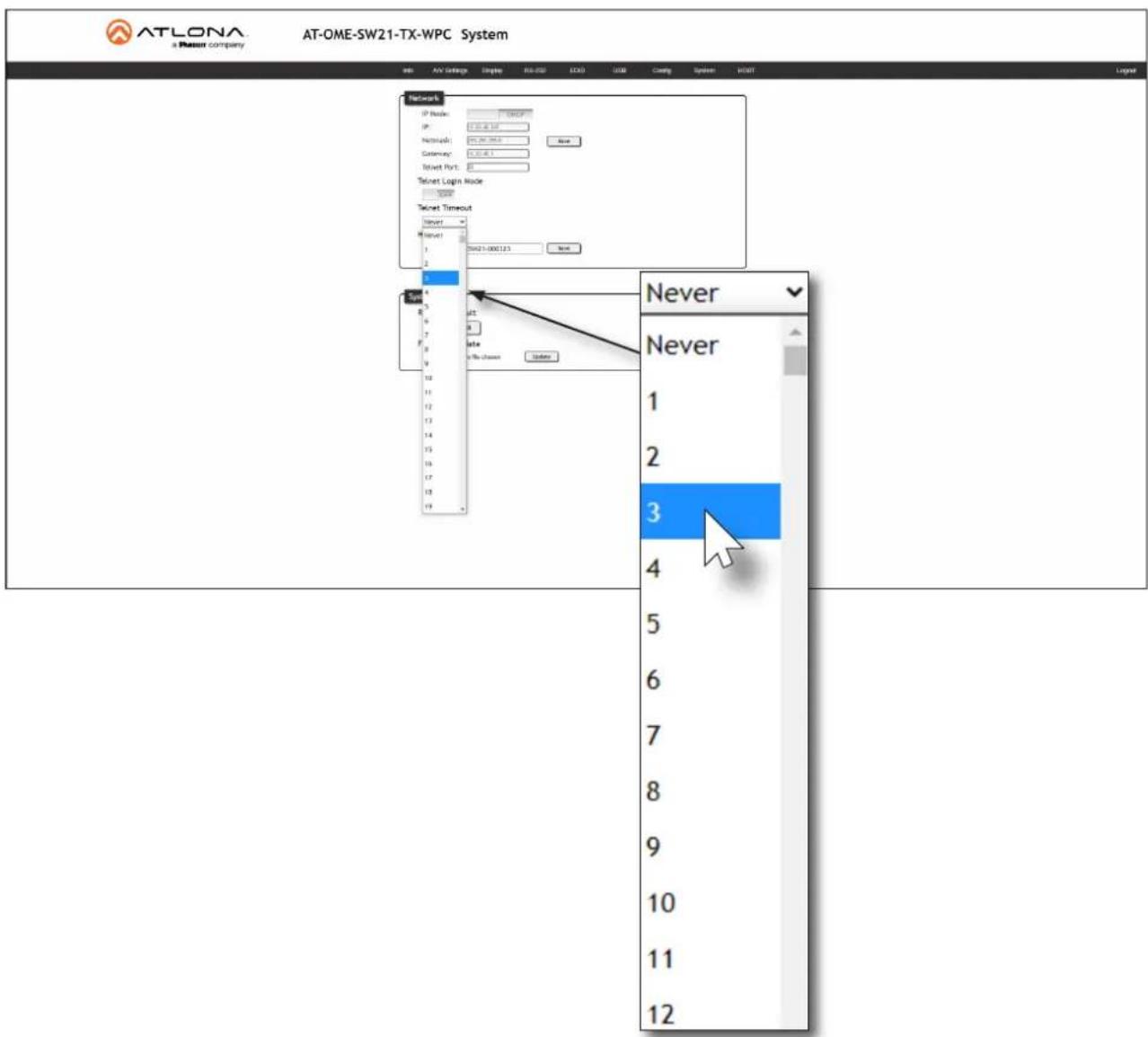

Adjusting Telnet Timeout 30

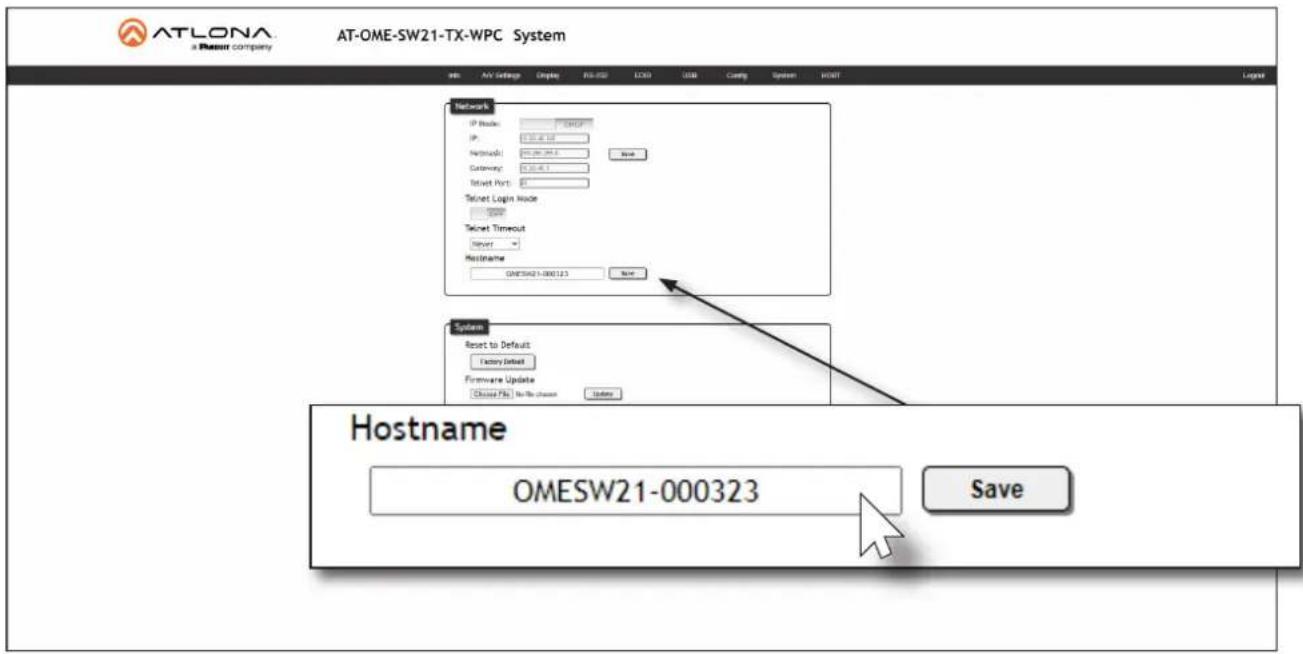

Setting the Host Name 31

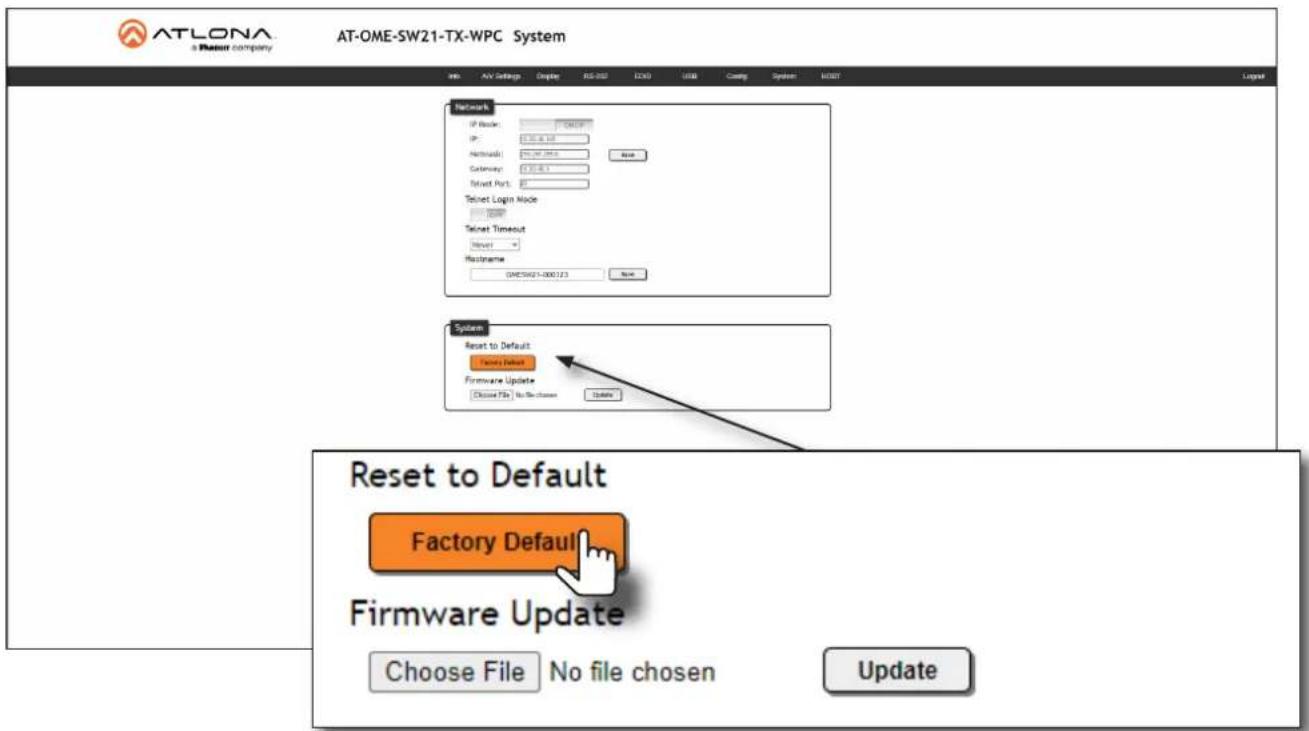

Resetting to Factory-Default Settings 32

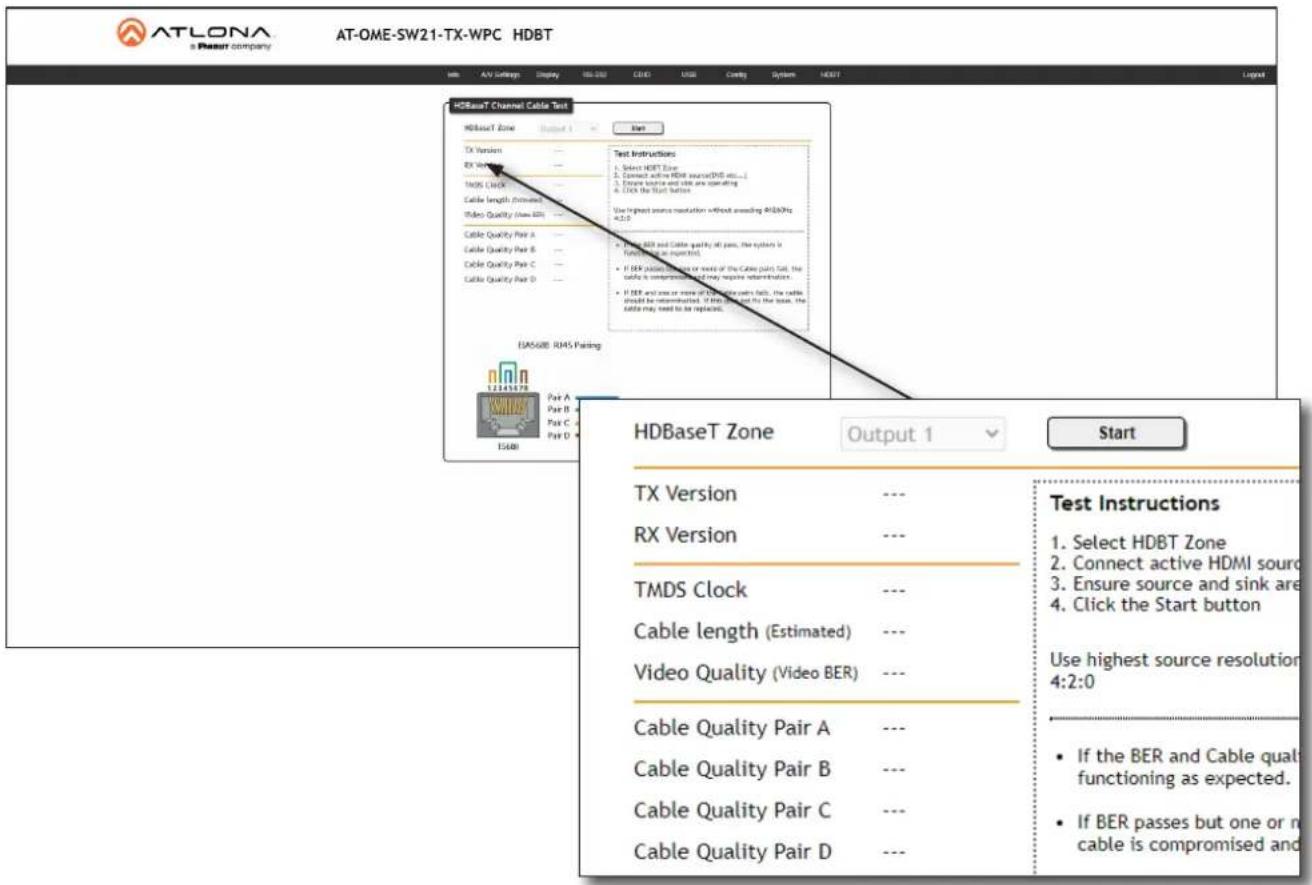

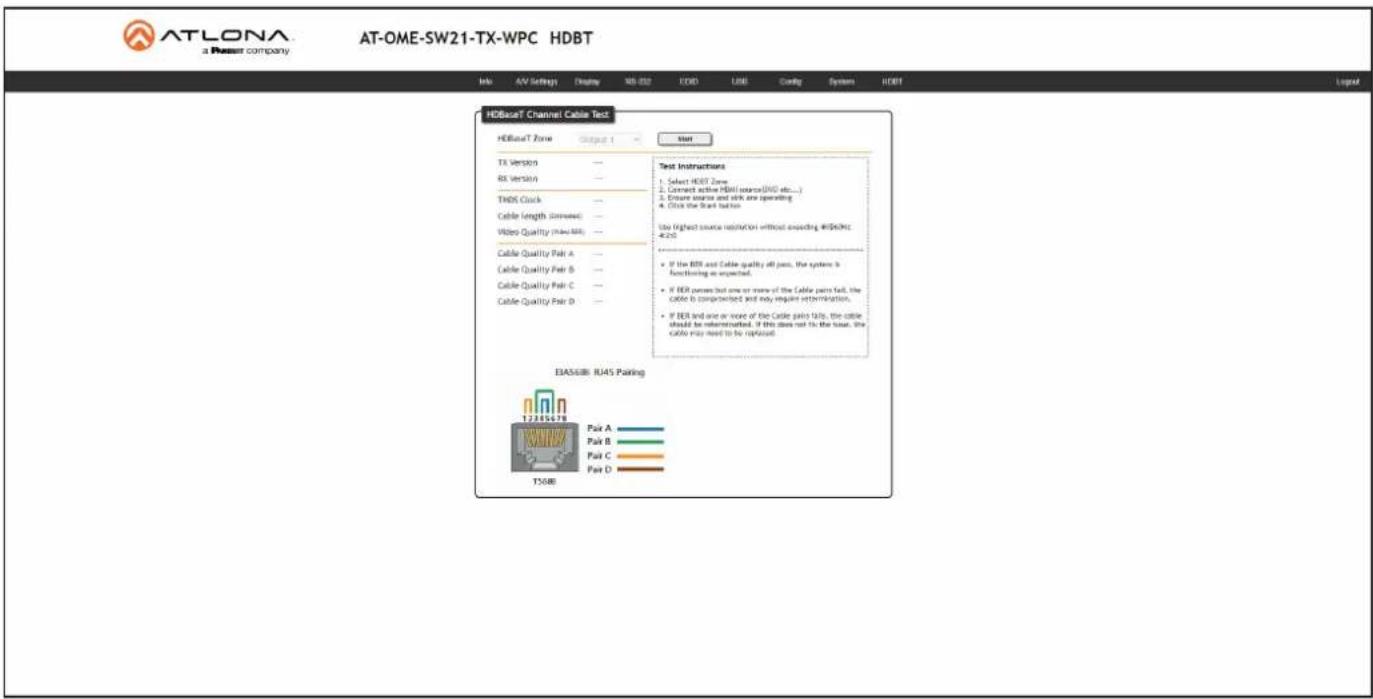

HDBaseT Testing 33

Factory Reset 34

Configuration and Management Interfaces 35

Web Server 35

Info Page 35

A/V Settings Page 37

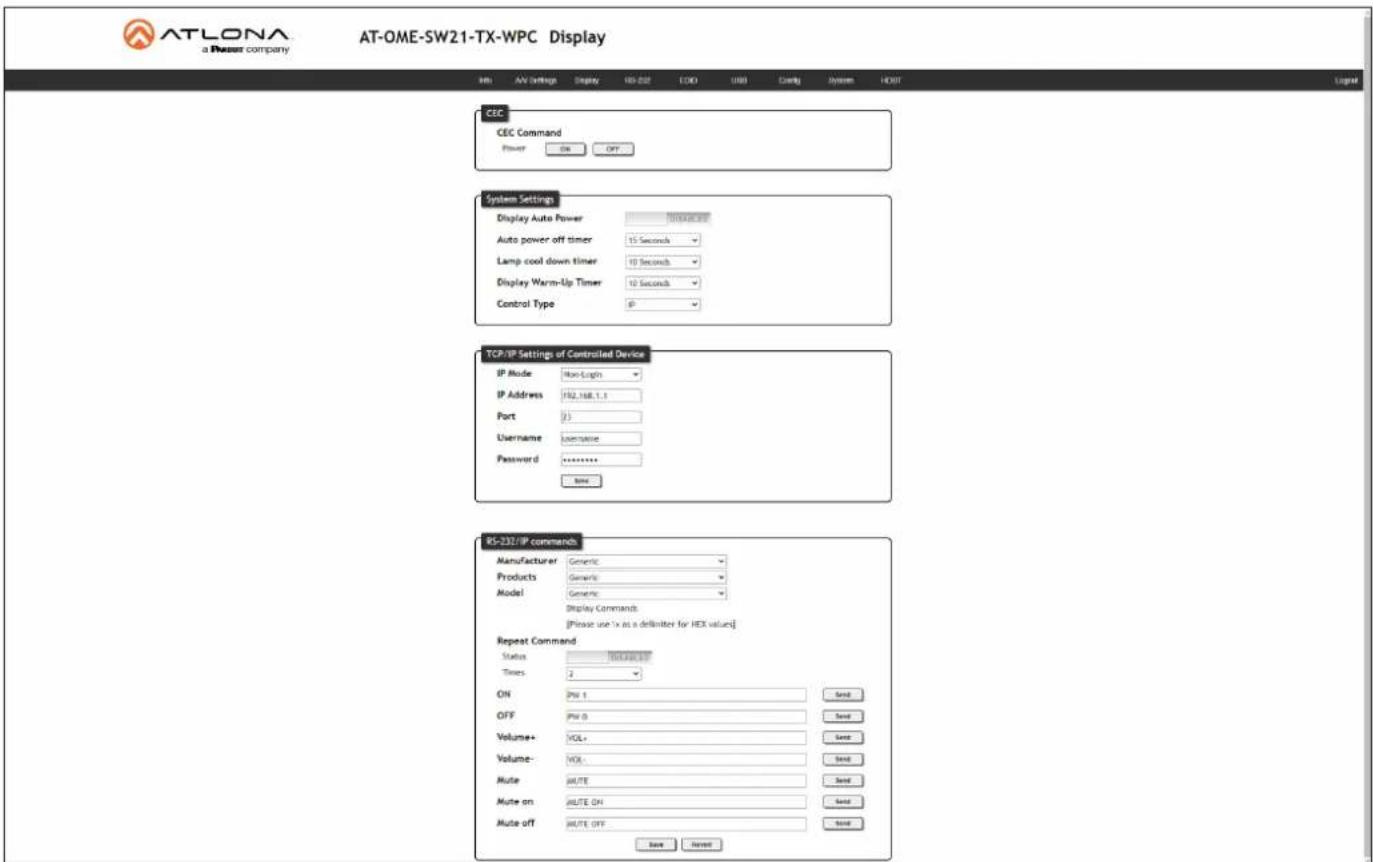

Display Page 38

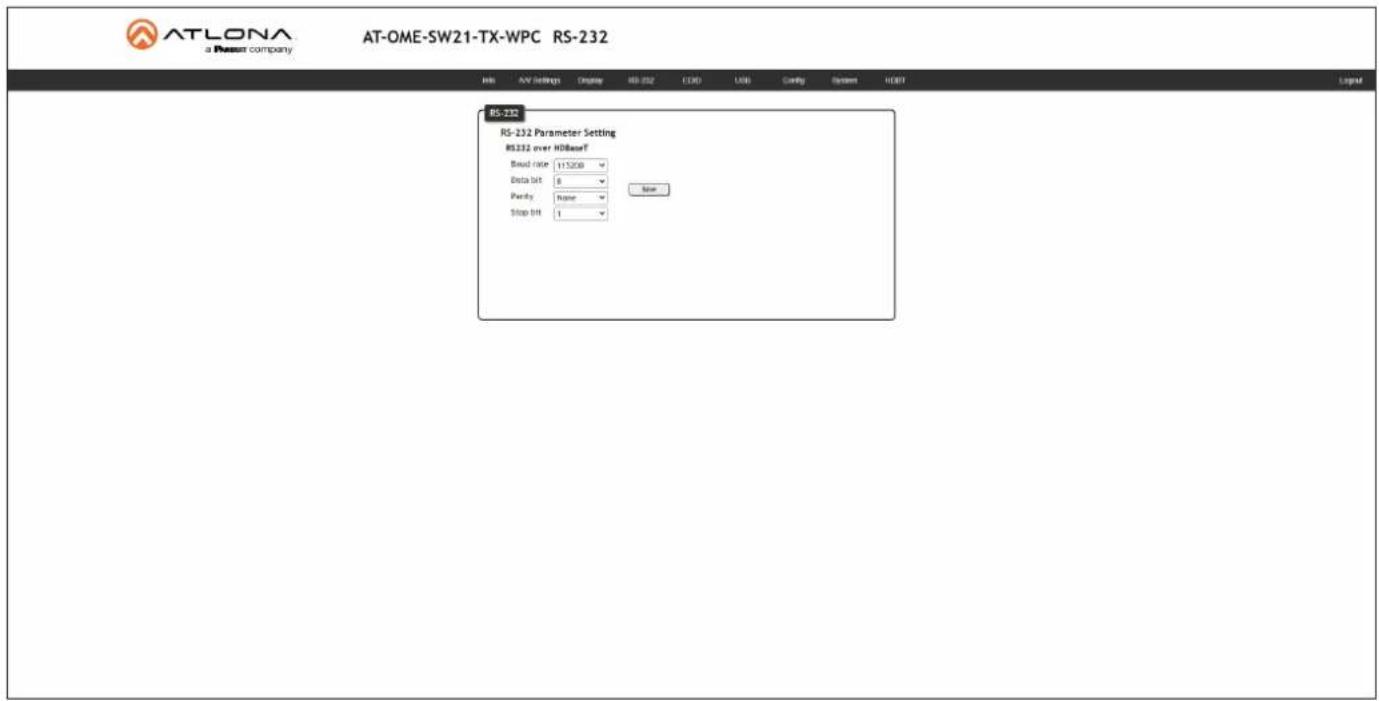

RS-232 Page 41

EDID Page 42

USB Page 43

Config Page 44

System Page 45

HDBT Page 47

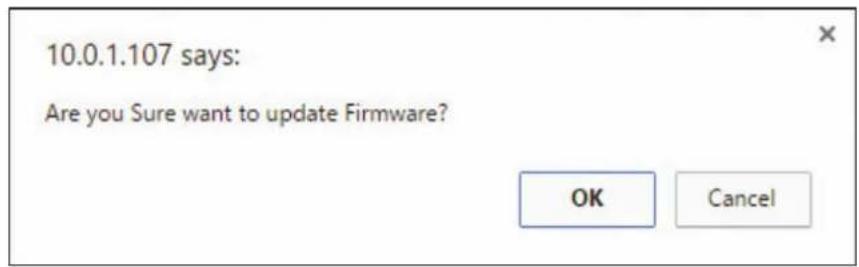

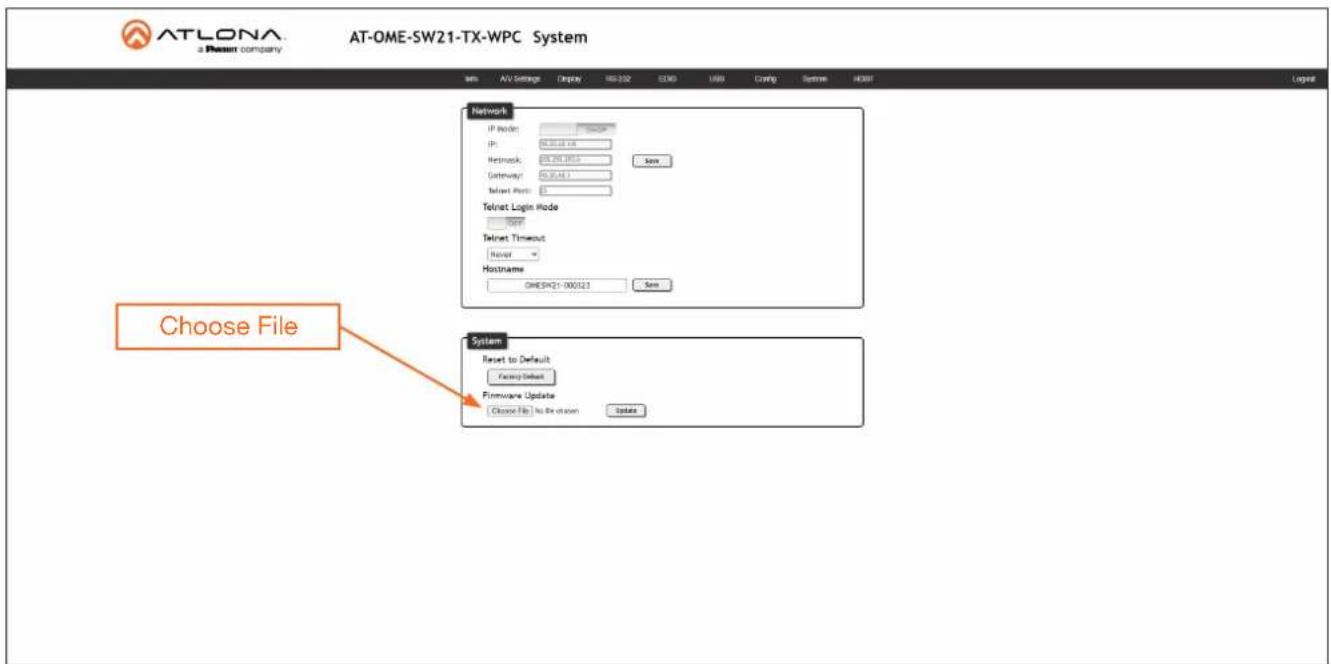

Updating the Firmware 48

Using the Web Server 48

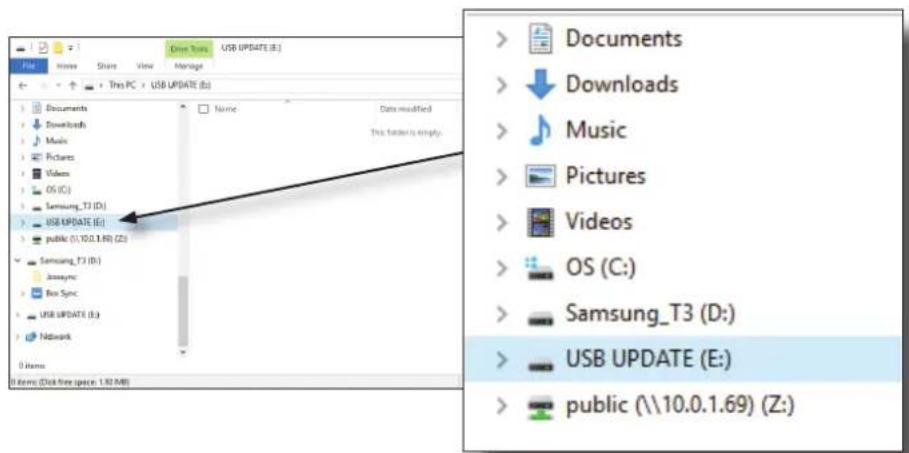

Using USB 49

Specifications 51

Introduction

The Atlona AT-OME-SW21-TX-WPC is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The OME-SW21-TX-WPC features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SW21-TX-WPC is HDCP 2.2 compliant. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows®PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-SW21-TX-WPC includes USB 2.0 and USB-C PC host interfaces, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.

Features

• US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
• 2×1 HDBaseT switcher with HDMI and USB-C inputs
  • Video, audio, power, and data over category cable utilizing HDBaseT technology
  • USB 2.0 interfacing and extension up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
• Remote powering over HDBaseT
  • Automatic display control
  • Automatic input selection using hot plug detect and video detection technology

Package Contents

1 x AT-OME-SW21-TX-WPC
1 x White faceplate
1 x White wallplate
1 x Black faceplate
1 x Black wallplate
4 x Mounting screws
1 x USB-C to USB-C cable, 2 meters
1 x Installation Guide

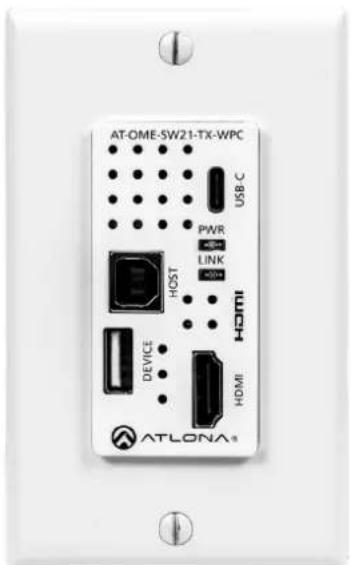

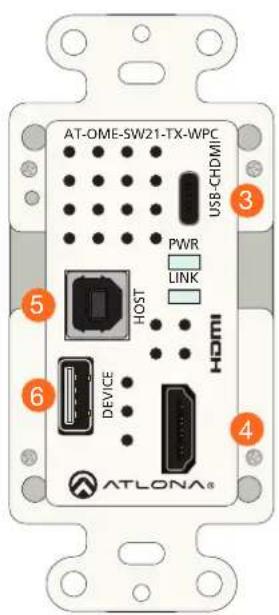

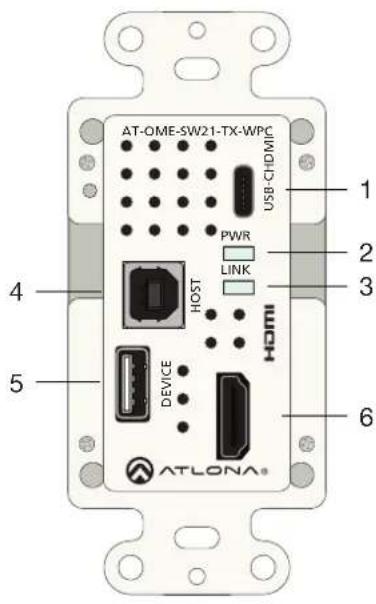

Panel Description

1 USB-C

Connect a USB-C cable from this port to the USB-C port of a source device.

2 PWR

This LED indicator glows solid green when the unit is powered. Refer to LED Indicators (page 11) for more information.

3 LINK

This LED indicator glows solid amber to indicate that the HDBaseT signal integrity is good. Refer to LED Indicators (page 11) for more information.

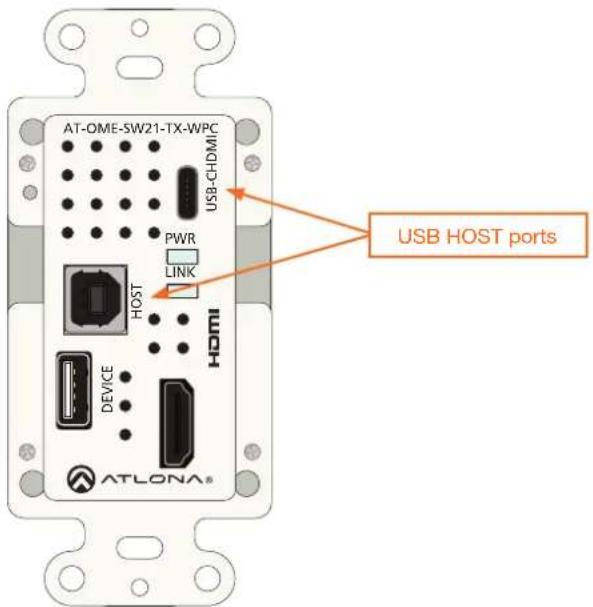

4 HOST

Connect a USB cable from this port to the host computer.

5 DEVICE

Connect a USB device, such as a speakerphone, to this port. This port provides 5 W of power.

6 HDMI

Connect an HDMI cable from this port to a UHD/HD source.

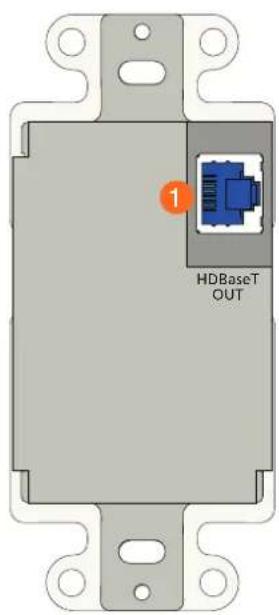

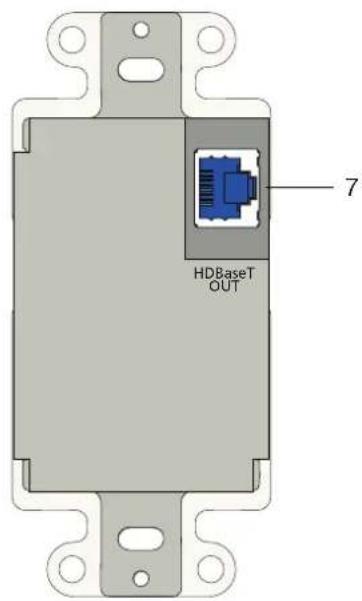

7 HDBaseT OUT

Connect a category cable from this port to the HDBaseT IN port of the AT-OME-EX-RX or other PoE-compatible receiver.

Installation

Connection Instructions

Determine the proper faceplate to be used for installation. The AT-OME-SW21-TX-WPC is shipped with the white faceplate, attached. If using the black faceplate, then refer to Faceplate Removal and Assembly (page 10) for information on changing the faceplate.

1. Connect an category cable (CAT-5e or better), from the HDBaseT OUT port, on the rear of the unit, to an HDBaseT receiver. This unit is powered over category cable, from a compatible HDBaseT receiver. Category cables should use EIA/TIA-568B termination. IP network is also data is carried over the HDBaseT OUT port.
2. Complete the installation of the AT-OME-SW21-TX-WPC into the electrical box or mudring.
3. Connect a USB-C cable from the source to the USB-C port.

Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars. These table are for guidance, only. Performance may vary, based on environmental factors.

Core	Shielding	CAT5e	CAT6	CAT6a	CAT7
Solid UTP (unshielded) N/A
		STP (sheilded)

Cable Max. Distance @ 4K Max. Distance @ 1080p
CAT5e 295 feet (90 meters)	330 feet (100 meters)
CAT6 / 6a / CAT7 330 feet	(100 meters) 330 feet (100 meters)

IMPORTANT: Stranded or patch cable is not recommended due to performance issues. Sheilded cables are strongly recommended to minimize signal noise and interference.

1. Connect an HDMI cable from a UHD/HD source to the HDMI port.
2. Connect a USB cable from the host computer to the HOST port.
3. Connect a USB device, such as a speakerphone to the DEVICE port. This port provides 5 W of power.

Installation

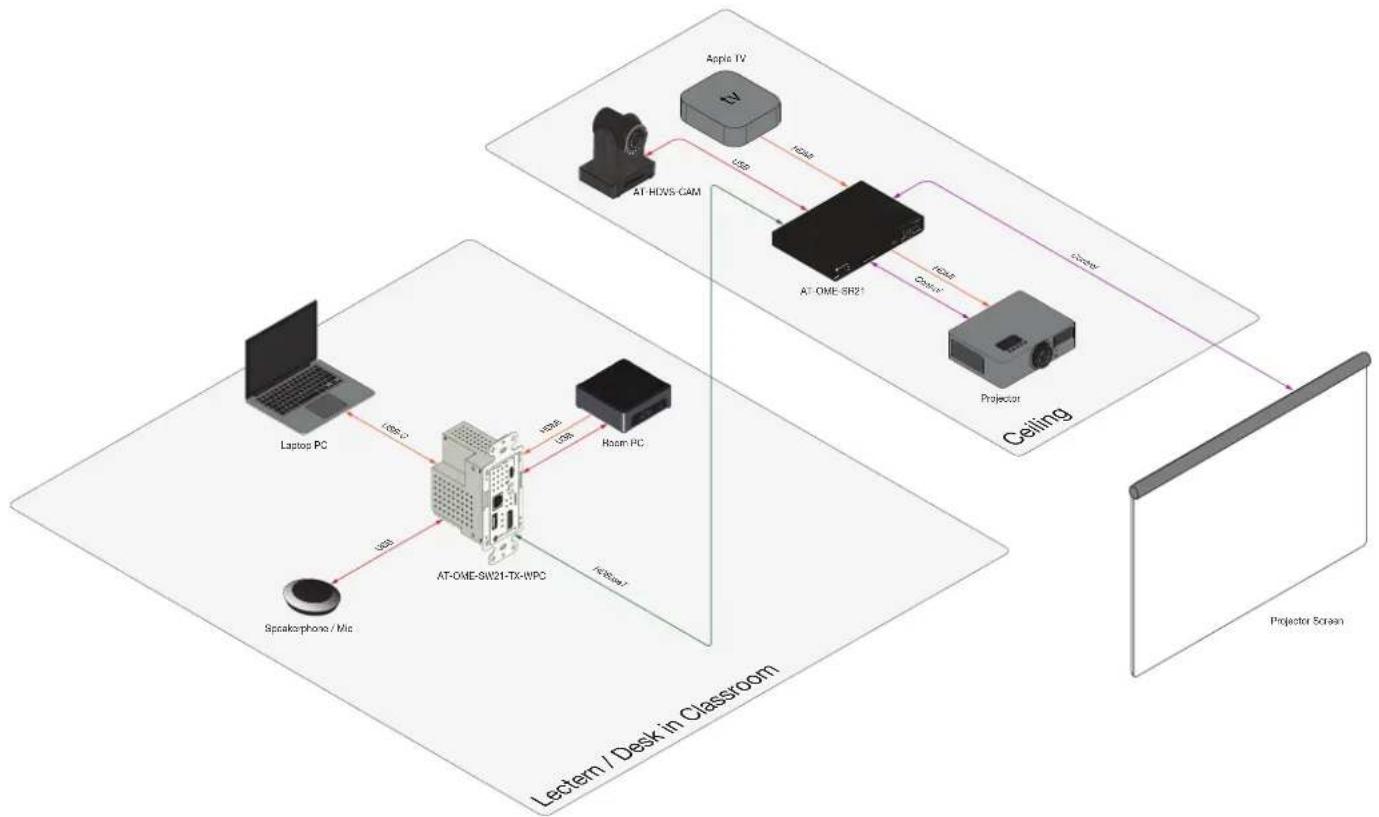

Connection Diagram


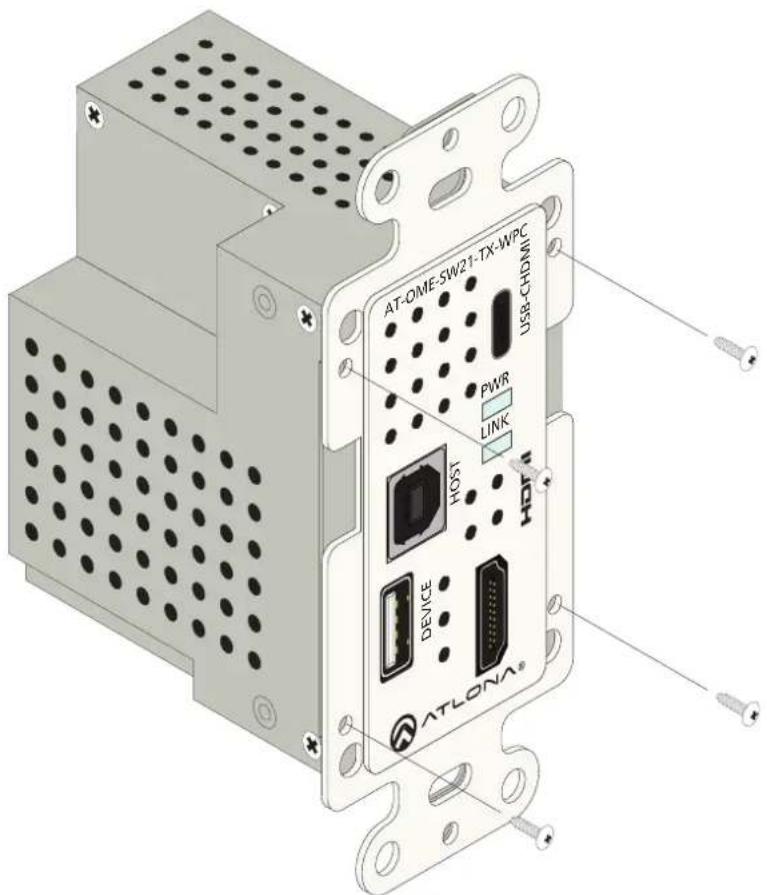

Faceplate Removal and Assembly

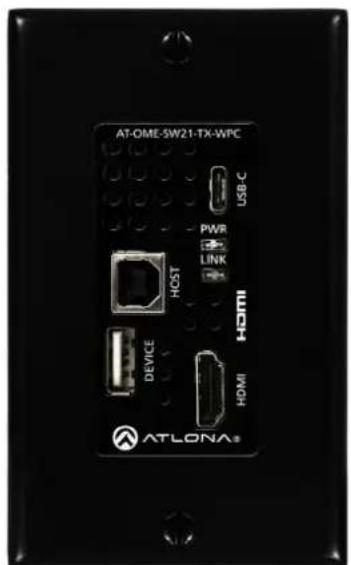

The AT-OME-SW21-TX-WPC includes an optional black faceplate. The AT-OME-SW21-TX-WPC is shipped with the white faceplate, attached. Removal of the faceplate requires that the AT-OME-SW21-TX-WPC be disassembled from the electrical box or mud ring. A small Phillips-head screwdriver is required to remove the faceplate.

1. Unscrew the four Phillips-head screws from the sides of the faceplate, as shown.

1. Gently remove the faceplate by pulling it toward you.
2. Attach the new faceplate, then secure it using the four Phillips-head screws. Do not over-tighten or apply high-torque devices to the screws. Doing so may damage the faceplate and/or the screws.
3. Install the AT-OME-SW21-TX-WPC into the electrical box or mud ring.
4. Reattach the wallplate.

Device Operation

LED Indicators

The LED indicators on both the front of the unit provide basic information on the current status of the AT-OME-SW21-TX-WPC.

LED Description
POWER Solid green • Unit is powered and is in normal operating mode.
	Off • Unit is not powered.
LINK Solid Amber • The HDBaseT link between the AT-OME-SW21-TX-WPC and the compatible PoE receiver is good.NOTE: If the LINK LED is ON, but the PWR LED is off, then this indicates that display control has been triggered and the system is currently in an OFF state.
	Off • The AT-OME-SW-TX-WPC is not connected to a compatible PoE receiver.

Logging in to the Web Server

Operation of the AT-OME-SW21-TX-WPC is handled through the built-in web server. In order to access the web server, the IP address of the unit must be known. The AT-OME-SW21-TX-WPC is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Using an IP scanner, along with the MAC address on the rear of the unit, can be used to identify the unit on the network.

NOTE: IP communications are carried over the HDBaseT OUT port. Therefore, in order to access the built-in web server, the AT-OME-SW21-TX-WPC must be connected to a receiver unit, such as the AT-OME-EX-RX. The receiver unit must be connected to the network using its LAN port.

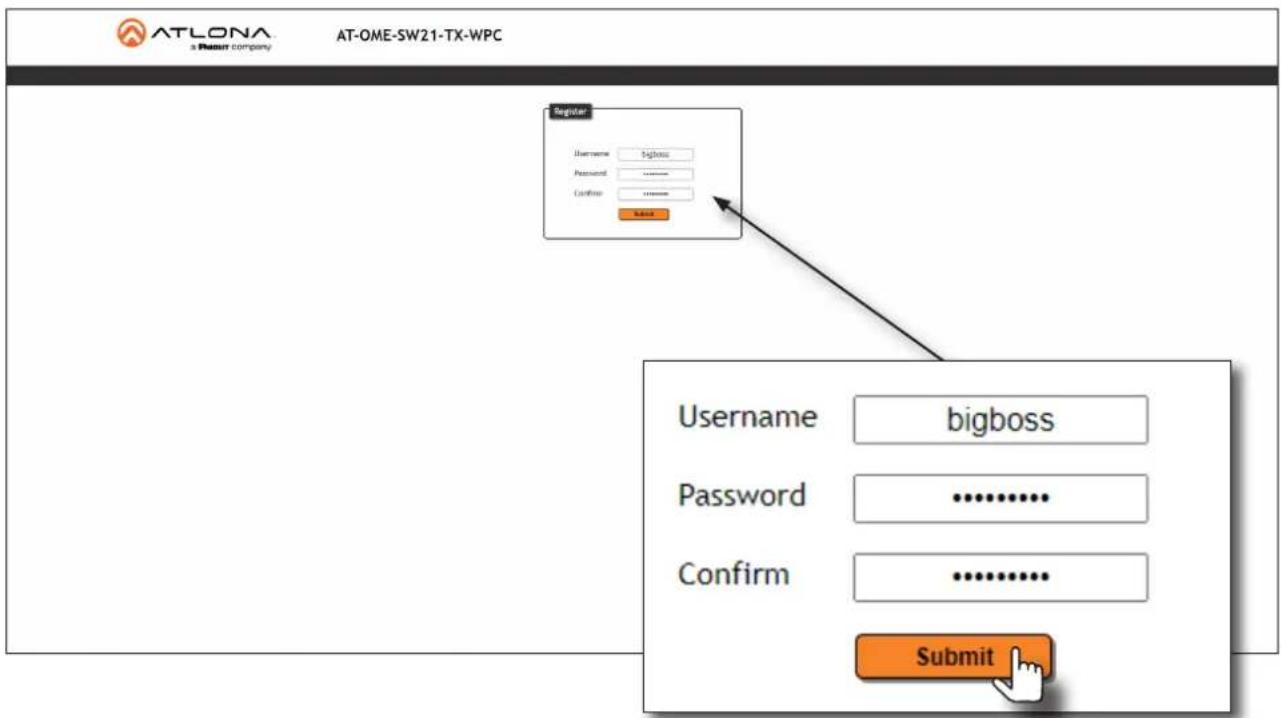

Login Registration

1. Launch the desired web browser and enter the IP address of the AT-OME-SW21-TX-WPC in the address bar.
2. The AT-OME-SW21-TX-WPC Register page will be displayed.

1. Enter the desired username in the Username field. Note that during the registration process, the Username field cannot be set to root.
2. Enter the desired password in the Password field.

IMPORTANT: The password must contain a minimum of 8 characters, including: 1 uppercase character, 1 lowercase character, and 1 number. Note that the Password and Confirm fields will be masked when entering the password.

1. Verify the password by entering it in the Confirm field.
2. Click the Submit button. The Info screen will be displayed. Refer to Info Page (page 35) for more information.

Device Operation

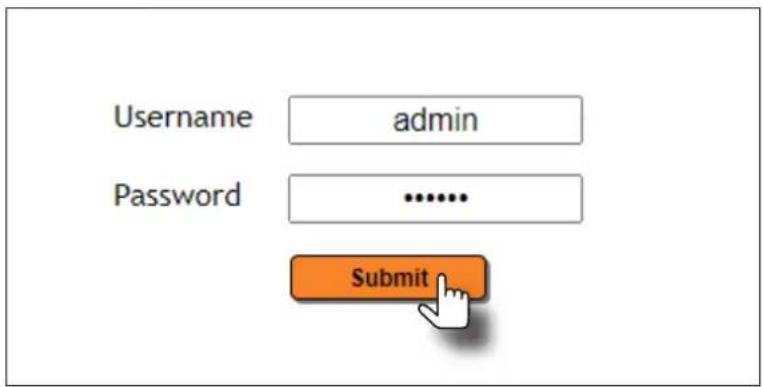

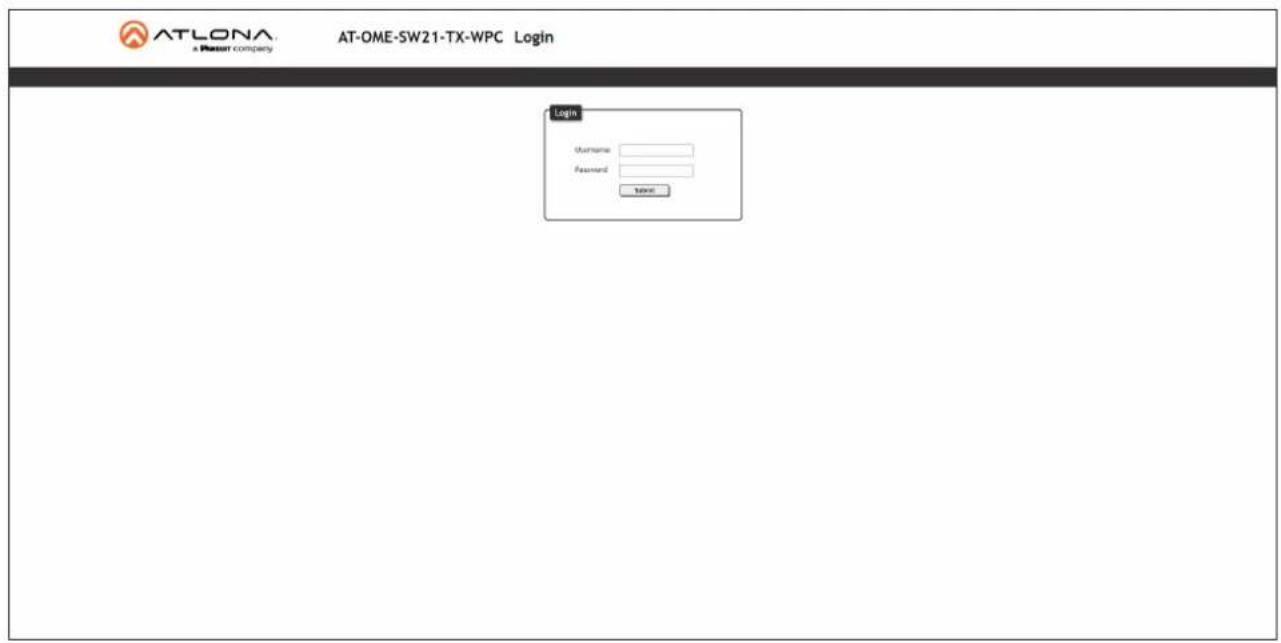

Logging in after registration

1. Launch the desired web browser and enter the IP address of the AT-OME-SW21-TX-WPC in the address bar.
2. Enter the correct username and password in the respective fields.
3. Click the Submit button.

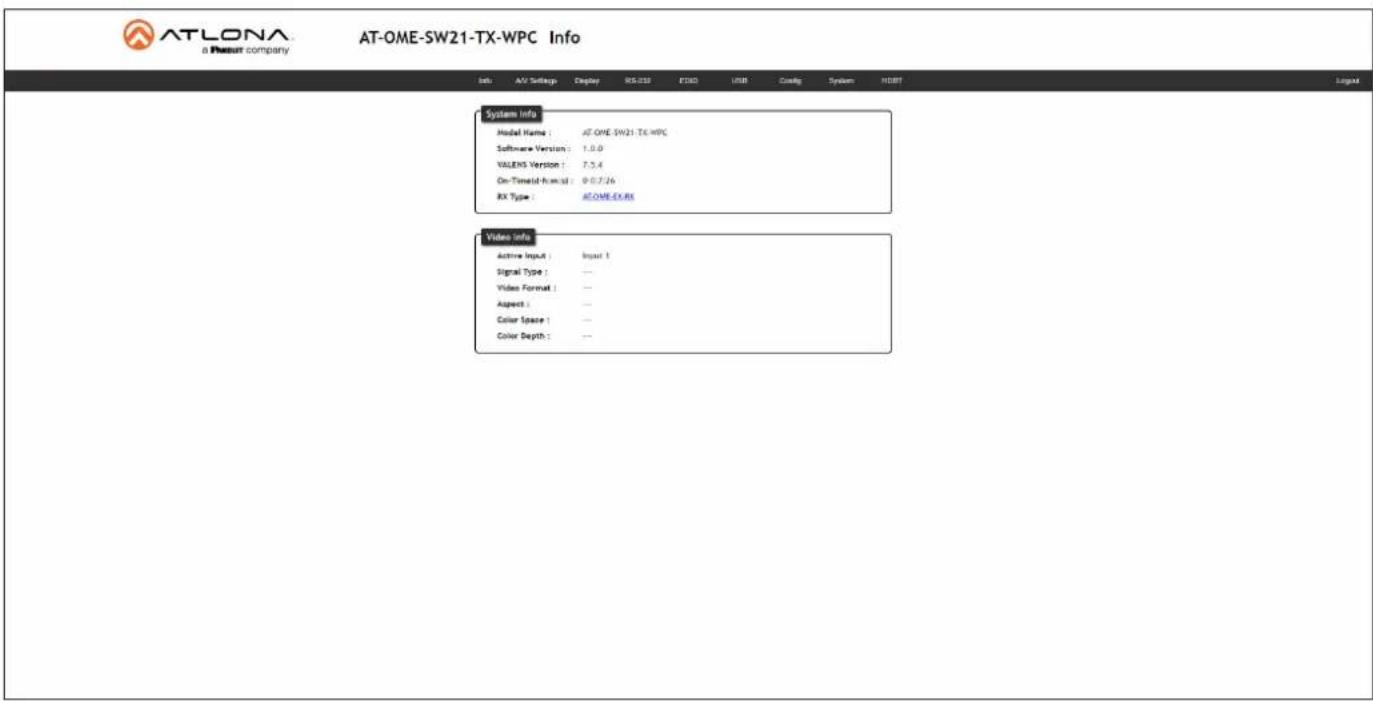

1. The Info page will be displayed and the login process is complete. Refer to Info Page (page 35) for more information.

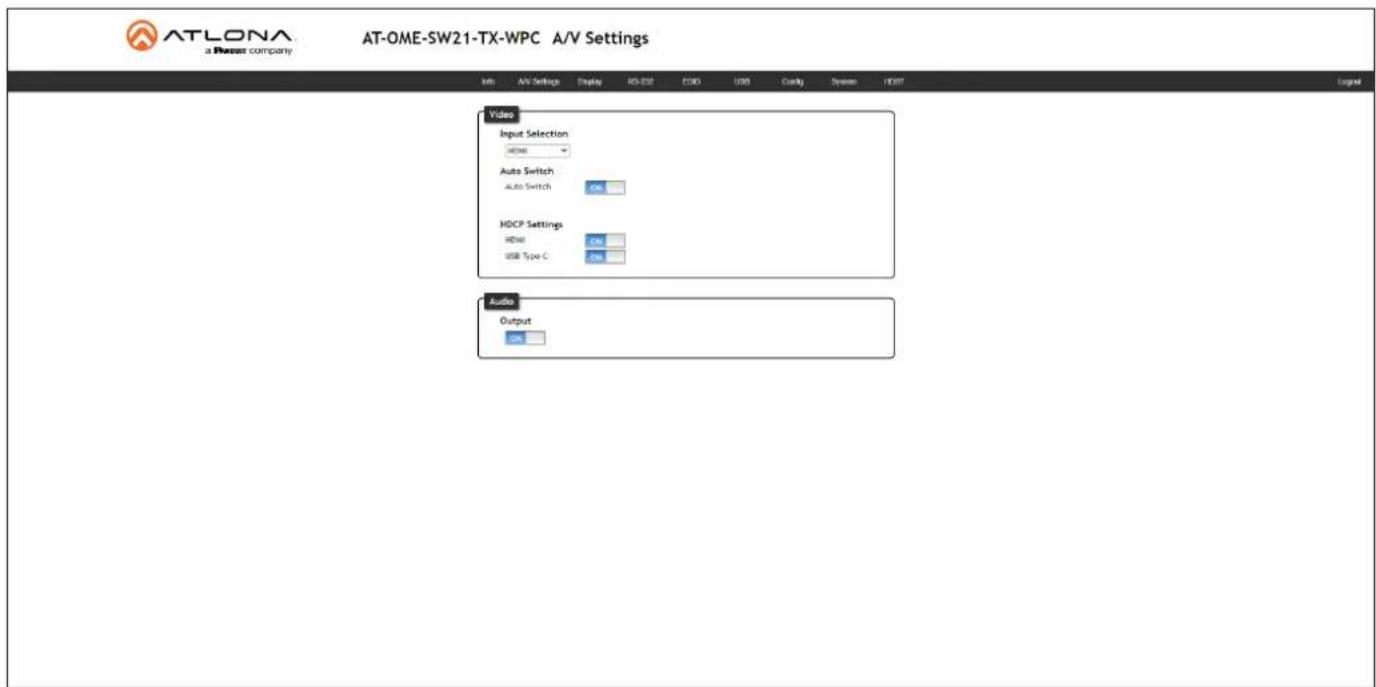

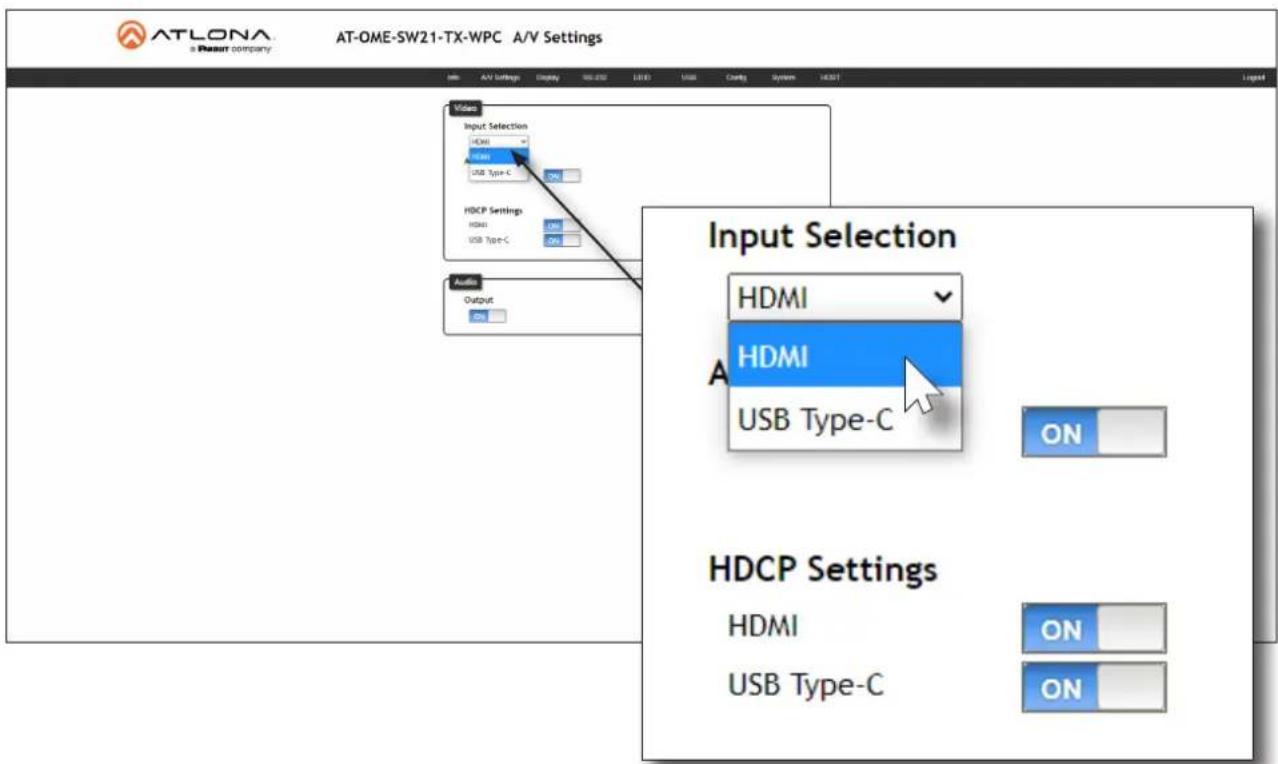

Selecting the Input

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click A/V Settings in the menu bar.
3. Under the Video window group, click the Input Selection drop-down list and select the desired input.

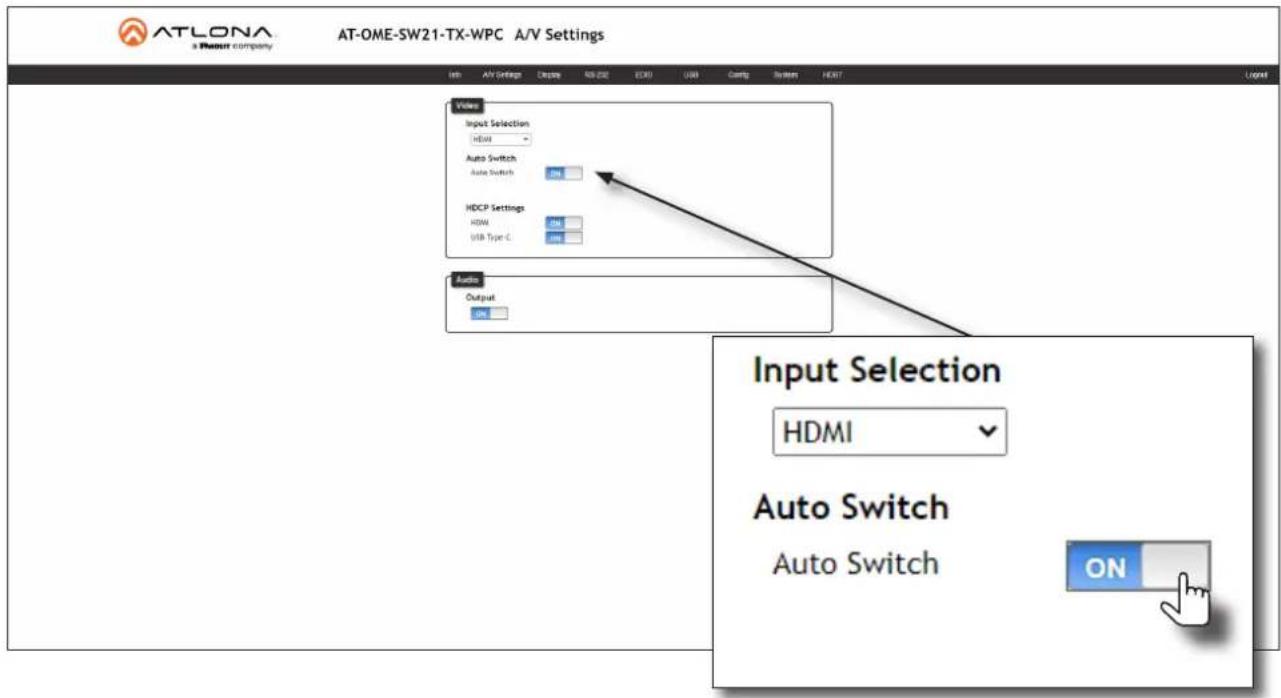

Auto-Switching

The AT-OME-SW21-TX-WPC provides auto-switching capability, which is enabled by default. This feature will automatically switch the input to the most recently-connected source. If a source is disconnected, then the input will automatically be switched to the previously-connected source.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click A/V Settings in the menu bar.
3. Under the Video window group, the Auto Switch toggle switch will be set to the ON position, indicating that auto-switching is enabled.
4. Click the Auto Switch toggle switch to the OFF position to disable auto-switching. Note that when disabled, if the previously active input is no longer available, no switching will occur.

NOTE: The AT-OME-SW21-TX-WPC retains the currently selected input, even after the unit is powered-off then powered-on. The system should re-evaluate the auto switching logic after power on, and then select an input.

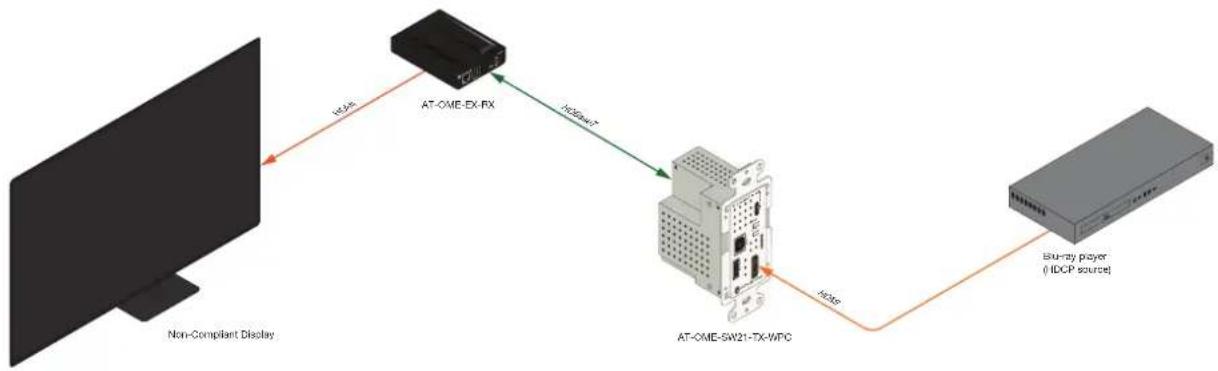

HDCP Content

Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display can be "snow", image flickering, or no picture. For example, in the illustration below, a Blu-ray player HDCP source is connected to the AT-OME-SW21-TX-WPC. A non-compliant display is connected to an AT-OME-EX-RX receiver, which is connected to the AT-OME-SW21-TX-WPC using HDBaseT.

IMPORTANT: Not all source devices are capable of transmitting non-HDCP content. For example, Sony PlayStation® gaming consoles and Apple® computers will always default to HDCP. However, if they detect a non-HDCP source, non-HDCP content will be transmitted.

By default, a laptop may transmit HDCP content. However, when connected to a display that does not support HDCP, the laptop must be instructed to send non-HDCP content, in order for the content to be displayed.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click A/V Settings in the menu bar.
3. Under the Video window group, click the toggle switch next to the desired input. In this example, clicking the HDMI toggle switch to the OFF position will instruct the source connected to the HDMI port to send non-HDCP content, if possible. If the display is unable to receive HDCP content, then a green splash screen will appear on the connected display, with the following message:

HDCP INCOMPATIBILITY

Video

Input Selection

HDMI

Auto Switch

Auto Switch

HDCP Settings

HDMI

USB Type-C

Audio Muting

The AT-OME-SW21-TX-WCP provides control over audio muting on the output.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click A/V Settings in the menu bar.
3. Under the Audio window group, click the Output toggle switch to either the ON or OFF position. For example, to mute the audio output set this toggle switch to the OFF position. To re-enable the audio on the output, set the toggle switch to the ON position.

EDID Management

Before a source can send picture and sound to a display device, the source reads the EDID (Extended Display Identification Data) stored in the display. The EDID contains information about what type of video and audio formats are supported by the display. The AT-OME-SW21-TX-WPC can use either the downstream EDID (from the display/sink) or use a built-in EDID preset. Custom EDID data can also be stored in a user-defined preset. This section will cover each of the following topics:

• EDID Presets
• Using the Downstream EDID
- Storing EDID Data

Using the Downstream EDID

By default, the AT-OME-SW21-TX-WPC will read the EDID from the display device. The term “downstream” is used to describe any device that receives a signal from another device. For example, if a Blu-ray player is connected to a display, the display is said to be “downstream” of the Blu-ray player.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click EDID in the menu bar.
3. Locate the EDID Settings section.
4. Click the drop-down list next to the desired input and select Connected Display. For example, to have the HDMI port use the EDID of the connected display, click the HDMI drop-down list and select Connected Display.

EDID Presets

The AT-OME-SW21-TX-WPC provides the option of selecting a preset EDID. The following presets are available. For information on storing custom EDID data, refer to Storing EDID Data (page 20).

IMPORTANT: If problems are encountered when using an EDID preset, try using the default setting of Connected Display.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click EDID in the menu bar.
3. Locate the EDID Settings section.
4. Click the drop-down list, next to the port that is connected to the display device, and select the desired EDID preset. For example, to have the HDMI port use a specific EDID, click the HDMI drop-down list.

Device Operation

Storing EDID Data

The AT-OME-SW21-TX-WPC provide a two memory locations, which can be used to store EDID data. Any downstream EDID can be captured and stored in these locations. The memory location is non-volatile and captured EDID data is retained after power is disconnected from the unit.

1. Make sure the system is powered and wired, as shown in the illustration below.
2. Connect an HDMI cable from the HDMI OUT port on the receiver endpoint of the AT-OME-SW21-TX-WPC, containing the EDID to be stored. In this example, the AT-OME-EX-RX is used as a receiver unit.
3. Login to the web server of the AT-OME-SW21-TX-WPC. Refer to Logging in to the Web Server (page 12) for more information.
4. Click EDID in the menu bar.

1. Locate the EDID Saved section.

1. Click the Output save to drop-down list and select the desired memory location where the EDID will be stored.
2. Once selected, the downstream EDID will be saved to the selected memory location.
3. Click any of the input drop-down list boxes, under the EDID Settings window group. Note that the stored EDID appears as an available EDID preset for each available input on the AT-OME-SW21-TX-WPC.

1. The EDID storing procedure is complete.

NOTE: Once an EDID is written to a memory location, it can be overwritten with a different EDID, when desired. To overwrite an EDID with a different EDID, repeat steps 5 through 7, above.

USB Modes

The AT-OME-SW21-TX-WPC provides three USB modes: Manual, Follow USB, and Follow Video. Each mode provides different method of selecting the USB host ports. Note that the USB-C port also serves as a host port.

Follow USB

This is the default mode. In this mode, the AT-OME-SW21-TX-WPC will detect which USB ports are connected to a host device. If all USB host ports are connected to host devices, then the AT-OME-SW21-TX-WPC will set the last-connected USB host device as the "active" USB host.

1. Connect the host computers to the USB host ports, as desired. Note that it is not required that both USB host ports be connected to host devices.
2. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
3. Click USB in the menu bar, then click the Follow USB radio button.

Device Operation

Once set to Follow USB mode, the AT-OME-SW21-TX-WPC will exhibit the following behavior:

• If only one USB host device is connected to the USB host ports, then the AT-OME-SW21-TX-WPC will use the USB host device connected to that port.
• If another USB host device is connected to a vacant USB host port, then the AT-OME-SW21-TX-WPC will automatically switch to that USB host device.

- If both the HOST and USB-C host ports are connected, then the AT-OME-SW21-TX-WPC will switch to the USB port that was connected last.

- If both the HOST, and USB-C host ports are connected, and one USB host port is disconnected, then the AT-OME-SW21-TX-WPC will automatically switch to the USB host port that was connected last.

Manual

This mode provides manual selection of the USB host port to be used.

1. Connect the host computers to the USB host ports, as desired. Note that it is not required that both USB host ports be connected to host devices.
2. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
3. Click USB in the menu bar.
4. Click the Manual radio button.

1. Click the drop-down list, below the Manual radio button, to select the desired input.

○ Follow USB

Manual

○ Follow Video

USB Host Description
USB-C USB-C port
USB 1 The HOST port
remote Uses the USB host	port on the HDBaseT receiver

1. Manual USB configuration is complete.

Follow Video

In this mode, each video input can be assigned to either the HOST or USB-C port. Follow Video mode locks the USB host device to the desired video port. In this way, the video source will have access to all connected USB device, each time video switching occurs.

1. Connect the host computers to the desired USB host ports. Note that it is not required that two USB host ports be connected to host devices.
2. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
3. Click USB in the menu bar, then click the Follow Video radio button.

User Management

The AT-OME-SW21-TX-WPC allows the administrator password to be changed, as well as the ability to create and remove user accounts. Passwords apply to both the web server and Telnet sessions. All users have the same level of access to control the AT-OME-SW21-TX-WPC. However, only the administrator-level user is allowed to manage other users. Up to three additional users can be created.

Changing the Administrator Password

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click Config in the menu bar.
3. Click the Old Password field and enter the current password.

1. Enter the new password in the New Password field.
2. Retype the new password in the Confirm New Password field.
3. Click the Save button to commit changes. To login with the new username, click Logout in the upper-right corner of the screen, then enter the new password on the Login page.

NOTE: Password fields will always be masked for security purposes.

Adding Users

1. Open the desired web browser and enter the IP address of the AT-OME-SW21-TX-WPC.
2. Login with the required credentials.
3. Click the Config tab.
4. Click the Add button, under the Edit column.

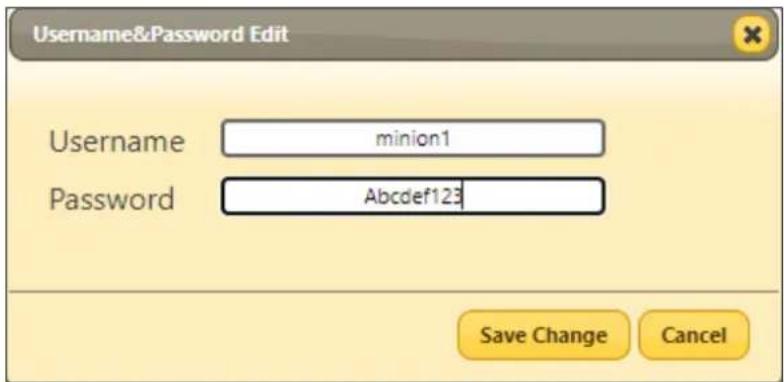

1. Enter the desired username and password in the Username&Password Edit dialog box.
2. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without adding the user.

Once created, the new user and the associated password will appear under the All User Login Settings section. To login with the new username, click Logout in the upper-right corner of the screen, then enter the login credentials for the user on the Login page.

Editing / Deleting Users

The username and password of a user can be changed using this method.

1. Open the desired web browser and enter the IP address of the AT-OME-SW21-TX-WPC.
2. Login with the administrator credentials. The administrator username and password are the credentials which were created during the registration process.

Editing Users

a. Click the Config tab.
b. Click the Edit button next to the user to be changed.
c. Enter the new information for the user in the Username&Password Edit dialog box.
d. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without making changes.

Deleting Users

a. Click the Remove button next to the user to be deleted.

System Configuration

The AT-OME-SW21-TX-WPC provides easy access to system configuration through the built-in web server, and is the recommended method to adjust network settings.

Setting the IP Mode

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.
3. Click the IP Mode toggle to the desired setting. The default setting is DHCP.

If a static IP address is desired, do the following:

a. Click the IP Mode toggle to STATIC IP.
b. Enter the desired IP address, subnet mask, and gateway, in the IP, Network, and Gateway fields, respectively.
c. Click the Save button.

1. IP mode configuration is complete.

Changing the Telnet Port

Typically, the Telnet service is assigned to TCP port 23. This is the default setting for the AT-OME-SW21-TX-WPC. However, depending upon the network environment, the default Telnet port can be changed.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.
3. Locate the Telnet Port field and enter the desired port in the field.
4. Click Save to commit changes.

IP Mode:

DHCP

IP:

10.20.40.145

Netmask:

255.255.255.0

Gateway:

10.20.40.1

Telnet Port:

23

Telnet Login Mode

OFF

Save

Telnet Login Mode

When a Telnet session is request, the AT-OME-SW21-TX-WPC provides the option to prompt for user credentials or bypass authentication before the Telnet session begins. This credentials prompt option can be enabled or disabled. When prompting for user credentials, use the same login information required by the built-in web server.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.

3. Click the Telnet Login Mode toggle switch.

4. Set this toggle switch to ON to prompt for user credentials.

5. Set this toggle switch to OFF to bypass user credentials request.

6. Click Save to commit changes.

Telnet Login Mode

Never

Device Operation

Adjusting Telnet Timeout

When a Telnet session is active, the AT-OME-SW21-TX-WPC can be set to monitor Telnet activity. If there is no activity within the specified time interval, the Telnet session will automatically be terminated, adding a measure of security.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.
3. Click the Telnet Timeout drop-down list and select the desired time-out interval. Values from 10 to 3600 seconds can be selected.

IMPORTANT: If Never is selected, then the Telnet port will stay open until the Telnet session is manually terminated.

1. Click Save to commit changes.

Device Operation

Setting the Host Name

By default, the AT-OME-SW21-TX-WPC is assigned a hostname, which is constructed as follows:

OMESW21-[last six digits of MAC address]

For example, a default hostname might look like this: OMESW21-000323. This value can be changed to easily identify the AT-OME-SW21-TX-WPC within the Atlona Management System (AMS) or a network. If using a custom hostname, it must meet the hostname standards, defined here: https://tools.ietf.org/html/rfc1123

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.
3. Click the Hostname field and enter the desired name.
4. Click Save to commit changes.

Resetting to Factory-Default Settings

The following procedure will reset the AT-OME-SW21-TX-WPC to factory-default settings. The network IP mode will be set to DHCP mode.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click System in the menu bar.
3. Click the Factory Default button.

1. The following message will be displayed at the top of the screen. Click OK to continue with the factory-default reset procedure. Click Cancel to abort the process.

1. Once the factory-default process is complete, the web server Login screen will be displayed.
2. The reset process is complete.

HDBaseT Testing

The web server of the AT-OME-SW21-TX-WPC provides a tool for testing the signal integrity of HDBaseT cables. This tool is useful for troubleshooting and identifying defective or damaged category cables which are connected from the HDBaseT OUT port on the AT-OME-SW21-TX-WPC to a compatible receiver.

1. Login to the web server. Refer to Logging in to the Web Server (page 12) for more information.
2. Click HDBT in the top menu bar.
3. Make sure that a category cable (CAT-5e or better) is connected between the HDBaseT OUT port of the ATOME-SW21-TX-WPC and a compatible receiver.

1. Click the Start button to begin testing the selected channel.

2. If the HDBaseT link integrity is good, then all tests will display as "Pass".

3. If any part of the HDBaseT cable fails, then a numerical value, in decibels, will be displayed next to the associated pair, under the Signal Quality section. These values can be reported to Atlona Technical Support Engineers to help resolve possible issues.

Factory Reset

Resetting the AT-OME-SW21-TX-WPC can be performed through the front of the unit, without having to remove the faceplate.

1. Make sure the AT-OME-SW21-TX-WPC is powered.
2. Locate the vent hole specified in the drawing below. The RESET button is located directly behind this vent hole.

1. Gently insert a paper clip or similar object into the hole and push firmly. The RESET button will click when it is depressed.
2. Press and hold the RESET button for 10 seconds, then release.
3. Both the LINK and PWR LED indicators will turn off, then on again. During the factory reset process, the LINK LED will turn amber.
4. Once the reset procedure has completed, both the LINK and PWR LED indicators will turn green.

Configuration and Management Interfaces

Web Server

The AT-OME-SW21-TX-WPC includes a built-in web server. Atlona recommends that the web server be used to set up the AT-OME-SW21-TX-WPC, as it provides intuitive management of all features.

Info Page

The Info page provides various information about the AT-OME-SW21-TX-WPC, including software version and video information.

System Info

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-OME-SW21-TX-WPC is running. Always make sure to check the AT-OME-SW21-TX-WPC product page, on the Atlona web site, for the latest version of firmware.

VALENS Version

Displays the firmware version of the VALENS chipset.

On-Time(d-h:m:s)

Displays how long the system has been powered since the last reboot/reset.

RX Type

Displays the HDBaseT receiver that is connected to the AT-OME-SW21-TX-WPC. If identification of the remote receiver fails, then “general” will be displayed.

Configuration and Management Interfaces

Version Info

Active Input

The currently selected (active) input.

Signal Type

The type of input signal.

Video Format

The input resolution of the source device.

Aspect

Aspect ratio of the input signal.

Color Space

Displays the color space and chroma sub-sampling of the input signal.

Color Depth

The color depth of the input signal.

Configuration and Management Interfaces

A/V Settings Page

Video

Input Selection

Click the drop-down list to select the desired input.

Setting Description

HDMI Switches to the source connected to the HDMI port.

USB Type C Switches to the source connected to the USB-C port.

Auto Switch

Cick the Auto Switch mode toggle to enable or disable auto-switching. If a source is disconnected from the active port, then the switcher will automatically switch the opposite port. This feature is enabled by default.

HDCP Settings

Sets the HDCP reporting mode of the specified port. Some devices will automatically transmit HDCP content if an HDCP-compliant display/sink is detected. Setting this value to OFF, will instruct the source to send non-HDCP content (if possible) to non-HDCP display and/or sink devices. Note that setting this value to OFF will not decrypt HDCP content.

Setting Description

ON HDCP content is always transmitted by the source

OFF Instructs the source to send non-HDCP content, if possible

Audio

Output

Mutes or un-mutes the audio output. Set the Output toggle to OFF to disable audio on the output. The default setting is ON.

Configuration and Management Interfaces

Display Page

CEC

CEC Command

Click the ON button to send the power-on command to the display device. Click the OFF button to toggle the power state to off.

System Settings

Display Auto Power On

Click the toggle switch to the ENABLE position to send the command to power-on the display, when an A/V signal is detected. Otherwise, set to DISABLE to turn this feature off.

Auto power off timer

Click this drop-down to select the time interval before the command to power-off the display is sent, when an A/V signal is no longer present. The default value is 15 seconds. Available values are 15 seconds to 15 minutes.

Lamp cool down timer (Sec.)

Sets the cool-down interval, in seconds, before the projector can be powered-off. During this time interval, the projector will not accept any "power on" or "power off" commands until the last "power off" command has been processed and the projector lamp has completed the cool-down cycle. Range: 0 to 300.

Display Warm-Up Timer

Click this drop-down list to set the projector lamp warm-up timer, in seconds. During the warm-up interval, the AT-OME-SW21-TX-WPC will not start the auto power-off timer. This value specifies the time interval that must elapse, after the display control "on" command is sent, before the display "power off" command can be sent. This feature is used to prevent a "power off" command from being sent while the lamps are warming up. Available values are 10 seconds to 300 seconds.

Configuration and Management Interfaces

Control Type

Sets the control method for sending commands. The following options are available: RS-232, IP, CEC.

Setting Description
RS-232 RS-232 over HDBaseT	is used to send commands.
IP Commands are sent over IP.
CEC Uses CEC to send commands.

TCP/IP Settings of Controlled Device

These settings are only displayed when the Control Type is set to IP.

IP Mode

Click this drop-down list to select the login mode.

Setting Description

Non-login Does not require a username and password when using TCP/IP to control the display.

Login Requires a username and password to control the display through TCP/IP.

IP Address

Enter the IP address of the display/device in this field.

Port

Enter the listening port of the display/device in this field.

Username

Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required.

Password

Enter the password for login. If the IP Mode is set to Non-Login, then this information will not be required.

Save

Click this button to save all changes in this window group.

Configuration and Management Interfaces

RS-232 / IP Commands

This section is only available when the Control Type is set to either RS-232 or IP.

Manufacturer

Click this drop-down list to select the display manufacturer. If the display device being controlled is not in this list, then select Generic and enter the commands manually.

Manufacturer List
Generic Hitachi Qomo
Acer Infocus Samsung
Barco LG Sharp
Benq NEC Sony
Canon Optima Toshiba
Casio Panasonic ViewSonic
Eiki Pjlink Vivitek
Epson Planar

Products

Click this drop-down list to select the product. The options available within this drop-down list are dependent upon the selected value in the Manufacturer drop-down list.

Model

Click this drop-down list to select the model. The options available within this drop-down list are dependent upon the selected value in the Products drop-down list.

Repeat Command

- Status

Click this toggle switch to set to ENABLE or DISABLED. Enabling this feature will re-send the command. Specify the number of times that the command is transmitted by setting the Times value. This feature is set to DISABLED by default.

- Times

Click this drop-down list to specify the number of times the command is sent. When the Status toggle switch is set to ENABLE, the default number of times is set to 2.

ON, OFF, Volume+, Volume-, Mute, Mute on, Mute off

These fields will need to be populated with the correct strings (either hex or ASCII format) for each function, which control the display device. If hexadecimal values are used, then use the /x delimiter at the end of the command string.

Save

Click this button to commit changes.

Revert

Click this button to undo changes to any pre-configured strings.

Configuration and Management Interfaces

RS-232 Page

RS232 over HDBaseT

If the AT-OME-SW21-TX-WPC is connected to another HDBaseT device, such as the AT-OME-EX-RX, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. Click the Save button to accept the settings.

NOTE: Changing RS-232 settings should only be performed when the HDBaseT receiver is an unmanaged device, such as the AT-OME-EX-RX. Changing RS-232 settings in the OME-SW21-TX-WPC are reflected on the output of the AT-OME-EX-RX RS232 port.

Setting Description
Baud rate Sets the baud rate.	The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

Configuration and Management Interfaces

EDID Page

EDID Settings

HDMI / USB Type-C

Click these drop-down lists to select the desired EDID to be used for each input. The source device will use the information in the EDID, before sending A/V data to the sink device. The Non-saved entries in the table, below, are used for storing custom EDID data.

Available EDID Selections
Connected Display 1080P DD 3840x2160@30 4:4:4 2CH 1366x768 2CH
720P 2CH 1080P 3D 2CH 3840x2160@60 4:4:4 MCH 1920x1200 2CH
720P DD 1080P 3D MCH 4096x2160@60 4:2:0 2CH Non saved
1080p DVI 1080P 3D DD 4096x2160@60 4:2:0 MCH Non saved
1080P 2CH 3840x2160@60 4:2:0 2CH 1280x800 2CH
1080P MCH 3840x2160@60 4:2:0 MCH 1280x800 DVI

EDID Saved

Output

Click this drop-down list to select the memory location to save the downstream EDID. Two memory locations are available. Once an EDID is saved to a memory location, it can be access from the EDID Settings drop-down lists.

Configuration and Management Interfaces

USB Page

This page provides controls for setting the behavior of USB host switching. Refer to USB Modes (page 22) for more information.

USB Host

Follow USB

This is the default mode and functions similar to auto-switching for video. In this mode, the AT-OME-SW21-TX-WPC will detect which USB ports are connected to a host device. If both USB host ports are connected to host devices, then the AT-OME-SW21-TX-WPC will set the last-connected USB host device as the "active" USB host.

Manual

This mode provides manual selection of the USB host port to be used.

Follow Video

In this mode, each video input will follow the USB host device connected to the HOST port. Each host device will have access to the same USB devices, when video switching occurs.

Configuration and Management Interfaces

Config Page

Configuration

Old Username

This field cannot be changed. "admin" is the administrator user.

Old Password

Enter the current password for the "admin" username in this field.

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password from the "admin" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

Refer to User Management (page 25) for more information on creating, editing, and deleting users.

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to add a user to the AT-OME-SW21-TX-WPC.

• Del

Click the Remove button to delete the user in the row. This button will only be available if both a username and password have been created.

Configuration and Management Interfaces

System Page

Network

IP Mode

Click this toggle switch to set the IP mode of the AT-OME-SW21-TX-WPC. The default setting is DHCP. Available settings: STATIC IP, DHCP.

IP

Enter the IP address of the AT-OME-SW21-TX-WPC in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.

Netmask

Enter the subnet mask in this field. This field will only be available if IP Mode is set to STATIC IP.

Gateway

Enter the gateway (router) address in this field. This field will only be available if IP Mode is set to STATIC IP.

Telnet Port

Enter the Telnet listening port in this field.

Telnet Login Mode

Click this toggle to set the login mode to either ON or OFF. If this feature is set to ON, then the AT-OME-SW21-TX-WPC will prompt for both the username and password at the start of a Telnet session. Use the same credentials as the web server.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds, before the Telnet connection is automatically closed after no activity. Range: 1 to 3600 (seconds).

Hostname

Displays the hostname of the AT-OME-SW21-TX-WPC, as it would appear on a network. To change the hostname, type the new hostname in this field and click the Save button.

Configuration and Management Interfaces

System

Reset to Default

Click the Factory Default button to set the AT-OME-SW21-TX-WPC to factory-default settings.

Firmware Update

Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-OME-SW21-TX-WPC. Once the firmware file is selected, click the Update button. Refer to Updating the Firmware (page 48) for more information.

Configuration and Management Interfaces

HDBT Page

HDBaseT Zone

The AT-OME-SW21-TX-WPC has only a single HDBaseT output. Therefore, this drop-down list is disabled.

Start

Click the Start button to begin the HDBaseT testing process. During testing, the button text will change to "Stop". Click the Stop button to halt the HDBaseT testing process. HDBaseT testing can be performed at any time, while the unit is powered. Refer to the instructions on this web page for information on how to interpret the Bit Error Rate (BER) and cable test results.

TX Version

The version of the Valens chip on the transmitter.

RX Version

The version of the Valens chip on the receiver.

TMDS Clock

Displays the pixel clock speed. If no source is connected, then this field will display as "None".

Cable length (Estimated)

This field indicates the approximate length of the Ethernet cable connected between the HDBaseT port on the AT-OPUS-RX41 and the receiver. If the cable length is less than 15 feet, then this value will be displayed as 0 (zero).

Video Quality (Video BER)

The Bit Error Rate (BER). This field displays either PASS or FAIL during a test.

Cable Quality Pair (A, B, C, D)

Each of these fields will display either PASS or FAIL during a test.

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the built-in web server.

Atlona recommends using the web server for updating the firmware. However, if a network connection is not available, the AT-OME-SW21-TX-WPC firmware can be updated using a USB-A to USB micro-B cable.

Using the Web Server

Requirements:

• AT-OME-SW21-TX-WPC
- Firmware file
• Computer running Windows
• USB-A to micro USB cable

1. Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-OME-SW21-TX-WPC is connected.

2. Go to the System Page (page 45) in the web server.

1. Click the Choose File button, under the Firmware Update section.
2. Browse to the location of the firmware file, select it, and click the Open button.
3. Click the Update button, under the Firmware Update section.

Appendix

1. The following message box will be displayed.

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
2. After the firmware update process is complete, the Login screen will be displayed.

Using USB

Requirements:

• AT-OME-SW21-TX-WPC
- Firmware file
• Computer running Windows
• USB-A to micro USB cable

1. Disconnect power from the AT-OME-SW21-TX-WPC, which can be done by disconnecting the category cable from the HDBaseT port on the receiver.
2. Remove the faceplate to access the micro USB port, located above the PWR LED indicator. Refer to Faceplate Removal and Assembly (page 10) for more information.

Appendix

1. Connect a USB cable from the micro USB port on the AT-OME-SW21-TX-WPC to a PC, using a USB-A to micro USB cable.
2. Power the AT-OME-SW21-TX-WPC by reconnecting the HDBaseT cable on the receiver.
3. The USB UPDATE folder will be displayed. If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer. Refer to the next page for an illustration.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-OME-SW21-TX-WPC.
4. The firmware update process is complete.
5. Reconnect the Ethernet cable to the HDBaseT OUT port.

Specifications

Video
Signal Type Input - DisplayPort	Alternate Mode (USB-C), HDMI
	Output - HDBaseT
Copy Protection HDCP 1.4/2.2
Pixel Clock 300MHz
UHD/HD/SD 4096×2160(DCI)@60/50/30(1)/25/24 Hz	1920x1080i@30/29.97/25 Hz
3840×2160(UHD)@60/50/30(1)/25/24 Hz	1280x720p@60/59.94/50/30 Hz
2560x1440@30 Hz	720x576i/p@50 Hz
1920x1080p@60/59.94/50/30/29.97/25 /24/23.98 Hz	720x480i/p@60 Hz
VESA	2560×1600	1280×800
All resolutions are 60Hz	1920×1200	1366×768
	1680×1050	1360×768
	1600×1200	1152×864
	1440×900	1024×768
	1400×1050	800×600
	1280×1024	640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:0(1)
Color Depth 8-bit, 10-bit, 12-bit

Audio
Pass-through PCM 2.0	LPCM 5.1LPCM 7.1	Dolby®DigitalDolby Digital PlusTMDolby TrueHDDolby Atmos®	DTS®Digital SurroundTMDTS-HD Master AudioTMDTS:X®
Bit Rate 24 Mbits/s max
Sample Rate 32 kHz, 44.1 kHz,	48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

USB
Signal 2.0
Maximum Data Rate 120 Mbps
Internal Hubs 1 USB hub (when connected to USB-C or USB type B host port)

Connectors
USB-C	1 - USB Type-C v3.1, 24-pin female
HDMI	1 - Type A, 19-pin female
HDBaseT OUT	1 - RJ45
HOST	1 - USB Type-B, female
DEVICE	1 - USB Type-A, female

Indicators and Controls
PWR indicator 1 - LED, green
LINK indicator	1 - LED, yellow

Appendix

Resolution / Distance	4K/UHD - Feet / Meters		1080p - Feet / Meters
USB-C	6	2	6	2
CAT5e	295	90 330	100
CAT6/6a/7	330	100	330	100

Power
Consumption 12.5 W
Supply PoE via connected receiver

Temperature Fahrenheit Celsius
Operating +32 to +104 0 to +40
Storage -4 to +140 -20 to +60
Humidity (RH) 20% to 90%, non-condensing

Dimensions (H x W x D) Inches Millimeters
Unit 4.06 x 1.78 x 2.64 103 x 45 x 67

Weight Pounds Kilograms
Device 0.74	0.34

Certification
Device CE, FCC

Warranty

Device To view the product warranty, use the following link:https://atlona.com/warranty

Footnotes

(1) HDMI input supports up to 4K/UHD @ 60 Hz YUV 4:4:4 8-bit. HDBaseT output supports 4K/UHD @ 60 Hz YUV 4:2:0 only. USB-C limited to 4096×2160 @ 30 Hz & 3840×2160 @ 30 Hz 4:4:4 8-bit only.
