Product Type	Portable electric hob with solid plates
Model	HP-7020B (also HP-7020S and HP-7020W)
Number of Cooking Zones	2
Heating Technology	Solid plate
Voltage	220 – 240 V
Frequency	50 Hz
Rated Power (Total)	2500 W (1500 W + 1000 W)
Cooking Zone Diameters	18.8 cm (large), 15.5 cm (small)
Energy Consumption per Zone (EC)	192.9 Wh/kg (large), 193.5 Wh/kg (small)
Energy Consumption per Hob (EC)	193.2 Wh/kg
Dimensions (Approx.)	50 x 30 x 7 cm
Weight (Approx.)	3.5 kg
Control Type	Rotary knobs
Indicator Light	Yes, illuminates when heating element is active
Thermostat	Yes, maintains set temperature by cycling on/off
Safety Features	Overheat protection (heating surface crack warning), automatic shut-off when temperature exceeded
Cleaning	Use soft damp cloth with mild detergent; no solvents or abrasives
Spare Parts & Repairability	Contact authorized service centre; use only original spare parts
Intended Use	Domestic and similar environments (offices, hotels)
Included Accessories	None (manual only)

Frequently Asked Questions - HP-7020B Ravanson

How do I use the Ravanson HP-7020B for the first time?

Before first use, read the safety instructions. Ensure the voltage matches (220-240 V). Place the hob on a flat, heat-resistant surface. Turn the adjustment knob to MAX for a few minutes to burn off any protective coating; a slight odor or smoke may occur initially. Then set to desired temperature.

Why does my hob smell or smoke during first use?

It is normal for a new appliance to emit a slight odor or gentle smoke during the first few minutes of operation as manufacturing residues burn off. If it persists, turn off and contact service.

What type of pots should I use?

Use pots with flat bottoms to ensure good contact with the solid plates. Avoid unstable or oversized pots. The pot diameter should match the cooking zone (18.8 cm or 15.5 cm) for efficiency.

How do I clean the hob?

Unplug the appliance and let it cool completely. Wipe with a soft, damp cloth and mild detergent. Do not use solvents, petrol, or abrasive cleaners. Do not immerse in water.

What should I do if the hob does not heat up?

Check if the power cord is properly plugged into a grounded outlet. Ensure the knob is turned to a setting above OFF. If the indicator light is off, the thermostat may have cycled off; wait a moment. If it still doesn't heat, contact an authorized service centre.

Can I use an extension cord with this hob?

It is not recommended. The hob consumes high power (up to 2500 W). If necessary, use a heavy-duty extension cord with a rating of at least 13 A and ensure it is fully unwound to avoid overheating.

Is the hob safe to leave unattended?

No. Never leave the appliance running unattended. Keep it away from flammable materials. The surface becomes hot; children and pets should be supervised.

How does the thermostat work?

The thermostat monitors the plate temperature. Once the set temperature is reached, it disconnects the heating element. When temperature drops, it reconnects. This maintains a steady cooking temperature.

What do the indicator lights mean?

The indicator light illuminates when the heating element is actively heating. It turns off when the thermostat has reached the set temperature and the element is temporarily off.

How should I store the hob when not in use?

Unplug and allow to cool. Store in a dry, dust-free place out of reach of children. Use original packaging if possible to prevent mechanical damage.

USER MANUAL HP-7020B Ravanson

Line drawing of a portable electric stove with a circular top and side knob (no text or symbols)

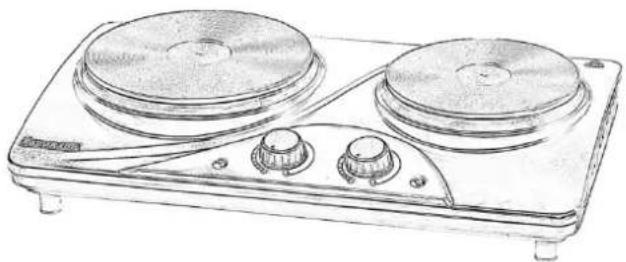

Line drawing of a portable electric stove with two circular plates and three rotary switches (no text or symbols)

MODEL:

HP-7010B/ HP-7010S/ HP-7010W

HP-7020B/ HP-7020S/ HP-7020W

Producent:

Ravanson®

RAVANSON Ltd Sp.z o.o.

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENERAL SAFETY GUIDELINESS

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance.

Do not allow children to use the appliance as a toy.

Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices.

Keep the appliance and corresponding cord out of the reach of children under the age of 8.

Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

Disconnect the unit from the mains when you don't use it.

While removing the plug from the socket do not pull by the power cord.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors.

Avoid rain or moisture when using the appliance.

Use soft damp (not wet) cloth with mild detergent. Do not use solvents, petrol or other and other measures that would damage the device.

Transport in an original package protecting from mechanical damages.

The appliance must be repaired by a qualified person using only original spare parts.

Do not leave the appliance running unattended.

While the device is running, cannot be covered.

Use the device at a safe distance from inflammable materials such as: curtains, paper, bedding, wooden or plastic elements, etc.

WARNING! If the heating surface is cracked, turn the power off to avoid electric shock.

WARNING! The device is not intended to work with external time switches or separate remote control system.

WARNING! Accessible surfaces may become hot during use. Do not touch the accessible surfaces during use. Pay particular attention to children and animals.

NOTE! The device is not designed to work with external timers or a separate remote control system.

It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

NOTE!

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

Before cleaning, unplug from the mains.

Store and transport in a package protecting against dust, moisture and mechanical damages.

TECHNICAL PARAMETERS

Model	HP-7010S; HP-7010W; HP-7010B	HP-7020S; HP-7020W; HP-7020B
Voltage	220 – 240 V	220 – 240 V
Frequency	50 Hz	50 Hz
Rated power	1500 W	1500 + 1000 W

PURPOSE AND USE

The device is intended for use in domestic or similar environments, such as:

- offices and other working environments

- use by clients in hotels, motels and other residential environments

WARNING!

Before plugging, make sure if the mains voltage corresponds to the voltage given on the appliance's name plate.

Device is made in the first protection class, which means that it must be plugged into an electrical outlet with a ground prong.

Put the appliance on a flat surface that is resistant to high temperature. Turn the adjustment knob to start the device. This is evidenced by the control lamp.

During the first start set the adjustment knob to "MAX" position.

WARNING! During the first use, an unpleasant odour and gentle smoke can appear. This may last a few minutes. If this condition persists for a long time, turn the device off.

After reaching the set temperature the thermostat will disconnect the heating element.

Before each use, check the condition of the appliance for mechanical damages, check if the power cord is not damaged. Do not operate the appliance with a damaged cord.

Turn the knob from "OFF" to the desired value from the "MIN" to "MAX". The indicator light illuminates when the heating element is working. The thermostat will maintain the temperature set by the user periodically switching on and off the heating element.

Do not use pots that are unstable and can fall over. Use flat-bottomed pots to ensure the best possible contact with the hotplate.

CLEANING AND CARE

Unplug the power cord from the electrical outlet. Allow some time for the device to cool down. Use soft damp (not wet) cloth with mild detergent. Do not use solvents, petrol or other and other measures that would damage the device. Do not use implements that could damage the surface of the oven.

FAILURES

Disconnect from the mains and contact authorized service centre for possible repair.

TRANSPORT AND STORAGE

Store out of reach of children. Protect against dust, humidity, and mechanical damage.

Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

Information for domestic electric hobs

	Symbol	Value	Symbol	Value	Unit
Model identification	HP-7020 (BSW)		HP-7010 (BSW)
Type of hob	Electric		Electric
Number of cooking zones and/or areas	2	X	1	X
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	Solid plate		Solid Plate
For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm		18,815,5		18,8	cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm	LW	-	LW	-	cm
Energy consumption per cooking zone or area calculated per kg	EC_electric cooking	192,9193,5	EC_electric cooking	192,9	Wh/kg
Energy consumption for the hob calculated per kg	EC_electric hob	193,2	EC_electric hob	192,9	Wh/kg

In order to reduce the overall impact of the cooking process on the environment:

- when cooking in pots and pans always cover them with lid; - remember to turn off the appliance at the end of cooking; - use appropriate cooking zone to the size of the pot

EN 60350-2-2013
