TWS750P - Headphones Xmusic - Free user manual and instructions

Product Type	Wireless Bluetooth Earbuds
Model	TWS750
Brand	Xmusic
Bluetooth Version	5.1
Bluetooth Protocols	HFP, HSP, A2DP, AVRCP, SPP
Wireless Range	Up to 10 meters
Driver Diameter	13mm
Maximum Sound Level	96dB±3dB
Frequency Response	15Hz - 20kHz
Impedance	32Ω
Microphone Sensitivity	-42dB±3dB
Earphone Battery Capacity	Lithium-polymer 3.7V, 25mAh
Charging Case Battery Capacity	Lithium-polymer 3.7V, 300mAh
Charging Time	Up to 2 hours
Playback Time (Earbuds)	Up to 4 hours (at 50% volume)
Total Playback with Case	Up to 12 hours
Charging Input	5V 1A
Charging Port	USB Type-C
Controls	Touch controls (MFB button) with multi-function
Voice Assistant Support	Google Assistant and Siri
Operating Frequency	2414 - 2472 MHz
Maximum RF Power	Up to 20 dBm
Included Accessories	Charging case, USB Type-C cable, user manual

Frequently Asked Questions - TWS750P Xmusic

How do I turn on the earbuds?

Press and hold the MFB button on each earbud for 3 seconds. You will hear a "power on" voice prompt and see a red or blue LED. Alternatively, opening the charging case with the earbuds inside will automatically power them on if the case is charged.

How do I pair the earbuds with my phone?

The earbuds pair automatically when turned on simultaneously. Enable Bluetooth on your phone and select TWS750 from the list. A voice message "connected" confirms successful pairing.

How long does the battery last on a single charge?

The earbuds provide up to 4 hours of playback at 50% volume. The charging case can recharge the earbuds three times, extending total usage to up to 12 hours.

How do I charge the earbuds and charging case?

Place the earbuds in the charging case. Connect the case to a USB power source using the included USB Type-C cable. The case LED turns red during charging and off when fully charged. The digital display shows the case battery level.

What does the display on the charging case show?

The digital display shows the battery percentage of the charging case, not the earbuds. When it shows 0, the case needs to be charged.

Can I use only one earbud?

Yes, the earbuds can be used independently. When both are turned on, they automatically pair with each other. If only one is active, it connects to the phone as a mono headset.

How do I reset the earbuds?

Place both earbuds in the charging case. This resets the connection. For a full reset, ensure they are disconnected from any paired devices before placing them in the case.

How do I control music playback?

Use the MFB button: double-click to play/pause, triple-click on the main earbud for previous track, triple-click on the auxiliary earbud for next track.

How do I answer or reject calls?

Double-click the MFB button to answer an incoming call. Hold the MFB button for 2 seconds to reject a call. To redial the last number, double-click the MFB button during idle.

What should I do if one earbud is quieter or not working?

First, ensure the earbud is clean and free of debris. Check that the charging contacts are clean. If the issue persists, place both earbuds in the charging case to reset. If still problematic, contact authorized service.

USER MANUAL TWS750P Xmusic

White wireless earbuds with open case and digital display, no visible text or symbols

SŁUCHAWKI DOUSZNE

BLUETOOTH

TWS750\*

Instrukcja obsługi

i warunki gwarancji

Operating Manual & Warranty Terms

* Indicates the colour of the device.

WARUNKI BEZPIECZEŃSTWA

PROBLEMY I ROZWIAZANIA

SAFETY CONDITIONS AND HAZARDS

Before using the device please read the entire user manual carefully.

1. The range of operation of wireless Bluetooth technology is about 10m, however, it may vary depending on the environment (walls, metal objects, devices).
2. When used in wireless mode, this product emits RF waves.
3. Use the device according to its intended purpose described in the user manual.
4. This device emits electromagnetic energy. Avoid contact with other electronic devices, as this may affect their correct operation.
5. Do not use the device near people with a pacemaker or other electronic implants.
6. Do not use the device in hospitals as it may interfere with the operation of medical devices.
7. Do not immerse the device in water and other liquids. Do not expose the device to moisture.
8. Do not expose the device to excessively high or low temperatures: below 0^ C or above 40^ C.
9. Do not use the device in dusty rooms. Do not store near or on hot surfaces.
10. To avoid damage to your hearing, never operate the

device at a high volume level for a prolonged period of time. Make sure that the device with a fixed high volume will no be used by children whose hearing is particularly vulnerable to damage.

Warning symbol with a triangle and sound wave icon inside (no text)

1. Using the device in vicinity of other Wi-Fi devices should be avoided. Electromagnetic interference may occur causing interference, inability to connect, or loss of sound.

2. One shall not use the device in wireless mode onboard of aircraft, or follow the instructions of the crew regarding the use of the product in this mode.

3. The device does not guarantee it will establish connection to all Bluetooth devices. All devices must comply with the Bluetooth standard, and their technical specifications should allow you to connect to other devices.

4. Do not expose the device to severe shocks.

5. If you experience discomfort while using the device, please immediately stop using it.

6. Take special care when using headphones while performing any activity as they impair your ability to hear.

7. The product should be stored out of the reach of children.

8. Stop using the device after noticing damage to its components.

9. Any repairs should be ordered from the manufacturer, an authorized service center or a person with appropriate qualifications.
10. Avoid exposing the product to rain, moisture or other liquids.
11. One shall not use the device during bathing, showering or training water sports such as swimming, surfing, etc.

INTRODUCTION

Thank you for the trust you have placed in us when you purchased your XMUSIC device.

We are convinced that this high quality device will provide you with a lot of joy and satisfaction during its use.

PLEASE CAREFULLY READ AND FOLLOW THE OPERATING MANUAL!

This device is intended for domestic or other non-commercial use.

The manufacturer will not be held liable for damages resulting from improper or non-compliant use.

SPECIFICATION

Model: TWS750
Bluetooth version: 5.1
Bluetooth protocols: HFP; HSP; A2DP; AVRCP; SPP
Bluetooth Range: do 10m
Membrane diameter: 13mm
Maximum sound level:	96dB±3dB
Frequency response: 15~20000Hz
Speaker impedance: 32Ω
MIC Sensitivity: -42dB±3dB
Charging time: up to 2 hours
Headphone lithium-polymer battery: 3.7V, 25mAh
Lithium-polymer battery of the charging station: 3	7V, 300mAh
Input current: 5.0V	--- 1.0A
Output current: 5.0V	--- 0.2A
Earbuds operating time on a single charge:	up to 4 hours*
Operating frequency:	2414~2472MHz
Maximum Frequency Power:	up to 20dBm

*The maximum operating time of the earbuds will depend on the set volume of the device, the earbud volume settings and the type of sounds played. The expected maximum time is available for 50% volume settings on the playback device and earbuds for stereo music.

PLEASE NOTE! A FULL CHARGE OF THE CHARGING STATION ALLOWS YOU TO CHARGE THE HEADPHONE BATTERY THREE TIMES. THIS ALLOWS THE DEVICE TO OPERATE FOR UP TO 12 HOURS.

KEY FEATURES

• Mobile Device Compatibility.
• Answering and disconnecting calls and easy and quick operation via the touch panel on the headphones.
• The ergonomic shape of the headphones allows for comfortable and long use.
• High sensitivity microphone.

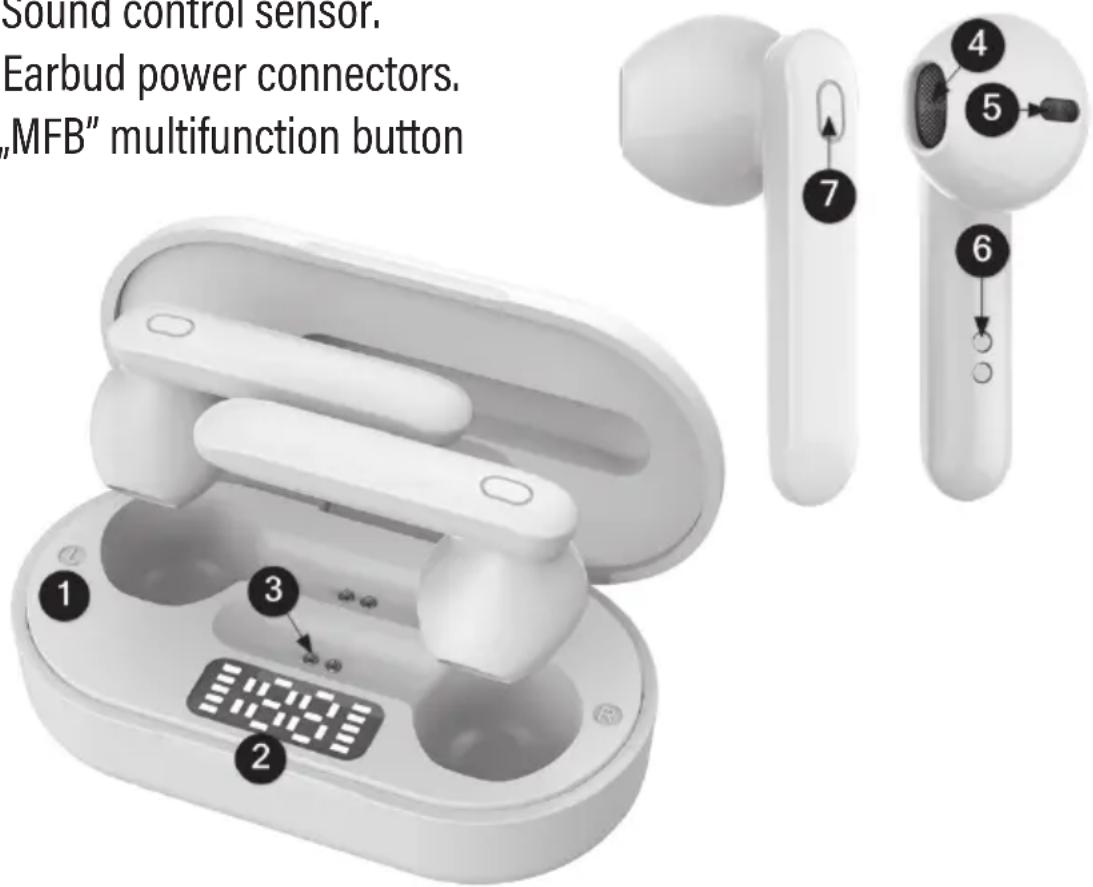

PRODUCT DESCRIPTION

1. Charging station
2. Charging station display indicating the station's battery level.
3. Headphone charging contacts.

4. Earbud speaker.

5. Sound control sensor.

6. Earbud power connectors.
7. „MFB" multifunction button

CONTENTS OF THE BOX

• Bluetooth TWS750x headphones.
• Charging station.
• USB Type-C charging cable.
• User manual and warranty conditions.

1. To turn on the headset:

Hold down the „MFB” button for 3 seconds, the red or blue LED in the headphones will light up, and you will hear the message „power on” (female voice) from the speakers. Once you put the headphones in your ears, the headphones will automatically pair, and after successful pairing of the headphones, you will hear a “Beep” sound. When the headphones are in the charging station and the station is charged, opening the charging station cover will start the headphones automatically.

2. Pairing:

The pairing of the headphones takes place automatically when they are started at the same time.

3. Bluetooth Connection:

Start the Bluetooth module in your phone, then select the TWS750 from the list of available Bluetooth devices. The correct connection to the device will be signaled by the voice message „connected" (female voice), and the loss of the Bluetooth connection will be signaled by the sound „beep".

CHARGING THE CHARGING STATION

1. When charging the station, you can place the headphones in the slots, once they are placed, the headphones will turn off automatically.
2. Connect the charging station to the USB port using the included charging cable. When charging, the LED will illuminate red.
3. Once charging is complete, the device will turn off and the LED will turn off.
4. The LED display of the power station shows the current battery level of the station, not the battery level of the headphones. If the charging station display shows "0", connect the charging station with the included cable and wait for the charging station to charge.

NOTE: A 100% CHARGED CHARGING STATION, ALLOWS YOU TO FULLY CHARGE THE BATTERY IN THE HEADPHONES THREE TIMES.

Insert the earbuds into the charging station to charge them. During the charging process, the digital display shows the battery status of the charging station in %. The station has two headphone slots for the left and right earbuds, respectively. The red light on the earbuds will always be on when charging, the battery status of the earbuds can be checked on the paired phone.

CAUTION! BATTERY DETERIORATION DURING OPERATION OF THE DEVICE IS A NATURAL PHENOMENON. TO KEEP THE BATTERY IN GOOD CONDITION AND EXTEND ITS LIFE, PLEASE FOLLOW THESE GUIDELINES:

1. Do not start the device if the battery is discharged.
2. Charge the battery according to the voltage and charging current data on the rating plate.
3. Before a longer storage period, charge the battery to 50% and recharge it every 3-4 months. If it is not possible to determine a specific charge

level in the product, discharge the device, then charge it for half the time required to fully charge it. Leaving a discharged battery for a prolonged period of time may result in its damage or loss of its properties.

1. When using the device regularly, avoid full discharge of the battery and always charge it to the full.
2. Once the battery is charged, disconnect the charger plug from the charging socket on the device.
3. Do not leave the device unattended while charging.
4. Using chargers and cables other than those recommended in the device manual with may lead to damage to the product and even an explosion of the battery.
5. Charge in a dry, well-ventilated place that is not exposed to direct sunlight.

TWS750 FUNCTIONS DESCRIPTION

1. Play/ Pause

Double click on the „MFB“ button.

2. Previous track

Clicking the „MFB“ button on the main earbud (the first one running) thrice will play the previous track.

3. Next track

Clicking the „MFB” button on the auxiliary handset (the second one running) thrice will play the next track.

4. Google voice/ Siri

Holding the „MFB” button for 3 seconds will start Google voice assistant or Siri. No action for a long time automatically exits this mode.

5. Incoming calls

Double-clicking will answer the incoming call.

6. Callback

Double-clicking the „MFB” button selects the last phone call and allows you to call the last phone number recorded in the call log.

7. To reject an incoming phone call

Hold the "MFB" button for 2 seconds, which will reject the incoming phone call.

1. You can set the volume level of the music playback using your phone.

Storage and protection of the TWS750x headphones

If you are not using the headphones, place them in a dry, safe place. Do not expose the set to high temperatures, moisture, rain or direct sunlight. Do not allow the set to come into contact with liquids. Do not place any items on the earbud set.

GENERAL REMARKS

• THE PRODUCT SHOULD ONLY BE USED AS INTENDED.
• THE DEVICE COMPLIES WITH EU REQUIREMENTS.

DECLARATION

ART-DOM Sp. z o.o. hereby declares that the TWS750 wireless earbuds comply with the relevant requirements of the Union harmonisation legislation: Directive 2014/53/EU and other Union harmonisation legislation. The full text of the EU declaration of conformity is available at the following address:

PROBLEM CAUSE SOLUTION
Unable to connect to earbuds or one of them.	Bluetooth module error or earbuds connected to the previously paired device.	urn off and turn on the Bluetooth module in the phone and place the earbuds in the charging station to reset them.
Earbuds disconnect during use.	Low earbud battery level.	Place the earbuds in the charging station.
	Too far away from the paired device.	Make sure that the paired device is nearby and that nothing interferes with the transmission signal, e.g. another device using wireless transmission or a wall in the room.
The occurrence of interference during sound transmission and a problem with communication with the phone.	Wrong Bluetooth version on the phone.	Make sure that your phone supports the Bluetooth version required by the earbuds.
One earbud plays quieter.	Soiling of the earbud. Verify that the goods are free of impurities.
Problems with startup/ charging the earbuds.	The protective film has not been removed or dirt or other things have accumulated on the power contacts, preventing the earbuts from charging.	Verify that all protective film has been removed and that the earbuds and case contacts are free of dirt, soiling, other substances.

Device reset:

To reset the device, place the earbuds in the charging station.

ECO-FRIENDLY AND ENVIRONMENTALLY FRIENDLY DISPOSAL

This device is marked, in accordance with Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), with the symbol of a crossed-out waste container:

Do not dispose of the device marked with this symbol together with household waste.

For disposal return the device to your local waste treatment and disposal facility or contact your local authorities.

DISPOSAL OF WASTE BATTERIES

In accordance with the EU Directive 2006/66/EC, as amended, on batteries, this product is marked with the symbol of a crossed out waste bin. The symbol indicates that the batteries or rechargeable batteries used in this product should not be disposed of together with normal household waste. Users of batteries and rechargeable batteries must use the available collection network for these elements, which allows them to be returned, recycled and disposed of.

Li-lon

YOU CAN HELP PROTECT THE ENVIRONMENT!

Proper handling of waste electrical and electronic equipment contributes to avoiding harmful consequences for human health and the environment resulting from the presence of hazardous components and improper storage and processing of such equipment.

WARRANTY CONDITIONS FOR EARBUDS

1. ART-DOM Sp. z o.o. with its registered office in Łódź (92-402) at ul.
   Zakładowa90/92 National Court Register Number 0000354059 (Guarantor) guarantees that the purchased device is free from physical defects. The warranty covers only defects resulting from the causes inherent in the item sold (manufac turing defects).
2. A disclosed defect will be removed at the Guarantor's expense within 14 days from the date of reporting the damage to the authorized service or point of sale.
3. In exceptional cases, e.g. the need to import spare parts from their manufacturer, the repair period may be extended up to 30 days.
4. The warranty period for the user is 24 months from the date of delivery of the goods.
5. The goods are intended for use only in the conditions of an individual household.
6. The present warranty does not cover:

a. damage caused by using the device in a manner inconsistent with the user manual,

b. mechanical, chemical or thermal damage,

c. repairs and modifications made by companies or persons that were not authorized to do so by the manufacturer,
d. parts that are inherently easy to wear or consumables such as: batteries, bulbs, fuses, filters, knobs, shelves, accessories,
e. installation, maintenance, inspection, cleaning, unlocking, removal of contaminants and instruction.

1. The Guarantor will select the mode of defect removal at its own discretion. Removal of a confirmed defect of the device will take place through warranty repair or replacement of the device. The Guarantor may perform repairs when the buyer requests replacement or the Guarantor may perform replacements when the buyer requests repair, if bringing the goods (device) into conformity in accordance with the granted warranty in the manner selected by the buyer is impossible or would require excessive costs at the part of Guarantor. In particularly justified cases, if both repair and replacement are impossible or would require excessive costs for the Guarantor, the Guarantor may refuse to bring the goods into compliance with the granted warranty and propose another way to settle the warranty claim.

2. The exchange of goods is made at the point of sale at which the goods were purchased (replacement or refund) or an authorized service point, if it offer such service (replacement). The returned device must be complete, without mechanical damage. Failure to comply with these conditions may result in failure to accept the warranty claim.

3. In the event of non-compliance of the goods with the sales contract, the buyer is entitled by law to legal protection measures on the part and at the expense of the seller, and the warranty does not affect these remedies.
4. The present warranty is valid in Poland.
5. The condition for the warranty repair or replacement of the device is the presentation of proof of purchase and the use of the goods in accordance with the information contained in the operating manual.

CAUTION!

Damage or removal of the rating plate from the device may result in warranty being deemed void.

We are constantly improving our products, so they may differ slightly from the image shown on the packaging. Please read the operating manual before operating the device.

ART-DOM Sp. z o.o., ul. Zakładowa 90/92, 92-402 Łódź. National Court Register Number 0000354059.

v. 8
