TWS760 - Headphones Xmusic - Free user manual and instructions

Product Type	True Wireless Stereo (TWS) In-Ear Headphones
Model	TWS760
Brand	Xmusic
Bluetooth Version	5.3
Bluetooth Range	Up to 10 meters
Driver Diameter	13.7 mm
Speaker Sensitivity	100 dB ± 3 dB
Frequency Response	20 Hz - 20 kHz
Impedance	32 Ω
Microphone Sensitivity	-42 dB ± 1 dB
Earbud Battery Capacity	Li-Po 2 x 25 mAh
Charging Case Battery Capacity	Li-Po 250 mAh
Charging Time (Case)	Approx. 1.5 hours
Charging Time (Earbuds)	Approx. 1 hour
Playback Time	3.5 - 4 hours (at 50% volume)
Input	5.0 V, 0.5 A
Bluetooth Frequency	2402 - 2480 MHz
Maximum RF Power	< 10 dBm
Supported Bluetooth Profiles	HSP, HFP, A2DP, AVRCP, SPP
Controls	Touch-sensitive MFB buttons on each earbud
Water Resistance	Not specified (avoid moisture)
Cleaning	Clean charging contacts and earbuds with a dry cloth
Safety	Do not use at high volume for prolonged periods; keep away from pacemakers; avoid water
Warranty	24 months (conditions apply)
Package Contents	Earbuds, charging case, USB-A to USB-C charging cable, manual

Frequently Asked Questions - TWS760 Xmusic

How do I pair the TWS760 earbuds with my phone?

Remove the earbuds from the charging case; they will turn on automatically and enter pairing mode (alternating blue-red flashing). Go to your phone's Bluetooth settings, select TWS760 from the list. A double beep confirms successful pairing.

What should I do if one earbud is not connecting or working?

First, reset the earbuds: touch both MFB buttons simultaneously 5 times. Alternatively, place them back in the case, close the lid, wait 10 seconds, then remove them again. Also ensure Bluetooth on your phone is toggled off and on.

How long does the battery last on a full charge?

The earbuds provide up to 3.5–4 hours of playback at 50% volume. The charging case can recharge the earbuds multiple times (case battery: 250 mAh). Charging the case takes about 1.5 hours.

Can I use a single earbud for calls or music?

Yes. To use one earbud, either remove only one from the case or manually turn it on by pressing the MFB button for 3 seconds. Single earbud mode supports pause/resume, next track, volume up, and call controls.

How do I adjust the volume?

Touch and hold the MFB button on the right earbud to increase volume, and on the left earbud to decrease volume. A single beep indicates volume change.

Why do my earbuds disconnect randomly?

Possible causes: low battery (charge them), too far from the paired device (keep within 10 meters), or interference from other wireless devices. Move closer or reset the earbuds.

How do I reset the earbuds?

Touch both MFB buttons simultaneously 5 times. You will hear a beep, and the earbuds will reset to factory settings. They will then enter pairing mode again.

Can I use the earbuds while they are charging?

No, the earbuds charge only when placed in the charging case. When in the case, they turn off automatically and start charging. Do not attempt to use them during charging.

How do I answer or reject a call?

Double-tap the MFB button on either earbud to answer an incoming call. Touch and hold the button for 2 seconds to reject the call. Double-tap again to end the call.

What should I do if the earbuds are not charging?

Check the charging contacts on the earbuds and inside the case for dirt or protective film. Clean them with a dry cloth. Also ensure the case itself is charged (indicator lights). If still not charging, try a different USB cable.

USER MANUAL TWS760 Xmusic

SŁUCHAWKI

DOKANAŁOWE

TWS760\*

Instrukcja obsługi

i warunki gwarancji

and warranty conditions

* - de notes the colour of the device

WARUNKI BEZPIECZEŃSTWA

Warning symbol with a triangle and a circle containing an ear icon (no text or numbers)

Coiled white USB cable with connector, labeled with number 9 (no text or symbols on the cable itself)

PIERWSZE URUCHOMIENIE

PROBLEMY I ROZWIAZANIA

Please read the present operating manual carefully in its entirety before using the device.

1. The range of operation of wireless Bluetooth technology is about 10m, however, it may vary depending on the environment (walls, metal objects, devices).
2. Wwhen used in wireless mode, this product emits RF waves.
3. Use the device according to its intended purpose described in the operating manual. Do not interfere with or change the design of the device as this may be dangerous.
4. This device emits electromagnetic energy. Contact with other electronic devices should be avoided, as this may affect their correct operation.
5. Do not use the device near people with a pacemaker or other electronic biostimulators.
6. The device should not be used in hospitals, as it may interfere with the operation of medical devices.
7. Do not immerse the device in water or other liquids. Do not expose the device to moisture.
8. Do not expose the device to excessively high or low temperatures: below 0^ C or above 40^ C.

9. Do not use the device in dusty rooms and do not store it near or on hot surfaces.

10. To avoid damage to your hearing, never operate the device at a high volume level for a prolonged period of time. Make sure that the device with a fixed high volume will no be used by children whose hearing is particularly vulnerable to damage.

1. Avoid using the device in vicinity of other Wi-Fi devices. Electromagnetic interference may occur causing interference, inability to connect, or loss of sound.
2. Do not use the device in wireless mode onboard of aircraft. Always follow the instructions of the crew regarding the use of the product in this mode.
3. The device does not guarantee it will establish connection to all Bluetooth devices. All devices must comply with the Bluetooth standard, and their technical specifications should allow you to connect to other devices.
4. Do not expose the device to severe shocks.
5. If you experience discomfort while using the device, please immediately stop using it.

6. Special care should be exercised, when using the earbuds while performing any activity as they impair your ability to hear.

7. The product should be stored out of the reach of children.

8. Do not use the device after you notice that any of its components is damaged.
9. Any repairs should be ordered from the manufacturer, an authorized service center or a person with appropriate qualifications.
10. Avoid exposing the product to rain, moisture or other liquids.
11. Do not use the device during bathing, showering or training water sports such as swimming, surfing, etc.

INTRODUCTION

Thank you for the trust you have placed in us when you purchased your XMUSIC device.

We are convinced that this high quality device will provide you with a lot of joy and satisfaction during its use.

PLEASE CAREFULLY READ AND FOLLOW THE OPERATING MANUAL!

This device is intended for domestic or similar, non-commercial use.

The manufacturer will not be held liable for damages resulting from improper or non-compliant use.

SPECIFICATION

Model TWS760
Bluetooth version 5.3
Bluetooth protocols HSP.HFP. A2DP. AVRCP, SPP
Bluetooth Range up to 10m
Membrane diameter 13.7mm
Speaker sensitivity 100dB±3dB
Frequency response 20Hz-20KHz
Impedance 32Ω
MIC Sensitivity 42dB±1dB
Charging time of the charging case about 1.5 hours
Earbuds operating time on a single charge 3.5–4 hours*
Earbuds charging time about 1 hour
Earbud Battery Capacity Li-Po 2x25mAh
Charging Case Battery Capacity Li-Po 250mAh
Input	5.0V --- 0.5A
Bluetooth Frequency	2402MHz-2480MHz
Maximum Frequency Power	<10dBm

*The maximum operating time of the earbuds will depend on the set volume of the device, the operating mode and the type of sounds played. The expected maximum time is available for 50% volume settings on the playback device and earbuds for stereo music.

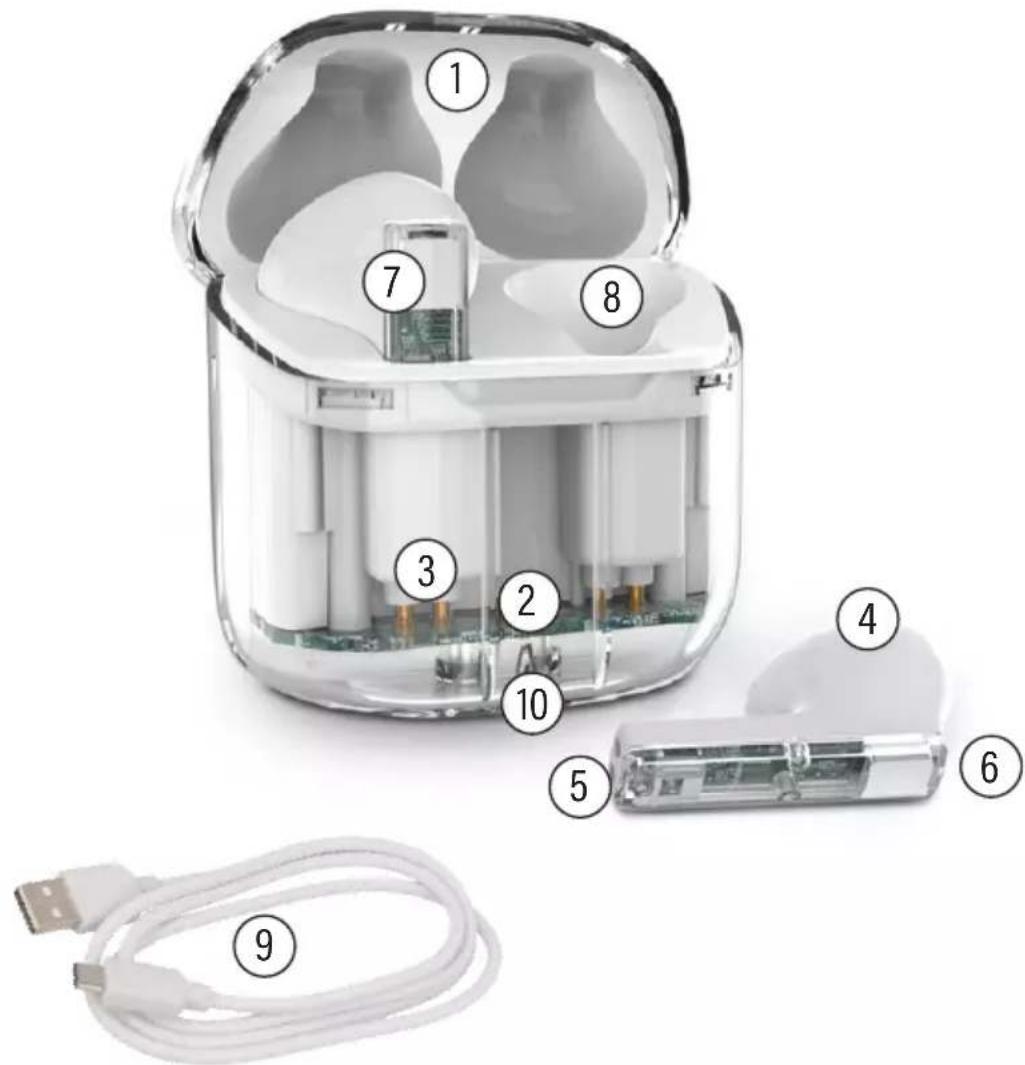

PRODUCT DESCRIPTION

1. Charging case
2. Case battery indicator
3. Earbuds charging contacts
4. Earbud speaker
5. Earbuds charging contacts
6. Earbud operating indicator
7. Multi Function Button (MFB)
8. Earbud slot
9. USB-A to USB-C charging cable
10. Charging port

INITIAL START-UP

1. Automatic switching on of earbuds

Take the earbuds out of the case and put them in your ears. If the case is charged, the earbuds will turn on automatically when they are taken out. A triple beep will notify you when the earbuds turn on. Putting the earbuds back in the case will automatically turn them off after 3 seconds.

2. Switching the earbuds on/off manually

To turn the earbuds on manually, touch and hold the "MFB" button for approx. 3 seconds until you hear a triple beep. To turn off the earbuds, touch and hold the "MFB" button for 6 seconds until you hear a triple beep.

3. Single earbud mode

You can also use one earpiece from the set. All you have to do is take one earpiece out of the case or turn on only one of them manually.

BLUETOOTH PAIRING

Turn on the earbuds and enable Bluetooth connectivity in your phone. A double acoustic signal and alternately flashing indicator light (blue-red) prompts the readiness of the device for pairing. Select „TWS760“ from the list of available devices and pair it with your phone. After correct connection, the headphones will emit a double beep and the headphone indicator will stop flashing.

Each time you turn on your headphones, they will automatically connect to your Bluetooth-enabled phone. To unpair from the device, end the Bluetooth connection on the device or reset the headphones by touching the „MFB” buttons of the headphones 5 times at a time.

HANDLING OF EARBUDS

Each touch of the "MFB" button is signalled by an acoustic signal.

1. Pause/Resume

Double-tapping the "MFB" button on any earbud will pause or resume playback.

2. Previous track

Triple-tapping the "MFB" button on the left earpiece will play the previous track.

3. Next track

Triple-tapping the "MFB" button on the right earpiece will play the next track.

4. Accept an incoming call

Double-tapping the "MFB" button on any earbud will answer the incoming call.

5. Reject an incoming call

Touching and holding the "MFB" button for 2 seconds will reject the incoming phone call.

6. Volume up

Touching and holding the "MFB" button on the right earbud will increase the volume.

7. Volume down

Touching and holding the "MFB" button on the left earbud will decrease the volume.

8. Starting the voice assistant

Touching and holding the "MFB" button and releasing after hearing a one-time acoustic signal will activate the voice assistant function of the device.

CAUTION! BE SURE TO CONFIGURE THE ASSISTANT FUNCTION FIRST AND UNLOCK THE PHONE.

9. Reset

Touching the "MFB" buttons 5 times on both earbuds simultaneously will reset the earbuds.

SINGLE EARBUD MODE

In order to enable the operation of one earbud, first turn off the earbuds as follows:

• put the earbuds in the case, then remove one earbud
• touch and hold the "MFB" button for 6 seconds. Turn on the selected earbud by touching and holding the "MFB" button for approx. 3 seconds.

Regardless of which earbud you use in single-ear mode, they have the same functionality.

1. Pause/Resume

Double touching the "MFB" button will stop or resume playback.

2. Next track

Triple-tapping the "MFB" button will play the next track.

3. Volume up

Touching and holding the "MFB" button will increase the volume.

4. Accept an incoming call

Double-tapping the "MFB" button on any earbud will answer the incoming call.

5. Reject an incoming call

Touching and holding the "MFB" button for 2 seconds will reject the incoming phone call.

CHARGING THE CHARGING CASE

1. When charging the case, the earbuds can be placed in the slots, once they are placed, they will turn off automatically.

2. Connect the case to the USB port using the included charging cable. During charging, the indicator will flash

3. After charging the battery of the case, the indicator will start to illuminate permanently in red, after disconnecting the cable, the indicator will illuminate in green.

The earbuds will inform you about a low battery level with a quick, double beep and a flashing red operating indicator.

To charge your earbuds:

1. Insert the earbuds into the right and left slots of the charging case, respectively. When charging the earbuds, their indicators will be red and the indicator of the charging case will be constantly green.
2. Once the batteries of the headphones are fully charged, the green indicator of the case will turn off.

CAUTION! BATTERY DETERIORATION DURING OPERATION OF THE DEVICE IS A NATURAL PHENOMENON. TO KEEP THE BATTERY IN GOOD CONDITION AND EXTEND ITS LIFE, PLEASE FOLLOW THESE GUIDELINES:

1. Do not start the deevice if the battery is discharged.
2. Charge the battery according to the voltage and charging current data on the rating plate.
3. Before a longer storage period, charge the battery to 50% and recharge it every 3-4 months. If it is not possible to determine a specific charge level in the product, discharge the device, then charge it for half the time required to fully charge it. Leaving a discharged battery for a prolonged period of time may result in its damage or loss of its properties.
4. When using the device regularly, avoid full discharge of the battery and always charge it to the full.
5. Once the battery is charged, disconnect the charger plug from the charging socket on the device.
6. Do not leave the device unattended while charging.

7. Using chargers and cables other than those recommended in the device manual with may lead to damage to the product and even an explosion of the battery.

8. Charge in a dry, well-ventilated place that is not exposed to direct sunlight.

STORAGE AND PROTECTION

When not using the earbud set, put the earbuds back in a case and store them in a dry, safe place. Do not expose the set to high temperatures, moisture, rain or direct sunlight. Do not allow the set to come into contact with liquids. Do not place any items on the earbud set.

DECLARATION

ART-DOM Sp. z o.o. hereby declares that the TWS760 earbuds comply with the relevant requirements of the Union harmonisation legislation: Directive 2014/53/EU and other Union harmonisation legislation. The full text of the EU declaration of conformity is available at the following address:

PROBLEM POSSIBLE CAUSE SOLUTION
Unable to connect to earbuds or one of them.	Bluetooth connectivity error or earbuds connected to the previously paired device.	Turn Bluetooth on and off on your phone. Reset the earbud according to the „Earbuds Operation" section or put them in the charging case to reset them.
Earbuds disconnect during use.	The battery level is low. Place the earbuds in the charging case and charge the batteries fully.
	Too far away from the paired device.	Make sure that the paired device is nearby and that nothing interferes with communication, e.g. another device using wireless transmission or a wall in the room.
The occurrence of interference during sound transmission and a problem with communication with the phone.	Wrong Bluetooth version on the phone.	Make sure that your phone supports the Bluetooth version required by the earbuds.
One earbud plays quieter.	Soiling of the earbut. Make sure that the product is free of contamination.
Problems with startup/ charging the earbuds.	The protective film has not been removed or dirt or other elements preventing the charging of the earbuds have accumulated on the power contacts.	Verify that all protective film has been removed and that the earbuds and case contacts are free of dirt, soiling, other elements. Clean charging contacts of earbuds and the case.
The earbuds do not turn off automatically when inserted into the case.	The case is discharged.	Charge the case.

ECO-FRIENDLY AND ENVIRONMENTALLY FRIENDLY DISPOSAL

This device is marked, in accordance with Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment (WEEE), with the symbol of a crossed-out waste container:

Do not dispose of the device marked with this symbol together with household waste.

For disposal return the device to your local waste treatment and disposal facility or contact your local authorities.

DISPOSAL OF WASTE BATTERIES

In accordance with the EU Directive 2006/66/EC, as amended, on batteries, this product is marked with the symbol of a crossed out waste bin. The symbol indicates that the batteries or rechargeable batteries used in this product should not be disposed of together with normal household waste. Users of batteries and rechargeable batteries must use the available collection network for these elements, which allows them to be returned, recycled and disposed of.

Li-Po

YOU CAN HELP PROTECT THE ENVIRONMENT!

Proper handling of waste electrical and electronic equipment contributes to avoiding harmful consequences for human health and the environment resulting from the presence of hazardous components and improper storage and processing of such equipment.

WARRANTY CONDITIONS FOR IN-EAR HEADPHONES

1. ART-DOM Sp. z o.o. with its registered office in Łódź (92-402) at ul. Zakładowa90/92 National Court Register Number 0000354059 (Guarantor) guarantees that the purchased device is free from physical defects. The warranty covers only defects resulting from the causes inherent in the item sold (manufac turing defects).
2. A disclosed defect will be removed at the Guarantor's expense within 14 days from the date of reporting the damage to the authorized service or point of sale.
3. In exceptional cases, e.g. the need to import spare parts from their manufacturer, the repair period may be extended up to 30 days.

4. The warranty period for the user is 24 months from the date of delivery of the goods.

5. The goods are intended for use only in the conditions of an individual household.

6. The present warranty does not cover:

a. damage caused by using the device in a manner inconsistent with the user manual,
b. mechanical, chemical or thermal damage,
c. repairs and modifications made by companies or persons that were not authorized to do so by the manufacturer,
d. parts that are inherently easy to wear or consumables such as: batteries, bulbs, fuses, filters, knobs, shelves, accessories,
e. installation, maintenance, inspection, cleaning, unlocking, removal of contaminants and instruction.

1. The Guarantor will select the mode of defect removal at its own discretion. Removal of a confirmed defect of the device will take place through warranty repair or replacement of the device. The Guarantor may perform repairs when the buyer requests replacement or the Guarantor may perform replacements when the buyer requests repair, if bringing the goods (device) into conformity in accordance with the granted warranty in the manner selected by the buyer is impossible or would require excessive costs at the part of Guarantor. In particularly justified cases, if both repair and replacement are impossible or would require excessive costs for the Guarantor, the Guarantor may refuse to bring the goods into compliance with the granted warranty and propose another way to settle the warranty claim.

2. The exchange of goods is made at the point of sale at which the goods were purchased (replacement or refund) or an authorized service point, if it offer such service (replacement). The returned device must be complete, without mechanical damage. Failure to comply with these conditions may result in failure to accept the warranty claim.

3. In the event of non-compliance of the goods with the sales contract, the buyer is entitled by law to legal protection measures on the part and at the expense of the seller, and the warranty does not affect these remedies.
4. The present warranty is valid in Poland.
5. The condition for the warranty repair or replacement of the device is the presentation of proof of purchase and the use of the goods in accordance with the information contained in the operating manual.

CAUTION!

Damage or removal of the rating plate from the device may result in warranty being deemed void.

We are constantly improving our products, so they may differ slightly from the image shown on the packaging. Please read the operating manual before operating the device.

ART-DOM Sp. z o.o., ul. Zakładowa 90/92, 92-402 Łódź. National Court Register Number 0000354059.

v. 3
