USER MANUAL KVT-839DVD KENWOOD

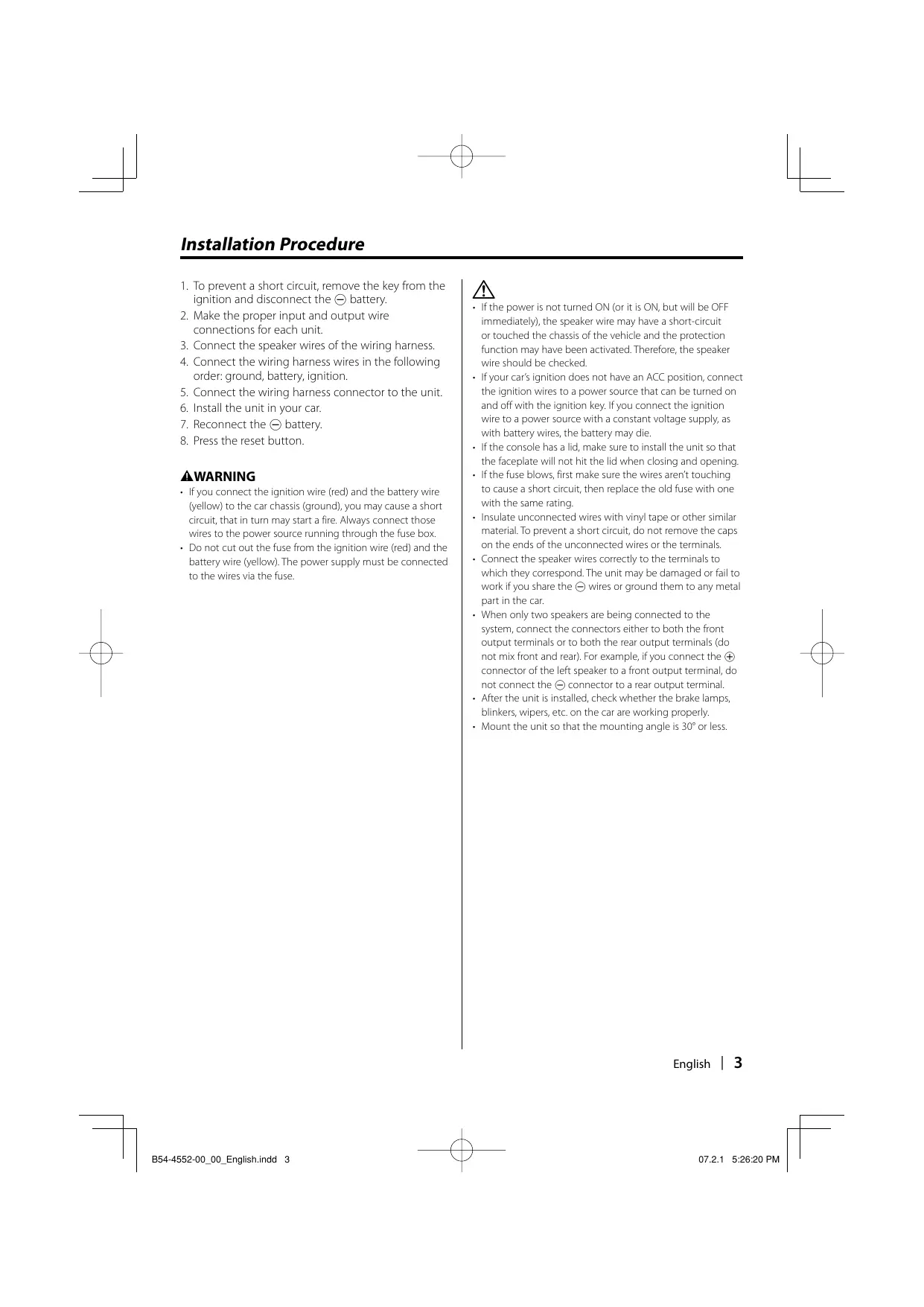

Installation Procedure To prevent a short circuit, remove the key from the ignition and disconnect the © battery. Make the proper input and output wire connections for each unit. Connect the speaker wires of the wiring harness. Connect the wiring harness wires in the following order: ground, battery, ignition.

5. Connect the wiring harness connector to the uni.

6. Install the unit in your car.

8 w Reconnect the © battery. Press the reset button. A WARNING + Ifyou connect the ignition wire (red) and the battery wire ellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires ta the power source running through the fuse box. Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. I B54-4552-00_00_Englishindd 3

+ Ifthe poweris not tumed ON (or i is ON, but will be OFF immediately) the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked. I your cars ignition does not have an ACC position, connect the ignition wires to a power source that can be tumed on and off with the ignition key. you connect the ignition wire to a power saurce with a constant voltage supply, as with battery wires, the battery may die. + Ifthe console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening, Ifthe fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating. Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, da not remove the caps on the ends of the unconnected wires or the terminal. + Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the © wires or ground them to any metal part in the car. When only two speakers are being connected to the system, connect the connectors either to bath the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ® connector of the left speaker to à front output terminal, do not connect the © connector to a rear output terminal After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properby. Mount the unit so that the mounting angle is 30° or less. English | 3

Connection Monitor/Player unit USB device (commercially Do not connect. available) USB connector (iPod) USB device (commercially available)

Ignition key switch @=s @| Carfuse box Ignition wire (Red) | Accessory @ Battery wire (Vellow)

The cable (Accessory © fixed with à chassis using | Tu Ce

Car fuse box (Main fuse) Ground wire (Black) © (Ta car chassis) FUSE(5A) harness band (Accessonÿ

Battery Connect to the vehicle's parking brake Antenna Cord se — Accessory @ Battery wire (Yellow detection switch hamess using the supplied relay connector. D A Parking sensor wire (Light Green) FUSE (104) Ground wire (Black) © (To car chassis) PRKSW To vehicle’s reverse lamp harness For the sake of safety, be sure to connect the parking sensor. Reverse sensor wire (Purple/White)

To car light control switch Dimmer control wire (Orange/Wihite) To steering remote Steering remote control input (Light Blue/Yellows) Connect ta the terminal that is grounded when either the telephone rings or during conversation Depending on what antenna you are using connect either ta the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna To connect the Kenwood navigation system, consult your navigation mani When using the optional power amplifier, connect ta its power control terminal To “EXTAMPCONT: terminal of the amplifier having the external amp control function. Mute wire (Br Motor antenna control wire (Blue) Power control wire (Blue/White) External amplifier control wire (Pink/Black) If no connections are made, do not let the cable come out from the tab.

Accessory () Accessory @ The cable (Accessory ®) is fixed with à chassis using harness band (Accessory Receiver unit

He front left speaker © se front right speak fo front right speaker

White Gray/Black Gray Green/Black ur cour] P.CONT Ex. con B54-4552-00_00_Englishindd 5

He rear left speaker

He rear right speaker

Purple Gieen I you connect the ignition wire (red) and the battery wire (yellow to the car chassis (ground), you may cause a short circuit, that in tu may start a fire. Always connect those wires to the power source running through the fuse box. English | 5 Ne 0721 5:26:22PM

Optional Accessory Connection iPod (commercially available)

ES , USB termina ŒL > CD Pod cannot be connected USB terminal (Pod) USB terminal rai Receiver unit

E—, À Accessory @ Connection cable t (eng) FA Connection cable {included in the Navigation System) Disc Changer etc. (Optional Accessory) (Trocs TV Tuner (Optional Accessory) EN SE ES B54-4552-00_00_Englishindd 7

Et A} Navigation System {Optional Accessory)

Installation for Monitor/Player Unit Firewall or metal support Screw (M4X8) (commerciallÿ available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place Seltapping scref Metal mounting strap… Accessory © (commercially available) (commercially available) LR lake sure that the unit installed secure in place the units unstable, it may malfunction (eg, the sound may skip) D n n …, D Installation for Receiver Unit

1. Attach the installation brackets @ to the sides of Installation brackets

the receiver unit using the sems bolts @) (Accessory ®) Sems bolts (M4 x 8 mm) tAccessory @)

2. Use the tapping screw ® to secure the receiver

B54-4552-00_00_Englishindd 9 Removing Monitor/Player Unit Removing the Hard Rubber Frame (escutcheon) Engage the catch pins on the removal tool © and remove the two locks on the lower level Lower the frame and pull it fonward as shown in the figure. Removal Too! (Accessory ®) + The frame can be removed from the top side in the same manner.

2. When the lower level is removed, remove the

upper two locations. Removing the Unit

1. Remove the hard rubber frame by referring to the

removal procedure in the section <Removing the Hard Rubber Frame».

2. Remove the Hexhead screw with integral washer

(M4 x 8) on the back panel

3. Insert the two removal tools © deeply into the

slots on each side, as shown Removal Tool (éccessory @)

4. Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards the inside. + Be careful to avoid injury from the catch pins on the removal tool S. Pul the unit all the way out with your hands, being careful not to drop it English | 9 0721 5:26:25PM

Installing in Japanese-made Cars Installation on Toyota, Nissan or Mitsubishi Car using Brackets at Holes shown by "@"

or ce) |e Accessory ® (MSxémm) or Accessory 4) (M5x7mm) Car Bracket Screws (included in audio unit package) uded in c audio unit package)

Ne Audio unit or others + Do not use your own screws. Use only the screws provided. f you use the wrong screws, you could damage the unit.

When using the bracket shown above, you cannot use screws at two holes of the right and left unit sides.

1. Mount the bracket at each side.

_ Car Bracket ssory ® (MSxémm) Accessory @ (MSxémm) Screws (included in audio unit package)

2. Bend each end of case to fix the bracket.

Use a flat-blade screwdriver or pliers, and bend each case tab inta the hole of installation bracket to fix the bracket. English | 11
