Before Installation Accessories English

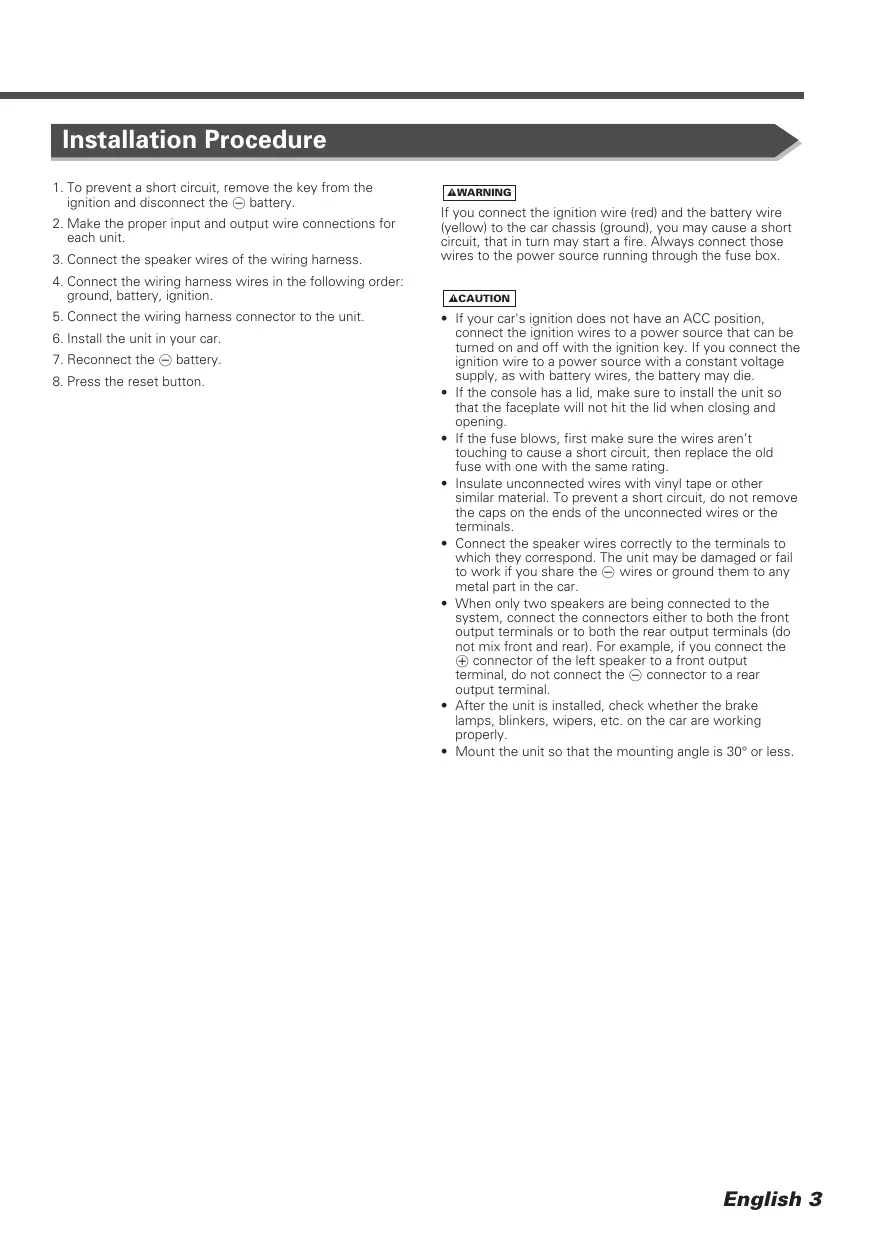

Installation Procedure

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire connections for

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following order:

ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

2WARNING If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. 2CAUTION

• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the + connector of the left speaker to a front output terminal, do not connect the - connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less. English 3 Connection 2WARNING English If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Monitor unit Do not connect. Wiring harness (Accessory 3) Connect to the vehicle's parking brake detection switch harness using the supplied relay connector. 2 CAUTION For the sake of safety, be sure to connect the parking sensor. PRK SW

Ground wire (Black) - (To car chassis)

Battery wire (Yellow)

Ignition wire (Red) ( 5A ) Accessory 2 Accessory 4

To car light control switch Battery wire (Yellow) Dimmer control wire (Orange/White) Ignition key switch ACC

Car fuse box (Main fuse) Car fuse box

Ground wire (Black) - (To car chassis) Depending on what antenna you are using, Motor antenna control wire connect either to the control terminal of the motor (Blue) antenna, or to the power terminal for the booster amplifier of the film-type antenna. Power control wire When using the optional power amplifier, (Blue/White) connect to its power control terminal. External amplifier control wire To "EXT.AMP.CONT." terminal of the amplifier (Pink/Black) having the external amp control function. Receiver unit (front side) PREOUT Disc Changer etc. Cable (included in the disc changer) Receiver unit (rear side) POWER

TO MONITOR I/F

AV OUTPUT ANTENNA

Wiring harness (Accessory 1) Mute wire (Brown) Connect to the terminal that is grounded when either the telephone rings or during conversation. MUTE NOTE To connect the KENWOOD navigation system, consult your navigation manual. ( 10A ) White/Black ILLUMI White

To front left speaker Gray/Black Gray ANT. CONT EXT.CONT To front right speaker Green/Black Green P CONT

To rear left speaker Purple/Black Purple

To rear right speaker English 5 Connection System Connection English Receiver unit (front side) PREOUT Audio left output (White) Audio right output (Red) ¶ Rear Preout REAR Audio left output (White) Audio right output (Red) Audio left output (White) Audio right output (Red) Receiver unit (rear side)

TO MONITOR I/F

POWER AV INPUT FM /AM

AV OUTPUT ANTENNA

Visual output (Yellow) Audio left output (White) Audio right output (Red) Visual input (Yellow) Audio left input (White) Audio right input (Red) 6 English Installation Installation for Monitor/Player Unit Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Metal mounting strap (commercially available) Accessory 5 Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Installation for Receiver unit

1. Attach the installation brackets 9 to the sides of the

hideaway unit using the sems bolts 7. Sems bolts (M4 × 8 mm) (Accessory 7) Installation brackets (Accessory 9)

2. Use the tapping screw 8 to secure the hideaway unit to the

audio board. Tapping screw (ø4 × 16 mm) (Accessory 8) English 7 Installation Installing in Japanese-Made Cars English ■ Installing on Toyota, Nissan or Mitsubishi Car Using Brackets at Holes shown by "¶"

Accessory - or = Bracket Accessory - or = Screws (included in audio unit package) Audio unit or others Screws (included in audio unit package) 8 English ■ Installation on Toyota Car using Brackets at Holes shown by "¶"

When using the bracket shown above, you cannot use screws at two holes of the right and left unit sides. If so, tighten the bracket using accessories 0 as shown below.

1. Use accessories 0 at both sides as shown.

Accessory 0 Accessory 0 Audio unit or others

2. Mount the bracket at each side.

Accessory Bracket Accessory - Screws (included in audio unit package) Screws (included in audio unit package)

3. Bend each end of accessory 0 to fix the bracket.

Use a flat-blade screwdriver or pliers, and bend each accessory tab into the hole of installation bracket to fix the bracket. English 9 Installation Removing Monitor/Player Unit English ■ Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 6 and

remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Lock Catch Accessory 6

2. When the lower level is removed, remove the upper

two locations. The frame can be removed from the top side in the same manner. ■ Removing the Unit

1. Refer to the section <Removing the Hard Rubber

Frame> and then remove the hard rubber frame.

2. Remove the Hex-head screw with integral washer (M4 ×

6) on the back panel.

3. Insert the two removal tools 6 deeply into the slots on

each side, as shown.

4. Lower the removal tool toward the bottom, and pull out

the unit halfway while pressing towards the inside. Be careful to avoid injury from the catch pins on the removal tool.

5. Pull the unit all the way out with your hands, being

careful not to drop it. 10 English Accessory 6 AV INPUT FM /AM

AV OUTPUT ANTENNA

AV OUTPUT ANTENNA

Accessoire - ou = Support AV INPUT FM /AM

AV OUTPUT ANTENNA

AV OUTPUT ANTENNA

AV OUTPUT ANTENNA

To front left speaker To front right speaker Verde/Preto Verde P CONT

To rear left speaker Roxo/Preto Roxo

To rear right speaker Portuguese 35 AV INPUT FM /AM

AV OUTPUT ANTENNA
