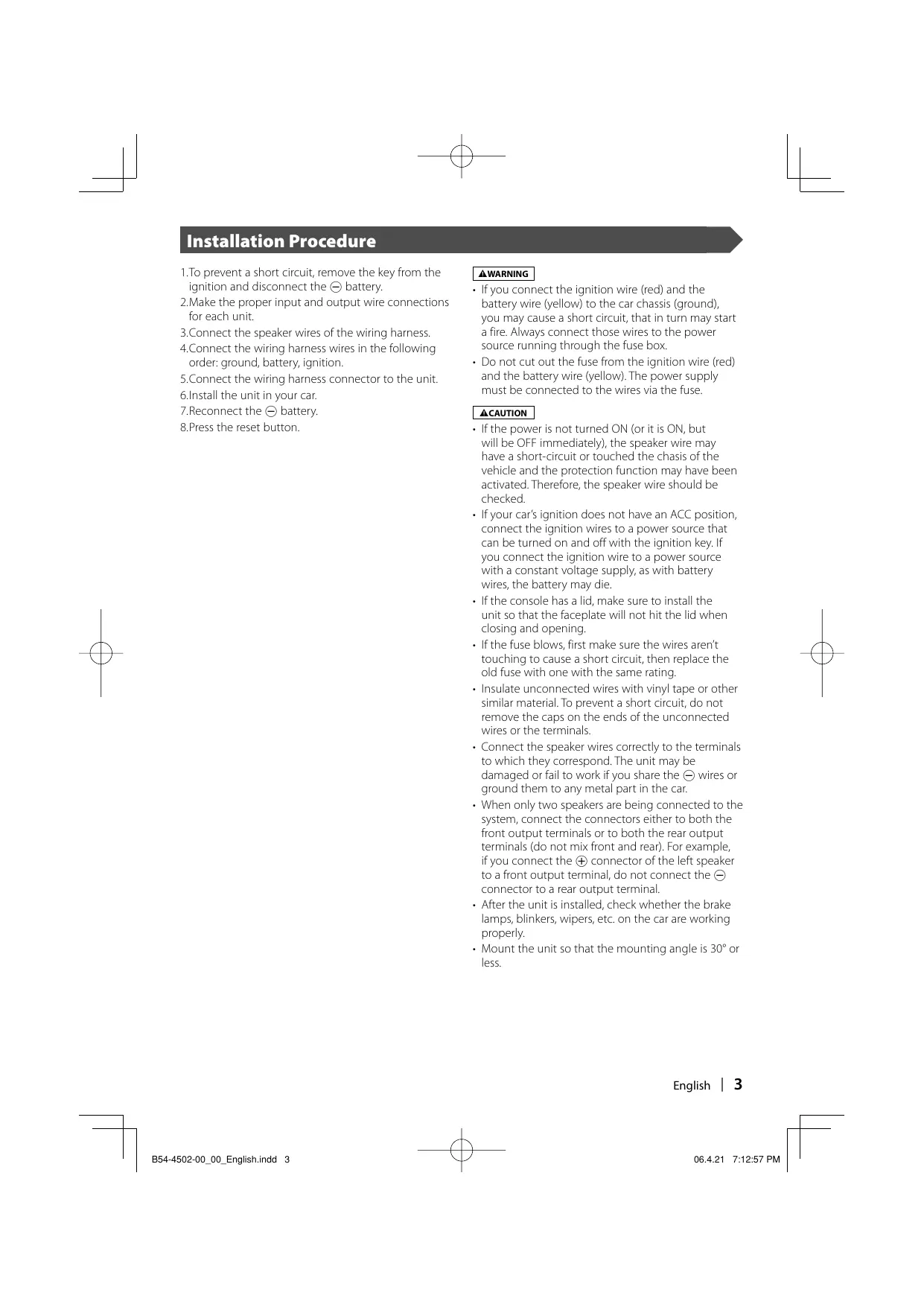

Installation Procedure

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire connections

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following

order: ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. 2CAUTION

• If the power is not turned ON (or it is ON, but will be OFF immediately), the speaker wire may have a short-circuit or touched the chasis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the + connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less. English | B54-4502-00̲00̲English.indd 3

Connection Monitor unit Do not connect. For the sake of safety, be sure to connect the parking sensor. Accessory 3 Connect to the vehicle's parking brake detection switch harness using the supplied relay connector. Parking sensor wire (Green) PRK SW Reverse sensor wire (Pink) To vehicle's reverse lamp harness REVERSE Dimmer control wire (Orange/White) To car light control switch ILLUMI Steering remote control input To Steering remote (Light Blue/Yellow) Ignition key switch Car fuse box (Main fuse) Car fuse box ACC REMO.CONT

Ignition wire (Red) ACC

(5A) Battery wire (Yellow) BATT Ground wire (Black) - (To car chassis) Receiver unit (front side)

Accessory 4 Antenna cord REAR

Ground wire (Black) - (To car chassis) (10A) Battery wire (Yellow) Connect to the terminal that is grounded when either the Mute wire (Brown) telephone rings or during conversation. To connect the kenwood navigation system, consult your navigation manual. Depending on what antenna you are using, connect either to the Motor antenna control wire (Blue) control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. When using the optional power amplifier, connect to its power Power control wire (Blue/White) control terminal. MUTE ANT CONT P. CONT To "EXT.AMP.CONT." terminal of the amplifier having the external External amplifier control wire (Pink/Black) amp control function. EXT.CONT 4 | English B54-4502-00̲00̲English.indd 4

Disc Changer etc. (Optional) Connection cable (Included in the disc changer) Receiver unit (rear side)

TO 5L I/F Connection cable (Included in the Navigation system) Accessory 2 TV tuner (Optional)

Connection cable (Included in the TV tuner) FRONT L

To front left speaker Gray/Black Gray

To front right speaker Green/Black Green REAR R Navigation System (Optional) White/Black

To rear left speaker If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Purple/Black Purple

Connection for AV Equipments SUB AV OUTPUT VIDEO AV INPUT 2

• Audio left output (White)
• Audio right output (Red) ■ Rear Preout
• Audio left output (White)
• Audio right output (Red) ■ Subwoofer Preout
• Audio left output (White)
• Visual input (Yellow) ■ Audio/Visual Output
• Audio left output (White)

Installation for Monitor Unit Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Metal mounting strap (commercially available) Accessory 5 Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Installation for Receiver unit

1. Attach the installation brackets 9 to the sides of

the hideaway unit using the sems bolts 7. Installation brackets (Accessory 9) Sems bolts (M4 × 8 mm) (Accessory 7)

2. Use the tapping screw 8 to secure the hideaway

unit to the audio board. Tapping screw (ø4 × 16 mm) (Accessory 8) English | B54-4502-00̲00̲English.indd 7

Removing Monitor Unit ■ Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 6

and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Removal Tool (Accessory 6 ) Catch Lock

2. When the lower level is removed, remove the

upper two locations. ■ Removing the Unit

1. Remove the hard rubber frame by referring

to the removal procedure in the section <Removing the Hard Rubber Frame>. Removal Tool (Accessory 6 )

2. Remove the Hex-head screw with integral

washer (M4 × 8) on the back panel.

3. Insert the two removal tools 6 deeply into

the slots on each side, as shown.

4. Lower the removal tool toward the bottom,

and pull out the unit halfway while pressing towards the inside. Be careful to avoid injury from the catch pins on the removal tool.

5. Pull the unit all the way out with your hands,

being careful not to drop it. 8 | English B54-4502-00̲00̲English.indd 8

Installing in Japanese-Made Cars ■ Installation on Toyota, Nissan or Mitsubishi Car using Brackets at Holes shown by "●"

Accessory ! (M5x6mm) or Accessory @ (M5x7mm) Car Bracket Accessory ! (M5x6mm) or Accessory @ (M5x7mm) Screws (included in audio unit package) Audio unit or others Screws (included in audio unit package) English | B54-4502-00̲00̲English.indd 9

■ Installation on Toyota Car using Brackets at Holes shown by "●"

When using the bracket shown above, you cannot use screws at two holes of the right and left unit sides. If so, tighten the bracket using accessories 0 as shown below.

1. Use accessories 0 at both sides as shown.

Accessory 0 Audio unit or others

2. Mount the bracket at each side.

Accessory ! (M5x6mm) Car Bracket Accessory ! (M5x6mm) Screws (included in audio unit package) Screws (included in audio unit package) 10 | English B54-4502-00̲00̲English.indd 10

Installing in Japanese-Made Cars

3. Bend each end of accessory 0 to fix the bracket.

Use a flat-blade screwdriver or pliers, and bend each accessory tab into the hole of installation bracket to fix the bracket. English | B54-4502-00̲00̲English.indd 11
