USER MANUAL KRC-37 KENWOOD

© B64-2451-00/00 (E2W)

Safety precautions......3

About Cassette tape......4

About RDS ....4

General features ....5

Power

Selecting the Source

Volume

Attenuator

Loudness

System Q

Audio Control

Speaker Setting

Switching Display

TEL Mute

Theft Deterrent Faceplate

Tuner features

(KRC-394/KRC-37) 8

Tuning

Station Preset Memory

Auto Memory Entry

Preset Tuning

RDS features....10

Traffic Information

Presetting Volume for Traffic Information

PTY (Program Type)

Program Type preset

Changing Language for PTY Function

Tuner features (KRC-31)......13

Tuning Mode

Tuning

Station Preset Memory

Auto Memory Entry

Preset Tuning

Cassette player features......14

Playing Cassette Tapes

Fast Forwarding and Rewinding

Tape Advance

Blank Skip

Tuner Call

Music Repeat

External disc control features..16

Playing External Disc

Fast Forwarding and Reversing

Track Search

Album Search

Track/Album Repeat

Track Scan

Random Play

Magazine Random Play

Disc Naming (DNPS)

Text/Title Scroll

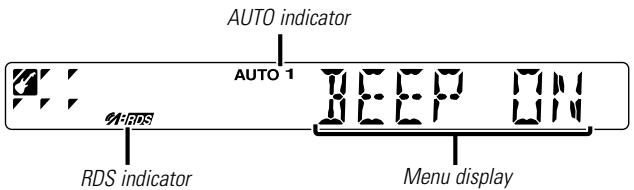

Menu system....19

Menu System

Touch Sensor Tone

Manual Clock Adjustment

Synchronize Clock

DSI (Disabled System Indicator)

Selectable Illumination

News Bulletin with Timeout Setting

Local Seek

Tuning Mode

Auto Memory Entry

AF (Alternative Frequency)

Restricting RDS Region

Auto TP Seek

Monaural Reception

Text Scroll

Disc Naming

Power OFF Timer

Accessories....23

Installation Procedure ......23

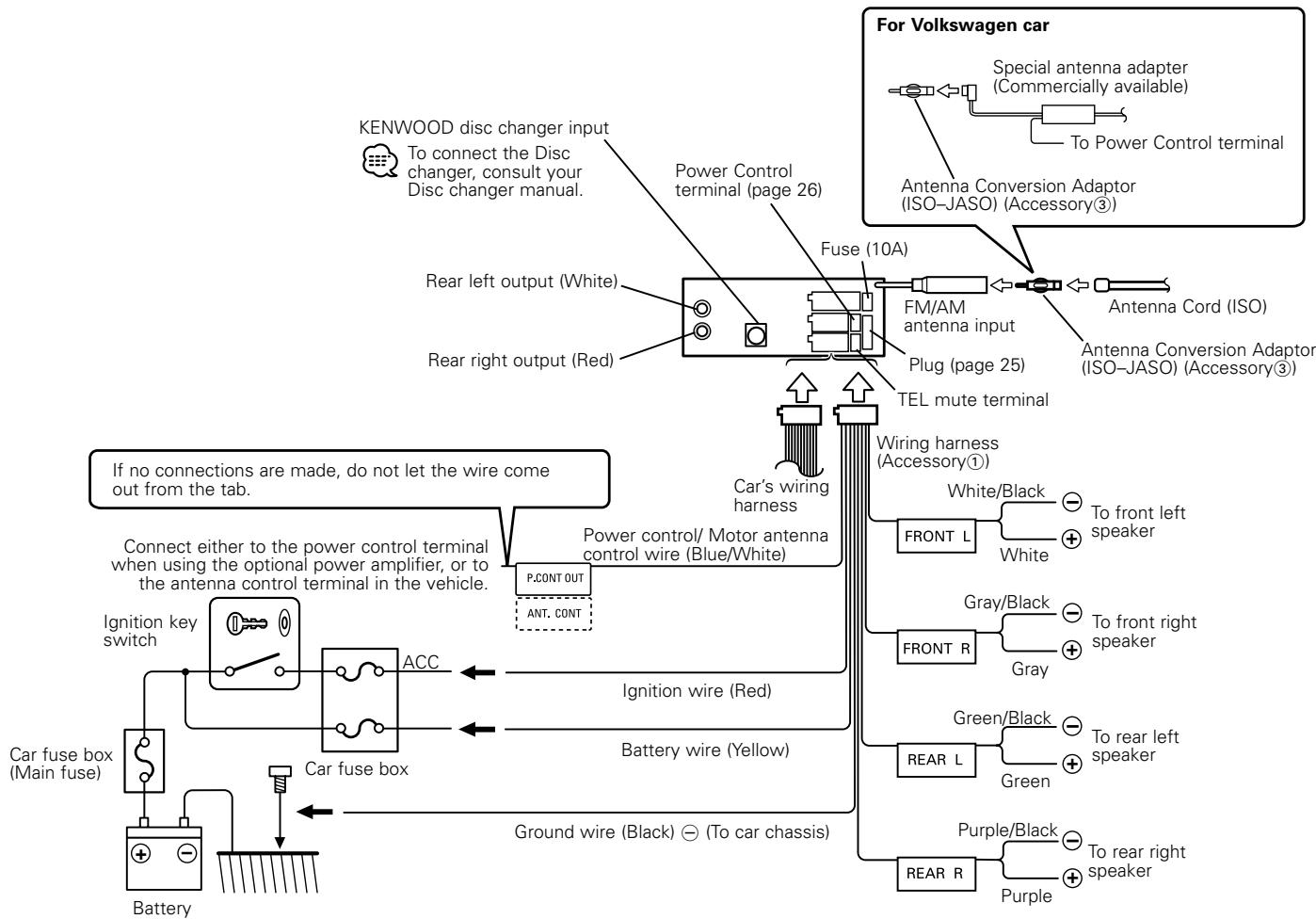

Connecting Wires to

Terminals....24

Installation 26

Troubleshooting Guide ......28

Specifications ....31

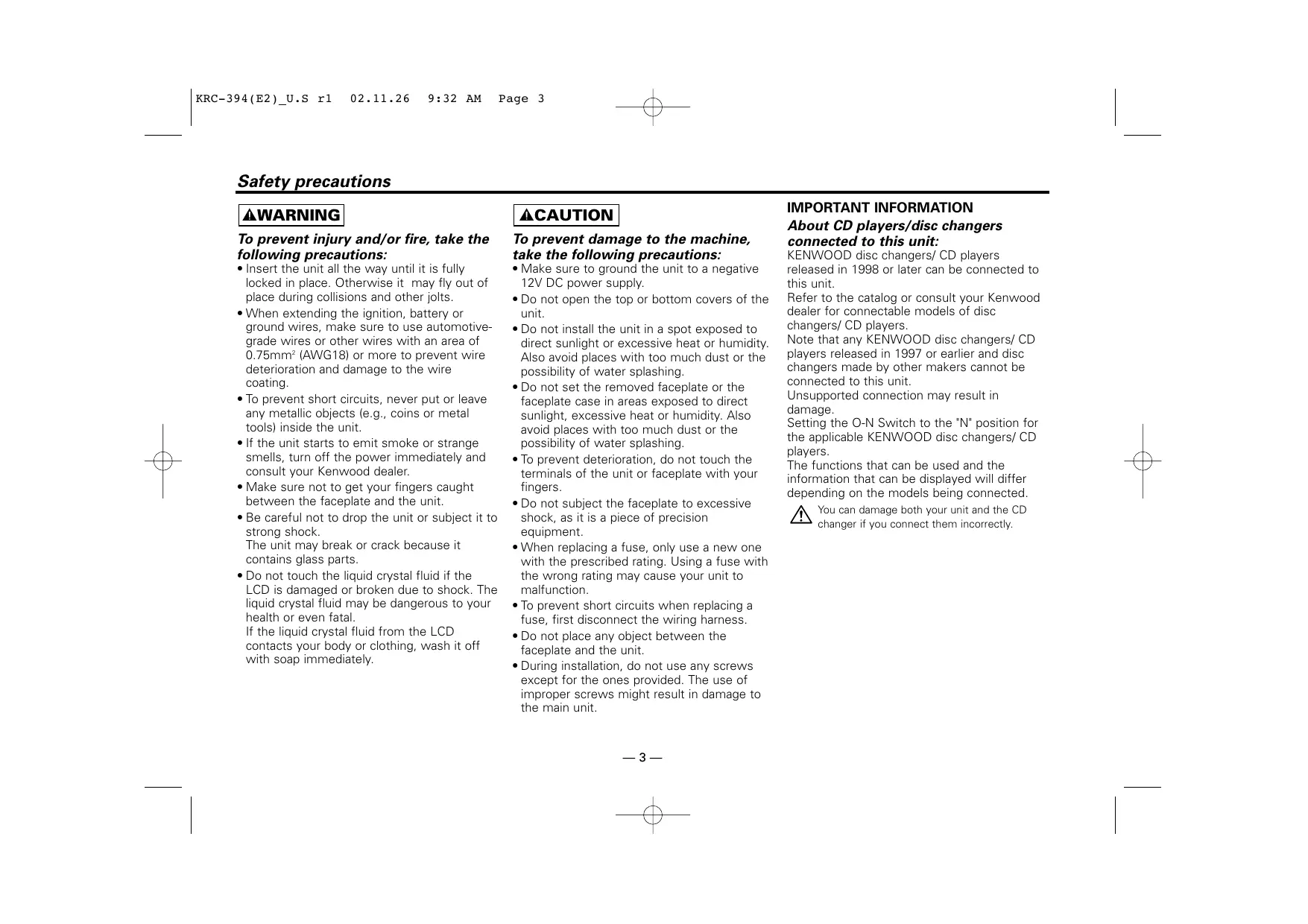

▲WARNING

To prevent injury and/or fire, take the following precautions:

• Insert the unit all the way until it is fully locked in place. Otherwise it may fly out of place during collisions and other jolts.
• When extending the ignition, battery or ground wires, make sure to use automotive-grade wires or other wires with an area of 0.75mm^2 (AWG18) or more to prevent wire deterioration and damage to the wire coating.
• To prevent short circuits, never put or leave any metallic objects (e.g., coins or metal tools) inside the unit.
• If the unit starts to emit smoke or strange smells, turn off the power immediately and consult your Kenwood dealer.
• Make sure not to get your fingers caught between the faceplate and the unit.
• Be careful not to drop the unit or subject it to strong shock. The unit may break or crack because it contains glass parts.
• Do not touch the liquid crystal fluid if the LCD is damaged or broken due to shock. The liquid crystal fluid may be dangerous to your health or even fatal. If the liquid crystal fluid from the LCD contacts your body or clothing, wash it off with soap immediately.

▲CAUTION

To prevent damage to the machine, take the following precautions:

• Make sure to ground the unit to a negative 12V DC power supply.
• Do not open the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not set the removed faceplate or the faceplate case in areas exposed to direct sunlight, excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• To prevent deterioration, do not touch the terminals of the unit or faceplate with your fingers.
• Do not subject the faceplate to excessive shock, as it is a piece of precision equipment.
• When replacing a fuse, only use a new one with the prescribed rating. Using a fuse with the wrong rating may cause your unit to malfunction.
• To prevent short circuits when replacing a fuse, first disconnect the wiring harness.
• Do not place any object between the faceplate and the unit.
• During installation, do not use any screws except for the ones provided. The use of improper screws might result in damage to the main unit.

IMPORTANT INFORMATION

About CD players/disc changers connected to this unit:

KENWOOD disc changers/ CD players released in 1998 or later can be connected to this unit.

Refer to the catalog or consult your Kenwood dealer for connectable models of disc changers/ CD players.

Note that any KENWOOD disc changers/ CD players released in 1997 or earlier and disc changers made by other makers cannot be connected to this unit.

Unsupported connection may result in damage.

Setting the O-N Switch to the "N" position for the applicable KENWOOD disc changers/ CD players.

The functions that can be used and the information that can be displayed will differ depending on the models being connected.

You can damage both your unit and the CD changer if you connect them incorrectly.

NOTE

• If you experience problems during installation, consult your Kenwood dealer.

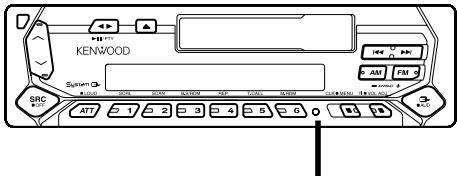

• If the unit does not seem to be working right, try pressing the reset button first. If that does not solve the problem, consult your Kenwood dealer.
• Press the reset button if the Disc auto changer fails to operate correctly. Normal operatin should be restored.

KENWOOD System ① SRC ② ATT ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉻ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟ ㉟

Reset button

• Characters in the LCD may become difficult to read in temperatures below 41 °F (5 °C).
• The illustrations of the display and the panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the illustrations on the display may represent something impossible in actual operation.

Cleaning the Faceplate Terminals

If the terminals on the unit or faceplate get dirty, wipe them with a dry, soft cloth.

Cleaning the Unit

If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe neutral detergent off.

Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erases characters.

About Cassette tape

Cleaning the tape head

When there's noise or the sound quality is bad during tape play the tape head maybe dirty, clean the tape head.

About Cassette tape

• If the tape is slack tighten it.
• If the cassette tape label is peeling off glue it on again.
• Don't use deformed cassette tape.
• Don't place cassette tape on the dashboard etc. where the temperature is high.
• Don't use cassette tape that's 100 minutes long or longer.

About RDS

RDS (Radio Data System)

When listening to an RDS station, the programme service name of the station is displayed, advising you quickly which station is being received.

RDS (Radio Data System) stations also transmit frequency data for the same station. When you are making long trips, this function automatically alternative switches to the particular frequency with the best reception for the particular network of stations that you want to listen to. The data is automatically stored, allowing you to switch quickly to another RDS stations, broadcasting the same programme, that has better reception. These include stations stored in the station preset memory that you often listen to.

Enhanced Other Network

Stations that offer also transmit information about other RDS stations that have traffic information. When you are tuned to a station that is not transmitting traffic information, but another RDS station starts transmitting a traffic bulletin, the tuner automatically switches to the other station for the duration of the bulletin.

Alarm

When an emergency transmission (announcing disasters, etc.) is sent, all current functions are interrupted to allow the warning to be received.

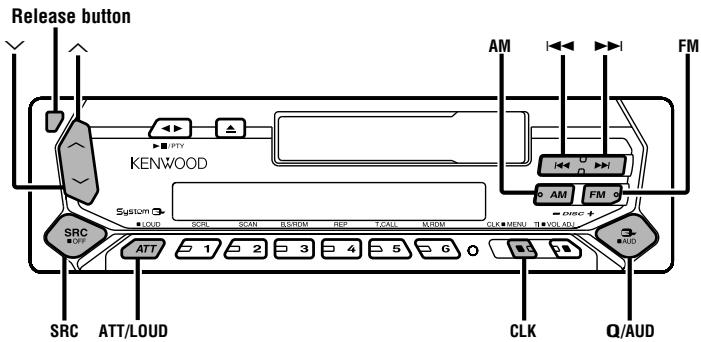

Release button AM FM KENWOOD System CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM CAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM RAM AM AM AM

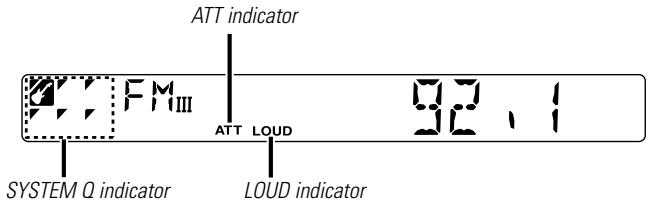

ATT indicator FMIII 92.1 ATT LOUD SYSTEM Q indicator LOUD indicator

Power

Turning ON the Power

Press the [SRC] button.

Turning OFF the Power

Press the [SRC] button for at least 1 second.

Selecting the Source

Press the [SRC] button.

Source required	Display
Tuner	"TUNER"
Tape	"TAPE"
External disc	"DISC"/"CD"
Standby (Illumination only mode)	"ALL OFF"

This unit automatically turns full power OFF after 20 minutes lapses in Standby mode in order to save the vehicles battery.

The time until full power OFF can be set in (page 22).

Volume

Increasing Volume

Press the [^] button.

Decreasing Volume

Press the [∨] button.

Attenuator

Turning the volume down quickly.

Press the [ATT] button.

Each time the button is pressed the Attenuator turns ON or OFF.

When it's ON, the "ATT" indicator blinks.

- Each setting value is changed with the (page 7).

First, select the speaker type with the Speaker setting.

- When the System Q setting is changed, the Bass, Middle, and Treble set in audio control replace the System Q values.

Loudness

Compensating for low and high tones during low volume.

Press the [LOUD] button for at least 1 second.

Each time the button is pressed for at least 1 second the

Loudness turns ON or OFF.

When it's ON, "LOUD" indicator is ON.

System Q

You can recall the best sound setting preset for different types of the music.

1 Select the source to set

Press the [SRC] button.

2 Select the Sound type

Press the [Q] button.

Each time the button is pressed the sound setting switches.

Sound setting	Display
Flat	"FLAT"
Rock	"ROCK"
Top 40	"TOP40"
Pops	"POPS"
Jazz	"JAZZ"
Easy	"EASY"
Scan of Flat — Easy	"SCAN"

Audio Control

1 Select the source for adjustment Press the [SRC] button.
2 Enter Audio Control mode Press the [AUD] button for at least 1 second.
3 Select the Audio item for adjustment Press the [FM] or [AM] button. Each time the button is pressed the items that can be adjusted switch as shown below.
4 Adjust the Audio item Press the [◀◀] or [▶▶] button.

Adjustment Item	Display	Range
Bass level	"BAS"	-8 — +8
Middle level	"MID"	-8 — +8
Treble level	"TRE"	-8 — +8
Balance	"BAL"	L15 — R15
Fader	"FAD"	R15 — F15

5 Exit Audio Control mode Press the [AUD] button.

Speaker Setting

Fine-tuning so that the System Q value is optimal when setting the speaker type.

1 Enter Standby

Press the [SRC] button.

Select the "ALL OFF" display.

2 Enter Speaker Setting mode

Press the [Q] button.

3 Select the Speaker type

Press the [◀◀] or [▶▶] button.

Each time the button is pressed the setting switches as shown below.

Speaker type Display

OFF	"SP OFF"
For the OEM speaker	"SP OEM"
For 6 & 6x9 in. speaker	"SP 6/6x9"
For 5 & 4 in. speaker	"SP 5/4"

4 Exit Speaker Setting mode

Press the [Q] button.

Switching Display

Switching the information displayed.

Press the [CLK] button.

Each time the button is pressed the display switches as shown below.

In Tuner source

Information

Program Service name or Frequency

Clock

In Tape source

Information

Play side

Clock

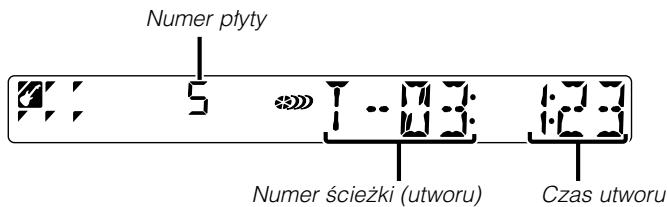

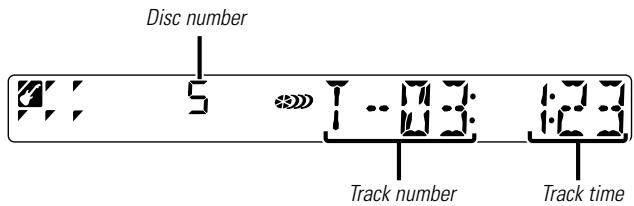

In External disc source

Information	Display
Track Time
Disc name	"D-NAME"
Disc title	"D-TITLE"
Track title	"T-TITLE"
Clock

TEL Mute

The audio system automatically mutes when a call comes in.

When a call comes in

"CALL" is displayed.

The audio system pauses.

Listening to the audio during a call

Press the [SRC] button.

The "CALL" display disappears and the audio system comes back ON.

When the call ends

Hang up the phone.

The "CALL" display disappears and the audio system comes back ON.

Theft Deterrent Faceplate

The faceplate of the unit can be detached and taken with you, helping to deter theft.

Removing the Faceplate

Press the Release button.

The faceplate is unlocked, allowing you to detach it.

• The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. For that reason, keep the faceplate in its special storage case while detached.
• Do not expose the faceplate or its storage case to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

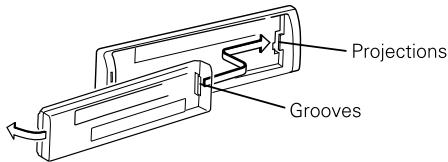

Reattaching the Faceplate

1 Align the projections on the unit with the grooves on the faceplate.

Projections Grooves

2 Push the faceplate in until it clicks.

The faceplate is locked in place, allowing you to use the unit.

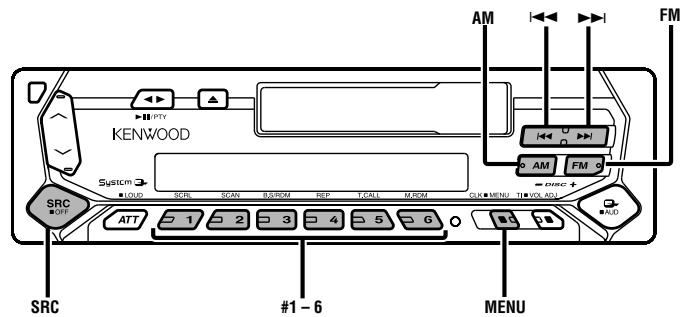

Tuner features

Function of the KRC-394/KRC-37

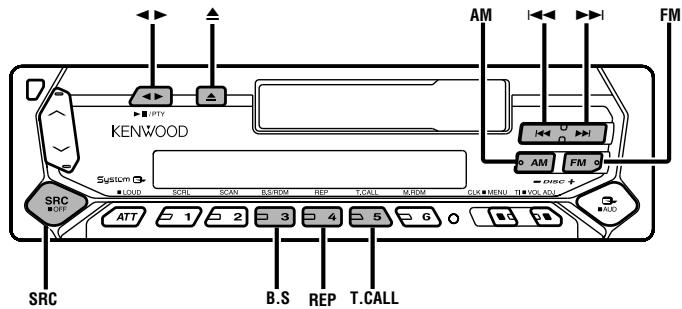

AM FM KENWOOD System CAM FM DISC + AVD SRC ATT 1 2 3 4 5 6 #1 - 6 MENU

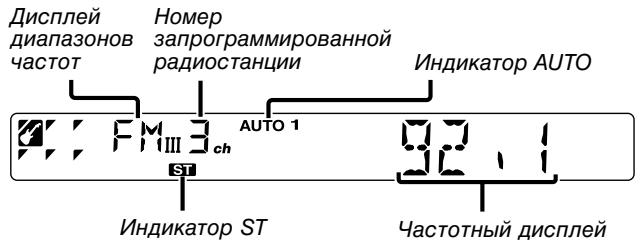

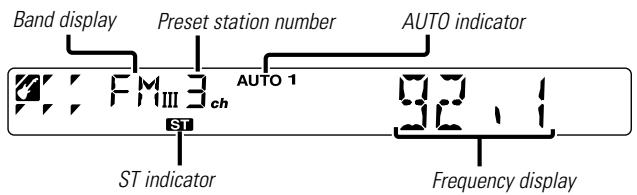

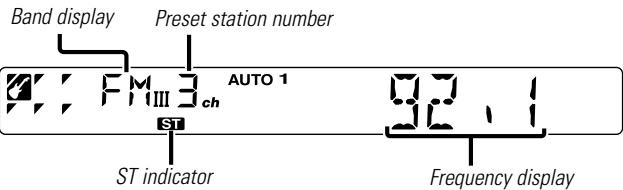

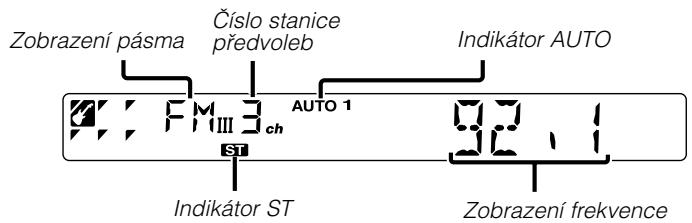

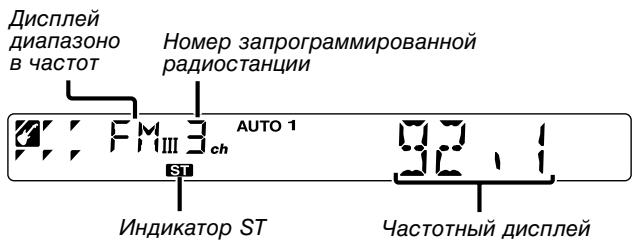

Band display Preset station number FM III 3_ch AUTO 1 ST ST indicator Frequency display

Tuning

Selecting the station.

1 Select tuner source
Press the [SRC] button.
Select the "TUNER" display.

2 Select the band

Press the [FM] or [AM] button.

Each time the [FM] button is pressed it switches between the FM1, FM2, and FM3 bands.

3 Tune up or down band

Press the [◀◀] or [▶▶] button.

During reception of stereo stations the "ST" indicator is ON.

Station Preset Memory

Putting the station in the memory.

1 Select the band
Press the [FM] or [AM] button.

2 Select the frequency to put in the memory

Press the [◀◀] or [▶▶] button.

3 Put the frequency in the memory

Press the [#1] — [#6] button for at least 2 seconds.

The preset number display blinks 1 time.

On each band, 1 station can be put in the memory on each [#1] — [#6] button.

Auto Memory Entry

Putting a station with good reception in the memory automatically.

1 Select the band for Auto Memory Entry
Press the [FM] or [AM] button.

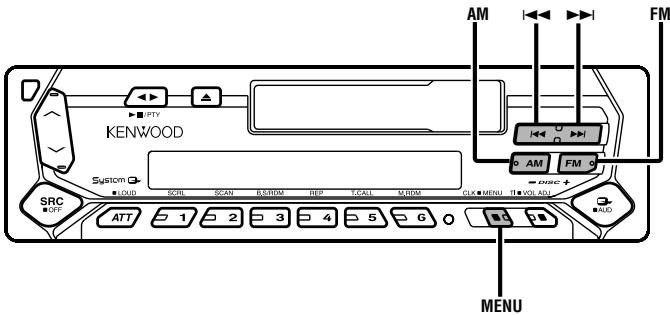

2 Enter Menu mode

Press the [MENU] button for at least 1 second.

"MENU" is displayed.

3 Select the Auto Memory Entry mode

Press the [FM] or [AM] button.

Select the "A-MEMORY" display.

4 Open Auto Memory Entry

Press the [◄◄◄] or [►►◄] button for at least 2 seconds.

When 6 stations that can be received are put in the memory Auto Memory Entry closes.

• When the (page 21) is ON, only RDS stations are put in the memory.
• When Auto Memory Entry is done in the FM2 band, the RDS stations preset in the FM1 band aren't put in the memory.
  Likewise, when it is done in the FM3 band, RDS stations preset in FM1 or FM2 aren't put in the memory.

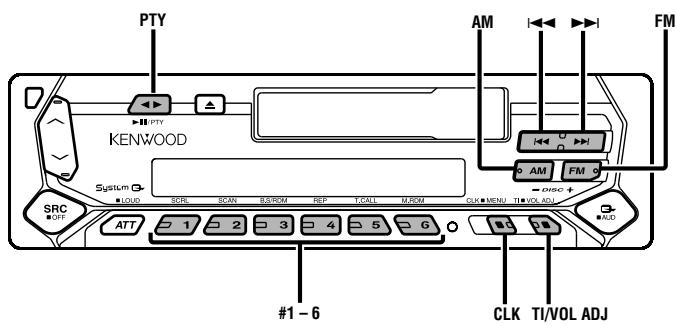

Preset Tuning

Calling up the stations in the memory.

1 Select the band
Press the [FM] or [AM] button.

2 Call up the station

Press the [#1] — [#6] button.

PTY AM FM KENWOOD System SCRL SCAN B/SROM REP T/CALL MJ/ROM CLK MENU T1V VOL ADJ SRC ATT 1 2 3 4 5 6 #1 - 6 CLK TI/VOL ADJ

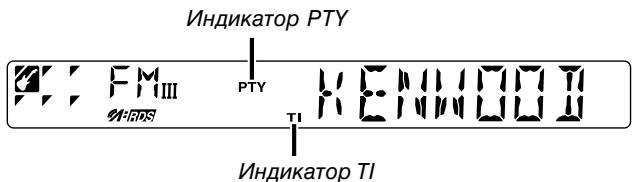

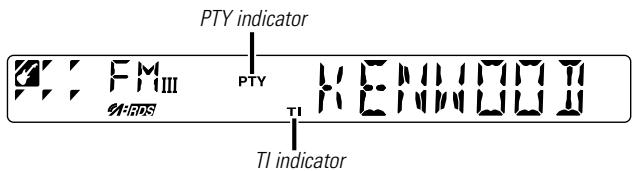

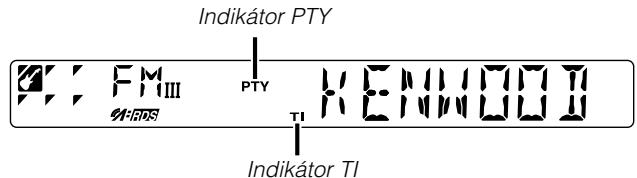

PTY indicator FM III FTBOS PTY KENMODI TI indicator

Traffic Information

Switching to traffic information automatically when a traffic bulletin starts even when you aren't listening to the radio.

Press the [TI] button.

Each time the button is pressed the Traffic Information function turns ON or OFF.

When it's ON, "TI" indicator is ON.

When a traffic information station isn't being received the "TI" indicator blinks.

When a traffic bulletin starts, "TRAFFIC" is displayed it and it switches to traffic information.

During reception of a AM station when the Traffic Information function is turned ON, it switches to a FM station.

Receiving other traffic information stations

Press the [◀◀] or [▶▶] button.

Traffic information station switching can be done when listening to the radio.

Presetting Volume for Traffic Information

Setting the volume during Traffic Information.

1 Receive the station.
2 Set the volume you want.
3 Preset the volume
Press the [VOL ADJ] button for at least 2 seconds. The volume level display blinks 1 time.

PTY (Program Type)

Selecting the Program Type and searching for a station.

1 Enter PTY mode

Press the [PTY] button.

During PTY mode the "PTY" indicator is ON.

This function can't be used during a traffic bulletin or AM reception.

2 Select the Program Type

Press the [FM] or [AM] button.

Each time the button is pressed the Program Type switches as shown below.

No. Program Type Display

1.	Music	"MUSIC"
2.	Speech	"SPEECH"
3.	News	"NEWS"
4.	Current Affairs	"AFFAIRS"
5.	Information	"INFO"
6.	Sport	"SPORT"
7.	Education	"EDUCATE"
8.	Drama	"DRAMA"
9.	Culture	"CULTURE"
10.	Science	"SCIENCE"
11.	Varied	"VARIED"
12.	Pop Music	"POP M"
13.	Rock Music	"ROCK M"
14.	Easy Listening Music	"EASY M"
15.	Light Classical	"LIGHT M"
16.	Serious Classical	"CLASSICS"
17.	Other Music	"OTHER M"
18.	Weather	"WEATHER"
19.	Finance	"FINANCE"
20.	Children's programs	"CHILDREN"

21.	Social Affairs	"SOCIAL"
22.	Religion	"RELIGION"
23.	Phone In	"PHONE IN"
24.	Travel	"TRAVEL"
25.	Leisure	"LEISURE"
26.	Jazz Music	"JAZZ"
27.	Country Music	"COUNTRY"
28.	National Music	"NATION M"
29.	Oldies Music	"OLDIES"
30.	Folk Music	"FOLK M"
31.	Documentary	"DOCUMENT"

- Speech and Music include the Program type shown below. Music: No.12 — 17, 26 — 30 Speech: No.3 — 11, 18 — 25, 31

- The Program Type can be put in the [#1] — [#6] button memory and called up quickly. Refer to the (page 12).

- The display language can be changed. Refer to (page 12).

3 Search for the selected Program Type station

Press the [◀◀] or [▶▶] button.

When you want to search for other stations press the [I◄◄] or [►►I] button again.

When the selected Program Type isn't found, "NO PTY" is displayed. Select another Program Type.

4 Exit PTY mode

Press the [PTY] button.

Program Type preset

Putting the Program Type in the Preset button memory and calling it up quickly.

Presetting the Program Type

1 Select the Program Type to preset Refer to (page 11).

2 Preset the Program Type Press the [#1] — [#6] button for at least 2 seconds.

Calling up the preset Program Type

1 Enter PTY mode Refer to (page 11).
2 Call up the Program Type Press the [#1] — [#6] button.

Changing Language for PTY Function

Selecting the Program Type display language.

1 Enter PTY mode Refer to (page 11).

2 Enter Changing Language mode Press the [CLK] button.

3 Select the language Press the [#1] — [#3] button.

Button	Language
[#1]	English
[#2]	French
[#3]	German

4 Exit Changing Language mode Press the [CLK] button.

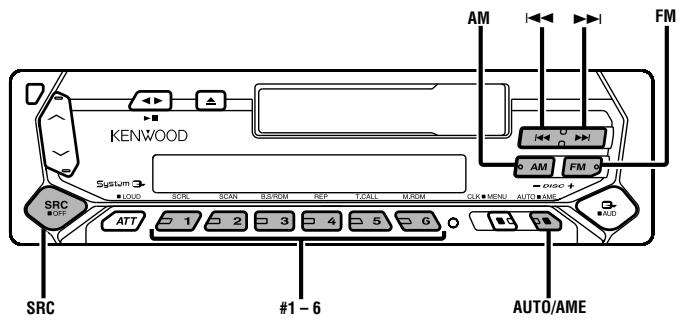

AM FM KENWOOD System ●LOUD SCRE SCAN B2/ROM REF T/CALL M2/ROM CLK/MENU AM FM DISC + AUTO/AME SRC OFF ATT 1 2 3 4 5 6 #1 - 6 AUTO/AME

Band display Preset station number AUTO indicator FM III 3 ch AUTO 1 ST indicator 92.1 Frequency display

Tuning Mode

Choose the tuning mode.

Press the [AUTO] button.

Each time the button is pressed the Tuning mode switches as shown below.

Tuning mode	Display	Operation
Auto seek	"AUTO 1" indicator	Automatic search for a station.
Preset station seek	"AUTO 2" indicator	Search in order of the stations in the Preset memory.
Manual	—	Normal manual tuning control.

Tuning

Selecting the station.

1 Select tuner source

Press the [SRC] button.

Select the "TUNER" display.

2 Select the band

Press the [FM] or [AM] button.

Each time the [FM] button is pressed it switches between the FM1, FM2, and FM3 bands.

3 Tune up or down band

Press the [◀◀] or [▶▶] button.

During reception of stereo stations the "ST" indicator is ON.

Station Preset Memory

Putting the station in the memory.

1 Select the band
Press the [FM] or [AM] button.

2 Select the frequency to put in the memory

Press the [◀◀] or [▶▶] button.

3 Put the frequency in the memory

Press the [#1] — [#6] button for at least 2 seconds.

The preset number display blinks 1 time.

On each band, 1 station can be put in the memory on each [#1] — [#6] button.

AM FM KENWOOD System 0- Cloud SCR SCAN BSTROM REP T.CALL MROM CLK MENU 11 VOL ADL AMP B.S REP T.CALL ATT 1 2 3 4 5 6 SRC OUT WIND

Auto Memory Entry

Putting stations with good reception in the memory automatically.

1 Select the band for Auto Memory Entry
Press the [FM] or [AM] button.

2 Open Auto Memory Entry

Press the [AME] button for at least 2 seconds.

When 6 stations that can be received are put in the memory Auto Memory Entry closes.

Preset Tuning

Calling up the stations in the memory.

1 Select the band
Press the [FM] or [AM] button.

2 Call up the station

Press the [#1] — [#6] button.

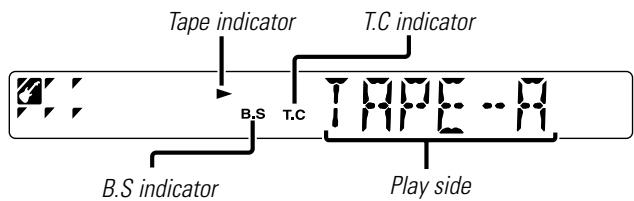

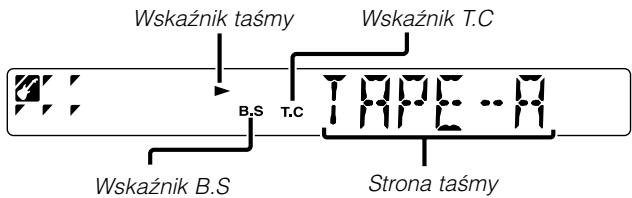

Tape indicator T.C indicator B.S T.C TAPF...R B.S indicator Play side

Playing Cassette Tapes

When the Cassette Tape is inserted

Press the [SRC] button.

Select the "TAPE" display.

When you want to listen to the reverse side

Press the [◀▶] button.

Eject the Cassette Tape

Press the [▲] button.

Fast Forwarding and Rewinding

Fast Forwarding

Press the [FM] button.

When it's stopped press the [◀▶] button.

Rewinding

Press the [AM] button.

When it's stopped press the [◀▶] button.

Tape Advance

Skipping to the next song or the start of the current song.

Skipping to the next song

Press the [▶▶] button.

Skips to the start of the current song

Press the [◀◀] button.

Blank Skip

Fast forwarding automatically when an unrecorded portion continues for at least 10 seconds.

Press the [B.S] button.

Each time the button is pressed the Blank Skip turns ON or OFF.

When it's ON, the "B.S" indicator is ON.

Tuner Call

Switching to the radio automatically during Fast Forwarding and Rewinding.

Press the [T.CALL] button.

Each time the button is pressed the Tuner Call turns ON or OFF.

When it's ON, the "T.C" indicator is ON.

Music Repeat

Repeating the present song.

Press the [REP] button.

Each time the button is pressed the Music Repeat turns ON or OFF.

When it's ON, "REP ON" is displayed.

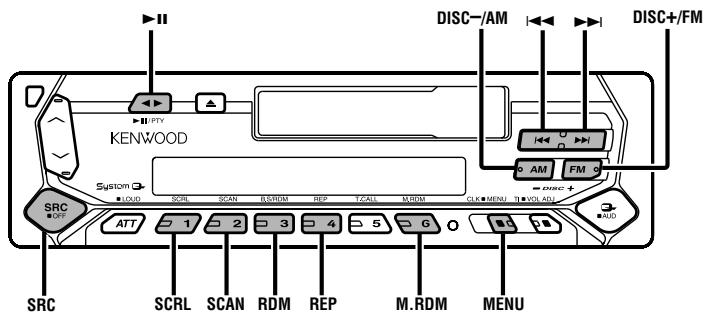

KENWOOD SRC ATT 1 2 3 4 5 6 0 SCRL SCAN BURDM REP T/CALL M/RDM CLK/MENU 1 VOL ADL DISC-/AM DISC+/FM AM FM ESC+

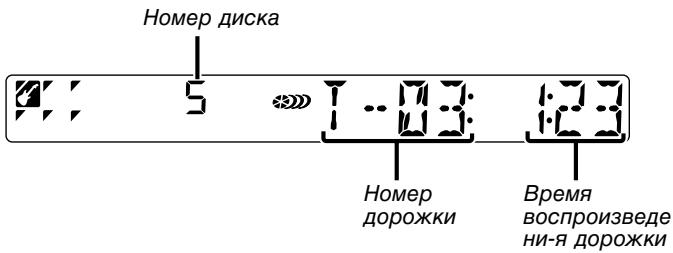

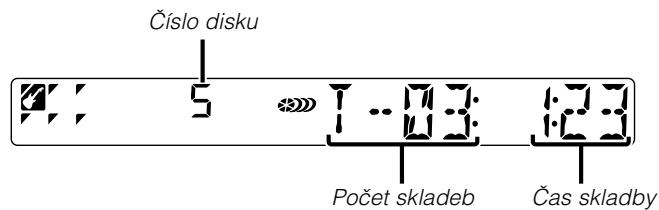

Disc number 5 Track number Track time

Playing External Disc

Playing discs set in the optional accessory disc player connected to this unit.

Press the [SRC] button.

Select the display for the disc player you want.

Display examples:

Display	Disc player
"CD"	CD player
"DISC"	CD changer
"DISC"	MD changer

Pause and play

Press the [▶■] button.

Each time the button is pressed it pauses and plays.

• Disc #10 is displayed as "0".
• The functions that can be used and the information that can be displayed will differ depending on the external disc players being connected.

Fast Forwarding and Reversing

Fast Forwarding

Hold down on the [▶▶] button.

Release your finger to play the disc at that point.

Reversing

Hold down on the [◀◀] button.

Release your finger to play the disc at that point.

Track Search

Selecting the song you want to hear.

Press the [◀◀] or [▶▶] button.

Album Search (Function of disc changer)

Selecting the disc you want to hear.

Press the [DISC-] or [DISC+] button.

Track/Album Repeat

Replaying the track/disc you're listening to.

Press the [REP] button.

Each time the button is pressed the Repeat Play switches as shown below.

Repeat play	Display
Track Repeat	"TREP ON"/"REP ON"
Album Repeat (Function of disc changer)	"DREP ON"
OFF	"REP OFF"

Track Scan

Playing the first part of each song on the disc you are listening to and searching for the song you want to listen to.

1 Start Track Scan

Press the [SCAN] button.

"TSCN/SCAN ON" is displayed.

2 Release it when the song you want to listen to is played Press the [SCAN] button.

Random Play

Playing all the songs on the disc in random order.

Press the [RDM] button.

Each time the button is pressed Random Play turns ON or OFF.

When it's ON, "RDM ON" is displayed.

When the [▶▶] button is pressed, the next song select starts.

Magazine Random Play

(Function of disc changer)

Play the songs on all the discs in the disc changer in random order.

Press the [M.RDM] button.

Each time the button is pressed the Magazine Random Play turns ON or OFF.

When it's ON, "MRDM ON" is displayed.

When the [▶▶] button is pressed, the next song select starts.

Disc Naming (DNPS)

Attaching a title to a CD.

1 Play the disc you want to attach a name to

A title can't be attached to a MD.

2 Enter Menu mode

Press the [MENU] button for at least 1 second.

"MENU" is displayed.

3 Select Name set mode

Press the [FM] or [AM] button.

Select the "NAME SET" display.

4 Enter Name set mode

Press the [◀◀] or [▶▶] button for at least 2 seconds.

5 Move the cursor to the enter character position

Press the [◀◀] or [▶▶] button.

6 Select the characters

Press the [FM] or [AM] button.

7 Repeat steps 5 through 6 and attach a name.

8 Exit Menu mode

Press the [MENU] button.

- When operation stops for 10 seconds the name at that time is registered, and Name Set mode closes.

- Media that you can attach a name to - External CD changer/ player: Varies according to the CD changer/ player. Refer to the CD changer/ player manual.

- The name of a CD can be changed by the same operation you used to name it.

Text/Title Scroll

Scrolling the displayed CD text or MD title.

Press the [SCRL] button.

AM FM KENWOOD System SRC OFF ATT 1 2 3 4 5 6 DISC + AUDIO AM FM MENU

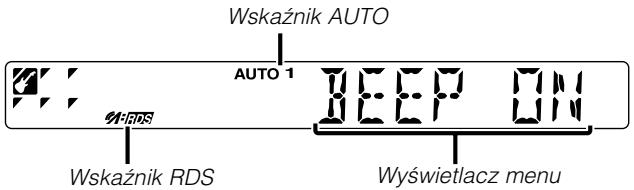

AUTO indicator AUTO 1 BEEP ON RDS indicator Menu display

Menu System

Setting during operation beep sound etc. functions.

The Menu system basic operation method is explained here. The reference for the Menu items and their setting content is after this operation explanation.

1 Enter Menu mode

Press the [MENU] button for at least 1 second.

"MENU" is displayed.

2 Select the menu item

Press the [FM] or [AM] button.

Example: When you want to set the beep sound select the "BEEP" display.

3 Set the menu item

Press the [◀◀] or [▶▶] button.

Example: When "BEEP" is selected, each time the button is pressed it switches "BEEP ON" or "BEEP OFF". Select 1 of them as the setting.

You can continue by returning to step 2 and setting other items.

4 Exit Menu mode

Press the [MENU] button.

When other items that are applicable to the basic operation method above are displayed afterwards their setting content chart is entered. (Normally the uppermost setting in the chart is the original setting.)

Also, the explanation for items that aren't applicable (etc.) are entered step by step.

Touch Sensor Tone

Setting the operation check sound (beep sound) ON/OFF.

Display	Setting
"BEEP ON"	Beep is heard.
"BEEP OFF"	Beep canceled.

Manual Clock Adjustment

This adjustment can be done when the (page 20) is set as OFF.

1 Select Clock Adjustment mode

Press the [FM] or [AM] button.

Select the "CLK ADJ" display.

2 Enter Clock Adjust mode

Press the [◀◀] or [▶▶] button for at least 2 seconds.

The clock display blinks.

3 Adjust the hours

Press the [FM] or [AM] button.

Adjust the minutes

Press the [◀◀] or [▶▶] button.

4 Exit Clock adjustment mode

Press the [MENU] button.

Function of the KRC-394/KRC-37

Synchronize Clock

Synchronizing the RDS station time data and this unit's clock.

Display	Setting
"SYNC ON"	Synchronizes the time.
"SYNC OFF"	Adjust the time manually.

It takes 3 to 4 minutes to synchronize the clock.

DSI (Disabled System Indicator)

A red indicator will blink on the unit after the faceplate is removed, warning potential thieves.

Display	Setting
"DSI ON"	LED flashes.
"DSI OFF"	LED OFF.

Selectable Illumination

Selecting the button illumination color as green or red.

Display	Setting
"COL GRN"	The illumination color is green.
"COL RED"	The illumination color is red.

Function of the KRC-394/KRC-37

News Bulletin with Timeout Setting

It switches automatically when a news bulletin starts even if the radio isn't being listened to. Also, the time interval when interrupt is prohibited can be set.

Display and Setting

"NEWS OFF"

"NEWS 00M"

⋮

"NEWS 90M"

When "NEWS 00M" — "NEWS 90M" is set, the News Bulletin Interrupt function is ON.

When the news bulletin starts, "NEWS" is displayed, and it switches to the news bulletin.

• If you choose the "20M" setting, further news bulletins will not be received for 20 minutes once the first news bulletin is received.
• The news bulletin volume is the same level that was set for traffic information (page 10).
• This function is only available if the desired station sends PTY-code for news bulletin or belongs to -Network sending PTY-code for news bulletin.
• When the News Bulletin Interrupt function is ON, it switches to an FM station.

Local Seek

Only stations whose reception is good are searched for in auto seek tuning.

Display	Setting
"LO.S OFF"	The local seek function is OFF.
"LO.S ON"	The local seek function is ON.

Function of the KRC-394/KRC-37

Tuning Mode

Sets the tuning mode.

Tuning mode	Display	Operation
Auto seek	"AUTO 1"	Automatic search for a station.
Preset station seek	"AUTO 2"	Search in order of the stations in the Preset memory.
Manual	"MANUAL"	Normal manual tuning control.

Function of the KRC-394/KRC-37

Auto Memory Entry

For the operation method refer to (9page).

Function of the KRC-394/KRC-37

AF (Alternative Frequency)

When poor reception is experienced, automatically switch to another frequency broadcasting the same program in the same RDS network with better reception.

Display	Setting
"AF ON"	The AF function is ON.
"AF OFF"	The AF function is OFF.

When the AF function is ON, the "RDS" indicator is ON.

When no other stations with stronger reception are available for the same program in the RDS network, you may hear the incoming broadcast in bits and snatches. Turn OFF the AF function in such a case.

Function of the KRC-394/KRC-37

Restricting RDS Region

(Region Restrict Function)

You can choose whether or not to restrict the RDS channels, received with the AF function for a particular network, to a specific region.

Display	Setting
"REG ON"	The Region Restrict Function is ON.
"REG OFF"	The Region Restrict Function is OFF.

Sometimes stations in the same network broadcast different programs or use different program service names.

Function of the KRC-394/KRC-37

Auto TP Seek

When the TI function is ON and poor reception conditions are experienced when listening to a traffic information station, another traffic information station with better reception will be searched for automatically.

Display	Setting
"ATPS ON"	The Auto TP Seek Function is ON.
"ATPS OFF"	The Auto TP Seek Function is OFF.

Monaural Reception

Noise can be reduced when stereo broadcasts are received as monaural.

Display	Setting
"MONO OFF"	The monaural reception is OFF.
"MONO ON"	The monaural reception is ON.

Text Scroll

Setting the displayed text scroll.

Display	Setting
"SCL MANU"	Doesn't scroll.
"SCL AUTO"	Scrolls when the display changes.

The text scrolled is shown below.

• CD text
• MD title

Disc Naming

For the setting method refer to the (page 18).

Power OFF Timer

Setting the timer to turn this unit's power OFF automatically when Standby mode continues.

Using this setting can save the vehicle's battery power.

Display	Setting
"OFF - - - "	Power OFF Timer function is OFF.
"OFF 20M" (Original setting)	Turns the power OFF after 20 minutes.
"OFF 40M"	Turns the power OFF after 40 minutes.
"OFF 60M"	Turns the power OFF after 60 minutes.

Accessories

	External view	Number of items
1		1
2		2
3		1

The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above.

Installation Procedure

1. To prevent short circuits, remove the key from the ignition and disconnect the terminal of the battery.
2. Make the proper input and output wire connections for each unit.
3. Cars with an ISO connector:
   Connect the speaker connector of the car to Connector B of the unit, and then connect the external power connector to Connector A.
   First connect the wire of the wiring harness, and then connect the wiring harness connector to the unit.
4. Install the unit in your car.
5. Reconnect the terminal of the battery.
6. Press the reset button.

Cars without an ISO connector:

▲WARNING

If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

▲CAUTION

• If your car is not prepared for this special connection-system, consult your Kenwood dealer.
• Only use antenna conversion adapters (ISO-JASO) when the antenna cord has an ISO plug.
• Make sure that all wire connections are securely made by inserting jacks until they lock completely.
• If your vehicle's ignition does not have an ACC position, or if the ignition wire is connected to a power source with constant voltage such as a battery wire, the power will not be linked with the ignition (i.e., it will not turn on and off along with the ignition). If you want to link the unit's power with the ignition, connect the ignition wire to a power source that can be turned on and off with the ignition key.
• If the fuse blows, first make sure that the wires have not caused a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent short circuits, also do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may receive damage or fail to work if you share the wires and/or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, indicators, wipers, etc. on the car are working properly.
• If the console has a lid, make sure to install the unit so that the faceplate does not hit the lid when closing and opening.


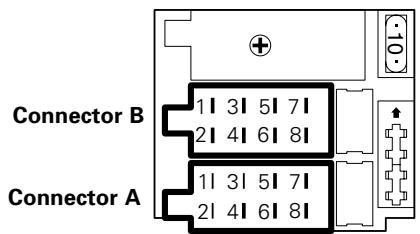

■ Connector Function Guide

Connector B 1 3 5 7 2 4 6 8 Connector A 1 3 5 7 2 4 6 8

Pin Numbers for ISO Connectors	Plug setting*	Functions
A-4	1	Battery
	2	Ignition (ACC)
A-5		Power Control
A-7	1	Ignition (ACC)
	2	Battery
A-8		Earth (Ground) Connection
B-1		Rear Right (+)
B-2		Rear Right (-)
B-3		Front Right (+)
B-4		Front Right (-)
B-5		Front Left (+)
B-6		Front Left (-)
B-7		Rear Left (+)
B-8		Rear Left (-)

*Plug setting: See right side.

Plug Setting

▲WARNING

Connecting the ISO Connector

The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit.

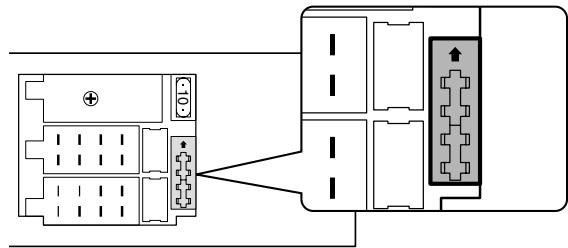

The A-7 pin of the vehicle's ISO connector is linked with the ignition, and the A-4 pin is connected to the constant power supply. (Default setting)

Diagram showing a connector layout with labeled ports and directional arrows, likely illustrating a system or connection.

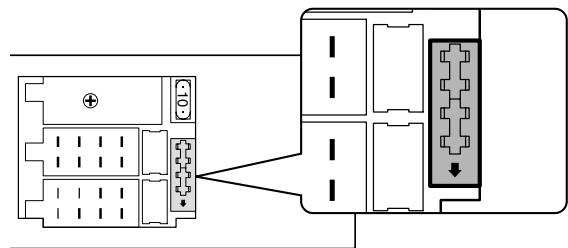

② The A-7 pin of the vehicle's ISO connector is connected to the constant power supply, and the A-4 pin is linked to the ignition.

Diagram showing connector layout with labeled pins and connection points, including a highlighted section with a downward arrow.

• If both the A-7 pin and A-4 pin are connected to the vehicle constant power supply, use Plug setting 2.
• If the A-7 pin is connected to the vehicle constant power supply, and the A-4 pin isn't connected to anything, wire the unit using the Wiring harness (Accessory ①).

Connecting Wires to Terminals

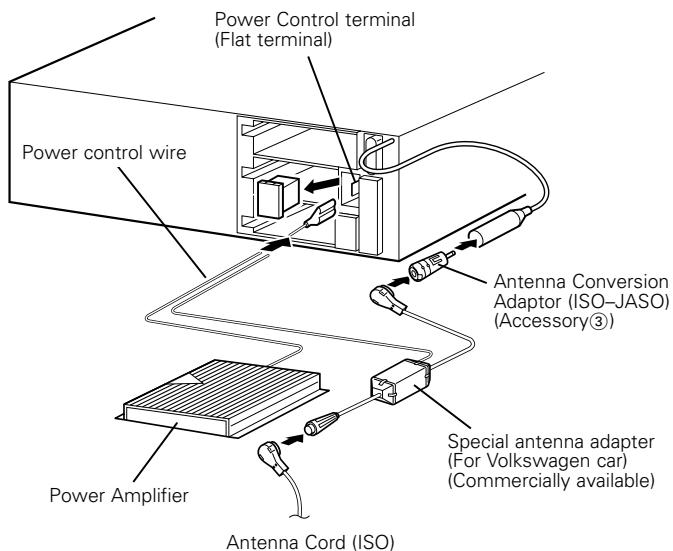

Power Control Terminal Connections

The output of the Power Control terminal is switched along with the power on/off switching of the unit.

This terminal can be connected to the P.CON (REMOTE) terminal of the amplifier, or used as the power supply of the special antenna adapter for Volkswagen cars. (MAX. 310 mA)

Power Control terminal (Flat terminal) Power control wire Antenna Conversion Adaptor (ISO-JASO) (Accessory③) Special antenna adapter (For Volkswagen car) (Commercially available) Power Amplifier Antenna Cord (ISO)

Installation

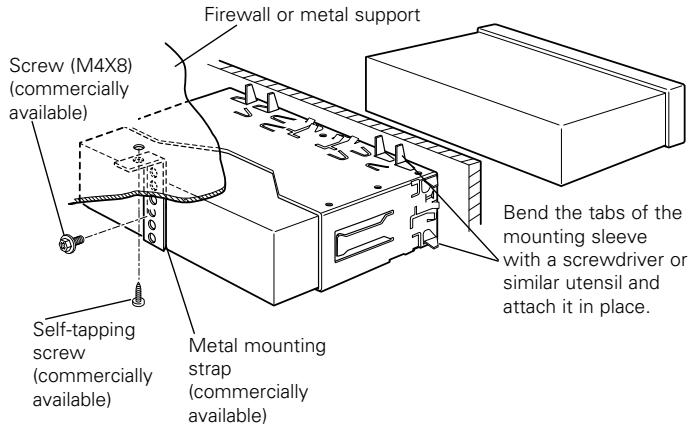

■ Installation

Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw (commercially available) Metal mounting strap (commercially available)

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

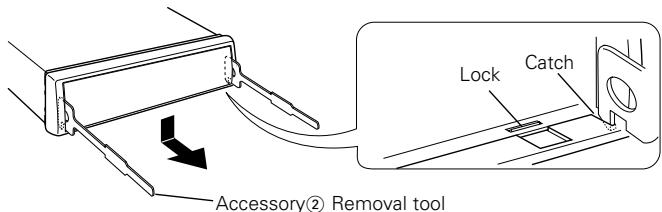

■ Removing the hard rubber frame

1 Engage the catch pins on the removal tool and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure.

Accessory② Removal tool Lock Catch

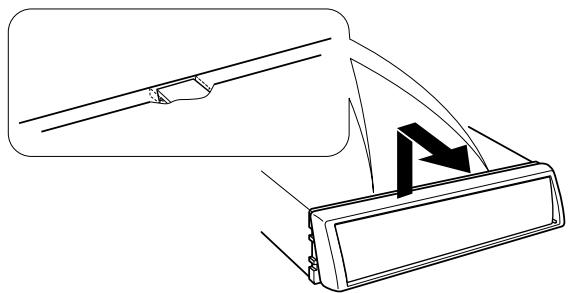

2 When the lower level is removed, remove the upper two locations.

Diagram showing a mechanical component with a highlighted section and directional arrow (no text or symbols)

The frame can be removed from the top side in the same manner.

■ Removing the Unit

1 Refer to the section "Removing the hard rubber frame" and then remove the hard rubber frame.
2 Remove the screw (M4×8) on the back panel.

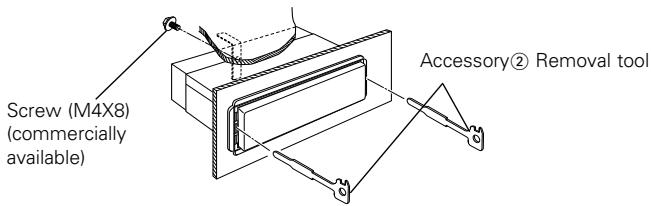

3 Insert the two removal tools deeply into the slots on each side, as shown.

Screw (M4X8) (commercially available) Accessory② Removal tool

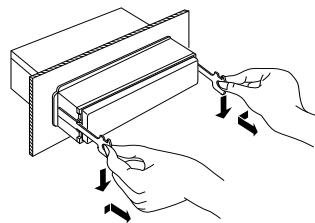

4 Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside.

Illustration of hands using a tool to adjust or install a component, no text or symbols present

Be careful to avoid injury from the catch pins on the removal tool.

5 Pull the unit all the way out with your hands, being careful not to drop it.

Line drawing of a hand holding a bracket with metal clamps (no text or symbols)

What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

General

? The power does not turn ON.

√ The fuse has blown.
After checking for short circuits in the wires, replace the fuse with one with the same rating.
√ No ACC position on vehicle ignition.
Connect the same wire to the ignition as the battery wire.

? If you have selected Standby mode, the power will go OFF automatically.

√ The Power OFF Timer function has been activated.
If you do not want the power to go OFF automatically, cancel the Power OFF Timer function.

? Nothing happens when the buttons are pressed.

√ The computer chip in the unit is not functioning normally.
Press the reset button on the unit (page 4).

? There's a source you can't switch.

√ There's no tape inserted.
Set the media you want to listen to. If there's no media in this unit, you can't switch to each source.

√ The Disc changer isn't connected.

Connect the Disc changer. If the Disc changer isn't connected to it's input terminal, You can't switch to an external disc source.

? The memory is erased when the ignition is turned OFF.

√ The battery wire has not been connected to the proper terminal.
Connect the wire correctly, referring to the section on .

√ The ignition and battery wire are incorrectly connected. Connect the wire correctly, referring to the section on .

? The TEL mute function does not work.

√ The TEL mute wire is not connected properly.
Connect the wire correctly, referring to the section on .

? The TEL mute function turns ON even though the TEL mute wire is not connected.

√ The TEL mute wire is touching a metal part of the car.
Pull the TEL mute wire away from the metal part of the car.

? No sound can be heard, or the volume is low.

√ The fader or balance settings are set all the way to one side.
Center the fader and balance settings.
√ The input/output wires or wiring harness are connected incorrectly. Reconnect the input/output wires or the wiring harness correctly. See the section on "Connecting Wires to Terminals".
√ The cassette tape is bad. ■ Try playing another cassette tape. If works fine, the first tape was bad.

? The sound quality is poor or distorted.

√ One of the speaker wires is being pinched by a screw in the car.
Check the speaker wiring.

√ The tape head is dirty.
Clean the tape head.

√ The speakers are not wired correctly. ■ Reconnect the speaker wires so that each output terminal is connected to a different speaker.

? The Touch Sensor Tone doesn't sound.

√ The preout jack is being used.
The Touch Sensor Tone can't be output from the preout jack.

? Even though Synchronize Clock is ON, the clock can't be adjusted.

√ The received RDS station isn't sending time data.
Receive another RDS station.

Tuner source

? Radio reception is poor.

√ The car antenna is not extended.
Pull the antenna out all the way.
√ The antenna control wire is not connected.
Connect the wire correctly, referring to the section on .

? It isn't the set Traffic information sound volume.

√ The set sound volume is less than the tuner sound volume.
If the tuner sound volume is louder than the set sound volume, the tuner sound volume is used.

Cassette tape source

? Can't remove tape.

√ The cause is that more than 10 minutes has elapsed since the vehicle ACC switch was turned OFF.
The tape can only be removed within 10 minutes of the ACC switch being turned OFF. If more than 10 minutes has elapsed, turn the ACC switch ON again and press the Eject button.

? The Tape Advance and Music Repeat don't operate correctly.

√ The space between the songs on the tape can't be recognized because it's too short.
Have at least 4 seconds between songs.
√ The space between songs can't be recognized because there's too much noise between songs.
Reduce the noise between songs.

? The blank skip doesn't work.

√ Because noise is too loud, the non-recorded part can't be recognized.
- Reduce the noise between songs.

? Blank Skip functions at places that are recorded.

√ Because the recording level is low, it's recognized as not recorded.
Turn Blank Skip OFF.

Disc source

? "AUX" is displayed without achieving External disc control mode.

√ O-N switch is set to "O" side.
Set the switch to "N" side.
√ Unsupported disc changer is connected.
Connect the supported disc changer. (page 3)

? The specified disc does not play, but another one plays instead.

√ The specified CD is quite dirty.
Clean the CD.
√ The CD is upside-down.
Load the CD with the labeled side up.
√ The disc is loaded in a different slot from that specified.
Eject the disc magazine and check the number for the specified disc.
√ The disc is severely scratched.
Try another disc instead.

? The specified track will not play.

√ Random play or magazine random play has been selected.
Turn off random play or magazine random play.

? Track repeat, disc repeat, track scan, random play, and magazine random play start by themselves.

√ The setting is not canceled.
The settings for these functions remain on until the setting to off or the disc ejected, even if the power is turned off or the source changed.

? Cannot play CD-R or CD-RW.

√ Finalization processing is not being conducted for CD-R/CD-RW.
Conduct finalization processing with CD recorder.

√ A non-compatible CD changer is being used to play the CD-R/CD-RW.

Use a CD changer compatible with CD-R/CD-RW to play.

?Track Search can't be done.

√ For the albums first or last song.
For each album, Track Search can't be done in the backward direction for the first song or in the forward direction for the last song.

If the following situations, consult your nearest service center:

• Even though the disc changer is connected, the Disc Changer source is not ON, with "AUX" showing in the display during the Changer Mode.
• Even though no device (KCA-S210A, CA-C1AX, KDC-CPS89, KDC-CPS87, KDC-CX87, KDC-CPS85, KDC-CX85, KDC-CPS82 or KDC-CX82) is connected, the Auxiliary input is entered when switching modes.

The following messages are displayed when your system condition.

EJECT: No disc magazine has been loaded in the changer. The disc magazine is not completely loaded.
→ Load the disc magazine properly.
No CD in the unit.
Insert the CD.

NO DISC: No disc has been loaded in the disc magazine.
→ Load a disc into the disc magazine.

E-04: No disc has been loaded in the disc magazine.

→ Load a disc into the disc magazine.

The CD is quite dirty. The CD is upside-down. The CD is scratched a lot.

→ Clean the CD and load it correctly.

BLANK: Nothing has been recorded on the MD.

NO TRACK: No tracks are recorded on the MD, although it has a title.

NO PANEL: The faceplate of the slave unit being connected to this unit has been removed.

→ Replace it.

E-77: The unit is malfunctioning for some reason.

Press the reset button on the unit. If the "E-77" code does not disappear, consult your nearest service center.

E-99: Something is wrong with the disc magazine. Or the unit is malfunctioning for some reason.
Check the disc magazine. And then press the reset button on the unit. If the "E-99" code does not disappear, consult your nearest service center.
HOLD: The protective circuit in the unit activates when the temperature inside the automatic disc changer exceeds 60^ C ( 140^ F), stopping all operation.
✿ Cool down the unit by opening the windows or turning on the air conditioner. As the temperature falls below 60^ C ( 140^ F), the disc will start playing again.
NO NAME: Attempted to display DNPS during the CD play having no disc names preset.
NO TITLE: Attempted to display the disc title or track title while the MD having no MD title is being played.
NO TEXT: Attempted to display the disc text or track text while the CD having no CD text is being played.
LOAD: Discs are being exchanged in the Disc changer.
The tape player section is not operating properly.
Reinsert the Tape. If the tape cannot be ejected or the display continues to flash even when the tape has been properly reinserted, please switch off the power and consult your nearest service center.
NO ACCES: After setting it in the Disc Changer, DNPP was done without having it been played at least 1 time.

Specifications subject to change without notice.

FM tuner section

Frequency range (50 kHz space) ......87.5 MHz – 108.0 MHz
Usable sensitivity (S/N = 26dB) ....0.7 μV/75 Ω
Quieting Sensitivity (S/N = 46dB) ....1.6 μV/75 Ω
Frequency response (±3 dB)....30 Hz – 15 kHz
Signal to Noise ratio (MONO)....65 dB
Selectivity (DIN) (±400 kHz) ≥ 80 dB
Stereo separation (1 kHz) 35 dB

MW tuner section

Frequency range (9 kHz Space)....531 kHz – 1611 kHz

Usable sensitivity (S/N = 20dB) ....25 μV

LW tuner section

Frequency range 153 kHz - 281 kHz

Usable sensitivity (S/N = 20dB) ....45 μV

Cassette player section

Tape Speed....4.76 cm/sec.
Wow & Flutter (WRMS) 0.08 %
Frequency response (±3 dB) (120 μs)....30 Hz – 14 kHz
Separation (1 kHz) 43 dB
Signal to Noise ratio 54 dB

Audio section

Maximum output power....45 W x 4
Output power (DIN 45324, +B=14.4V) ......28 W x 4
Tone action
Bass : 100 Hz ±10 dB
Middle : 1 kHz ±10 dB
Treble : 10 kHz ±10 dB
Preout level / Load (during disc play) .....2000 mV / 10 kΩ
Preout impedance ....≤ 600 Ω

General

Operating voltage (11 - 16V allowable) ......14.4 V
Current consumption....10 A
Installation Size (W x H x D) 182 x 53 x 152 mm
Weight 1.4 kg

AF (Alternative Frequency)

KENWOOD SBC SRC AFT 1 2 3 4 5 6 AM PM

Кнопку Сброс

Enhanced Other Network

AM FM KENWOOD System SRC OFF ATT 1 2 3 4 5 6 #1 - 6 MENU DISC AM FM d AUD

PTY AM FM KENWOOD System Cloud SCRL SCAN BJROM REF T/CALL M/RDM CLK+MENU TI/VOL ADJ AM FM SRC ATT 1 2 3 4 5 6 #1 - 6 CLK TI/VOL ADJ

AM FM KENWOOD System SRC OFF SCRL SCAN ELVROM REF T/CALL MUXM CLK MENU AUTO/AME AM FM ATT 1 2 3 4 5 6 #1 - 6 AUTO/AME SRC

AM FM KENWOOD System Cloud SCRL SCAN RESTROOM REP T.CALL MUSHROOM CLK MENU AM FM AVOC ATT 1 2 3 4 5 6 SRC B.S REP T.CALL

Ввод в авто память

KENWOOD SRC ATT 1 2 3 4 5 6 7 SCRL SCAN BUSTDM REP T/CALL MURDM CLK+MENU 1#VOL ADJ DISC-/AM DISC+/FM AM FM DISC+ M.RDM MENU SRC SCRL SCAN RDM REP M.RDM

AF (Alternative Frequency)

Diagram showing connector layout with labeled ports and connection to a device panel

Diagram showing connector layout with labeled ports and connection points, including a zoomed-in view of internal connectors.

Diagram showing a cable being inserted into a car seat, with an arrow indicating the direction of movement (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a bracket (no text or symbols)

AF (Alternative Frequency)

KENWOOD System SRC ATT 1 2 3 4 5 6 B.S REP T.CALL AM FM AM FM DNSC MND SRC

KENWOOD System SRC ATT 1 2 3 4 5 6 0 SCRL SCAN ESTROM REP T/CALL MRDM QIK#MENU TI VOL ADU DISC-/AM DISC+/FM AM FM DISC M.RDM MENU SRC

AM FM KENWOOD System SCL SCAN BSRDM REP T/CALL M/RDM CLK# MENU 11 VOL ADL SRC MT ATT 1 2 3 4 5 6 DISC + MENU

AF (Alternative Frequency)

Diagram showing connector pinout and internal structure with labeled ports and directional arrows

Diagram showing connector pinout and internal structure with labels like 'CO1' and directional arrows

Diagram showing a mechanical component with a bracket and directional arrow, no text or symbols present

Illustration of hands using a tool to adjust or install a component, no text or symbols present

Line drawing of a hand holding a rectangular object with a bracket and mounting feet (no text or symbols)

Tony niskie (Bass) :....100 Hz ±10 dB

Środkowe (Middle) :....1 kHz ±10 dB

Tony wysokie (Treble) :....10 kHz ±10 dB

Hlasitost (Loudness)

System Q

Ovládání audio

Hlasitost (Loudness)

AM FM KENWOOD System 3 CAM CAM FM DISHC + VOL AID AID SRC OFF ATT 1 2 3 4 5 6 #1 - 6 MENU

PTY AM FM KENWOOD System SRC ATT 1 2 3 4 5 6 #1 - 6 CLK TI/VOL ADJ

Indikátor PTY FM III PTY KENNODII INDIKÁTOR TI

Dopravní informace

AM FM KENWOOD System CAM CAM FM DISC + AUDIO/AME SRC ATT 1 2 3 4 5 6 SRC #1 - 6 AUTO/AME

AM FM KENWOOD System SCRL SCAN B.SRDM REP T.CALL M.RSM OK MENU AM FM 0 VOL ADO ATT 1 2 3 4 5 6 SRC OUT SRC B.S REP T.CALL

KENWOOD SRC ATT 1 2 3 4 5 6 0 SCRL SCAN BSRDM REP T/CALL MRDM CLK/MENU 11 VOLT ADU DISC-/AM DISC+/FM AM FM 3 10 SRC SCRL SCAN RDM REP M.RDM MENU

Diagram showing connector pin layout with labeled ports and directional arrows indicating connection to a device panel.

Diagram showing a mechanical component with an inset view of a bracket and a directional arrow (no text or symbols)

Illustration of hands using a tool to adjust or install a rectangular component (no text or symbols present)

Line drawing of a hand holding a bracket with metal fasteners (no text or symbols)
