Product Type	Hardwire Kit for Dash Cameras
Brand	Xblitz
Model	R4 Power
Input Voltage	DC 12/24V (Max. 36V, automatically detected)
Output Voltage	DC 5V
Output Current	Typically 1A, Max. 2A
Output Power	Usually 5W, Max. 10W
Total Cable Length	4 meters (1m input, 3m output)
Input Cable Colors	Red (Power/ACC), Black (Ground)
Output Connector	Micro USB
Battery Discharge Protection (12V)	11.8V / 12.0V / 12.2V / 12.4V
Battery Discharge Protection (24V)	23.6V / 24.0V / 24.4V / 24.8V
Recommended Setting	12.2V for 12V batteries / 24.4V for 24V batteries
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Control Box Dimensions	40 x 25 x 15 mm
Weight	Approx. 50 g (estimated)
Compatible Vehicles	12V and 24V systems (cars, trucks)
Installation Modes	Constant power (24/7) or ACC (ignition-switched)
Security Features	Reverse connection, short-circuit, overheating, overcharge protection
Warranty	24 months
Recommended Input Fuse	2A 5x20 glass fuse or piggyback fuse
Manufacturer	KGK Trade sp. z o.o. sp. k., Poland

Frequently Asked Questions - R4 Power Xblitz

What is the Xblitz R4 Power Hardwire Kit used for?

The Xblitz R4 Power is a hardwire kit that allows you to connect any dashboard camera to a vehicle's electrical system, enabling features like parking mode recording.

How do I install the Xblitz R4 Power?

Connect the black wire to the vehicle's ground. Connect the red wire either to an ACC circuit (for ignition-switched power) or directly to the battery (for constant 24/7 power). Use the included voltage selector to set the battery cutoff threshold.

What are the battery protection voltage settings?

For 12V systems: 11.8V, 12.0V, 12.2V, 12.4V. For 24V systems: 23.6V, 24.0V, 24.4V, 24.8V. The recommended setting is 12.2V (or 24.4V) to prevent battery over-discharge.

Is the Xblitz R4 Power compatible with all dash cameras?

It is compatible with most dash cameras that use a Micro USB power input and require 5V/2A. Check your camera's specifications to ensure compatibility.

Can I use this kit in a 24V truck?

Yes, the Xblitz R4 Power supports both 12V and 24V systems automatically. It will detect the voltage and apply the corresponding protection settings.

How does the parking mode work?

When the red wire is connected to constant battery power, the camera will record continuously even when the vehicle is parked. The kit will cut power if the battery voltage drops below the selected threshold to prevent draining.

What should I do if my camera does not turn on?

Check the fuse (recommended 2A), verify connections (red to power, black to ground), and ensure the output voltage is 5V. Also confirm the battery voltage is above the cutoff threshold.

How long can the camera record while parked?

Depends on the battery capacity and the cutoff setting. For example, with a 50Wh 12V lead-acid battery set to 12.2V (50% capacity), you can expect approximately 100 hours of recording.

What is the warranty period for this product?

The Xblitz R4 Power comes with a 24-month warranty. For claims, visit the manufacturer's website at https://xblitz.pl/warranty/.

Can I dispose of this product in household waste?

No, it contains electronic components. Dispose of it at a designated WEEE collection point in accordance with local regulations (Directive 2012/19/EU).

USER MANUAL R4 Power Xblitz

User's manual in English lanugage - EN

Abstract geometric shape with diagonal light gray fill on white background, no text or symbols present

Xblitz

[R POWER]4

INSTRUKCJA OBSŁUGI

PL

Xblitz

Xblitz

[R POWER]4

USER'S MANUAL

EN

Xblitz.

Xblitz R4 Power Hardwire Kit is a simple solution that allows you to connect any dashboard camera to use the mode Parking.

The Xblitz R4 Power Hardwire Kit is compatible with 12V/24V DC power supply, so it can be used in cars and trucks.

01. INSTALLING THE XBLITZ R4 POW ER KIT

1. Connect the BLACK wire (GND) to the ground/ mass of the vehicle.
2. Connect the RED wire depending on how you want to use your dashboard camera:
   a. Connect the RED wire to the ACC circuit so that the camera system starts automatically when the engine is ignited.
   b. Connect the RED cable to the vehicle battery for the camera to record non-stop, 24/7.

The Xblitz R4 Power kit will automatically stop your camera from over discharging your vehicle battery. If the voltage in the battery is too low, the Xblitz R4 Power will stop powering your camera. You do not have to worry that your battery will be exhausted by the camera recording while the vehicle is parked. Set the voltage limit before the power cut-off for the camera according to the table below (the diagram may not correspond to your battery type).

TEMPERATURE		CAPACITY and VOLTAGE in 12V LEAD-ACID ACCUMULATOR (in volts)
°F	°C	100%	75%	50%	25%	0
0	-18	12.842	12.642	12.432	12.252	12.082
10	-12	12.818	12.618	12.408	12.228	12.058
20	-7	12.794	12.594	12.384	12.204	12.034
30	-1	12.77	12.57	12.36	12.18	12.01
40	4	12.746	12.546	12.336	12.156	11.986
50	10	12.722	12.522	12.312	12.132	11.962
60	16	12.698	12.498	12.288	12.108	11.938
70	21	12.674	12.474	12.264	12.084	11.914
80	27	12.65	12.45	12.24	12.06	11.89
90	32	12.626	12.462	12.216	12.036	11.866
100	38	12.602	12.402	12.192	12.012	11.842
110	43	12.578	12.378	12.168	11.988	11.818
120	49	12.554	12.354	12.144	11.964	11.794
130	54	12.53	12.33	12.122	11.94	11.77
140	60	12.506	12 306	12 096	11.916	11.746

Xblitz

FOR EXAMPLE:

If the temperature of surroundings is 38 ^ ( 100 ^ ) and you want to keep 50% of the battery capacity when the kit cuts o☐ the power for the camera, you should set the kit so that the power is cut o☐ when the battery voltage is 12.192 V. Set the battery protection switch to the 12.2 V setting. Only 50% of the battery capacity will be used on the car camera, even if you leave the car parked for a long time. If it is a 50W h lead-acid battery, 50% of the capacity will allow for approximately 100 hours of camera recording.

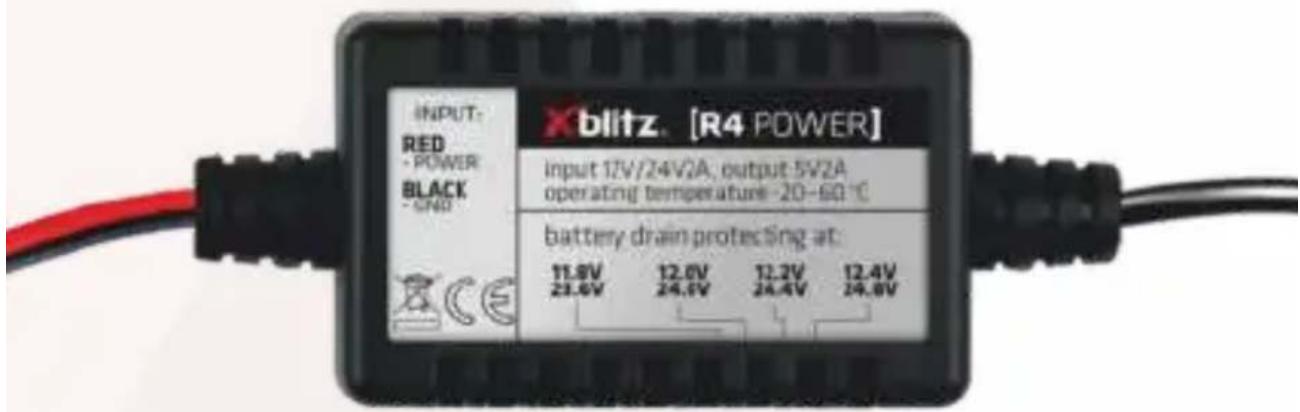

There are 4 protection settings in the Xblitz R4 Power.

You can switch between them according to your needs:

1. For 12V batteries, the protective settings are: 11.8 V/12.0 V/12.2 V/12.4 V.

2. For 24V batteries, the protective settings are: 23.6 V/24.0 V/24.4 V/24.8 V.

The Xblitz R4 Power Kit automatically recognizes the lead-acid battery and will protect it from over-discharge.

The 12.2 V/24.4 V setting is recommended for most users.

02. DEVICE SPECIFICATIONS

EN

Total cable length	4 meters (input 1 meter, output 3 meters).
Input cables	POW ER/ GROUND
Input voltage	Norm ally DC 12/24V, Max. DC 36V,autom atically detected.
Recomm ended fuses for input cable	2A 5x20 glass fuse or additional piggyback cable fuse
Output connector	Micro USB, DC 5V
Output current	Typically 1A, Max. 2A
Output capacity	Usually 5W, Max. 10W
Battery discharge protection	11.8 V/12.0 V/12.2 V/12.4 V for 12V batteries23.6 V/24.0 V/24.4 V/24.8 V for 24V batteries
Other security features	Protection from: reverse connection,short-circuit, overheating, overcharging.
Operating temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Control box Dimensions	40x25x15 mm

Xblitz.

A. The camera will always record, whether the vehicle is turned on or parked:

CONSTANT POWER SUPPLY

B. The camera will record while driving and will be disabled during parking.

ENGINE IGNITION POWER

03. W ARRANTY CARD/ COMPLAINTS

The product is covered by a 24-month warranty. The terms of the guarantee can be found at: https://xblitz.pl/warranty/

Com plaints should be reported using the com plaint form located at: http://reklam acje.kgktrade.pl/

Details, contact and website address can be found at: www.xblitz.pl

EN

Specifications and contents of the kit are subject to change without notice. We apologise for any inconvenience.

Manufacturer:

KGK Trade sp. z o.o. sp. k.

Ujastek 5B,

31-752 Cracow

Poland

Made in P.R.C.

Xblitz

The crossed out trash can symbol indicates that unusable electrical or electronic devices, its accessories (such as power supplies, cords) or components (for example batteries, if included) cannot be disposed of alongside with household waste. In order to dispose of the devices or its components (for example, batteries) deliver the device to the collection point, where it will be accepted free of charge. Disposal is subject to the recast version of the W EEE Directive (2012/19 / EU) and the Directive on batteries and accumulators (2006/66 / EC). Proper disposal of the device prevents degradation of the natural environment. Information about the collection points of the facilities is issued by the competent local authorities. Incorrect disposal of waste is subject to penalties provided for by the law in force in the given area.
