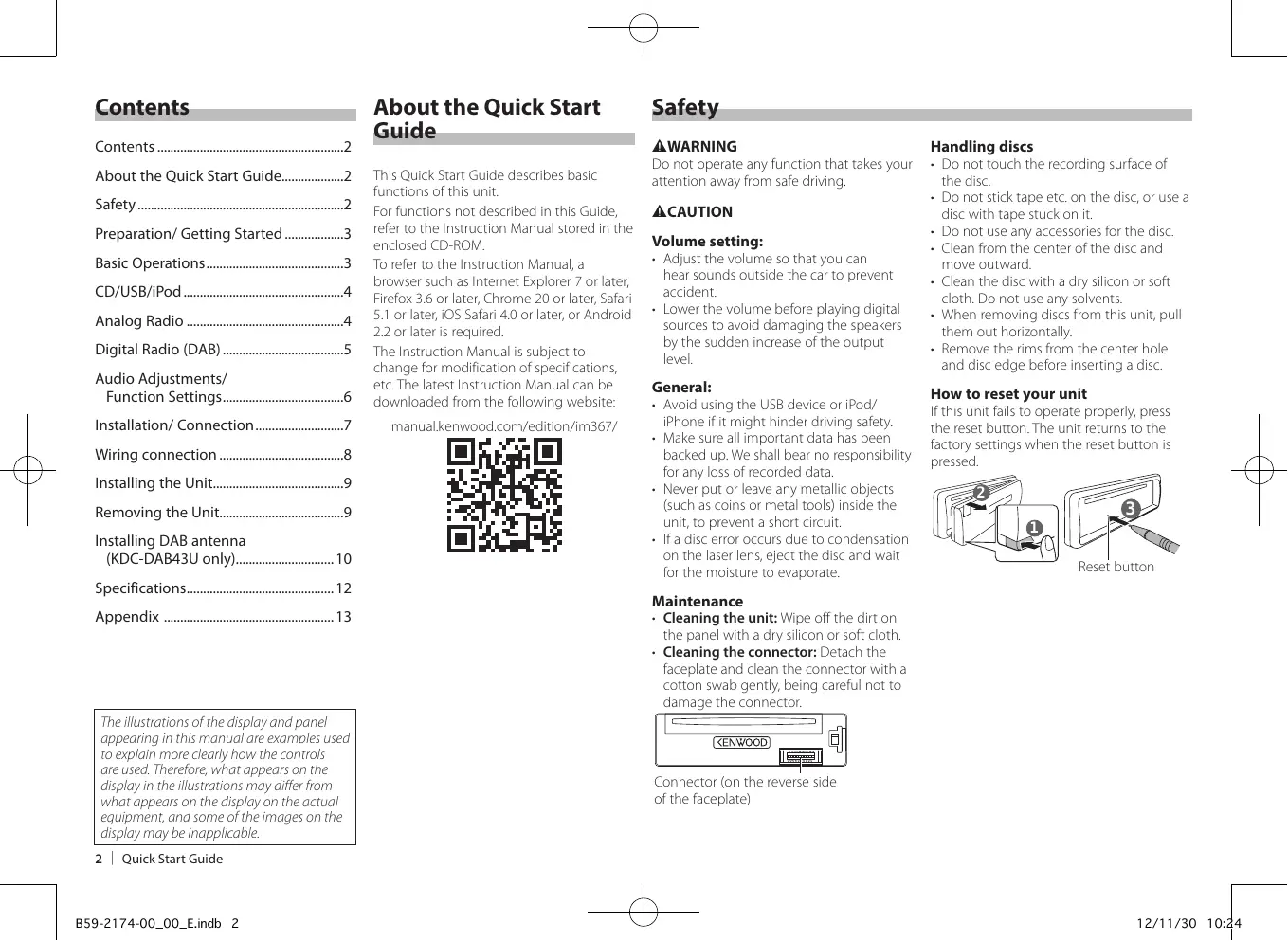

About the Quick Start Guide

Audio Adjustments/ Function Settings6

This Quick Start Guide describes basic functions of this unit. For functions not described in this Guide, refer to the Instruction Manual stored in the enclosed CD-ROM. To refer to the Instruction Manual, a browser such as Internet Explorer 7 or later, Firefox 3.6 or later, Chrome 20 or later, Safari 5.1 or later, iOS Safari 4.0 or later, or Android 2.2 or later is required. The Instruction Manual is subject to change for modification of specifications, etc. The latest Instruction Manual can be downloaded from the following website:

Installation/ Connection7

The illustrations of the display and panel appearing in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the display in the illustrations may differ from what appears on the display on the actual equipment, and some of the images on the display may be inapplicable.

#WARNING Handling discs

• Adjust the volume so that you can hear sounds outside the car to prevent accident. • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

• Do not touch the recording surface of the disc. • Do not stick tape etc. on the disc, or use a disc with tape stuck on it. • Do not use any accessories for the disc. • Clean from the center of the disc and move outward. • Clean the disc with a dry silicon or soft cloth. Do not use any solvents. • When removing discs from this unit, pull them out horizontally. • Remove the rims from the center hole and disc edge before inserting a disc.

How to reset your unit

Do not operate any function that takes your attention away from safe driving.

#CAUTION Volume setting:

• Avoid using the USB device or iPod/ iPhone if it might hinder driving safety. • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. • Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit. • If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

If this unit fails to operate properly, press the reset button. The unit returns to the factory settings when the reset button is pressed.

• Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. • Cleaning the connector: Detach the faceplate and clean the connector with a cotton swab gently, being careful not to damage the connector.

Connector (on the reverse side of the faceplate)

2 | Quick Start Guide

B59-2174-00_00_E.indb 2

Preparation/ Getting Started

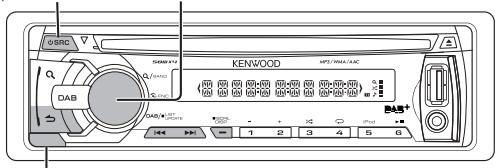

Turns the power ON Auxiliary input

Detaches the faceplate

How to read this manual

Cancel the display demonstration

How to attach/detach the faceplate

When you turn on the power (or after you reset the unit), the display shows: “CANCEL DEMO” X “PRESS” X “VOLUME KNOB” 1 Press the volume knob. “YES” is selected for the initial setting.

Operations explained mainly using buttons on the faceplate. • [ ] indicates the buttons on the panel. • XX indicates the selected items. 2 1 2

• Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing. • Keep the faceplate in its casing while detached. • The faceplate is a precision component of the unit and can be damaged by shocks or jolts. • To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers.

The display demonstration is always turned on unless you cancel it.

2 Press the volume knob again. “DEMO OFF” appears.

• If no operation is done for about 15 seconds or if you turn the volume knob to select “NO” in step 2, “DEMO MODE” appears and the display demonstration starts.

1 Press [SCRL DISP] repeatedly to select the clock.

2 Press and hold [SCRL DISP] to enter clock adjustment mode.

3 Turn the volume knob to adjust the hour, then press to enter minute adjustment.

4 Turn the volume knob to adjust the minute, then press the knob. –– Press [E] / [F] to move between the hour and minute adjustment.

Turning the power ON/OFF Press [8SRC] to turn the power on. Press and hold [8SRC] to turn the power off.

Press [8SRC] repeatedly to select your desired source. Digital radio (“DAB”) Á Analog radio (“TUNER”) Á USB or iPod (“USB” or “iPod”) Á CD (“CD”) Á Auxiliary input (“AUX”) Á Standby (“STANDBY”)

Adjusting the volume

Turn the volume knob to adjust the sound volume.

Press [SCRL DISP] repeatedly to select an information.

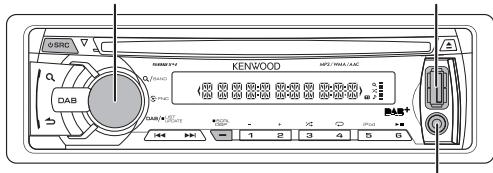

1 Open the cover. 2 Connect a portable audio device

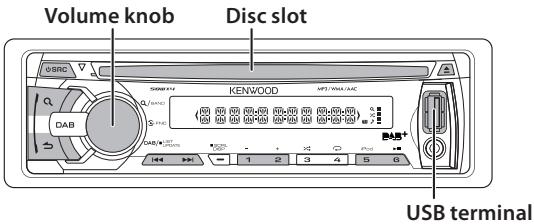

1 Open the cover. 2 Connect a USB device or iPod to the

USB terminal. (USB terminal Maximum Supply current: DC 5 V = 1 A) USB device

USB device (commercially available)

CA-U1EX (500 mA Max.: optional accessory) is recommended to connect a USB device. iPod

KCA-iP102 connector (optional accessory) is required to connect an iPod. English | 3

USB terminal Playing a disc

Insert a disc in the Disc slot. Playback starts automatically.

Playing a USB device or iPod

Connect a USB device or iPod to the USB terminal. The source automatically switches, and playback starts.

Selecting an audio file folder Press [1 –] or [2 +].

Fast-forwarding or fast-backwarding a Song Press and hold [E] or [F].

Pause and play Press [6 L].

Selecting App & iPod Control Mode

Press [5 iPod] repeatedly to select the control mode. MODE ON : From the iPod *. “APP&iPod” appears on the display. MODE OFF : From the unit. * You can still select an audio file, play/ pause and fast-forward/fast- reverse a song of audio file in the iPod from the unit.

1 Press [ 1 ] to enter Music Search mode.

folder/ track/ file, then press the knob. –– To skip songs, press [E]/ [F]. Holding [E]/ [F] for 3 seconds or longer skips songs at 10% regardless of the selected skip ratio. This operation is effective only for the iPod, KME-Light/ KMC media. –– To return to the root folder (audio file), top menu (iPod, KME-Light/ KMC media) or first track (audio CD), press [5]. –– To return to the previous folder, press [ 6 ]. To cancel the Music search mode Press and hold [ 6 ].

Press [G] to eject a disc.

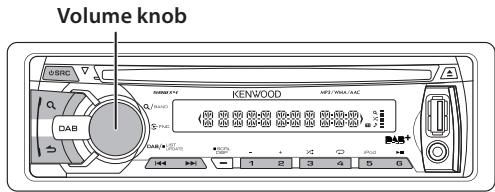

Removing the USB device or iPod

1 Press [8SRC] to select a source other than “USB” or “iPod”.

2 Remove the USB device or iPod.

Search for a service

1 Press [8SRC] to select TUNER. 2 Press [ 1 ] repeatedly to select a band (FM1, FM2, FM3, MW/LW).

3 Press [E] / [F] to select a station.

–– The tuning mode can be changed. Refer to <SEEK MODE> (page 4).

Station Preset Memory

Press and hold [1] to [6] to memorize the current station.

Recall the stations in the memory

Press [1] to [6] to recall memorized station.

Changing the analog radio settings

1 Press the volume knob to enter Function mode.

SEEK MODE Selectable setting (Preset: *) AUTO1 *: Automatically search for a station. ; AUTO2: Search in the order of the stations in the preset memory. ; MANUAL: Manually search for a station. AUTO YES: Automatically starts memorizing 6 MEMORY stations with good reception. ; NO: Disables automatic memorization. MONO SET ON: Improves the FM reception (but the stereo effect may be lost). ; OFF *: Does not improve FM reception but resumes stereo effect. (Not applicable if “MW/LW” is selected) TI ON *: Temporarily switches to Traffic Information. ; OFF: Does not switch to Traffic information (Not applicable if “MW/LW” is selected) • For details, see the Instruction Manual.

Press and hold [DAB] to start Service List update. “LIST UPDATE” appears and update starts. “UPDATED” appears when update completes. Press and hold [DAB] to cancel Service List update.

Search for a service

1 Press [DAB] to enter DAB source. 2 Press [ 1 ] repeatedly to select a band (DB1, DB2, DB3).

3 Press and hold [E] / [F] to search for an ensemble.

4 Press [E] / [F] to select an

ensemble, service or component to listen. –– The tuning mode can be changed. Refer to <SEEK MODE> (page 5).

Service Preset Memory

Press and hold [1] to [6] to memorize the current service.

Recall the service in the memory

Press [1] to [6] to recall memorized service.

Alphabet Search for service

1 Press [DAB] to enter Service Search

1 Press [DAB] to enter Service Search

2 Turn the volume knob to select a

2 Press [ 1 ] to enter Alphabet Search

service, then press the knob. –– To skip a character at a time, press [E] / [F]. –– Turning the volume knob fast in the Service Search mode allows you to enter the alphabet search mode. –– “NO LIST” appears when no Service List is obtained. To cancel the Service Search mode Press [ 6 ].

mode. “< ABCDEFGHIJK >” appears.

3 Turn the volume knob to select the

character to be searched for. –– Press [E] / [F] to scroll up or down by a page.

4 Press the volume knob to start

searching. After this step, see step 2 of <Selecting a service> (page 5) to select a service. To cancel the Alphabet search mode Press [ 1 ]. To cancel the Service Search mode Press [ 6 ].

Changing the digital radio settings

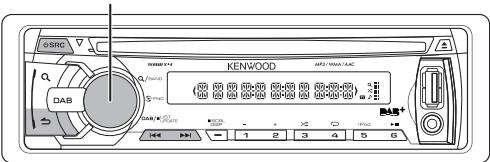

1 Press the volume knob to enter Function mode.

4 Press and hold [ Item SEEK MODE

Selectable setting (Preset: *)

Press E/ F Press and hold E/ F Automatically AUTO1 * Select an ensemble, service searches for an ensemble. or component. AUTO2 Search in the order of the services in — the preset memory. Manually search MANUAL Select an ensemble, service for an ensemble. or component. TI ON *: Temporarily switches to Traffic Information. ; OFF: Does not switch to Traffic information • For details, see the Instruction Manual.

B59-2174-00_00_E.indb 5

Audio Adjustments/ Function Settings SETTINGS Item

AUX NAME Volume knob

Selectable setting (Preset: *) AUX */ DVD/ PORTABLE/ GAME/ VIDEO/ TV: Select the desired name for the connected component. (Selectable only if “AUX” is selected as the source.)

1 Press [8SRC] to select a source.

• For details, see the Instruction Manual. AUDIO CTRL Item Selectable setting (Preset: *) SUB-W LEVEL –15 — 0 * — +15: Adjust the subwoofer output level. BASS LEVEL –8 — 0 * — +8: Source tone memory: Adjust the level to memorize in each source. (Before making an adjustment, select the source you want to adjust.) MID LEVEL TRE LEVEL EQ PRO See the Instruction Manual. PRESET EQ NATURAL */ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Select a preset sound mode suitable to the music genre. (Select [USER] to use the customized bass, middle, and treble settings.) BASS BOOST B.BOOST LV1/ B.BOOST LV2/ B.BOOST LV3: Select your preferred bass boost level. ; B.BOOST OFF *: Disables level selection. LOUDNESS LOUD LV1 */ LOUD LV2: Select your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; LOUD OFF: Disables level selection. BALANCE L15 — 0 * — R15: Adjust the left and right speaker output balance. FADER R15 — 0 * — F15: Adjust the rear and front speaker output balance. SUB-W SET ON *: Turns on the subwoofer output. ; OFF: Turns off the subwoofer output. DETAIL SET See the Instruction Manual. • “SUB-W LEVEL” is selectable only if “SUB-W SET” is set to “ON”. • “SUB-W LEVEL”/ “SUB-W SET” is selectable only if “SWITCH PRE” is set to “SUB-W”. 6 | Quick Start Guide

B59-2174-00_00_E.indb 6

1. Turn the volume knob to adjust the hour, then press to enter minute adjustment. Clock minutes flashes on the display. 2. Turn the volume knob to adjust the minute, then press the knob. Press [E] / [F] to move between the hour and minute adjustment. TIME SYNC ON *: The clock time is automatically set using the Clock Time (CT) data in DAB signal. ; OFF: Cancels. DISP & KEY (for KDC-DAB43U) COLOR SEL VARI SCAN */ COLOR 01 – COLOR 24/ USER: Selects your preferred key illumination color. DISP DIMMER ON: Dims the display illumination. ; OFF *: Does not dim. TEXT SCROLL AUTO */ ONCE: Select to scroll the display information automatically, or scroll only once. ; OFF: Disables scroll function. KEY DIMMER LV1: Dims the key illumination. ; LV2: Dims the key illumination darker than LV1. ; OFF *: Does not dim. DISPLAY (for KDC-DAB4557U) DISP DIMMER ON: Dims the display illumination. ; OFF *: Does not dim. TEXT SCROLL AUTO */ ONCE: Select to scroll the display information automatically, or scroll only once. ; OFF: Disables scroll function.

INITIAL SET Item Selectable setting (Preset: *) PRESET TYPE See the Instruction Manual. KEY BEEP ON */ OFF: Activates/deactivates tone emission when a key is pressed. RUSSIAN SET ON: Displayed in Russian (if applicable). (Folder name/ file name/ song title/ artist name/ album name) ; OFF *: Not displayed in Russian. P-OFF WAIT Set the duration until the unit will automatically turns off (while in standby mode) to save the battery. ––– : Cancels ; 20M *: 20 minutes ; 40M: 40 minutes ; 60M: 60 minutes BUILTIN AUX ON *: Enables “AUX” in source selection. Sound of the connected external component is produced through the car speakers. ; OFF: Disables “AUX” in source selection. CD READ 1 *: Automatically distinguishes between audio file disc and music CD. ; 2: Forces to play as a music CD. No sound can be heard if an audio file disc is played. DAB L-BAND ON: Receives L-BAND ensemble with DAB source. ; OFF *: Set when there is no L-BAND broadcast station. Ensemble search and Service List information update will be faster. DAB ANT PWR ON *: Supplies power to the DAB antenna. Set when using the antenna included with KDC-DAB43U. ; OFF: Does not supply power. Set when using passive antenna without booster. SWITCH PRE REAR */ SUB-W: Select whether rear speakers or a subwoofer are connected to the line out terminals on the rear of the unit (through an external amplifier). SP SELECT OFF * / 5/4 / 6×9/6 / OEM: Select the speaker size for optimum performance. F/W UPDATE See the Instruction Manual.

Installation/ Connection Part list for installation:

A Faceplate (×1) B Trim plate (×1) C Mounting sleeve (×1) D Wiring harness (×1) E Extraction key(×2) F DAB antenna film *1 (×1) G DAB antenna amplifier *1 (×1) H Cord clamper *1(×3) I Cleaner *1 (×1) *1 KDC-DAB43U only

1 Remove the key from the ignition switch, then disconnect the ¤ terminal of the car battery.

2 Install the DAB antenna.

X <Installing DAB antenna (KDC-DAB43U only)> (page 10)

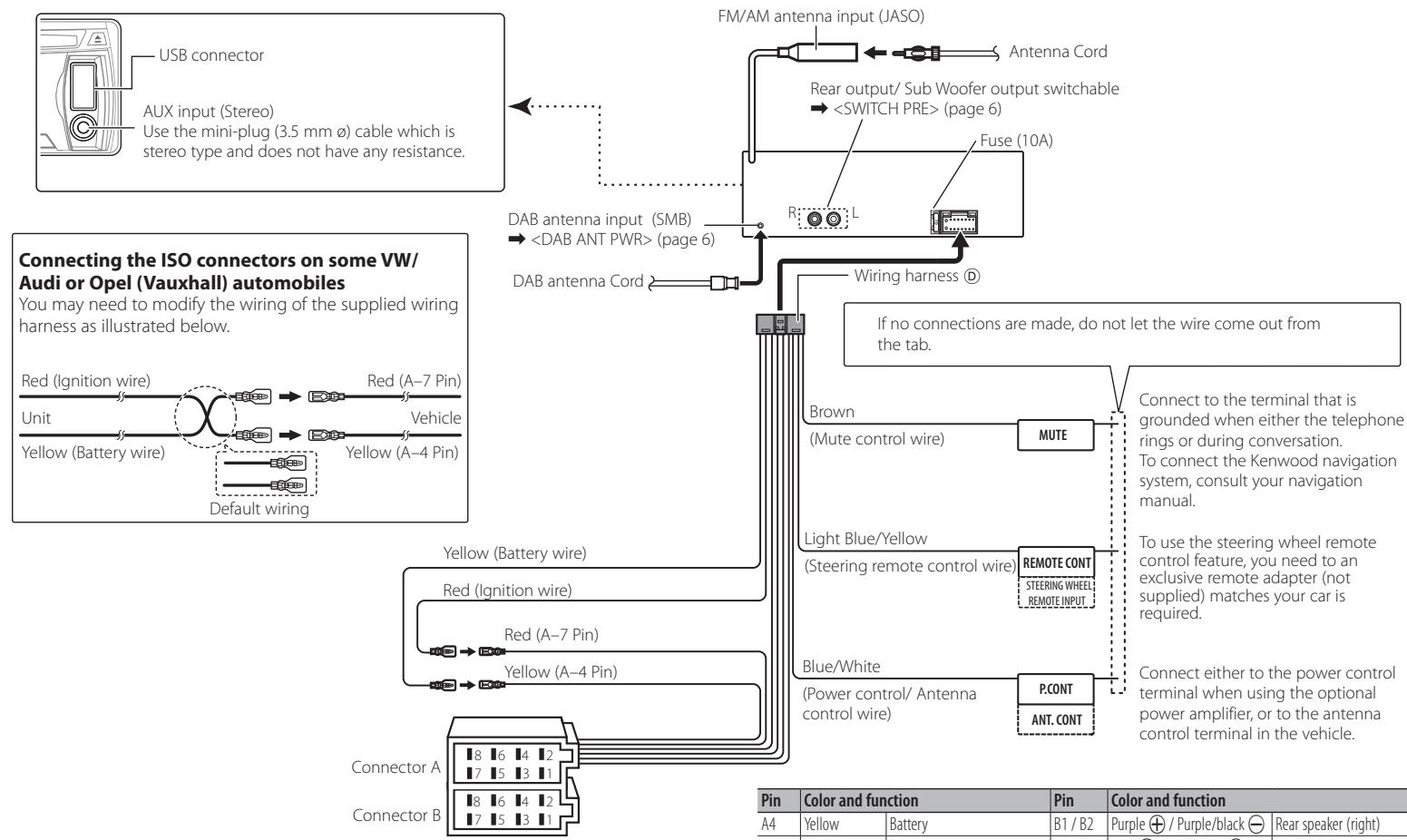

3 Make proper input and output wire connections. X <Wiring connection> (page 8)

4 Install the unit to your car.

X <Installing the Unit> (page 9)

5 Reconnect the ¤ terminal of the car battery.

6 Reset the unit. (page 2)

!WARNING • The unit can only be installed in a car with a 12 V DC power supply, negative ground. • If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. • Disconnect the battery’s negative terminal and make all electrical connections before installing the unit. • Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals. • Be sure to ground this unit to the car’s chassis again after mounting. • If the power is not turned ON (“PROTECT” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

!CAUTION • If your car’s ignition key switch does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wires to a constant-voltage power source, as with battery wires, the battery may die. • Do not use your own screws. Use only the screws provided. • Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid of the console (if any) when closing and opening. • After the installing the unit, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. • Mount the unit so that the mounting angle is 30° or less. • If the fuse blows, first make sure the wires are not touching other parts to cause a short circuit, and then replace the old fuse with one with new one with the same rating. • Connect the speaker wires correctly to the corresponding terminals. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car. • When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). • Mounting and wiring this product requires skills and experience. For safety’s sake, leave this work to professionals. If you experience problems during installation, consult your Kenwood dealer.

! CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. English | 7

B59-2174-00_00_E.indb 7

AUX input (Stereo) Use the mini-plug (3.5 mm ø) cable which is stereo type and does not have any resistance.

R DAB antenna input (SMB) X <DAB ANT PWR> (page 6)

Connecting the ISO connectors on some VW/ Audi or Opel (Vauxhall) automobiles

L Wiring harness D DAB antenna Cord

You may need to modify the wiring of the supplied wiring harness as illustrated below. Red (Ignition wire)

If no connections are made, do not let the wire come out from the tab.

Connect to the terminal that is grounded when either the telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required.

Color and function Yellow Battery Blue/White Power control Red Ignition (ACC) Black Earth (ground) connection

P.CONT ANT. CONT Pin B1 / B2 B3 / B4 B5 / B6 B7 / B8

Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle.

Color and function Purple ¢ / Purple/black ¤ Gray ¢ / Gray/black ¤ White ¢ / White/black ¤ Green ¢ / Green/black ¤

Rear speaker (right) Front speaker (right) Front speaker (left) Rear speaker (left)

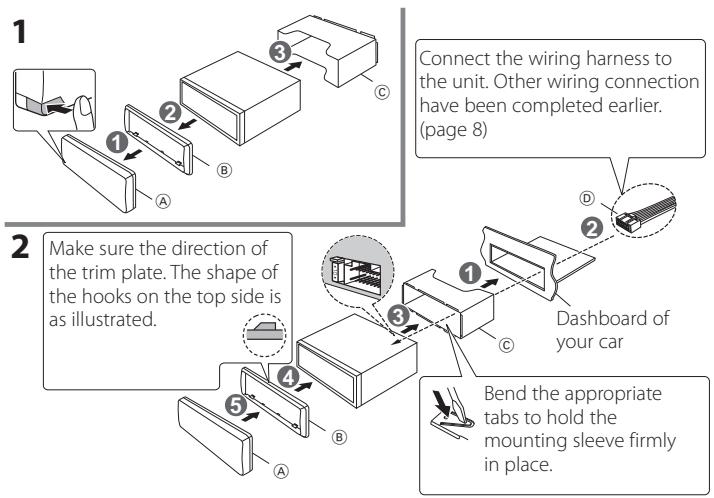

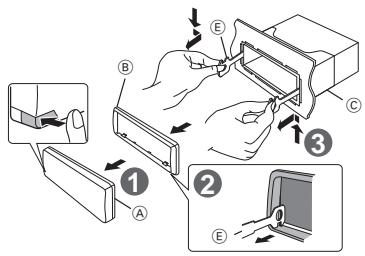

Removing the Unit 1 Detach the faceplate A. 2 Engage the catch pin on the

Connect the wiring harness to the unit. Other wiring connection have been completed earlier. (page 8)

Make sure the direction of the trim plate. The shape of the hooks on the top side is as illustrated.

extraction key E into the holes on both sides of the trim plate B, then pull it out. Insert the extraction key E deeply into the slots on each side, then follow the arrows instructions as shown on the right.

B A Dashboard of your car

Bend the appropriate tabs to hold the mounting sleeve firmly in place.

B59-2174-00_00_E.indb 9

Installing DAB antenna (KDC-DAB43U only) !CAUTION • This film antenna is exclusively for use inside the vehicle. • Do not install at the following locations: –– Where it may block driver’s view –– Where it may obstruct operation of safety devices such as air bags –– On movable glass surface such as rear hatch • Signal strength will decrease at the following locations: –– On IR reflecting glass or where covered with mirror type glass film –– Where it overlaps with genuine radio antenna (pattern) –– Where it overlaps with window heating wires –– At side of vehicle (e.g. door, front quarter window) –– On rear window –– When glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass) is used –– Reception may decrease due to noise when windshield wiper, air conditioner, or motor is operating. –– Reception may decrease depending on the direction of the broadcast station with respect to the vehicle (antenna). • Be sure to check the installation location of film antenna F before installing. Film antenna cannot be re-pasted. • Thoroughly wipe oil and dirt from the pasting surface with the included cleaner I. • Do not bend or damage the film antenna F. • Warm the pasting surface by turning on the heater for example, before applying. • It may not be possible to install on some type of vehicle.

• Check the cable routing of the film antenna F and amplifier G before pasting.

Installation overview

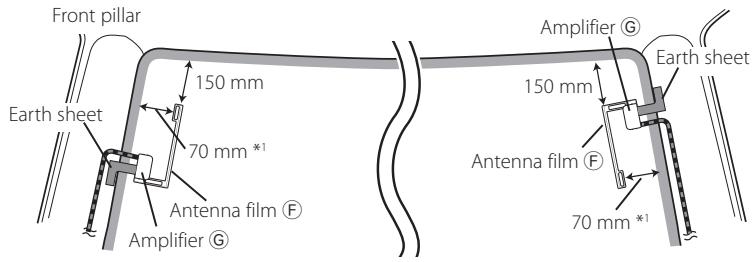

Determining the antenna installation location • When installing the antenna on the left side Front pillar

Antenna cable (3.5 m) The antenna should be installed on the passenger side for safety. Use cord clamper H to secure the antenna to the pillar at several locations. The direction of the antenna film F changes depending on whether the film antenna F is installed on the right side or left side. Separate the antenna film F from the ceramic line (black part) at the top of the front glass by 150 mm. Also, place it about 70 mm inside the ceramic line at the side end of the front glass. (where the earth sheet of the amplifier can be pasted on the metal part of the front pillar) Separate from other antennas by at least 100 mm. Do not paste the amplifier G on the ceramic line (black part) around the front glass. Because there is not enough adhesion.

Antenna film F Amplifier G Antenna film F 70 mm *1

• *1 Where the earth sheet of Amplifier G can be pasted on the metal part of the front pillar.

Antenna Installation

1 Check the installation location. 2 Wipe the area where antenna film F, amplifier unit G, and earth sheet are pasted with the included cleaner I. The coating on the metal surface need not be removed. –– Wait until the glass surface is completely dry before pasting. –– If the glass surface is cold, such as during winter, warm it with defroster or dryer.

3 Remove the separator (tag I) of

antenna film F horizontally and paste the antenna on the front glass.

–– Remove the separator gently. –– Do not touch the pasting surface (adhesive side) of the antenna film F.

10 | Quick Start Guide

4 Remove the separator (tag II) of

antenna film F vertically and paste the antenna gently while applying pressure.

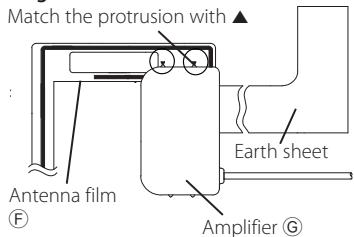

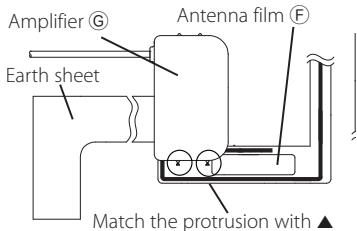

7 Match the protrusion of the amplifier

G with the R on the antenna film F and paste. –– Do not touch the feeder terminal or the pasting surface (adhesive side) of the amplifier. • When installing the antenna on the right side Match the protrusion with R

8 Remove the film covering the earth

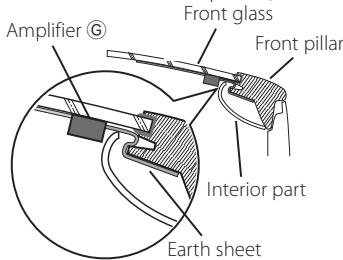

sheet and paste the earth sheet on the metal part of the vehicle. Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier G. Front glass Amplifier G Front pillar

Take the following precautions when passing the antenna cable inside the front pillar where the air bag is installed. • Install the amplifier part of the antenna cable in front or above the air bag so that the antenna and the air bag do not interfere.

5 After pasting, rub the element in the

glass surface in the direction of the arrow shown in the figure to bond it.

Earth sheet Antenna film

• When installing the antenna on the left side Antenna film F Amplifier G Earth sheet

6 Remove the application film (tag III).

–– Do not touch the feeder terminal of the element. Also, do not apply any glass cleaner.

Air bag Interior part

Match the protrusion with R Earth sheet

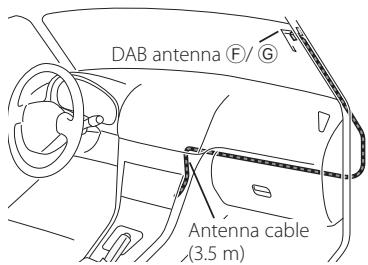

9 Wire the antenna cables.

Use cord clamper H to secure the antenna to the pillar at several locations.

Front pillar • The front pillar cover is secured with a special clip which may need to be replaced when the front pillar cover is removed. Contact your vehicle dealer for details on replacing the front pillar cover and availability of replacement parts.
