OVE 309 - Scale HYUNDAI - Free user manual and instructions

Product Type	Digital Scale
Model	OVE 309
Brand	Hyundai
Maximum Weight Capacity	180 kg (396 lb)
Division (Precision)	0.1 kg (0.2 lb)
Units of Measurement	kg, lb, st
Display Type	LCD
Platform Material	Tempered Glass
Power Supply	2 x AAA batteries (included)
Auto-Off Function	Yes, after 10 seconds of inactivity
Tare Function	Yes
Overload Indicator	Display shows "Err"
Low Battery Indicator	Display shows "Lo"
Dimensions (approx.)	30 x 20 x 2 cm
Net Weight (approx.)	0.5 kg
Safety Features	Non-slip feet, overloading protection
Maintenance & Cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Spare Parts Availability	Not available as separate parts
Repairability	Not user-serviceable; contact support
Warranty	2 years

Frequently Asked Questions - OVE 309 HYUNDAI

How do I change the batteries?

Open the battery compartment on the bottom of the scale. Remove old batteries and insert two new AAA batteries with correct polarity. Close the compartment.

How can I switch between kg, lb, and st?

Press the unit button (labeled 'UNIT' or 'kg/lb') on the side or bottom of the scale to cycle through kg, lb, and st.

What does 'Err' mean on the display?

'Err' indicates overload. The weight exceeds the maximum capacity of 180 kg. Remove the weight immediately to avoid damage.

What does 'Lo' mean?

'Lo' means low battery. Replace the batteries with new ones to ensure accurate measurements.

How do I clean the scale?

Use a soft, damp cloth to wipe the glass platform and body. Avoid using chemical cleaners, solvents, or submerging the scale in water.

Can I use the scale on carpet?

For accurate readings, place the scale on a hard, flat surface. Carpet may cause instability and inaccurate measurements.

How do I calibrate the scale?

The OVE 309 is pre-calibrated and does not require user calibration. If readings seem off, check batteries, surface, and ensure scale is zeroed before use.

What is the maximum weight?

The maximum weight capacity is 180 kg (396 lb). Do not exceed this limit to prevent damage.

How to store the scale?

Store the scale in a dry place, away from extreme temperatures. Remove batteries if not using for a long time.

What is the warranty period?

Hyundai offers a 2-year warranty for the OVE 309 scale. Keep your proof of purchase for claim.

USER MANUAL OVE 309 HYUNDAI

Simple line drawing of a flat surface with two supports and a numbered circle (3) above it, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

VÁŽI IHNEĐ: na váhu sa stačí postavit' - automaticky dôjde k zapnutiu a zváženi

UPOZORNĚNIE: Na mokrom povrchu nebezpečenstvo uklznutia!

V. PRAWODAWSTWO I EKOLOGIA

HOUSEHOLD USE ONLY – Tylko do zastosowania w gospodarstwie domowym. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS – Nie zanurzać do wody lub innych cieczy. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES

Silhouette of a boot pressing down on a mat with a ruler above it (no text or symbols)

Illustration of a foot stepping on a surface with a foot and a cross symbol (no text or labels)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance can use by people (including children) whose physical, sensual or mental inability or lack of experience and knowledge prevents safe use of the appliance if they are supervised.

- We recommend: Do not step onto the scale with wet feet or on wet surface of the scale, there is a risk of slipping.

- Never immerse the scale into water (even their parts)!

- If the scale was stored in lower temperatures, let it adjust to the room temperature.

- Do not stand on the edge of the scales!

- Use the scale in a horizontal position only and at places where they cannot knock over, in sufficient distance from heat sources (e.g. stove, fireplace, heat radiators), sources of increased air humidity (e.g. sauna, bathroom, swimming pool) and equipment with strong electromagnetic field (e.g. microwave oven, radio, mobile phone).

- Protect the personal scale from dust, chemicals, excessive humidity, toiletries, liquid cosmetic preparations, intensive temperature changes and do not expose them to direct sunlight.

- Do not place the scale on uneven surface or on surface covered with carpet. Unstable or soft surface under the scale can have negative effect on precision of weighing.

- In handling the scale, make sure injury of persons or damage of the appliance is prevented.

- Do not overload the appliance weight greater than the maximum weight capacity! This prevents damage to the appliance.

- Handle the scale with care. Do not throw them or jump on them. The scale is durable, but improper handling can destroy their electronic sensors.

- Do not disassemble the scale and do not take any parts out.

- Do not put any objects on the surface of the scale during storing, they could be damaged.

- If you do not intend to use the scale for a long time, remove battery from them.

- Do not use worn and new batteries together and do not use rechargeable accumulators.

- If the battery is leaking, remove it immediately; it can damage the scale.

- Dispose of a discharged battery in a suitable way (see par. ENVIRONMENTAL PROTECTION).

- Keep batteries and scale out of reach of children and incapacitated people. A person, who would swallow the batteries, must seek medical help immediately.

• Never use the appliance for any other purpose than for that described in these instructions for use!
• The producer is not responsible for damage caused by improper use of the appliance (e.g. breaking the board, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

II. PREPARATION FOR USE

Remove all the packing material and take the scale out. Remove all possible adhesion foils, stick-on labels or paper from the scale. Your scale is fine electronic equipment. One of the things that are most difficult to weigh is human body as it is always in motion. If you want to obtain reliable results, always try to step with your feet at the same place on the scale and stand still. Do not move or during weighting and if is possible use the same place for placement of weight. If possible, weigh yourself at the same time of a day (preferably in the morning) to obtain comparable results. Remember that excessive clothes can increase your weight as well as eating and drinking before weighing. Short-term weight fluctuation is generally attributed to loss of liquids.

Description of the controls (Fig 1)

P1. Button unit of scale
P2. Display
P3. Glass surface
P4. Batteries case cover

III. INSTRUCTIONS FOR USE

To replace battery

Open the battery cover on the bottom of the scale. Insert a battery with the right polarity and close the cover. Use AAA batteries (2 pcs) for this appliance. If you are not using the appliance for some time, take the batteries out!

Weighing

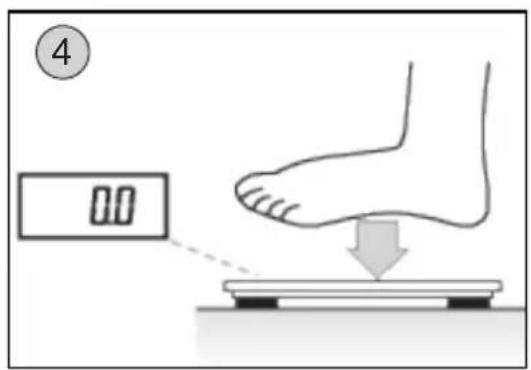

Switch on the scale by tapping on the board of the scale with your foot and wait till „0.0“ appears on the display (Fig. 4).

When „0.0“ appears on the scale, step on them and stand still.

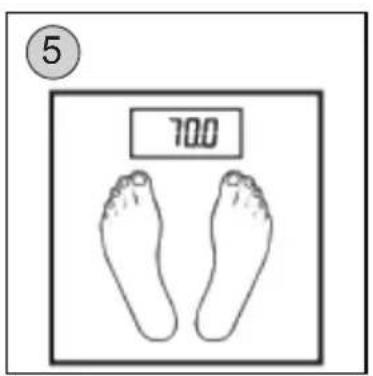

After a moment, the measured weight flashes and the value remains displayed for several seconds (Fig. 5). Then the scale are switched off automatically.

Notes

• Never step on the scale before „0.0“ is displayed.
• The scale is switched on automatically if you do not step on it within approx. 10 seconds after „0.0“ is displayed.
• We recommend using the scale from about 6 kg of the subject.

To convert weight unit (Fig 2)

Find unit switch on the back of scale. If you wish to set unit to lb or st, press the switch on the bottom of the scale.

• kg = kilogram 1 kg = 2.2 lb
• Ib = pound (British weight unit) 1 lb = 0.454 kg
• st = stone (American weight unit) 1 st = 6.356 kg

If you have problems with weight:

• Check whether the battery is inserted properly.
• Check whether you selected the proper weight unit.
• Check whether the scale is on a flat floor and they do not touch the wall.
• If nothing appears on the scale when you want to switch them on by tapping on them or if „Lo“ appears only, replace the battery.
• If „Err“ appears on the display, the scale was overloaded.
• If unusual signs are displayed, remove the insert the battery again.
• If signs appear, such as if the display is flashing or if there is a faulty sign, try to move the scale away from the influence of a source of interference or ensure switching off the source for the time of using the scale.

CLEANING AND MAINTENANCE

Do not use coarse and aggressive cleaning agents (e.g. sharp objects, scrapers, diluting agents or other solvents). Clean the board by wiping with a soft wet cloth.

Make sure that water does not get inside the appliance.

IV. TECHNICAL SPECIFICATIONS

– Capacity 180 kg; Graduation 100 g
- Size: 30.0 x 30.0 cm
– Protection class III, CE Certification

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

V. LEGISLATIVE & ECOLOGY

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Never dispose of the battery by burning!

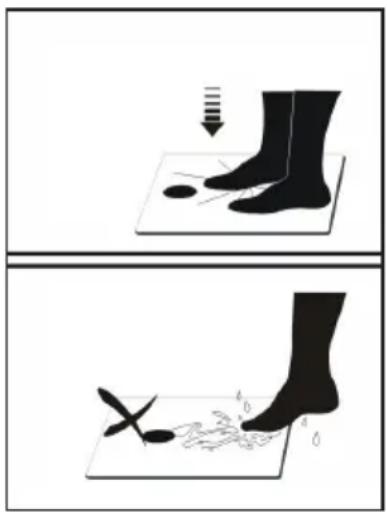

AUTO STEP ON – just step on the scale and stand still, the scale will automatically turn ON and start taking measurements.

WARNING: Slippery when wet!

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG

AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

WIEGEN SOFORT:
