Product Type	Electronic personal glass scale
Model	OVE 905BL (Blue)
Brand	Hyundai
Capacity	150 kg (330 lb)
Graduation	100 g (0.1 kg)
Platform Material	6 mm tempered glass
Power Source	1 x CR2032 3V lithium battery (included)
Auto Power On	Step on to activate (auto step-on)
Auto Power Off	Automatic after 10 seconds of inactivity
Unit Conversion	Switch between kg and lb via back switch
Indicators	Overload indicator, low battery indicator, auto zero
Usage Surface	Hard, flat surface; not on carpet
Cleaning	Wipe with slightly damp cloth; do not immerse
Dimensions (L x W x H)	30.2 x 30.2 x 3.3 cm
Weight	1.6 kg
Safety Features	Use on dry, non-slip surface; do not step on edge

Frequently Asked Questions - OVE 905BL HYUNDAI

How do I replace the battery in my Hyundai OVE 905BL scale?

Open the battery cover on the back. If it's the type with a small black tab, bend the tab outward to release the old battery. Insert a new CR2032 3V lithium battery with correct polarity (one side under the contact, then press down). Close the cover.

Why does my scale show 'LO' on the display?

'LO' indicates a low battery. Replace the CR2032 battery with a new one. If the issue persists, check battery polarity and contact cleanliness.

How can I switch between kilograms and pounds?

Find the unit switch on the back of the scale. Slide it left or right to toggle between kg and lb.

What should I do if the scale shows 'C' after stepping off?

'C' means a measurement error. Step on the scale again, stand still, and wait for a stable reading. Ensure the scale is on a flat surface and you are centered.

Why doesn't the scale turn on when I step on it?

Check that the insulation sheet from the battery contact has been removed. Verify battery is installed correctly. If still no display, try a fresh CR2032 battery. Also ensure the scale is on a hard, flat surface.

Can I use the scale on carpet?

No. The scale must be placed on a hard, flat surface like tile or wood. Carpet can cause inaccurate readings and damage the scale.

How do I clean the glass surface?

Use a dry or slightly damp soft cloth. For stubborn dirt, use mild detergent. Do not immerse the scale in water, and avoid chemical/abrasive cleaners like alcohol or benzene.

What does the overload indicator mean?

If you see an overload message (e.g., 'EEEE'), the weight exceeds the maximum 150 kg capacity. Step off immediately to avoid damage.

Why does the scale give inconsistent readings?

Ensure the scale is on a level, hard surface. Weigh at the same time of day, without clothing or footwear. Avoid using near strong electromagnetic fields or on uneven floors. If moved, allow a few uses for stabilization.

Is the scale safe for use in a bathroom?

The scale should not be used on wet or slippery floors. Keep the platform dry to prevent slipping. Avoid placing near water sources. Clean with a damp cloth only.

USER MANUAL OVE 905BL HYUNDAI

OVE 905S, 905B, 905BL

Digital kitchen glass with a digital display showing 17.9 kg weight, placed on a square base (no text or symbols visible on the device itself)

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL

Simple diagram of a horizontal beam supported at the base of a rectangular block (no text or symbols)

Automatické vypnutí

Simple line drawing of a square meter with four legs and a central screen, no text or symbols present.

Poznámka:

Odstraňování poruch

Varovné indikátory

Simple diagram of a horizontal beam supported at the base of a rectangular frame (no text or symbols)

Simple line drawing of a square meter with four legs and a central screen, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Simple line drawing of a rectangular object resting on a surface with two small blocks at the base (no text or symbols)

Simple line drawing of a square meter with four legs and a central screen, no text or symbols present.

Uwaga:

Usuwanie usterek

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General Safety Instructions

• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.
• If you should leave the workplace, always switch the machine off.
• Do not try to repair the appliance on your own. Always contact an authorized technician.
• Pay careful attention to the following "Special Safety Instructions for this unit".

Special safety instructions for this unit

• Operate the appliance only in accordance with the specifications on the rating plate.
• Do not put the appliance on the wet places.
• Clean the scale with a slightly damp cloth. Do not immerse the scale in the water or use chemical / abrasive agents.
  • Always use the scael on a hard, flat surface. DO NOT use on carpet
• DO NOT use the scale on wet and slippery floor. DO NOT step on the edge of the scale. The scale platform is slippery when wet. Keep it dry!.
• Always weigh yourself with the same scales places on the same surface. Uneven floors may affect the reading.
• Weigh yourself without clothing and footwear, before meals and always at the same time of day.
• To make sure accuracy of testing, please DO NOT use the scale in environment with strong electro-magnetic field.
• DO NOT use the scale on wet and slippery floor. DO NOT step on the edge of the scale. The scale platform is slippery when wet. Keep it dry!
  • DO NOT use this scale on a place with intense shake. Keep stand still on scale when testing.
• Do not drop the device, or jump on the device when using. Avoid strong impact and sudden shake as it is a precision measuring device. The construction is delicate and sensitive to all unwanted external impact.
• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

Description of the controls

P1. Unit of scale
P2. Display
P3. Glass surface

Instructions for Use

1 pc of lithium battery (CR2032).

Please remove the isolation sheet from the battery contact before use. Please take note to the polarity.

To replace battery

Open battery case cover on the back of scale, if battery case is the type shown in picture.

Bend the small black tab outwards and the battery will come out .Take note not to bend the contact.

Install new battery by putting one side of the battery beneath the contact and then pressing down the other side.

Operation

Put the scale on a hard and flat surface (avoid carpet or soft surface).

Simple diagram of a platform with two base stations, no text or symbols present

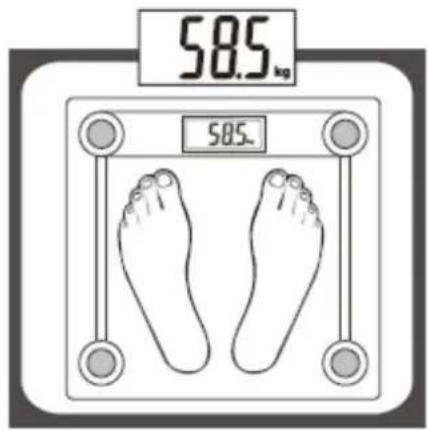

Gently step on the scale, then the scale will be automatically turned on. Stand evenly on the scale without moving and wait until your weight shown on display is stable and locked.

Automatic switch off

When you step off the scale, it will automatically switch off.

Auto shut-off occurs if display shows

„0.0“ or shows the same weight reading for approximate 10 seconds.

Simple line drawing of a square frame with four circular holes and a central rectangular element (no text or symbols)

Note:

If the scale was moved to new place, it may cause some error for he first times.

To convert weight unit

Find unit switch on the back of scale. Pull left or right the unit switch to convert scale unit between kg - lb.

Troubleshooting

Error and other LCD message

LCD may show occasionally error message. Simply turn off the unit for a brief moment, or remove and re-install battery as a total re-set. Then turn on again to resume operation.

If, when you tap the scale to activate it, there is no display at all or „LO“ is displayed- try two new batteries.

Scale overload.

Please step off to avoid damage.

Display shows „C“ when you step off the scale, means this reading with error. Please re-test.

Troubleshooting guide

• Check the rights position of battery and the polarity.
• When warning indicator shows „Lo“ replace the battery.
• Check whether the scale is on a flat, level floor and not touching against a wall.
• Ensure whether you do not step on the scale until the display shows „0.0kg“.

Cleaning and Maintenance

1) Use a dry, soft fabric to clean the device. Or a lightly damp soft fabric with mild detergent to wipe clean the device. Do not use strong chemical solution such as alcohol, benzene for cleaning.
2) It could be slippery when the unit platform surface is wet, or semi-damp. Ensure the weighing platform surface is dry before using for safety reason.

Technical specifications

• Electronic personal glass scale
• Capacity 150 kg
• Graduation 100 g
• 6 mm tempered glass surface
• New system of turning ON the scale AUTO STEP ON – just step on the scale and stand still, the scale will automatically turn ON and start taking measurements.
• Auto off, auto zero
• Overload indicator
• Low battery indicator
• Batteries operated 1 x CR 2032 3V Lithium (included)
• Color. silver (905S), black (905B), blue (905BL)
• Size: 30,2 x 3,3 x 30,2 cm
• Weight: 1,6 kg

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are repairable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible

negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.
