OVE 905S - Scale HYUNDAI - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	Hyundai
Model	OVE 905S
Weight Capacity	180 kg (396 lb)
Graduation	0.1 kg (0.2 lb)
Display Type	LCD
Units	kg / lb / st
Auto Off	Yes, after approx. 10 seconds
Low Battery Indicator	Yes
Power Source	2 x CR2032 batteries (included)
Platform Material	Tempered Glass
Platform Size	30 x 30 cm
Product Dimensions	32 x 32 x 2.5 cm
Product Weight	1.5 kg
Color	White
Overload Protection	Yes
Step-On Technology	Instant start
Non-Slip Feet	Yes
Safety Glass	Yes
Cleaning	Wipe with damp cloth
Repair	Not user-serviceable; contact support
Warranty	2 years

Frequently Asked Questions - OVE 905S HYUNDAI

How do I change the battery in my Hyundai OVE 905S scale?

Remove the battery cover on the bottom. Replace with two CR2032 batteries, ensuring correct polarity. Close the cover.

What is the maximum weight the scale can measure?

The maximum weight capacity is 180 kg (396 lb). Do not exceed this limit to avoid damage.

Why does my scale show 'Err' on the display?

'Err' indicates overload or unstable measurement. Remove weight and step on again. If persists, check batteries or contact support.

How should I clean the scale?

Use a damp cloth to wipe the glass surface. Do not use abrasive cleaners or immerse in water.

Can I use the scale on carpet?

For best accuracy, place the scale on a hard, flat surface. Carpet may cause inaccurate readings.

How do I switch between weight units?

Press the UNIT button on the back of the scale to toggle between kg, lb, and st.

What does the low battery indicator look like?

A battery icon or 'LO' will appear on the LCD. Replace batteries when visible.

Is the scale accurate?

Yes, with a graduation of 0.1 kg for consistent precision. Calibration may drift over time.

How should I store the scale?

Store in a dry place at room temperature. Avoid exposure to extreme heat or moisture.

What if the scale doesn't turn on?

Check batteries for correct installation and charge. If still off, try new batteries or contact support.

USER MANUAL OVE 905S HYUNDAI

OVE 905S, 905B, 905BL

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL

Automatické vypnutí

Poznámka:

Odstraňování poruch

Varovné indikátory

Uwaga:

Usuwanie usterek

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

General Safety Instructions

• The appliance is designed exclusively for private use and for the envisaged purpose.
  • This appliance is not fit for commercial use.
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands.
• If you should leave the workplace, always switch the machine off.
• Do not try to repair the appliance on your own. Always contact an authorized technician.
• Pay careful attention to the following "Special Safety Instructions for this unit".

Special safety instructions for this unit

• Operate the appliance only in accordance with the specifications on the rating plate.
• Do not put the appliance on the wet places.
• Clean the scale with a slightly damp cloth. Do not immerse the scale in the water or use chemical / abrasive agents.
  • Always use the scael on a hard, flat surface. DO NOT use on carpet
• DO NOT use the scale on wet and slippery floor. DO NOT step on the edge of the scale. The scale platform is slippery when wet. Keep it dry!.
• Always weigh yourself with the same scales places on the same surface. Uneven floors may affect the reading.
• Weigh yourself without clothing and footwear, before meals and always at the same time of day.
• To make sure accuracy of testing, please DO NOT use the scale in environment with strong electro-magnetic field.
• DO NOT use the scale on wet and slippery floor. DO NOT step on the edge of the scale. The scale platform is slippery when wet. Keep it dry!
  • DO NOT use this scale on a place with intense shake. Keep stand still on scale when testing.
• Do not drop the device, or jump on the device when using. Avoid strong impact and sudden shake as it is a precision measuring device. The construction is delicate and sensitive to all unwanted external impact.
• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

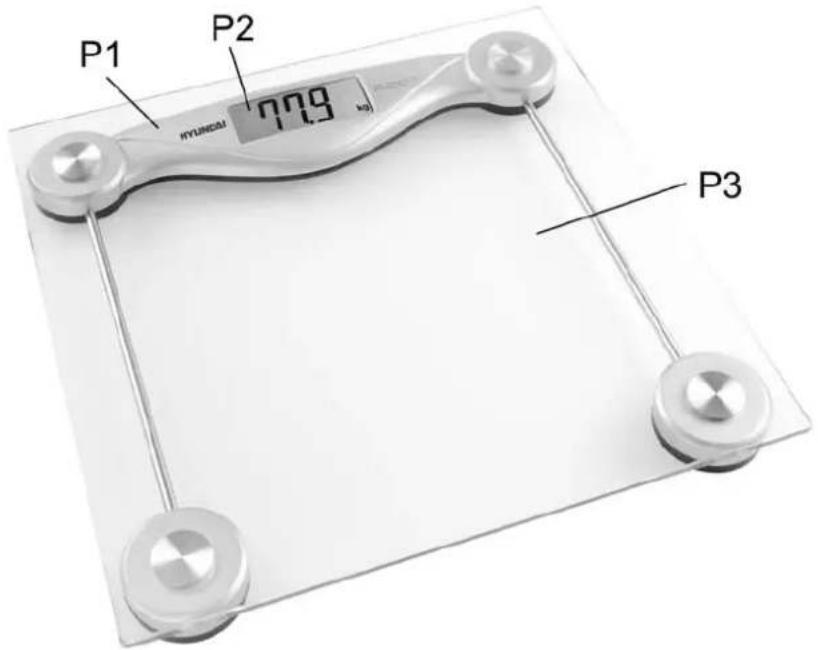

Description of the controls

P1. Unit of scale
P2. Display
P3. Glass surface

Instructions for Use

1 pc of lithium battery (CR2032).

Please remove the isolation sheet from the battery contact before use. Please take note to the polarity.

To replace battery

Open battery case cover on the back of scale, if battery case is the type shown in picture.

Bend the small black tab outwards and the battery will come out .Take note not to bend the contact.

Install new battery by putting one side of the battery beneath the contact and then pressing down the other side.

Operation

Put the scale on a hard and flat surface (avoid carpet or soft surface).

Gently step on the scale, then the scale will be automatically turned on. Stand evenly on the scale without moving and wait until your weight shown on display is stable and locked.

Automatic switch off

When you step off the scale, it will automatically switch off.

Auto shut-off occurs if display shows

„0.0“ or shows the same weight reading for approximate 10 seconds.

Note:

If the scale was moved to new place, it may cause some error for he first times.

To convert weight unit

Find unit switch on the back of scale. Pull left or right the unit switch to convert scale unit between kg - lb.

Troubleshooting

Error and other LCD message

LCD may show occasionally error message. Simply turn off the unit for a brief moment, or remove and re-install battery as a total re-set. Then turn on again to resume operation.

If, when you tap the scale to activate it, there is no display at all or „LO“ is displayed- try two new batteries.

Scale overload.

Please step off to avoid damage.

Display shows „C“ when you step off the scale, means this reading with error. Please re-test.

Troubleshooting guide

• Check the rights position of battery and the polarity.
• When warning indicator shows „Lo“ replace the battery.
• Check whether the scale is on a flat, level floor and not touching against a wall.
• Ensure whether you do not step on the scale until the display shows „0.0kg“.

Cleaning and Maintenance

1) Use a dry, soft fabric to clean the device. Or a lightly damp soft fabric with mild detergent to wipe clean the device. Do not use strong chemical solution such as alcohol, benzene for cleaning.
2) It could be slippery when the unit platform surface is wet, or semi-damp. Ensure the weighing platform surface is dry before using for safety reason.

Technical specifications

• Electronic personal glass scale
• Capacity 150 kg
• Graduation 100 g
• 6 mm tempered glass surface
• New system of turning ON the scale AUTO STEP ON – just step on the scale and stand still, the scale will automatically turn ON and start taking measurements.
• Auto off, auto zero
• Overload indicator
• Low battery indicator
• Batteries operated 1 x CR 2032 3V Lithium (included)
• Color. silver (905S), black (905B), blue (905BL)
• Size: 30,2 x 3,3 x 30,2 cm
• Weight: 1,6 kg

We reserve the right to change technical specifications.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are repairable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible

negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.
