SAP11 - Air purifier PRIME3 - Free user manual and instructions

Product Type	Air Purifier
Model	SAP11
Brand	PRIME3
Dimensions (H x W x D)	44 x 24 x 24 cm
Weight	4 kg
Power Supply	220-240V ~ 50/60Hz
Power Consumption	40 W
Coverage Area (max)	30 m²
Filtration Stages	Pre-filter, HEPA H13, Activated Carbon
Clean Air Delivery Rate (CADR)	150 m³/h (particles)
Fan Speeds	3 speeds + Auto mode
Noise Level	25-50 dB(A)
Timer	2/4/8 hours
Filter Replacement Indicator	Yes
Air Quality Sensor	PM2.5 sensor
Display	LED touch panel
Child Lock	Yes
Maintenance	Vacuum pre-filter monthly; replace HEPA/carbon filter every 6-12 months
Replacement Filter Model	PRIME3 SAP11-Filter
Certifications	CE, RoHS

Frequently Asked Questions - SAP11 PRIME3

How often should I replace the filter on my PRIME3 SAP11 air purifier?

The HEPA and activated carbon filter should be replaced every 6 to 12 months, depending on usage and air quality. The filter replacement indicator will alert you when it's time.

How do I clean the pre-filter?

The pre-filter can be vacuumed or gently washed with water. Allow it to dry completely before reinstalling. Do not wash the HEPA filter.

Why is my air purifier not turning on?

Check that the power cord is securely connected and the outlet is working. Ensure the front cover is properly closed, as the unit has a safety switch.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the Filter Reset button for 3 seconds until the indicator light turns off.

Can I use the air purifier continuously?

Yes, the PRIME3 SAP11 is designed for continuous operation. Use Auto mode for optimal energy efficiency and air quality maintenance.

What does the Auto mode do?

In Auto mode, the built-in PM2.5 sensor monitors air quality and automatically adjusts the fan speed to maintain clean air.

Is the PRIME3 SAP11 suitable for large rooms?

This model is recommended for rooms up to 30 m². For larger spaces, multiple units may be needed.

How do I activate the child lock?

Press and hold the Child Lock button (usually the timer button) for 3 seconds. A lock icon will appear on the display. Repeat to unlock.

What should I do if the air purifier makes unusual noise?

Check if the filter is clean and properly installed. Also, ensure no foreign objects are blocking the fan. If the noise persists, contact support.

Where can I find replacement filters for the PRIME3 SAP11?

Replacement filters are available online or from authorized retailers. Use the model PRIME3 SAP11-Filter for compatibility.

USER MANUAL SAP11 PRIME3

White and black PRIME³ water purifier with digital temperature display (16°C) and control buttons, no visible text or symbols on the device itself.

1

②

Important notes

Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an earthed socket with values corresponding to the values on the rating label.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the

device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc. Never use the product in humid conditions (like bathroom or camping house).

- The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. Authorized service professionals should only perform all the repairs. Any attempted unauthorized repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories, which are not recommended by the manufacturer, may result in damage of the device and may render the device unsafe for use.

- Do not put fingers or any other objects in the inlet/outlet holes of the device.

- Place the device in way that does not interrupt the air inflow/outflow, leave at least 30 cm of space from each side of the device.

- Do not use the device if the filter is completely utilized, not installed

or not properly installed.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical specification and parameters of the appliance

Input voltage: DC5V

Power: 3.5W

Recommended area: 11m2

CADR (Clean Air Delivery Rate): 40m3/h

Dimensions: 11.5 x 20.9 cm

Weight: 0.7 kg

Replaceable HEPA + activated carbon filter: SAP11.1

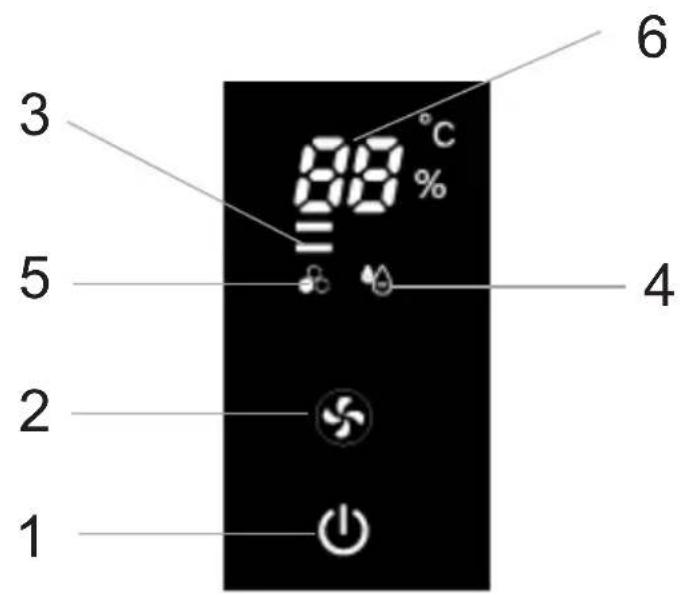

1. Standby icon.
2. Fan speed icon.
3. Fan speed indicator.
4. Ionizer indicator.

5. Filter replacement indicator.

6. Temperature and humidity indicator.

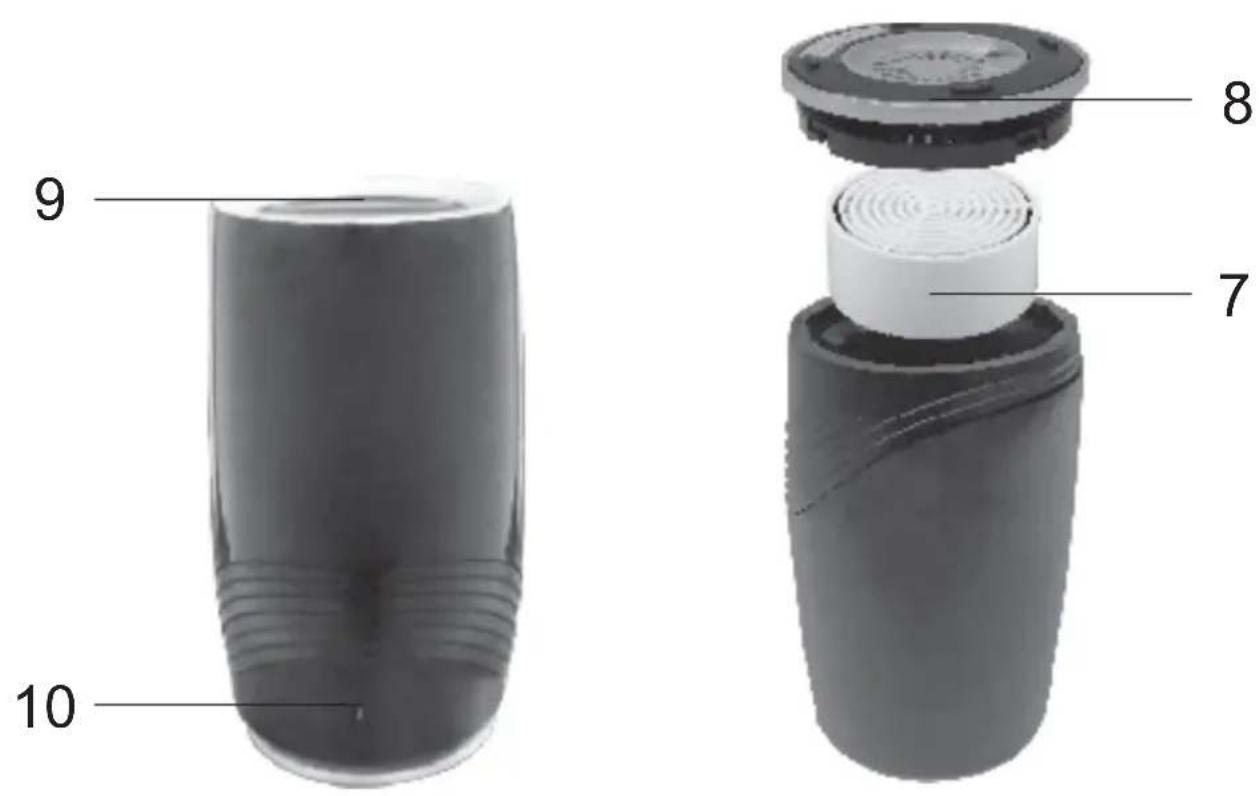

7. HEPA filter+ activated carbon filter.
8. Filter cover with air inlets.
9. Air outlets.
10. Power socket.

Air Purifying

1. In order to switch the device on, press the standby icon.
2. Fan speed can be adjusted by pressing fan speed icon.
3. Press and hold fan speed icon to enter night mode, the device will operate on lowest fan speed setting and only standby icon will be lighted. Press any icon to return to normal mode.
4. If the device is switched on, ionizer icon is illuminated and a negative ion generator is operating as well.
5. In order to switch the device off, press standby icon, the device will stop operating.
6. Filter replacement indicator will start flashing when filter has to be replaced. Follow instructions enclosed in "Filter replacement" section to replace the filter.
7. Temperature and humidity indicator displays current temperature and level of humidity.

Cleaning and maintenance

Do not submerge the device in water. Regularly wipe the device over with a damp cloth, and then wipe it dry. HEPA filter+ activated carbon filter should not be cleaned with water. Use a vacuum cleaner or soft brush in order to clean the filter.

If the device operates in normal conditions, filter should be replaced after 6 months. If the environment is highly polluted, filter should be changed more frequently.

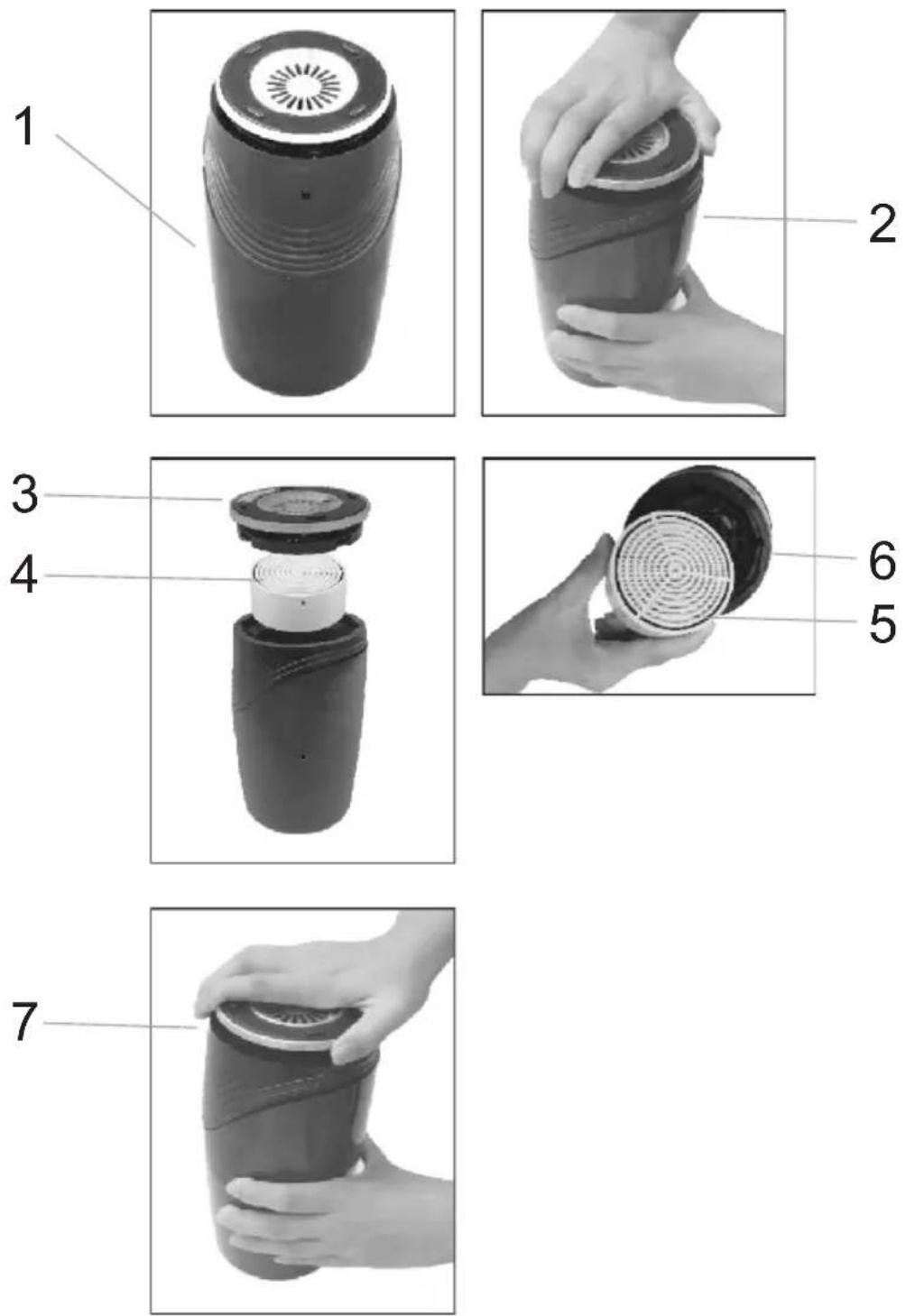

Filter replacement:

1. Turn the device upside down.
2. Turn the bottom filter cover in left direction (anti-clockwise).
3. Take the cover off.
4. Take out the old filter.
5. Unpack the new filter.
6. Install the new filter.
7. Close the cover by turning it in the right direction (clockwise).
