CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

DETAILED SAFETY REGULATIONS

ADDITIONAL SAFETY RULES

Hold the sander firmly during operation. ●

• Ensure the abrasive paper is well installed and it does not have contact with material to be processed.
  Do not touch moving parts of the sander. ●
• Use protective mask if the dust appears during sanding. Dust, which appears when sanding wooden and metal surfaces coated with lead-based paint, is harmful.
• There should be no bystanders in the room where lead-based paint is removed with the use of sander.
• Contact with or inhalation of dusts with lead compounds may be harmful to health.
  Use dust extraction system. ●
• Do not eat, drink or smoke in the room where paint with lead compounds is removed with the sander.
  Sander is not designed for wet operation. ●
• Keep the power cord away from moving parts of the sander at all times.

CAUTION! This device is designed to operate indoors.

The design is assumed to be safe, protection measures and additional safety systems are used, nevertheless there is always a small risk of operational injuries.

CONSTRUCTION AND USE

Delta delta sander is a power tool driven with a single-phase commutator motor. The sander does not require earth lead (insulation class II). Delta delta sander is designed for surface sanding of wood products, polishing wood surfaces with lacquer coating, fine polishing of lacquered metal surfaces, removal of rust or specks of lacquer before applying new lacquer, etc. Range of use covers repair and building works, woodworking and any work from the scope of individual, amateur activities (tinkering).

Do not use the sander for sanding surfaces that contain magnesium or asbestos, or covered with gypsum.

DESCRIPTION OF DRAWING PAGES

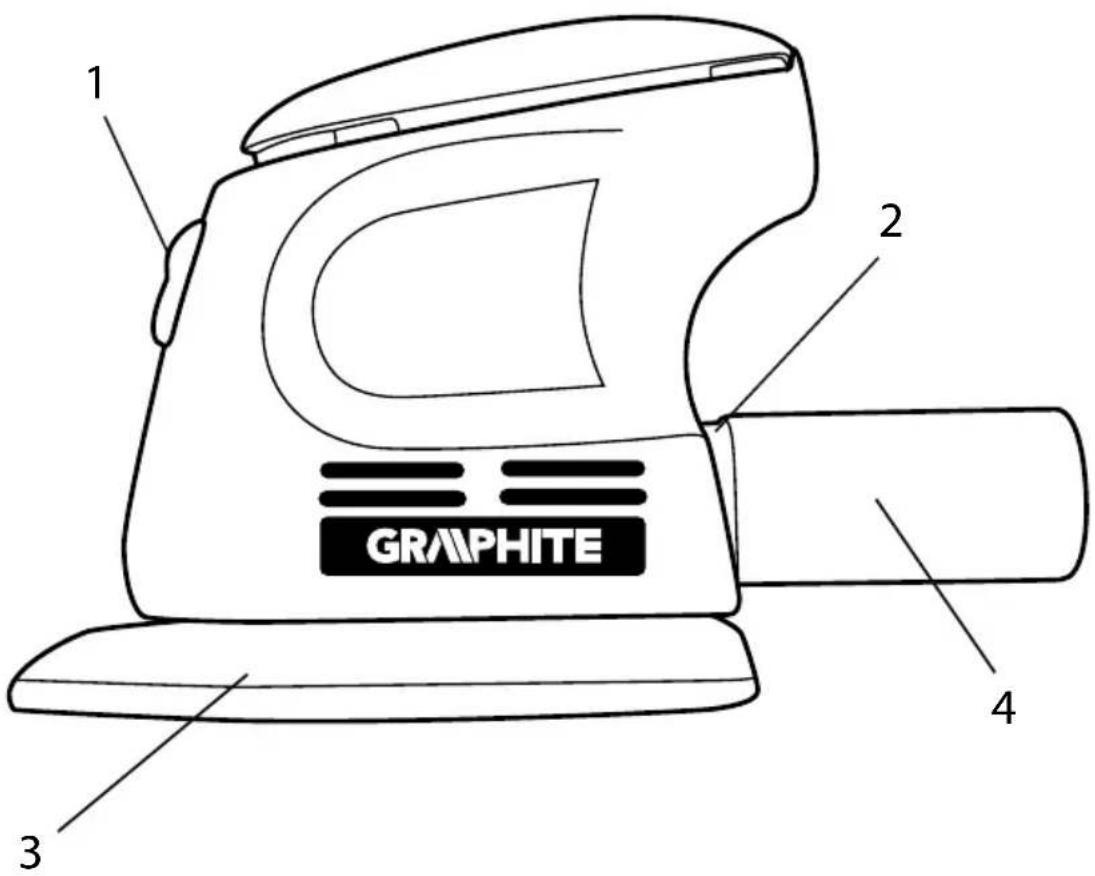

Below enumeration refers to the device elements depicted on the drawing pages of this manual. Switch1.

1. Dust extraction outlet

2. Backing pad

3. Adaptor

* Differences may appear between the product and drawing

MEANING OF SYMBOLS

CAUTION

WARNING

ASSEMBLY/SETTINGS

INFORMATION

EQUIPMENT AND ACCESSORIES

1. Sanding paper - 12 pce
2. Dust extraction adaptor - 1 pce

INSTALLATION OF SANDING PAPER

The sander is equipped with pad with so called hook-and-loop, only appropriate sanding paper should be used.

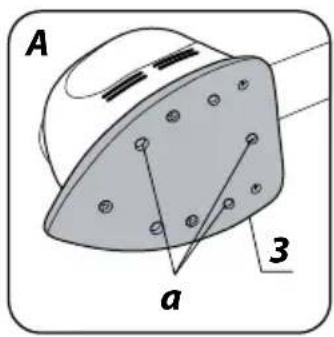

• Put the sanding paper close to the backing pad (3).
• Place the sanding paper so it's holes (a) match holes on the sander backing pad.
• Press the paper against the backing pad (3) (fig. A).
• Ensure that the holes on the sanding paper and backing pad fully match; it ensures possibility of dust extraction.

Sanding paper must thoroughly adhere to the sander backing pad.

DUST EXTRACTION

Use perforated sanding paper, so the dust can reach the dust extraction outlet (2) through the backing pad (3). You can also use external dust extraction system by connecting it to the adaptor (4).

SWITCHING ON / SWITCHING OFF

The mains voltage must match the voltage on the rating plate of the sander.

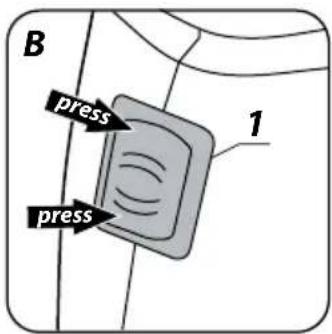

• Switching on – press the switch button (1) to position I (fig. B)..
• Switching off – press the switch button (1) to position 0.

WORKING WITH DELTA SANDER

●Whole sanding area must rest on the processed surface.

• Turn the sander on, apply moderate pressure and move it on the processed material.
• When finishing to sand, reduce pressure, lift the sander and only after that switch the tool off.

Disconnect the tool from power supply network before starting any adjustment, maintenance or repair.

• Soft brush or stream of compressed air are best for cleaning the sander.
• Do not clean with water or cemical cleaning agents.
• Clean the sander on a regular basis, preferably after each work.
  ● Always keep the sander and ventilation holes clean.
  ● Always store the sander in a dry place, beyond reach of children.
• In case of excessive commutator sparking have the technical condition of carbon brushes of the motor checked by a qualified person.

REPLACEMENT OF BACKING PAD

Damaged backing pad (3) must be replaced immediately.

• Unscrew the screws that fix the backing pad (3).
  Remove and replace the backing pad.
  Tighten the fixing screws.

REPLACEMENT OF CARBON BRUSHES

Replace immediately worn out (shorter than 5 mm), burnt or cracked motor carbon brushes. Always replace both brushes at a time.

Entrust replacement of carbon brushes only to a qualified person. Only original parts should be used.

All faults should be repaired by service workshop authorized by the manufacturer.

TECHNICAL PARAMETERS

RATED PARAMETERS

Delta Sander
Parameter Value
Supply voltage 230 V AC
Current frequency 50 Hz
Rated power 105 W
Idle rotational speed 12000 min	-1
Oscillations at idle speed 24000 min	-1
Oscillation amplitude 1mm
Backing pad dimensions 140 x 140 x 97 mm
Protection class II
Weight 0,87 kg
Year of production 2014

NOISE LEVEL AND VIBRATION PARAMETERS

Sound pressure Lp_A=80,8 dB(A) K=3 dB(A)

Sound power Lw_A=91,8 dB(A) K=3 dB(A)

Weighted value of vibration acceleration a_h=9,76 m/s^2 K=1,5 m/ s^2

ENVIRONMENT PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on wastes utilization from your seller or local authorities. Used up electric and electronic equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

* Right to introduce changes is reserved.
