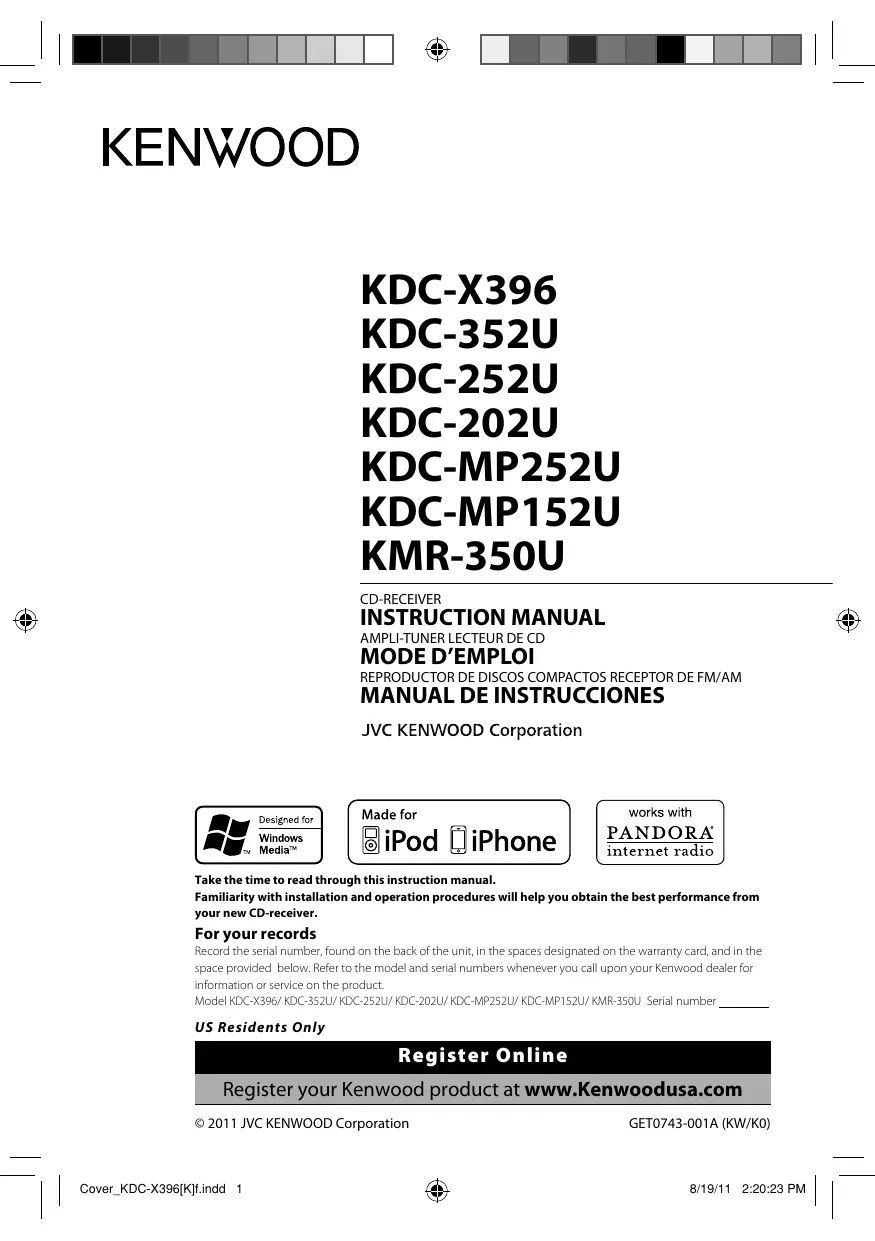

USER MANUAL KDC-352U KENWOOD

Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new CD-receiver. For your records Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product. Model KDC-X396/ KDC-352U/ KDC-252U/ KDC-202U/ KDC-MP252U/ KDC-MP152U/ KMR-350U Serial number US Residents Only Register Online Register your Kenwood product at www.Kenwoodusa.com © 2011 JVC KENWOOD Corporation Cover_KDC-X396[K]f.indd 1 GET0743-001A (KW/K0) 8/19/11 2:20:23 PM CONTENTS Safety

(For How to attach/detach the faceplate How to reset your unit How to prepare the remote controller (RC-405) (except for

Station Search mode Using the remote controller (RC-405) Basic operations

Listening to the other external components Getting started

Installation/connection

Canceling the display demonstration (except for Setting the demonstration mode Adjusting the clock Initial settings before operations Listening to the radio

Adjust [SETTINGS] mode settings Functions of with remote controller (RC-405) Direct Access Tuning

Basic procedure Warning Caution Wiring connection Installing the unit Removing the unit Specifications

Listening to a disc/ USB device/ iPod 10 Start playing a disc Connecting a USB device Connecting an iPod (for Selecting Repeat Play Selecting Random Play Selecting a folder/track/file Functions of with remote controller (RC-405) Direct Music Search Functions of with iPod Selecting a song by alphabet Selecting App & iPod Control Mode Adjust [SETTINGS] mode settings Muting upon the reception of a phone call To use this feature, connect the MUTE lead to your telephone using a commercial telephone accessory. (page 19) When a call comes in, “CALL” appears. The audio system pauses. To continue listen to the audio system during a call, press SRC. “CALL” disappear and the audio system resumes. When a call ends, “CALL” disappear. The audio system resumes.

EN02-21_KDC-X396[K]f.indd 2 8/19/11 2:19:08 PM WARNING Stop the car before operating the unit. Important to know... To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. Caution: Adjust the volume so that you can hear sounds outside the car. Driving with the volume too high may cause an accident. Condensation: When the car is airconditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. This unit can only play the CDs with: The illustrations in this manual are examples used to explain more clearly how the controls are used. Therefore, what appears on the illustrations may differ from what appears on the actual equipment. A USB connection cable, CA-U1EX (max.: 500 mA) (optional accessory) is required for connecting a USB device. You can connect an Apple iPod/iPhone with The word “iPod” appearing in this manual indicates the iPod or iPhone connected to this unit with a connection cable, KCA-iP102 (optional accessory). If you experience problems during installation, consult your Kenwood dealer. When you purchase external components, check with your Kenwood dealer to make sure that they work with your model and in your area. Detailed information and notes about the playable audio files are stated in an online manual on the following site: www.kenwood.com/cs/ce/audiofile/ ENGLISH Safety CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Maintenance Cleaning the unit: Wipe off the dirt on the panel with a dry silicon or soft cloth. Failure to observe this precaution may result in damage to the monitor or unit. Cleaning the connector: The unit may not function properly if the connectors between the unit and faceplate are dirty. Detach the faceplate and clean the connector with a cotton swab gently, being careful not to damage the connector. Connector (on the reverse side of the faceplate) Handling discs Do not touch the recording surface of the disc. Do not stick tape etc. on the disc, or use a disc with tape stuck on it. Do not use any accessories for the disc. Clean from the center of the disc and move outward. Clean the disc with a dry silicon or soft cloth. Do not use any solvents. When removing discs from this unit, pull them out horizontally. Remove the rims from the center hole and disc edge before inserting a disc.

How to reset your unit

Do not expose the faceplate to direct sunlight, excessive heat, or humidity. Also avoid places with too much dust or the possibility of water splashing. Keep the faceplate in its casing while detached. The faceplate is a precision piece of equipment and can be damaged by shocks or jolts. To prevent deterioration, do not touch the terminals of the unit and faceplate with your fingers.

If the effectiveness of the remote controller decreases, replace the battery. If this unit fails to operate properly, press the reset button. The unit returns to factory settings when the reset button is pressed. Reset button How to prepare the remote controller (RC-405)

This perchlorate WARNING applies only to the product sold or distributed in California USA “Perchlorate Material–special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.” Caution: Do not set the remote control in hot places such as on the dashboard. Lithium battery. Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type. The battery pack or batteries shall not be exposed to excessive heat such sunshine, fire or the like. Keep battery out of reach of children and in original package until ready to use. Dispose of used batteries promptly. If swallowed contact physician immediately. Remote controller (RC-405) is equipped for

(except for When you use the remote controller for the first time, pull out the insulation sheet. Insulation sheet

EN02-21_KDC-X396[K]f.indd 4 8/19/11 2:19:10 PM ENGLISH Basic operations Display window Remote sensor Do not expose to bright sunlight. Loading slot Ejects the disc Volume knob USB terminal Detaches the faceplate (Not used.) Auxiliary input jack The following indicator lights up when... ST: A stereo broadcast is received (FM). IN: A disc is in the unit. For ATT (blink) : The sound attenuates. (Applicable only when using the remote controller (RC-405), page 7.) : [PRESET EQ] is set to an EQ mode other than [NATURAL]. (page 15) B.BOOST : [BASS BOOST] is set to [B.BOOST LV1], [B.BOOST LV2] or [B.BOOST LV3]. (page 15) : In Search Mode or when a Playlist is displayed. Continued...

EN02-21_KDC-X396[K]f.indd 5 8/19/11 2:19:10 PM The illustration and button names used for explanation in this manual are of (unless mentioned otherwise). Refer to the table below for the difference: iPod iPod 1 ( –) 2 (+ ) 3 (ALL RDM) 1 (–) 1 (–) 2 (+) 3 (ALL RDM) 2 (+)

When you press or hold the following button(s)... Main unit Remote controller

SRC SRC Volume knob (turn) VOL Volume knob (press) ENT 5/∞

Selects the available sources (TUNER, USB/ iPod, PANDORA, CD, AUX, STANDBY), if the power is turned on.

• If the source is ready, playback also starts.
• “PANDORA” is selectable only when an iPhone or iPod touch (with the Pandora® internet radio application) is connected and [ON] is selected for [PANDORA SRC]. (page 8)
• “iPod” or “CD” is selectable only when an iPod is connected or a disc is loaded. Adjusts the volume level. Selects items. Confirms selection. Enters [FUNCTION] settings. Enters Music Search mode or Station Search mode (for Pandora). *AM– / #FM+ Selects the FM bands (FM1/ FM2/ FM3) or AM when “TUNER” is selected as the source. *AM– / Selects the previous/next folder. #FM+

Turns on. Turns off if pressed and held. For : The power will be turned off automatically after about 20 minutes have elapsed under the standby mode. 5/∞ 1 ( –) / 2 (+ )

General operation ENT 4/¢

Selects thumbs down/up (for Pandora). Pauses/resumes playback of a disc/ USB device/ iPod/ Pandora. Searches for radio station. Selects track/file. Fast-forwards/reverses tracks if pressed and held. Skips a song (for Pandora).

Changes the display information. Scrolls the display information if pressed and held. Enters clock adjustment mode directly (page 8) if pressed and held while in clock display screen.

For Selects “iPod” source. Enters the controlling mode (MODE ON/ MODE OFF) for iPod playback if pressed and held. (page 12)

ATT Attenuates the sound.

• To return to the previous level, press the button again. ENGLISH Main unit Returns to the previous item. EXIT on the main unit will Exit from setting mode. (Press and hold also exit from the setting mode.) Getting started Canceling the display demonstration (except for

The display demonstration is always turned on unless you cancel it. When you turn on the power (or after you reset the unit), the display shows:

[CANCEL DEMO] \ [PRESS] \ [VOLUME KNOB]

1 Press the volume knob. [YES] is selected as the initial setup. 2 Press the volume knob again to confirm. [DEMO OFF] appears. If no operation is done for about 15 seconds or if you turn the volume knob to select [NO] in step 2, [DEMO MODE] appears and the display demonstration starts. Setting the demonstration mode 1 Press the volume knob to enter [FUNCTION]. 2 Turn the volume knob to select [DEMO MODE], then press to enter. 3 Turn the volume knob to select [ON] or [OFF]. If [ON] is selected, display demonstration starts if no operation is done for about 20 seconds. 4 Hold to finish the procedure. Continued...

Press the volume knob to enter [FUNCTION] mode. Turn the volume knob to select [SETTINGS], then press to enter. Turn the volume knob to select [CLOCK], then press to enter. Press the volume knob to select [CLOCK ADJUST] / [CLOCK ADJ]. Clock hour flashes on the display. 5 Turn the volume knob to adjust the hour, then press to enter minute adjustment. Clock minutes flashes on the display. 6 Turn the volume knob to adjust the minute, then press to confirm. Press 4 / ¢ to move between the hour and minute adjustment. 7 Hold to finish the procedure. Initial settings before operations

Press SRC to enter [STANDBY] mode. Press the volume knob to enter [FUNCTION] mode. Turn the volume knob to select [INITIAL SET], then press to enter. Turn the volume knob to make a selection, then press to confirm. See table below for selection. 5 Hold to finish the procedure. Item PRESET TYPE Selectable setting (Preset: *) NORMAL/ NORM *: Memorizes one station for each preset button in each band (FM1/ FM2/ FM3/ AM). ; MIX: Memorizes one station for each preset button regardless of the selected band (FM1/ FM2/ FM3/ AM). ON */ OFF: Activates/deactivates the keypress tone. KEY BEEP PANDORA SRC For ON *: Allows you to select “PANDORA” source by connecting an iPhone or iPod touch (with the Pandora® internet radio application). ; OFF: Disables “PANDORA” in source selection. BUILT-IN AUX/ ON *: Enables “AUX” in source selection. Sound of the connected external component is produce through the BUILTIN AUX car speakers. ; OFF: Disables “AUX” in source selection. CD READ 1 *: Automatically distinguishes between audio file disc and music CD. ; 2: Forces to play as a music CD. No sound can be heard if an audio file disc is played. SWITCH PRE For REAR */ SUB-W: Selects whether rear speakers or a subwoofer are connected to the line out terminals on the rear of the unit (through an external amplifier). SP SELECT OFF */ 5/4/ 6 × 9/6/ OEM: Selects the speaker size for optimum performance. F/W UP xx.xx YES *: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: www.kenwood.com/cs/ce/ About “KENWOOD Music Editor” This unit supports the PC application “KENWOOD Music Editor Light ver1.1” or later. When you use the audio file with database information added by the “KENWOOD Music Editor Light ver1.1,” you can search a file by title, album or artist name using Music Search. In the Instruction manual, the term “USB device” is used to mean the device that contains audio files with database information added with KENWOOD Music Editor. “KENWOOD Music Editor Light ver1.1” is available from the following web site: www.kenwood.com/cs/ce/ For further information on “KENWOOD Music Editor Light ver1.1,” refer to the site above or the application help.

EN02-21_KDC-X396[K]f.indd 8 8/24/11 4:34:07 PM ENGLISH Listening to the radio Hold for about 2 seconds to memorize the current station. Press briefly to recall memorized station. 1 Press SRC to select “TUNER.” 2 Press repeatedly to select a band (FM1/ FM2/ FM3/ AM). 3 Press 4 / ¢ to search for a station. Adjust [SETTINGS] mode settings While listening to the radio... 1 Press the volume knob to enter [FUNCTION] mode. 2 Turn the volume knob to select [SETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. See table below for selection. 4 Hold to finish the procedure. Item SEEK MODE Selectable setting (Preset: *) Selects the tuning mode for 4 / ¢ buttons. AUTO1 *: Automatically search for a station. ; AUTO2: Search in the order of the stations in the preset memory. ; MANUAL: Manually search for a station. AUTO MEMORY YES *: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels (automatic memorizing is not activated). (Selectable only if [NORMAL] / [NORM] is selected for [PRESET TYPE].) (page 8) MONO SET ON: Improve the FM reception (but the stereo effect may be lost). ; OFF *: Cancels (stereo effect resumes). Functions of remote controller (RC-405) Direct Access Tuning 1 Press FM+ / AM– to select a band. 2 Press DIRECT to enter Direct Access Tuning mode. “– – – –” appears on the display. 3 Press the number buttons to enter the frequency. 4 Press 4 / ¢ ( + ) to search for the frequency. with To cancel Direct Access Tuning mode, press or EXIT. If no operations is done for 10 seconds after step 3, Direct Access Tuning is automatically canceled. Basic operations: FM+ / AM– : Selects band. 4 / ¢ ( + ) : Searches for radio station. 1–6 : Selects preset station.

EN02-21_KDC-X396[K]f.indd 9 8/19/11 2:19:14 PM Listening to a disc/ USB device/ iPod Loading slot Ejects the disc. (“NO DISC” appears and “IN” indicator goes off.) Press to select track/file. Hold to fast-forwards/reverses. Press to select previous/next folder.

• Not available if “ALL RANDOM” is selected. USB terminal Slide open the cover, then make the following connection. The source automatically switches, and playback starts. Start playing a disc 1 Press SRC to turn on the power. 2 Insert a disc into the loading slot. Playback starts automatically. 3 Press number button 6 ( ) to resume/pause playback (if necessary). Discs that cannot be used Discs that are not round. Discs with coloring on the recording surface or discs that are dirty. You cannot play a Recordable/ReWritable disc that has not been finalized. (For the finalization process refer to your disc writing software, and your disc recorder instruction manual.) 3-inch CD cannot be used. Attempt to insert using an adapter can cause malfunction. Connecting a USB device CA-U1EX (Max.: 500 mA) (optional accessory) USB device (commercially available) Connecting an iPod (for Apple iPod (commercially available) KCA-iP102 (optional accessory)

EN02-21_KDC-X396[K]f.indd 10 8/19/11 2:19:15 PM Press number button 4 (REP) repeatedly to make a selection. Audio CD : TRACK/ TRAC (track) REPEAT, REPEAT OFF MP3/WMA : FILE REPEAT, FOLDER/ FOLD (folder)

iPod : FILE REPEAT, REPEAT OFF Selecting Random Play Press number button 3 (ALL RDM) or repeatedly to make a selection. Audio CD : DISC RANDOM, RANDOM OFF MP3/WMA/iPod : FOLDER/ FOLD (folder) RANDOM, RANDOM OFF For MP3/WMA/iPod : Press and hold number button 3 (ALL RDM) or select “ALL RANDOM.” – Applicable only if “RANDOM OFF” is selected initially. – For : Changes the iPod browsing item to “songs.” Functions of remote controller (RC-405) Direct Music Search

• Not available if Random Play is selected.
• Not applicable for iPod and Kenwood Music Editor. 1 Press DIRECT to enter Direct Music Search Mode. “– – –” appears. 2 Press the number buttons to enter the track number. 3 Press 4 / ¢ to search for the music. Selecting a folder/track/file 1 Press to enter Music Search mode. “SEARCH” appears, then the current file name appears on the display. 2 Turn the volume knob to select a folder/ track/file, then press to confirm. ENGLISH Selecting Repeat Play To return to the root folder (or first track for audio CD), press number button 5. To return to the previous folder, press . To cancel the Music Search mode, press and hold . < or > on the display indicates that preceded/next item is available. For USB device * and iPod: To skip search, press 4 / ¢.
• This operation is effective only for the files registered in the database created with Kenwood Music Editor. (page 8) About USB device This unit can play MP3/WMA files stored on a USB mass storage class device. Install the USB device in the place where it will not prevent you from driving your vehicle properly. You cannot connect a USB device via a USB hub and Multi Card Reader. Make sure all important data has been backed up to avoid losing the data. Connecting a cable whose total length is longer than 5 m can result in abnormal playback. with Basic operations: In playback mode: FM+ / AM– : Selects folder. 4 / ¢ ( + ) : Selects track/file. ENT : Pauses/resumes playback. In Music Search Mode: ENT : Confirms selection. 5/∞ : Selects folder/track/file. : Returns to the previous folder. To cancel the Direct Music Search Mode, press or EXIT.

EN02-21_KDC-X396[K]f.indd 11 8/24/11 4:34:12 PM Functions of Selecting a song by alphabet 1 Press to enter Music Search mode. “SEARCH” appears. 2 Turn the volume knob to select a category, then press to confirm. 3 Press again to enter alphabet search mode. “SEARCH <– – –>”/ “SRCH <– – –>” appears. 4 Turn the volume knob to select the character to be searched for. 5 Press 4 / ¢ to move to the entry position. You can enter up to three characters. 6 Press the volume knob to start searching. 7 Turn the volume knob to select a folder/ track/file, then press to confirm. To return to the previous folder, press . To return to the top menu, press number button 5. To cancel the Alphabet Search mode, press and hold . A longer searching time is required if there are many songs or playlists in the iPod. To search for a character other than A to Z and 0 to 9, enter only “ * ”. The article (a, an, the) of songs name will be skipped during search. About compatible iPod/iPhone Made for – iPod touch (1st, 2nd, 3rd, and 4th generation) – iPod classic – iPod with video – iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation) – iPhone 4 – iPhone 3GS – iPhone 3G – iPhone with iPod Selecting App & iPod Control Mode Press and hold iPod to make a selection. MODE ON: Control iPod from the iPod *. “APP&iPod MODE”/ “APP&iPod” appears on the display. MODE OFF: Control iPod from the unit.

• You can still control play/pause, select files, fast-forward/reverse files from the unit. Adjust [SETTINGS] mode settings While listening to an iPod... 1 Press the volume knob to enter [FUNCTION] mode. 2 Turn the volume knob to select [SETTINGS], then press to enter. 3 Turn the volume knob to select [SKIP SEARCH], then press to enter. 4 Turn the volume knob to make a selection, then press to confirm. 0.5% (initial)/ 1%/ 5%/ 10% : Sets the ratio of skip when searching for a song in Music Search mode. (Holding 4 / ¢ skips songs at 10% regardless of the setting made.) 5 Hold to finish the procedure. For the latest compatible list and software version of iPod/iPhone, see: www.kenwood.com/cs/ce/ipod If you start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, “RESUMING” is displayed without displaying a folder name, etc. Changing the browse item will display a correct title, etc. You cannot operate iPod if “KENWOOD” or “✓” displayed on iPod.

EN02-21_KDC-X396[K]f.indd 12 8/19/11 2:19:16 PM (For Preparation : Make sure [ON] is selected for [PANDORA SRC]. (page 8) 1 Open the Pandora® application on your device. 2 Connect the device to the USB terminal. The source switches, and broadcasting starts automatically from your current station. If no station has been selected, broadcasting does not start. To select thumbs down/up, press number button 1 ( – )/ 2 ( + ). To skip a song, press ¢. To pause or resume playback, press number button 6 (

Station Search mode While listening to “PANDORA” source... 1 Press to enter Station Search mode. 2 Turn the volume knob to select [A–Z] (stations are displayed in alphabetical order) or [BY DATE] (stations are displayed in date order), then press to enter. 3 Turn the volume knob to select a desired station, then press to confirm. About Pandora® internet radio The requirements for listening to Pandora® are as follows: Use an Apple iPhone or iPod touch running under iOS3 or later. Search for “Pandora” in the Apple iTunes App Store to find and install the most current version of the Pandora® application on your device. In the application on your device, log in and create an account with Pandora®. (If you are not already a registered user, an account can also be created at www.pandora.com.) ENGLISH Listening to Pandora® internet radio USB terminal Apple iPhone/ iPod touch (commercially available) KCA-iP102 (optional accessory) Using the remote controller (RC-405) In playback mode: ¢ ( + ) : Skips a song. ENT : Pauses/resumes playback. In Station Search Mode: 5 / ∞ : • Selects [A–Z] or [BY DATE].

• Selects item. ENT : Confirms selection. EXIT : Cancels Station Search mode. Internet connection by 3G, EDGE, or WiFi. iPhone connected to this unit with a KCA-iP102. Pandora® is available only in the U.S. Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable. Some functions of Pandora® cannot be operated from this unit. For issues using the application, please contact Pandora® at pandora-support@pandora.com

EN02-21_KDC-X396[K]f.indd 13 8/19/11 2:19:17 PM Listening to the other external components Preparation : Make sure [ON] is selected for [BUILT-IN AUX] / [BUILTIN AUX]. (page 8) 1 Press SRC to select “AUX.” 2 Turn on the external component and start playing. 3 Turn the volume knob to adjust the volume. Auxiliary input jack Portable audio device (commercially available)

3.5 mm (1/8") stereo mini plug

(commercially available) Function settings 1 Press the volume knob to enter [FUNCTION] mode. 2 Turn the volume knob to select [AUDIO CONTROL] / [AUDIO CTRL] or [SETTINGS], then press to enter. 3 Turn the volume knob to make a selection, then press to confirm. See the following table for selection. Repeat step 3 until the desired item is selected/activated. Press to return to the previous item. 4 Hold to finish the procedure. [AUDIO CONTROL] / [AUDIO CTRL] : While listening to any source except in STANDBY state... Item Selectable setting (Preset: *) SUB-W LEVEL –15 — +15 (Preset: 0): Adjusts the subwoofer output level. BASS LEVEL –8 — +8 (Preset: 0): Source tone memory: Adjusts the level to memorize in each source. (Before making an adjustment, select the source you want to adjust.) MID LEVEL TRE LEVEL

0.5K/ 1.0K */ 1.5K/ 2.5K: Selects the center frequency. MID LEVEL –8 — +8 (Preset: 0): Adjusts the level.

0.75/ 1.00 */ 1.25: Adjusts the quality factor.

10.0K/ 12.5K */ 15.0K/ 17.5K: Selects the center frequency. TRE LEVEL –8 — +8 (Preset: 0): Adjusts the level. NATURAL */ USER/ ROCK/ POPS/ EASY/ TOP40/ JAZZ/ POWERFUL: Selects a preset sound mode suitable to the music genre. (Selects [USER] to use the customized bass, middle, and treble settings.) BASS BOOST B.BOOST LV1/ B.BOOST LV2/ B.BOOST LV3: Selects your preferred bass boost level. ; OFF *: Cancels. LOUDNESS LOUDNESS LV1 */ LOUD LV1 */ LOUDNESS LV2/ LOUD LV2: Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level. ; OFF: Cancels. BALANCE L15 — R15 (Preset: 0): Adjusts the left and right speaker output balance. FADER R15 — F15 (Preset: 0): Adjusts the rear and front speaker output balance. SUBWOOFER SET/ SUB-W SET ON *: Turns on the subwoofer output. ; OFF: Cancels.

DETAILED SET/ DETAIL SET

HPF For : THROUGH *: All signals are sent to the speaker. ; 100HZ/ 120HZ/ 150HZ: Frequencies lower than the specified value are cut off. LPF SUBWOOFER/ THROUGH *: All signals are sent to the subwoofer. ; 85HZ/ 120HZ/ 160HZ: Frequencies higher than LPF SUB-W 85 Hz/ 120 Hz/ 160 Hz are cut off. SUB-W PHASE REVERSE/ REV (180°)/ NORMAL/ NORM (0°) *: Selects the phase angle of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [LPF SUBWOOFER] / [LPF SUB-W].) SUPREME SET ON *: Creates realistic sound by interpolating the high-frequency components that are lost in MP3/ WMA audio compression. ; OFF: Cancels. (Selectable only when playback an MP3/WMA disc or a USB device, except iPod.) VOLUME OFFSET/ –8 — +8 (for AUX) ; –8 — 0 (for other sources): Presets the volume adjustment level of each VOL OFFSET source. The volume level will automatically increase or decrease when you change the source. (Before (Preset: 0) making an adjustment, select the source you want to adjust.) For [SUB-W LEVEL/ SUB-W SET/ LPF SUB-W/ SUB-W PHASE] is selectable only if [SWITCH PRE] is set to [SUB-W]. (page 8) [SUB-W LEVEL/ LPF SUB-W/ SUB-W PHASE] is selectable only if [SUB-W SET] is set to [ON]. Continued...

EN02-21_KDC-X396[K]f.indd 15 8/19/11 2:19:18 PM [SETTINGS] Item

AUX NAME CLOCK DISP & KEY (for COLOR SELECT Selectable setting (Preset: *) AUX */ DVD/ PORTABLE/ GAME/ VIDEO/ TV: Selects the desired name for the connected component. (Selectable only if “AUX” is selected as the source.) CLOCK ADJUST/ CLOCK ADJ: (For details, see page 8.) VARIABLE SCAN */ COLOR 01 – COLOR 24/ USER: Selects your preferred key illumination color. You can create your own color (when [COLOR 01] — [COLOR 24] or [USER] is selected). The color you created can be selected when you select [USER].

1. Hold the volume knob to enter the detail color adjustment mode.

2. Press 4 / ¢ to select the color (R/ G/ B) to adjust. Turn the volume knob to adjust the level

3. Press the volume knob to confirm and exit.

DISP DIMMER ON: Dims the display illumination. ; OFF *: Cancels. TEXT SCROLL AUTO */ ONCE: Selects to scroll the display information automatically, or scroll only once. ; OFF: Cancels. KEY DIMMER DIMMER LV1: Dims the key illumination constantly. ; DIMMER LV2: Dims the key illumination darker than DIMMER LV1. ; DIMMER OFF *: Cancels. DISPLAY (for DISP DIMMER ON: Dims the display illumination. ; OFF *: Cancels. TEXT SCROLL AUTO */ ONCE: Selects to scroll the display information automatically, or scroll only once. ; OFF: Cancels. Troubleshooting Symptom Remedy/Cause Sound cannot be heard. Adjust the volume to the optimum level. / Check the cords and connections. “PROTECT” appears and no operations can be done. Check to be sure the terminals of the speaker leads are covered with insulating tape properly, then reset the unit. If “PROTECT” does not disappear, consult your nearest service center. Sound cannot be heard. / The unit does not turn on. / Information shown on the display is incorrect. The connectors are dirty. Clean the connectors. (page 3) The unit does not work at all. Reset the unit. (page 4) For : The Auto Power Off Make sure [OFF] is selected for [DEMO MODE]. (page 7) function (that will turn the power off in 20 minutes when in standby mode) does not work. Radio reception is poor. / Static noise while listening to the radio. Connect the antenna firmly. / Pull the antenna out all the way.

EN02-21_KDC-X396[K]f.indd 16 8/19/11 2:19:19 PM Remedy/Cause ENGLISH Symptom “IN” flashes. The CD player is not operating properly. Reinsert the disc properly. If the condition did not improve, turn off the unit and consult your nearest service center. CD-R/CD-RW cannot be played back and tracks cannot be skipped. Insert a finalized CD-R/CD-RW (finalize with the component which you used for recording). Disc sound is sometimes interrupted. Stop playback while driving on rough roads. / Change the disc. / Check the cords and connections. “NA FILE” appears. The unit is playing an unsupported audio file. “NO DISC” appears. Insert a playable disc into the loading slot. “TOC ERROR” appears. The CD is quite dirty. / The CD is upside-down. / The CD is scratched a lot. Try another disc instead. “ERROR 99” appears. The unit is malfunctioning for some reason. Press the reset button on the unit. If the “ERROR 99” code does not disappear, consult your nearest service center. “READ ERROR” appears. Copy the files and folders for the USB device again. If the error message is still displayed, initialize the USB device or use other USB devices. “NO DEVICE” appears. No USB device is connected. Connect an USB device, and change the source to USB again. “COPY PRO” appears. A copy-protected file is played. “NO MUSIC” appears. The connected USB device contains no playable audio file. “NA DEVICE” appears. Connect a supported USB device, and check the connections. “USB ERROR” appears. Remove the USB device, turn the unit off, then turn it on again. If the unit still showing the same display, try to connect another USB device. “iPod ERROR” appears. Reconnect the iPod. / Reset the iPod. Noise is generated. Skip to another track or change the disc. Tracks cannot play back as you have intended them to play. Playback order is determined when files are recorded. “READING” keeps flashing. Longer readout time is required. Do not use too many hierarchies and folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. The number of songs contained in “SONGS” Podcast files are not counted in this unit as this unit does not support the category of this unit is different from that playback of podcast files. contained in “SONGS” category of iPod. Pandora Correct characters are not displayed (e.g. album name).

“PANDORA ERR 5”/ “PNDR ERR 5”

appears. This unit can only display letters (upper case), numbers, and a limited number of symbols. Thumb up/down operation has failed. “NO STATIONS” appears. No station is found. “NO SKIPS” appears. The skip count limit has been exceeded. “CHK DEVICE” appears. Check the Pandora® application on the iPhone/iPod touch.

EN02-21_KDC-X396[K]f.indd 17 8/19/11 2:19:19 PM Installation/connection Part list: A Faceplate.............................................................. B Escutcheon......................................................... C Mounting sleeve ............................................. D Wiring harness.................................................. E Removal tool ..................................................... F Flat head screw (for Nissan cars) ........... G Round head screw (for Toyota cars).... (×1) (×1) (×1) (×1) (×2) (×4) (×4) Basic procedure 1 Remove the key from the ignition switch, then disconnect the · terminal of the car battery. 2 Make proper input and output wire connections. \ “Wiring connection” (page 19) 3 Install the unit to your car. \ “Installing the unit” (page 20) 4 Reconnect the · terminal of the car battery. 5 Reset the unit. (page 4) Warning The unit can only be installed in a car with a 12 V DC power supply, negative ground. If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Disconnect the battery's negative terminal and make all electrical connections before installing the unit. Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals. Be sure to ground this unit to the car's chassis again after installation. Caution If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die. Do not use your own screws. Use only the screws provided. Install this unit in the console of your vehicle. Make sure the faceplate will not hit the lid of the console (if any) when closing and opening. After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. Mount the unit so that the mounting angle is 30° or less. If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating. Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the · wires or ground them to any metal part in the car. When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. Mounting and wiring this product requires skills and experience. For safety‘s sake, leave this work to professionals. If you experience problems during installation, consult your Kenwood dealer.

REAR Rear output terminals

Subwoofer output terminals Front output terminals ENGLISH Wiring connection Rear/subwoofer output terminals Fuse (10 A) White White/Black To front speaker (left) Gray Gray/Black To front speaker (right) Green Green/Black To rear speaker (left) Purple Purple/Black To rear speaker (right) Light blue/yellow (Steering remote control wire) Light blue/yellow (Marine remote control wire) Blue (Antenna control wire) Blue/White (Power control wire) Brown (Mute control wire) STEERING WHEEL REMOTE INPUT REMOTE CONT MARINE REMOTE ANT CONT P. CONT MUTE For remote control adapter : To the steering wheel For : To Kenwood Wired Marine Remote Control unit (optional accessory) For the latest information on marine accessories please go to: http://www.kenwoodusa.com/Car_Entertainment/Marine/ (Not used) To the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle. To the terminal that is grounded when either the telephone rings or during conversation. (To connect the Kenwood navigation system, consult your navigation manual.) Car fuse box Red (Ignition wire) Ignition key switch Yellow (Battery wire) Car fuse box Black (Ground wire) To the metallic body or chassis of the car Battery

Connect the wiring harness to the unit. Other wiring connection has been completed earlier. (page 19) Before attaching, make sure the direction of the escutcheon is correct. (Wider hooks on the top side.) Dashboard of your car Bend the appropriate tabs to hold the mounting sleeve firmly in place. Installing without using the mounting sleeve (Japanese car) 1 Remove the mounting sleeve and escutcheon from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with the supplied screws. T: Toyota cars ; N: Nissan cars Removing the unit 1 Detach the faceplate. 2 Engage the catch pin on the removal tools into the holes on both sides of the escutcheon, then pull it out. 3 Insert the removal tools deeply into the slots on each side, then follow the arrows instructions as shown on the right.

EN02-21_KDC-X396[K]f.indd 20 8/19/11 2:19:19 PM FM tuner section Frequency range: For 200 kHz space: 87.9 MHz — 107.9 MHz For 50 kHz space: 87.5 MHz — 108.0 MHz Usable sensitivity (S/N= 26 dB):

Quieting sensitivity (DIN S/N = 46 dB):

19.2 dBf (2.5 μV/75 Ω)

Frequency response (±3 dB): 30 Hz — 15 kHz Signal-to-Noise ratio (MONO): 63 dB Stereo separation (1 kHz): 40 dB AM tuner section Frequency range (10 kHz space): 530 kHz — 1 700 kHz Usable sensitivity (S/N= 20 dB): 31 dBμ (36 μV) CD player section Laser diode: GaAIAs Digital filter (D/A): 8 Times Over Sampling D/A converter: 24 Bit Spindle speed: 500 rpm — 200 rpm (CLV) Wow & Flutter: Below Measurable Limit Frequency response (±1 dB): 20 Hz — 20 kHz Total harmonic distortion (1 kHz): 0.01 % Signal-to-Noise ratio (1 kHz): 105 dB Dynamic range: 90 dB MP3 decode: Compliant with MPEG-1/2 Audio Layer-3 WMA decode: Compliant with Windows Media Audio USB interface USB standard: USB1.1/ 2.0 (Full speed) Maximum supply current: DC 5 V File system: FAT16/ 32 MP3 decode: Compliant with MPEG-1/2 Audio Layer-3 WMA decode: Compliant with Windows Media Audio ENGLISH Specifications Audio section Maximum output power: 50 W × 4 Full bandwidth power (at less than 1 % THD): 22 W × 4 Speaker impedance: 4 Ω — 8 Ω Tone action: Bass: 100 Hz ±8 dB Middle: 1 kHz ±8 dB Treble: 12.5 kHz ±8 dB Preout level / load (CD): For : 4 000 mV/10 kΩ For 2 500 mV/10 kΩ Preout impedance: ≤ 600 Ω Auxiliary input section Frequency response (±3 dB): 20 Hz — 20 kHz Input maximum voltage: 1 200 mV Input impedance: 10 kΩ General Operating voltage (11 V — 16 V allowable): 14.4 V Maximum current consumption: 10 A Installation size (W × H × D): 182 mm × 53 mm × 158 mm (7-3/16" × 2-1/8" × 6-1/4") Weight: 2.9 lbs (1.3 kg) Subject to change without notice. About Audio file Playable Audio file: MP3 (.mp3), WMA (.wma) Playable disc media: CD-R/RW/ROM Playable disc file format: ISO 9660 Level 1/2, Joliet, Romeo, Long file name. Playable USB device file system: FAT16, FAT32 Although the audio files are complied with the standards listed above, the play maybe impossible depending on the types or conditions of media or device.

Installation/raccordement

DETAILED SET/ DETAIL SET

DETAILED SET/ DETAIL SET

SP_KDC-X396[K]f.indd 21 8/26/11 5:04:30 PM FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. FCC NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission. Rear_KDC-X396[K]f.indd 1 8/19/11 2:20:29 PM
