USER MANUAL KDCX7200DAB KENWOOD

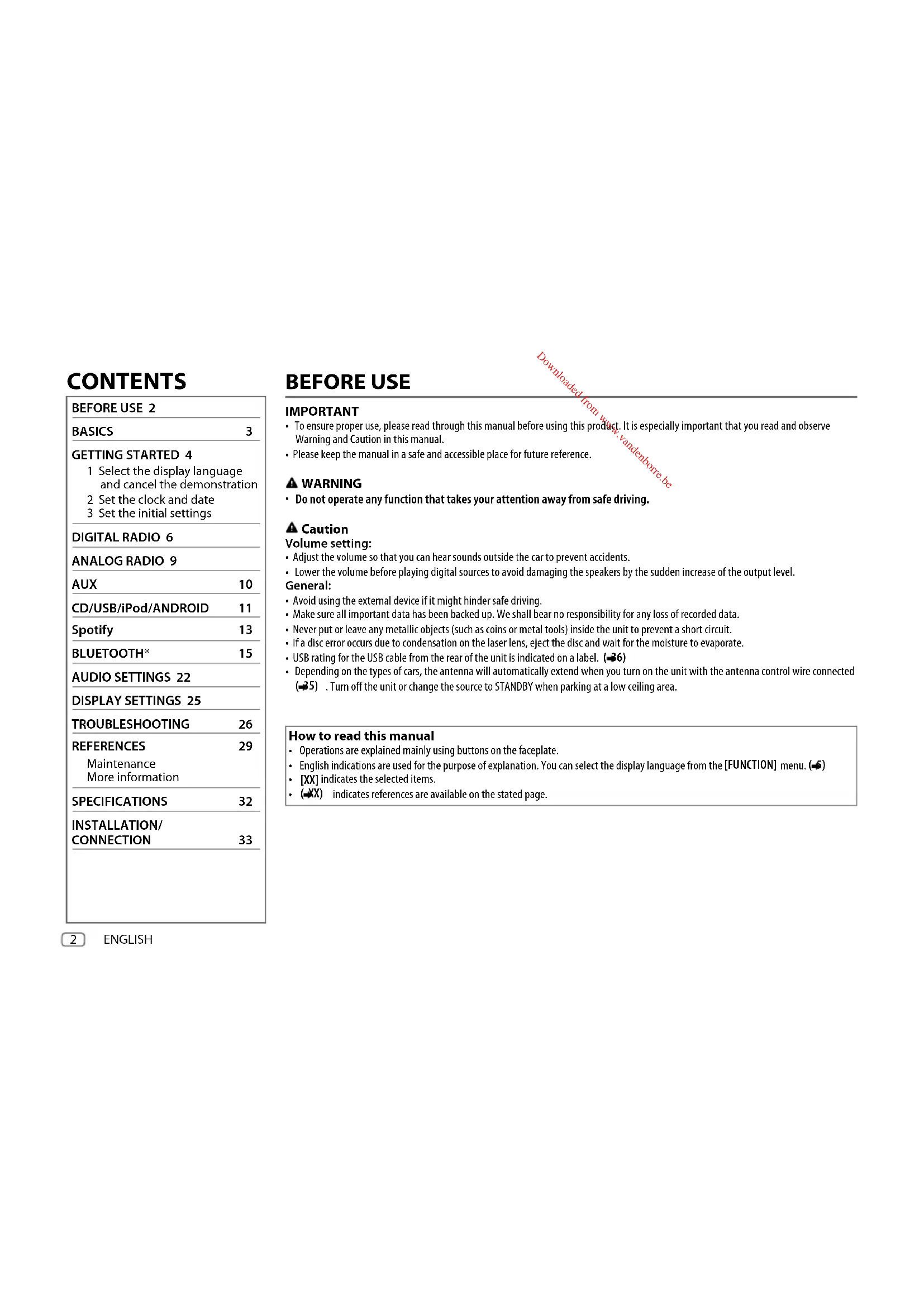

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

Please keep the manual in a safe and accessible place for future reference. WARNING

Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

Adjust the volume so that you can hear sounds outside the car to prevent accidents.

Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

Avoid using the external device if it might hinder safe driving.

Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

USB rating for the USB cable from the rear of the unit is indicated on a label. ( 36)

Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected ( 35) . Turn off the unit or change the source to STANDBY when parking at a low ceiling area. How to read this manual

Operations are explained mainly using buttons on the faceplate.

English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. ( 5)

[XX] indicates the selected items.

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source Press repeatedly. Change the display information Press DISP repeatedly. ( 31) Faceplate How to reset Attach Detach Volume knob Detach button Display window Lights up when Bluetooth connection is established. ( 15) USB 1 cable from the rear of the unit. Auxiliary cable from the rear of the unit. USB 2 cable from the rear of the unit. NOTE: The highlighted area on the faceplate flashes when the unit enters searching status. Reset the unit within 5seconds after detaching the faceplate. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 3JS_KWD_KDC_X7200DAB_EN_EN_4.indd 3 8/24/2017 8:50:21 AM8/24/2017 8:50:21 AM Downloaded from www.vandenborre.be4 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Set the clock and date

Press repeatedly to enter STANDBY. 2 Press the volume knob to enter [FUNCTION]

3 Turn the volume knob to select an item ( 5) , then press the knob. 4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold to exit. To return to the previous setting item, press .

Select the display language and cancel the demonstration When you turn on the power for the first time (or [FACTORY RESET] is set to [YES]

), the display shows: “SEL LANGUAGE” “PRESS” “VOLUME KNOB” 1 Turn the volume knob to select [ENG] (English), [RUS] (Russian) or [SPA] (Spanish), then press the knob. [ENG] is selected for the initial setup. Then, the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB”. 2 Press the volume knob. [YES] is selected for the initial setup. 3 Press the volume knob again. “DEMO OFF” appears. Then, the display shows the selected crossover type: “2-WAY X ’ OVER” or

• To change the crossover type, see “Change the crossover type”. ( 6) GETTING STARTED

: LCD DISPLAY zone illumination changes to white color. ; OFF : LCD DISPLAY zone illumination remains as [COLOR SELECT] color. ( 26)

KEY zone illumination changes to light blue color when you enter [FUNCTION] , irregardless of the [EASY MENU] setting.

Refer to the illustration on page 25 for zone identification. TUNER SETTING DAB ANT POWER

: Supplies power to the DAB antenna. Selects when using the supplied antenna. ; OFF : Does not supply power. Selects when using passive antenna without booster. ( 37) PRESET TYPE NORMAL :Memorizes one station for each preset button in each band (FM1/FM2/FM3/MW/LW/DB1/DB2/DB3).; MIX :Memorizes one station (digital radio or analog radio) for each preset button, regardless of the selected band. SYSTEM KEY BEEP (Not applicable if 3-way crossover is selected.)

:Enables AUX in source selection.; OFF :Disables. ( 10) POWER OFF WAIT Applicable only when the demonstration mode is turned off. Sets the duration when the unit will automatically turn off (while in standby mode) to save the battery. 20M : 20minutes; 40M : 40minutes; 60M : 60minutes;

:Cancels GETTING STARTED CD READ 1 :Automatically distinguishes between audio file disc and music CD.;

:Forces to play as a music CD. No sound can be heard if an audio file disc is played.

F/W UPDATE Vxxx YES :Starts upgrading the firmware.;

:Cancels (upgrading is not activated). For details on how to update the firmware, visit <www.kenwood.com/cs/ce/>.

:Resets the settings to default (except the stored station).;

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. ENGLISH Select the display language for [FUNCTION] menu and music information if applicable. By default, [ENGLISH] is selected.

About DAB (Digital Audio Broadcasting) DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect the supplied DAB antenna to the DAB antenna jack. ( 36) 2 Press repeatedly to select DIGITAL AUDIO. 3 Press and hold (LISTUPDATE) to start the Service List update. “LIST UPDATE” appears and update starts. “UPDATED” appears when update completes. Updates take up to3 minutes. No interruption (such as traffic information) is possible during updates.

• To cancel the Service List update: Press and hold (LISTUPDATE) again. Change the crossover type

Press repeatedly to enter STANDBY. 2 Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears. 3 Turn the volume knob to select “2WAY” or “3WAY”, then press the knob. 4 Turn the volume knob to select “YES” or “NO”, then press the knob. The selected crossover type appears.

• To adjust the selected crossover settings, ( 23

Caution Select a crossover type according to how the speakers are connected. ( 35

• The speakers may damage.

Press repeatedly to select DIGITAL AUDIO. 2 Press repeatedly to select DB1/DB2/DB3. 3 Press and hold S/T to search for an ensemble. 4 Press S/T to select an ensemble, service or component to listen.

• To change the searching method for S/T: Press repeatedly. AUTO1 : Press S/T: Select an ensemble, service or component. Press and hold S/T: Automatically search for an ensemble. AUTO2 : Press S/T: Search for a preset station. MANUAL : Press S/T: Select an ensemble, service or component. Press and hold S/T: Manually search for an ensemble.

• To store a service: Press and hold one of the number buttons (1to6).

• To select a stored service: Press one of the number buttons (1to6). Select a service

Press to enter Service Search mode. 2 Turn the volume knob or press J/K to select a service, then press the knob. To cancel the Service Search mode, press again. Select a service by name

Press to enter Service Search mode. 2 Turn the volume knob quickly to enter Alphabet Search mode. 3 Turn the volume knob or press S/T to select the character to be searched for. Press J/K to go to the previous/next page. 4 Press the volume knob to start searching. 5 Turn the volume knob to select a service, then press the knob. To cancel the Alphabet Search mode, press again. Other settings

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . Default:

While listening to DAB: Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM: Automatically switch to DIGITAL AUDIO source broadcasting the same program (if available).; OFF :Cancels. TI ON :Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF :Cancels. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 7JS_KWD_KDC_X7200DAB_EN_EN_4.indd 7 8/24/2017 8:50:22 AM8/24/2017 8:50:22 AM Downloaded from www.vandenborre.be8 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) DIGITAL RADIO PTY SEARCH

Turn the volume knob to select the available Program Type (see the following), then press the knob.

Turn the volume knob to select the PTY language ( ENGLISH

Press S/T to start searching.

” appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

Multiple announcement can be activated simultaneously.

:Automatically update the DAB Service List when the power is turned on.; MANUAL :Updates the DAB Service List by pressing and holding (LIST UPDATE)

The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type

(music), DOCUMENT OFF :Cancels.

Press the volume knob to enter PTY language selection.

Turn the volume knob to select the PTY language ( ENGLISH

:Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program.; OFF :Disable. CLOCK TIME SYNC

:Synchronizes the unit’s time to the Digital Radio signal station time.; OFF :Cancels. Available Program Type for [PTY SEARCH] SPEECH

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), JAZZ

NATION M (music), OLDIES

FOLK M (music) The unit will search for the Program Type categorized under [SPEECH]

[MUSIC] if selected.

• If the volume is adjusted during reception of traffic information, announcement, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, announcement, alarm or news bulletin is turned on. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 8JS_KWD_KDC_X7200DAB_EN_EN_4.indd 8 8/24/2017 8:50:23 AM8/24/2017 8:50:23 AM Downloaded from www.vandenborre.beENGLISH

: Searches only stations with good reception. ; OFF : Cancels.

Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again. AUTO MEMORY YES :Automatically starts memorizing 6 stations with good reception.;

Selectable only if [NORMAL] is selected for [PRESET TYPE]

:Improves the FM reception, but the stereo effect may be lost.; OFF :Cancels.

: The unit will temporarily switch to News Programme if available. ; OFF :Cancels. REGIONAL ON : Switches to another station only in the specific region using the “AF” control.; OFF :Cancels.

: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.; OFF :Cancels.

:Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF :Cancels.

[TI] in MW/LW band is for enabling traffic interruption to DIGITAL AUDIO source only. PTY SEARCH

Turn the volume knob to select the PTY language ( ENGLISH

to start searching. Search for a station

Press repeatedly to select RADIO. 2 Press repeatedly to select FM1/FM2/FM3/MW/LW. 3 Press S/T to search for a station.

• To change the searching method for S/T: Press repeatedly. AUTO1 : Automatically search for a station. AUTO2 : Search for a preset station. MANUAL : Manually search for a station.

• To store a station: Press and hold one of the number buttons (1to6).

• To select a stored station: Press one of the number buttons (1to6). Other settings

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), JAZZ

NATION M (music), OLDIES

FOLK M (music) The unit will search for the Program Type categorized under [SPEECH]

[MUSIC] if selected.

selectable only when the band is FM1/FM2/FM3.

• If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on. ANALOG RADIO Preparation: Select [ON] for [BUILT-IN AUX] for [SOURCE SELECT]

Connect a portable audio player (commercially available).

2 Press repeatedly to select AUX. 3 Turn on the portable audio player and start playback. Set the AUX name While listening to a portable audio player connected to the unit... 1 Press the volume knob to enter [FUNCTION]

5 Press and hold to exit. To return to the previous setting item, press . AUX Auxiliary cable from the rear of the unit. Portable audio player 3.5mm stereo mini plug with “L” shaped connector (commercially available) JS_KWD_KDC_X7200DAB_EN_EN_4.indd 10JS_KWD_KDC_X7200DAB_EN_EN_4.indd 10 8/24/2017 8:50:23 AM8/24/2017 8:50:23 AM Downloaded from www.vandenborre.beENGLISH

Press and hold S/T. Select a track/file Press S/T. Select a folder

Press J/K. Repeat play

Press repeatedly. TRACK REPEAT

Press repeatedly. DISC RANDOM

When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android device before connecting. For more information, visit <www.kenwood.com/cs/ce/>.

For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 12)

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ANDROID.

[BROWSE MODE] is selected. ( 12)

For CD: Only for MP3/WMA/AAC files. USB 1 cable from the rear of the unit (USB input terminal). You can also connect to the USB 2 cable from the rear of the unit (USB input terminal). Label side

(commercially available) KCA-iP102/KCA-iP103 (optional accessory)

or accessory of the iPod/iPhone

JS_KWD_KDC_X7200DAB_EN_EN_4.indd 11JS_KWD_KDC_X7200DAB_EN_EN_4.indd 11 8/24/2017 8:50:23 AM8/24/2017 8:50:23 AM Downloaded from www.vandenborre.be12 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) CD/USB/iPod/ANDROID Select control mode While in iPod 1/iPod 2 source, press 5 repeatedly. MODE ON : Control iPod using the iPod itself. However, you can still play/ pause, file skip, fast-forward or reverse from this unit. MODE OFF : Control iPod from this unit. While in ANDROID 1/ANDROID 2 source, press 5 repeatedly. BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device. HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit. Select music drive While in USB 1/USB 2 source, press 5 repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the iPod/iPhone to the USB input terminal of the unit.

• The unit will output the sound from these applications. Select a file from a folder/list For iPod/ANDROID, applicable only when [MODE OFF]

selected. 1 Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search (applicable only for CD, USB 1, USB 2, ANDROID 1 and ANDROID 2 source) If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. Skip Search (applicable only for iPod 1, iPod 2, ANDROID 1 and ANDROID 2 source) Press S/T to search at a preset skip search ratio. ( 13, [SKIP SEARCH])

• Pressing and holding S/T searches at a 10

ratio. Alphabet search (applicable only for iPod 1, iPod 2, ANDROID 1 and ANDROID 2 source) You can search for a file according to the first character. For iPod 1/iPod 2 source 1 Turn the volume knob quickly to enter character search. 2 Turn the volume knob to select the character.

” to search for a character other than AtoZ, 0to9. 3 Press S/T to move to the entry position.

• You can enter up to 3characters. 4 Press the volume knob to start searching. For ANDROID 1/ANDROID 2 source 1 Press J/K to enter character search. 2 Turn the volume knob to select the character. ^A^: Upper case letters (A to Z) _A_: Lower case letters (a to z) -0-: Numbers (0 to 9)

: Character other than AtoZ, 0to9 3 Press the volume knob to start searching.

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via USB input terminal). Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. You can make the settings in the same way as connection via Bluetooth. ( 20

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

:The next drive ( [DRIVE 1]

[DRIVE 4] ) is selected automatically and playback starts. Repeat steps

to select the following drives. SKIP SEARCH 0.5%

10% : While listening to iPod 1, iPod 2, ANDROID 1 or ANDROID 2 source, selects the skip search ratio over the total files. CD/USB/iPod/ANDROID Spotify Preparation: Install the latest version of the Spotify application on your device (iPhone/ iPod touch), then create and account and log in to Spotify.

• Select [ON] for [SPOTIFY SRC]

Open the Spotify application on your device. 2 Connect your device to the USB input terminal.

3 Press repeatedly to select SPOTIFY 1/SPOTIFY 2. Broadcast starts automatically.

Do not leave the cable inside the car when not using. USB 1 cable from the rear of the unit. You can also connect to the USB 2 cable from the rear of the unit. KCA-iP102/KCA-iP103 (optional accessory)

or accessory of the iPod/iPhone

/T. Thumbs up or thumbs down*

Press repeatedly. REPEAT ALL

REPEAT OFF Random play*

Available for premium account users only.

This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.

Available for tracks in Playlists only. Save favorite song information While listening to the Radio on Spotify... Press and hold the volume knob. “SAVED” appears and the information is stored to “Your Music” or “Your Library” on your Spotify account. To unsave, repeat the same procedure. “REMOVED” appears and the information is removed from “Your Music” or “Your Library” on your Spotify account. Search for a song or station

Press . 2 Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify. 3 Turn the volume knob to select the desired song or station. 4 Press the volume knob to confirm. You can browse through the list quickly by turning the volume knob quickly. To cancel, press and hold

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone BLUETOOTH® Secure using cord clamps (not supplied) if necessary. Microphone (supplied) Rear panel Microphone input jack Adjust the microphone angle Pair and connect a Bluetooth device for the first time

Press to turn on the unit. 2 Search and select this unit model name (KDC-X7***DAB) on the Bluetooth device. “PAIRING” “PASS XXXXXX” Device name “PRESS” “VOLUME KNOB” appears on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Press the volume knob to start pairing. “PAIRING OK” appears when pairing is completed. Once pairing is completed, Bluetooth connection is established automatically.

• “BT1” and/or “BT2” indicator on the faceplate lights up.

• This unit supports Secure Simple Pairing (SSP).

• Up to five devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, 19, [DEVICE DELETE]

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. ( 20)

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. Auto Pairing When you connect iPhone/iPod touch/Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected device is turned on.

( 19) – KENWOOD MUSIC PLAY application is installed on the Android device ( 11) and [BROWSE MODE] is selected. ( 12) JS_KWD_KDC_X7200DAB_EN_EN_4.indd 15JS_KWD_KDC_X7200DAB_EN_EN_4.indd 15 8/24/2017 8:50:24 AM8/24/2017 8:50:24 AM Downloaded from www.vandenborre.be16 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

• The KEY zone illuminates in green color and flashes.

• The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. ( 17) During a call:

• The LCD DISPLAY zone illuminates according to the settings made for [DISPLAY] ( 26) and the KEY zone illuminates in green color.

• If you turn off the unit or detach the faceplate, the Bluetooth connection is disconnected. The following operations may differ or not available depending on the connected phone. To On the faceplate First incoming call... Answer a call Press or the volume knob or one of the number buttons (1 to 6). Reject a call Press

End a call Press . While talking on the first incoming call... Answer another incoming call and hold the current call Press

Reject another incoming call Press

While having two active calls... End current call and activate held call Press

Swap between the current call and held call Press

Adjust the phone volume [00]

Turn the volume knob during a call.

• This adjustment will not affect the volume of the other sources. Switch between hands-free and private talk modes Press during a call.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Improve the voice quality While talking on the phone... 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . Default:

LEVEL –4 ): The sensitivity of the microphone increases as the number increased.

LEVEL 0 ):Adjust the noise reduction level until the least noise is being heard during a phone conversation.

LEVEL 0 ):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the settings for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . BLUETOOTH® Default:

:The unit answers incoming call automatically in the selected time (in seconds).; OFF :Cancels. BATTERY/ SIGNAL* AUTO :Shows the strength of the battery and signal when the unit detects a Bluetooth device and the Bluetooth device is connected.; OFF :Cancels.

Functionality depends on the type of the phone used. Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. “(First device name)” appears.

• If two Bluetooth phones are connected, press again to switch to another phone. “(Second device name)” appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . CALL HISTORY (Applicable only if the phone supports PBAP.)

• “INCOMING”, “OUTGOING”, or “MISSED” is shown on the lower part of the display to indicate the previous call status.

• Press DISP to change the display category (NUMBER or NAME).

• “NO DATA” appears if there is no recorded call history.

Turn the volume knob quickly to enter alphabet search mode (if the phonebook contains many contacts). The first menu (ABCDEFGHIJKLMN) appears.

• To go to the other menu (OPQRSTUVWXYZ1 ), press J / K

• To select the desired first letter, turn the volume knob or press S/T , then press the knob. Select “1” to search with numbers and select “ ” to search with symbols.

The phonebook of the connected phone is automatically transferred to the unit when pairing.

Contacts are categorized as: HOME, OFFICE, MOBILE, OTHER, GENERAL.

This unit can display only non-accent letters. (Accent letters such as “Ú” is shown as “U”.) NUMBER DIAL

Turn the volume knob to select a number (0 to 9) or character

Press S/T to move the entry position. Repeat steps

until you finish entering the phone number.

Press the volume knob to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. ( Make a call using voice recognition)

:Shows the strength of the battery. NO SIGNAL

:Shows the strength of the current received signal.

Functionality depends on the type of the phone used. Make a call using voice recognition

Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [CALL HISTORY]

[PHONE BOOK] , or [NUMBER DIAL] , then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6). “STORED” appears when the contact is stored. To erase a contact from the preset memory, select [NUMBER DIAL] in step 2 and store a blank number. Make a call from memory

2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press and hold to exit. To return to the previous setting item, press . Default:

BT MODE PHONE SELECT Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected.

” appears in front of the current playback audio device.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time. AUDIO SELECT DEVICE DELETE

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [YES]

to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm. RECONNECT ON :The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ; OFF :Cancels. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels. Bluetooth test mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “PLEASE PAIR YOUR PHONE PIN 0000” appears. 2 Search and select this unit model name (KDC-X7***DAB) on the Bluetooth device. 3 Operate the Bluetooth device to confirm pairing. “TESTING” flashes on the display. The connectivity result (OK or NG) appears after the test. PAIRING: Pairing status HF CONNECT: Hands-Free Profile (HFP) compatibility AUDIO CONNECT: Advanced Audio Distribution Profile (A2DP) compatibility PHONEBOOK DL: Phonebook Access profile (PBAP) compatibility To cancel test mode, press and hold to turn off the unit. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 19JS_KWD_KDC_X7200DAB_EN_EN_4.indd 19 8/24/2017 8:50:24 AM8/24/2017 8:50:24 AM Downloaded from www.vandenborre.be20 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) BLUETOOTH® To On the faceplate Switch between connected Bluetooth audio devices Press 5.

Pressing the “Play” key on the connected device itself also causes switching of sound output from the device. Operations and display indications may differ according to their availability on the connected device. Settings to use KENWOOD Remote application KENWOOD Remote application is designed to control the KENWOOD car receiver’s operations from the iPhone/iPod (via Bluetooth or via USB input terminal) or Android smartphone (via Bluetooth). Preparation: Install the latest version of KENWOOD Remote application on your device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. 1 Press the volume knob to enter [FUNCTION]

2 Turn the volume knob to select an item ( 21) , then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press and hold to exit. To return to the previous setting item, press . BLUETOOTH — Audio While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. Audio player via Bluetooth

Press repeatedly to select BTAUDIO. 2 Operate the Bluetooth audio player to start playback. To On the faceplate Playback/pause Press

Select group or folder Press J / K. Reverse/Forward skip Press S/T. Reverse/Fast-forward Press and hold S/T. Repeat play Press repeatedly. ALL REPEAT

REPEAT OFF Random play Press and hold to select ALL RANDOM

• Press to select RANDOM OFF

:Cancels. If IOS is selected, select iPod BT source (or iPod 1/iPod 2 if your iPhone/iPod is connected via USB input terminal) to activate the application.

The connectivity of the application will be interrupted or disconnected if: – You change from iPod BT source to any playback source connected via the USB input terminal. – You change from iPod 1/iPod 2 source to iPod BT source. ANDROID YES :Selects Android smartphone to use the application via Bluetooth.;

: Cancels. ANDROID LIST *:Selects the Android smartphone to use from the list. STATUS Shows the status of the selected device. IOS CONNECTED : You are able to use the application using the iPhone/iPod connected via Bluetooth or USB input terminal.

: No IOS device is connected to use the application. ANDROID CONNECTED : You are able to use the application using the Android smartphone connected via Bluetooth.

ANDROID NOT CONNECTED

: No Android device is connected to use the application.

[SELECT] is set to [YES]

Listen to iPhone/iPod via Bluetooth You can listen to the songs on the iPhone/iPod via Bluetooth on this unit. Press repeatedly to select iPodBT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. ( 11)

• If you plug in an iPhone/iPod to the USB input terminal while listening to iPodBT source, the source automatically change to iPod 1/iPod2. Press to select iPodBT if the device is still connected via Bluetooth. Internet radio via Bluetooth You can listen to Spotify on the iPhone/iPod/Android device via Bluetooth on this unit.

• Make sure the USB input terminal is not connected to any device. Listen to Spotify Preparation: Select [ON] for [SPOTIFY SRC]

( 5) 1 Open the Spotify application on your device. 2 Connect your device via Bluetooth connection. ( 15) 3 Press repeatedly to select SPOTIFY (for iPhone/iPod) or SPOTIFY BT (for Android device). The source switches and broadcast starts automatically.

LEVEL 0 ): Adjusts the subwoofer output level. MANUAL EQ The sound elements (frequency level, tone level, Q factor) are preset into each selection.

LEVEL 0 ):Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) BASS EXTEND

LEVEL 0 ):Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.) Q FACTOR 1.35

:Adjust the quality factor.

USER : Selects a preset equalizer suitable to the music genre. (Select [USER] to use the settings made in [MANUAL EQ]

LEVEL5 :Selects your preferred bass boost level.; OFF :Cancels. LOUDNESS LEVEL1

LEVEL2 :Selects your preferred low and high frequencies boost to produce a well-balanced sound at a low volume level.; OFF :Cancels.

:Turns on the subwoofer output.; OFF :Cancels. FADER (Not applicable if 3-way crossover is selected.) REAR 15

):Adjusts the rear and front speaker output balance. BALANCE LEFT 15

):Adjusts the left and right speaker output balance. VOLUME OFFSET LEVEL –15

LEVEL 0 ):Preset the initial volume level of each source. (Before adjustment, select the source you want to adjust.) SOUND EFFECT SOUND RECONSTRA (Sound reconstruction) (Not applicable for RADIO source, DIGITAL AUDIO source and AUX source.)

:Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF :Cancels. SPACE ENHANCER (Not applicable for RADIO source and DIGITAL AUDIO source.) SMALL

LEVEL3 :Virtually makes the sound more realistic.; OFF :Cancels.

HIGH :Virtually adjust the sound position heard from the speakers.; OFF :Cancels.

: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF :Cancels. SPEAKER SIZE Depending on the crossover type you have selected ( 6) , 2-way crossover or 3-way crossover setting items will be shown. ( 23, 24) By default, 2-way crossover type is selected. X’OVER DTA SETTINGS For settings, 24, 25, Digital Time Alignment settings

[SUB-W LEVEL] is selectable only if [SUBWOOFER SET] is set to [ON]

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. SPEAKER SIZE Selects according to the connected speaker size for optimum performance.

The frequency and slope settings are automatically set for the crossover of the selected speaker.

When 2-way crossover is selected, if [NONE] is selected for [TWEETER]

[REAR] and [SUBWOOFER] for [SPEAKER SIZE] , the [X ‘ OVER] setting of the speaker is not available.

• When 3-way crossover is selected, if [NONE] is selected for [WOOFER]

[SPEAKER SIZE] , the [X’OVER] setting of [WOOFER] is not available. X ‘ OVER

[LPF FRQ] : Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

[THROUGH] is selected, all signals are sent to the selected speakers.

[SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH]

selected for the crossover frequency.

[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.

Adjusts the output volume of the selected speaker. 2-way crossover setting items SPEAKER SIZE FRONT SIZE 8CM

NONE (not connected) REAR 8CM

NONE (not connected) SUBWOOFER

NONE (not connected)

Selectable only when [SUBWOOFER SET] is set to [ON]

• For more information, 25, Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS]. DTA SETTINGS POSITION Selects your listening position (reference point). ALL :Not compensating; FRONT RIGHT: Front right seat; FRONT LEFT :Front left seat; FRONT ALL :Front seat

[FRONT ALL] is displayed only when

is selected. ( 6) DISTANCE 0CM

610CM :Fine adjust the distance to compensate. (Before making an adjustment, select the speaker you want to adjust.) GAIN –8DB

0DB :Fine adjust the output volume of the selected speaker. (Before making an adjustment, select the speaker you want to adjust.)

:Cancels. CAR SETTINGS Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS]

MINIVAN(LONG) :Selects the type of vehicle.; OFF: Not compensating. REAR-SP LOCATION Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).

REAR DECK :Selectable only when [CAR TYPE] is selected as [OFF]

3RD ROW :Selectable only when [CAR TYPE] is selected

NONE (not connected)

THROUGH HPF SLOPE –6DB

Selectable only when [SUBWOOFER SET] is set to [ON]

Before making an adjustment for [DISTANCE] and [GAIN]

[DTA SETTINGS] , select the speaker you want to adjust: When 2-way crossover is selected: FRONT LEFT

SUBWOOFER – You can only select [REAR LEFT]

[REAR RIGHT] and [SUBWOOFER] if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER]

( 23) When 3-way crossover is selected: TWEETER LEFT

WOOFER – You can only select [WOOFER] if a setting other than [NONE] is selected for [WOOFER]

[CAR SETTINGS] is selectable only if: – 2-way crossover is selected. ( 6) – A setting other than [NONE] is selected for [REAR]

( 23) Determining the value for [DISTANCE] and [GAIN] of [DTA SETTINGS] If you specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set.

Determine the center of the currently set listening position as the reference point.

Measure the distances from the reference point to the speakers.

Calculate the differences between the distance of the furthest speaker (rear speaker) and other speakers.

Set the [DISTANCE] calculated in step

for individual speakers.

Adjust [GAIN] for individual speakers. Example: When [FRONT ALL] is selected as the listening position Zone identification for color and brightness settings Set the dimmer Press and hold DISP to turn on or off the dimmer.

LCD DISPLAY and KEY separately.

Select a zone. (See the illustration on page 25.)

Select a color for the selected zone. INITIAL COLOR

. The color you have made will be stored in

Press the volume knob to enter the detailed color adjustment.

to select the color (

Turn the volume knob to adjust the level (

:Dimmer is turned on.; OFF :Cancels. DIMMER TIME :Set the dimmer on and off time.

Select a zone. (See the illustration on page 25.)

LEVEL 31 : Select your preferred brightness level for the selected zone.

ORANGERED TROUBLESHOOTING Symptom Remedy General Sound cannot be heard.

Adjust the volume to the optimum level.

Check the cords and connections.

“MISWIRING CHECK WIRING

THEN POWER ON” appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

SERVICE” appears. Send the unit to the nearest service center.

Sound cannot be heard.

The unit does not turn on.

Information shown on the display is incorrect. Clean the connectors. ( 29) The unit does not work at all. Reset the unit. ( 3) Digital Radio DAB reception is poor. Make sure [ON] is selected for

“RELATED SERVICE FOUND”

Press to cancel. Analog Radio

Radio reception is poor.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy CD/USB/iPod Disc cannot be ejected. Press and hold

to forcibly eject the disc. Be careful not to drop the disc when it is ejected. If this does not solve the problem, reset the unit. ( 3) Noise is generated. Skip to another track or change the disc. Tracks do not play back as you intended them to play. Playback order is determined when files are recorded. “READING” keeps flashing. Do not use too many hierarchical levels or folders. Elapsed playing time is not correct. This is caused by how the tracks are recorded. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. Correct characters are not displayed (e.g. album name).

This unit can only display uppercase letters, numbers, and a limited number of symbols.

Depending on the display language you have selected ( 5) , some characters may not be displayed correctly. “NA FILE” Make sure the disc contains supported audio files. ( 30) “NO DISC” Insert a playable disc into the loading slot. “TOC ERROR” Make sure the disc is clean and inserted properly. “PLEASE EJECT” Reset the unit. If this does not solve the problem, consult your nearest service center. “NO DEVICE” Connect a USB device, and change the source to USB again. “COPY PROTECTED” A copy-protected file is played. Symptom Remedy CD/USB/iPod “UNSUPPORTED DEVICE”

Check whether the connected device is compatible with this unit and ensure the file systems are in supported formats. ( 30)

Reattach the device. “UNRESPONSIVE DEVICE” Make sure the device is not malfunction and reattach the device.

SUPPORTED” This unit cannot support a USB device connected via a USB hub.

The source does not change to “USB” when you connect a USB device while listening to another source.

“USB ERROR” appears The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device. “NO MUSIC” Connect a USB device that contains playable audio files. “iPod ERROR”

Sound cannot be heard during playback.

Sound output only from the Android device.

Reconnect the Android device.

If in [HAND MODE] , launch any media player application on the Android device and start playback.

If in [HAND MODE] , relaunch the current media player application or use another media player application.

Restart the Android device.

Make sure KENWOOD MUSIC PLAY APP is installed on the Android device. ( 11)

Reconnect the Android device and select the appropriate control mode.

If this does not solve the problem, the connected Android device does not support [BROWSE MODE]

( 30) “NO DEVICE” or “READING” keeps flashing.

Switch off the developer options on the Android device.

Reconnect the Android device.

If this does not solve the problem, the connected Android device does not support [BROWSE MODE]

( 30) Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “ANDROID ERROR”/ “NADEVICE”

Reconnect the Android device.

Restart the Android device. Spotify “DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB. “CONNECTING”

Connected via USB input terminal: The device is connecting to the head unit. Please wait.

Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and the unit are paired and connected. “CHECK APP” The Spotify application is not connected properly, or user is not login. End the Spotify application and restart, then login to your Spotify account. Symptom Remedy Bluetooth® No Bluetooth device is detected.

Search from the Bluetooth device again.

Make sure you have entered the same PIN code to both the unit and Bluetooth device.

Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 15) Echo or noise is heard during a phone conversation.

Check the [ECHO CANCEL] setting. ( 17) Phone sound quality is poor.

Reduce the distance between the unit and the Bluetooth device.

Move the car to a place where you can get a better signal reception. Voice calling method is not successful.

Use voice calling method in a more quiet environment.

Reduce the distance from the microphone when you speak the name.

Make sure the same voice as the registered voice tag is used. Sound is being interrupted or skipped during playback of a Bluetooth audio player.

Reduce the distance between the unit and the Bluetooth audio player.

Turn off, then turn on the unit and try to connect again.

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Symptom Remedy Bluetooth® The connected Bluetooth audio player cannot be controlled.

Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

Disconnect and connect the Bluetooth player again. “DEVICE FULL” The number of registered devices has reached its limit. Retry after deleting an unnecessary device. ( 19, DEVICE DELETE) “N/A VOICE TAG” Make sure the same voice as the registered voice tag is used. “NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer. “NO ENTRY”/“NO PAIR” There is no registered device connected/found via Bluetooth. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.

“BT ERROR” Reset the unit and try the operation again. If this does not solve the problem, consult your nearest service center. “SWITCHING NG” The connected phones might not support phone switching feature. TROUBLESHOOTING REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs

Do not touch the recording surface of the disc.

Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

Do not use any accessories for the disc.

Clean from the center of the disc and move outward.

Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

When removing discs from this unit, pull them out horizontally.

This unit can only play the following CDs:

Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a CD encoded by iTunes cannot be played on this unit. Unplayable discs

Discs that are not round.

Discs with coloring on the recording surface or discs that are dirty.

Recordable/ReWritable discs that have not been finalized.

8cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

You cannot connect a USB device via a USB hub.

Connecting a cable whose total length is longer than 5m may result in abnormal playback.

This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A. About iPod/iPhone

Via USB: Made for – iPod touch (5th and 6th generation) – iPod nano (7th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

Via Bluetooth: Made for – iPod touch (5th and 6th generation) – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus

You cannot operate iPod if “KENWOOD” or “ ” is displayed on iPod.

Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. REFERENCES About Android device

This unit supports Android OS 4.1 and above.

Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0.

If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority. About Spotify

Spotify application supports: – iPhone 4S, 5, 5S, 5C, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus (iOS 8 or above) – iPod touch (5th and 6th generation) – Android OS 4.0.3 or above

Spotify is a third-party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

Some functions of Spotify cannot be operated from this unit.

For issues using the application, please contact Spotify at <www.spotify.com>. About Bluetooth

Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

This unit may not work with some Bluetooth devices.

If the information is unavailable or not recorded, “NO TEXT”, “NO INFO”, or other information (eg. station name, playing time) appears. Source name Display information STANDBY Source name (Date)* DIGITAL AUDIO Service label (Ensemble) Service label (Date)* Dynamic label (Date)* Song title (Artist) Song title (Date)* Next program (Date)* Signal level (Date)* (back to the beginning) RADIO Frequency (Date)* (For FM Radio Data System stations only) Station name (Date)* Radio text (Date)* Radio text+ (R.TEXT+) Song title (Artist) Song title (Date)* Frequency (Date)* (back to the beginning) CD or USB 1/USB 2 (For CD-DA) Track title (Artist) Track title (Disc name) Track title (Date)* Playing time (Date)* (back to the beginning) (For MP3/WMA/AAC/WAV/FLAC files) Song title (Artist) Song title (Album title) Song title (Date)* File name (Folder name) File name (Date)* Playing time (Date)* (back to the beginning) iPod 1/iPod 2/iPodBT or ANDROID 1/ANDROID 2 When [MODE OFF]

[BROWSE MODE] is selected ( 12)

Song title (Artist) Song title (Album name) Song title (Date)* Playing time (Date)* (back to the beginning) SPOTIFY 1/SPOTIFY 2/

Context title (Date)* Song title (Artist) Song title (Album name) Song title (Date)* Playing time (Date)* (back to the beginning) BT AUDIO Song title (Artist) Song title (Album name) Song title (Date)* Playing time (Date)* (back to the beginning) AUX Source name (Date)*

Battery and signal strength of the Bluetooth device will be shown if [BATTERY/SIGNAL] is set to [AUTO]

(0.56μV/75Ω) Quieting Sensitivity (S/N=46dB, Dev 40 kHz)

The unit can only be used with a 12V DC power supply, negative ground.

Disconnect the battery’s negative terminal before wiring and mounting.

Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

To prevent short circuit: – Insulate unconnected wires with vinyl tape. – Be sure to ground this unit to the car’s chassis again after installation. – Secure the wires with cable clamps and wrap vinyl tape around the wires that come into contact with metal parts to protect the wires. Caution

For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

Mount the unit at an angle of less than 30º.

If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

Keep all cables away from heat dissipate metal parts.

After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 33JS_KWD_KDC_X7200DAB_EN_EN_4.indd 33 8/24/2017 8:50:28 AM8/24/2017 8:50:28 AM Downloaded from www.vandenborre.be34 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Do the required wiring. ( 35) Dashboard of your car Bend the appropriate tabs to hold the mounting sleeve firmly in place. How to remove the unit

Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out.

Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration. Installing the unit (in-dash mounting) Hook on the top side Orientate the trim plate as illustrated before fitting. Basic procedure

Remove the key from the ignition switch, then disconnect the

terminal of the car battery.

Connect the wires properly. See Wiring connection. ( 35)

Install the unit to your car. See Installing the unit (in-dash mounting).

terminal of the car battery.

Press to turn on the power.

MUTE Pin Color and function (for ISO connectors) A4 Yellow

Earth (ground) connection

Rear speaker (right) For 3-way crossover: Tweeter (right)

Front speaker (right) For 3-way crossover: Mid range speaker (right)

Front speaker (left) For 3-way crossover: Mid range speaker (left)

Rear speaker (left) For 3-way crossover: Tweeter (left)

(Power control wire/ Antenna control wire) Light blue/yellow (Steering remote control wire) To the power control terminal when using the optional power amplifier or to the antenna control terminal in the vehicle Brown (Mute control wire) To connect the Kenwood navigation system, refer your navigation manual If no connections are made, do not let the wire come out from the tab. To the steering wheel remote control adapter Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. UnitVehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) ISO connectors NOTE: Total output for Blue/White wire (

) is 12 V 350 mA. Fuse (10A) When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. If your car does not have an ISO terminal: We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. JS_KWD_KDC_X7200DAB_EN_EN_4.indd 35JS_KWD_KDC_X7200DAB_EN_EN_4.indd 35 8/24/2017 8:50:28 AM8/24/2017 8:50:28 AM Downloaded from www.vandenborre.be36 ENGLISH Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) INSTALLATION/CONNECTION Rear/Front/Subwoofer output For 3-way crossover: Tweeter/Mid Range/Woofer output Microphone input jack ( 15) USB 1 cable (DC 5V 1.5A) Auxiliary cable DAB antenna jack ( 6) USB 2 cable (DC 5V 1.5A) Connecting external components JS_KWD_KDC_X7200DAB_EN_EN_4.indd 36JS_KWD_KDC_X7200DAB_EN_EN_4.indd 36 8/24/2017 8:50:28 AM8/24/2017 8:50:28 AM Downloaded from www.vandenborre.beENGLISH

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) (F) (F) 50 mm 150 mm 50 mm 150 mm (G) (G) INSTALLATION/CONNECTION Installing the DAB antenna Connect the supplied DAB antenna to the DAB antenna jack. ( 36) Caution

The film antenna (F) is exclusively for use inside the vehicle. Do not install at the following locations: – where it may block the driver’s view. – where it may obstruct the operation of safety devices such as air bags. – on movable glass surfaces such as the rear hatch. – at side of vehicle (e.g. door, front quarter window). – on rear window. Signal strength will weaken when installed at the following locations: – on IR reflecting glass or locations covered with mirror type glass film. – where it overlaps with genuine radio antenna (pattern). – where it overlaps with window heating wires. – on glass that blocks radio signals (e.g. IR reflecting glass, thermal insulation glass). Poor reception may occur: – due to noise when windscreen wiper, air conditioner, or motor is turned on. – depending on the direction of the broadcast station with respect to the vehicle (antenna). Thoroughly wipe oil and dirt from the pasting surface with the supplied cleaner (I)

Do not bend or damage the film antenna (F)

It may not be possible to install on certain vehicles. Check the cable routing of the film antenna (F) and amplifier unit (G) before pasting. Do not apply any glass cleaner after pasting the film antenna (F)

The direction of the film antenna (F) changes depending on whether the film antenna (F) is installed on the right side or left side. Be sure to check the installation location of film antenna (F) before installing. Film antenna cannot be re-pasted. Separate from other antennas by at least 100mm. Do not paste the amplifier unit (G) on the ceramic line (black part) around the front glass. Because there is not enough adhesion. Paste the earth sheet of the amplifier unit (G) on the metal part of the front pillar.Ceramic line (black part)Earth sheet*Earth sheet* Installing the antenna on the left side Installing the antenna on the right side Part list for installation (F) Film antenna (I) Cleaner (H) Cable clamper (G) Amplifier unit (cable with booster, 3.5m) JS_KWD_KDC_X7200DAB_EN_EN_4.indd 37JS_KWD_KDC_X7200DAB_EN_EN_4.indd 37 8/24/2017 8:50:28 AM8/24/2017 8:50:28 AM Downloaded from www.vandenborre.be38 ENGLISH Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) Installation overview The antenna should be installed on the passenger side for safety. INSTALLATION/CONNECTION Caution When installing the antenna cable inside the front pillar with the air bag installed

The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement parts.

Install the amplifier unit (G) above the air bag so that it does not obstruct the operation of the air bag. (G) Antenna installation

Remove the front pillar cover of your car. Front pillar 2 Clean the windscreen with the supplied cleaner (I). (I) – Wait until the glass surface is completely dry before proceeding. – Warm the surface of the windscreen with defroster if it is cold (during winter). 3 Remove the separator (tag 1) of film antenna (F) horizontally and paste the antenna on the windscreen. Do not touch the pasting surface (adhesive side) of the film antenna (F). Separator (tag 1) Front pillar Clip Air bag JS_KWD_KDC_X7200DAB_EN_EN_4.indd 38JS_KWD_KDC_X7200DAB_EN_EN_4.indd 38 8/24/2017 8:50:28 AM8/24/2017 8:50:28 AM Downloaded from www.vandenborre.beENGLISH

Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm) INSTALLATION/CONNECTION 4 Rub the film antenna gently onto the windscreen in the direction of the arrow shown to allow it to stick firmly. 5 Remove the separator (tag 2) of film antenna (F) vertically. (F) Separator (tag 2) 6 Set the position of the protrusion of the amplifier unit (G) with the K mark on the film antenna (F) and paste. Do not touch the lead terminal or the pasting surface (adhesive side) of the amplifier unit (G).

• When installing the antenna on the right side

• When installing the antenna on the left side (G) (F) Earth sheet Set the position of the protrusion with

mark Lead contact of the amplifier unit (metal part) Lead terminal of the film antenna (F) Earth sheet 7 Remove the film covering the earth sheet and paste the earth sheet on the metal part of the vehicle. Provide sufficient leeway for the earth sheet so that it does not interfere with the interior parts (front pillar cover). Also take care that the interior parts do not interfere with the amplifier unit (G). (G) 8 Wire the antenna cables. Use cable clamper (H) to secure the antenna to the pillar at several positions. 9 Attach the front pillar cover back to its original position. Be sure not to damage the earth sheet and amplifier unit (G) when covering. 10 Connect the amplifier unit (G) to the DAB input terminal on the rear of the unit. 11 Set

:Annulation. CLOCK CLOCK DISPLAY

THROUGH HPF SLOPE –6DB

“MISWIRING CHECK WIRING THEN

“RELATED SERVICE FOUND”

“PRESS” “VOLUME KNOB”

THROUGH HPF SLOPE –6DB

“MISWIRING CHECK WIRING THEN

“RELATED SERVICE FOUND”

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.

• The “AAC” logo is a trademark of Dolby Laboratories.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Android is trademark of Google Inc. libFLAC Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_KWD_KDC_X7200DAB_EN_C_4.indd 2JS_KWD_KDC_X7200DAB_EN_C_4.indd 2 8/24/2017 8:49:30 AM8/24/2017 8:49:30 AM Downloaded from www.vandenborre.be
