USER MANUAL DMX7018BTS KENWOOD

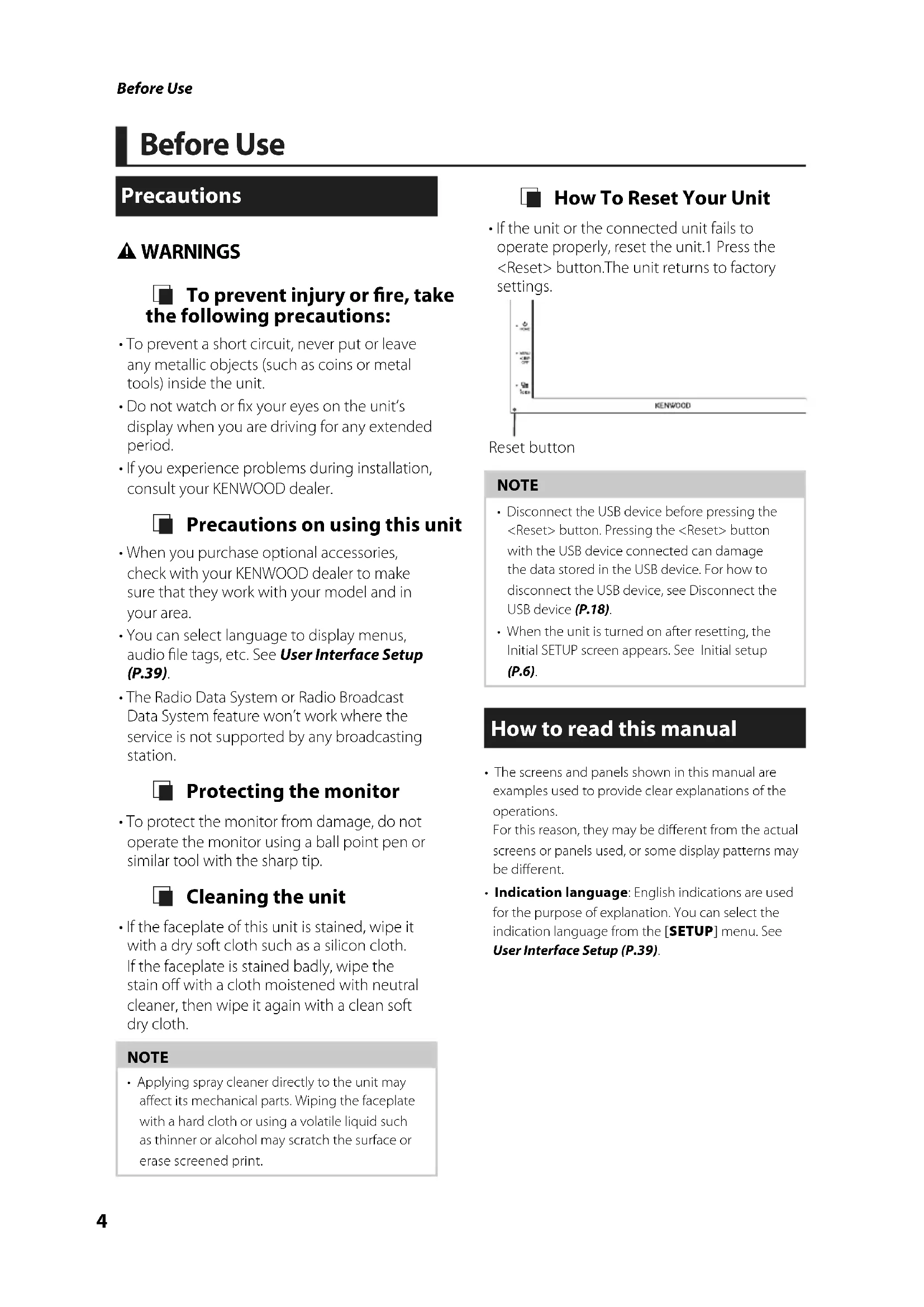

Before Use Precautions # WARNINGS Ñ To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or fix your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer. Ñ Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio file tags, etc. See User Interface Setup (P.39).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station. Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip. Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth. NOTE
• Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print. Ñ How To Reset Your Unit

• If the unit or the connected unit fails to operate properly, reset the unit.1 Press the <Reset> button.The unit returns to factory settings. NOTE
• Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see Disconnect the USB device (P.18).• When the unit is turned on after resetting, the Initial SETUP screen appears. See Initial setup (P.6). How to read this manual
• The screens and panels shown in this manual are examples used to provide clear explanations of the operations.For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the [SETUP] menu. See User Interface Setup (P.39). Reset button !B5A-2247-20_DMX_E_EnFr.indb 4 2019/06/11 10:29Basic Operations 5English Basic Operations Functions of the Buttons on the Front Panel

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels. Name

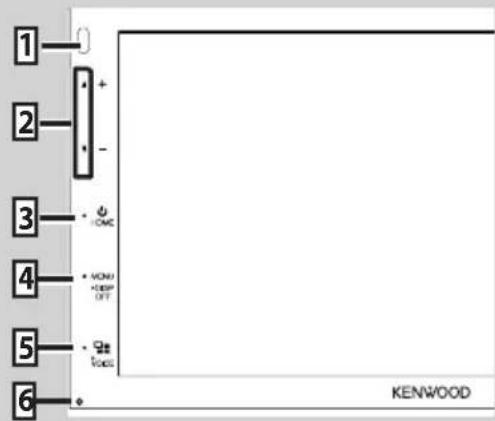

• Motion Remote Sensor• Receives the remote control signal. S, R(Volume)• Adjusts volume.The volume will go up until 15 when you keep pressing R.

• Displays the HOME screen (P.8).• Pressing for 1 second turns the power off.• When the power off, turns the power on.

• Displays the popup menu screen. • Pressing for 1 second turns the screen off.

• Displays the APP (CarPlay/ Android Auto) screen.• Pressing for 1 second displays the Voice Recognition screen (P.33). Reset• If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed. Turning on the Unit The method of turning on is different depending on the model.

Press the [HOME] button. The unit is turned on. ● To turn off the unit:

Press the [HOME] button for 1 second. NOTE

• If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P.6). !B5A-2247-20_DMX_E_EnFr.indb 5 2019/06/11 10:29Basic Operations

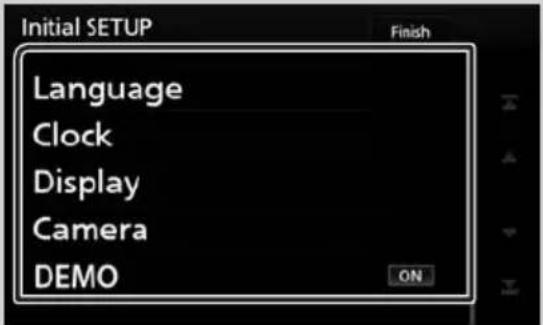

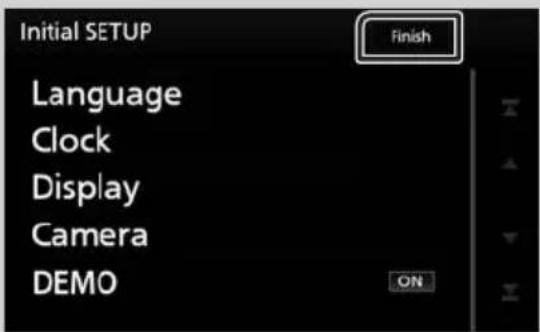

Initial Settings Initial setup Perform this setup when you use this unit first time.

Set each item as follows. ■ Language Select the language used for the control screen and setting items. Default is “British English(en)”. 1Touch [Language]. 2Touch [Language Select]. 3Select the desired language. 4Touch [

For detailed operation, see User Interface Setup (P.39). ■ Clock Adjusts clock. For detailed operation, see Calendar/clock settings (P.7). ■ Display Set the image on the screen. 1Touch [Display. 2Touch [Background]. 3Select the image. 4Touch [

For detailed operation, see Camera Setup (P.36). ■ DEMO Set the demonstration mode. Default is “ON”. 1Touch [DEMO] and set ON or OFF.

• These settings can be set from the SETUP menu. See Setting Up (P.38). !B5A-2247-20_DMX_E_EnFr.indb 6 2019/06/11 10:29Basic Operations 7English Calendar/clock settings

Press the [MENU] button. Popup menu appears.

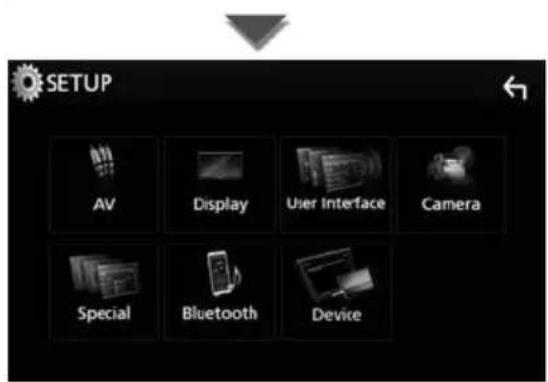

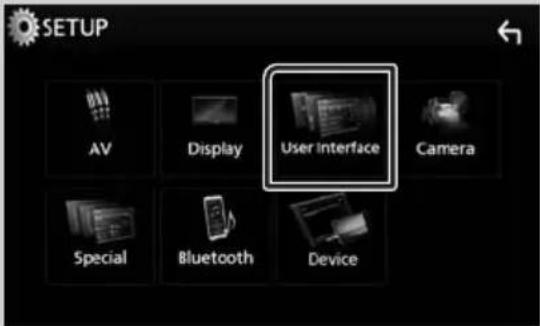

Touch [SETUP]. SETUP Menu screen appears.

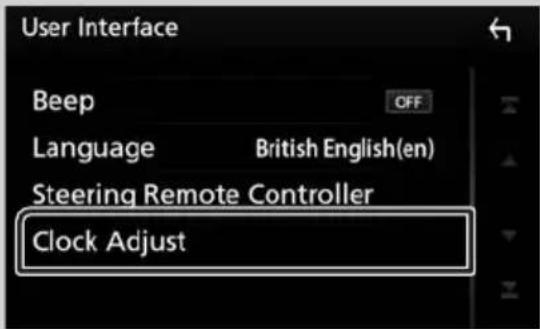

Touch [User Interface]. User Interface screen appears.

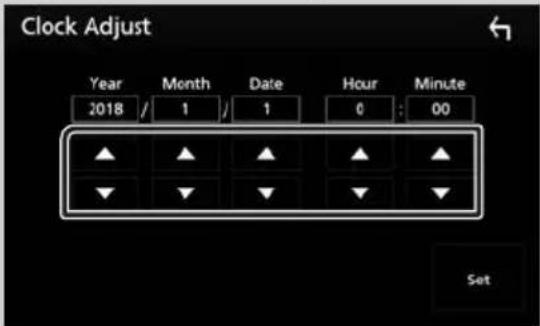

Adjust the date, then adjust the time.

• Deactivate [RDS CT] before adjusting the clock. See Radio Setup (P.23). Adjusting the volume To adjust the volume (0 to 40), Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously to level 15. Touch screen operations To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display setting menu screen or to change the page, etc. ● Touch Touch the screen gently to select an item on the screen. ● Touch and hold Touch the screen and keep your finger in place until the display changes or a message is displayed. ● Flick Slide your finger quickly to the left or right on the screen to change the page. You can scroll the list screen by flicking the screen up/ down. ● Swipe Slide your finger up or down on the screen to scroll the screen. !B5A-2247-20_DMX_E_EnFr.indb 7 2019/06/11 10:29Basic Operations

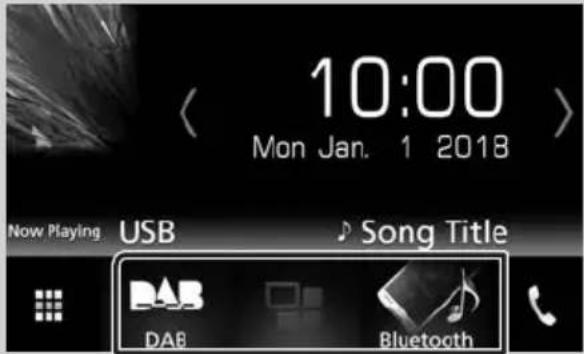

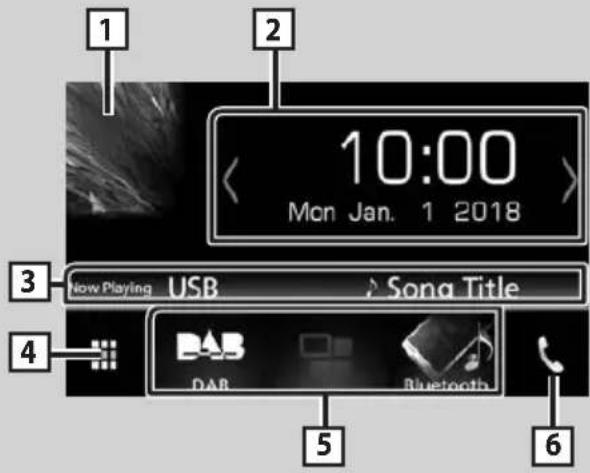

HOME screen descriptions Most functions can be performed from the HOME screen.

• Displays the control screen of current source.

• Widget – You can change the widget by touching

• Current source information

• Displays the source selection screen. (P.9)

• Short-cut playback source icons (P.9)

• Displays the Hands Free screen. (P.32)

• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto. Display the HOME

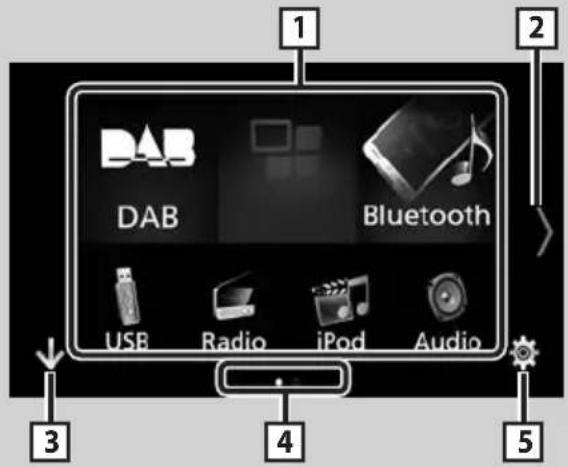

Press the [HOME] button. HOME screen appears. Source selection screen descriptions You can display all playback sources and options on the source selection screen.

• Changes the playback source. For playback sources, see P.9.

• Changes the page. (Touch [ ]/[ ].) You can also change the page by flicking left or right on the screen.

• Returns to previous screen.

• Displays the SETUP Menu screen. (P.38) !B5A-2247-20_DMX_E_EnFr.indb 8 2019/06/11 10:29Basic Operations 9English Select the playback source

Touch [ ] on the HOME screen. From the screen, you can select the following sources and functions.

• Switches to the Android Auto *

screen from the connected iPhone/Android device. (P.13)

• Switches to the Radio broadcast. (P.21)

• Switches to the DAB broadcast. (P.24)

• Plays a Bluetooth audio player. (P.28)

• Plays an iPod/iPhone. (P.16)

• Plays files on a USB device. (P.18)

• Switches to an external component connected to the AV-IN input terminal. (P.37)

• Displays the Audio screen. (P.42)

• Puts the unit in standby. (P.10)

To select the Android Auto source, it is necessary to connect Android device compatible with Android Auto and to set [Mode] to [Android Auto]. (P.15)

When iPhone compatible with CarPlay is connected, [Apple CarPlay] is displayed.

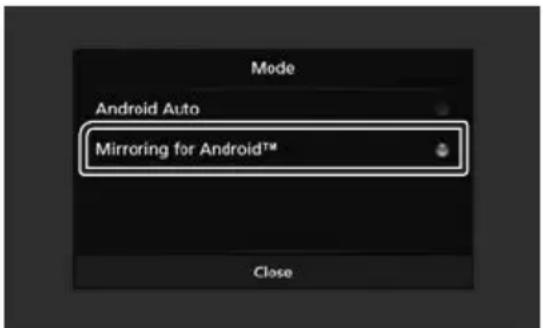

To select the Mirroring source, it is necessary to connect Android device with “Mirroring OA for KENWOOD” application installed and to set [Mode] to [Mirroring for Android™]. (P.15) To select the playback source on the HOME screen The 3 items displayed on the source selection screen as the large icons are shown on the HOME screen. You can change items displayed on this area by customizing the source selection screen. (P.10) To select the playback source on the source control screen Display source selection buttons by touching [ ]/[ ] or flicking left or right on the source control screen, then select a playback source. !B5A-2247-20_DMX_E_EnFr.indb 9 2019/06/11 10:29Basic Operations

Put the unit in standby

Touch [ ] on the HOME screen.

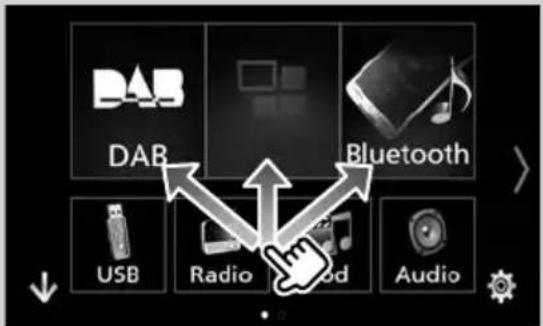

Touch [STANDBY]. Customize Short-cut buttons on HOME screen You can arrange the position of the source icons as you like.

Touch [ ] on the HOME screen.

Touch and hold the icon which you want to move to go into the customizing mode.

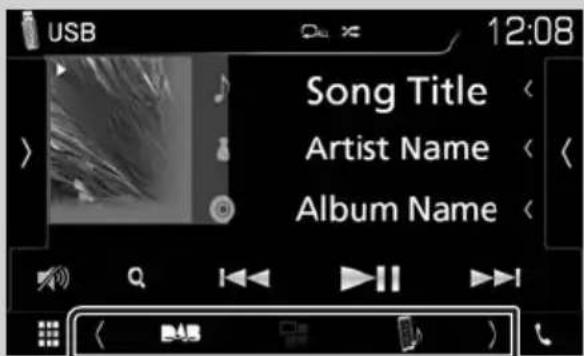

Drag it where you want to move. Source control screen descriptions There are some functions which can be operated from most screens. Indicators

Short-cut buttons !B5A-2247-20_DMX_E_EnFr.indb 10 2019/06/11 10:29Basic Operations 11English

Connected Bluetooth device information.

All sources icon Displays all sources.

]/[ ] : The Secondary screen changes every time you touch it. You can also change the Secondary screen by flicking left or right on the screen.

• Indicators: Displays the current source condition and so on. – ATT: The attenuator is active. – LOUD: The loudness control function is on.

• Short-cut buttons: The source changes to the one you have set as a short-cut. For the short- cut setting, refer to Customize Short-cut buttons on HOME screen (P.10).

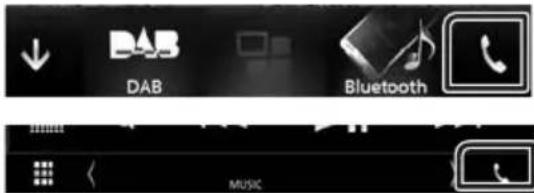

[Û] Touch to display the Hands Free screen. (P.32) When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto. Popup menu

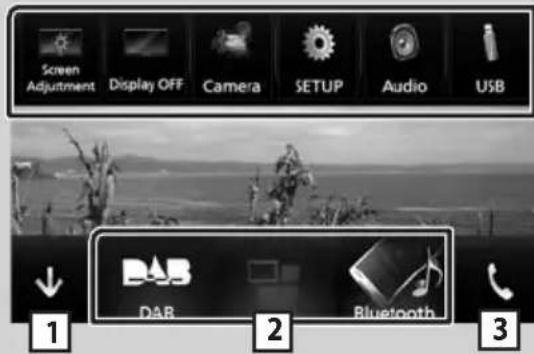

Press the [MENU] button. Popup menu appears.

The contents of the menu are as follows.

• Displays the Screen Adjustment screen. (P.38)

• Turns the display off. (P.12)

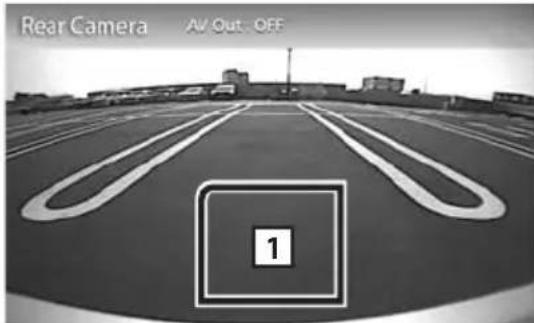

• Displays the view camera. (P.36)

• Displays the SETUP Menu screen. (P.38)

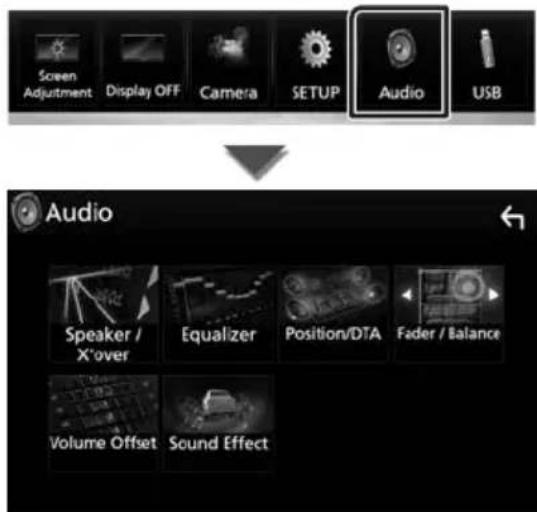

• Displays the Audio Control Menu screen. (P.42)

• Displays the control screen of current source. Icon feature differs depending on the source.

Select [Display OFF] on the pop-up menu. ● To turn on the screen

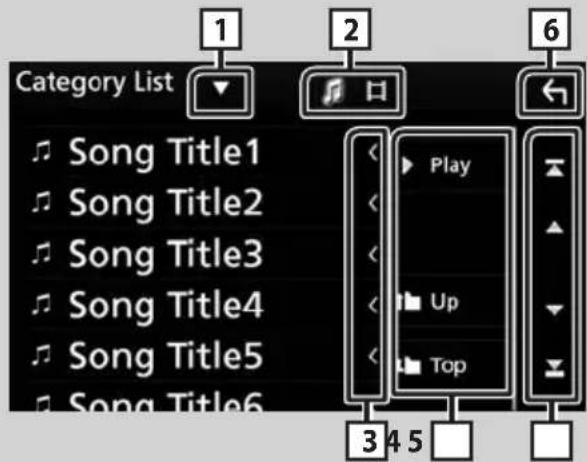

Touch the display. List screen There are some common function keys in the list screens of most sources.

Displays list type selection window.

Displays music/movie file list.

etc. Keys with various functions are displayed here.

: Plays all tracks in the folder containing the current track.

[ ] / [ ] / [ ] / [ ] Page scroll You can change the page to display more items by pressing [

• Buttons which cannot be activated from the list screen are not displayed. !B5A-2247-20_DMX_E_EnFr.indb 12 2019/06/11 10:29APPS-Android Auto™/Apple CarPlay 13English APPS-Android Auto™/Apple CarPlay Apple CarPlay Operation CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.For details about CarPlay, visit https://ssl.apple.com/ios/carplay/. Compatible iPhone devices You can use CarPlay with the following iPhone models.• iPhone 7 Plus• iPhone 7• iPhone SE• iPhone 6s Plus• iPhone 6s• iPhone 6 Plus• iPhone 6• iPhone 5s• iPhone 5c• iPhone 5 Ñ Preparation 1 Connect iPhone using KCA-iP103 via USB terminal. (P.52)When iPhone compatible with CarPlay is connected to the USB terminal, the Bluetooth smartphone currently connected is disconnected. 2 Unlock your iPhone. Ñ Operation buttons and available Apps on the home screen of CarPlay You can use the Apps of the connected iPhone.The items displayed and the language used on the screen differ among the connected devices.To enter CarPlay mode, touch [Apple CarPlay] icon in the source selection screen. (P.9)

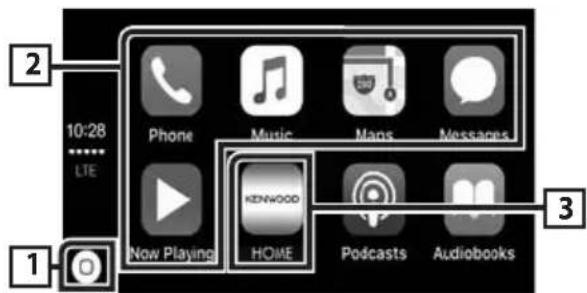

• If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay. Android Auto™ Operation Android Auto enables you to use functions of your Android device convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android device while driving. For details about Android Auto, visit https:// www.android.com/auto/ and https:// support.google.com/androidauto. Compatible Android devices You can use Android Auto with Android devices of Android version 5.0 (Lollipop) or later. NOTE
• Android Auto may not be available on all devices and is not available in all countries or regions. Ñ Preparation 1 Connect an Android device via USB terminal. (P.52) To use the hands-free function, connect the Android device via Bluetooth. When an Android device compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth smartphone currently connected is disconnected. 2 Unlock your Android device. NOTE
• To use the Android Auto , It is necessary to set "Mode" to "Android Auto". (P.15) Ñ Operation buttons and available Apps on the Android Auto screen You can perform the operations of the Apps of the connected Android device. The items displayed on the screen differ among the connected Android devices. To enter Android Auto mode, touch [Android Auto] icon in the source selection screen. (P.9)

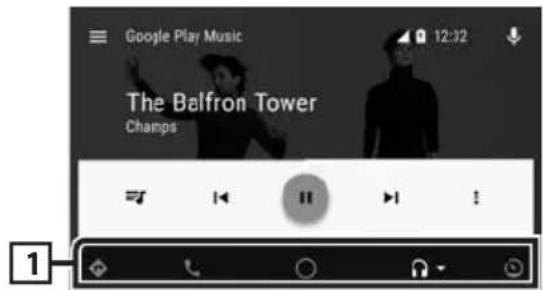

Application/information buttons Starts the application or displays information. To exit the Android Auto screen 1 Press the [HOME] button. Ñ Using voice control 1 Press the [ ] button for 1 second. Press for 1 second To cancel 1 Press the [ ] button. Ñ Switch to the Android Auto screen while listening to another source 1 Press the [ ] button. NOTE

• If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.!B5A-2247-20_DMX_E_EnFr.indb 14 2019/06/11 10:29APPS-Android Auto™/Apple CarPlay 15English Mirroring You can display and control the App on the unit while your smartphone is connected to the USB terminal. Ñ Preparation 1 Download Mirroring App from Google Play. Install the latest version of the Mirroring application “Mirroring OA for KENWOOD” on your Android. 2 Pair your smartphone with the unit via Bluetooth. See Register from the Bluetooth device (P.29) and Connect the Bluetooth device (P.30). Select a Device Mode 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP screen appears. 3 Touch [Device]. 4 Touch [Mode]. 5 Touch [Mirroring for Android™]. Ñ Compatible Android smartphone

• Android version 7.0 or later

• Bluetooth support NOTE

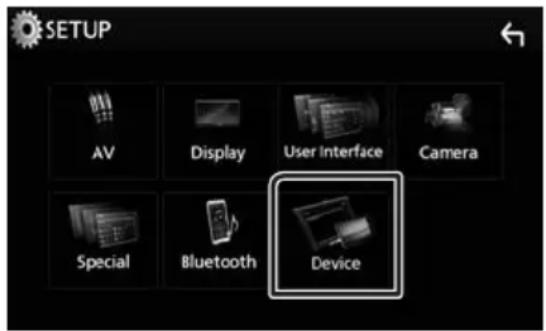

• This unit may not work for some Android smartphone's. Ñ Connecting an Android device 1 Connect an Android device via the USB terminal. 2 Launch Mirroring App on your Android Smartphone. Touch "OK" to start Mirroring App. Touch "Start now" to start capturing your Android screen. 3 Start to enjoy Mirroring. Ñ Mirroring OA Operation 1 Operate your smartphone to activate Mirroring App, then connect to this unit. 2 Press the [HOME] button. 3 Touch [ ]. 4 Touch [Mirroring]. You can display the same screen of the Android device on the monitor of the unit. !B5A-2247-20_DMX_E_EnFr.indb 15 2019/06/11 10:29iPod/iPhone

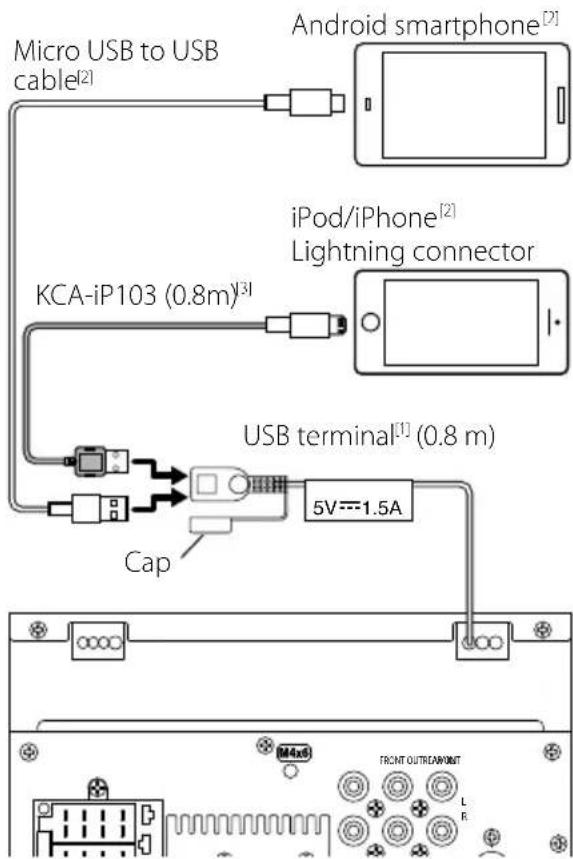

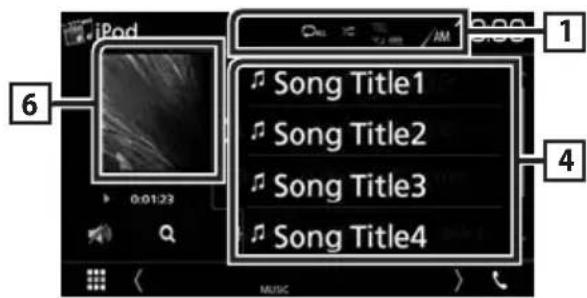

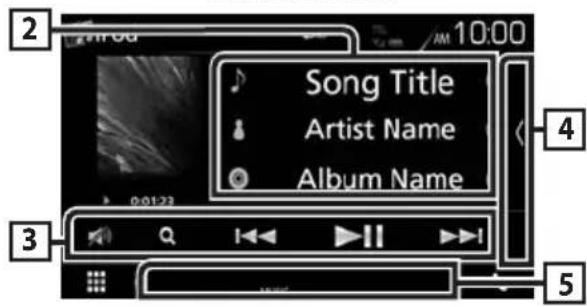

1 Connect the iPod/iPhone using KCA- iP103. (P.52) 2 Press the [HOME] button. 3 Touch [ ]. 4 Touch [iPod]. (P.9) ● To disconnect the iPod/iPhone connected with the cable: 1 Detach the iPod/iPhone. iPod/iPhone Basic Operation Control screen

[ ] / [ ]• [] : Repeats the current track/album. Each time you touch the key, repeat mode switches in the following sequence; Song repeat ( ), All songs repeat ( )• [] : Randomly plays all tracks in current album. Each time you touch the key, random mode switches in the following sequence; Song random ( ), Random off ( ) Track information• Displays the information of the current file. • Touch to display the category list screen. See Category search (P.17). iPod/iPhone Preparation Ñ Connectable iPod/iPhone The following models can be connected to this unit.Made for• iPhone 7 Plus• iPhone 7• iPhone SE• iPhone 6s Plus• iPhone 6s• iPhone 6 Plus• iPhone 6• iPhone 5s• iPhone 5c• iPhone 5• iPod touch (6th generation)• iPod touch (5th generation) NOTE

• By connecting your iPod/iPhone to this unit with an optional accessory iPod connection cable KCA-iP103, you can supply power to your iPod/iPhone as well as charge it while playing music. However, the power of this unit must be on.• If you start playback after connecting the iPod, the music that has been played by the iPod is played first. Ñ Connect iPod/iPhone Preparation• Connect an iPod/iPhone with the KCA-iP103 (optional accessory) while CarPlay is not connected.• With a CarPlay-capable iPhone, turn off CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.• Only one iPod/iPhone can be connected.!B5A-2247-20_DMX_E_EnFr.indb 16 2019/06/11 10:29iPod/iPhone 17English Ñ Category search You can search a file by selecting category. 1 Touch [Category List]. 2 Touch the desired category. The list corresponding to your selection appears. 3 Touch to select desired item in the list. Repeat this step until you find the desired file. Ñ Link search You can search a file of same artist/album/ genre/composer as the current track. 1 Touch [Link Search]. 2 Touch the desired tag type. You can select from artist, album, genre and composer. The list corresponding to your selection appears. 3 Touch desired item from the content list.

• 1] : Searches track/file. For details on search operation, see Search Operation (P.17).

• E] [F] : Searches the previous/next track/ file. Touch and hold to fast forward or fast backward.

: Touch to attenuates/restores the sound.

Content list Touch on the right side of the screen to display the Content list. Touch again to close the list. Displays the playing list. When you touch a track/file name on the list, playback will start.

Artwork/ Play mode indicator/ Playing time The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause). Search Operation You can search music files by the following operations. 1 Touch [1]. 2 Touch [S]. 3 Select the list type. NOTE

• For operations in the list screen, see List screen (P.12). !B5A-2247-20_DMX_E_EnFr.indb 17 2019/06/11 10:29USB

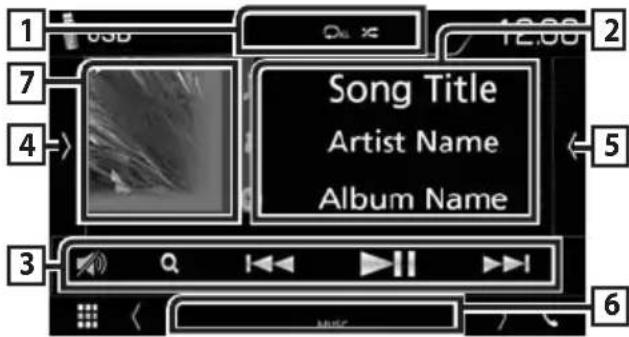

USB Connecting a USB device 1 Connect the USB device with the USB cable. (P.51) 2 Press the [HOME] button. 3 Touch . 4 Touch [USB]. (P.9) Ñ Disconnect the USB device 1 Press the [HOME] button. 2 Touch a source other than [USB]. 3 Detach the USB device. Ñ Usable USB device You can use a mass-storage-class USB device on this unit. The word “USB device” appearing in this manual indicates a flash memory device. ● About file systemThe file system should be the one of the following.• FAT16 • FAT32 • NTFS NOTE

• Install the USB device in the place where it will not affect safe driving.• You cannot connect a USB device via a USB hub and Multi Card Reader.• Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device.We shall have no compensation for any damage arising from any erased data. USB Basic Operation Most functions can be controlled from the source control screen and playback screen.Control screen

[ ] / [ ]• [] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat ( ), Folder repeat ( ), Repeat all (

• [] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; File random ( ), Random off ( )• When a high-resolution source is played, its format information is displayed. Track informationDisplays the information of the current file. Only a file name and a folder name are displayed if there is no tag information.!B5A-2247-20_DMX_E_EnFr.indb 18 2019/06/11 10:29USB 19English

• 1] : Searches track/file. For details on search operation, see Search Operation (P.20).

• E] [F] : Searches the previous/next track/ file. Touch and hold to fast forward or fast backward.

: Touch to attenuates/restores the sound.

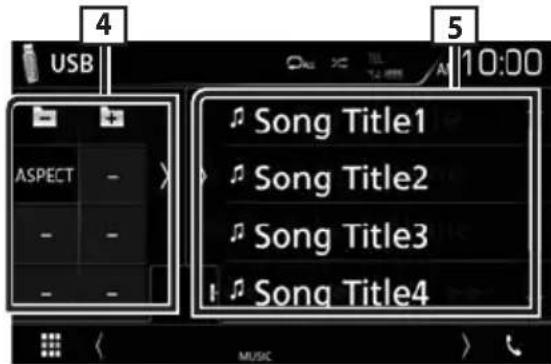

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

] [ ] : Searches previous/next folder.

• Aspect: Select screen mode. Full: Changes the aspect ratio of video and displays fully on the screen. Normal: Display with 4:3 ratio. Auto: Displays video fully on vertical or horizontal with no ratio change.

Content list Touch on the right side of the screen to display the Content list. Touch again to close the list. Displays the playing list. When you touch a track/file name on the list, playback will start.

Artwork/ Play mode indicator/ Playing time The jacket of the currently playing file is displayed.

• D, B, etc.: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause). Video screen

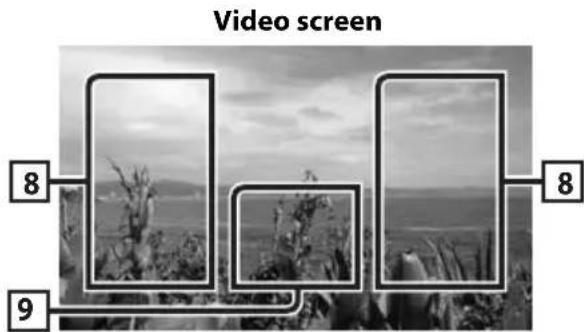

Searching file area (Video file only) Touch to search the next/previous file.

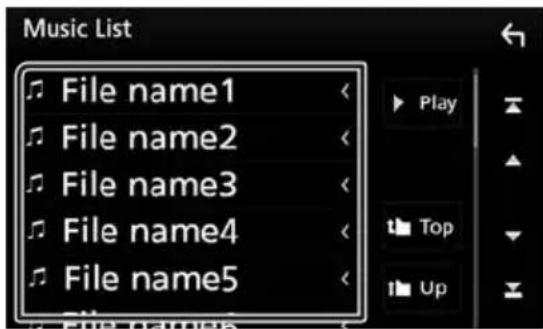

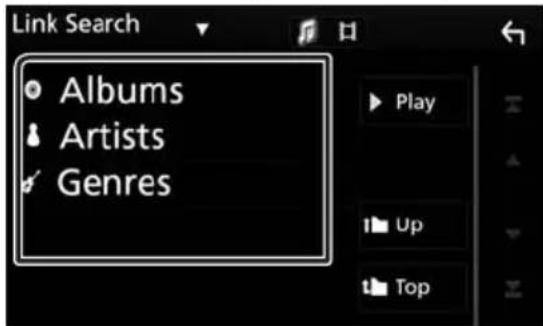

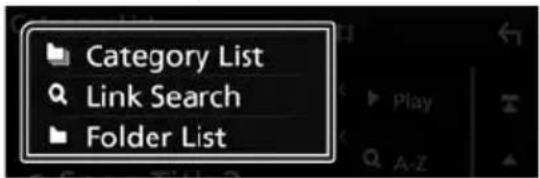

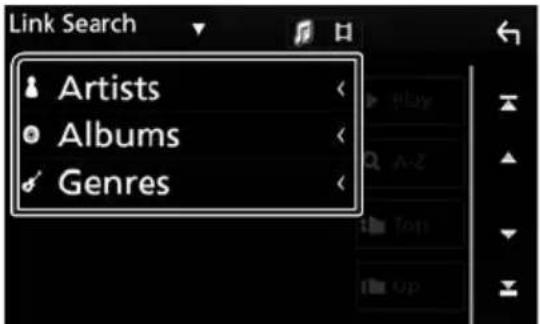

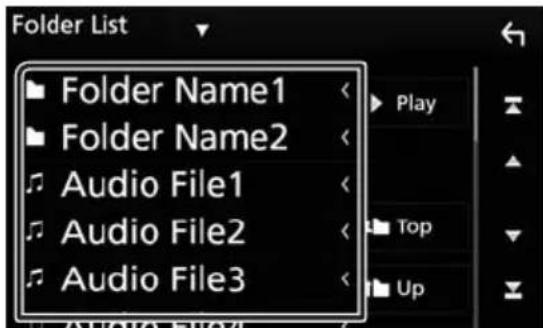

Search Operation You can search music or video files by the following operations. 1 Touch [1]. 2 Touch [S]. 3 Select the list type. NOTE

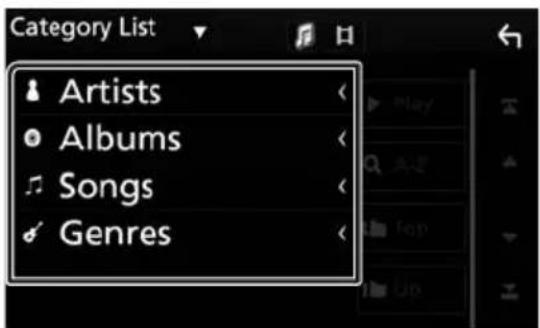

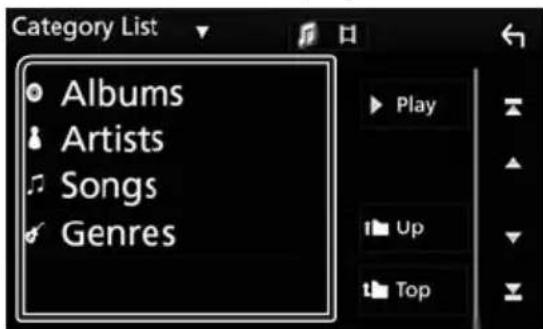

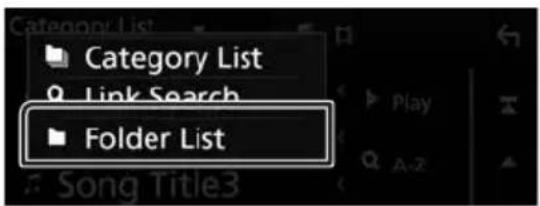

• For operations in the list screen, see List screen (P.12). Ñ Category search You can search a file by selecting category. 1 Touch [Category List]. 2 Select whether you search by audio files or video files

3 Touch the desired category. The list corresponding to your selection appears. 4 Touch to select desired item in the list. Repeat this step until you find the desired file. Ñ Link search You can search a file of same artist/album/genre as the current track. 1 Touch [Link Search]. 2 Touch the desired tag type. You can select from artist, album and genre. The list corresponding to your selection appears. 3 Touch desired item from the content list. Ñ Folder search You can search a file according to hierarchy. 1 Touch [Folder List]. 2 Touch the desired folder. When you touch a folder its contents are displayed. 3 Touch to select desired item in the list. Repeat this step until you find the desired file. !B5A-2247-20_DMX_E_EnFr.indb 20 2019/06/11 10:29Radio 21English Radio Radio Basic Operation Most functions can be controlled from the source control screen. To enter Radio source, touch [Radio] icon in the source selection screen. (P.9) Control screen

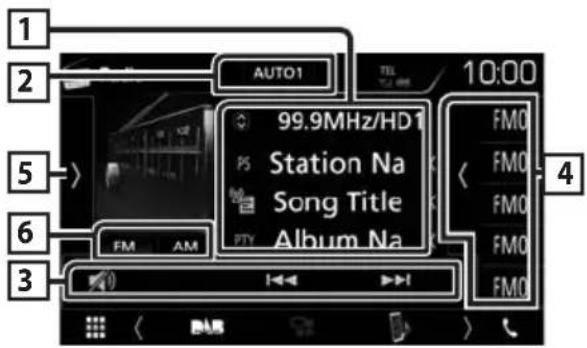

Information display Displays the information of the current station: Frequency Touching [ ] allows you to switch between Content A and Content B. Content A: PS name, Radio Text, PTY Genre Content B: Radio Text plus, Title Artist Preset#: Preset number

Seek mode Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in stations in memory one after another.

• [MANUAL]: Switches to the next frequency manually.

• [E] [F] : Tunes in a station. The method of frequency switching can be changed (see 2 in table).

: Touch to attenuates/restores the sound.

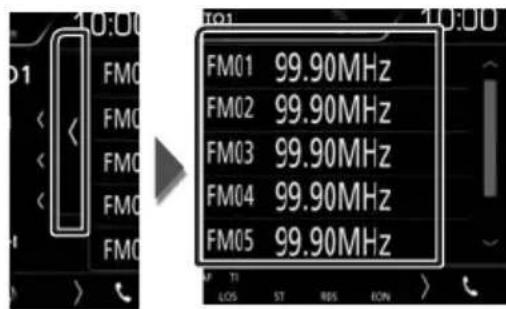

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized station.

• When touched for 2 seconds, stores the current receiving station in memory.

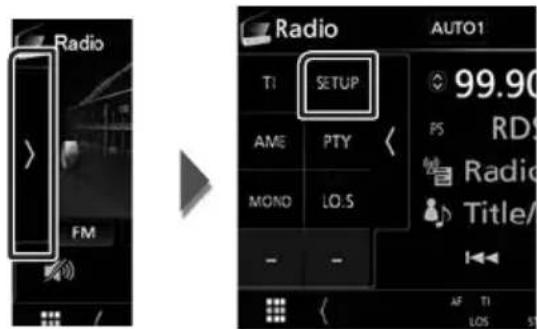

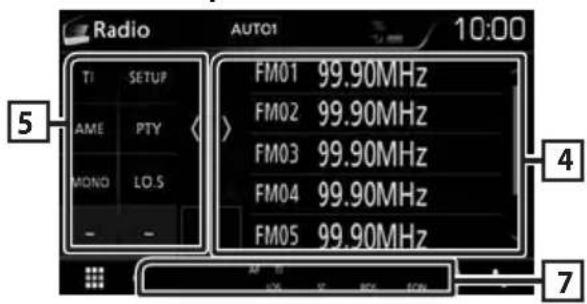

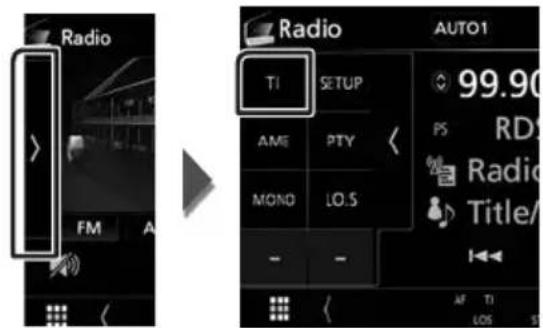

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• TI] (FM only): Sets the traffic information mode on. For details, see Traffic Information (P.23).

• [SETUP: Displays the TUNER SETUP screen. For details, see Radio Setup (P.23).

• [AME]: Presets stations automatically. For details, see Auto memory (P.22).

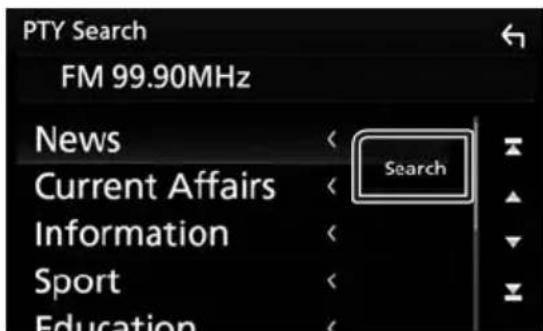

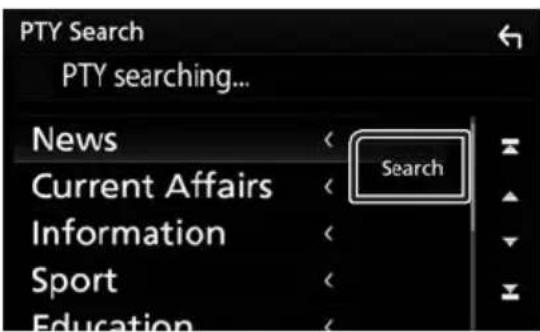

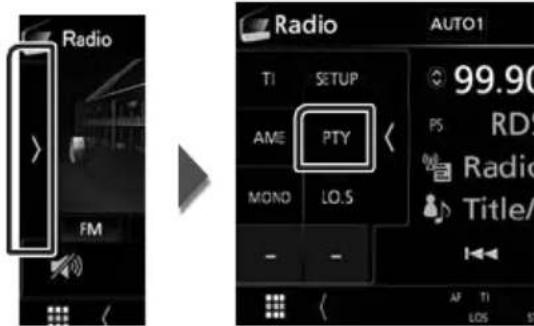

• [PTY] (FM only): Searches a program by setting program type. For details, see Search by program type (P.22).

• [MONO] (FM only): Select the Monaural reception.

• [LO.S] (FM only): Turns the Local Seek function on or off.

[FM] [AM] Switches the band.

• ST: A stereo broadcast is being received.

• MONO: The forced monaural function is on.

• AF: The AF search function is on.

• LOS: The Local Seek function is on.

• RDS: Indicates the state of the Radio Data System station when the AF function is on. White: Radio Data System is being received. Orange: Radio Data System is not being received. !B5A-2247-20_DMX_E_EnFr.indb 21 2019/06/11 10:29Radio

• TI: Indicates the reception state of traffic information. White: TP is being received. Orange: TP is not being received. Memory Operation Ñ Auto memory You can store stations with good reception in memory automatically. 1 Touch desired band key. 2 Touch [ ] on the left side of the screen. Touch [AME]. Auto memory starts. Ñ Manual memory You can store the current receiving station in memory. 1 Select a station you wish to store in memory. 2 Touch [FM#] (#:1-24) or [AM#] (#:1-12) in which you want to store the station for 2 seconds until a beep sounds. Selecting Operation Ñ Preset select You can list and select memorized station. 1 Touch [ ] on the right side of the screen. Select a station from the list. Ñ Search by program type (FM only) You can tune to a station with a specific program type when listening to FM. 1 Touch [ ] on the left side of the screen. Touch [PTY]. PTY Search screen appears. 2 Select a program type from the list. 3 Touch [Search]. You can search a station of the selected program type. !B5A-2247-20_DMX_E_EnFr.indb 22 2019/06/11 10:29Radio 23English Traffic Information (FM only) You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Broadcast Data System that includes the TI information. 1 Touch [ ] on the left side of the screen. Touch [TI]. Traffic information mode is set. Ñ When the traffic bulletin starts The Traffic Information screen appears automatically. Radio Setup You can set tuner related parameters. 1 Touch [ ] on the left side of the screen. Touch [SETUP]. Radio SETUP screen appears. 2 Set each item as follows. ■ AF When station reception is poor, automatically switches to the station that is broadcasting the same program over the same Radio Data System network. Default is “ON”. ■ RDS CT Synchronizing the Radio Data System station time data and this unit’s clock. “ON” (Default), “OFF” !B5A-2247-20_DMX_E_EnFr.indb 23 2019/06/11 10:29DAB

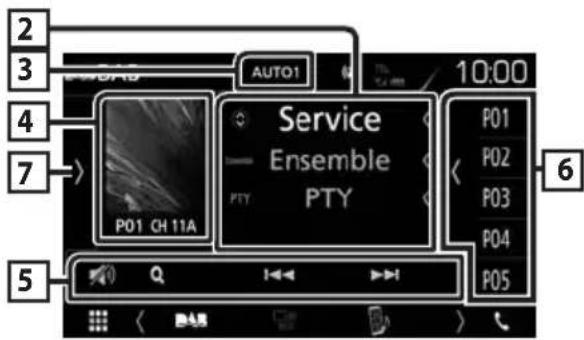

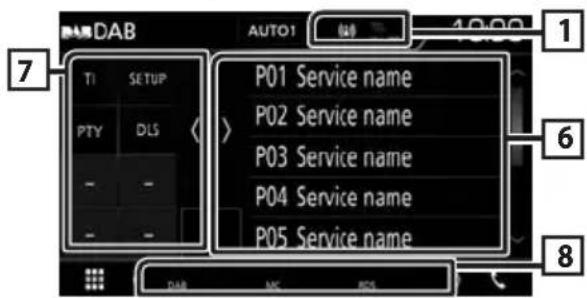

DAB (DMX7018DABS) DAB Basic Operation Most functions can be controlled from the source control screen. To enter DAB source, touch [DAB] icon in the source selection screen. (P.9) Control screen

Indicator display Displays the received signal strength.

Information display Displays the information of the current station: Service Name Touching [ ] allows you to switch between Content A, Content B and Content C. Content A: Ensemble name, PTY Genre Content B: Song Title, Artist Name, DLS Content C: Now Playing, Next Program, Audio Quality

Seek mode Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a ensemble with good reception automatically.

• [AUTO2]: Tunes in ensemble in memory one after another.

• [MANUAL]: Switches to the next ensemble manually.

Artwork area The picture data is displayed if available from current content. Touch to switch between the Control and Information screen. P#: Preset number CH#: Channel display

• [1] : Displays the Service List screen. For details on search operation, see Service search (P.26).

• [E] [F] : Tunes in a ensemble, service, and component. The seek mode switching can be changed. (see 3 in table).

: Touch to attenuates/restores the sound.

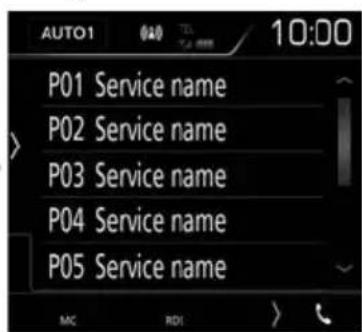

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized service.

• When touched for 2 seconds, stores the current service in memory.

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

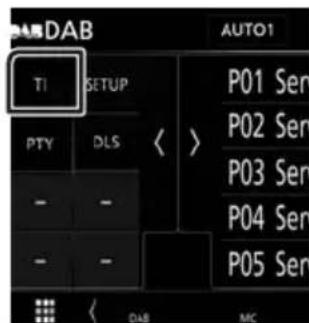

• [TI]: Sets the traffic information mode on. For details, see Traffic Information (P.26).

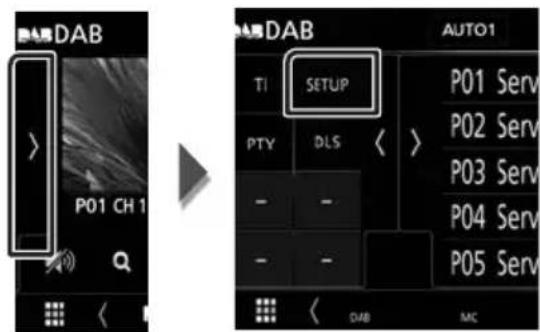

• [SETUP]: Displays the DAB SETUP screen. For details, see DAB Setup (P.27).

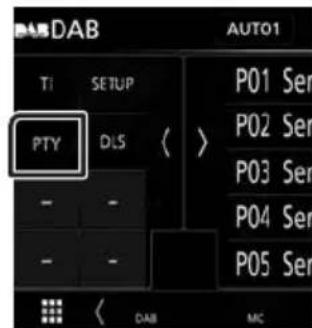

• [PTY] (Live mode only): Searches a program by setting program type. For details, see Search by program type (P.25).

• DAB: Digital Radio is being received.

• RDS: Radio Data System is being received.

• MC: Receiving service is displayed. White: Primary Component is received. Orange: Secondary Component is received. Storing Service in Preset Memory You can store the current receiving service in memory. 1 Select a service you wish to store in memory. 2 Touch [ ] on the right side of the screen. 3 Touch [P#] (#:1-10) in which you want to store the station for 2 seconds until a beep sounds. Selecting Operation Ñ Search by program type You can tune to a station with a specific program type when listening to Digital Radio. 1 Touch [ ] on the left side of the screen. Touch [PTY]. PTY Search screen appears. 2 Select a program type from the list. 3 Touch [Search]. You can search a station of the selected program type. !B5A-2247-20_DMX_E_EnFr.indb 25 2019/06/11 10:29DAB

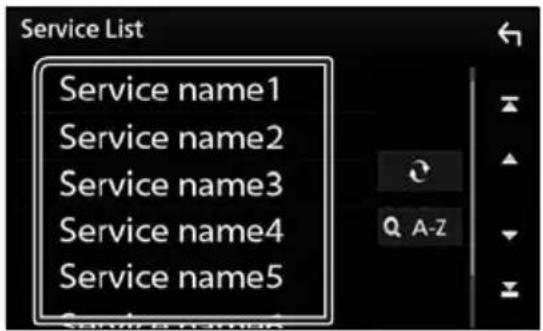

Ñ Service search You can select a service from a list of all services received. 1 Touch [1]. 2 Select the desired content from the list.

Touch and hold to find the latest service list. ■ [1A-Z] Displays the keyboard screen. Jump to the letter you entered (alphabet search). Traffic Information You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Digital Radio that includes the TI information. 1 Touch [ ] on the left side of the screen. Touch [TI]. Traffic information mode is set. Ñ When the traffic bulletin starts The Traffic Information screen appears automatically. !B5A-2247-20_DMX_E_EnFr.indb 26 2019/06/11 10:29DAB 27English DAB Setup You can set Digital Radio related parameters. 1 Touch [ ] on the left side of the screen. Touch [SETUP]. DAB SETUP screen appears. 2 Set each item as follows. ■ [Priority] If the same service is provided by Digital Radio during Radio Data System reception, automatically switches to Digital Radio. If the same service is provided by Radio Data System when reception of the service being provided by Digital Radio becomes poor, automatically switches to Radio Data System. ■ [Announcement Select] Switches to the set Announcement service. For details, see Announcement setup (P.27). ■ [Related Service] When you select ON, the unit switches to a related service (if exists) when a DAB service network is not available. Default is “OFF”. ■ [Antenna Power Sets power supply to the Digital Radio antenna. Set to “ON” when the Digital Radio antenna in use is equipped with a booster. Default is “ON”. Ñ Announcement setup When the service for which ON is selected starts, switches from any source to Announcement to receive it. 1 Touch [Announcement Select] in the DAB SETUP screen. The Announcement Select screen appears. 2 Touch each Announcement list and set on or off. NOTE

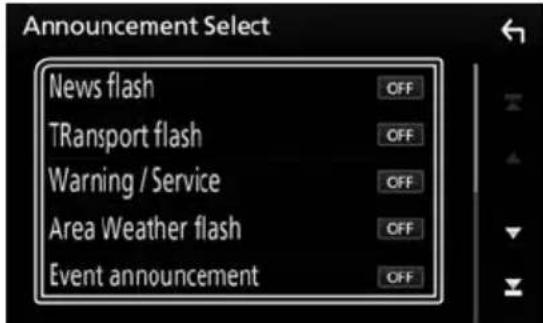

• The volume setting during reception of Announcement service is automatically stored. The next time the Announcement service is received, this unit recalls the volume setting automatically. !B5A-2247-20_DMX_E_EnFr.indb 27 2019/06/11 10:29Bluetooth Control

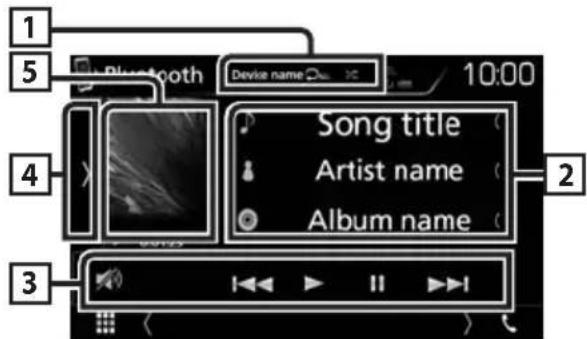

Bluetooth Control Using the Bluetooth function, various functions can be used: listening to the audio file, making/ receiving a call. Information for using Bluetooth® devices Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs, and other devices. Bluetooth devices can be connected without cables and communicate with each other. NOTE

• While driving, do not perform complicated operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.• Some Bluetooth devices may not connect to this unit depending on the Bluetooth version of the device.• This unit may not work for some Bluetooth devices.• Connecting conditions may vary depending on your environment.• For some Bluetooth devices, the device is disconnected when the unit is turned off. Ñ About the cell-phone and Bluetooth audio player This unit conforms to the following Bluetooth specifications: Version Bluetooth Ver. 4.1 Profile Cell-phone: HFP (Hands Free Profile) SPP (Serial Port Profile) PBAP (Phonebook Access Profile) Audio player: A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) Sound codec SBC, AAC NOTE
• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG.• However, it may be impossible for such units to communicate with your cell-phone depending on its type.!B5A-2247-20_DMX_E_EnFr.indb 28 2019/06/11 10:29Bluetooth Control 29English Register from the Bluetooth device It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function. You can register up to 7 Bluetooth devices. NOTE

• Up to 7 Bluetooth devices can be registered. If an attempt is made to register the 8th Bluetooth device, the Bluetooth device connected on the earliest date will be deleted to register the 8th one.

• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device. 1 Turn on the Bluetooth function on your smartphone/cell-phone. 2 Search the unit (“DMX****”) from your smartphone/cell-phone. 3 Operate your smartphone/cell-phone according to the displayed messages. ■ Confirm the request on the smartphone/cell-phone. ■ If a PIN code is required, enter the PIN code (“0000”). When data transmission and connection have completed, the Bluetooth connection icon appears on the screen. Bluetooth Setup 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Bluetooth]. Bluetooth SETUP screen appears. See the following section for each setting.

• Connect the Bluetooth device (P.30) !B5A-2247-20_DMX_E_EnFr.indb 29 2019/06/11 10:29Bluetooth Control

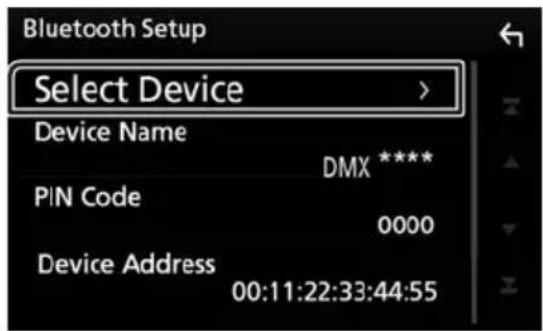

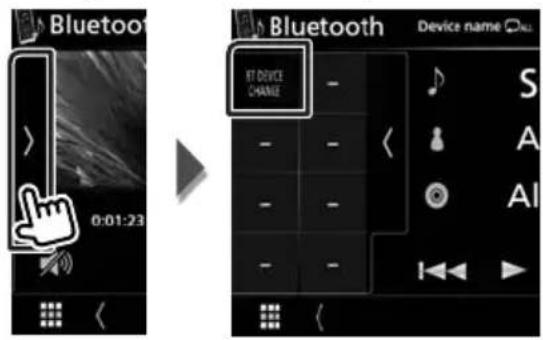

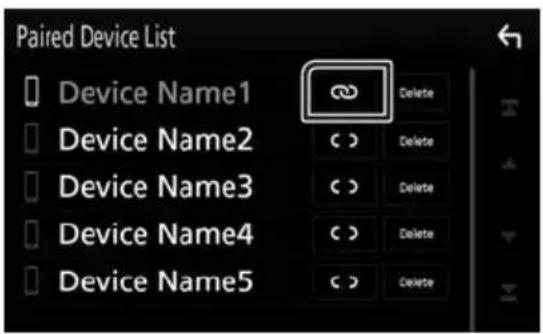

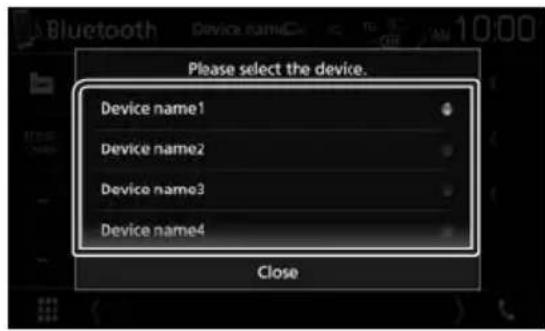

Ñ Connect the Bluetooth device 1 Touch [Select Device] in the Bluetooth SETUP screen. 2 Touch the device name you want to connect. NOTE

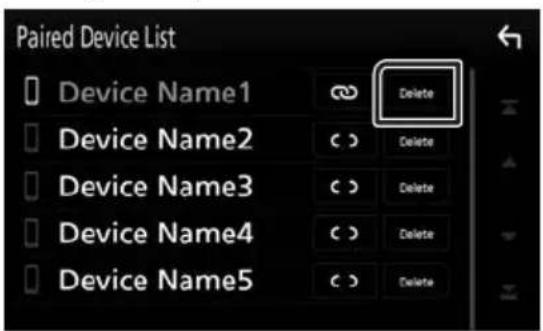

• If the icon is lighted, it means that the unit will use that device. To delete the registered Bluetooth device 1 Touch [Delete]. 2 Touch [Delete]. Confirmation message appears. 3 Touch [Ye s ]. Playing Bluetooth Audio Device Most function can be controlled from the source control screen. To enter Bluetooth source, touch [Bluetooth] icon in the source selection screen. (P.9) Ñ Bluetooth basic operation Control screen

• Connected device name.

] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; File repeat (

Folder repeat ( ), All songs repeat ( ), Repeat off (

] : Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence; All random ( ), Random off ( )

• Operations and display indications may differ according to their availability on the connected device.

• [E] [F]: Searches the previous/next content. Touch and hold to fast forward or fast backward.

: Touch to attenuates/restores the sound. !B5A-2247-20_DMX_E_EnFr.indb 30 2019/06/11 10:29Bluetooth Control 31English

Function panel Touch on the left side of the screen to display the function panel. Touch again to close the panel.

Play mode indicator/ Playing time D, H: Current play mode indicator The meanings of each icon are as follows; D (play), B (fast forward), A (fast backward), H (pause).

• These items appear only when the audio player which supports AVRCP profile is connected. NOTE

• If the operation keys do not appear, operate from the player.

• Depending on your cell-phone or audio player, audio may be heard and controlled but text information may not appear.

• If the volume is too low, raise it on your cell- phone or audio player. Ñ Connect the Bluetooth audio Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP). 1 Touch on the left side of the screen. Touch [BT DEVICE CHANGE]. 2 Touch the device name you want to connect. 3 Touch [Close]. Ñ File search 1 Touch [1]. 2 Touch the desired file or folder. When you touch a folder its contents are displayed. 3 Touch desired item from the content list. Playback starts. NOTE

• For operations in the list screen, see List screen (P.12). !B5A-2247-20_DMX_E_EnFr.indb 31 2019/06/11 10:29Bluetooth Control

Using Hands-Free Unit You can use telephone function by connecting the Bluetooth telephone to this unit. NOTE

• While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only Apple CarPlay or Android Auto Hands-Free function can be used. Ñ Make a call 1 Touch [Û]. Hands Free screen appears. NOTE

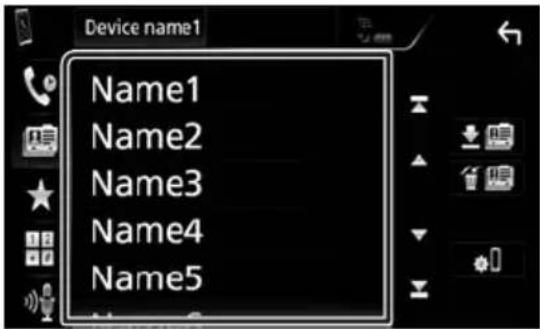

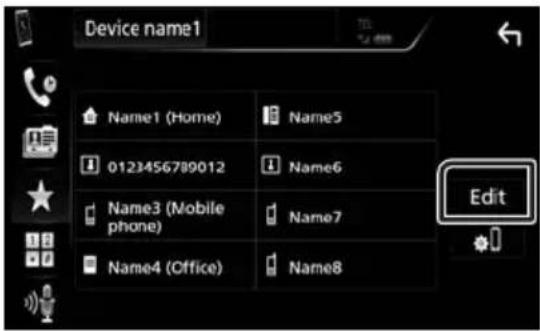

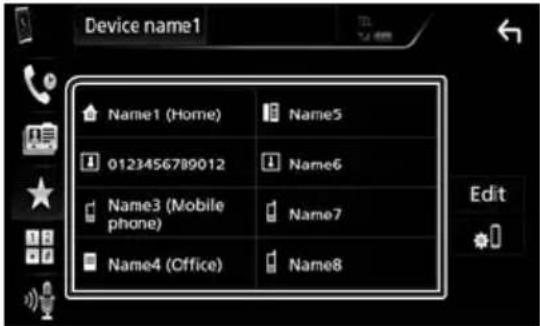

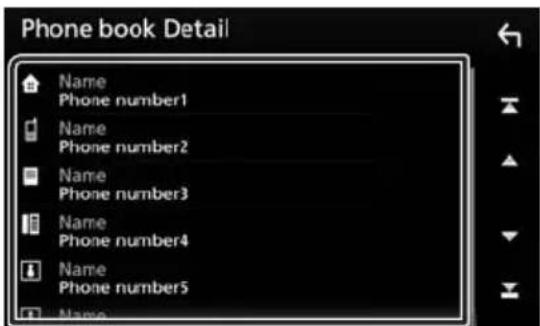

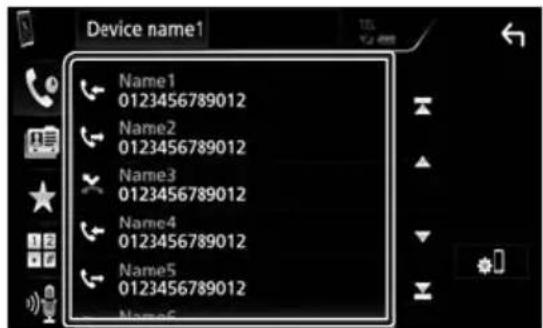

• If your mobile phone supports PBAP, you can display the phone book and call lists on the touch panel screen when the mobile phone is connected. – Phone book: up to 1000 entries – Up to 20 entries including dialed calls, received calls, and missed calls 2 Select a dialing method.

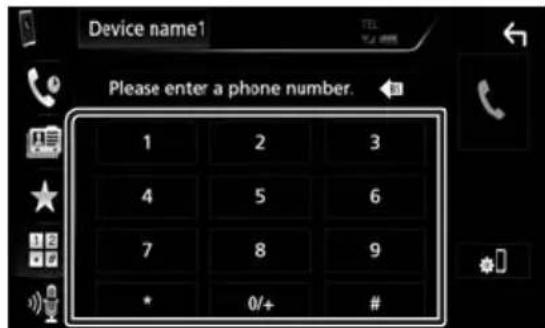

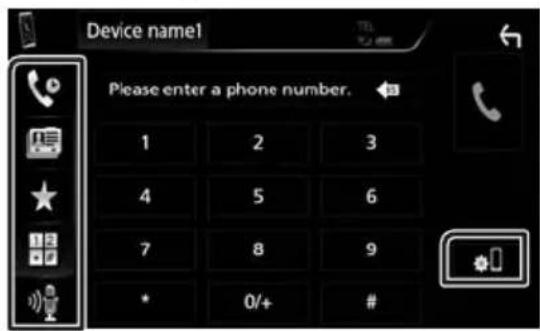

]: Call by entering a phone number

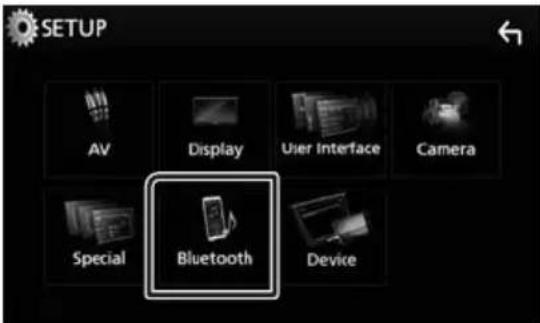

]: Voice Recognition (P.33) ● Bluetooth SETUP

Bluetooth SETUP screen appears. NOTE

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.• Setting the cell-phone in the private mode can disable the hands-free function. Call using call records 1 Touch [ ]. 2 Select the phone number from the list. Call by entering a phone number 1 Touch [ ]. 2 Enter a phone number with number keys. 3 Touch [ ]. !B5A-2247-20_DMX_E_EnFr.indb 32 2019/06/11 10:29Bluetooth Control 33English Call using the preset number 1 Touch [ ]. 2 Touch the Name or phone number. Call using the phonebook 1 Touch [ ]. 2 Select the person you want to call from the list. 3 Select the phone number from the list. NOTE

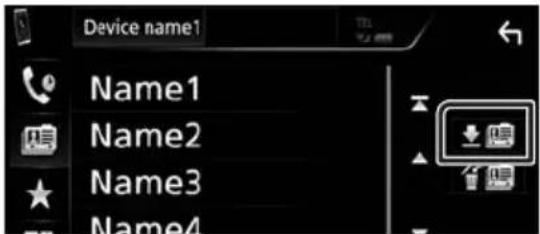

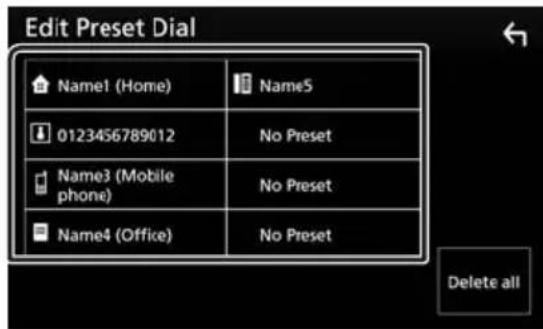

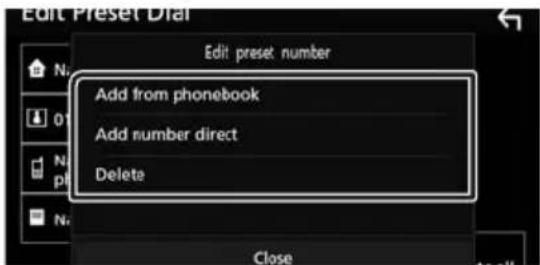

• If no Phonebook has been downloaded, touching [Download Phonebook Now] will start downloading the Phonebook. Ñ Voice Recognition You can access the voice recognition function of the cell-phone connected to this unit. You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.) 1 Press the [ ] button for 1 second. Press for 1 second Voice Recognition screen appears. 2 Start speaking. NOTE

• You can use voice recognition function by touching [ ] on the Hands Free screen. !B5A-2247-20_DMX_E_EnFr.indb 33 2019/06/11 10:29Bluetooth Control

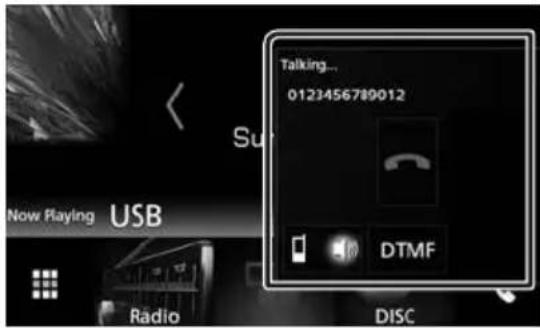

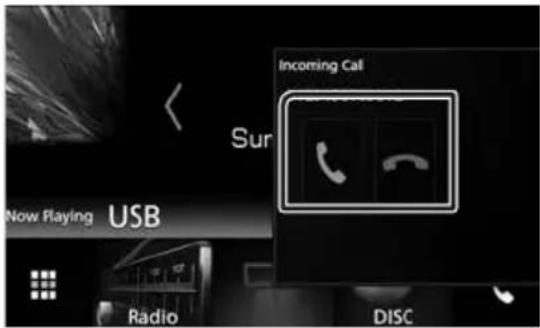

Ñ Receive a call 1 Touch [ ] to answer a phone call or

] to reject an incoming call. NOTE

• While monitoring the view camera, this screen does not appear even if a call comes in. To display this screen, press the [TEL] button or return the shift knob of car to the driver position. To end call 1 While talking, touch [ ]. Ñ Operations during a call ● Adjust the receiver volume Press the [S] or [R] button. ● Output the dial tone Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on the screen. ● Switching the speaking voice output Touching [ ]/ [ ] each time switches the speaking voice output between cell-phone and speaker. ● Call-waiting When you receive a call while talking on another call, you can answer the newly received call by touching [ ]. The current call is on hold. Each time you touch [ ], the caller will change. When you touch [ ], the current call will end and switch to the call in hold. !B5A-2247-20_DMX_E_EnFr.indb 34 2019/06/11 10:29Bluetooth Control 35English Ñ Phone number preset You can register frequently used phone numbers to this unit. 1 Touch [ ]. 2 Touch [Edit]. 3 Select where to preset. 4 Select how to preset. ■ [Add number from phonebook] Select the number to preset from the phonebook. See Call using the phonebook (P.33). ■ [Add number direct] Enter the telephone number directly and touch [SET]. See Call by entering a phone number (P.32). ■ [Delete] To delete a preset number, touch [Delete] and then touch [OK] on the confirmation screen. Ñ Phonebook transfer You can transfer the phonebook in your Bluetooth smartphone via PBAP. 1 Touch [ ]. 2 Touch [ ]. The phonebook data transmission starts. NOTE

• If the Phonebook contains more than 1000 entries, Phonebook data cannot be transferred. Phonebook deletion 1 Touch [ ]. Confirmation message appears. 2 Touch [Ye s ]. !B5A-2247-20_DMX_E_EnFr.indb 35 2019/06/11 10:29Other External Components

Other External Components View Camera NOTE

• To connect a camera, see P.51.• To use a rear view camera, a REVERSE lead connection is required. (P.51)• The rear view screen is displayed when you shift the gear to the reverse (R) position. Ñ Display the camera screen 1 Press the [MENU] button. Popup menu appears. 2 Touch [Camera]. View camera screen appears. 3 Adjust each item as follows.

Camera offTouch to exit the camera screen. Ñ Camera Setup 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Camera]. Camera screen appears. 4 Set each item as follows. ■ Parking GuidelinesYou can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position.Default is “ON”. ■ Guidelines SETUP If you select [ON] for [Parking Guidelines], adjust the parking guidelines. See To adjust the parking guidelines (P.37).!B5A-2247-20_DMX_E_EnFr.indb 36 2019/06/11 10:29Other External Components 37English External audio/video players— AV-IN 1 Connect an external component to the AV-IN input terminal. (P.51) 2 Select [AV-IN] as the source. (P.9) 3 Turn on the connected component and start playing the source. To adjust the parking guidelines NOTE

• Install the rear view camera in the appropriate position according to the instructions supplied with the rear view camera.• When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving. 1 Touch [ON] of [Parking Guidelines] in the Camera screen. (P.36) 2 Touch [Guidelines SETUP] in the Camera screen. 3 Adjust the parking guidelines by selecting the mark. 4 Adjusting the position of the selected mark.

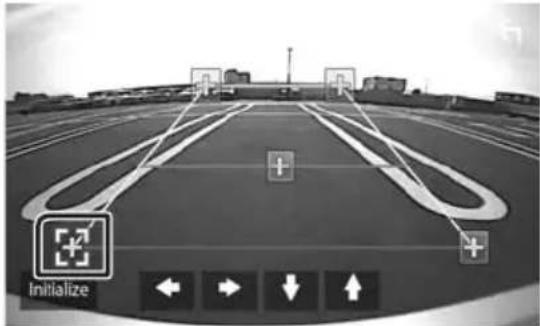

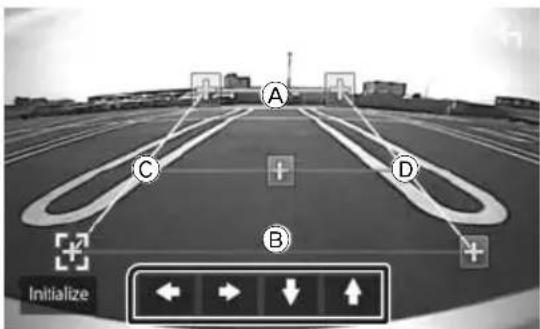

Make sure that A and B are horizontally parallel, and that C and D are the same length. NOTE

• Touch [Initialize] and after touch [Yes] to set all the marks to the initial default position.!B5A-2247-20_DMX_E_EnFr.indb 37 2019/06/11 10:29Setting Up

Setting Up Monitor Screen Setup You can adjust image quality in video screen. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Screen Adjustment]. Screen Control screen appears. 3 Adjust each item as follows. ■ Contrast / Brightness / Colour / Tint Adjusts each item. NOTE

• Adjusting items are different depending on the current source. System Setup NOTE
• Each operation in this section can be started from the multi function menu. 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. See the following section for each setting.

• Set up the user interface (P.39)

• Set up camera (P.36)

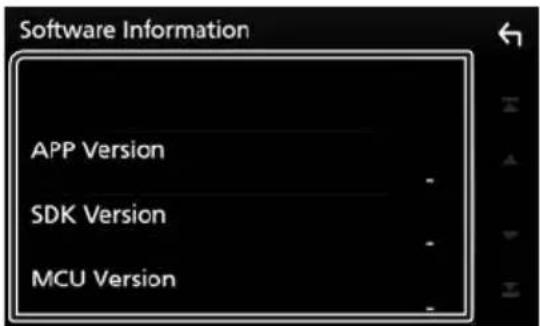

• Set up special (P.39)

• Set up Bluetooth (P.29)

• Set up Device (P.15) !B5A-2247-20_DMX_E_EnFr.indb 38 2019/06/11 10:29Setting Up 39English User Interface Setup You can setup user interface parameters. 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP screen appears. 3 Touch [User Interface]. User Interface screen appears. 4 Set each item as follows. ■ Beep Turns the key touch tone on or off. Default is “OFF”. ■ Language Selects a language. ■ Steering Remote Controller Sets the desired function in the steering remote controller. (Contact your KENWOOD dealer for details.) ■ Clock Adjust Adjust the date and time manually. (P.7) Special Setup You can setup Special parameters. 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP screen appears. 3 Touch [Special]. Special screen appears. 4 Set each item as follows. ■ DEMO Set the demonstration mode. Default is “ON”. ■ Software Information Check the software version of this unit. (P.39) ■ Open Source Licenses Displays the open source licenses. ■ Initialize Touch [Initialize] and then touch [Yes ] to set all the settings to the initial default settings. Ñ Software Information Check the software version of this unit. 1 Touch [Software Information] in the Special screen. 2 Confirm the software version. !B5A-2247-20_DMX_E_EnFr.indb 39 2019/06/11 10:29Setting Up

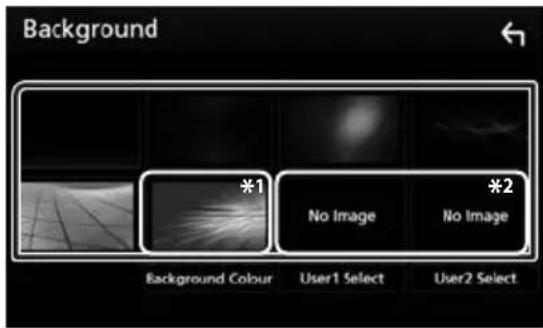

Display Setup 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP screen appears. 3 Touch [Display]. Display screen appears. 4 Set each item as follows. ■ Dimmer Select dimmer mode. OFF: The display and buttons do not dim. ON: The display and buttons dim. SYNC (Default): Turns the dimmer function on or off when the vehicle light control switch is turned on or off. ■ Screen Adjustment Displays the Screen Adjustment screen. (P.38) ■ Background Changing background image or color. (P.40) Ñ Change background image or color 1 Touch [Background] in the Display screen. 2 Select an image.

Select a background color in advance.

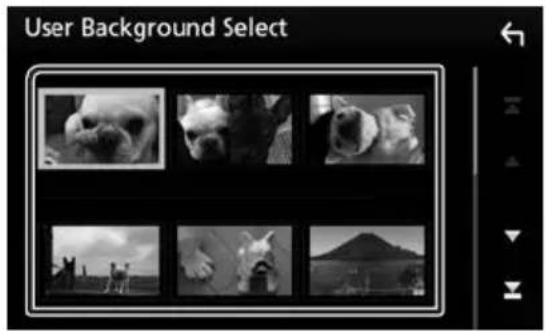

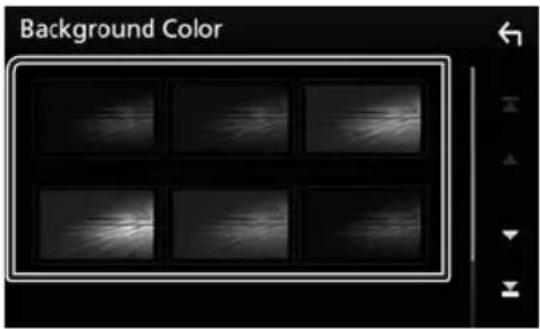

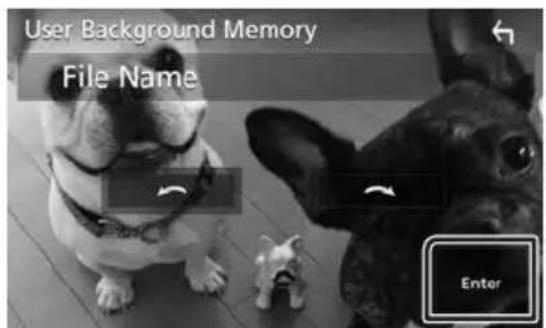

Select an original image in advance. To select background color 1 Touch [Background Color] in the Background screen. 2 Select a background color. !B5A-2247-20_DMX_E_EnFr.indb 40 2019/06/11 10:29Setting Up 41English To register original image You can load an image from the connected USB device and set it for the background image. Before operating this procedure, it is necessary to connect the device which has the image to load. 1 Touch [User1 Select] or [User2 Select] in the Background screen. 2 Select the image to load. 3 Touch [Enter]. The selected image is loaded and the display returns to the Background screen. NOTE

• Touching [ ] rotates counter clockwise.
• Touching [] rotates clockwise.• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP (.bmp) AV Setup You can set AV parameters. 1 Press the [MENU] button. Popup menu appears. 2 Touch [SETUP]. SETUP screen appears. 3 Touch [AV]. AV screen appears. 4 Set each item as follows. ■ AV-OUT Specify whether to output the current source signal from the AV OUTPUT terminal. “ON”/ “OFF” (Default) NOTE
• Images can be output only from the AV IN and USB (video file) source.• If display of the rear view camera image is selected when the AV-IN source is being played, no image is output from the AV OUTPUT terminal. ■ CarPlay Sidebar Select the position of the control bar (left or right) shown on the touch panel. “Left” (Default)/ “Right” NOTE
• The setting is available when an iPhone is disconnected. ■ AV Color Adjust You can adjust image quality in video screen. (P.38) NOTE
• Adjusting items are different depending on the current source.!B5A-2247-20_DMX_E_EnFr.indb 41 2019/06/11 10:29Controlling Audio

• Each operation in this section can be started from the multi function menu. You can adjust the various settings such as audio balance or subwoofer level. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. See the following section for each setting.

• Set listening position/ DTA (P.46)

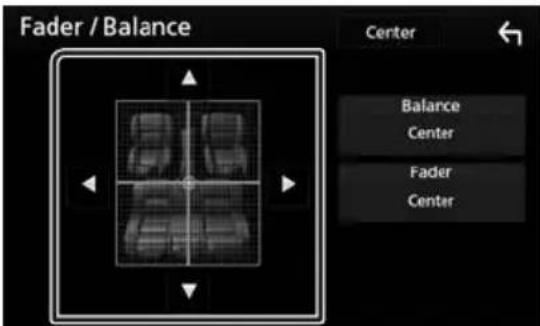

• Controlling general audio (Fader / Balance) (P.43)

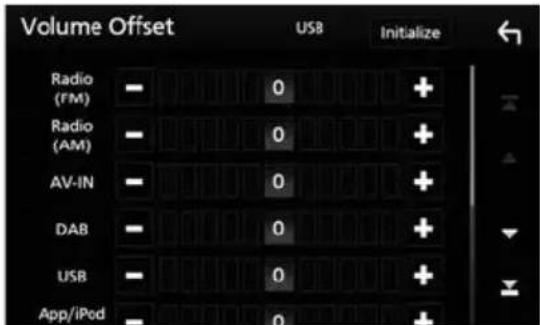

• Set volume offset (P.45)

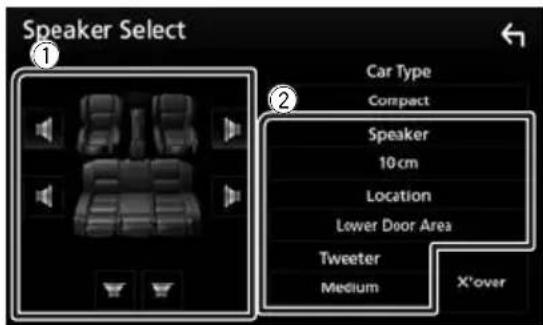

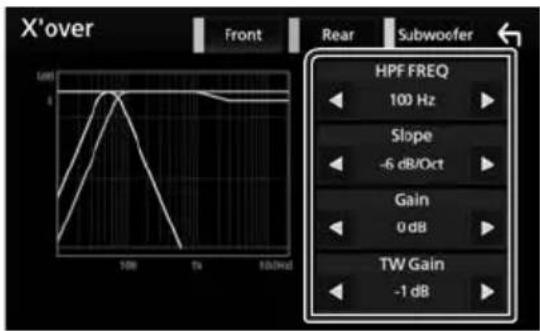

• Set sound effect (P.45) Speaker/ X’over setup 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Speaker/Xʼover]. 4 Select a car type. You can setup the car type and speaker network, etc. If your car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects. 5 Touch the speaker (1) you wish to adjust and set each item (2) as follows.

■ Speaker You can select a speaker type and its size to get the best sound effects. When the speaker type and size are set, the speaker crossover network is set automatically. ■ Location (Only for Front, Rear) Select the speaker position you have fixed. !B5A-2247-20_DMX_E_EnFr.indb 42 2019/06/11 10:29Controlling Audio 43English ■ Tweeter (Only for Front) You can set the tweeter when you are selecting front speakers. None, Small, Medium, Large ■ X’over Displays the speaker crossover setup screen. You can adjust the crossover setup that was set automatically when you selected the speaker type. For details, see Crossover network setup (P.43) Ñ Crossover network setup You can set a crossover frequency of speakers. 1 Touch [Xʼover]. 2 Touch the speaker to set. 3 Set each item as follows. ■ HPF FREQ High Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen) ■ LPF FREQ Low Pass Filter adjustment. (When subwoofer is selected on Speaker Select screen) ■ Slope*

Sets a crossover slope. ■ Gain Adjusts the front speaker, rear speaker, or subwoofer level. ■ TW (Tweeter) Gain *

Adjusts the tweeter level. (When front is selected on Speaker Select screen) ■ Phase Inversion*

Sets the phase of subwoofer output. Check [Phase Inversion] to shift the phase 180 degrees. (When subwoofer is selected on Speaker Select screen)

Only when “LPF FREQ”/“HPF FREQ” is set to a mode other than “Through” in [Xʼover].

Only when “Tweeter” is set to “Small”, “Medium”, “Large” in [Speaker Setup].

Only when “Subwoofer” is set to a mode other than “None” in [Speaker Setup]. Controlling General Audio 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Fader / Balance]. 4 Set each item as follows. ■ Fader / Balance Adjust the volume balance around the touched area. [C] and [D] adjust the right and left volume balance. [R] and [S] adjust the front and rear volume balance. ■ [Center] Clear the adjustment. !B5A-2247-20_DMX_E_EnFr.indb 43 2019/06/11 10:29Controlling Audio

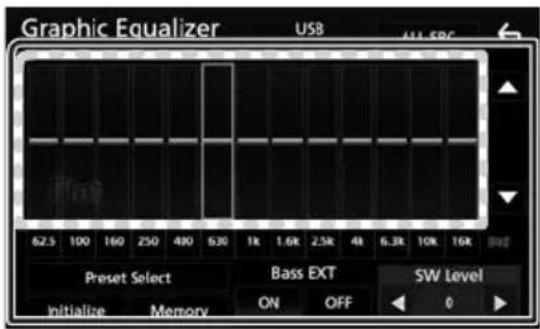

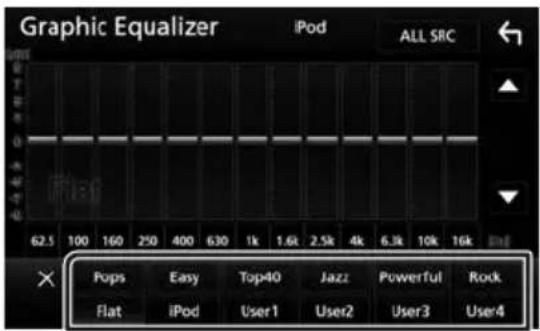

Equalizer Control You can adjust equalizer by selecting the optimized setting for each category. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Equalizer]. 4 Touch the screen and set the Graphic Equalizer as desired. ■ Gain level (dotted frame area) Adjust the gain level by touching the each frequency bar. You can select frequency bar and adjust its level by [R], [S]. ■ Preset Select Displays the screen to recall the preset equalizer curve. ■ Memory Saves the adjusted equalizer curve from “User1” to “User4”. ■ Initialize The current EQ curve returns to flat. ■ ALL SRC Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen. ■ Bass EXT (Bass Extend Settings) When turned on, the frequency lower than

62.5 Hz is set to the same gain level as 62.5

Hz. ■ SW Level Adjusts the subwoofer volume. This setting is not available when subwoofer is set to “None”. See Speaker/ X’over setup (P.42). Ñ Recall the EQ curve 1 Touch [Preset Select]. 2 Select EQ curve. NOTE

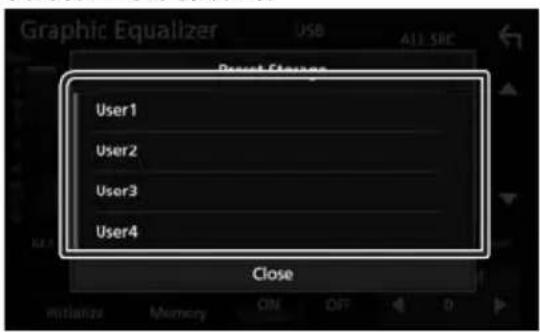

• [iPod] is available only during iPod source. Ñ Save the EQ curve 1 Adjust the EQ curve. 2 Touch [Memory]. 3 Select where to save. !B5A-2247-20_DMX_E_EnFr.indb 44 2019/06/11 10:29Controlling Audio 45English Volume Offset Finely adjust the volume of the current source to minimize the difference in volume between different sources. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Volume Offset]. 4 Touch [+] or [−] to adjust the level. ■ Initialize Returns to the initial settings.

• If you have increased the volume first, then reduced the volume using the “Volume Offset”, the sound generated if you suddenly switch to another source may be extremely loud. Sound Effect You can set sound effects. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Sound Effect]. 4 Set each item as follows. ■ Bass Boost Sets the amount of bass boost among “OFF”/ “1”/ “2”/ “3”. ■ Loudness Sets the amounts of boost of low and high tones. “OFF”, “Low”, “High” !B5A-2247-20_DMX_E_EnFr.indb 45 2019/06/11 10:29Controlling Audio

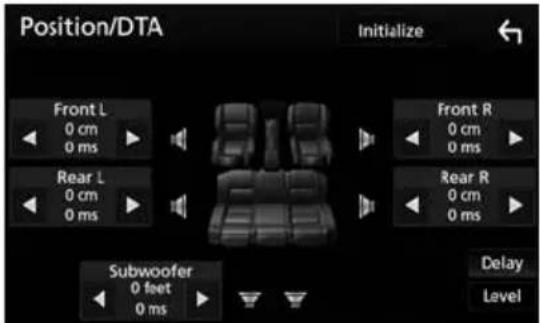

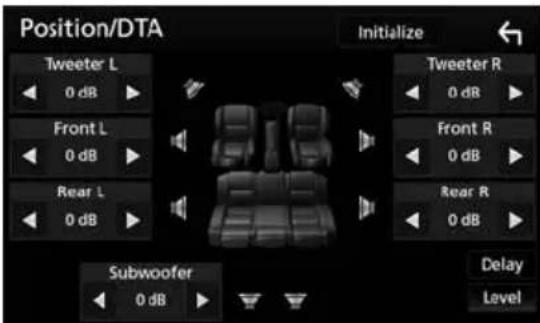

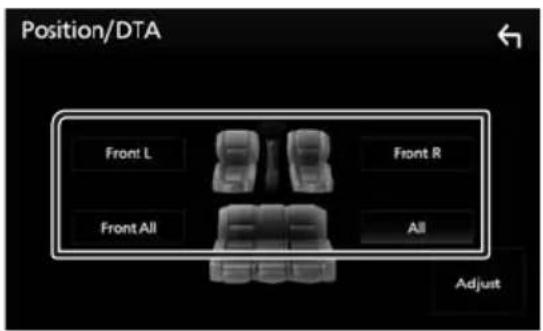

Listening Position/ DTA Adjust the sound delay time as nearer speakers to the selected seat have more delay time, so that the sound from each speaker arrive a listener at the same time. 1 Press the [MENU] button. Popup menu appears. 2 Touch [Audio]. Audio screen appears. 3 Touch [Position/DTA]. 4 Select listening position from [Front R] (Right front), [Front L] (Left front), [Front All] (All front), and [All]. Position DTA control You can fine-adjust your listening position. 1 Touch [Adjust]. 2 Touch [Delay]. 3 Touch [T] or [U] to adjust the delay time of the selected speaker. 4 Touch [Level]. 5 Touch [T] or [U] to adjust the sound level of the selected speaker. NOTE

• To return to the initial setting of Delay and Level, touch [Initialize] and [YES] in the confirmation screen.!B5A-2247-20_DMX_E_EnFr.indb 46 2019/06/11 10:29Remote control 47English Remote control This unit can be operated using the remote control KNA-RCDV331 (optional accessory). Ñ Switch the operation mode Turn its operation mode switch to “DVD.” DVD T V NAV AUD

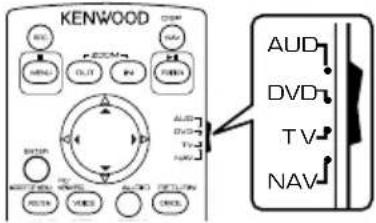

Functions of the Remote control Buttons

• Aim the remote control directly at the remote sensor on the faceplate.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

1 SRC Switches to the source to be played.

When a call comes in, answers the call.

Adjusts the volume. 5 FM+ AM– Selects the folder to be played. During tuner source, select FM/ AM band to be received.

Selects the track or file to be played. During tuner source, switches to broadcast stations received by the unit. 7 ATT Mutes/restores the sound – Other Not used. !B5A-2247-20_DMX_E_EnFr.indb 47 2019/06/11 10:29Connection/Installation

Connection/Installation Before Installation Before installation of this unit, please note the following precautions. # WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.

• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. # CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.

• Make sure to ground the unit to a negative 12V DC power supply.

• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.

• If the power is not turned ON (“There is an error in the speaker wiring. Please check the connections.” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.

• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.

• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.

• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the ¤ wires or ground them to any metal part in the car.

• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the ¢ connector of the left speaker to a front output terminal, do not connect the ¤ connector to a rear output terminal.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• Reception may drop if there are metal objects near the Bluetooth antenna. Bluetooth antenna unit !B5A-2247-20_DMX_E_EnFr.indb 48 2019/06/11 10:29Connection/Installation 49English Ñ Supplied accessories for installation

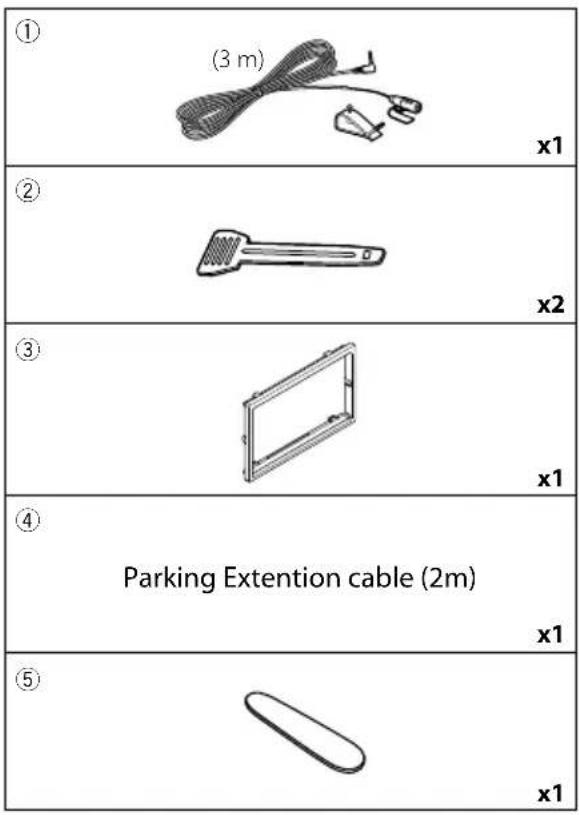

Parking Extention cable (2m)

from the ignition and disconnect the ¤ terminal of the battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the ISO connector to the unit.

4) Install the unit in your car.

5) Reconnect the ¤ terminal of the battery.

6) Perform the Initial Setup.

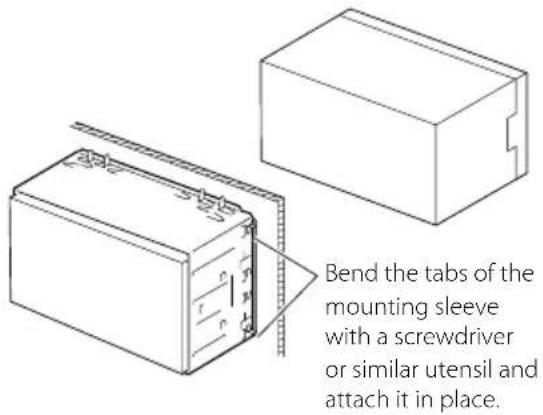

See Initial setup (P.6). Installing the unit Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Ñ Trim plate

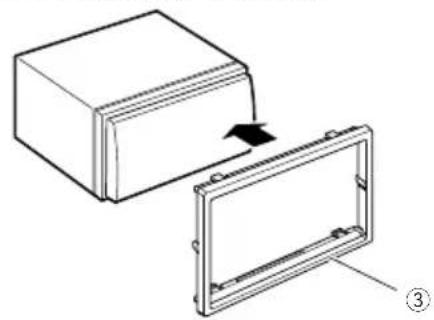

1) Attach accessory 3 to the unit.

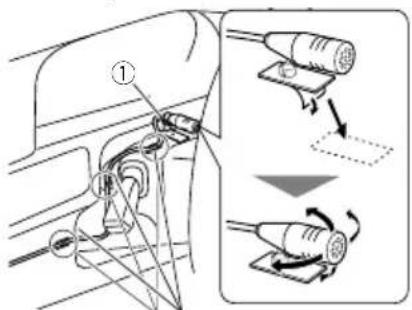

1) Check the installation position of the

microphone (accessory 1).

2) Clean the installation surface.

3) Remove the separator of the microphone

(accessory 1), and stick the microphone to the place shown below.

4) Wire the microphone cable up to the unit

with it secured at several positions using tape or other desired method.

5) Adjust the direction of the microphone

(accessory 1) to the driver.

Fix a cable with a commercial item of tape. !B5A-2247-20_DMX_E_EnFr.indb 49 2019/06/11 10:29Connection/Installation

1) Use the extraction key (accessory 5 to lever

out the four tabs (two on the left part, two on the right part).

2) Pull the trim plate forward.

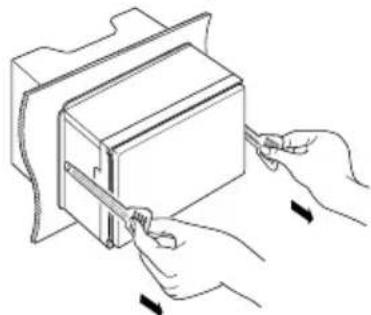

1) Remove the trim plate by referring to step 1

in “Removing the trim plate”.

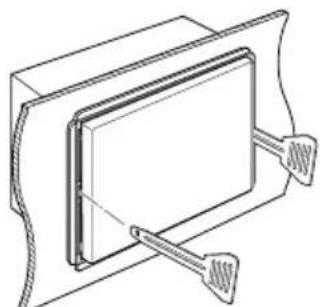

2) Insert the extraction key (accessory 2)

deeply into the slot as shown. (The protrusion at the tip of the extraction key must face toward the unit.)

3) With the inserted extraction key secured,

insert the other extraction key into the slot.

4) Pull out the unit halfway.

• Be careful to avoid injury from the catch pins on the extraction key.

5) Pull the unit all the way out with your hands,

being careful not to drop it.

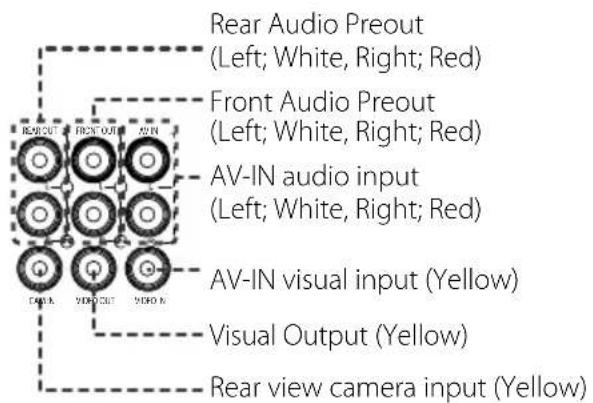

!B5A-2247-20_DMX_E_EnFr.indb 50 2019/06/11 10:29Connection/Installation 51English ANT

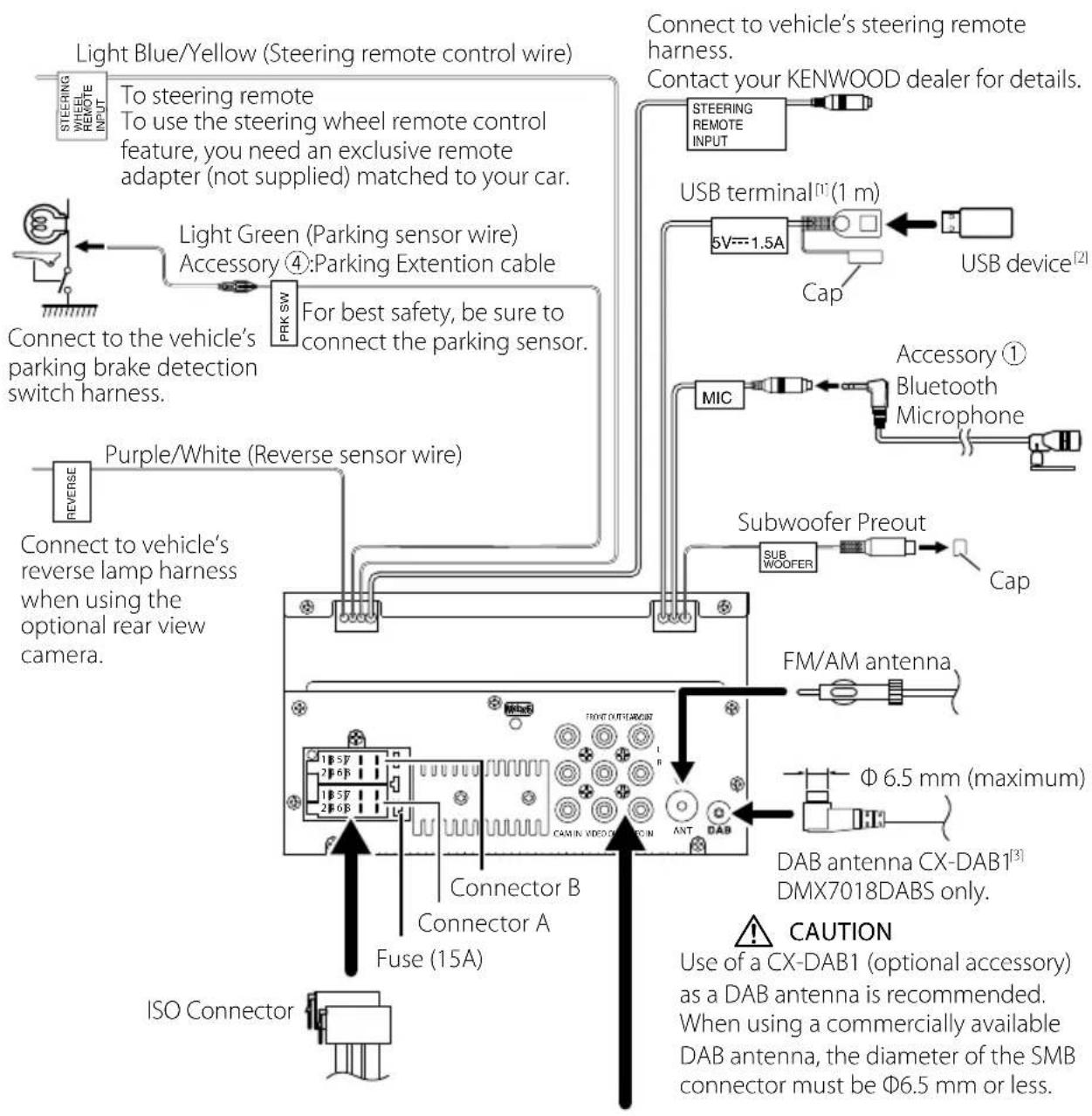

Connect to the vehicle’s parking brake detection switch harness. For best safety, be sure to connect the parking sensor. Light Green (Parking sensor wire) Accessory 4:Parking Extention cable Purple/White (Reverse sensor wire) Accessory 1 Bluetooth Microphone To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. Connect to vehicle’s reverse lamp harness when using the optional rear view camera. Light Blue/Yellow (Steering remote control wire) Connect to vehicle’s steering remote harness. Contact your KENWOOD dealer for details. Fuse (15A) Ñ Connecting wires to terminals Subwoofer Preout Cap Cap FM/AM antenna Φ 6.5 mm (maximum) DAB antenna CX-DAB1 [3] DMX7018DABS only. ! CAUTION Use of a CX-DAB1 (optional accessory) as a DAB antenna is recommended. When using a commercially available DAB antenna, the diameter of the SMB connector must be Φ6.5 mm or less. Connector A Connector B USB device [2] USB terminal [1] (1 m) [1] USB maximum power supply current : DC 5 V = 1.5 A [2] Sold separately [3] Optional accessory ISO Connector FRONTOUTREAROUT VIDEOOUT VIDEOINCAMIN AVIN Rear Audio Preout (Left; White, Right; Red) AV-IN audio input (Left; White, Right; Red) Front Audio Preout (Left; White, Right; Red) Visual Output (Yellow) Rear view camera input (Yellow) AV-IN visual input (Yellow) !B5A-2247-20_DMX_E_EnFr.indb 51 2019/06/11 10:30Connection/Installation

1.5A KCA-iP103 (0.8m) [3] Micro USB to USB cable [2] iPod/iPhone [2] Lightning connector Android smartphone [2] [1] iPod/iPhone maximum power supply current : DC 5 V = 1.5 A [2] Sold separately [3] Optional accessory Ñ Connecting an iPod/iPhone/ Android Cap USB terminal [1] (0.8 m) Ñ ISO Connector function guide Pin Color and function A-4 Yellow Battery A-5 Blue/White [1] Power Control A-6 Orange/White Illumination A-7 Red Ignition (ACC) A-8 Black Earth (Ground) Connection B-1/ B-2 Purple (+) / Purple/Black (–) Rear Right B-3/ B-4 Gray (+) / Gray/Black (–) Front Right B-5/ B-6 White (+) / White/Black (–) Front Left B-7/ B-8 Green (+) / Green/Black (–) Rear Left [1] Max. 300mA, 12V

• Speaker Impedance: 4-8 Ω ! CAUTION Before you connect the commercially available ISO connectors to the unit, check the following condition:

• Make sure that the pin assignment of the connector matches with the KENWOOD unit.

• Take extra notice of the power wire.

• In case battery wire and ignition wire are not corresponding then change them accordingly.

• In case the car does not have an ignition wire, use a commercially available interface. !B5A-2247-20_DMX_E_EnFr.indb 52 2019/06/11 10:30Troubleshooting 53English Troubleshooting Problems and Solutions If any trouble occurs, first check the following table for possible problems. NOTE
• Some functions of this unit may be disabled by some settings made on this unit.• What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Ñ About settings
• Cannot set up the subwoofer.• Cannot set up subwoofer phase.• No output from the subwoofer.• Cannot set up the low pass filter.• Cannot set up the high pass filter.Subwoofer is not set to on. Set the subwoofer to on. See Speaker/ X’over setup (P.42). Ñ About audio operations Radio reception is poor.The car antenna is not extended. Pull out the antenna all the way.The antenna control wire is not connected. Connect the wire correctly. See Connecting wires to terminals (P.51).Cannot select a folder.The random play function is enabled. Turn off the random function.The sound skips when an audio file is being played.The recording condition is bad. Record the file again or use another USB memory. Ñ Other The Touch Sensor Tone doesn’t sound.The preout jack is being used. The Touch Sensor Tone cannot be output from the preout jack. Error Messages When you fail to operate the unit correctly, the cause of the failure appears as the message on the screen. No Device (USB device)The USB device is selected as a source although no USB device is connected. Change the source to any source other than USB/iPod. Connect a USB device, and change the source to USB again.Disconnected (iPod, Bluetooth audio player)The iPod/Bluetooth audio player is selected as a source although no iPod/Bluetooth audio player is connected. Change the source to any source other than iPod/Bluetooth. Connect an iPod/Bluetooth audio player, and change the source to iPod/Bluetooth again.No Media fileThe connected USB device contains no playable audio file. Media was played that doesn’t have data recorded that the unit can play. See Playable Media and Files (P.54) and try another USB device.!B5A-2247-20_DMX_E_EnFr.indb 53 2019/06/11 10:30Appendix

Appendix Playable Media and Files You can play various kinds of media and files on this unit. Ñ About files The following audio and video files are supported. ■ Playable Audio files Format Bit rate Sampling frequency Bit countAAC-LC (.m4a) MPEG2/4 AAC LCHE-AAC(V1,V2)8 – 320kbps, VBR 16 – 48 kHz 16 bitMP3 (.mp3) MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bitWMA (.wma) Windows Media Audio Standard L3 profile (Version 7,8,9)8 – 320kbps 16 – 48 kHz 16 bitLinear PCM (WAVE) (.wav) RIFF waveform Audio Format 16 – 192 kHz 16/ 24 bit FLAC (.flac) flac – 16 – 192 kHz 16/ 24 bit Vorbis (.ogg) vorbis VBR 16 – 48 kHz 16 bit NOTE

• WMA and AAC of which is covered with DRM cannot be played.
• Although the audio files are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device. ■ Acceptable Video files Profile Max. Picture size Max. bit rate Audio format MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2 MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2 H.264/MPEG-4 AVC (.mp4, .m4v, .avi, .flv)Baseline Profile, Main Profile1920 × 1080 (30 fps) 8 Mbps MP3, AACMPEG-4 (.mp4, .avi) Advanced Simple Profile1920 × 1080 (30 fps) 8 Mbps MP3, AAC WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA MKV (.mkv) Video Format follows H.264/MPEG-4 AVC, MPEG-4 MP3, AAC ■ Limitation of structure for the file and the folder USB deviceMaximum number of folder layers 8Maximum number of files (per folder) 999Maximum number of folders (per folder) 9999Maximum number of folders (per device) – NOTE

• You can enter a folder name and file name with 255 or fewer single-byte characters.

• Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly. Specifications subject to change without notice. !B5A-2247-20_DMX_E_EnFr.indb 56 2019/06/11 10:30Appendix 57English About this Unit ■ Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2 007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the !B5A-2247-20_DMX_E_EnFr.indb 57 2019/06/11 10:30Appendix

distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• The “AAC” logo is a trademark of Dolby Laboratories.

• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries.

INFORMATION INCLUDING THAT RELATING TO

• libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2 007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libvorbis Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. !B5A-2247-20_DMX_E_EnFr.indb 113 2019/06/11 10:30Annexes

– Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR

• libogg Copyright (c) 2002, Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. – Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT

NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR
