Product Type	Portable Power Station (MOV:E Power Unit)
Brand	Bachmann
Model	MOV:E (Item no. 702.5000, 702.5001, 702.5100, 702.5101)
Dimensions	19 x 23 cm (diameter x height)
Weight	2.9 kg (models 702.5100/5101) or 3.1 kg (models 702.5000/5001)
Input	24 V DC, 5 A (via included power supply unit)
AC Output	230 V AC, 50 Hz, 150 W (models 702.5000/5001 only)
USB-C Output	5/9/15/20 V DC, up to 3 A, max 60 W per port
USB-A Output	5 V DC, 3 A, max 15 W per port
Number of USB Ports (models 702.5000/5001)	2x USB-A + 2x USB-C
Number of USB Ports (models 702.5100/5101)	4x USB-A + 4x USB-C
Maximum Energy Output	230 Wh
Charging Time	Approx. 2-3 hours to 100%
Operating Temperature	0 °C to 40 °C
Storage Temperature	Below 45 °C
Humidity	Below 60% relative humidity
Safety Features	Overheat protection, automatic shut-off after 15 min without load, short-circuit protection
Standards Complied	IEC 62368-1, IEC 63000, UN38.3, IEC 62133-2, Low Voltage Directive 2014/35/EU
Cleaning	Dry, soft cloth only
Maintenance	Contact Bachmann customer service; do not service yourself
Warranty	Warranty void if product is dismantled
Country of Origin	Made in Germany
Accessories Included	MOV:E Power Unit, power supply unit, manual
Optional Accessories	MOV:E Charging Station (702.5200), MOV:E Safety Lock Adapter (702.5301)
Disposal	Return to Bachmann or at municipal collection points; subject to WEEE

Frequently Asked Questions - MOV:E Bachmann

How do I turn on the MOV:E power unit?

Press and hold the ON/OFF sensor button for about 3-5 seconds. The battery status LEDs will flash to indicate the current charge level.

Can I charge the MOV:E with a different charger?

No, only use the supplied power supply unit (24 V DC, 5 A) or the optional MOV:E charging station (item no. 702.5200). Using other chargers may cause fire or injury.

How long does it take to fully charge the power unit?

Charging takes approximately 2-3 hours. The LED indicator lights up blue during charging.

What should I do if the device overheats?

Switch off the MOV:E power unit immediately and allow it to cool down. If the problem persists, contact Bachmann customer service.

Can I use the MOV:E while it is charging?

The manual does not explicitly mention pass-through charging. It is recommended to fully charge the unit before use.

How do I clean the MOV:E power unit?

Clean only with a dry, soft cloth. Do not use chemicals or detergents.

What are the storage conditions?

Store in a cool, dry place below 45 °C and below 60% relative humidity.

What should I do at the end of the product's life?

Do not dispose of with household waste. Return to Bachmann GmbH or hand it in at municipal collection points for electrical waste. Follow WEEE guidelines.

Can I repair the MOV:E myself?

No. Do not dismantle or attempt to repair the unit. Contact Bachmann customer service for any service or repair.

What does the optional MOV:E charging station do?

The MOV:E charging station (item no. 702.5200) provides an alternative way to charge the power unit. It connects to the same power supply and charges the unit in about 2-3 hours.

USER MANUAL MOV:E Bachmann

Line drawing of a cylindrical water heater with lid and side ports (no text or symbols)

Bachmann GmbH

Ernstaldenstraße 33

70565 Stuttgart

Line drawing of a cylindrical water heater with three circular top ports and a handle (no text or symbols)

MOV:E Netzteil

Pure electrical circuit lines without any symbols

Three-step diagram showing a mechanical assembly with a knob and rotating component (no text or symbols)

Three-step diagram showing a mechanical assembly with a central component and three sequential steps (no text or symbols)

5. Transport

MOV:E Dockingstation

Line drawing of a cylindrical container with a loop handle and a small circular top (no text or symbols)

1. Preamble

Before starting to use this product, please read the entire manual and observe all operational and safety information to ensure safe operation.

If you have any problems, questions or suggestions regarding the manual, please contact our customer service department.

General information This manual enables safe and proper operation of the MOV:E energy store (item no.: 702.5000, 702.5001, 702.5002, 702.5003). Hereinafter called the "MOV:E power unit". This manual is part of the MOV:E power unit and must therefore be kept. If the MOV:E Power Unit is passed on to third parties, this manual must also be included.

Copyright © 2021 by Bachmann GmbH

All rights reserved. The contents of this manual are protected by copyright. They may be used within the scope of operating the MOVE:E power unit. Any other use or reproduction is not permitted without the written consent of Bachmann GmbH. Bachmann GmbH reserves the right to make changes to this manual even without prior communication.

Safety symbols Safety instructions are marked with a symbol in this manual. The safety instructions are introduced by signal words that explain the extent of the hazard.

Liability The product was developed according to the current state of the art and complies with the currently valid health and safety regulations. However, dangers and risks can arise from incorrect operation or misuse. In particular, Bachmann GmbH shall not be liable for damage to property or personal injury resulting from the following: • Not using the product as intended • Disregarding the manual • Changes to the product made by persons with insufficient qualifications • Changes to the product that have been made without the express written permission of Bachmann GmbH • Improper use • Using the product despite the product being damaged or contaminated • Wear • Catastrophic events, effects from extraneous elements and force majeure Bachmann GmbH is not liable for any damage directly or indirectly attributable to the delivery, performance or use of this manual. All information without guarantee.

Attention | Warning!

1. Read the entire manual before using the product.
2. Store the product in a cool and dry place.
3. Do not store the product in a hot place (above 45 °C) or in humid environments (above 60% relative humidity).
4. Only use the product in an upright position so that the connection panels are only accessible from above.
5. Using a power supply unit or charging station not recommended or sold by the product manufacturer may result in a risk of fire or injury.
6. The ambient temperature should be between 0 °C and 40 °C.
7. Do not dismantle the product. The product safety, guarantee and warranty expire if the product has been dismantled.
8. It is not allowed to bring the product in contact with chemicals or detergents.
9. Possible damage resulting from misuse, dropping or excessive force.
10. To dispose of secondary batteries or rechargeable batteries of different electrochemical systems, keep them separate from each other.
11. Do not expose the product to mechanical shock, crushing or cutting hazards.
12. Do not short-circuit the product or expose it to short-circuiting by other metal objects.
13. It is not allowed to connect multiple sockets.
14. To reduce the risk of injury, constant supervision is required when using the product around children or keep the product away from children.
15. Do not put fingers or hands into the product.
16. Do not exceed the output power when using the product. Possible risk of fire or injury due to loads above the output power.
17. Do not use the product if it is damaged or altered. Damage or modification to batteries may cause unpredictable behaviour resulting in fire, explosion or injury hazards.
18. Switch off the energy store when it is not in use.
19. Do not dispose of the product via heat or fire.
20. At the end of its service life, dispose of the product in an environmentally friendly manner and in accordance with the applicable regulations for disposal and recycling. Furthermore, the product is subject to regulations for shipping by land, air and sea.

2. Applicable standards

1. IEC 62368-1:2018
2. IEC 63000:2018
3. UN38.3
4. IEC 62133-2: 2017
5. EN IEC 62368 -1 and (-3)
6. Low Voltage Directive 2014/35/EU

Made in Germany

3. Product description

3.1 Scope of delivery

Bachmann Item no.	Component Description/Functionality
702.50xx	MOV:E Power Unit	Enables an independent power supply
	MOV:E power supply unit
Manual

3.2 Product overview

MOV:E power unit

Line drawing of a cylindrical container with lid and side ports (no text or symbols)

MOV:E power supply unit

Pure electrical circuit lines without any symbols

3.3 Technical data

Item number 702.5000, 702.5001

MOV:Epower unit*	Input	24 V DC; 5 A
	AC /CEE7/3 output
	Voltage	230 V AC, 50 Hz, 150 W
	USB-C output
	Voltage (V DC) 5 / 9 / 15 / 20
	Current (A) 3
	max. output (W) 15 / 27 / 45 / 60
	USB-A output
	Voltage (V DC) 5
	Current (A) 3
	max. output (W) 15
	Energy output (max.) 230 W/h
	Dimensions 19x23cm
	Weight 3.1 kg
Power supply unit	Input	100-240 V - 50/60 Hz
	Output 24 V DC 5 A
	Dimensions
	Power supply unit:	152x62.5x35.5 cm
	DC cable	1.5 m
	Supply cable	1 m
	Weight 640 g

*Integrated power and thermal management

Item number 702.5100, 702.5101

MOV:Epower unit*	Input	24 V DC; 5 A
	USB-C output
	Voltage (V DC)	5 / 9 / 15 / 20
	Current (A)	3
	max. output (W)	15 / 27 / 45 / 60
	USB-A output
	Voltage (V DC)	5
	Current (A)	3
	max. output (W)	15
	Energy output (max.)	230 W/h
	Dimensions	19x23cm
	Weight	2.9kg
Power supply unit	Input	100-240 V - 50/60 Hz
	Output	24 V DC 5 A
	Dimensions
	Power supply unit:	152x62.5x35.5 cm
	DC cable	1.5 m
	Supply cable	1 m
	Weight	640 g

*Integrated power and thermal management

BACH MANN

4. Operation

4.1 Charging

Please ensure that the MOV:E power unit is fully charged before using it for the first time. When the charge level is low, the first LED in the control panel flashes.

Charge the MOV:E power unit using the power supply unit supplied.

During the charging process, the LED indicator lights up blue.

Please note: During the charging process, the energy store must stand vertically on a solid and dry surface.

Charging time: up to 100% approx. 2-3 hours

We also recommend using the optional MOV:E charging station (item no. 702.5200)

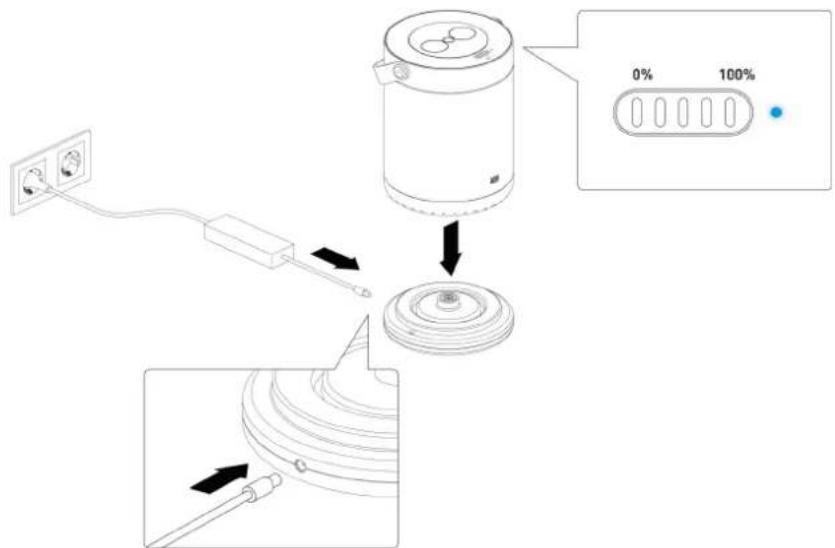

Charging option with optional charging station (Art.Nr. 702.5200) (not included in the scope of delivery)

Note: Charge the MOV:E Power Unit only with the power supply unit supplied.

BACH MANN

4.2 Operation

ON / OFF "Switch on/off sensor" for approx. 3-5 seconds by pressing the button. The battery status LEDs flash until the current charge level is determined.

The battery status LEDs indicate the available energy

After approx. 15 minutes without a plug (device), the MOV:E Power Unit switches off automatically.

As soon as a plug (device) is plugged in, the connected device is supplied with power.

Open the connection panel by pressing and turning the cover.

Six identical diagrams showing a mechanical component with arrows indicating direction, no text or symbols present.

4.2.1 Connection options item no. 702.5000, 702.5001

1x CEE7/3; 230 VAC 150 watt

2x USB-A each 15 watt

2x USB-C each 60 watt

4.2.2 Connection options item no. 702.5100, 702.5101

4x USB-A each 15 watt

4x USB-C each 60 Watt

5. Transport

ZVEI regulation UN 3481

6. Fault description

LED battery status	LED status	Solution
flashing	●	Switch off MOV:E energy store and allow to cool if overheat-ed (fig. 1)
off	●	Contact BACHMANN customer service (fig. 2)

(fig.1)

(fig.2)

7. Product description for optional accessories

Bachmann item no.	Component Description/Functionality
702.5200	MOV:E charging station	Charges the MOV:E power unit
702.5301	MOV:E Safety Lock Adapter	to attach a security lock

7.1 Product overview 702.5200 MOV:E charging station

MOV:E charging station

7.1.1 Technical data

Item number 702.5200

MOV:E charging station(optional available)	Input 24 V DC 5 A
	Output 24 V DC 5 A
	Dimensions 19x23 cm
	Weight 220 g

7.1.2 Operation

7.1.2.1 Charging

Please note: During the charging process, the MOV:E power unit and the MOV:E charging station must stand vertically on a solid and dry surface.

Charging time: up to 100% approx. 2-3 hours

7.1 MOV:E Safety Lock Adapter

Line drawing of a cylindrical container with a loop handle and a small circular top (no text or symbols)

MOV: E adapter for security lock to attach a security lock e.g. Kensington lock.

8. Cleaning

The MOV:E power unit and MOV:E charging station (optional available) should only be cleaned with a dry, soft cloth.

9. Maintenance and repairs

The MOV:E charging station must always be serviced or repaired by BACHMANN customer service.

• Do not service or repair the MOV:E power unit or MOV:E charging station (optional available) yourself
• If the MOV:E power unit and MOV:E charging station (optional available) needs to be serviced or repaired: contact Bachmann GmbH customer service

10. Return/disposal

The defective MOV:E power unit is subject to WEEE guidelines and must not be disposed of alongside normal household waste. Return the MOV:E power unit to Bachmann GmbH for correct disposal or hand it in free of charge as electrical waste at municipal collection points.

• Contact BACHMANN customer service and request a return
  • Make sure that the MOV:E power unit is switched off before shipping

11. Customer service

In case of troubleshooting or technical problems, please contact our customer service team:

Contact information:

Bachmann GmbH

Customer Service

Ernstaldenstraße 33

70565 Stuttgart

Deutschland

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.bachmann.com

For other languages - scan OR code
